BPA8
8˝ ACTIVE DJ/PA SPEAKERS w/BLUETOOTH
OWNER’S MANUAL

2
Thank you for purchasing this Rockville BPA8 8˝ Active DJ/PA Speaker with Bluetooth.
Please read this installation guide carefully for proper use of your BPA8 speaker. Should
you need assistance, please call our technical help line at 1-646-758-0144, Monday
through Friday, 9am to 5pm EST.
IMPORTANT SAFETY INSTRUCTIONS
•To reduce risk of electric shock, never open the unit. There are no user serviceable parts;
refer service to an authorized Rockville service center.
• Do not expose this unit to any kind of moisture.
• Please ensure that the unit is situated in a properly ventilated area.
• Make sure the unit is placed on a level and stable surface.
• This unit can operate with either 110V or 220V. See page 14 for instructions.

3

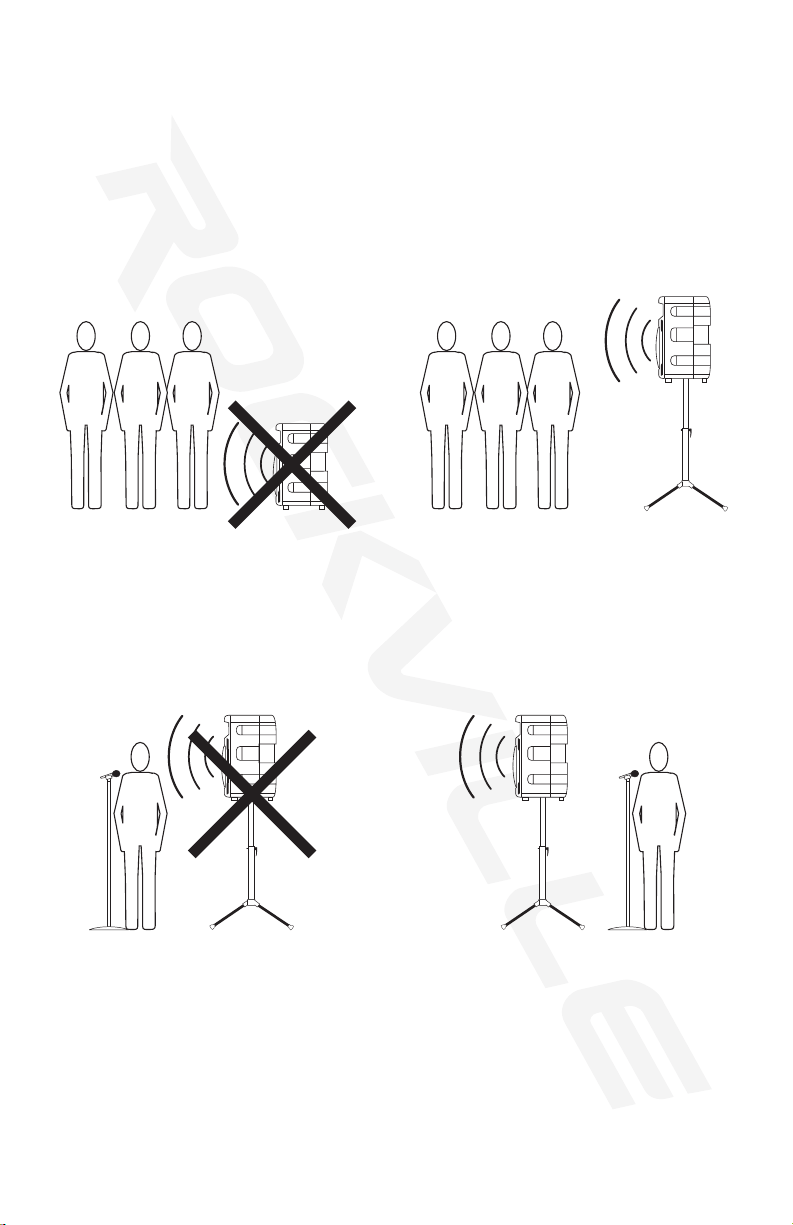

Your BPA is set up to produce the full spectrum of sound from its woofer and tweeter horn
combination. The lower frequencies seek out the oor of the room they are playing and
travel along the oor and walls. The tweeter horn is more directional. Hence when setting
up your system its more important to make sure that the tweeter horns are not blocked by
any furniture and are located / aimed at ear level to the listening audience. Woofer aiming is
not as critical as explained previously due to the nature of the woofer sounds able to travel
through various paths even when blocked.
It is therefore recommended that when setting up your system you set up your speakers
on speaker stands, such as the Rockville model RVSS-2 (not included) so that the tweeter
sounds will radiate above the listening crowd. This will guarantee optimum sound disper-
sion and achieve clear vocal sound reproduction.
The placement of your microphone is critical in avoiding feedback through your BPA sys-
tem. Never set up your microphone in front of the speaker. Always set up your microphone
behind the speaker. When approaching the speaker to make any adjustments, we recom-
mend approaching the speaker from the rear and not walking directly towards the front of
the speaker.
Setting Up Your BPA Professional Sound System
How To Avoid Irritating Feedback

4
It is best practice to set your input volume (gains) in this manner:
1. Unplug all inputs except for the one you wish to set the gain for. In this instance, the
LINE INPUT RCA jacks.
2. Set the line-level input device volume (smart phone, tablet, MP3 player, etc.) to 60%.
3. Slowly turn up the LINE INPUT volume control. As soon as the clip indicator LED goes
on or you hear any distortion – turn it down one or two notches.
Setting Level Controls
2
1 2
A. Because mixers feature two volume controls (channel and master), when con-
necting one via the XLR line in port, the procedure is slightly different. Set the BPA’s
LINE INPUT volume to 50% and set the mixer master volume to 50%. Make the
adjustments in step 3 on the mixer channel level control. If after making these ad-
justments the signal still isn’t strong enough, you can additionally boost the signal
by turning up the BPA’s LINE INPUT control.
B. When adjusting the MIC INPUT volume control, you must speak into the micro-
phone and adjust the control as needed. This is because adjustments to the mic
input are a matter of mic volume in relation to the music volume and not necessarily
a clipping issue.
Your BPA features balanced microphone input via XLR or ¼˝ TRS inputs.
1. Switch OFF your BPA.
2. Plug your microphone into the ¼˝ TRS or XLR jack. NEVER USE BOTH PORTS
AT ONCE. Make sure the LINE/MIC switch is set to MIC.
3. Switch ON your BPA.
4. Refer to the “Setting Level Controls” section of this manual for instructions on how to
properly adjust the input volume (gains).
Always stand behind the BPA when making your microphone adjustments to avoid feed-
back distortion.
Microphone Presentations
You can use the MIC/LINE INPUT XLR port to connect a mixer. Use the RCA and 3.5mm
AUX inputs to connect an additional stereo signal source such as a smart phone, tablet,
MP3 player, CD player, etc.
1. Switch OFF your BPA.
2. Connect the input source unit to the 3.5mm input, RCA jacks, or XLR input. ONLY
USE ONE INPUT AT A TIME. If using the XLR port, make sure the LINE/MIC switch is
set to LINE.
3. Switch ON your BPA.
Line Input
POWER
CLIP
3

5
Line Input (continued)
4. Refer to the “Setting Level Controls” section of this manual for instructions on how to
properly adjust the input volume (gains).

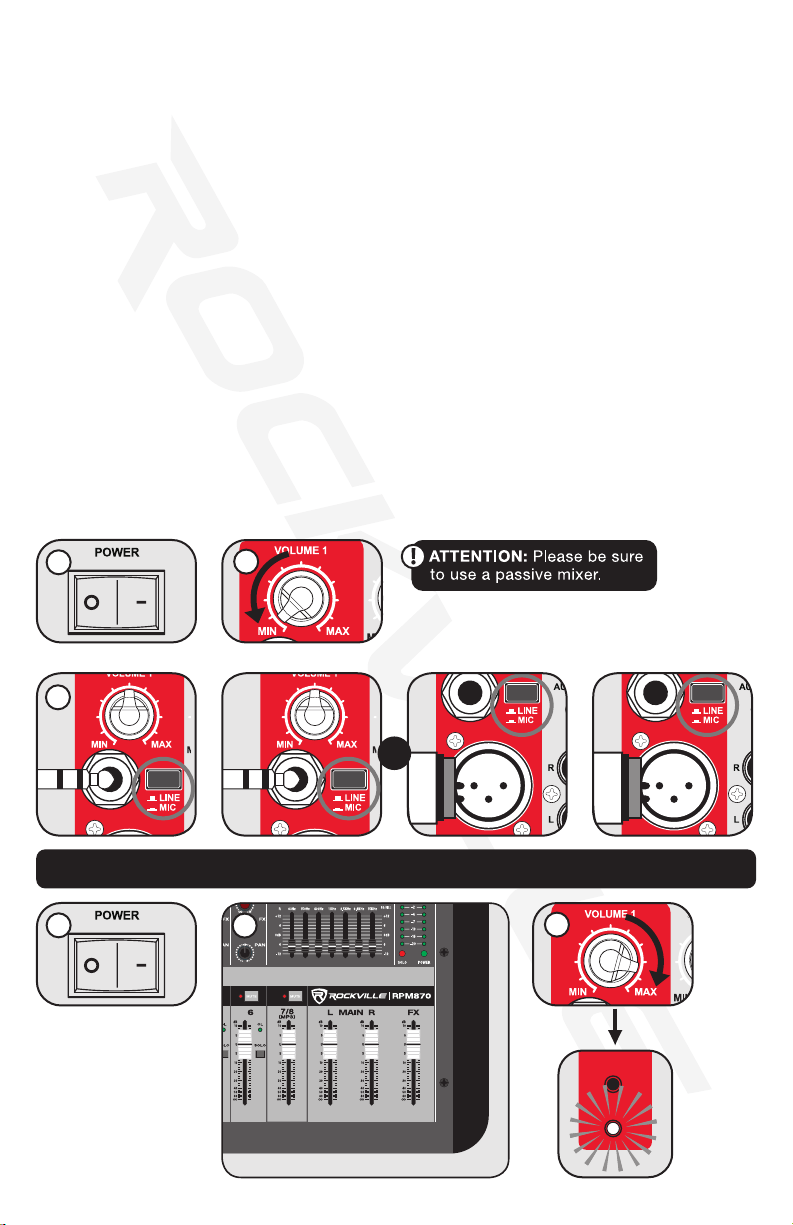

When setting up for larger venues, a passive mixing console becomes a critical piece of
equipment for appropriately mixing signals from multiple inputs such as singers, speakers,
effects devices, musicians, and of course allows for multiple speaker utilization. To connect
a mixing console begin by:
1. Turning your BPA unit OFF.
2. Turn the MIC/LINE INPUT Volume to the MIN position.
3. Connect the LEFT/RIGHT MAIN OUTPUT of the mixer to the 1/4˝ MIC/LINE INPUT
connection of your Left/Right BPA units or connect the LEFT/RIGHT MAIN OUTPUT
of the mixer to the XLR MIC/LINE INPUT connection of your Left/Right BPA units. You
can also connect the left unit via its ¼˝ port and the right unit via its xlr port and vice
versa. Never use both ports of a single unit at once. Make sure the LINE/MIC selector
switch is set to LINE.
4. Switch ON your BPA unit.
5. Slowly raise the level of the mixer output to the 0dB level position.
6. Slowly turn the MIC/LINE INPUT volume control clockwise until the CLIP LED indicator
begins to blink, then turn it down slightly. This indicates the maximum input voltage
gain is matched and set properly.
Public Address/Concert Mixer Setup
LEFT UNIT RIGHT UNIT
12
POWER
CLIP
YOU CAN CONNECT YOUR LEFT UNIT VIA ITS ¼˝ PORT AND THE RIGHT UNIT VIA ITS XLR PORT AND
VICE VERSA. NEVER USE BOTH PORTS OF A SINGLE UNIT AT ONCE.
56
LEFT UNIT
3
RIGHT UNIT
OR
4

6

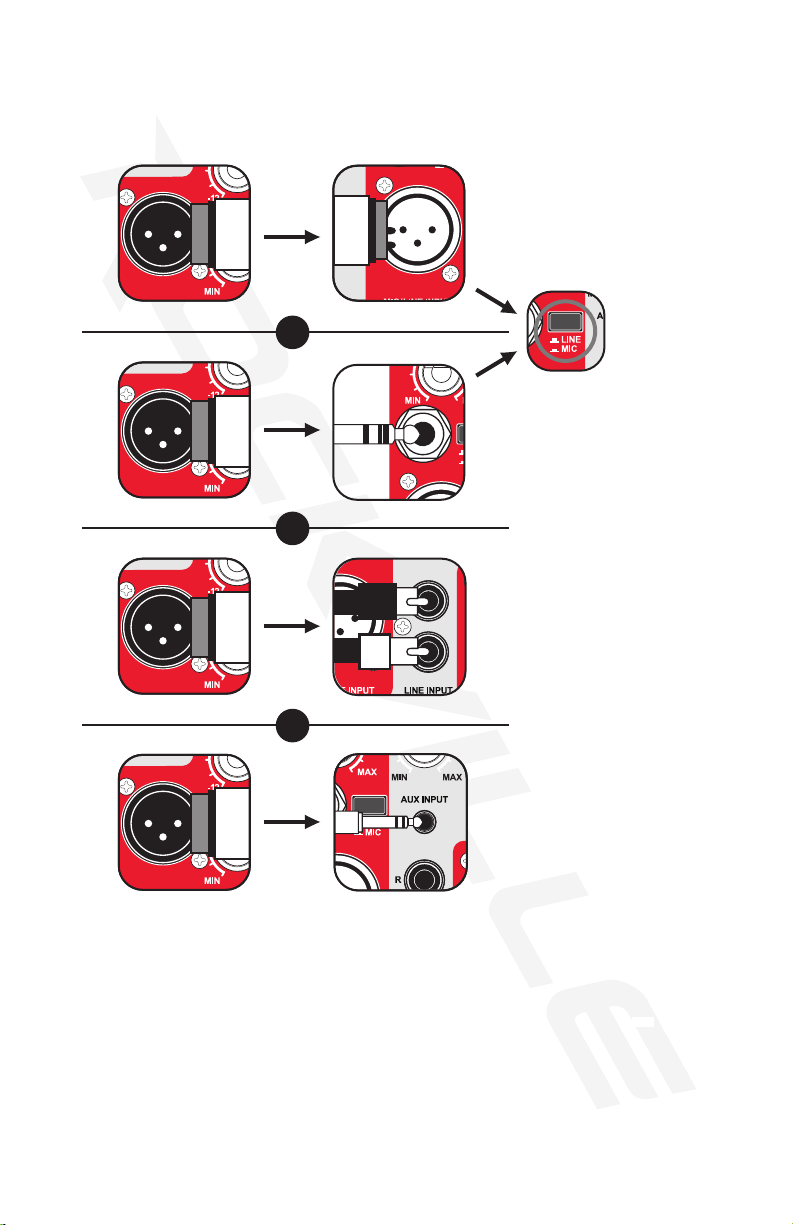

The XLR jack marked LINE OUT allows for daisy chaining of signals from one BPA unit to
another. Simply attach an XLR to XLR (g. a), XLR to ¼˝ TRS (g. b), XLR to RCA (g. c), or
XLR to 3.5mm (g. e) cable between the two units to share signals. When using the MIC/
LINE INPUT ¼˝ TRS or XLR jacks, be sure the LINE/MIC selector switch is set to LINE (fig. e).
Line Out Balanced Connection
fig. a
fig. e
fig. b
fig. c
fig. d
OR
OR
OR

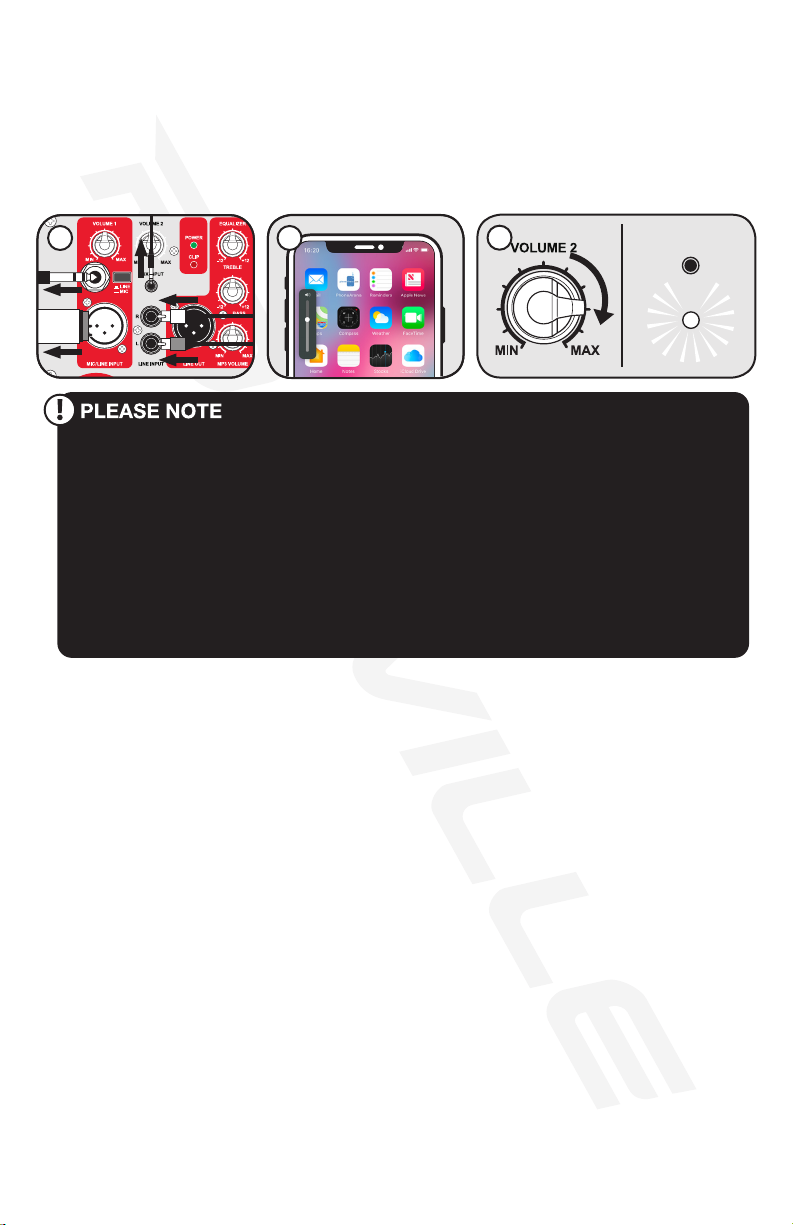

To connect your iPod, iPhone, MP3 player, Android phone or any other Bluetooth capable
device follow the steps listed below.
1. Turn on the Bluetooth feature on your device and ensure that it is discoverable.
2. Switch ON your BPA and press the MODE button until it is in BT mode. The
LCD display will read “bt” and it will ash intermitently.
3. Look for “BPA8” on the list of available devices and select it. Upon successful pairing,
bt on the LCD display will stop ashing and remain lit.
Bluetooth Pairing

7
1. Press the MODE button until the LCD display shows frequency digits.
2. Press and hold the button to scan for and save available FM stations.
3. Use the and buttons to select stations.
4. Use the MP3 VOLUME knob to adjust FM radio volume.
FM Radio
bt
4. Bluetooth volume is adjusted via the MP3 VOLUME knob.
5. If you have problems pairing your device please check the troubleshooting guide.
Bluetooth Pairing (continued)
1 3
2
For USB/SD playback insert an SD card or USB ash drive and the unit will automatically
begin playback. Please note, when an SD card or USB ash drive is inserted, it will override
all other input modes. If you switch to another mode and wish to return to USB/SD mode,
simply press the MODE button until the USB/SD LED is illuminated. Adjust the USB/SD
playback volume via the MP3 VOLUME knob.
USB/SD Input
The XLR inputs and outputs of this BPA unit are fully balanced. To maximize interference
compensation, we recommend establishing balanced connections to other equipment
whenever possible.
Balanced use with XLR connectors
Installation
input output
1 = ground/shield
2 = hot (+ve)
3 = cold (-ve)
For unbalanced use, pin 1 and pin 3 have to be bridged
2 1 1 2
3
3

8

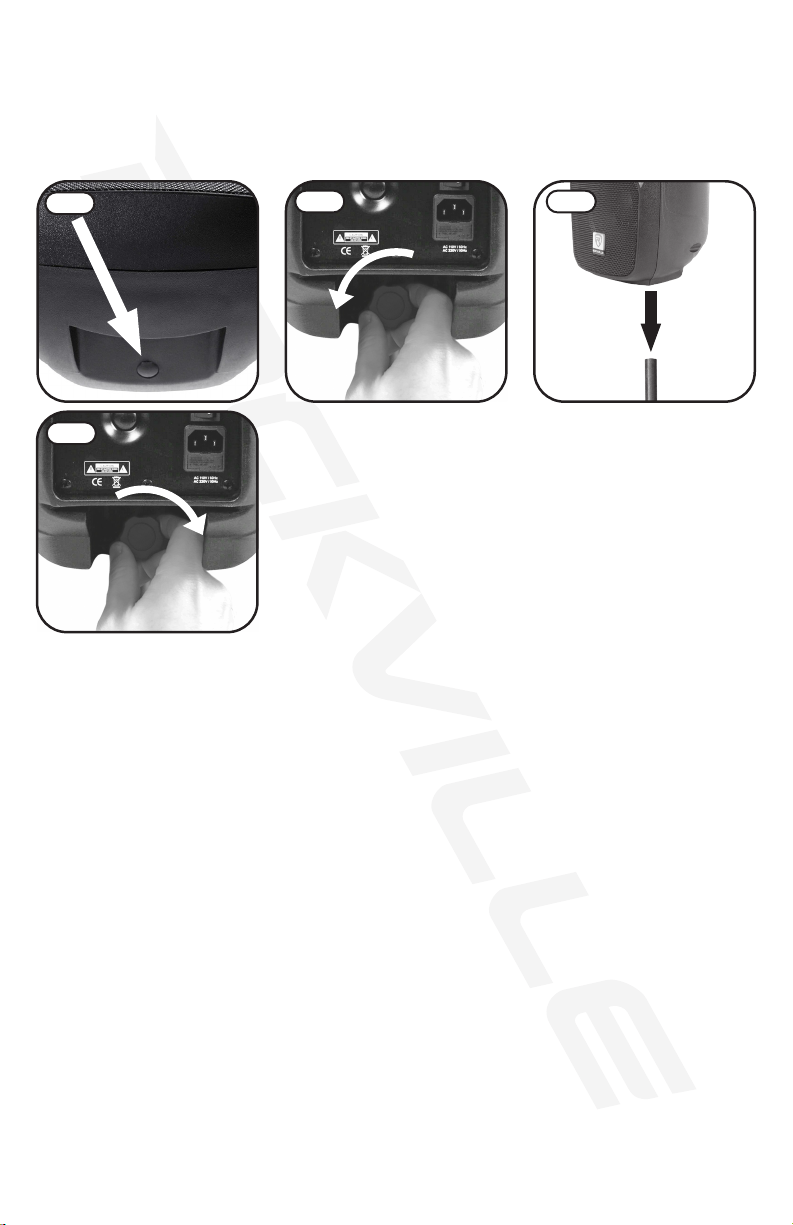

The BPA8 features two y points located at the top and the rear/bottom of the speaker. To
use the top ypoint, simply remove the plastic cap to expose the threads (g. a). To mount
the speaker, simply loosen the lock knob on the pole mount located at the back of the unit
near the bottom (g. b). Carefully lift the speaker and place it onto the stand or ypole (g.
c). Now tighten the the lock knob on the pole mount (g. d).
Fly Points
fig. b fig. c
fig. d
fig. a

9
Functions
2
4
7
10
A B
3
5
8
9
6
1
1. MODE: Push to switch between modes (USB/SD/BT/FM)
2. STOP: Stop all playback
3. MUTE
4. Rewind: In USB/SD/BT mode press for previous track, press and hold to rewind. In
FM mode press for previous station.
5. Play/Pause
6. Fast Forward: In USB/SD/BT mode press for next track, press and hold to fast
forward. In FM mode press for next station.
7. VOL -
8. EQ: Press to cycle through preset EQs - Normal, Rock, Pop, Classic, Jazz, & Country
9. VOL +
10. Number pad: In USB/SD mode use to select track numbers. In FM mode, use to
select preset stations.
A. To select tracks in the one hundreds, press the 100+ button and then the
proceeding digits. For example, to reach track 125, press 100+ then 2 and then 5.
B. To select tracks in the two hundreds, press the 200+ button and then the
proceeding digits. For example, to reach track 225, press 200+ then 2 and then 5.

10
2
3
4
6
7
8
9
5
13
14
15
16
18
19
20
17
1
10
11
12
Functions (continued)

11

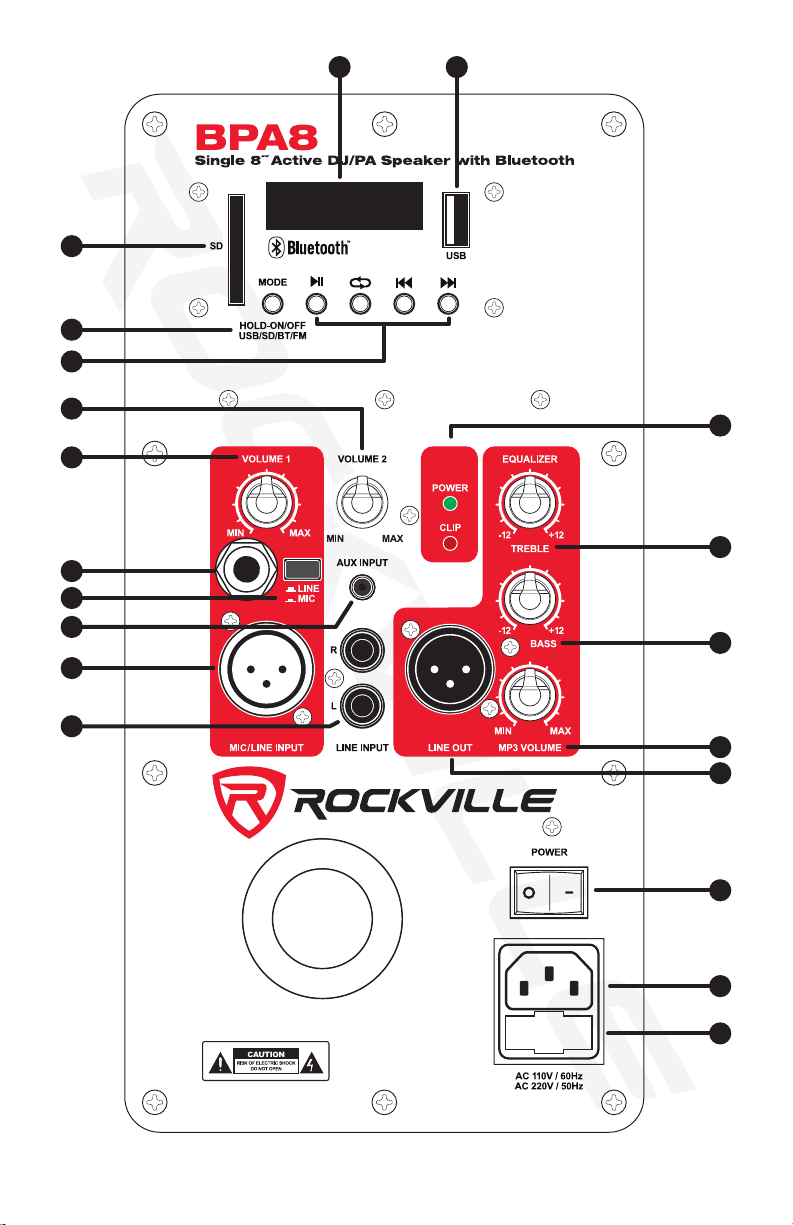

1. USB input
2. LED screen
3. SD input
4. Mode control button: Push and hold to power the MP3 module ON/OFF. Push to
switch between modes (USB/SD/BT/FM)
5. MP3 Controls:
• Play/Pause
• Repeat: press to cycle between repeat folder, current track, random, and all tracks.
• Rewind: In USB/SD/BT mode press for previous track, press and hold to rewind. In
FM mode press for previous station.
• Fast Forward: In USB/SD/BT mode press for next track, press and hold to fast for-
ward. In FM mode press for next station.
6. Line Input/Auxiliary Input volume control
7. Mic/Line Input volume control
8. ¼˝ Balanced TRS Mic/Line input
9. Line/Mic selector switch
10. 3.5mm auxiliary input
11. Balanced XLR Mic/Line input
12. RCA line input
13. Power/ Clip LED indicators
14. Treble control, -12dB to +12dB
15. Bass control, -12dB to +12dB
16. MP3 volume control adjusts the volume for all MP3 playback modes
17. Balanced XLR line out
18. Power switch
19. IEC AC power socket
20. Fuse compartment. Fuse rating: 250V/3.15A

12
Specifications
Features
• 75 Watts RMS/150 Watts Program Power/300 Watts Peak
• Frequency Response: 20Hz – 20KHz
• Maximum SPL @1w/1m: 95dB peak/92dB continuous
• Bluetooth range: 32 feet
• USB/SD digital MP3 music player. Accepted formats: MP3, WMA, WAV
• Wireless remote control
• Built-in LED screen
• High-power 2-way pro sound reinforcement speaker system for live sound and
play back applications.
• Compact and light-weight system delivers distortion-free sound even at extreme SPL.
• Linear Class AB amplier technology ensures high-power, transparent sonic performance.
• Internal switch-mode power supply for low-distortion audio with superior transient response.
• Built-in bass and treble equalization processor for ultimate system control and speaker protection.
• High-power long-throw 8˝ woofer with 1.5˝ KSV voice coil provides incredibly deep
bass and acoustic power.
• State-of-the-art 1˝ pure titanium-diaphragm compression drive for crystal-clear, high-
frequency reproduction.
• Ultra-wide dispersion, 45° large-format horizontal wave guide horn molded directly into cabinet.
• Built-in high-quality crossover to lter out unwanted frequencies.
• Ultra-low-noise Mic/Line input via XLR & ¼˝ TRS stereo jacks with volume control.
• Line RCA and 3.5mm input with independent volume control.
• Additional XLR line output to connect multiple speakers or a mixer.
• Stand mounting with 35mm pole socket.
• Flyable
• High-quality components and exceptionally rugged high-impact ABS construction.
• Amplier clip & power LED indicators
• Built-in FM radio with 10 presets and US/European tuning.
• 110/220 Volt switchable with external user serviceable fusing.
• Fuse rating: 250V/3.15A
• Item actual dimensions: 9.89˝ (L) x 8.2˝ (W) x 15.37˝ (H)
• Item actual weight: 13.2 LBS

13
Troubleshooting
PROBLEM
No sound/
distorted sound
No power
Poor Mic sound
Mic feedback
Buzzing sound
1. Make sure the unit is plugged in and the power switch is in the
ON position.
2. Check that the power cable is plugged in tightly to the unit.
3. Check and replace the fuse if necessary. See the fuse
replacement diagram on page 14.
4. If people or equipment tend to step on and roll over or stretch
your power cable it can get damaged. Always try a second cable
to test for shorts in original cable. Dispose of original damaged
power cables immediately.
1. Make sure you are using the Mic In port.
2. If using wireless mics connect them to the Line input of your mixer.
Point the mics away from the speaker. Make sure the mics are
behind the speaker, not in front of it.
Make sure you are using a proper cable. For ¼˝ cables, there are
3 types: instrument, TS (unbalanced), and TRS (balanced). Check
the requirements of the connected gear and the input of the
speaker and make sure you are using the appropriate cable.
1. Check that all appropriate cables are plugged in correctly.
2. Check volume settings (Volume 1, Volume 2, and MP3 Volume).
3. Be sure Volume and Gain of appropriate channels are set
above level 0 and matched correctly.
4. Be sure your microphone is on.
5. If using a mixing console, make sure fader and balance are set
to center positions and levels are increased.
6. If volume and EQ settings are maxed out, turn one of them
down as you may be overdriving the unit.
SOLUTION
Bluetooth pairing
fails
1. Check to see that both devices are turned on and that your
Bluetooth device is discoverable.
2. Turn both devices off and then on again.
3. Make sure you've selected the proper source.
4. Make sure that the Bluetooth device is within 5 feet of the unit.
5. Move both devices away from other Bluetooth devices, micro-
waves, wireless routers, and other electronics.
6. Make sure that the unit is not paired to a previously paired
device.
No SD or USB
playback
1. Make sure you've selected the proper source.
2. Make sure the audio les are properly formatted (see page 12).
3. Ensure the USB drive or SD card is not damaged.

14
Fuse Replacement Diagram
How to Switch Voltage
Remove the fuse.

15
Responsible party name: Rockville
Address: 600 Bayview Ave.
Entrance A
Inwood, NY 11096
Hereby declares that the product(s) BPA8 8˝ pro audio speakers comply with FCC rules as
mentioned in the following paragraph:
This device complies with Part 15 of the FCC rules. Operation is subject to the following
two conditions: (1) this device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates, uses,
and can radiate radio frequency energy and, if not installed and used in accordance with the instruc-
tions, may cause harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment to an outlet on a circuit different from that to which the
receiver is connected.
•Consult the dealer or an experienced radio/TV technician for help.
FEDERAL COMMUNICATIONS COMMISSION COMPLIANCE INFORMATION

© 2020 ROCKVILLE // Features and specifications are subject to change and or improvement without notice.
RockvilleAudio.com
