OWNER’S MANUAL

Thank you for purchasing this Rockville Power Gig RPG152K Bluetooth pro audio
speaker system.
We are very proud to bring you what we consider to be the absolute best value line pro
audio speakers. This project has been a culmination of years of development involving
a team of dreamers, engineers, designers and marketing gurus. Proudly conceived and
developed in the USA, Rockville pro audio speakers are designed and engineered by a
team of music enthusiasts, DJ’s and musicians.
We have spared no expense in manufacturing these speakers to meet the highest quality
standards. With proper care and installation this unit will provide you with the highest
levels of sound quality. We hope that this unit will bring you years of performance and
reliability.
Our goal to you and to your audience is to hear “live performance sound” the way it was
meant to be experienced.
Please read this installation guide carefully for proper use of your Power Gig RPG152K
Bluetooth pro audio speaker. Should you need technical assistance during or after your
installation please call our technical help line at 1-646-758-0144, Monday through Friday,
9am to 5pm EST.

Features
RPG152K
• 1500 Watts Peak / 375 Watts RMS / 750 Watts Program Power
• Mic Input XLR + 1/4˝
• Mic Level
• Line Input XLR + RCA
• Line Level
• Line Output XLR + 1/4˝
• Master Volume
• Master Treble
• Master Bass
• Power LED
• Clip LED
• USB/SD Input
• FM radio Built-In
• 5-Mode Preset EQ
• Bluetooth Connectivity
• Wireless remote Control
• LCD Display Screen For MP3 Player Functionality
• Output to Second Passive Unit with included Cable
• Includes one wired microphone
• Includes 1 Pair of speaker stands
• 110/220 Volt Switchable

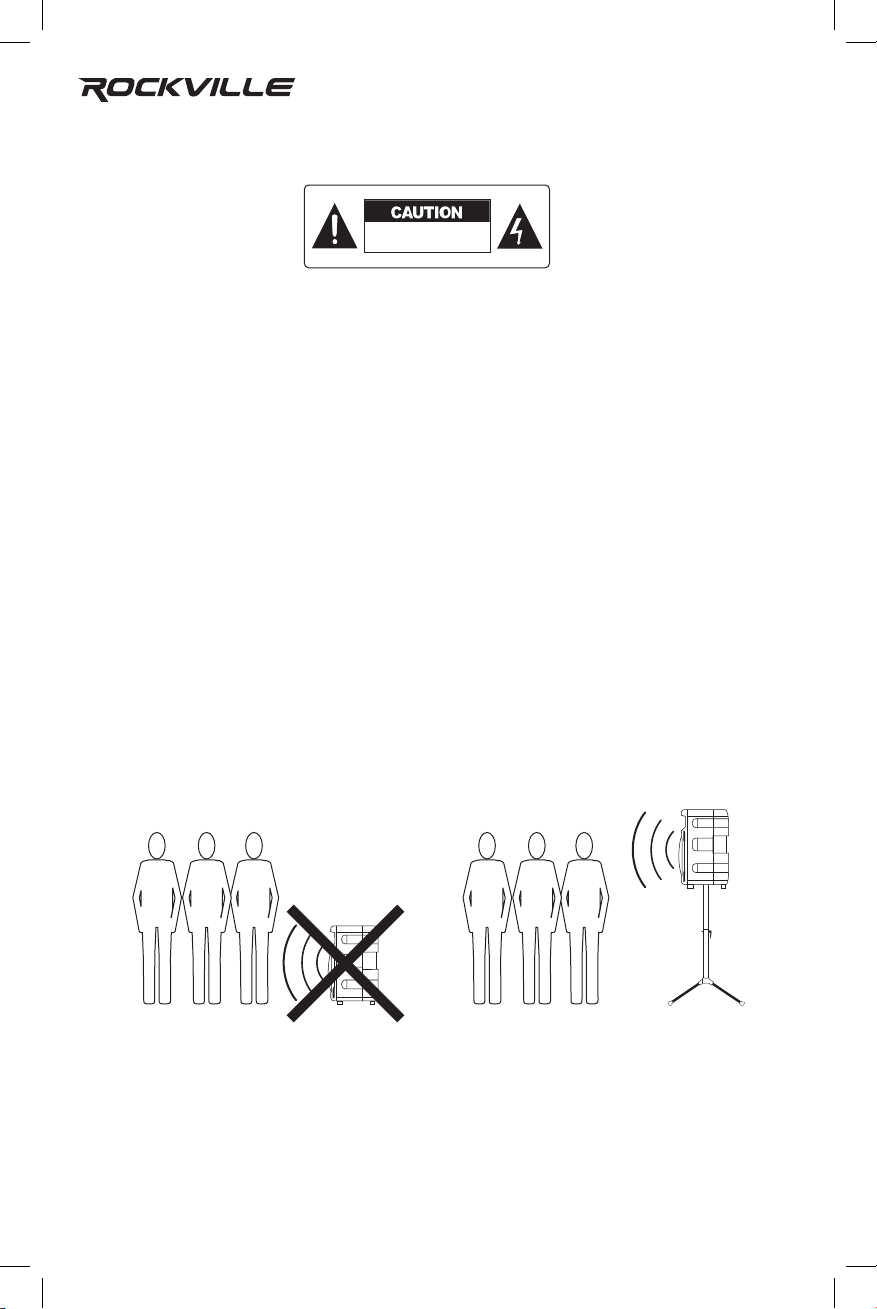

Your Power Gig is set up to produce the full spectrum of sound from its woofer and
tweeter horn combination. The lower frequencies seek out the oor of the room that they
are playing in and travel along the oor and walls. The tweeter horn is more directional.
Hence when setting up your system its more important to make sure that the tweeter
horns are not blocked by any furniture and are located / aimed at ear level to the listening
audience. Woofer aiming is not as critical as explained previously due to the nature of the
woofer sounds able to travel through various paths even when blocked.
It is therefore recommended that when setting up your system you set up your speakers
on provided stands so that the tweeter sounds will radiate above the listening crowd. This
will guarantee optimum sound dispersion and achieve clear vocal sound reproduction.
Setting Up Your Power Gig Professional Sound System
RISK OF ELECTRIC SHOCK
DO NOT OPEN
IMPORTANT SAFETY INSTRUCTIONS
•To reduce risk of electric shock, never open the unit. There are no user serviceable
parts, refer service to an authorized Rockville service center.
• Do not expose this unit to any kind of moisture.
• Please ensure that the unit is situated in a properly ventilated area.
• Make sure the unit is placed on a level and stable surface.

The placement of your microphone is critical in avoiding feedback through your Power
Gig system. Never set up your microphone in front of the speaker. Always set up your mi-
crophone behind the speaker. When approaching the speaker to make any adjustments,
we recommend approaching the speaker from the rear and not walking directly towards
the front of the speaker.
How To Avoid Irritating Feedback
There is really only one volume control on the Power Gig unit, that is the knob marked
MASTER LEVEL.
The Mic in / Line in Level control is a matching device to match the preamp voltages of
items such as microphones and guitars or other musical instruments with your Power Gig
unit. Never turn these up to maximum unless indicated by the instructions below. With a
properly matched signal your system will produce less distortion, be subject to less feed-
back, and will produce louder, cleaner and clearer sound. Use the Master Volume control
once all inputs are matched properly. Your Power Gig features a CLIP LED indicator to
help you set and match your components. Please be sure to read all set up instructions
so your Power Gig sounds its best.
A Word About System Volume Controls and Gains.

MASTER LEVEL
MIC LEVEL

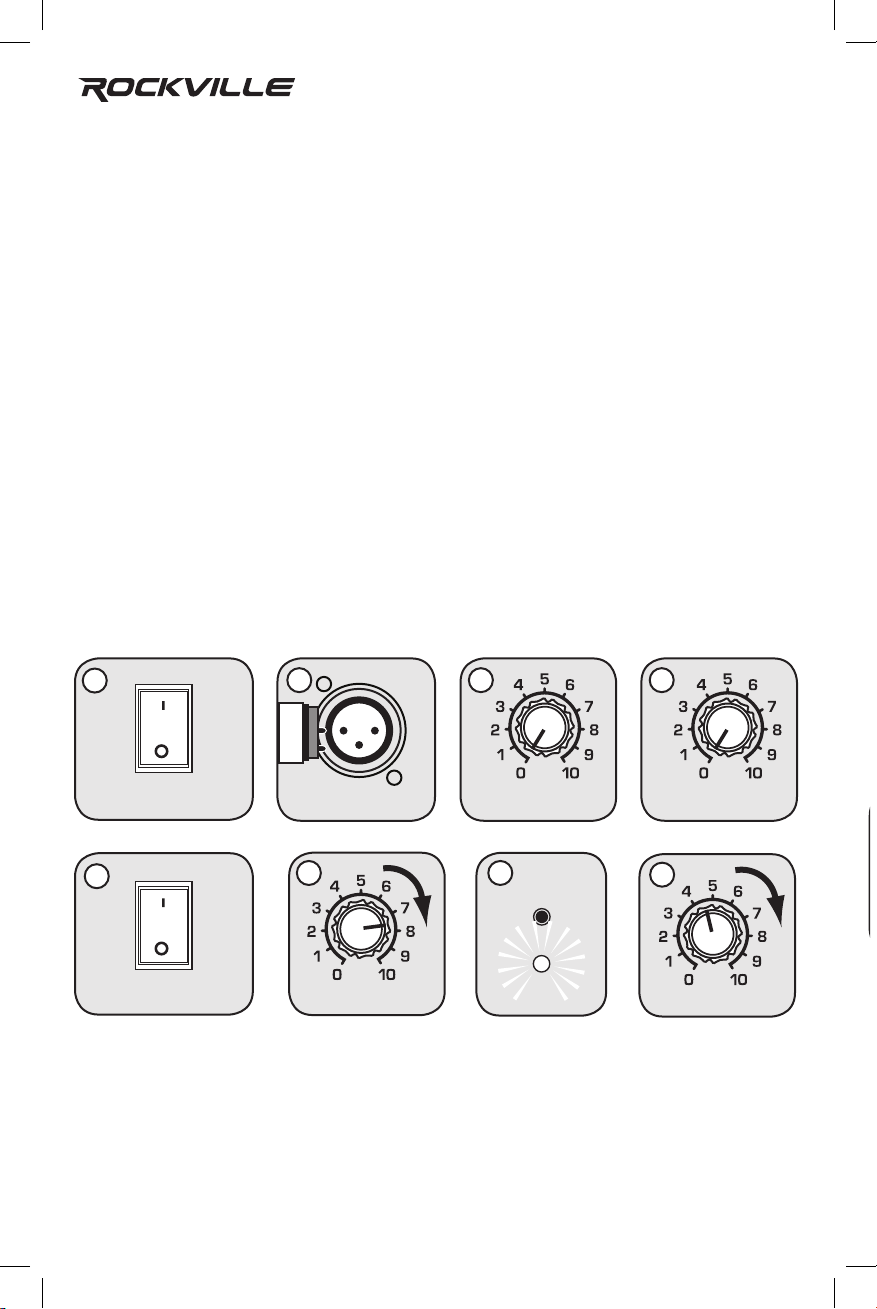

3. Keep Master Level at 0 position.
4. Turn Mic Level to 0 position.
5. Switch on the Power Gig unit.
6. Slowly turn Mic Level clockwise until you achieve appropriate volume setting. This
is determined by the CLIP LED indicator light. Proper function is achieved when the
CLIP indicator lights up at peak levels, it should never be in constant on position.
7. The above adjustment matched the microphone preamp to the input volume of the
Power Gig unit.
8. Now turn up the Master Level to necessary loudness by rotating clockwise.
Always stand behind the Power Gig when making your microphone adjustments to avoid
feedback distortion.
You can choose to hook up two microphones to your Power Gig in the following manner.
Set up microphone #1 as instructed above. Using same set up instructions, insert
microphone #2 into the ultra-low noise Line input which features its own separate Level
control. Use this Level control to increase the microphone level and balance the inputs
between the two microphones before attempting to adjust the Master Level.
Multi-Microphone Hook Up
2
POWER
3 4
8
1
56 7
CLIP
OFF
ON
POWER
POWER
MASTER LEVEL
MIC INPUT MIC LEVEL
You can use the Line Input function when you wish to hook up an additional stereo signal
source without the use of a mixer console. CD players, DVD music players, MP3 players
etc can be plugged directly in to the RCA inputs labeled LINE INPUT.
To connect a CD, DVD music player or MP3 player.
1. Turn your Power Gig unit to OFF position.
2. Turn Master Level to 0 position.
3. Turn Level control to 0 position.
4. Connect the music source unit to the RCA inputs marked Line Input.
5. Switch ON your Power Gig unit.
6. Slowly turn the Level control clockwise until the CLIP LED indicator begins
to blink, then turn it down slightly. This indicates the maximum input voltage gain is
matched and set properly.
7. Turn Master Level up to achieve proper volume.
Line Input Feature
Your Power Gig features an ultra-low noise Mic/Line inputs via XLR & 1/4˝TRS
stereo jacks.
1. Make sure the Power Gig is in OFF position.
2. Plug in your microphone.
APPLICATION USES
Microphone Presentations

MASTER LEVEL
MASTER LEVEL
LINE/USB LEVEL
You can choose to hook up two microphones to your Power Gig in the following manner.
Set up microphone #1 as instructed above. Using same set up instructions, insert
microphone #2 into the ultra-low noise Line input which features its own separate Level
control. Use this Level control to increase the microphone level and balance the inputs
between the two microphones before attempting to adjust the Master Level.
Multi-Microphone Hook Up
You can use the Line Input function when you wish to hook up an additional stereo signal
source without the use of a mixer console. CD players, DVD music players, MP3 players
etc can be plugged directly in to the RCA inputs labeled LINE INPUT.
To connect a CD, DVD music player or MP3 player.
1. Turn your Power Gig unit to OFF position.
2. Turn Master Level to 0 position.
3. Turn Level control to 0 position.
4. Connect the music source unit to the RCA inputs marked Line Input.
5. Switch ON your Power Gig unit.
6. Slowly turn the Level control clockwise until the CLIP LED indicator begins
to blink, then turn it down slightly. This indicates the maximum input voltage gain is
matched and set properly.
7. Turn Master Level up to achieve proper volume.
Line Input Feature
OFF
12 3
5 6
4
7
LINE INPUT
LINE INPUT
LINE/USB LEVEL
LINE/USB LEVEL MASTER LEVEL
POWER
CLIP
ON
POWER
POWER

While guitarists and bassists have their own ampliers to ensure that the volume pro-
duced by their instrument matches that of the other sound sources on stage, keyboards
and synthesizers are a dierent story. They usually have no built-in speakers which
means they need an external sound source. The Power Gig unit allows for the connec-
tion and mixing of two keyboards. More than two keyboards can be connected using a
sub mixer to mix down the signals and send them to the Power Gig unit via the sub mixer
output connectors.
Be sure to have your Power Gig units installed by a qualied installation professional.
Ensure that the unit is properly grounded during and after installation. Not doing so may
result in electrostatic discharge which may cause damage your equipment.
Keyboard Amplication
Installation
The 1/4˝ TRS output marked Speaker Output is for connecting the active unit to the
passive unit. Passive speaker impedance must always be 8 ohm.
Speaker Output Connection.
SPEAKER OUT

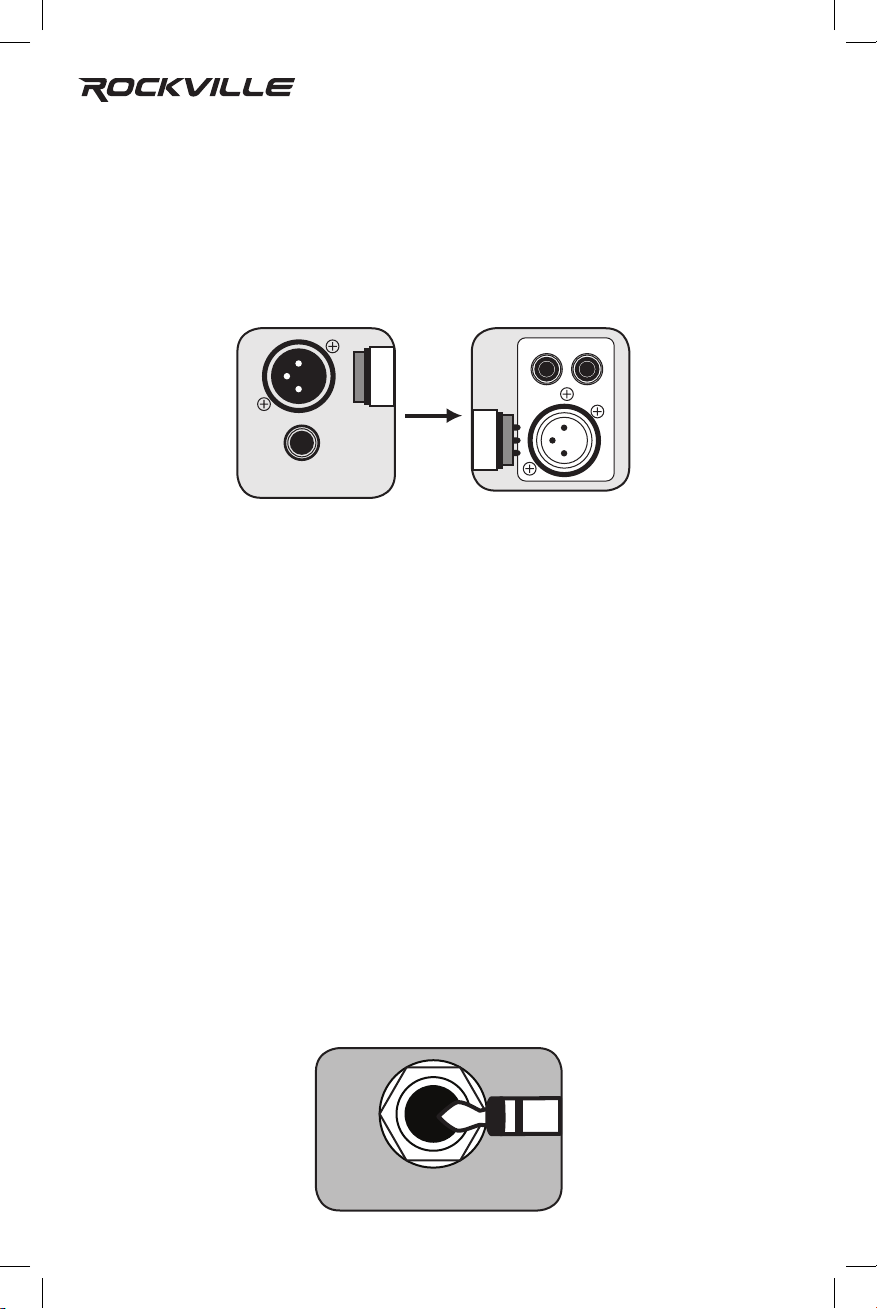

The XLR / 1/4˝ TRS combo jack marked Line Output allows for daisy chaining of signals
from any active speaker to another. Simply attach an XLR or 1/4˝ cable from the Line Out-
put of the speaker to the Line Input of the new speaker. As long as the new speaker has a
line output as well, you can continue to add speakers indenitely.
Line Out Balanced Connection.
LINE IN
BAL
R L
LINE OUTPUT

Installation
The 1/4˝ TRS output marked Speaker Output is for connecting the active unit to the
passive unit. Passive speaker impedance must always be 8 ohm.
To connect your iPod, iPhone, MP3 player, Android phone or any other Bluetooth capable
device follow the steps listed below.
1. Make sure the Power Gig unit’s power switch is in the ON position.
2. Turn on the Bluetooth feature on your device and ensure that it is in “discoverable”
mode.
3. Push the Mode button on your Power Gig unit until you are in Bluetooth mode.
4. Once in Bluetooth mode, the unit should show up on your device as “MEGA STAR”.
Select it from your list of available devices and you are ready to go.
Bluetooth Pairing
1
3 4
2
ON
BLUETOOTH ON
DEVICE
DISCOVERABLE
POWER
USB
SD
MODE
SCAN VOL–VOL+
The XLR / 1/4˝ TRS combo jack marked Line Output allows for daisy chaining of signals
from any active speaker to another. Simply attach an XLR or 1/4˝ cable from the Line Out-
put of the speaker to the Line Input of the new speaker. As long as the new speaker has a
line output as well, you can continue to add speakers indenitely.
Line Out Balanced Connection.

1. Display screen.
2. USB and SD Card input.
3. MP3 Player controls. Previous / Next track buttons also serve as volume
controls. For track control quickly press button. For volume control press an
hold button. Press Play button once to play track, press again to pause. When
in FM radio mode press and hold to scan through.
4. Mode control switches between input modes: FM Radio, Bluetooth, USB,
and SD/MMC.
5. EQ button allows you to toggle betweenthe 5 Presets.
6. Power LED indicator and amplier clip limit LED indicator.
7. Master volume.
8. XLR / 1/4˝ Line output.
9. 2 band equalization control panel.
• Bass adjust the low frequencies to +/-6dB.
• Treble adjust high frequencies to +/-6dB
10. Mic Level control.
11. The Mic input panel accepts XLR type connectors and balanced and unbalanced
1/4˝ TRS plugs and is designed to suit a wide range of balanced and unbalanced
signals. The Mic input port accepts. When you use an unbalanced 1/4˝ TRS plug,
the line input automatically turns the ring into ground.
12. Line / USB Level control.
13. XLR / RCA input jacks.
14. Output to passive speaker.
15. Voltage selector switch.
16. User serviceable fuse.
17. IEC AC power socket.
18. Power switch.
2
3
1
10
11
12
5
13
14
15
16
17
18
4
7
6
8
9

1. Display screen.
2. USB and SD Card input.
3. MP3 Player controls. Previous / Next track buttons also serve as volume
controls. For track control quickly press button. For volume control press an
hold button. Press Play button once to play track, press again to pause. When
in FM radio mode press and hold to scan through.
4. Mode control switches between input modes: FM Radio, Bluetooth, USB,
and SD/MMC.
5. EQ button allows you to toggle betweenthe 5 Presets.
6. Power LED indicator and amplier clip limit LED indicator.
7. Master volume.
8. XLR / 1/4˝ Line output.
9. 2 band equalization control panel.
• Bass adjust the low frequencies to +/-6dB.
• Treble adjust high frequencies to +/-6dB
10. Mic Level control.
11. The Mic input panel accepts XLR type connectors and balanced and unbalanced
1/4˝ TRS plugs and is designed to suit a wide range of balanced and unbalanced
signals. The Mic input port accepts. When you use an unbalanced 1/4˝ TRS plug,
the line input automatically turns the ring into ground.
12. Line / USB Level control.
13. XLR / RCA input jacks.
14. Output to passive speaker.
15. Voltage selector switch.
16. User serviceable fuse.
17. IEC AC power socket.
18. Power switch.

NOTES

NOTES
NOTES

UNIT FAILS TO POWER UP.
1. Make sure unit is plugged in properly to wall outlet.
2. Check that power cable is plugged in tightly to unit.
3. If people or equipment tend to step and roll over or stretch your power cable it can
get damaged. Always try a second cable to test for shorts in original cable. Dispose of
original damaged power cables immediately.
4. If system still fails to light, UNPLUG FROM WALL. There is a small door below the
plug input on the Power Gig unit, pop o this door and remove the fuse with a needle
nose pliers and replace with same rated fuse. Please make sure unit is unplugged from
wall before attempting to change the fuse!
UNIT TURNS ON, BUT NO SOUND.
1. Check that Volume is turned up.
2. Be sure your microphone is turned on.
3. All appropriate cables should be plugged in correctly.
5. Be sure Level of appropriate channels are set above 0 and matched correctly
as indicated above.
Fuse replacement Diagram
Trouble Shooting
OLD FUSE
SPARE FUSE

Responsible party name: Rockville
Address: 333 Pearsall Ave.
Cedarhurst, NY 11096
Hereby declares that the product(s) Power Gig RPG152K pro audio speakers comply with
FCC rules as mentioned in the following paragraph:
This device complies with Part 15 of the FCC rules. Operation is subject to the following
two conditions: (1) this device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipment o and on, the user is encouraged to try to correct the interference by one or more of
the following measures:
•Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
FEDERAL COMMUNICATIONS COMMISSION COMPLIANCE INFORMATION
UNIT FAILS TO POWER UP.
1. Make sure unit is plugged in properly to wall outlet.
2. Check that power cable is plugged in tightly to unit.
3. If people or equipment tend to step and roll over or stretch your power cable it can
get damaged. Always try a second cable to test for shorts in original cable. Dispose of
original damaged power cables immediately.
4. If system still fails to light, UNPLUG FROM WALL. There is a small door below the
plug input on the Power Gig unit, pop o this door and remove the fuse with a needle
nose pliers and replace with same rated fuse. Please make sure unit is unplugged from
wall before attempting to change the fuse!
UNIT TURNS ON, BUT NO SOUND.
1. Check that Volume is turned up.
2. Be sure your microphone is turned on.
3. All appropriate cables should be plugged in correctly.
5. Be sure Level of appropriate channels are set above 0 and matched correctly
as indicated above.
Fuse replacement Diagram
Trouble Shooting

© 2015 ROCKVILLE // Features and specifications are subject to change and or improvement without notice.
RockvilleAudio.com
