VersaView
Industrial
Workstations
Catalog Numbers
6180W-12KSXPH,
6180W-12KPXPH,
6180W-12BSXPH,
6180W-12BPXPH,
6180W-12BPXPHDC,
6180W-15KSXPH,
6180W-15KPXPH,
6180W-15BSXPH,
6180W-15BPXPH,
6180W-15BPXPHDC
User Manual
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Important User Information
Solid state equipment has operational characteristics differing from those of
electromechanical equipment. Safety Guidelines for the Application,
Installation and Maintenance of Solid State Controls, publication SGI-1.1,
available from your local Rockwell Automation sales office or online at
http://literature.rockwellautomation.com describes some important
differences between solid state equipment and hard-wired electromechanical
devices. Because of this difference, and also because of the wide variety of
uses for solid state equipment, all persons responsible for applying this
equipment must satisfy themselves that each intended application of this
equipment is acceptable.
In no event will Rockwell Automation, Inc. be responsible or liable for
indirect or consequential damages resulting from the use or application of
this equipment.
The examples and diagrams in this manual are included solely for illustrative
purposes. Because of the many variables and requirements associated with
any particular installation, Rockwell Automation, Inc. cannot assume
responsibility or liability for actual use based on the examples and diagrams.
No patent liability is assumed by Rockwell Automation, Inc. with respect to
use of information, circuits, equipment, or software described in this manual.
Reproduction of the contents of this manual, in whole or in part, without
written permission of Rockwell Automation, Inc., is prohibited.
Throughout this manual, when necessary, we use notes to make you aware
of safety considerations.
Allen-Bradley, Rockwell Automation, TechConnect, and VersaView are trademarks of Rockwell Automation, Inc.
Trademarks not belonging to Rockwell Automation are property of their respective companies.
WARNING Identifies information about practices or circumstances that can cause
an explosion in a hazardous environment, which may lead to personal
injury or death, property damage, or economic loss.
IMPORTANT Identifies information that is critical for successful application and
understanding of the product.
ATTENTION Identifies information about practices or circumstances that can lead
to personal injury or death, property damage, or economic loss.
Attentions help you identify a hazard, avoid a hazard, and recognize
the consequence
SHOCK HAZARD Labels may be on or inside the equipment, for example, a drive or
motor, to alert people that dangerous voltage may be present.
BURN HAZARD Labels may be on or inside the equipment, for example, a drive or
motor, to alert people that surfaces may reach dangerous
temperatures.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

3Publication 6180W-UM001H-EN-P - August 2007
Summary of Changes
The information below summarizes the changes made to this manual
since the last revision.
Revision bars, as shown in the margin, identify updated information.
These are the changes for this version of the document.
Topic Page
Operating system information updated. 11
Information on the Multilingual User
Interface CD Pack updated. 11
Added information on backlight assembly
disposal. 57
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Publication 6180W-UM001H-EN-P - August 2007
4Summary of Changes
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

5Publication 6180W-UM001H-EN-P - August 2007
Table of Contents
Preface About This Publication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Who Should Use This Manual . . . . . . . . . . . . . . . . . . . . . . . . 7
Purpose of This Manual. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Additional Resources. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Chapter 1
System Features
Chapter Objectives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Product Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Accessories and Replacement Parts . . . . . . . . . . . . . . . . . . . 10
Operating Systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Multilingual User Interface CD Pack. . . . . . . . . . . . . . . . . . . 11
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Before You Begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Chapter 2
Installation
Chapter Objective . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
European Union Compliance. . . . . . . . . . . . . . . . . . . . . . . . 17
Environment and Enclosure Information . . . . . . . . . . . . . . . 18
Installation Considerations. . . . . . . . . . . . . . . . . . . . . . . . . . 19
Tools Required . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Mount the Workstation in a Panel . . . . . . . . . . . . . . . . . . . . 19
Mount the Non-display Workstation in a Panel. . . . . . . . . . . 23
Product Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Connect a Keyboard and Mouse . . . . . . . . . . . . . . . . . . . . . 26
Connect the Video . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Connect AC Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Connect DC Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Connect to the Network . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Chapter 3
Operation
Chapter Objective . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Operating Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Operator Access . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
DIP Switch Settings for Front-panel Keypad . . . . . . . . . . . . . 32
Video Loopback Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Start the System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Reset the System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Install Drivers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Universal Serial Bus (USB) Ports . . . . . . . . . . . . . . . . . . . . . 33
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Publication 6180W-UM001H-EN-P - August 2007
6Table of Contents
Chapter 4
Replace System Components
Chapter Objectives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Accessories and Replacement Parts . . . . . . . . . . . . . . . . . . . 35
Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Electrostatic Discharge (ESD). . . . . . . . . . . . . . . . . . . . . . . . 35
Remove the Covers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Install or Remove Add-in Cards . . . . . . . . . . . . . . . . . . . . . . 37
Replace the Hard Disk Drive . . . . . . . . . . . . . . . . . . . . . . . . 40
Replace the Floppy Drive . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Replace the CD-ROM/DVD-ROM Drive . . . . . . . . . . . . . . . . 46
Replace the Memory Modules . . . . . . . . . . . . . . . . . . . . . . . 48
Chapter 5
System Troubleshooting
Chapter Objectives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Troubleshooting Procedure . . . . . . . . . . . . . . . . . . . . . . . . . 51
Diagnostic Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Troubleshooting Checklists . . . . . . . . . . . . . . . . . . . . . . . . . 53
Chapter 6
Maintenance
Chapter Objectives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Clean the Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Replace the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Replace the Fan Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Backlight Assembly Disposal . . . . . . . . . . . . . . . . . . . . . . . . 57
Ship or Transport the Product . . . . . . . . . . . . . . . . . . . . . . . 57
Appendix A - Specifications
Appendix B - Use a Touchscreen
Appendix C - Upgrade to a New BIOS
Index
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

7Publication 61780W-UM001H-EN-P - August 2007
Preface
About This Publication
Read this preface to familiarize yourself with the rest of the manual.
The preface covers these topics:
•Who should use this manual
•Purpose of the manual
•Additional resources
Who Should Use This
Manual
Use this manual if you are responsible for installing, using, or
troubleshooting the VersaView Workstations.
Purpose of This Manual
This manual is a user guide for the VersaView Workstations. It gives an
overview of the system and describes procedures to:
•install the computer in a panel or enclosure.
•make computer connections.
•configure the computer.
•troubleshoot the computer.
Additional Resources
For additional information about the VersaView industrial
workstations, refer to these publications.
These publications are on the VersaView Accessories/Cloning CD, that
is shipped with your computer. You can also download electronic
versions of these publications from the Rockwell Automation website
http://literature.rockwellautomation.com.
Resource Description
VersaView Industrial Workstations
Installation Instructions,
6180W-IN001.
Provides procedures on how to install the
computer and make connections to the
workstation.
Cloning Utility Technical Data,
publication 6000-TD001.Provides information on how to create and restore
a backup image of your computer’s hard disk drive.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Publication 61780W-UM001H-EN-P - August 2007
8Preface
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

9Publication 6180W-UM001H-EN-P - August 2007
Chapter 1
System Features
Chapter Objectives
This chapter provides an overview of the following topics:
•Product options
•Operating systems
•Features
•Accessories
•Parts list
Overview

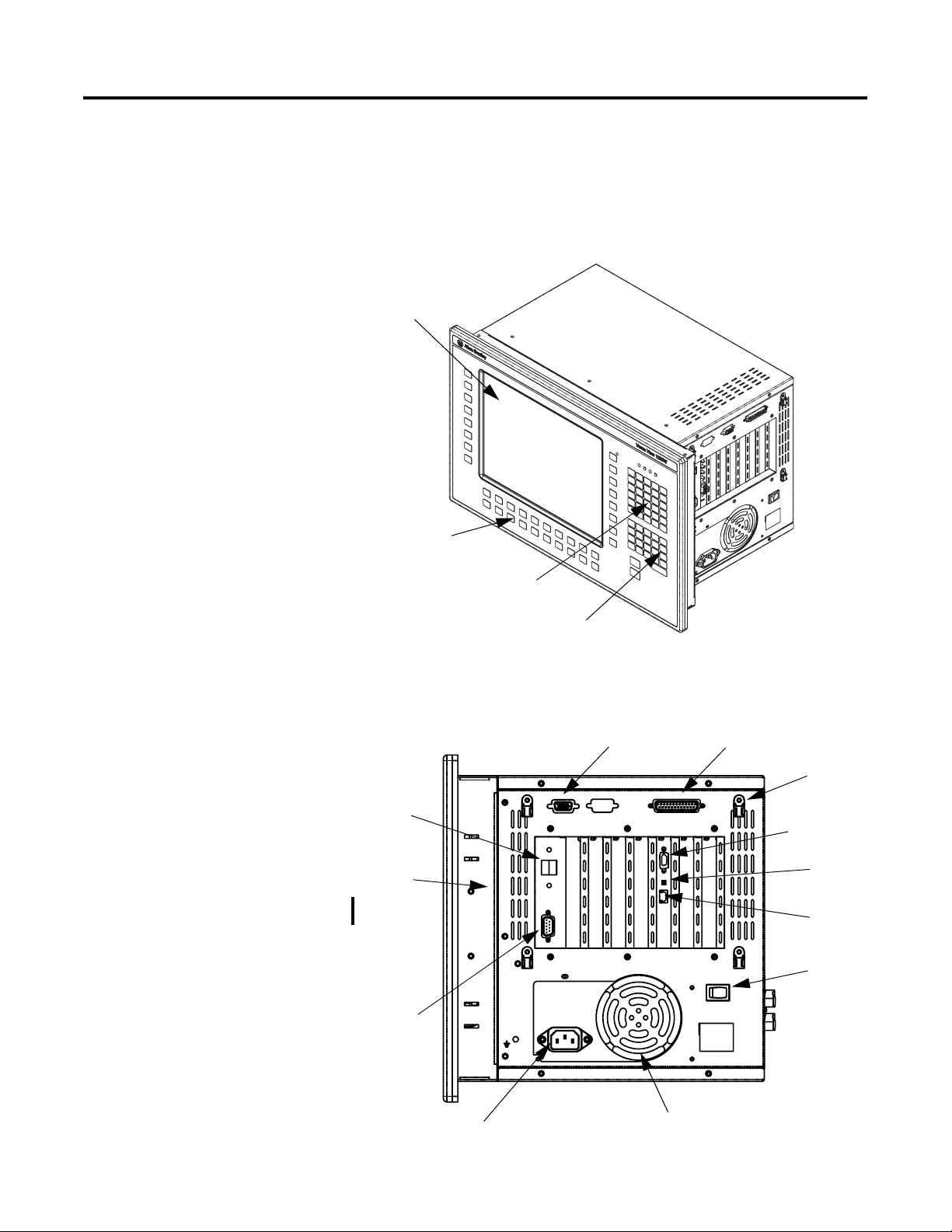

The workstations feature an integrated 12.1 or 15-inch display and
keypad. These panel mount devices feature 32 or 36 programmable
function keys, a full alphanumeric keypad, and a resistive touch
screen option. With the workstation, you can run visual interface,
maintenance, control, and basic information applications from one
machine.
With its integrated display, function keys, alphanumeric keypad, and
resistive touch screen option, the workstation can function as an
industrial computer or an operator input station. The absence of
external monitor cables and separate component mounting
requirements allows for simple integration.
The workstations provide serial and Ethernet communication ports.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Publication 6180W-UM001H-EN-P - August 2007
10 System Features
Product Options
Accessories and
Replacement Parts
You can view a current list of accessories at the Rockwell Automation/
Allen-Bradley website http://www.ab.com/versaview.
Catalog Number(1)
(1) The workstations are available with the Windows XP or Windows 2000 operating system. Replace XP with 2K
in the catalog number, to order a workstation with the Windows 2000 operating system.
Display
Size Touchscreen Performance Operating System
6180W-12BSXPH
12 in.
Key/Touch Standard
Windows XP
6180W-12BPXPH Key/Touch Performance
6180W-12KSXPH Keypad only Standard
6180W-12KPXPH Keypad only
Performance6180W-12KPXPHDC(2)
(2) These catalog numbers operate on 24V dc power.
Keypad only
6180W-12BPXPHDC(2) Key/Touch
6180W-15BSXPH
15 in.
15 in.
Key/Touch Standard
Windows XP
6180W-15BPXPH Key/Touch Performance
6180W-15KSXPH Keypad only Standard
6180W-15KPXPH Keypad only
Performance
6180W-15KPXPHDC(2) Keypad only
6180W-15BPXPHDC(2) Key/Touch
6180W-7PXPH N/A N/A Windows XP
6180W-7PXPHDC(2)
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Publication 6180W-UM001H-EN-P - August 2007
System Features 11
Operating Systems
The computers are shipped with one of these operating systems:
•Windows 2000 Professional, Service Pack 4 with Update
Rollup 1
•Windows XP Professional, Service Pack 2b
No operating system updates have been applied to the factory image
beyond the service packs.
For your convenience, the I386 source directory for Microsoft
Windows is on the system drive of your computer off the root
directory, C:\I386. This allows for easy removal and addition of
Windows components.
Computers with rotating-media hard drives include a recovery
partition on the system drive containing the original factory image.
You can use the supplied System Accessories/Cloning CD to restore
the operating system from the recovery partition, create a new
recovery image, and create bootable external recovery media.
Refer to the Cloning Utility documentation, publication 6000-TD001,
for instructions. You can view or download publications at
http://literature.rockwellautomation.com.
Computers with solid state drives have been customized to
accommodate the unique properties of the solid state drive. Some of
the pre-installed customizations include:
•no paging file.
•system restore set to zero and disabled.
•DLLCACHE directory emptied.
Computers with solid state hard drives do not contain a recovery
partition. If additional drive space is required, copy the I386 directory
to external media; then delete the I386 directory from C:\I386, which
is approximately 400 MB.
To obtain the original factory image on bootable external recovery
media, which also includes the I386 source directory, contact your
local technical support center.
Multilingual User Interface
CD Pack
The Microsoft Multilingual User Interface (MUI) CD Pack contains a
collection of different language sets that can be installed into the
operating system. MUI packs are available for all Windows XP
operating systems and provide a localized start menu and system
icons support.
The instructions for installing MUI languages on your computer are
supplied with the MUI CD Pack.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Publication 6180W-UM001H-EN-P - August 2007
12 System Features
Features
The illustrations show the major features and controls of each
computer.
1200W Workstation - Top and Side View
1200W Workstation - Side View
Alpha Keys
36 Function Keys
Numeric Keys
LCD Display
(with or without
optional touchscreen)
Printer
Power
Switch
Power Fan
USB
COM1
Cable Tie
Retainer
Screen
Display
Input
LAN
VGA Output
Audio
Output
Auto
Adjust
Button
(hidden in
this view)
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Publication 6180W-UM001H-EN-P - August 2007
System Features 13
1200W Workstation - Back View
Floppy Disk
Drive
Optical Drive
Auto Adjust
Button
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Publication 6180W-UM001H-EN-P - August 2007
14 System Features
1500W and Non-display Workstations - Top and Side
1500W and Non-display Workstations - Side View
LCD Display
(with or without
optional touchscreen)
Alpha Keys
32 Function Keys
Numeric Keys
USB Ports
Printer
LAN
Screen Display Input
(display only)
VGA Output
COM1
Floppy Disk
Drive
Optical Drive
Power
Power Switch
PS2 Keyboard/Mouse
Port (non-display only)
Audio Output
Screen Auto Adjust Button (display only)
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Publication 6180W-UM001H-EN-P - August 2007
System Features 15
Before You Begin
Before unpacking the product, inspect the shipping carton for
damage. If damage is visible, immediately contact the shipper and
request assistance. Otherwise, proceed with unpacking.
Keep the original packing material in case you need to return the
product for repair or transport it to another location. Use both the
inner and outer packing cartons to provide adequate protection for a
unit returned for service.
Parts List
Your workstation is shipped with these items:
•VersaView System Accessories/Cloning CD
•VersaView Support CD
•Microsoft Multilingual User Interface (MUI) CD Pack
This CD pack is not included with VersaView computers
containing solid-state hard drive or VersaView computers with
the Windows 2000 operating system.
•Mounting clips
•Power cord, ac (when appropriate)
•Video Loopback cable (when appropriate)
•PS/2 Y adapter cable for non-display workstation
•Card hold downs for PCI and ISA cards
•Installation guide and cutout template
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Publication 6180W-UM001H-EN-P - August 2007
16 System Features
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

17 Publication 6180W-UM001H-EN-P - August 2007
Chapter 2
Installation
Chapter Objective
This chapter describes how to install your workstation in a panel and
how to make connections to the workstation. It covers these topics:
•European Union Compliance
•Environment and enclosure information
•Installation guidelines
•Required tools
•Mount the workstation in a panel
•Product dimensions
•Connect a keyboard and mouse
•Connect the video
•Connect ac or dc power
•Connect to the network
European Union
Compliance
This product meets the European Union Directive requirements when
installed within the European Union or EEA regions and has the CE
mark. A copy of the Declaration of Conformity is available at the
Rockwell Automation/Allen-Bradley website
http://www.ab.com/certification.
ATTENTION The product is intended to operate in an industrial or control
room environment, which utilizes some form of power isolation
from the public low voltage mains. Some computer
configurations may not comply with the EN 61000-3-2
Harmonic Emissions standard as specified by the EMC Directive
of the European Union. Obtain permission from the local power
authority before connecting any computer configuration that
draws more than 75 watts of ac power directly from the public
mains.
ATTENTION To comply with EN 55024, the Ethernet port LAN cable must be
less than 30 m (98.42 ft) long, and it must be used only indoors
(that is, not exit the building at any point). All other I/O cables
must be less than 3 m (9.84 ft) long, and must be used only
indoors.
