Installation Instructions
Micro800™ Programmable Controller External
AC Power Supply
Catalog Number(s) 2080-PS120-240VAC
http://literature.rockwellautomation.com/idc/groups/literature/documents/in/2080-
in001_-mu-p.pdf
FR Cette publication est disponible en
français sous forme électronique (fichier
PDF). Pour la télécharger, rendez-vous sur
la page Internet indiquée ci-dessus.
PT Esta publicação está disponível em portugués
como PDF. Vá ao endereço web que aparece
acima para encontrar e fazer download da
publicação.
IT Questa pubblicazione è disponibile in
Italiano in formato PDF. Per scaricarla
collegarsi al sito Web indicato sopra. ZH
DE
Diese Publikation ist als PDF auf Deutsch
verfügbar. Gehen Sie auf die oben
genannte Web-Adresse, um nach der
Publikation zu suchen und sie
herunterzuladen.
ZC
ES
Esta publicación está disponible en
español como PDF. Diríjase a la dirección
web indicada arriba para buscar y
descarga esta publicación. KO
Table of Contents
Topic Page
Important User Information 2
Overview 7
Connect the Power Supply 8
Wire the Module 10
Specifications 10

2Micro800™ Programmable Controller External AC Power Supply
Publication 2080-IN001A-EN-P - September 2010
Important User Information
Solid state equipment has operational characteristics differing from those of electromechanical
equipment. Safety Guidelines for the Application, Installation and Maintenance of Solid State Controls
(Publication SGI-1.1 available from your local Rockwell Automation sales office or online at
http://literature.rockwellautomation.com) describes some important differences between solid state
equipment and hard-wired electromechanical devices. Because of this difference, and also because of
the wide variety of uses for solid state equipment, all persons responsible for applying this equipment
must satisfy themselves that each intended application of this equipment is acceptable.
In no event will Rockwell Automation, Inc. be responsible or liable for indirect or consequential damages
resulting from the use or application of this equipment.
The examples and diagrams in this manual are included solely for illustrative purposes. Because of the
many variables and requirements associated with any particular installation, Rockwell Automation, Inc.
cannot assume responsibility or liability for actual use based on the examples and diagrams.
No patent liability is assumed by Rockwell Automation, Inc. with respect to use of information, circuits,
equipment, or software described in this manual.
Reproduction of the contents of this manual, in whole or in part, without written permission of Rockwell
Automation, Inc., is prohibited.
Throughout this manual, when necessary, we use notes to make you aware of safety considerations.
WARNING
Identifies information about practices or circumstances that can cause an explosion
in a hazardous environment, which may lead to personal injury or death, property
damage, or economic loss.
IMPORTANT
Identifies information that is critical for successful application and understanding of
the product.
ATTENTION
Identifies information about practices or circumstances that can lead to personal
injury or death, property damage, or economic loss. Attentions help you identify a
hazard, avoid a hazard and recognize the consequences.
SHOCK HAZARD
Labels may be on or inside the equipment (for example, drive or motor) to alert
people that dangerous voltage may be present.
BURN HAZARD
Labels may be on or inside the equipment (for example, drive or motor) to alert
people that surfaces may reach dangerous temperatures.

Micro800™ Programmable Controller External AC Power Supply 3
Publication 2080-IN001A-EN-P - September 2010
Environment and Enclosure
ATTENTION
This equipment is intended for use in a Pollution Degree 2 industrial
environment, in overvoltage Category II applications (as defined in IEC
60664-1), at altitudes up to 2000 m (6562 ft) without derating.
This equipment is considered Group 1, Class A industrial equipment according
to IEC/CISPR 11. Without appropriate precautions, there may be difficulties
with electromagnetic compatibility in residential and other environments due
to conducted and radiated disturbances.
This equipment is supplied as open-type equipment. It must be mounted
within an enclosure that is suitably designed for those specific environmental
conditions that will be present and appropriately designed to prevent
personal injury resulting from accessibility to live parts. The enclosure must
have suitable flame-retardant properties to prevent or minimize the spread of
flame, complying with a flame spread rating of 5V A, V2, V1, V0 (or equivalent)
if non-metallic. The interior of the enclosure must be accessible only by the
use of a tool. The enclosure must have provision for supply connections to
Class I, Division 2 wiring system in accordance with the National Electric
Code. Subsequent sections of this publication may contain additional
information regarding specific enclosure type ratings that are required to
comply with certain product safety certifications.
In addition to this publication, see:
•Industrial Automation Wiring and Grounding Guidelines, Rockwell
Automation publication 1770-4.1, for additional installation
requirements.
•NEMA Standard 250 and IEC 60529, as applicable, for explanations of the
degrees of protection provided by different types of enclosure.

4Micro800™ Programmable Controller External AC Power Supply
Publication 2080-IN001A-EN-P - September 2010
Preventing Electrostatic Discharge
ATTENTION
This equipment is sensitive to electrostatic discharge, which can cause
internal damage and affect normal operation. Follow these guidelines when
you handle this equipment:
•Touch a grounded object to discharge potential static.
•Wear an approved grounding wriststrap.
•Do not touch connectors or pins on component boards.
•Do not touch circuit components inside the equipment.
•Use a static-safe workstation, if available.
•Store the equipment in appropriate static-safe packaging when not in use.

Micro800™ Programmable Controller External AC Power Supply 5
Publication 2080-IN001A-EN-P - September 2010
North American Hazardous Location Approval
The following modules are North American Hazardous Location approved:
2080-PS120-240VAC
The following information applies when operating
this equipment in hazardous locations: Informations sur l’utilisation de cet équipement en environnements dangereux:
Products marked "CL I, DIV 2, GP A, B, C, D" are
suitable for use in Class I Division 2 Groups A, B,
C, D, Hazardous Locations and nonhazardous
locations only. Each product is supplied with
markings on the rating nameplate indicating the
hazardous location temperature code. When
combining products within a system, the most
adverse temperature code (lowest "T" number)
may be used to help determine the overall
temperature code of the system. Combinations of
equipment in your system are subject to
investigation by the local Authority Having
Jurisdiction at the time of installation.
Les produits marqués "CL I, DIV 2, GP A, B, C, D" ne
conviennent qu'à une utilisation en environnements
de Classe I Division 2 Groupes A, B, C, D dangereux et
non dangereux. Chaque produit est livré avec des
marquages sur sa plaque d'identification qui indiquent
le code de température pour les environnements
dangereux. Lorsque plusieurs produits sont combinés
dans un système, le code de température le plus
défavorable (code de température le plus faible) peut
être utilisé pour déterminer le code de température
global du système. Les combinaisons d'équipements
dans le système sont sujettes à inspection par les
autorités locales qualifiées au moment de
l'installation.
WARNING
EXPLOSION HAZARD
• Do not disconnect equipment
unless power has been removed
or the area is known to be
nonhazardous.
• Do not disconnect connections to
this equipment unless power has
been removed or the area is
known to be nonhazardous.
Secure any external connections
that mate to this equipment by
using screws, sliding latches,
threaded connectors, or other
means provided with this product.
• Substitution of any component
may impair suitability for Class I,
Division 2.
• If this product contains batteries,
they must only be changed in an
area known to be nonhazardous.
AVERTISSEMENT
RISQUE D’EXPLOSION
• Couper le courant ou s'assurer
que l'environnement est classé
non dangereux avant de
débrancher l'équipement.
• Couper le courant ou s'assurer
que l'environnement est classé
non dangereux avant de
débrancher les connecteurs.
Fixer tous les connecteurs
externes reliés à cet
équipement à l'aide de vis,
loquets coulissants,
connecteurs filetés ou autres
moyens fournis avec ce produit.
• La substitution de tout
composant peut rendre cet
équipement inadapté à une
utilisation en environnement de
Classe I, Division 2.
• S'assurer que l'environnement
est classé non dangereux avant
de changer les piles.

6Micro800™ Programmable Controller External AC Power Supply
Publication 2080-IN001A-EN-P - September 2010
WARNING
• When used in a Class I, Division 2, hazardous location, this equipment
must be mounted in a suitable enclosure with proper wiring method
that complies with the governing electrical codes.
• Any fluctuation in voltage source must be within 85V…264V.
Do not connect the adapter to a power source that has fluctuations
outside of this range.
ATTENTION
• Be careful when stripping wires. Wire fragments that fall into the
controller could cause damage. Once wiring is complete, be sure the
module is free of all metal fragments before removing the protective
debris strip. Failure to remove the strip before operating can cause
overheating.
• Be careful of metal chips when drilling mounting holes for your
controller or other equipment within the enclosure or panel. Drilled
fragments that fall into the controller could cause damage. Do not drill
holes above a mounted controller if the protective debris strips have
been removed.
• Electrostatic discharge can damage semiconductor devices inside the
adapter. Do not touch the connector pins or other sensitive areas.
• Mount the power supply vertically.
Allow 50 mm (2 in.) of space on all but the right side for adequate
ventilation.
• Do not wire more than 2 conductors on any single terminal.

Micro800™ Programmable Controller External AC Power Supply 7
Publication 2080-IN001A-EN-P - September 2010
Additional Resources
If you would like a manual, you can:
•download a free electronic version from the internet:
http://literature.rockwellautomation.com
•purchase a printed manual by contacting your local Allen-Bradley
distributor or Rockwell Automation representative

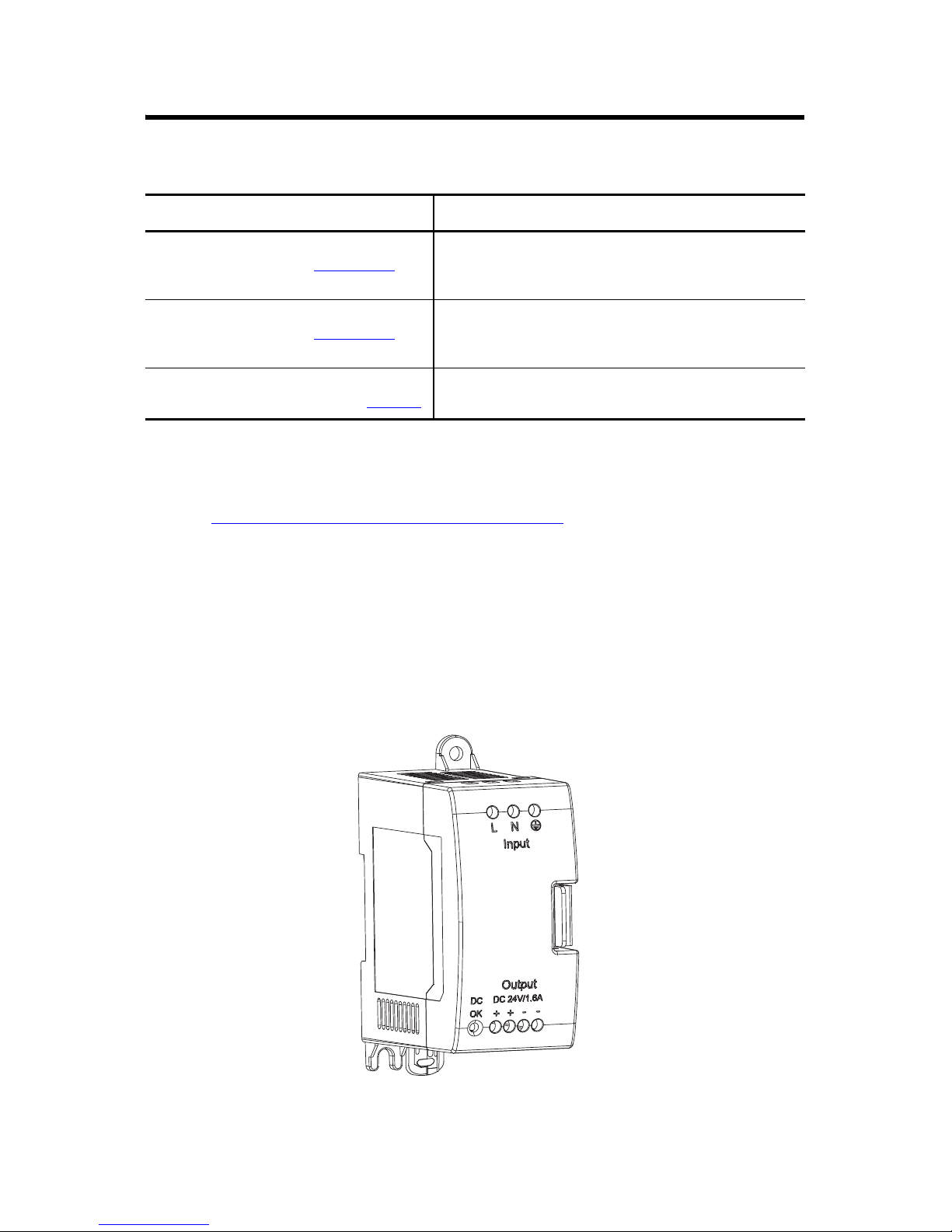

Overview
The 2080-PS120-240VAC adapter can be used by controllers from the
Micro800 family as an optional AC power source.
Resource Description
Micro810™ LC10 Programmable Controllers
User Manual, publication 2080-UM001 A more detailed description of how to install and use your Micro810 LC10 programmable controller and
expansion I/O system.
Micro830™ LC30 Programmable Controllers
User Manual, publication 2080-UM002 A more detailed description of how to install and use
your Micro830 LC30 programmable controller and
expansion I/O system.
Industrial Automation Wiring and
Grounding Guidelines, publication 1770-4.1 More information on proper wiring and grounding
techniques.
45060

8Micro800™ Programmable Controller External AC Power Supply
Publication 2080-IN001A-EN-P - September 2010

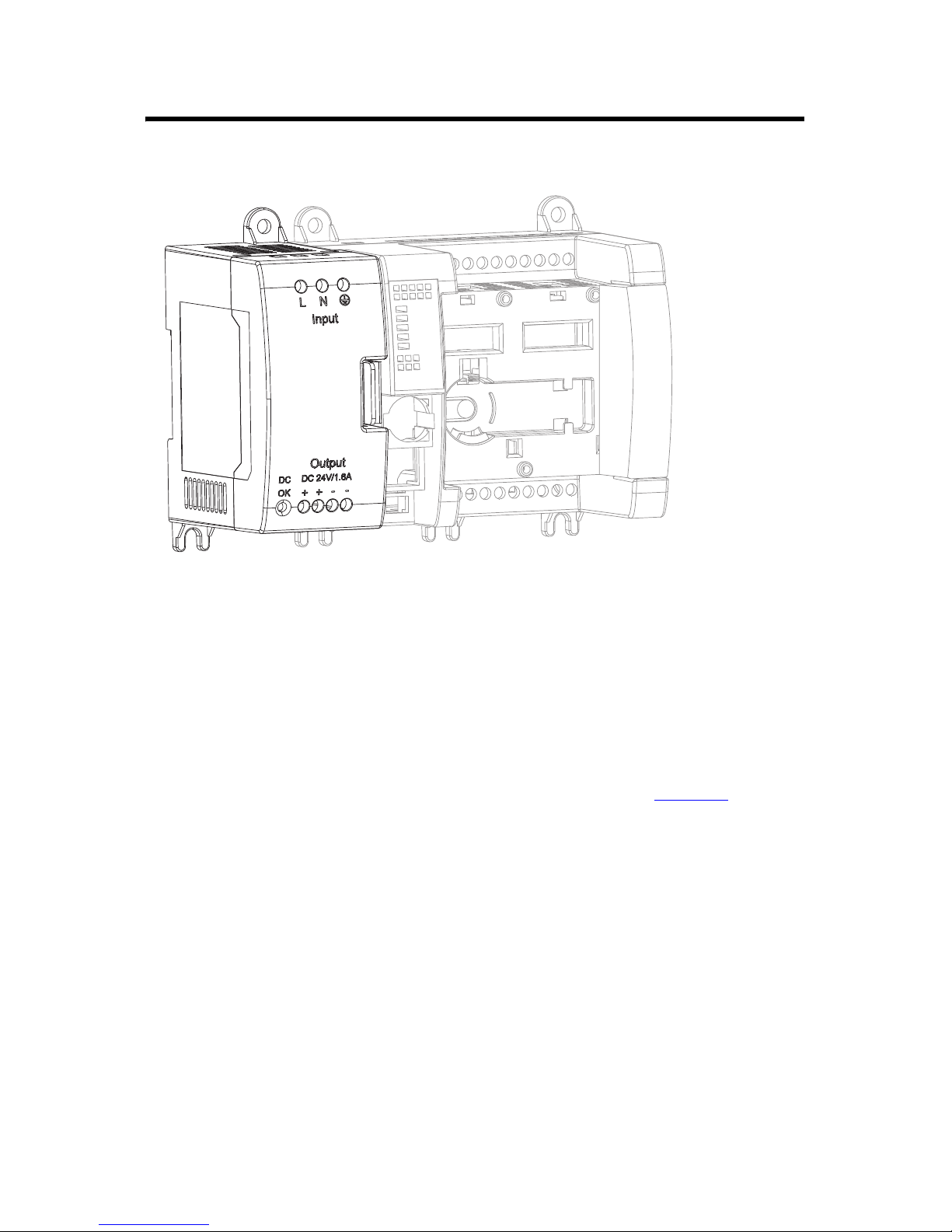

Connect the Power Supply
General Considerations
Most applications require installation in an industrial enclosure to reduce the
effects of electrical interference and environmental exposure. Locate your
module as far as possible from power lines, load lines, and other sources of
electrical noise such as hard-contact switches, relays, and AC motor drives.
For more information on proper grounding guidelines, see the Industrial
Automation Wiring and Grounding Guidelines, publication 1770-4.1.
Module Spacing
Maintain spacing from objects such as enclosure walls, wireways and adjacent
equipment. Allow 50.8 mm (2 in.) of space on all sides for adequate
ventilation. An exception to this spacing guideline is allowed for the side at
which you are connecting a Micro800 controller.
45063

Micro800™ Programmable Controller External AC Power Supply 9
Publication 2080-IN001A-EN-P - September 2010
DIN Rail Mounting
Use a flat-blade screwdriver to mount the power supply on EN50022-35x7.5
DIN rails.
Panel Mounting
The preferred mounting method is to use four M4 (#8) screws per module.
Hole spacing tolerance: ±0.4 mm (0.016 in.).
Follow these steps to install the power supply using mounting screws.
1. Place the power supply against the panel where you are mounting it.
Make sure the power supply is spaced properly.
2. Mark drilling holes through the mounting screw holes and mounting
feet then remove the power supply.
3. Drill the holes at the markings, then replace the power supply and
mount it.
Leave the protective debris strip in place until you are finished wiring
the power supply and any other devices.

10 Micro800™ Programmable Controller External AC Power Supply
Publication 2080-IN001A-EN-P - September 2010
Wire the Module
Specifications
General
Attribute Value
Dimensions, HxWxD 90 x 45 x 80 mm (3.55 x 1.78 x 3.15 in)
Shipping weight 0.34 kg (0.75 lb)
Supply voltage
range(1) 100V…120V AC, 1A
200…240V AC, 0.5A
Supply frequency 47…63 Hz
Supply power 24V DC, 1.6 A
Inrush current, max 24A @ 132V for 10 ms
40A @ 263V for 10 ms
PAC-1 PAC-2 PAC-3
DC-1 DC-2 DC-3 DC-4
AC Input Connectors DC Output Connectors (DC 24V/ 1.6 A)
PAC-1 AC hot 100…240V AC DC-1 +
PAC-2 AC neutral 100…240V AC DC-2 +
PAC-3 Safety ground DC-3 -
DC-4 -
45061
45062

Micro800™ Programmable Controller External AC Power Supply 11
Publication 2080-IN001A-EN-P - September 2010
Power consumption
(Output power) 38.4W @ 100V AC, 38.4W @ 240V AC
Power dissipation
(Input power) 45.1W @ 100V AC, 44.0W @ 240V AC
Isolation voltage 250V (continuous), Primary to Secondary: Reinforced Insulation Type
Type tested for 60s at 2300V AC primary to secondary and 1480V AC primary to
earth ground.
Output ratings 24V DC, 1.6A, 38.4W max.
Enclosure type rating Meets IP20
Wire size 0.32... 2.1 mm² (22...14 AWG) solid copper wire or
0.32... 1.3 mm² (22...16 AWG) stranded copper wire
rated at 90 °C (194 °F ) insulation max
Terminal screw
torque 0.5…0.6 Nm (4.4…5.3 lb-in) (using a Phillips-head or 2.5 mm (0.10in.) flat-blade screwdriver)
Wiring category(2) 2 - on power ports
Insulation stripping
length 7 mm (0.28 in)
North American
temp code T4A
(1) Any fluctuation in voltage source must be within 85V...264V. Do not connect the adapter to a power
source that has fluctuations outside of this range.
(2) Use this Conductor Category information for planning conductor routing. Refer to Industrial Automation
Wiring and Grounding Guidelines, publication 1770-4.1.
General
Attribute Value

12 Micro800™ Programmable Controller External AC Power Supply
Publication 2080-IN001A-EN-P - September 2010
Environmental
Attribute Value
Temperature, operating IEC 60068-2-1 (Test Ad, Operating Cold),
IEC 60068-2-2 (Test Bd, Operating Dry Heat),
IEC 60068-2-14 (Test Nb, Operating Thermal Shock):
-20…65 °C (-4…149 °F)
Temperature,
surrounding air, max 65 °C (149 °F)
Temperature, storage IEC 60068-2-1 (Test Ab, Unpackaged Non-operating Cold),
IEC 60068-2-2 (Test Bb, Unpackaged Non-operating Dry Heat),
IEC 60068-2-14 (Test Na, Unpackaged Non-operating Thermal Shock):
-40…85 °C (-40…185 °F)
Relative humidity IEC 60068-2-30 (Test Db, Unpackaged Damp Heat):
5…95% noncondensing
Vibration IEC 60068-2-6 (Test Fc, Operating):
2 g @ 12... 500 Hz
Shock, operating IEC 60068-2-27 (Test Ea, Unpackaged Shock):
30 g
Shock, nonoperating IEC 60068-2-27 (Test Ea, Unpackaged Shock):
50 g
Emissions CISPR 11
Group 1, Class A
ESD immunity IEC 61000-4-2:
6 kV contact discharges
8 kV air discharges
Radiated RF immunity IEC 61000-4-3:
10V/m with 1 kHz sine-wave 80% AM from 80…2000 MHz
10V/m with 200 Hz 50% Pulse 100% AM at 900 MHz
10V/m with 1 kHz sine-wave 80% AM from 2000…2700 MHz
EFT/B immunity IEC 61000-4-4:
±2 kV at 5 kHz on power ports
Surge transient
immunity IEC 61000-4-5: ±1 kV line-line(DM) and ±2 kV line-earth(CM) on power ports
Conducted RF immunity IEC 61000-4-6:
10V rms with 1 kHz sine-wave 80% AM from 150 kHz…80 MHz
Voltage variation IEC 61000-4-11:
30% dips for 1 period at 0° and 180° on AC supply ports
60% dips for 5 and 50 periods on AC supply ports
±10% fluctuations for 15 min on AC supply ports
>95% interruptions for 250 periods on AC supply ports

Micro800™ Programmable Controller External AC Power Supply 13
Publication 2080-IN001A-EN-P - September 2010
Certifications
Certification
(whenproductis
marked)(1)
(1) See the Product Certification link at http://www.ab.com for Declaration of Conformity, Certificates,
and other certification details.
Value
c-UL-us UL Listed Industrial Control Equipment, certified for US and Canada. See UL File
E322657.
UL Listed for Class I, Division 2 Group A,B,C,D Hazardous Locations, certified
for U.S. and Canada. See UL File E340515.
CE European Union 2004/108/EC EMC Directive, compliant with:
EN 61326-1; Meas./Control/Lab., Industrial Requirements
EN 61000-6-2; Industrial Immunity
EN 61000-6-4; Industrial Emissions
EN 61131-2; Programmable Controllers (Clause 8, Zone A & B)
European Union 2006/95/EC LVD, compliant with:
EN 61131-2; Programmable Controllers (Clause 11)
C-Tick Australian Radiocommunications Act, compliant with:
AS/NZS CISPR 11; Industrial Emissions
