Rockwell Automation Allen-Bradley 1606-XLE260F User manual

Power Supply - 48V, 5.4 A,
260 W, Single-phase Input
Catalog Number 1606-XLE260F
Reference Manual Original Instructions

2Rockwell Automation Publication 1606-RM112A-EN-P - September 2020
Power Supply - 48V, 5.4 A, 260 W, Single-phase Input Reference Manual
Important User Information
Read this document and the documents listed in the additional resources section about installation, configuration, and
operation of this equipment before you install, configure, operate, or maintain this product. Users are required to familiarize
themselves with installation and wiring instructions in addition to requirements of all applicable codes, laws, and standards.
Activities including installation, adjustments, putting into service, use, assembly, disassembly, and maintenance are required to
be carried out by suitably trained personnel in accordance with applicable code of practice.
If this equipment is used in a manner not specified by the manufacturer, the protection provided by the equipment may be
impaired.
In no event will Rockwell Automation, Inc. be responsible or liable for indirect or consequential damages resulting from the use
or application of this equipment.
The examples and diagrams in this manual are included solely for illustrative purposes. Because of the many variables and
requirements associated with any particular installation, Rockwell Automation, Inc. cannot assume responsibility or liability for
actual use based on the examples and diagrams.
No patent liability is assumed by Rockwell Automation, Inc. with respect to use of information, circuits, equipment, or software
described in this manual.
Reproduction of the contents of this manual, in whole or in part, without written permission of Rockwell Automation, Inc., is
prohibited.
Throughout this manual, when necessary, we use notes to make you aware of safety considerations.
Labels may also be on or inside the equipment to provide specific precautions.
WARNING: Identifies information about practices or circumstances that can cause an explosion in a hazardous environment,
which may lead to personal injury or death, property damage, or economic loss.
ATTENTION: Identifies information about practices or circumstances that can lead to personal injury or death, property
damage, or economic loss. Attentions help you identify a hazard, avoid a hazard, and recognize the consequence.
IMPORTANT Identifies information that is critical for successful application and understanding of the product.
SHOCK HAZARD: Labels may be on or inside the equipment, for example, a drive or motor, to alert people that dangerous
voltage may be present.
BURN HAZARD: Labels may be on or inside the equipment, for example, a drive or motor, to alert people that surfaces may
reach dangerous temperatures.
ARC FLASH HAZARD: Labels may be on or inside the equipment, for example, a motor control center, to alert people to
potential Arc Flash. Arc Flash will cause severe injury or death. Wear proper Personal Protective Equipment (PPE). Follow ALL
Regulatory requirements for safe work practices and for Personal Protective Equipment (PPE).

Rockwell Automation Publication 1606-RM112A-EN-P - September 2020 3
Table of Contents
Terminology and Abbreviations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Product Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Catalog Numbers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
AC Input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
DC Input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Input Inrush Current. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Hold-up Time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
DC OK Relay Contact . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Efficiency and Power Losses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Lifetime Expectancy. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Mean Time Between Failure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Functional Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Terminals and Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Daisy Chaining . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Front Side and User Elements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Electromagnetic Compatibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Protection Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Safety Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Dielectric Strength . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Approvals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Other Fulfilled Standards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Physical Dimensions and Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Side Mounting Bracket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Wall/Panel Mount Bracket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Redundancy Modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
1606-XLSRED – 2 x 10 A Inputs, 1 x 20 A Output. . . . . . . . . . . . . . . . . 24
1606-XLSRED40HF – 2 x 20 A Inputs, 1 x 40 A Output . . . . . . . . . . . 24
Peak Current Capability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
External Input Protection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Back-feeding Loads . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Output Circuit Breakers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Parallel Use to Increase Output Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Parallel Use for Redundancy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Series Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Inductive and Capacitive Loads . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Charging of Batteries. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Operation on Two Phases . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Use In a Tightly Sealed Enclosure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Mounting Orientations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Additional Resources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

4Rockwell Automation Publication 1606-RM112A-EN-P - September 2020
Notes:

Rockwell Automation Publication 1606-RM112A-EN-P - September 2020 5
Terminology and
Abbreviations
All parameters in this document are specified under the following conditions
unless otherwise noted:
•48V,5.4Aoutputload
•230VAC,50Hzinputvoltage
• 25 °C (77 °F) ambient temperature
• after a 5 minutes run-in time
Terms Descriptions
PE The abbreviation for Protective Earth. PE has the same meaning as the symbol.
The symbol for Protective Earth.
Earth, Ground This document uses the term “earth” which is the same as the U.S. term “ground”.
AC 230V A value that is displayed with the AC or DC before the value represents a nominal voltage with standard tolerances (usually ±15%) included. For example, DC 12V
describes a 12V battery disregarding whether it is full (13.7V) or flat (10V).
230V AC A value with the unit (V AC) at the end is a momentary value without any additional
tolerances included.
50 Hz versus 60 Hz As long as not otherwise stated, AC 100V and AC 230V parameters are valid at 50 Hz
mains frequency. AC 120V parameters are valid for 60 Hz mains frequency.
nom Indicates a nominal value.
typ Indicates a typical value.
— (alone in table cell) A dash alone in a table cell indicates that there is no information to be included in that
cell.

6Rockwell Automation Publication 1606-RM112A-EN-P - September 2020
Product Overview The 1606-XLE260F power supply is part of a series of high-end power supplies
in a medium price range that do not compromise quality, reliability, or
performance. The 1606-XLE260F features high efficiency, advanced inrush
current limitation, active power factor correction (PFC), and a wide
operational temperature range.
The 1606-XLE260F includes all essential basic functions of a power supply. It
has a power reserve of 10% up to 60 °C (140 °F) and 20% up to 45 °C (113 °F)
included, even when used continuously. Additionally, the power supply can
deliver three times the nominal output current for at least 12 ms, which helps
to trip fuses on faulty output branches. The power supply has a wide variety of
applications due to its high immunity to transients and power surges, low
electromagnetic emission, DC OK relay contact, and large international
approval package.
Product features include the following:
• AC 100…240V wide-range input
• Width only 39 mm (1.54 in.)
• +10% (5.4 A) continuous current up to 60 °C (140 °F)
• +20% (6 A) continuous current up to 45 °C (113 °F)
• Efficiency up to 95.5%
• Excellent partial load efficiency
• Safe HiccupPLUS Overload mode
• Active power factor correction (PFC)
• Minimal inrush current surge
• Full power between -25…+60 °C (-13…+140 °F)
•DCOKrelaycontact
Figure 1 - 1606-XLE260F Power Supply

Rockwell Automation Publication 1606-RM112A-EN-P - September 2020 7
Specifications
Catalog Numbers
Attributes Values Notes
Output voltage DC 48V Nominal
Adjustment range 48…56V Factory setting 48.0V
Output current
6.0…5.2 A Below 45 °C (113 °F) ambient
5.4…4.6 A At 60 °C (140 °F) ambient
4.0…3.4 A At 70 °C (158 °F) ambient
Derate linearly between 45…70 °C (113…158 °F)
Input voltage AC AC 100…240V ±10%
Mains frequency 50…60 Hz ±6%
Input current AC 2.32 / 1.20 A
At 120 / 230V AC
Power factor 0.99 / 0.98 At 120 / 230V AC
Input voltage DC DC 110…150V ±20%
Input current DC 2.51 A At 110V DC
Reduce output current to 5…4.3 A (48…56V) below 93.5V DC
AC Inrush current
6 / 9 A pk At 40 °C (104 °F) 120/230V AC
Efficiency
93.8 / 95.5% At 120 / 230V AC
Losses 17.2 / 12.3 W At 120 / 230V AC
Hold-up time 34 / 34 ms At 120 / 230V AC
Temperature range -25…+70 °C (-13…+158 °F) —
Size (w x h x d) 39 x 124 x 117 mm
(1.54 x 4.88 x 4.61 in.) Without DIN rail
Weight 600 g (1.3 lb) —
Catalog Numbers Descriptions
1606-XLE260F Power supply
1606-XLA-XLE Wall/panel mount bracket
1606-XLA-S44 Side mount bracket

8Rockwell Automation Publication 1606-RM112A-EN-P - September 2020

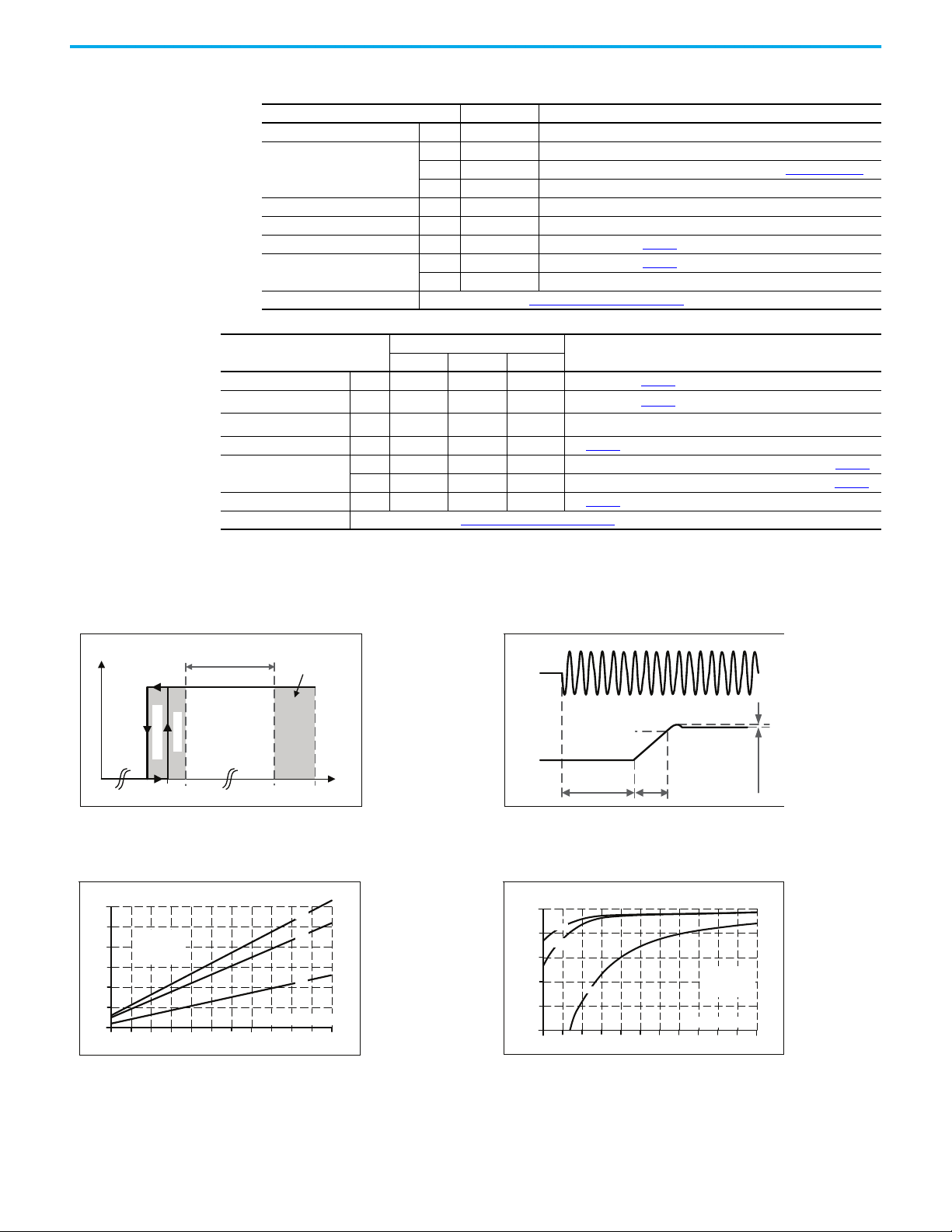

AC Input
Attributes Values Notes
AC input Nom AC 100…240V Suitable for TN-, TT-, and IT mains networks
AC input range
— — Continuous operation
Min 85…264V AC
Below 90V AC, reduce output current according to Figure 6 on page 9 .
Min 264…300V AC For maximal 500 ms
Allowed voltage L or N to earth Max 300V AC Continuous according to IEC 62477-1
Input frequency Nom 50…60 Hz ±6%
Turn-on voltage Typ 80V AC Steady-state value, see Figure 2
Shut-down voltage Typ 70V AC Steady-state value, see Figure 2
Typ 55V AC Dynamic value for maximal 250 ms
External input protection See recommendations in External Input Protection on page 25.
Attributes Values Notes
AC 100V AC 120V AC 230V
Input current Typ 2.82 A 2.32 A 1.20 A At 48V, 5.4 A, see Figure 4
Power factor(1) Typ 0.99 0.99 0.98 At 48V, 5.4 A, see Figure 5
Crest factor(2) Typ 1.5 1.5 1.65 At 48V, 5.4 A
Start-up delay Typ 300 ms 290 ms 240 ms See Figure 3
Rise time Typ 63 ms 63 ms 63 ms At 48V, 5.4 A constant current load, 0 mF load capacitance, see Figure 3
Typ 210 ms 210 ms 210 ms At 48V, 5.4 A constant current load, 5 mF load capacitance, see Figure 3
Turn-on overshoot Max 200 mV 200 mV 200 mV See Figure 3
External input protection See recommendations in External Input Protection on page 25.
(1) The power factor is the ratio of the true (or real) power to the apparent power in an AC circuit.
(2) The crest factor is the mathematical ratio of the peak value to RMS value of the input current waveform.
Figure 2 - Input Voltage Range Figure 3 - Turn-on Behavior, Definitions
Turn-on
90V
Rated
input range
500 ms max
V
IN
P
OUT
300V AC264V
Shut-down
Start-up Rise
delay Time
Overshoot
- 5%
Output
Voltage
Input
Voltage
Figure 4 - Input Current Versus Output Current at 48V Output Voltage Figure 5 - Power Factor Versus Output Current at 48V Output Voltage
6 A
0.5 1
0
0.5
1.0
1.5
2.0
2.5
3 A
Input Current, typ
5
a) 100V AC
b) 120V AC
c) 230V AC
Output Current
(a)
(b)
(c)
5.5
4.543.52.51.5 32
Power Factor, typ
0.75
0.8
0.85
0.9
0.95
1.0
Output Current
(a) 100V AC,
(b) 120V AC,
(c) 230V AC
(a)
(b)
(c)
6 A
55.5 4.543.52.51.5 32
0.5 1

Rockwell Automation Publication 1606-RM112A-EN-P - September 2020 9

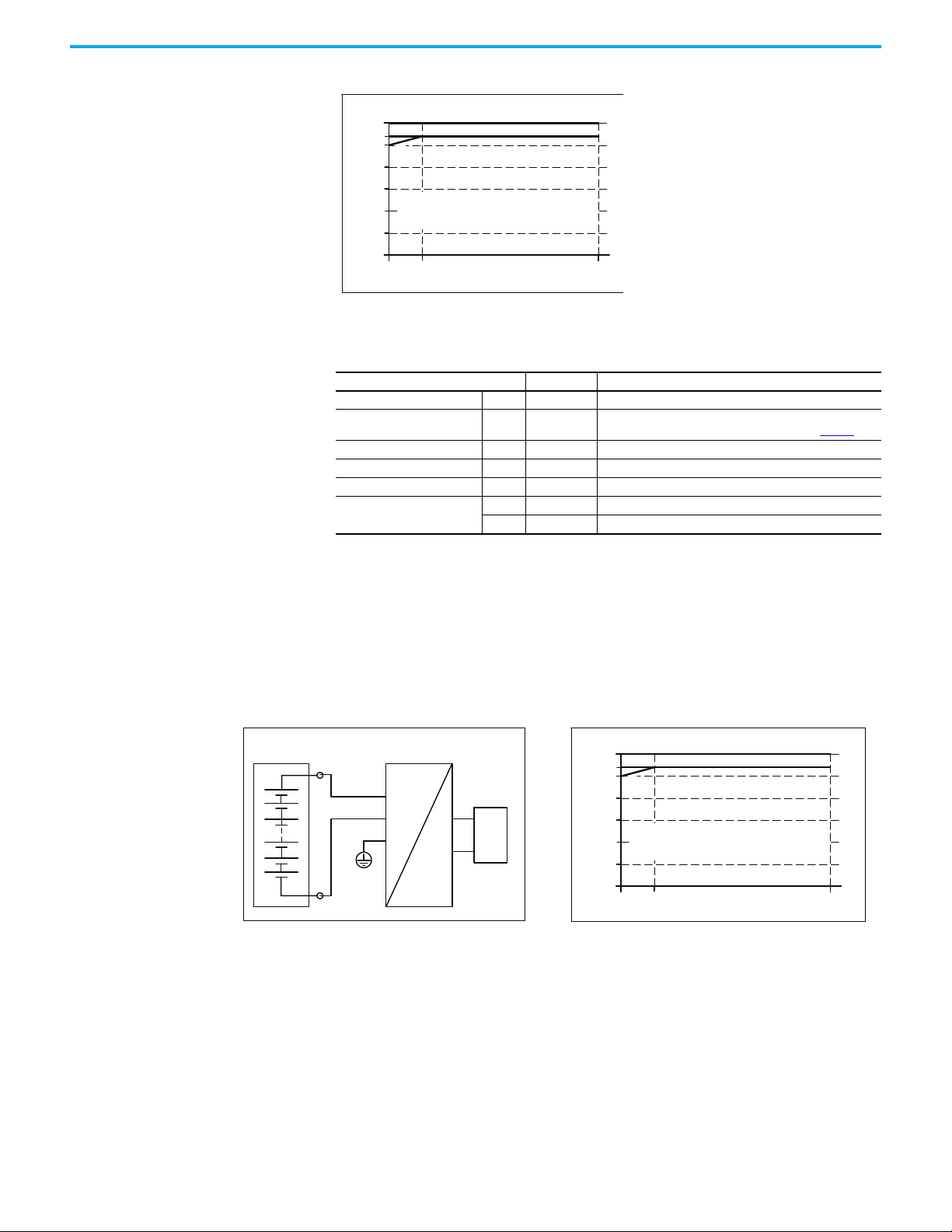

Figure 6 - Derating Requirements for AC Input
DC Input
When using the power supply with a DC input, follow these rules:
• Use a battery or a similar DC source. A supply from the intermediate DC
bus of a frequency converter is not recommended and can cause a
malfunction or damage the unit.
• Connect +pole to L and –pole to N.
• Connect the PE terminal to an earth wire or to the machine ground.
C
Allowed Output Current at 48V
0
85 264V DC
1 A
2 A
3 A
4 A
5 A
6 A
90
5.4 A
A
DC Input Voltage
A: below 60°C ambient temperature
B: below 55°C ambient temperature
C: below 45°C ambient temperature
B
Attributes Values Notes
DC input Nom DC 110…150V ±20%
DC input range Min 88…180V DC Continuous operation,
Below 93.5V DC, reduce output current according to Figure 8.
DC input current Typ 2.51 A At 110V DC
Allowed Voltage L/N to Earth Max 375V DC Continuous, according to IEC 62477-1
Turn-on voltage Typ 80V DC Steady state value
Shut-down voltage Typ 70V DC Steady state value
Typ 55V DC Dynamic value for maximal 250 ms
Figure 7 - Wiring for DC Input Figure 8 - Derating Requirements for DC Input
+
-
Load
L
PE
+
-
Power Supply
AC
Battery
N
DC
C
Allowed Output Current at 48V
0
88 187V DC
1 A
2 A
3 A
4 A
5 A
6 A
93.5
5.4 A
A
DC Input Voltage
A: below 60°C ambient temperature
B: below 55°C ambient temperature
C: below 45°C ambient temperature
B

10 Rockwell Automation Publication 1606-RM112A-EN-P - September 2020

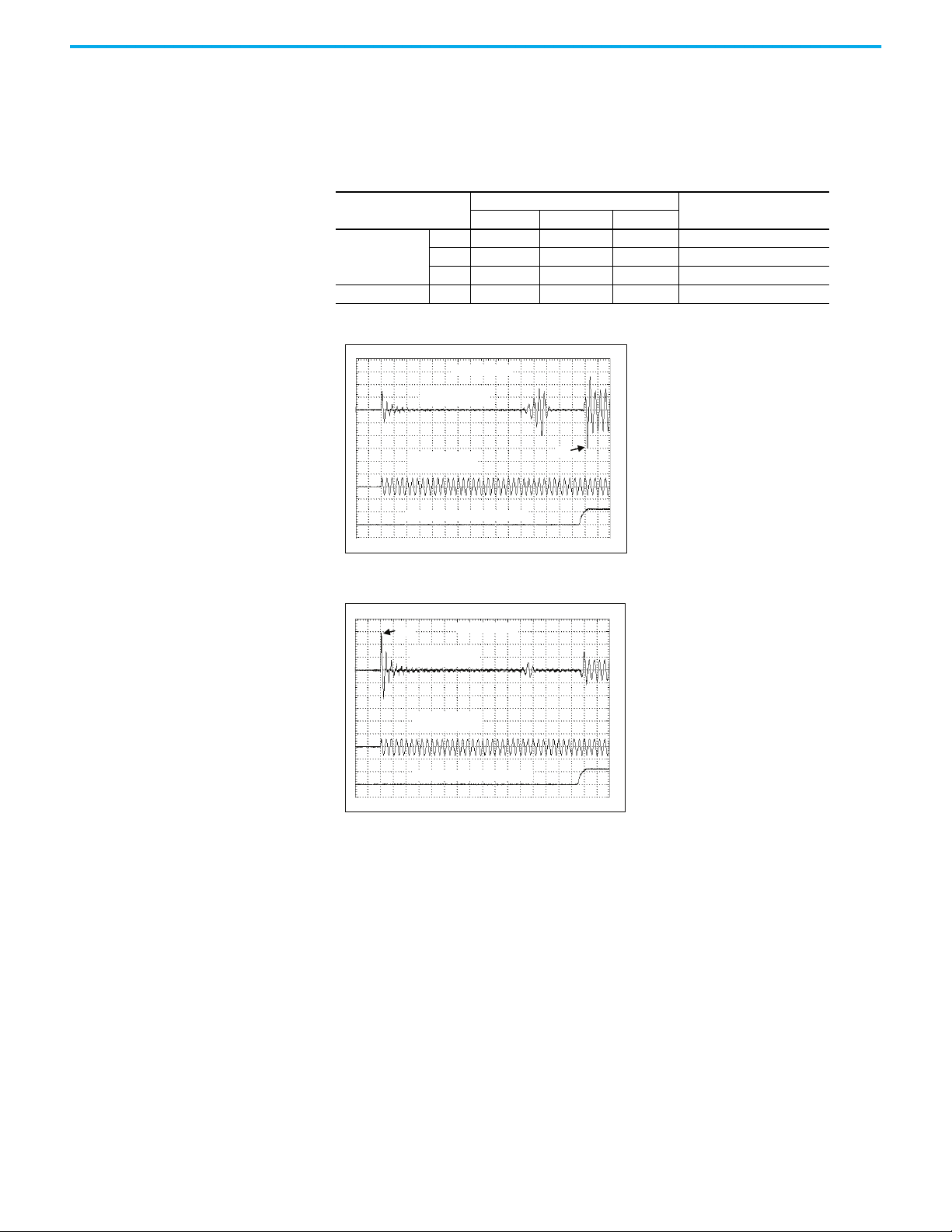

Input Inrush Current An active inrush limitation circuit (NTCs, which are bypassed by a relay
contact) limits the input inrush current after turn-on of the input voltage.
The charging current into EMI suppression capacitors is disregarded in the
first microseconds after switch-on.
Figure 9 - Typical Turn-on Behavior at Nominal Load, 120V AC Input, and 25 °C (77 °F) Ambient
Figure 10 - Typical Turn-on Behavior at Nominal Load, 230V AC Input, and 25 °C (77 °F) Ambient
Attributes Values Notes
AC 100V AC 120V AC 230V
Inrush current
Max 11 A pk 7 A pk 11 A pk At 40 °C (104 °F), cold start
Typ 9 A pk 6 A pk 6 A pk At 25 °C (77 °F), cold start
Typ 9 A pk 6 A pk 9 A pk At 40 °C (104 °F), cold start
Inrush energy Max 0.1 A²s 0.1 A²s 0.4 A²s At 40 °C (104 °F), cold start
50 ms/DIV
Input current
2 A/DIV
Input voltage
250V/DIV
6 A
Output voltage 40V/DIV
50 ms/DIV
Input current
2 A/DIV
Input voltage
500V/DIV
Output voltage 40V/DIV
6 A

Rockwell Automation Publication 1606-RM112A-EN-P - September 2020 11
Output
Figure 13 - Short-circuit on Output, HiccupPLUS Mode, Typ
Attributes Values Notes
Output voltage Nom 48V —
Adjustment range
Min 48…56V Guaranteed value
Max 58.0V This is the max output voltage that can occur at the clockwise end position of the
potentiometer due to tolerances. It is not guaranteed that this value can be achieved.
Factory settings Typ 48.0V ±0.2%, at full load and cold unit
Line regulation Max 10 mV Between 85…300V AC
Load regulation Max 50 mV Between 0…6 A, static value, see Figure 11
Ripple and noise voltage Max 50 mVpp Bandwidth 20 Hz…20 MHz, 50 Ω
Output current
Nom 6.0 A(1) At 48V and an ambient temperature below 45 °C (113 °F), see Figure 25 on page 18
Nom 5.4 A At 48V and 60 °C (140 °F) ambient temperature, see Figure 11
Nom 4.0 A At 48V and 70 °C (158 °F) ambient temperature, see Figure 25 on page 18
Nom 5.2 A(1) At 56V and an ambient temperature below 45 °C (113 °F), see Figure 25 on page 18
Nom 4.6 A At 56V and 60 °C (140 °F) ambient temperature, see Figure 11
Nom 3.4 A At 56V and 70 °C (158 °F) ambient temperature, see Figure 25 on page 18
Typ 15 A For minimal 12 ms once every 5 seconds, see Figure 12. The output voltage stays above 40V. See Peak Current Capability on page 25 for more peak current measurements. For
AC 100V mains, the pulse length is shorter than 12 ms.
Overload behavior — Continuous current Output voltage above 26V DC, see Figure 11
—HiccupPLUS
mode(2) Output voltage below 26V DC, see Figure 11
Short-circuit current
Min 6.3 A(3) Load impedance <90 mΩ, see Figure 13
Max 7.7 A(3) Load impedance <90 mΩ, see Figure 13
Max 2.2 A Average (R.M.S.) current, load impedance 50 mΩ, see Figure 13
Min 14.5 A Up to 12 ms, load impedance <90 mΩ, see Figure 12
Typ 16.0 A Up to 12 ms, load impedance <90 mΩ, see Figure 12
Output capacitance Typ 960 μF Included inside the power supply
(1) Power Boost This power/ current is continuously allowed up to an ambient temperature of 45 °C (113 °F). Above 45 °C (113 °F), do not use this power/
current longer than a duty cycle of 10% and/ or not longer than 1 minute every 10 minutes.
(2) HiccupPLUS Mode At heavy overloads (when output voltage falls below 26V), the power supply delivers continuous output current for 2 s. After this, the
output is switched off for approx 18 s before a new start attempt is automatically performed. This cycle is repeated as long as the overload exists. If the
overload has been cleared, the device operates normally. See Figure 13.
(3) Discharge current of output capacitors is not included.
Figure 11 - Output Voltage Versus Output Current, Typ Figure 12 - Dynamic Output Current Capability, Typ
Output Voltage
0
60
8
16
24
56V
32
40
48
10 A41 2 5 783 9
Adjustment
Range
Output Current
Continuous
current
Factory
setting
Hiccup
PLUS
mode
Output Voltage (dynamic behavior, < 12 ms)
0
0
8
16
24
56V
32
40
48
25 A10 15 20
Adjustment
Range
Output Current
5
Output
Current
0
7 A
18 s 18 s
18 s 2 s 2 s
2 s
t
Short -circuit Normal
operation
Normal
operation

12 Rockwell Automation Publication 1606-RM112A-EN-P - September 2020
Hold-up Time
DC OK Relay Contact This feature monitors the output voltage on the output terminals of a running
power supply.
Figure 16 - DC OK Relay Contact Behavior
Attributes Values Notes
AC 100V AC 120V AC 230V
Hold-up time
Typ 67 ms 67 ms 67 ms At 48V, 2.7 A, see Figure 14
Min 50 ms 50 ms 50 ms At 48V, 2.7 A, see Figure 14
Typ 34 ms 34 ms 34 ms At 48V, 5.4 A, see Figure 14
Min 26 ms 26 ms 26 ms At 48V, 5.4 A, see Figure 14
Figure 14 - Hold-up Time Versus Input Voltage Figure 15 - Shutdown Behavior, Definitions
0
10
20
30
40
80 ms
90 120 155 190 230V AC
Input Voltage
50
60
Hold-up Time
70
a
b
c
d
a) 48V 2.7 A typ
b) 48V 2.7 A min
c) 48V 5.4 A typ
d) 48V 5.4 A min
- 5%
Zero Transition
Output
Voltage
Input
Voltage
Hold-up Time
Attributes Descriptions and Values
Contact closes As soon as the output voltage reaches typ 90% of the adjusted output voltage level.
Contact opens As soon as the output voltage dips more than 10% below the adjusted output voltage.
Short dips are extended to a signal length of 100 ms. Dips shorter than 1 ms are ignored.
Switching hysteresis Typ 2V
Contact ratings Maximal 60V DC 0.3 A, 30V DC 1 A, 30V AC 0.5 A, resistive load
Minimal permissible load: 1 mA at 5V DC
Isolation voltage See Dielectric Strength on page 20.
100 ms
0.9* V
ADJ
<
1 ms
10%
open
V
OUT
= V
ADJ
openclosed closed
>
1 ms

Rockwell Automation Publication 1606-RM112A-EN-P - September 2020 13

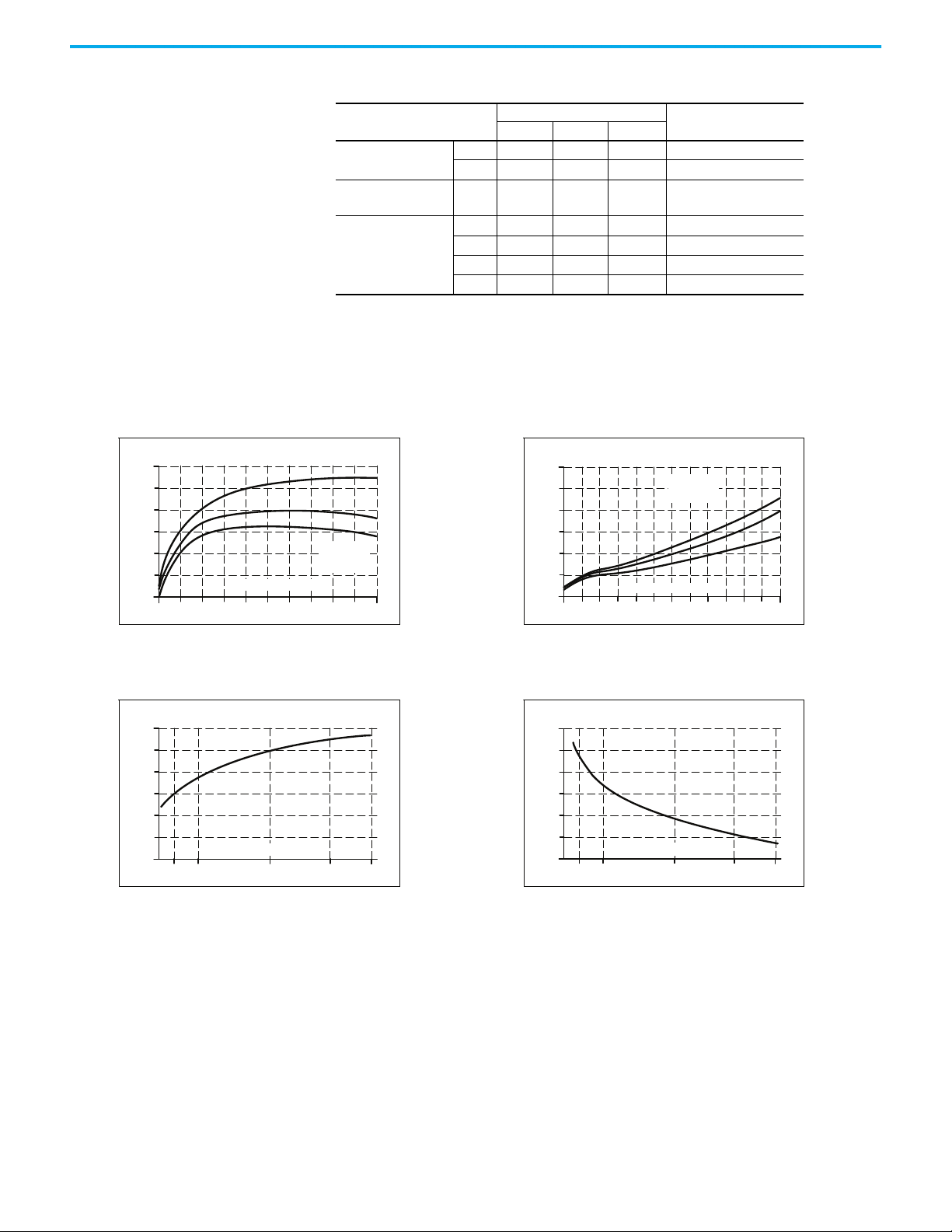

Efficiency and Power
Losses Attributes Values Notes
AC 100V AC 120V AC 230V
Efficiency Typ 93.0% 93.8% 95.5% At 48V, 5.4 A
Typ 92.7% 93.6% 95.4% At 48V, 6 A (Power Boost)
Average efficiency(1)
(1) The average efficiency is an assumption for a typical application where the power supply is loaded with
the following:
• 25% of the nominal load for 25% of the time
• 50% of the nominal load for 25% of the time
• 75% of the nominal load for 25% of the time
• 100% of the nominal load for 25% of the time
Typ 92.8% 93.4% 94.5% 25% at 1.3 A, 25% at 2.6 A,
25% at 3.9 A. 25% at 5.4 A
Power losses
Typ 2.5 W 2.3 W 2.0 W At 48V, 0 A
Typ 10.2 W 9.5 W 7.4 W At 48V, 2.7 A
Typ 19.5 W 17.2 W 12.3 W At 48V, 5.4 A
Typ 22.7 W 19.7 W 13.9 W At 48V, 6 A (Power Boost)
Figure 17 - Efficiency Versus Output Current at 48V, Typ Figure 18 - Losses Versus Output Current at 48V, Typ
Eciency
90
91
92
93
94
95
96%
Output Current
(a)
(b)
(c)
(a) 100V AC
(b) 120V AC
(c) 230V AC
6 A
1 5 5.5 4.543.52.51.5 32
Power Losses
5
0
10
15
20
30 W
25
Output Current
(a)
(b)
(c)
(a) 100V AC
(b) 120V AC
(c) 230V AC
6 A
55.5 4.543.52.51.5 321
0.50
Figure 19 - Efficiency Versus Input Voltage at 48V, 5.4 A, Typ Figure 20 - Losses Versus Input Voltage at 48V, 5.4 A, Typ
Eciency
120 180 230 264V AC
90
91
92
93
Input Voltage
94
95
96%
100
Power Losses
120 180 230 264V AC
10
12
14
16
Input Voltage
18
20
22 W
100

14 Rockwell Automation Publication 1606-RM112A-EN-P - September 2020
Lifetime Expectancy The Lifetime expectancy that is shown in the table indicates the minimum
operating hours (service life) and is determined by the lifetime expectancy of
the built-in electrolytic capacitors. Lifetime expectancy is specified in
operational hours and is calculated according to the capacitor’s manufacturer
specification. The manufacturer of the electrolytic capacitors only states a
maximum life of up to 15 years (131,400 hr). Any number exceeding this value is
a calculated theoretical lifetime, which can be used to compare devices.
Mean Time Between Failure Mean Time Between Failure (MTBF) is calculated according to statistical
device failures, and indicates reliability of a device. It is the statistical
representation of the likelihood of a unit to fail and does not necessarily
represent the life of a product.
The MTBF value is a statistical representation of the likelihood of a device to
fail. An MTBF value of, for example, 1,000,000 hr means that statistically one
unit fails every 100 hours if 10,000 units are installed in the field. However, it
cannot be determined if the failed unit has been running for 50,000 hr or only
for 100 hr.
Functional Diagram Figure 21 - Functional Diagram
Attribute Values Notes
AC 100V AC 120V AC 230V
Lifetime expectancy
141,000 hr 158,000 hr 188,000 hr At 48V, 2.7 A and 40 °C (104 °F)
399,000 hr 446,000 hr 531,000 hr At 48V, 2.7 A and 25 °C (77 °F)
63,000 hr 77,000 hr 120,000 hr At 48V, 5.4 A and 40 °C (104 °F)
178,000 hr 219,000 hr 338,000 hr At 48V, 5.4 A and 25 °C (77 °F)
45,000 hr 57,000 hr 97,000 hr At 48V, 6 A and 40 °C (104 °F)
126,000 hr 161,000 hr 275,000 hr At 48V, 6 A and 25 °C (77 °F)
Attribute Values Notes
AC 100V AC 120V AC 230V
MTBF SN 29500, IEC 61709 506,000 hr 523,000 hr 699,000 hr At 48V, 5.4 A and 40 °C (104 °F)
897,000 hr 923,000 hr 1,201,000 hr At 48V, 5.4 A and 25 °C (77 °F)
MTBF MIL HDBK 217F
223,000 hr 224,000 hr 248,000 hr At 48V, 5.4 A and 40 °C (104 °F);
Ground Benign GB40
303,000 hr 303,000 hr 339,000 hr At 48V, 5.4 A and 25 °C (77 °F);
Ground Benign GB25
50,000 hr 51,000 hr 58,000 hr At 48V, 5.4 A and 40 °C (104 °F);
Ground Fixed GF40
65,000 hr 65,000 hr 74,000 hr At 48V, 5.4 A and 25 °C (77 °F);
Ground Fixed GF25
+
+
-
-
Output
Over-
Voltage
Protection
PFC
Converter
Output
Voltage
Regulator
Power
Converter
Output
Filter
Output
Voltage
Monitor
Output
Power
Manager
Temper-
ature
Shut-
down
Input Fuse
Input Filter
Input Rectier
Inrush Current Limiter
V
OUT
L
N
DC OK
Contact
DC OK
Status Indicator
DC OK
Relay
-

Rockwell Automation Publication 1606-RM112A-EN-P - September 2020 15
Terminals and Wiring The terminals are IP20 fingersafe constructed and suitable for field wiring and
factory wiring.
For wiring, follow these rules:
• Use appropriate copper cables that are designed for minimum operating
temperatures of:
- 60 °C (140 °F) for ambient up to 45 °C (113 °F)
- 75 °C (167 °F) for ambient up to 60 °C (140 °F)
- 90 °C (194 °F) for ambient up to 70 °C (158 °F)
• Follow national installation codes and installation regulations.
• Ensure that all strands of a stranded wire enter the terminal connection.
• Unused terminal compartments should be securely tightened.
• Ferrules are allowed.

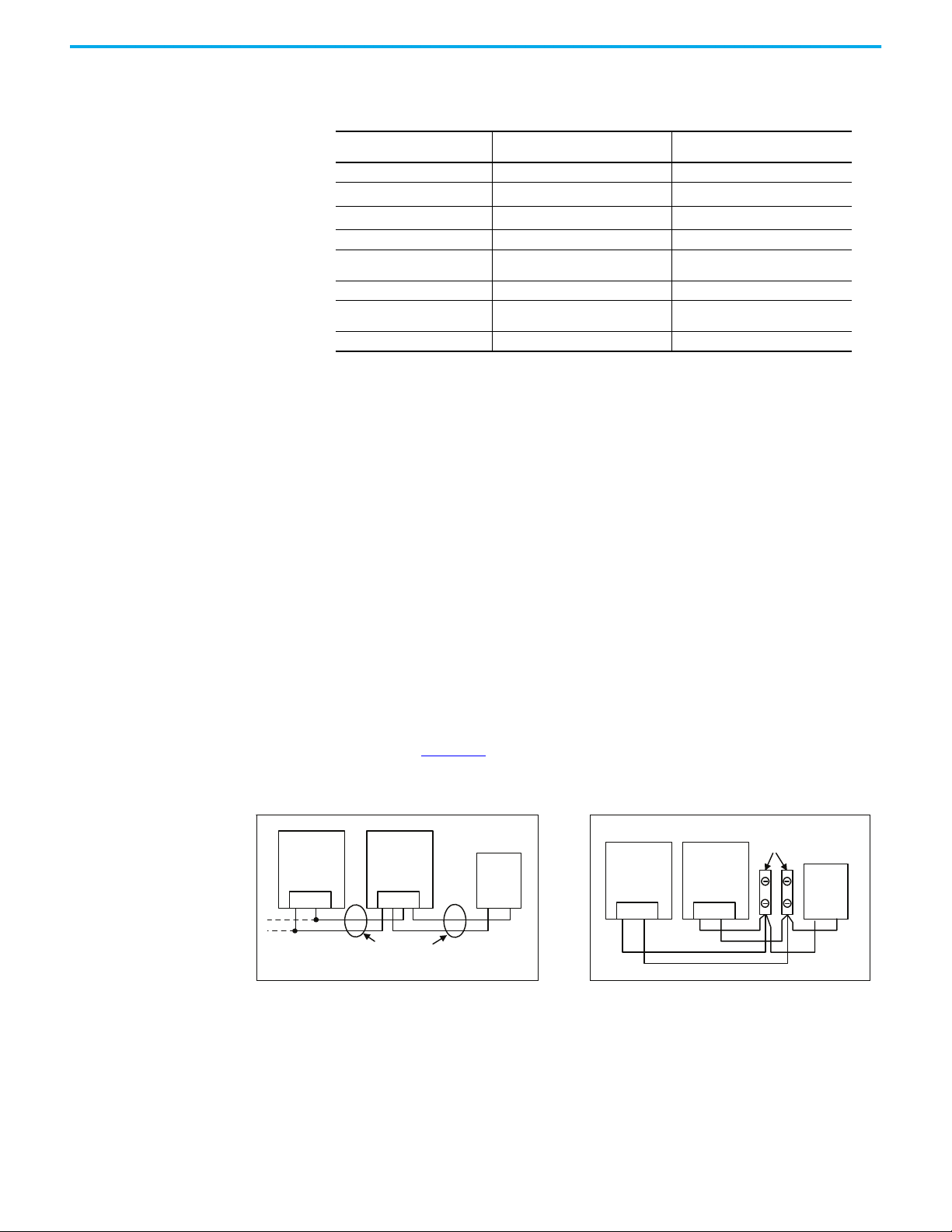

Daisy Chaining
Daisy chaining (jumping from one power supply output to the next) is allowed
as long as the average output current through one terminal pin does not
exceed 25 A. If the current is higher, use a separate distribution terminal block
as shown in Figure 23.
Attributes Values for both input and output
terminals Values for DC OK signal terminals
Type Screw terminals Push-in terminals
Solid wire 6 mm2max 1.5 mm2max
Stranded wire 4 mm2max 1.5 mm2max
American Wire Gauge AWG 20…10 AWG 24…16
Wire diameter 2.8 mm max (0.11 in. max) (including
ferrules) 1.6 mm max (0.06 in. max) (including ferrules)
Wire stripping length 7 mm (0.28 in.) 7 mm (0.28 in.)
Screwdriver 3.5 mm (0.14 in.) slotted or cross-head No
2Not required
Recommended tightening torque 1 N•m (9 lb•in) Not applicable
Figure 22 - Daisy Chaining of Outputs Figure 23 - Using Distribution Terminals
Load
+
-
Power
Supply
+ +
- -
Output
Power
Supply
+ +
- -
Output
max 25 A
continuous
Distribution
Terminals
Load
+
-
Power
Supply
+ +
- -
Output
Power
Supply
+ +
- -
Output

16 Rockwell Automation Publication 1606-RM112A-EN-P - September 2020
Front Side and User
Elements
Figure 24 - Front Side User Elements
1 Input Terminals (screw terminals)
N, L Line input
PE (Protective Earth) input
2OutputTerminals(screw terminals)
Two identical + poles and three identical - poles.
+ Positive output
– Negative (return) output
3 Output Voltage Potentiometer
Open the flap to adjust the output voltage. Factory set: 48.0V.
4 DC OK Status Indicator (green)
On when the output voltage is >90% of the adjusted output voltage.
5 DC OK Relay Contact (spring-clamp terminals)
Monitors the output voltage of the running power supply. See
DC OK Relay Contact on page 12 for details.
1
2
3
4
5

Rockwell Automation Publication 1606-RM112A-EN-P - September 2020 17
Electromagnetic
Compatibility
The power supply is suitable for applications in industrial, residential,
commercial, and light industrial environments.
Electromagnetic compatibility (EMC) immunity information, according to
generic standards EN 61000-6-1 and EN 61000-6-2, is provided in the following
table.
EMC emission information, according to generic standards EN 61000-6-3 and
EN 61000-6-4, is provided in the following table.
Switching frequency information is provided in the following table.
Attributes Standards Values Criteria(1)
(1) Criterion A: The device shows normal operation behavior within the defined limits.
Criterion C: Temporary loss of function is possible. The device may shut down. If it shuts down, it then restarts by itself.
No damage or hazards for the device occur.
Electrostatic discharge EN 61000-4-2 Contact discharge 8 kV Criterion A
Air discharge 15 kV Criterion A
Electromagnetic RF field EN 61000-4-3 80 MHz…2.7 GHz 20V/m Criterion A
Fast transients (Burst) EN 61000-4-4
Input lines 4 kV CriterionA
Output lines 2 kV CriterionA
DC OK signal (coupling clamp) 2 kV Criterion A
Surge voltage on input EN 61000-4-5 L N 2 kV Criterion A
L PE, N PE 4 kV Criterion A
Surge voltage on output EN 61000-4-5 + - 1 kV Criterion A
+ / - PE 2 kV Criterion A
Surge voltage on Signals EN 61000-4-5 DC OK signal PE 1 kV Criterion A
Conducted disturbance EN 61000-4-6 0.15…80 MHz 20V Criterion A
Mains voltage dips EN 61000-4-11
0% of 100V AC 0V AC, 20 ms Criterion A
40% of 100V AC 40V AC, 200 ms Criterion C
70% of 100V AC 70V AC, 500 ms Criterion C
0% of 200V AC 0V AC, 20 ms Criterion A
40% of 200V AC 80V AC, 200 ms Criterion A
70% of 200V AC 140V AC, 500 ms Criterion A
Voltage interruptions EN 61000-4-11 0% of 200V AC (=0V) 5000 ms Criterion C
Voltage sags SEMI F47 0706
Dips on the input voltage according to SEMI F47 standard
80% of 120V AC (96V AC)
1000 ms CriterionA
70% of 120V AC (84V AC)
500 ms CriterionA
50% of 120V AC (60V AC) 200 ms Criterion A
Powerful transients VDE 0160 Over entire load range 750V, 0.3 ms Criterion A
Attributes Standards Notes
Conducted emission input lines EN 55011, EN 55015, EN 55022, FCC Part 15, CISPR 11, CISPR 22 Class B
Conducted emission output lines
(1) IEC/CISPR 16-1-2, IEC/CISPR 16-2-1 LimitsforDCpowerportaccording toEN 61000-6-3fulfilled
Radiated emission EN 55011, EN 55022 Class B
Harmonic input current EN 61000-3-2 Class A fulfilled between 0…6 A load ClassCfulfilledbetween2.5…6 Aload
Voltage fluctuations, flicker EN 61000-3-3 Fulfilled(2)
This device complies with FCC Part 15 rules.
Operation is subjected to following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference
that may cause undesired operation.
(1) For information only, not mandatory for EN 61000-6-3.
(2) Tested with constant current loads, non-pulsing.
Attributes Values Notes
PFC converter 110 kHz Fixed frequency
Main converter 85…140 kHz Dependent on output load
Auxiliary converter 60 kHz Fixed frequency

18 Rockwell Automation Publication 1606-RM112A-EN-P - September 2020
Environment
Attributes Values Notes
Operational temperature(1) -25…+70 °C (-13…+158 °F) Reduce output power according to Figure 25
Storage temperature -40…+85 °C (-40…+185 °F) For storage and transportation
Output derating 1.9 W/1 °C (1.9 W/1.8 °F) Between 45…60 °C (113…140 °F)
6.5 W/1 °C (6.5 W/1.8 °F) Between 60…70 °C (140…158 °F)
Humidity 5…95% r.h. According to IEC 60068-2-30
Do not energize while condensation is present
Vibration sinusoidal(2) 2…17.8 Hz: ±1.6 mm (0.06 in.);
17.8…500 Hz: 2 g
2 hours / axis According to IEC 60068-2-6
Shock(2) 30 g 6 ms, 20 g 11 ms
3 bumps / direction,
18 bumps in total
According to IEC 60068-2-27
Altitude 0…2000 m (0…6560 ft) Without any restrictions
2000…6000 m (6560…20,000 ft) Reduce output power or ambient temperature, see Figure 26.
Altitude derating 15 W/1000 m (15 W/3281 ft) or
5 °C/1000 m (9 °F/3281 ft) Above 2000 m (6500 ft), see Figure 26
Overvoltage category
III According to IEC 62477-1 for altitudes up to 2000 m (6500 ft)
II According to IEC 62477-1 for altitudes from 2000…6000 m
(6560…20,000 ft)
Degree of pollution 2 According to IEC 62477-1, not conductive
LABS compatibility The unit does not release any silicone or other LABS-critical substances and is suitable for use in paint
shops.
Corrosive gases ISA-71.04-1985, Severity Level G3, IEC 60068-2-60 Test Ke Method 4
Audible noise Some audible noise may be emitted from the power supply during no load, overload, or short circuit.
(1) Operational temperature is the same as the ambient or surrounding temperature and is defined as the air temperature 2 cm (0.79 in.)
below the unit.
(2) Tested in combination with DIN rails according to EN 60715 with a height of 15 mm (0.59 in.) and a thickness of 1.3 mm (0.05 in.) and
standard orientation.
Figure 25 - Output Current Versus Ambient Temperature Figure 26 - Output Current Versus Altitude
Allowed Output Current at 48V
0
70 °C
1 A
2 A
3 A
4 A
5 A
6 A
60
A
A: 90...264V AC, continuous
B: short term
B
Ambient Temperature
40200-25
0
0 2000 m 4000 m 6000 m
1 A
2 A
3 A
4 A
5 A
6 A
Allowed Output Current at 48V
Altitude
B
C
A: Tamb < 60 °C
B: Tamb < 50 °C
C: Tamb < 40 °C
D: Short term
A
D

Rockwell Automation Publication 1606-RM112A-EN-P - September 2020 19
Protection Features
Safety Features
Attributes Values Notes
Output protection — Electronically protected against overload, no-load, and short-circuits. If there is a
protection event, audible noise may occur.
Output overvoltage protection Typ 58.5V DC If there is an internal power supply defect, a redundant circuit limits the maximum
output voltage. The output shuts down and automatically attempts to restart.
60V DC max
Degree of protection IP 20 EN/IEC 60529
Penetration protection > 4 mm (0.16 in.) Example: screws, small parts
Over-temperature protection Yes
Output shutdown with automatic restart.
The temperature sensor is installed on critical components inside the unit and
turns off the unit in safety-critical situations. For example, when derating
requirements are not observed, there is a high ambient temperature, ventilation is
obstructed, or the mounting orientation derating is not followed. There is no
correlation between the operating temperature and turn-off temperature since
this is dependent on input voltage, load, and installation methods.
Input transient protection MOV
(Metal Oxide Varistor) For protection values see Electromagnetic Compatibility on page 17.
Internal input fuse Included Non-user-replaceable, slow-blow, high-braking capacity fuse
Attributes Values Notes
Input / output separation
Double or reinforced galvanic isolation
SELV IEC/EN 60950-1
PELV IEC/EN 60204-1, EN 62477-1, IEC 60364-4-41
Class of protection I PE (Protective Earth) connection required
Isolation resistance
> 500 MΩ At delivered condition between input and output, measured with 500V DC
> 500 MΩ At delivered condition between input and PE, measured with 500V DC
> 500 MΩ At delivered condition between output and PE, measured with 500V DC
> 500 MΩ At delivered condition between output and DC OK contacts, measured with 500V DC
PE resistance < 0.1 Ω Resistance between PE terminal and the housing in the area of the DIN rail mounting bracket.
Touch current (leakage current)
Typ 0.14 mA / 0.36 mA At 100V AC, 50 Hz, TN-,TT-mains / IT-mains
Typ 0.20 mA / 0.50 mA At 120V AC, 60 Hz, TN-,TT-mains / IT-mains
Typ 0.33 mA / 0.86 mA At 230V AC, 50 Hz, TN-,TT-mains / IT-mains
Max 0.18 mA / 0.43 mA At 110V AC, 50 Hz, TN-,TT-mains / IT-mains
Max 0.26 mA / 0.61 mA At 132V AC, 60 Hz, TN-,TT-mains / IT-mains
Max 0.44 mA / 1.05 mA At 264V AC, 50 Hz, TN-,TT-mains / IT-mains

20 Rockwell Automation Publication 1606-RM112A-EN-P - September 2020

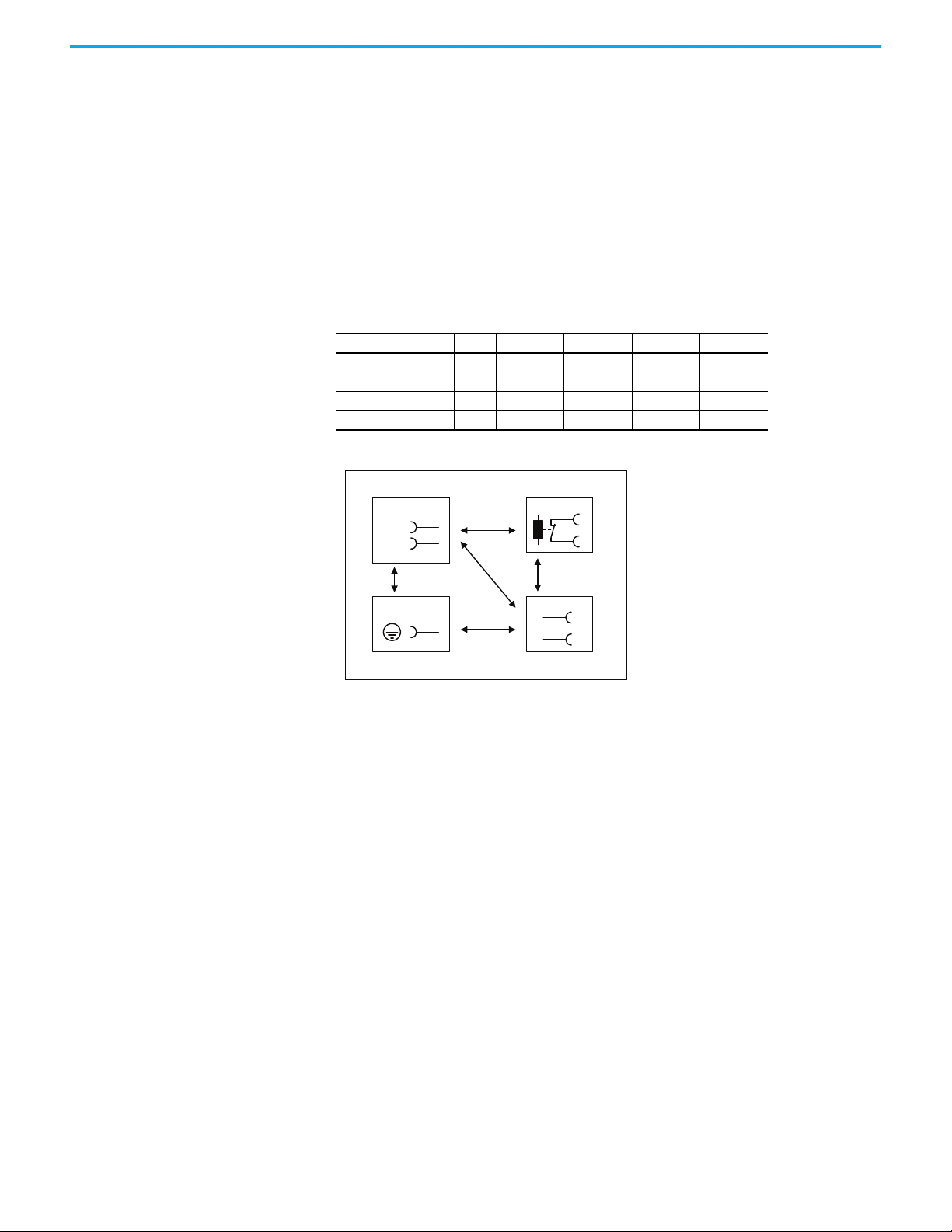

Dielectric Strength The output voltage is floating and has no ohmic connection to the ground.
Type and factory tests are conducted by the manufacturer. Field tests may be
conducted in the field using the appropriate test equipment, which applies the
voltage with a slow ramp (2 s up and 2 s down). Connect all input-terminals
together and all output poles before conducting the test. When testing, set the
cutoff current settings to the value in the following table.
To fulfill the PELV requirements according to EN60204-1 § 6.4.1, we
recommend that either the + pole, the – pole, or any other part of the output
circuit shall be connected to the protective earth system. This helps to avoid
situations in which a load starts unexpectedly or cannot be switched off when
unnoticed earth faults occur.
Figure 27 - Dielectric Strength
(1) When testing input to DC OK, ensure that the max voltage between DC OK and the output is not exceeded (column D). We
recommend connecting DC OK pins and the output pins together when performing the test.
Test or Setting Time A B C D
Type test 60 s 2500V AC 4000V AC 1000V AC 500V AC
Factory test 5 s 2500V AC 2500V AC 500V AC 500V AC
Field test 5 s 2500V AC 2000V AC 500V AC 500V AC
Cutoff current setting — > 10 mA > 10 mA > 20 mA > 1 mA
AD
C
B
B
(1)
L
Input DC OK
13
14
Earth, PE Output
+
-
N
