Rockwell Allen-Bradley Logix5000 User manual

Logix5000 Control Systems: Connect a PanelView Plus
Terminal over an EtherNet/IP Network
Catalog Numbers Logix5000 Controllers, 2711P PanelView Plus Terminals
Quick Start

Important User Information
Solid-state equipment has operational characteristics differing from those of electromechanical equipment. Safety
Guidelines for the Application, Installation and Maintenance of Solid State Controls (publication SGI-1.1 available from
your local Rockwell Automation sales office or online at http://www.rockwellautomation.com/literature/) describes some
important differences between solid-state equipment and hard-wired electromechanical devices. Because of this difference,
and also because of the wide variety of uses for solid-state equipment, all persons responsible for applying this equipment
must satisfy themselves that each intended application of this equipment is acceptable.
In no event will Rockwell Automation, Inc. be responsible or liable for indirect or consequential damages resulting from the
use or application of this equipment.
The examples and diagrams in this manual are included solely for illustrative purposes. Because of the many variables and
requirements associated with any particular installation, Rockwell Automation, Inc. cannot assume responsibility or
liability for actual use based on the examples and diagrams.
No patent liability is assumed by Rockwell Automation, Inc. with respect to use of information, circuits, equipment, or
software described in this manual.
Reproduction of the contents of this manual, in whole or in part, without written permission of Rockwell Automation,
Inc., is prohibited.
Throughout this manual, when necessary, we use notes to make you aware of safety considerations.
Allen-Bradley, Compact I/O, CompactLogix, FactoryTalk, Integrated Architecture, Logix5000, PanelView, POINT I/O, Rockwell Software, Rockwell Automation, RSLinx, RSLogix, RSNetWorx, Stratix 6000, and
TechConnect are trademarks of Rockwell Automation, Inc.
Trademarks not belonging to Rockwell Automation are property of their respective companies.
WARNING: Identifies information aboutpractices or circumstances that can cause an explosion in a hazardous environment,
which may lead to personal injury or death, property damage, or economic loss.
ATTENTION: Identifies information about practices or circumstances that can lead to personal injury or death, property
damage, or economic loss. Attentions help you identify a hazard, avoid a hazard,and recognize the consequence.
SHOCK HAZARD: Labels may be on or inside the equipment, for example, a drive or motor, to alert people that dangerous
voltage may be present.
BURN HAZARD: Labels may be on or inside the equipment, for example, a drive ormotor, to alert people that surfaces may
reach dangerous temperatures.
IMPORTANT
Identifies informationthat iscritical for successful application and understanding of the product.

Rockwell Automation Publication IASIMP-QS033A-EN-P - March 2012 3
Table of Contents
Preface Before Using This Publication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Other Logix5000 Control System Quick Starts. . . . . . . . . . . . . . . . . . . . . . . 8
Use Each Chapter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Where to Start. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
How Hardware Is Connected . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Required Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Additional Resources. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Chapter 1
PreparethePanelViewPlusTerminal
Hardware
Before You Begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
What You Need . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Follow These Steps. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Mount the PanelView Plus Terminal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Connect the Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Connect the PanelView Plus Terminal to the
EtherNet/IP Network. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Assign an IP Address to the PanelView Plus Terminal. . . . . . . . . . . . . . . 17
Additional Resources. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Chapter 2
Create a PanelView Plus Application
Before You Begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
What You Need . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Follow These Steps. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Install FactoryTalk View Studio Software . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Install RSLinx Enterprise Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Create a New Application . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Create an RSLinx Enterprise Configuration in
FactoryTalk View Machine Edition. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Create a Device Shortcut to the Controller. . . . . . . . . . . . . . . . . . . . . . . . . 33
Create the OB16_Light Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Create a Push Button. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Test the Indicator and Push Button. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Add a Goto Configuration Mode Button . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Assign Function Keys. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Assign an Initial Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Transfer to PanelView Plus Terminal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Test the Application on the PanelView Plus Terminal. . . . . . . . . . . . . . . 49
Additional Resources. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

4Rockwell Automation Publication IASIMP-QS033A-EN-P - March 2012
Table of Contents
Notes:

Rockwell Automation Publication IASIMP-QS033A-EN-P - March 2012 5
Preface
This quick start provides examples and procedures for including a PanelViewPlus terminal in a
Logix5000control system over an EtherNet/IP network. The programming examples are not
complex, and offer easy solutions to verify that devices are functioning and communicating
properly.
Before Using This Publication
You can only use the tasks described in this publication after first completing some prerequisite
tasks with a Logix5000 controller. For example, before you can add a PanelView Plus terminal to
an RSLogix5000 project, as described on page 21, you must first create the project in a
Logix5000 controller.
Table 1 describes the tasks you must complete before using this publication.
For more information on how to complete these tasks with specific Logix5000 controllers, see
the Integrated Architecture: Logix5000 Control Systems Quick Starts Quick Reference,
publication IASIMP-QR024.
IMPORTANT
This publication describes basic example tasks you can completewhen using a PanelView Plus terminal on an
EtherNet/IP network. The tasks described are not the only tasks you can complete with the terminal on an EtherNet/IP
network.
IMPORTANT
The example graphics shown in Table 1 - Required Tasks To Complete Before Using This Quick Start on page 6 are for
CompactLogix 5370 L3 controllers. Depending on the Logix5000 controller you are using, the specific steps to complete
the tasks described in the table might vary.

6Rockwell Automation Publication IASIMP-QS033A-EN-P - March 2012
Preface

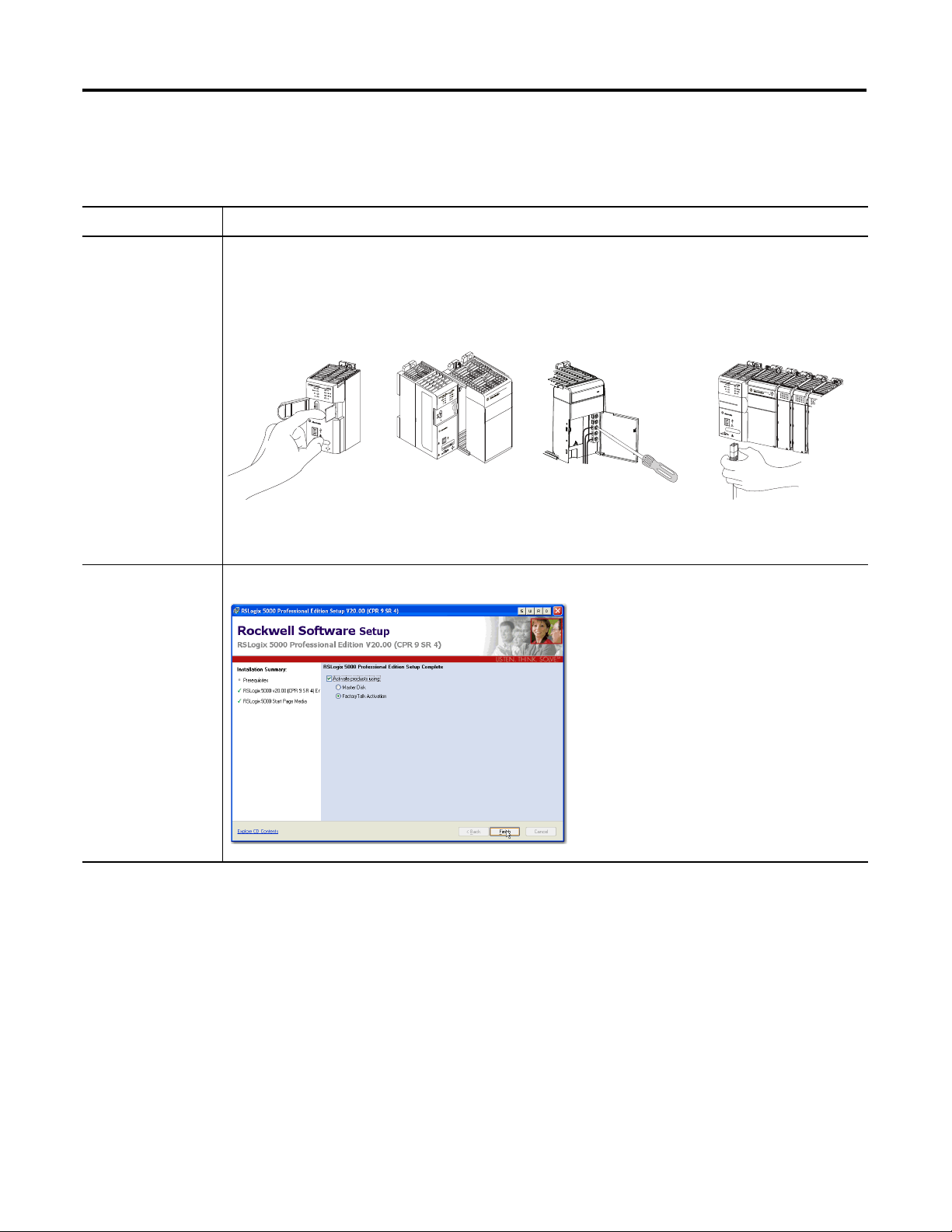

Table 1 - Required Tasks To Complete Before Using This Quick Start
Task Description
PreparetheLogix5000
control system
hardware
Assemble the control system andconnect to necessary communicationnetworks. Some components, for
example, the desired Logix5000 controller and system power supply, are required. Other components, for
example, a network communication module, are optional.
These graphics show the assembly of an example Logix5000 controller.
IMPORTANT: This task does not include installation of specific hardware components, for example, PanelView
Plus terminals, used over the networks included in your application.
Prepare the computer Install necessary software, such as RSLogix5000 software, on your computer.
2(Rear)
1(Front)

Rockwell Automation Publication IASIMP-QS033A-EN-P - March 2012 7
Preface
Configure the
networks Complete required tasks associated with the networks used inyour application. For instance, as assign an IP address to the controller orto a communication module in your Logix5000 control system.
Create an
RSLogix 5000 project Create a project to be used with your Logix5000 controller. A project includes all desired control system components and necessary programming. For example, add ladder logic to test tasks associated with individual
system components..
Table 1 - Required Tasks To Complete Before Using This Quick Start
Task Description

8Rockwell Automation Publication IASIMP-QS033A-EN-P - March 2012
Preface
Other Logix5000 Control System Quick Starts
This quick start describes how to use one device on one network in a Logix5000 control system.
Typically, though, a Logix5000 control system includes more than the controller and one device
on one network.
For example, if a Logix5000 control system operates on an EtherNet/IP network, in addition to
a controller, power supply, and communication modules, the system might use remote I/O
modules, drives and HMI terminals.
Other quick starts describe how to use different devices on different networks in Logix5000
control systems. For more information, see the Integrated Architecture: Logix5000 Control
Systems Quick Starts Quick Reference, publication IASIMP-QR024.
Use Each Chapter
The beginning of each chapter contains the following information. You should read these
sections before beginning work in each chapter:
•Before You Begin - This section lists the tasks you must complete before starting
the chapter.
•What You Need - This section lists the tools that are required to complete the tasks in
the chapter.
•Follow These Steps - This section illustrates the steps in the current chapter.

Rockwell Automation Publication IASIMP-QS033A-EN-P - March 2012 9
Preface
Where to Start
Prepare the PanelView
Plus Terminal Hardware
page 13
Create a PanelView
Plus Application
page 21
Prerequisite Tasks
Described in Before Using This Publication on page 5.
1. Prepare the Logix5000 control system hardware.
2. Prepare the computer.
3. Configure the networks.
4. Create an RSLogix 5000 project.
Logix5000
Controller

10 Rockwell Automation Publication IASIMP-QS033A-EN-P - March 2012
Preface
How Hardware Is Connected
This quick start demonstrates the following possible control system.
Required Software
To complete examples in this quick start, you need the software described in this table.
Software Version Required for This Task
RSLogix 5000 20.00.00 or later(1)
(1) RSLogix 5000 software, version 20.00.00 or later is required for use of this quick start because the example Logix5000 controller, and associated tasks, described herein are
completed in a CompactLogixL3ER control system. CompactLogix L3ER control systems require RSLogix 5000 software, version 20.00.00 or later. If you connect a
PanelView Plus terminal over an EtherNet/IP network in a Logix5000 control system that uses a different controller, the minimum version may differ.
Create or change RSLogix 5000 projects to
use PanelView Plus terminals
FactoryTalkView Machine Edition(2)
(2) When you install the FactoryTalk View Machine Edition software, you automatically install FactoryTalk Services Platform software and RSLinx Enterprise software.
5.01.00 or later(3)
(3) You can use version 5.01.00 with some Logix5000 controllers. However, the tasks described in this quick start use a 1769-L36ERM controller. That controller requires you to
use version 6.00.00 or later and version 6.00.00 is shown in this publication.
Configure the PanelView Plus terminal and
execute runtime tasks
RSLinxEnterprise(4)
(4) This software is automatically installed when you install FactoryTalk View Machine Edition software.
5.00.00 or later Complete the tasks described in Chapter 2,
Create a PanelView Plus Application on
page 21.
1
2
34
56
78
PanelView Plus Terminal with
Built-in EtherNet/IP Port
Computer
Logix5000 Controller
with Ethernet
Connection
Stratix6000
Managed Switch

Rockwell Automation Publication IASIMP-QS033A-EN-P - March 2012 11
Preface
Parts List
You need these parts to use this publication.
For a list of parts required to complete the prerequisite tasks listed in Table 1 - Required Tasks To
Complete Before Using This Quick Start on page 6, see the documentation describing those
tasks.
Additional Resources
You can view or download publications at http://www.rockwellautomation.com/literature/. To
order paper copies of technical documentation, contact your local Allen-Bradley distributor or
Rockwell Automation sales representative.
Quantity Cat. No. Description
1 2711P-K10C4D1 PanelView Plus 1000 with built-in EtherNet/IP network port
1 2711P-RSACDIN DC power supply for PanelView Plus terminals
1 Panelformountingtheterminal,ifdesired-Tocompletethetasks describedinthis
quick start, you can prop the PanelView Plus terminal on a desktop.
1 1769-OB16 Compact I/Ooutput module
1 1585J-M8PBJM-2 RJ45-to-RJ45 patchcord Ethernet cables
Resource Description
PanelView Plus Terminals User Manual, publication
2711P-UM001 Describes how to install, configure, and execute runtime tasks for the PanelView Plus terminal.
ACPower Supply for PanelView Plus/PanelView Plus CE
Terminals Installation Instructions, publication
2711P-IN005
Describeshowto installthe powersupply fora PanelView Plus 1000terminal.
Stratix 6000 Ethernet Managed Switch Installation
Instructions, publication 1783-UM001, publication
1783-UM004
Describes how to configure, operate and troubleshoot a Stratix 6000
managed switch.
Stratix 6000 Ethernet Managed Switches Installation
Instructions, publication 1783-IN004 Describes how to install a Stratix 6000 switch.
Industrial Automation Wiring and Grounding Guidelines,
publication 1770-4.1 Provides general guidelines for installing a Rockwell Automation industrial
system.
Product Certifications website, http://www.ab.com Provides declarations of conformity, certificates, and other certification
details.

12 Rockwell Automation Publication IASIMP-QS033A-EN-P - March 2012
Preface
Notes:

Rockwell Automation Publication IASIMP-QS033A-EN-P - March 2012 13
Chapter 1
Prepare the PanelView Plus Terminal Hardware
In this chapter, you learn how to complete the following tasks:
•Mount and wire power to a 2711P-K10C4D1 terminal.
•Configure EtherNet/IP communication for the terminal.
Before You Begin
You must complete these tasks described in Before Using This Publication on page 5 before using
this chapter:
•Prepare the Logix5000 control system hardware
•Prepare the computer
•Configure the networks - The tasks described in this chapter require an
EtherNet/IP network.
•Create an RSLogix 5000 project
The example RSLogix 5000 project used in this chapter uses a
CompactLogix 5370 L3 controller.
What You Need
This table lists the products you need to complete the tasks described in this chapter.
Quantity Cat. No. Description
1 2711P-K10C4D1 PanelView Plus terminal with built-in EtherNet/IP network port
1 2711P-RSACDIN DC power supply for PanelView Plus terminals
1 Panel for mounting the terminal - Optional when using this publication
1 1585J-M8PBJM-2 RJ45-to-RJ45 patchcord Ethernet cables

14 Rockwell Automation Publication IASIMP-QS033A-EN-P - March 2012
Chapter 1 Prepare the PanelView Plus Terminal Hardware
Follow These Steps
Mount the PanelView Plus Terminal
In normal applications, you mount a PanelView Plus terminal to a panel. For the purpose of this
quick start, however, the PanelView Plus can be propped on a desktop to complete the tasks
described herein.
For complete mounting instructions, see the PanelView Plus Terminals User Manual, publication
2711P-UM001.
1
2
34
56
78
Mount the PanelView
Plus Terminal
page 14
Connect the
Power Supply
page 15
Connect the PanelView
Plus Terminal to the
EtherNet/IP Network
page 16
Assign an IP Address to
the PanelView Plus
Terminal
page 16
GND
+
–
GND

Rockwell Automation Publication IASIMP-QS033A-EN-P - March 2012 15
Prepare the PanelView Plus Terminal Hardware Chapter 1
Connect the Power Supply
This quick start uses a PanelView Plus 1000 terminal with built-in Ethernet port and a
PanelView Plus Logic module, catalog number 2711P-RP1, Series G. The 2711P-RP1 Logic
module uses a 2-position terminal block for power connections.
Complete these steps to connect power to the PanelView Plus terminal.
1. Install the 2711P-RSACDIN DC power supply for the PanelView Plus terminal on a
DIN rail.
Do not turn on power to the power supply.
For detailed information on how to install a 2711P-RSACDIN DC power supply, see the
AC Power Supply for PanelView Plus/PanelView Plus CE Terminals Installation
Instructions, publication 2711P-IN005.
WARNING: Verify that all incoming power is turned off before wiring power.
GND
+
–
GND
Earth/GroundtoGround Bus
DC - DC +
2-position
Terminal Block
PanelView Plus
24 VDC
POWER SUPPLY
2711P-RSACDIN
POWER

16 Rockwell Automation Publication IASIMP-QS033A-EN-P - March 2012
Chapter 1 Prepare the PanelView Plus Terminal Hardware
2. Gently pull the terminal block off of the PanelView Plus terminal.
3. Connect the 12/24V DC
common and 12/24V DC
power wires from the power
supply to the terminal block,
-(common) and + (power).
4. Connect the terminal block to
the PanelView Plus terminal.
Connect the PanelView Plus Terminal to the EtherNet/IP Network
1. Connect one end of the
1585J-M8PBJM-2 RJ45-to-
RJ45 patchcord Ethernet cable
to the EtherNet/IP port on the
PanelView Plus terminal.
2. Connect the other end of the
cable to an Ethernet switch.
IMPORTANT
If you completed the tasks described in the Logix5000 controller quick start for the controller you are using with this
quick start, you should already have an Ethernet switch installed on the EtherNet/IP network. If not, install a switch, for
example, a Stratix 6000 managed switch, on the EtherNet/IP network before proceeding.
+
–
24VDC
POWER SUPPLY
2711P-RSACDIN
24V
COM
POWER
PanelView Plus
Common
Power
Front Display on Terminal
EtherNet/IP Port
1
2
34
56
78

Rockwell Automation Publication IASIMP-QS033A-EN-P - March 2012 17
Prepare the PanelView Plus Terminal Hardware Chapter 1
Assign an IP Address to the PanelView Plus Terminal
This graphic shows a 2711P-RP1,
Series G terminal. You use the keypad
buttons to make choices from the
options on the terminal screen.
•If the options on the screen are
lines of text, press the direction
arrows, that is, up/down and
left/right arrows, on the keypad to
highlight the option you need and
press the enter button.
•If the option on the screen show
specific button number from the
keypad, press the matching button
on the keypad.
For example, to choose the
Terminal Settings [F4] option on
the screen, press the F4 button on
the keypad.
Keypad Buttons
Direction
Buttons
Lines of Text on Screen
Enter Button
Keypad Buttons
F4 Button
Terminal Setting [F4] Option on Screen

18 Rockwell Automation Publication IASIMP-QS033A-EN-P - March 2012
Chapter 1 Prepare the PanelView Plus Terminal Hardware
Complete the following steps to assign an IP address to the PanelView Plus terminal.
1. Apply power to the PanelView Plus terminal.
2. When the initial PanelView Plus
terminal configuration screen
appears on the terminal, press [F4]
on the keypad to access the
terminal settings.
3. Press the direction arrows and
Enter button on the keypad to
navigate this path and access the IP
address: Networks and
Communications>Network
Connections>Network Adaptors>Built-in Ethernet Controller>IP Address [F2].
4. Press IP address [F1].
5. Use the numbers on the keypad to assign an IP address to the PanelView Plus terminal.
6. Press the Enter button on the keypad twice.
7. Press Subnet Mask [F2].
8. Use the numbers on the keypad to assign a subnet mask to the PanelView Plus terminal.
9. Press Enter.

Rockwell Automation Publication IASIMP-QS033A-EN-P - March 2012 19
Prepare the PanelView Plus Terminal Hardware Chapter 1
10. Press OK [F7] to save settings, as shown, and press OK [F7] to acknowledge the reset
message.
11. Press [F8] four times until you return to the initial configuration screen.
12. Press [F7] to reset the terminal.
13. Press [F7] to confirm.
Additional Resources
For a list of additional resources that might assist you when preparing the PanelView Plus
terminal hardware, see page 11.

20 Rockwell Automation Publication IASIMP-QS033A-EN-P - March 2012
Chapter 1 Prepare the PanelView Plus Terminal Hardware
Notes:
