Rodenstock Phoromat 2000 User manual

OPERATION MANUAL
DIGITAL REFRACTOR Phoromat 2000
Revision 1.1 rodenstockinstruments.com
Before using the instrument, be sure to read this manual thoroughly.

Phoromat 2000 Operation Manual
- ii -
IMPORTANT NOTICE
This product may malfunction due to electromagnetic waves caused by portable personal
telephones, transceivers, radio-controlled toys, etc. Be sure to avoid having objects such
as, which affect this product, brought near the product.
The information in this publication has been carefully checked and is believed to be
entirely accurate at the time of publication. RODENSTOCK assumes no responsibility,
however, for possible errors or omissions, or for any consequences resulting from the use
of the information contained herein.
RODENSTOCK reserves the right to make changes in its products or product
specifications at any time and without prior notice, and is not required to update this
documentation to reflect such changes.
© 2013 RODENSTOCK Instrumente
Am Weichselgarten 19a 91058 Erlangen / Germany
All rights reserved.
Under copyright laws, this manual may not be copied, in whole or in part, without the prior written consent of RODENSTOCK
Instrumente.

Phoromat 2000 Operation Manual
- iii -
SAFETY INFORMATION
Accessory equipment connected to the analog and digital interfaces must be certificated
according to the respective IEC standards (e.g. IEC 60950-1 for data processing
equipment and IEC 60601-1 for medical equipment). Furthermore all configurations shall
comply with the system standard EN 60601-1:2006, Clause 16. Everybody who connects
additional equipment to the signal input part or signal output part configures a medical
system, and is therefore responsible that the system complies with the requirements of the
system standard IEC 601-1-1. If in doubt, consult the technical service department or your
local representative.
For U.S.A
Do not make any changes or modifications to the equipment unless otherwise specified in
the manual.
If such changes or modifications should be made, you could be required to stop operation
of the equipment.
For EU Countries
The following mark, the name & address of the EU Representative shows compliance of
the instrument with Directive 93/42/EEC.
Authorized Representative:
Medical Device Safety Service GmbH
Schiffgraben 41, D-30175
Hannover, Germany

Phoromat 2000 Operation Manual
- iv -

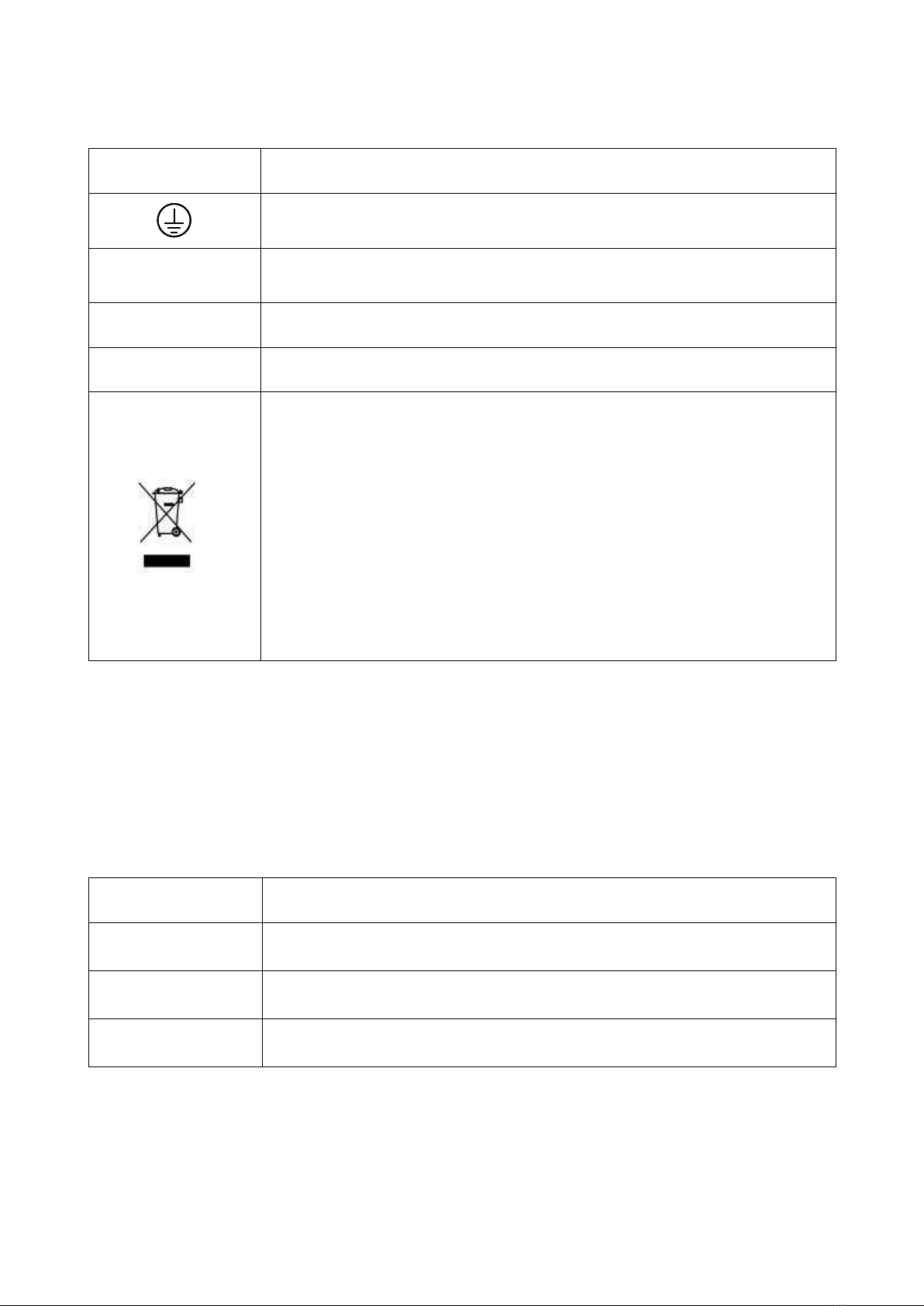

Symbols marked on the Instrument
Symbol
Description
Protective earth (ground)
Refer to operating instructions
O
Off (power: disconnect to the mains)
I
On (power: connection to the mains)
I
Disposal of your old appliance
When this crossed-out wheeled bin symbol is attached to a
product it means the product is covered by the European
Directive 2002/96/EC.
All electrical and electronic products should be disposed of
separately from the municipal waste stream via designated
collection facilities appointed by the government or the local
authorities.
The correct disposal of your old appliance will help prevent
potential negative consequences for the environment and
human health.
For more detailed information about disposal of your old
appliance, please contact your city office, waste disposal
service or the shop where you purchased the product
General Safety Information
If you see any warnings or cautions printed on the warning labels, follow the safety
instructions in this manual. Ignoring such cautions or warnings while handling the product
may result in injury or accident. Be sure to read and fully understand the manual before
using this product.
Keep this manual in easy-to-access place.
Caution Sign
Description
This indicates a potentially hazardous situation which could results
in death or serious injury to you or others.
This indicates hazardous situations which may result in minor injury
to you or others, or may result in machine damage.
This is used to emphasize essential information. Be sure to read
this information to avoid incorrect operation.
NOTE
CAUTION
WARNING

Phoromat 2000 Operation Manual
- v -
WARNING
Only operate the instrument with the power supply indicated on the
rating plate. Otherwise, it may result in fire or electric shock.
WARNING
Be sure to turn OFF the power switch before connecting or
disconnecting the cables.Also, do not handle them with wet hands.
Otherwise, you may get an electric shock that may result in death
or serious injury.
WARNING
Never disassemble or modify this instrument because it may result
in fire or electric shock. Also, since this instrument incorporates
high-voltage parts and other hazardous parts, touching them may
cause death or serious injury.
WARNING
Should any of the following occur, immediately turn OFF the power
switch, unplug the power cable from theAC outlet, and contact the
dealer or the agent who/where you purchase this instrument.
When there is smoke, strange odor or abnormal sound.
When liquid has been spilled into the instrument or a metal
object has entered through an opening.
When the product has been dropped or its housing damaged.
CAUTION
This instrument is shipped with a grounding type power cable. To
reduce the risk of electric shock, always plug the cable into a
grounded power outlet.
CAUTION
Wipe the forehead rest with ethanol or glutaraldehyde solution to
disinfect it each time a different examinee uses it, in order to
prevent infection.
CAUTION
Do not use the device near, on, or under other electronic equipment
to avoid electromagnetic interference with the operation of the
device.
CAUTION
Do not use the device in the same room with other equipment such
as life-support equipment, other equipment that has major affects
on the life of patient an results of treatment , or other measurement
or treatment equipment that involve small electric current.
CAUTION
Do not use the device simultaneously with portable and mobile
radio frequency communication systems because it may have an
adverse effect on operation of the device.
CAUTION
Do not use cables and accessories that are not specified for the
device because that may increase the emission of electromagnetic
waves from the device or the system and decrease the immunity of
the device to electromagnetic disturbance.

Phoromat 2000 Operation Manual
- vi -
CONTENTS
IMPORTANT NOTICE ----------------------------------------------------------------------II
SAFETY INFORMATION------------------------------------------------------------------III
CONTENTS-----------------------------------------------------------------------------------VI
1BEFORE USE-----------------------------------------------------------------------------1
1.1 Outline of the Refractor -------------------------------------------------------------------------------------------------- 1
1.2 Indications for Use--------------------------------------------------------------------------------------------------------- 1
1.3 Configuration ---------------------------------------------------------------------------------------------------------------- 2

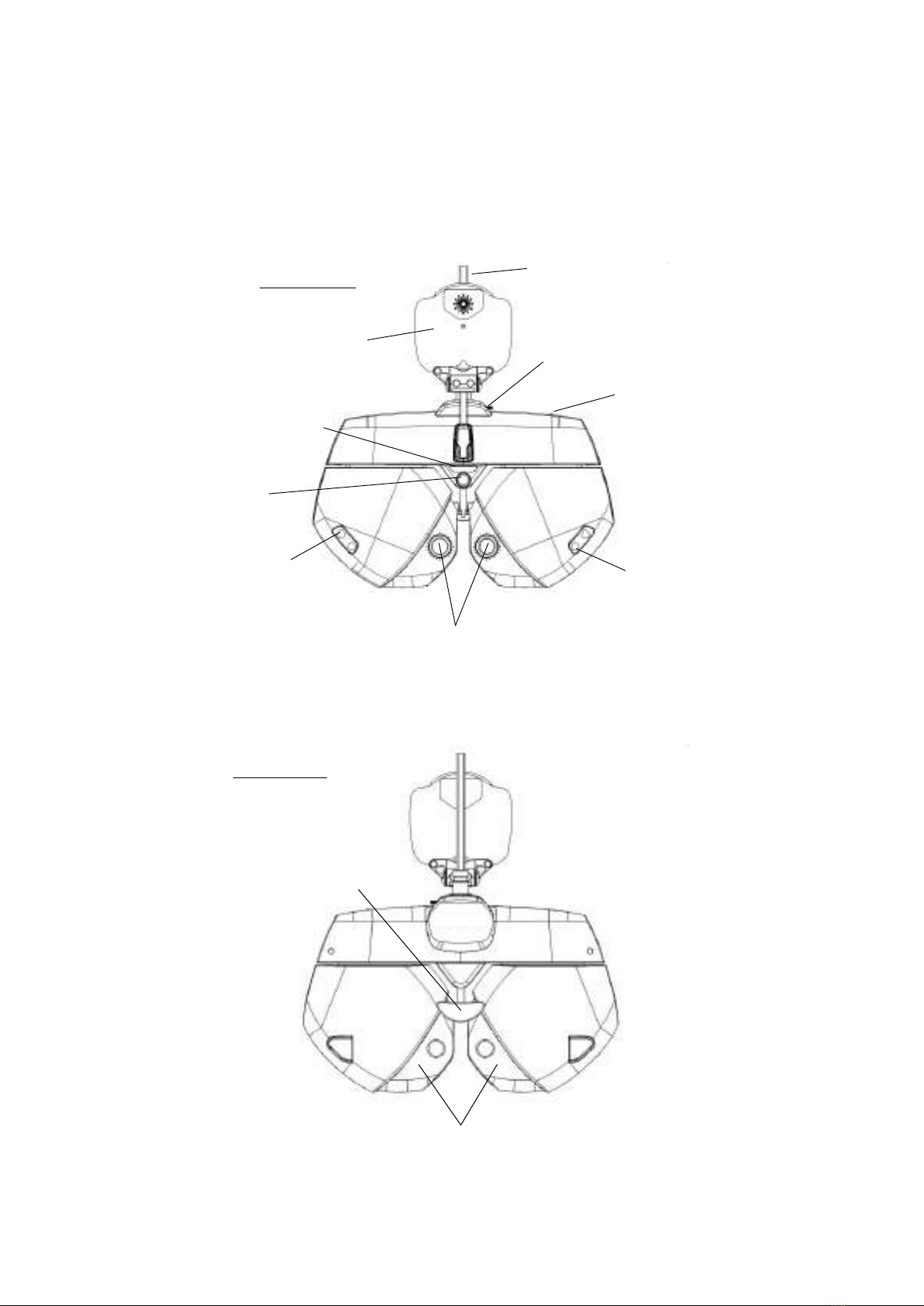

1.3.1 Refractor head------------------------------------------------------------------------------------------------------------- 2

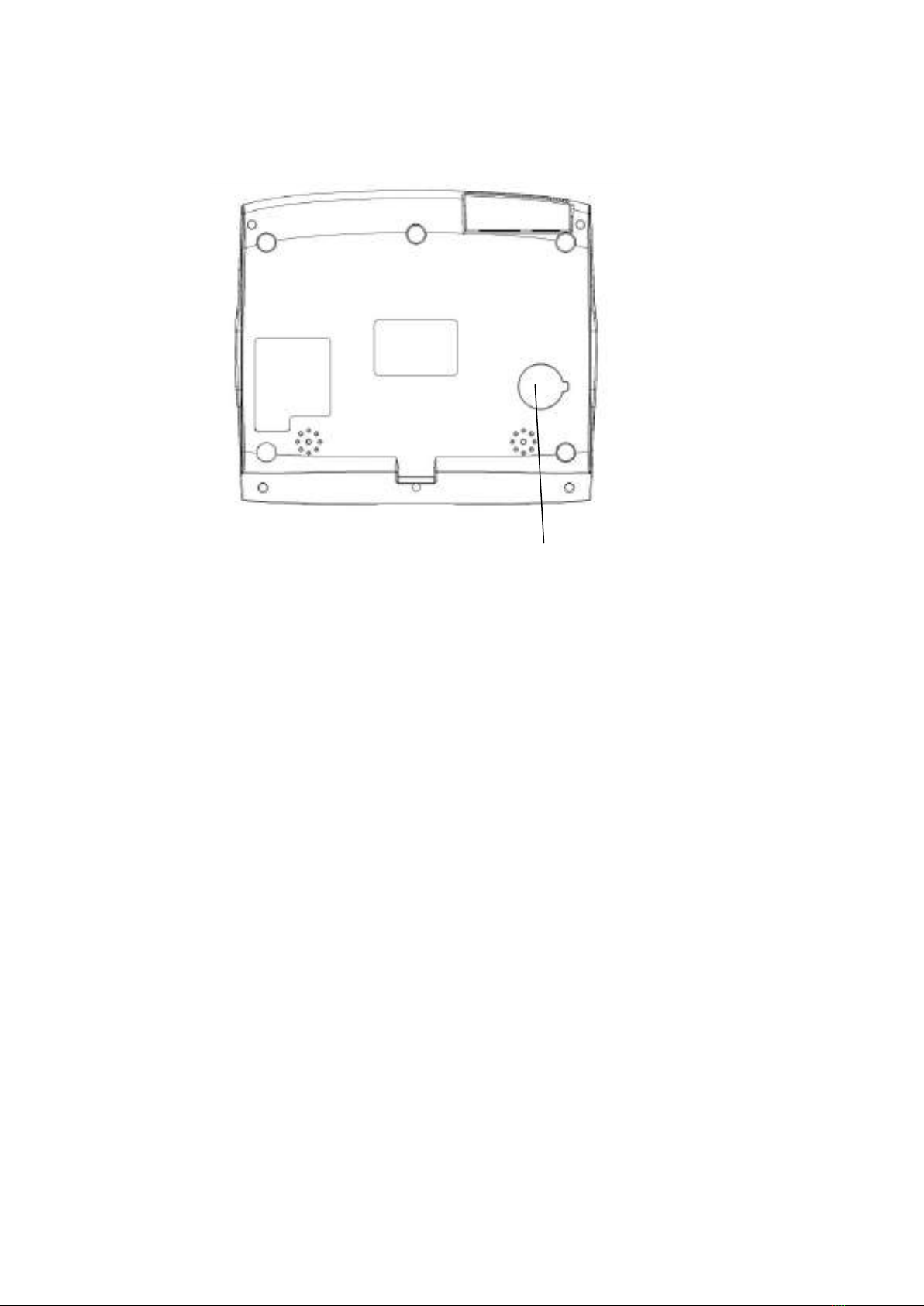

1.3.2 Control box(CB)----------------------------------------------------------------------------------------------------------- 4
1.3.3 Junction box (JB)--------------------------------------------------------------------------------------------------------11
1.4 Labels -------------------------------------------------------------------------------------------------------------------------12
1.5 Before First Use------------------------------------------------------------------------------------------------------------13
1.6 Getting Started and Exiting --------------------------------------------------------------------------------------------14
1.6.1 Getting started------------------------------------------------------------------------------------------------------------14
1.6.2 Restore from power saving mode---------------------------------------------------------------------------------14
1.6.3 Exiting -----------------------------------------------------------------------------------------------------------------------14
2OPERATING PROCEDURES ------------------------------------------------------ 15
2.1 Operation Flow -------------------------------------------------------------------------------------------------------------15
2.2 Entering Data ---------------------------------------------------------------------------------------------------------------16
2.2.1 From an auto Ref/Keractometer -----------------------------------------------------------------------------------16
2.2.2 From a lensmeter--------------------------------------------------------------------------------------------------------17
2.2.3 From a PC ------------------------------------------------------------------------------------------------------------------18
2.2.4 Manual data entry with the dial-------------------------------------------------------------------------------------21
2.3 Setting Prism----------------------------------------------------------------------------------------------------------------22
2.3.1 Switching between rectangular and polar coordinates ---------------------------------------------------22
2.3.2 Rectangular coordinates (XY) --------------------------------------------------------------------------------------22
2.3.3 Polar coordinates (rθ)--------------------------------------------------------------------------------------------------23
2.3.4 Removing rotary prism lenses -------------------------------------------------------------------------------------23
2.3.5 Prism data clear----------------------------------------------------------------------------------------------------------23
2.4 Preparation ------------------------------------------------------------------------------------------------------------------24
2.5 Standard Program Refraction -----------------------------------------------------------------------------------------25
2.5.1 Fixed Program 1 ---------------------------------------------------------------------------------------------------------25
2.6 Chart Presentation --------------------------------------------------------------------------------------------------------32
2.6.1 Chart selection -----------------------------------------------------------------------------------------------------------32
2.6.2 Visual acuity chart mask functions-------------------------------------------------------------------------------32

Phoromat 2000 Operation Manual
- vii -
2.7 Printing -----------------------------------------------------------------------------------------------------------------------34
3ADVANCED FEATURES ------------------------------------------------------------ 35
3.1 Vision Test Screens Presented to Patient-------------------------------------------------------------------------36
3.2 Data List ----------------------------------------------------------------------------------------------------------------------38
3.3 Setting for connection with Chart projectors --------------------------------------------------------------------39
3.4 Setting Auxiliary Lenses ------------------------------------------------------------------------------------------------40
3.5 Fog Function for testing a single eye-------------------------------------------------------------------------------41
3.6 Fog Function for testing both eyes----------------------------------------------------------------------------------42
3.7 Calling Up Data.------------------------------------------------------------------------------------------------------------43
3.7.1 Calling up measurement data---------------------------------------------------------------------------------------43
3.8 Link Off Function ----------------------------------------------------------------------------------------------------------43
3.9 Programming ---------------------------------------------------------------------------------------------------------------43
3.9.1 Programming--------------------------------------------------------------------------------------------------------------44
3.9.2 Operating programs----------------------------------------------------------------------------------------------------45
3.10 Entering Comments ------------------------------------------------------------------------------------------------------46
3.11 Setting Time and Date ---------------------------------------------------------------------------------------------------47
3.12 Touch-screen Panel Calibration --------------------------------------------------------------------------------------48
3.13 Parameter Settings--------------------------------------------------------------------------------------------------------49
3.14 Clearing Stored Data. ----------------------------------------------------------------------------------------------------54
4TEST METHOD------------------------------------------------------------------------- 55
4.1 Unaided Visual Acuity Test---------------------------------------------------------------------------------------------55
4.2 Aided Visual Acuity Test------------------------------------------------------------------------------------------------55
4.3 Astigmatism Test----------------------------------------------------------------------------------------------------------56
4.3.1 Astigmatism test with astigmatism clock dial----------------------------------------------------------------56
4.3.2 Astigmatism test with cross cylinder lens---------------------------------------------------------------------57
4.4 Spherical Refinement ----------------------------------------------------------------------------------------------------58
4.4.1 Red-green test------------------------------------------------------------------------------------------------------------58
4.4.2 Cross grid test for far vision ----------------------------------------------------------------------------------------59
4.5 Binocular Visual Function Test ---------------------------------------------------------------------------------------60
4.5.1 Binocular balance test-------------------------------------------------------------------------------------------------60
4.5.2 Polarized red-green test ----------------------------------------------------------------------------------------------61
4.5.3 Phoria test------------------------------------------------------------------------------------------------------------------62
4.5.4 Phoria with fixation test-----------------------------------------------------------------------------------------------64
4.5.5 Von Graefe test (horizontal phoria)-------------------------------------------------------------------------------66
4.5.6 Von Graefe test (vertical phoria)-----------------------------------------------------------------------------------67
4.5.7 Vertical coincidence test ---------------------------------------------------------------------------------------------68
4.5.8 Horizontal coincidence test -----------------------------------------------------------------------------------------70
4.5.9 Schober test---------------------------------------------------------------------------------------------------------------72

Phoromat 2000 Operation Manual
- viii -
4.5.10 Stereo test------------------------------------------------------------------------------------------------------------------74
4.5.11 Worth test ------------------------------------------------------------------------------------------------------------------75
4.5.12 Maddox test (horizontal phoria)------------------------------------------------------------------------------------76
4.5.13 Maddox test (vertical phoria)----------------------------------------------------------------------------------------77
5MAINTENANCE------------------------------------------------------------------------ 78
5.1 Troubleshooting -----------------------------------------------------------------------------------------------------------78
5.2 Reset the Control Box ---------------------------------------------------------------------------------------------------78
5.3 Replacing Fuses -----------------------------------------------------------------------------------------------------------80
5.4 Replacing printing paper------------------------------------------------------------------------------------------------81
5.5 Cleaning Measuring Windows-----------------------------------------------------------------------------------------81
5.6 Cleaning Exterior ----------------------------------------------------------------------------------------------------------82
5.7 Service Information-------------------------------------------------------------------------------------------------------82
6TECHNICAL INFORMATIONS----------------------------------------------------- 83
6.1 Classifications--------------------------------------------------------------------------------------------------------------83
6.2 Specifications---------------------------------------------------------------------------------------------------------------84
6.3 Components-----------------------------------------------------------------------------------------------------------------85
7APPENDIX------------------------------------------------------------------------------- 86
7.1 Linkage between Charts and Auxiliary Lenses ---------------------------------------------------------------------86
7.2 VA Conversion Table-----------------------------------------------------------------------------------------------------87
7.3 Preset Addition Power---------------------------------------------------------------------------------------------------87
7.4 Standard Programs -------------------------------------------------------------------------------------------------------88
7.5 Guidance for connection of Phoromat 2000 with other devices -------------------------------------------90

Phoromat 2000 Operation Manual
- 1 -
1 BEFORE USE
1.1 Outline of the Refractor
The RODENSTOCK REFRACTOR Model Phoromat 2000 is a computerized refractor
used for subjective refraction with the connected RODENSTOCK AUTO
REF/KERATOMETER, LENSMETER, CHART PROJECTOR.
The Phoromat 2000 includes a refractor head, control box, junction box.
The control box includes the key panel and display. The display is touch-screen panel.
The control box allows the data to be displayed and almost all operations to be
performed. In addition, the control box operates the refractor head and also connected
chart presenting device. It allows the refractor and charts to be controlled together.
1.2 Indications for Use
Instrument providing means of positioning spherical and cylindrical lenses, prisms and
other optical devices in front of a subject's eyes for purpose of determining refractive
error and binocular functions.
In this operator's manual, the keys on the control box are indicated by key representa-
tions like [Shift] or
The touch buttons on the touch panel other than chart buttons are indicated by
brackets like [LAMP].
The touch panel chart buttons are indicated by button representations like

Phoromat 2000 Operation Manual
- 2 -
1.3 Configuration
1.3.1 Refractor head
1. Measuring window
3. VD check window
2. Near point lamp
4. Forehead rest detection lamp
5. Forehead rest knob
6. Level
7. Near point card
8. Near point rod
9. Level adjustment knob
Operator’s side
Patient’s side
10. Forehead rest
11. Face shield

Phoromat 2000 Operation Manual
- 3 -
Chart name on the reverse side Chart number
1.Measuring window
The patient looks at any chart through these windows.
2.Near point lamp
Illuminates the near point card.
The lamp lights up or goes out by pressing the ON/OFF button in ‘Near chart lamp
control’ of [LAMP] pop-up on the right-up window.
3.VD check window
Used to check the patient’s VD(vertex distance : distance from the corneal apex to the
lens). The windows have calibration markings of 12, 13.5, 16, 18, and 20mm.
4.Forehead rest detection lamp
Used to confirm that the patient’s forehead contacts the forehead rest.
When the forehead contacts the forehead rest, the lamp lights out.
5.Forehead rest knob
Moves the forehead rest forward and backward in order to adjust the VD.
6.Level
Used to confirm that the refractor head is level.
Turn the level adjustment knob until the air bubble is centered in the level.

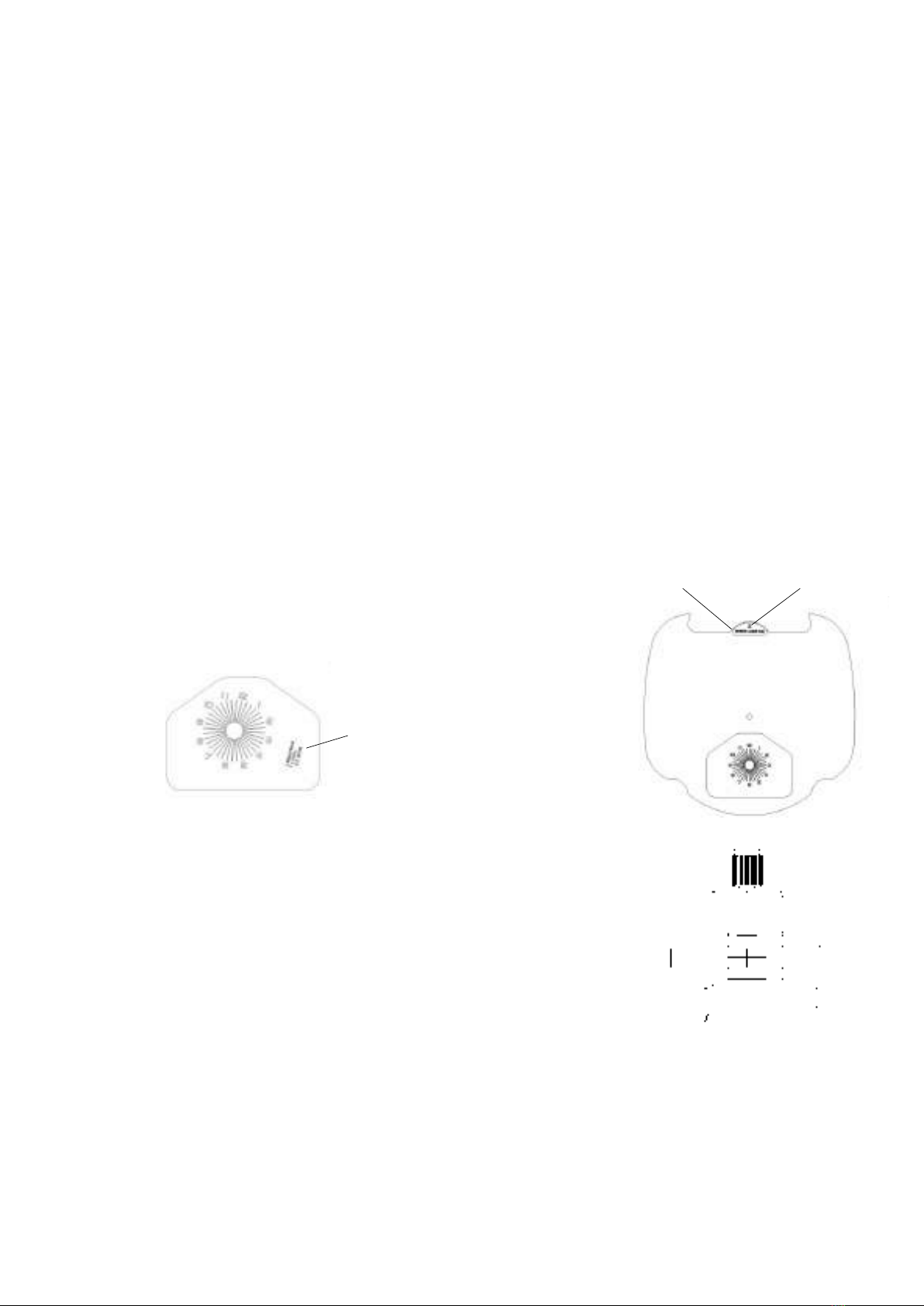

7.Near point card
Used for near vision test such as addition powers.
When the chart is shifted to the left slightly, the chart
explanation is indicated.
Chart explanation
8.Near point rod
The distance from the patient’s eye to the near point
card is marked in inches and centimeters.
Align the black line at the near point card holder with
the scale of a desired distance.
The number in red represents the power(diopter)
corresponding to each distance in meters.
9.Level adjustment knob
Adjusts the level of the refractor head.
The refractor head is tilted by 2.5at maximum to the left or right.
10.Forehead rest
The patient’s forehead touches here during refraction. Clean it before ach refraction.
11.Face shield
The patient’s face touches here during refraction. Clean the face shields before each
refraction.

Phoromat 2000 Operation Manual
- 4 -
NOTE
The materials composed of the parts that contact the patient during refraction are
as follows.
- Forehead rest: polypropylene, Face shields: ABS resin
1.3.2 Control box(CB)
1. USB slot
2. Control panel
6. Printer
3. Dial
3. Dial switch
5. Display
1.USB Slot
Used to upgrade CB software.
2.Control panel
See “Control panel”(Page 5) for details.
3. Dial
Changes any measurement value.
The selected(highlightened) value can be changed
Turn it clockwise The value changes to the negative.
Turn it counterclockwise The value changes to the positive.
Turn the dial while pressing changes the increment. See page 50.
4. Dial switch
Switches the mode (S, C, A, VA).
The values of S, C, A, and/or VA selected or selection order varies depending on
the Dial switch parameter setting.
5. Display
Displays the data such as SPH(S), CYL(C), AXIS(A) and the presented chart.
The LCD display is a touch-screen panel.
6. Print
Used for printing data.

Phoromat 2000 Operation Manual
- 5 -
○Display
○Control panel
7-5
1
7-1 7-2 7-3 7-4 7-7 7-8 9 10
11-4
11-3
11-1
11-2
6
7-6
1-1
1-2
1-4
1-5
4
1-3
2
3 5 13-1 14-1 8-1 8-2 8-3 14-2 13-2 12-1 12-2

Phoromat 2000 Operation Manual
- 6 -
1. Data keys
Used to enter the data into the Phoromat 2000 and measure each data.
The selected data is displayed at the center of the screen. Which key is selected is
displayed in the upper-left corner of the screen. pressing the empty data key copies
the previously displayed data into that field.
See “2.2 Entering Data”(Page16) for data entry method.
1-1.
Measures the unaided visual acuity.
The corrective lens power in the refractor head is 0 D.
1-2.
Enter the lensmeter(LM) data.
1-3.
Enters the data from an auto Ref/Keratometer
1-4.
Used to obtain the full correction.
When the data is received from an auto Ref/Keratometer or a lensmeter, this field opens
automatically.
The elapsed time from data entry is displayed in the subjective data field when the
Operating timer parameter is set to Yes.
1-5.
Used to obtain the final prescription and best-corrected visual acuity.
Pressing this key copies the full correction data from the subjective data field and adjusts it
to the final prescription.
2.
The increment or mode changes when a key is pressed or the dial is turned with this
key.
3.
Prints the data or exports it to an external computer.
See “2.7 Printing” (Page 34).
4.
Enters the data from an auto refractometer or lensmeter.
Press this key and confirm that the data No. on the screen are the same with the point
data No. of the auto Ref/Keratometer or lensmeter. Specify the field that the data is
entered with the data key like ,
5.
Switches the measuring windows to be opened or occluded.
6.
Indicates the explanation about the present chart.
Press this key again or [End] to cancel the indication.
When this key is pressed during the standard program or program with sample
instruction, the sample instructions for the test appear.

Phoromat 2000 Operation Manual
- 7 -
7. Mode Keys
Select the mode whose data is changed.
Pressing any keys highlights the corresponding field to be changed.
The value in each mode can be changed with the dial or
7-1.
Goes into SPH mode which allows spherical powers to be adjusted.
7-2.
Goes into CYL mode which allows cylindrical powers to be adjusted.
7-3.
Goes into AXIS mode which allows cylindrical axis to be adjusted.
7-4.
Goes into ADD mode which allows addition powers to be adjusted.
The refractor head converges to the working distance of 40cm (variable) automatically
in near mode.
1
See the Working Distance.(WD) parameter (page 51).
- When the Preset ADD parameter is set to Yes, the patient’s age can be selected.
- Each time the key is pressed while the refractor head converges, the addition powers are added or
removed.
When the addition powers are removed, the highlight color for ADD on the screen changes
and the time display switches powers are added.
After addition power entry, the WD display appears to select a desired WD with the
function button.
7-5.
Goes into the mode which allows the visual acuity to be entered with the dial.
7-6.
Goes into the mode which allows the PD in the refractor head to be adjusted.
Monocular PD(1/2 PD) Adjust the PD after pressing or in PD mode.
To exit from the mode Press again or mode button(S,C,A, …)
7-7.
Goes into the mode which allows base in/out prism power in rectangular coordinates
or prism absolute value in polar coordinates to be entered.
See “2.3 Setting Prism”(Page 22).
7-8.
Goes into the mode which allows base up/down prism power in rectangular
coordinates or prism base angle in polar coordinates to be entered.
1
The addition powers are preset according to the selected age. See “7.3 Preset Addition Power”.

Phoromat 2000 Operation Manual
- 8 -
8. Eye selection keys
Select the right eye (R), left eye (L), or both eyes (BIN) for subjective refinement.
- The occluder is placed automatically in the non-selected eye side.
- However, it is not placed during the binocular vision test with polarizing.
8-1.
Opens the right measuring window and places the occluder in the left one.
When the binocular vision test chart is selected, the left eye side is not occluded but
the data entry only for the right eye is also possible.
8-2.
Opens the left measuring window and places the occluder in the right one.
When the binocular vision test chart is selected, the left eye side is not occluded but
the data entry only for the right eye is also possible.
8-3.
Opens the both measuring windows.
The data entry for both eyes are available.
9.
Displays the Main Menu screen.

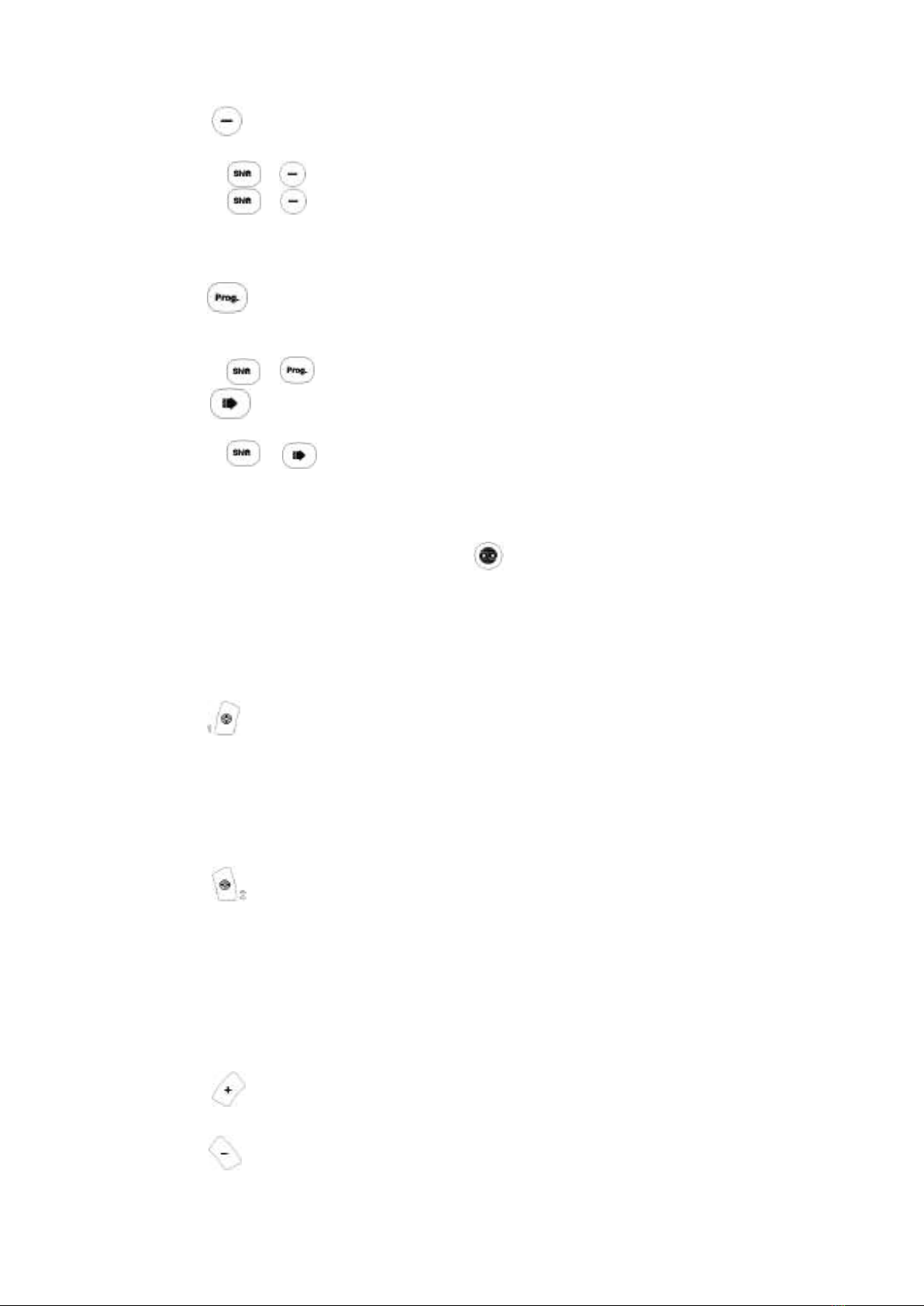

10.
Clears all displayed data.(Initializes the CB(Control box) data).
- + : Initializes the CB with aligning refractor head
11. Mask keys
Isolate any horizontal or vertical line or single letter on the chart. Press any of the chart
keys to cancel the mask functions. the visual acuity of the isolated horizontal line or
letter is shown in the VA field on the screen.
11-1.
Isolates a horizontal line (same visual acuity letters) on the top or bottom line of the VA
chart.
- This key also moves the isolation up and down when the horizontal line has been isolated.
- + : Isolates the horizontal line on the top line of the chart.
- + : Isolates the horizontal line on the bottom line of the chart.
11-2.
Isolates a vertical line on the VA chart.
- This key also moves the isolation to the left or right when the vertical line or single letter has been
isolated.
- + or : Isolates a single letter in the lower-left or right corner on the chart.
11-3.
Isolates a single letter on the VA chart.
The letter in the upper-right corner of the chart is isolated.
- + : Isolates a single letter in the upper-left corner on the chart.

Phoromat 2000 Operation Manual
- 9 -
11-4.
Isolates a horizontal line in the middle of the VA chart.
- + : Applies the red-green filter on the VA chart.
- + again : Releases the red-green filter.
12. Program keys
See “2.5 Standard Program Refraction” (Page 25) for programmed refraction.
12-1.
Starts a program.
- Pressing this key again restarts the program.
- + : Switches the program between Fix1~2 and user1~8.
12-2.
Used to forward next programmed refraction sequence.
- + : Returns to the previous sequence.
13. Cross cylinder keys
Place a cross cylinder lens to measure the cylindrical axis or power. when the key is
pressed with both eyes open, the left measuring window is occluded automatically.
Open the left measuring window with to perform the astigmatism test with both
eyes open.
It is possible to select the cross cylinder lens to be inserted with the Cross cylinder
(XC) test parameter.
When the parameter is set to ±0.25 or ±0.50, the cross cylinder lens is inserted as
follows.
13-1.
In the cylindrical axis measurement, the cross cylinder lens is inserted so that the
minus axis is located at 45°from the minus axis position of the cylindrical lens.
In the cylindrical power measurement, the cross cylinder lens is inserted so that the
minus axis is located at 90°from the minus axis position of the cylindrical lens.
Clears the prism data for the right eye in prism entry mode.
13-2.
In the cylindrical axis measurement, the cross cylinder lens is inserted so that the
minus axis is located at 135°from the minus axis position of the cylindrical lens.
In the cylindrical power measurement, the cross cylinder lens is inserted so that the
minus axis is located at 0°from the minus axis position of the cylindrical lens.
14. Value change keys
Functions as the same as the dial.
14-1.
Increases the value to the positive side in increments of one.
14-2.
Decreases the value to the negative side in increments of one.

Phoromat 2000 Operation Manual
- 10 -
○Bottom of the control box
1. CMOS BATTERY COVER
1. CMOS BATTERY COVER
Used for changing CMOS BATTERY.

Phoromat 2000 Operation Manual
- 11 -
1.3.3 Junction box (JB)
This junction box is installed in the system table normally.
AR Connector LM Connector AUX Connector PC Connector CP Connector Power switch
Fuse holder
Power inlet
CB Connector RH Connector
1. RK connector
Connects to an auto Ref/Keratometer.
2. LM connector
Connects to a lensmeter.
3. AUX connector
Auxiliary (AUX) communication connector (This is not available).
4. PC connector
Connects to a PC.
5. CP connector
Connects to a chart presenting device (Rodachart 420).
6. CB connector
Connects to the control box(CB).
7. RH connector
Connects to the refractor head(RH).

Phoromat 2000 Operation Manual
- 12 -
1.4 Labels
The symbols shown on the display correspond to the symbols and those names
defined in ISO 10341(Ophthalmic instruments - Refractor heads) as shown in the
following table.
Auxiliary lens
Marking
Phoromat 2000
ISO 10341
Red Maddox rod
or
MR
Maddox Rods
Pinhole plate
PH or ○
Pinhole
Occluder
BL or ●
Occluder
PD check lens
CL or
Cross line
Red filter
RF
Red filter
Green filter
GF
Green filter
Polarization filter
or
PF
Polarization filter
Open aperture
OA
Open aperture
Retinoscopic lens
RL
Retinoscopic lens
