Rodenstock RSL 5000digital User manual

RSL 5000digital
RSL 4500digital
SLIT LAMP
INSTRUCTIONS FOR USE
Digital IFU Supplement

1 EN
RSL 4500digital and RSL 5000digital by RODENSTOCK
CONTENTS
1. INDICATIONS FOR USE ........................................................................................ 3
2. SAFETY................................................................................................................. 3
2.1 PHOTOTOXICITY ............................................................................................................................3
2.2 WARNINGS AND CAUTIONS..........................................................................................................4
2.3 CONTRAINDICATION.....................................................................................................................6
3. CLEANING AND DISINFECTION INSTRUCTIONS.................................................... 6
4. INSTALLATION OF DIGITAL UNIT .......................................................................... 6
4.1 RODENSTOCK RSL 5000 SLIT LAMP ...............................................................................................9
4.2 RODENSTOCK RSL 4500 SLIT LAMP ...............................................................................................9
5. CONTROLS.......................................................................................................... 10
5.1 BACKGROUND ILLUMINATION ADJUSTMENT ..............................................................................10
5.2 EXPOSURE AND REVIEW BUTTONS..............................................................................................10
5.3 CAPTURE BUTTON.......................................................................................................................10
5.4 KEYBOARD SHORTCUTS ..............................................................................................................10
6. WARRANTY ........................................................................................................ 11
7. SPECIFICATIONS AND ELECTRICAL RATINGS...................................................... 11
7.1 ELECTROMAGNETIC EMISSIONS..................................................................................................11
7.2 ELECTROMAGNETIC IMMUNITY ..................................................................................................12
7.3 RECOMMENDED SAFE DISTANCES ..............................................................................................13
8. TECHNICAL SPECIFICATIONS.............................................................................. 14
9. DIGITAL ACCESSORIES/SPARES .......................................................................... 16
10. PACKAGING AND DISPOSAL INFORMATION....................................................... 18

2 3
EN EN
RSL 4500digital and RSL 5000digital by RODENSTOCK RSL 4500digital and RSL 5000digital by RODENSTOCK
Consult instructions for use General warning sign
Date of manufacture Warning: Electricity
Manufacturer’s name and
address Warning: Floor level obstacle
Country of manufacture Warning: Non-ionizing
radiation
Waste Electrical and Electronic
Equipment (WEEE) recycling Warning: Optical radiation
This way up Warning: Hot surface
Keep dry Conformité Européene
Fragile Type B applied part
Do not use if package is
damaged Class II equipment
Temperature limit Atmospheric pressure
limitation
Authorised representative in
the European Community Humidity limitation
Catalogue number Serial number
Translation Medical device
The Rodenstock Slit Lamp Digital IFU is designed and built in conformity with Directive 93/42/EEC, Regulation (EU)
2017/745 and ISO 13485 Medical Devices Quality Management Systems.
Classification: CE: Class I
FDA: Class II
The information contained within this manual must not be reproduced in whole or part without the manufacturer’s
prior written approval. As part of our policy for continued product development we the manufacturer reserve the right
to make changes to specifications and other information contained in this document without prior notice.
This IFU is also available on the Rodenstock website.
Copyright © Rodenstock Instruments 2021. Published in the UK 2021.
1. INDICATIONS FOR USE
This device is intended to be used only by suitably trained and authorised healthcare
professionals.
CAUTION: Federal Law restricts this device to sale by or on the order of a
physician or practitioner.
Intended use / purpose of instrument
This Rodenstock Slit Lamp is an AC-powered slit lamp biomicroscope and is intended for use
in eye examination of the anterior eye segment, from the cornea epithelium to the posterior
capsule. It is used to aid in the diagnosis of diseases or trauma which affects the structural
properties of the anterior eye segment.
Brief description of the instrument
This Rodenstock Slit Lamp can either be mounted onto a custom table top supplied by
Rodenstock or can be mounted on a third parties table top (refraction unit) by suitably trained
technicians.
The Rodenstock Digital Slit Lamp consists of multiple subassemblies; Illumination Tower;
Observation System; XYZ Translation Base; Chinrest Assembly and Digital Camera Assembly.
The light intensity is controlled by a variable rheostat located on the XYZ Translation Base.
There are a number of selectable filters allowing the user to control the characteristics of the
examination light. The digital module is fitted between the magnification drum and viewing
optics and is used to capture an image of the patients pathology
2. SAFETY
2.1 PHOTOTOXICITY
CAUTION: The light emitted from this instrument is potentially hazardous.
The longer the duration of exposure, the greater the risk of ocular
damage. Exposure to light from this instrument when operated at
maximum intensity will exceed the safety guideline after 171 seconds for
H Type and 81 seconds for Z Type respectively.
While no acute optical radiation hazards have been identified for slit lamps,
we recommend keeping the intensity of the light reaching the patient’s
retina to the minimum possible for the respective diagnosis. Children,
people with aphakia and people suffering from eye conditions are most at
risk. An increased risk may also occur if the retina is exposed to the same or
a similar device with a visible light source within 24 hours. This applies, in
particular, if the retina has been photographed with a flashbulb in advance.
Rodenstock shall on request, provide the user with a graph showing the
relative spectral output of the instrument.

4 5
EN EN
RSL 4500digital and RSL 5000digital by RODENSTOCK RSL 4500digital and RSL 5000digital by RODENSTOCK
2.2 WARNINGS AND CAUTIONS
Please note that the proper and safe functioning of our instruments is only guaranteed if
both the instruments and their accessories are exclusively from Rodenstock. The use of other
accessories may result in increased electromagnetic emissions or reduced electromagnetic
immunity of the device and may lead to incorrect operation.
Observe the following precautions in order to ensure safe operation of the instrument. For the
safety warning regarding the Rodenstock Slit Lamp please consult the Rodenstock Slit Lamp
IFU.
WARNINGS
• Never use the instrument if visibly damaged and periodically inspect it for signs of damage
or misuse.
• Check your Rodenstock product for signs of transport / storage damage prior to use.
• Do not use in the presence of flammable gases / liquids, or in an oxygen rich environment.
• US Federal Law restricts this device to sale by or on the order of a physician or practitioner.
• This device is intended to be used only by suitably trained and authorised healthcare
professionals.
• This product should not be immersed in fluid.
• Repairs and modifications to the instrument must be made only by the specialized
technicians of the manufacturer’s Technical Service Centre or by personnel trained and
authorised by the manufacturer. The manufacturer declines any and all responsibility for
loss and/or damages resulting from unauthorised repairs; furthermore, any such actions
will invalidate the warranty.
• The power switch and mains plug are the means of isolating the device from the mains
supply – ensure both the power switch and mains plug are accessible at all times.
• Do not position the equipment so that is difficult to press the power switch or remove the
mains plug from the wall socket.
• Route power cords safely to eliminate risk of tripping or damage to user.
• Before any cleaning of the instrument or the base unit ensure the power lead is
disconnected.
• LEDs can reach high temperatures in use – allow to cool before handling.
• Do not exceed maximum recommended exposure time.
• As the Digital Camera Assembly is medical equipment, special precautions are needed
regarding EMC (electromagnetic compatibility)
• It is important that the Digital Camera Assembly is configured and installed/put into
service, in accordance with the instructions/guidance provided herein and is used only in
the configuration as supplied.
• Should the instrument suffer shocks (for example, should it accidentally fall), and the
optical system or the illumination system are damaged it may be necessary to return the
instrument to the manufacturer for repair.
• Do not touch accessible connectors and the patient simultaneously.
• The owner of the instrument is responsible for training personnel in its correct use.
• Ensure the instrument or instrument table is placed on a level and stable surface.
• Use only genuine Rodenstock approved parts and accessories or device safety and
performance may be compromised.
• Refraction stand variants or adaptors should only be used in combination with EN/IEC
60601-1 and EN/IEC 60601-1-2 compliant power supplies and devices.
• Shut down after every use. In case the dust cover is used: risk of overheating.
• For indoor use only (protect from moisture).
• Electrical equipment can be affected by electromagnetic interference, for example
videostream may freeze for one minute or more. If this occurs whilst using this equipment,
switch the unit off and reposition. Essential performance is determined as continuous
videostream which cannot be interrupted for longer than one minute.
• Despite the testing of the Digital Camera Assembly that has been undertaken, normal
operation of the Digital Camera Assembly can be affected by other electrical/electronic
equipment and portable and mobile RF communications equipment.
• Rodenstock digital Slitlamp is not intended to be used with wireless technology. Do not
plug a wireless dongle into USB port. It is advisable to disable wireless technology on the
computer to prevent unauthorised access to the camera.
• Rodenstock digital Slitlamp cannot be used in the vicinity of sources known to cause
electromagnetic disturbance (magnetic resonance imaging, computed tomography,
radio-frequency identification, metal detectors, electronic article surveillance and other
electromagnetic security systems). Do not bring the Rodenstock digital Slit lamp into
magnetic resonance environment.
• The Digital Camera Assembly should not be used adjacent to or stacked with other
equipment. If adjacent or stacked use with other equipment is necessary, the Digital
Camera Assembly and the other equipment should be observed/monitored, to verify
normal operation in the configuration in which it will be used.
Before use, the Slit Lamp should be allowed to adjust to the ambient
room temperature for several hours. This is especially important when the
unit has been stored or transported in a cold environment; this can cause
severe condensation to develop on the optical elements.

6 7
EN EN
RSL 4500digital and RSL 5000digital by RODENSTOCK RSL 4500digital and RSL 5000digital by RODENSTOCK
Care must be taken to avoid getting any dirt or dust on any of the optical
components.

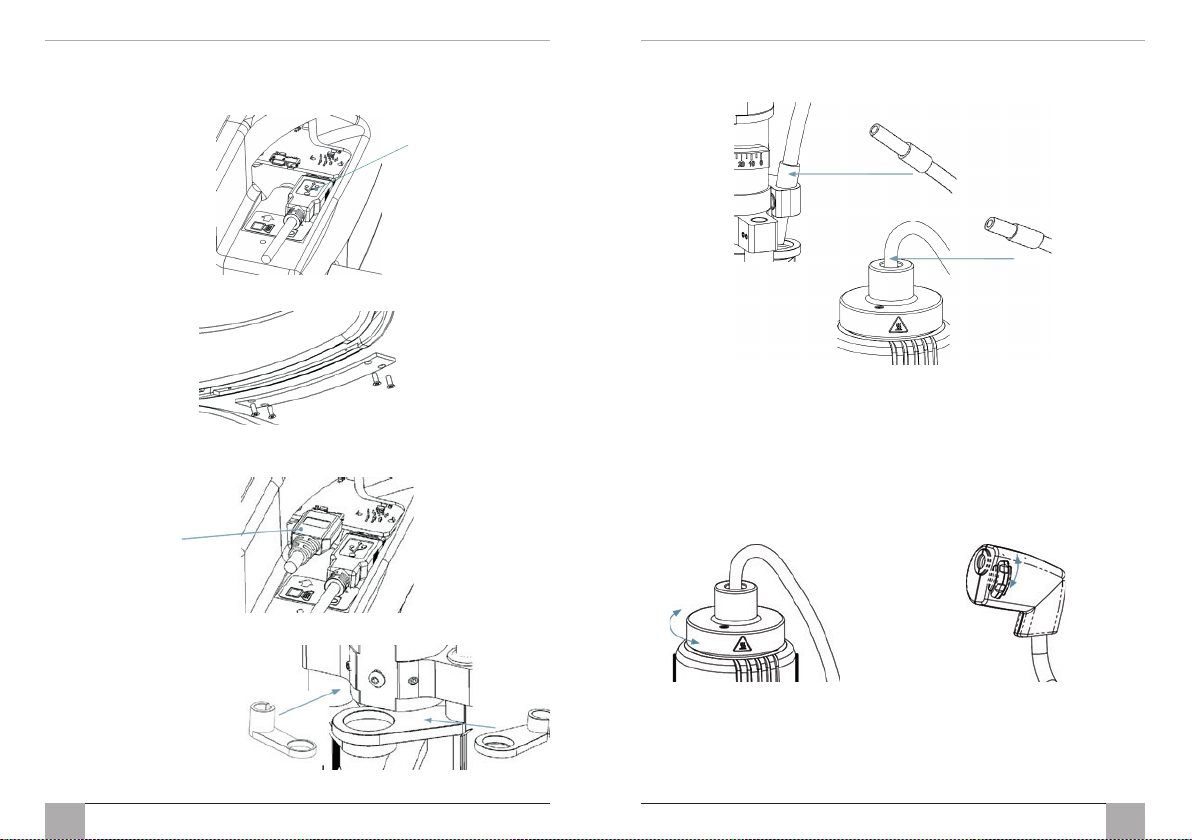

2. Fit the DCA to the rear of the
magnification block and tighten the
securing knob to hold it in place.
3. Re-fit the eyepiece assembly to the
rear of the DCA and secure it by
tightening the securing knob.
4. Rotate the swing arm to either side of the unit,
and with a suitable Philips screwdriver remove
the cable channel cover plate.
5. Remove the cover to the USB hub on the Slit
Lamp base by undoing the small Phillips head
screw and lifting off the cover.
2.3 CONTRAINDICATION
There is no restriction to patient population this device can be used with other than those
outlined in the contra-indications stated below.
Slit lamps can produce discomfort in some photophobic patients due to the high illumination.
Additionally patients must be co-operative and capable of sitting upright for the duration of
the examination, therefore the technique may not be suitable for patients who are unable to sit
upright for long periods of time or those with limited neck and back mobility.
3. CLEANING AND DISINFECTION INSTRUCTIONS
Before any cleaning of the instrument or the base unit, ensure the power
lead is disconnected.
Only manual non-immersion cleaning as described should be used for this instrument. Do not
autoclave or immerse in cleaning fluids. Always disconnect power supply from source before
cleaning.
1. Wipe the external surface with a clean absorbent, non-shedding cloth dampened with
de-ionised water / detergent solution (2% detergent by volume) or water / isopropyl
alcohol solution (70% IPA by volume). Avoid optical surfaces.
2. Ensure that excess solution does not enter the instrument. Use caution to ensure cloth is
not saturated with solution.
3. Surfaces must be carefully hand-dried using a clean non-shedding cloth.
4. Safely dispose of used cleaning materials.
4. INSTALLATION OF DIGITAL UNIT
For ‘Digital Ready’ variants of the Rodenstock Slit Lamp a Digital Camera Assembly (DCA) must
be purchased separately, contact Rodenstock or your local distributor for details.
Set up the Slit Lamp as directed in the Instructions For Use (IFU) EP59-51519 or EP59-70031,
Contact your distributor if you are unable to locate a copy of these Instructions.
1. Install the DCA – carefully remove the
eyepiece assembly from the
magnification block by unscrewing the
securing knob at the same time as
supporting the eyepieces. The eyepieces
assembly is a dovetail type fit to the
magnification block.
Securing knob

8 9
EN EN
RSL 4500digital and RSL 5000digital by RODENSTOCK RSL 4500digital and RSL 5000digital by RODENSTOCK
2. Fit the background illumination fibre optic cable, The short end to the top of the lamp
housing, the long end to the fibre optic swing arm adjacent to the mirror.
3. If CE compliant or FDA cleared imaging software has been installed, connect the PC USB
cable to the PC.
4.2 RODENSTOCK RSL 4500 SLIT LAMP
1. No fitting of the background light is required as the Slit Lamp comes fully assembled.
5. CONTROLS
5.1 BACKGROUND ILLUMINATION ADJUSTMENT
long end
short end
RSL 5000 SLIT LAMP RSL 4500 SLIT LAMP
6. Connect the shorter USB cable ((3020-P-7028) to the socket on the underside of the
DCA and to the appropriate socket on the USB hub located on the Slit Lamp base.
Ensure that there is plenty of slack at the USB hub end to allow Slit Arm rotation.
7. Route the cable in the groove in the Slit Lamp arm and replace the cover plate.
8. Connect the longer USB cable for connection to the PC to the hub and replace the USB
hub cover plate, this secures the cables.
4.1 RODENSTOCK RSL 5000 SLIT LAMP
1. Clip the auxiliary diffuser
and blue filter in place on
the Slit Lamp tower upright
posts, above the level of the
mirror. Align the slot to the
flattened post section.
to camera
to PC

10 11
EN EN
RSL 4500digital and RSL 5000digital by RODENSTOCK RSL 4500digital and RSL 5000digital by RODENSTOCK
5.2 EXPOSURE AND REVIEW BUTTONS
Pressing these buttons provides adjustment of the camera exposure.
5.3 CAPTURE BUTTON
Press once to ‘freeze frame’.
Use image review buttons to select best frame.
Press again to capture selected frame.
5.4 KEYBOARD SHORTCUTS
Press Ctrl + Alt + Shift with function keys
F6 Right eye F9 Review freeze frame images forwards
F7 Left eye F10 Shorter exposure time
F8 Freeze frame / Trigger F10 Review freeze frame images
backwards
F9 Longer exposure time
6. WARRANTY
The Rodenstock Slit Lamps are guaranteed for two years against faulty workmanship materials
or factory assembly. Warranty is on a Return To Base (RTB) basis at the cost of the customer
and may be void if the Slit Lamp has not been regularly serviced.
The manufacturer’s warranty and terms and conditions are detailed on the Rodenstock website.
The mirror, main illumination lamp and general ‘wear and tear’ are excluded from our standard
warranty.
Increase exposure time (milliseconds)
Review freeze frame images forwards
Decrease exposure time (milliseconds)
Review freeze frame images backwards
The manufacturer declines any and all responsibility and warranty
coverage should the instrument be tampered with in any manner or
should routine maintenance be omitted or performed in manners not in
accordance with these manufacturer’s instructions.
There are no user serviceable parts in this instrument. Any servicing
or repairs should only be carried out by Rodenstock Instruments or by
suitably trained and authorised distributors. Service manuals will be
available to authorised Rodenstock service centres and Rodenstock
trained service personnel.
7. SPECIFICATIONS AND ELECTRICAL RATINGS
The Rodenstock Digital Slit Lamp is a medical electrical instrument. The instrument requires
special care concerning electromagnetic compatibility (EMC). This Section describes its
suitability in terms of electromagnetic compatibility of this instrument. When installing or using
this instrument, please read carefully and observe what is described here.
Portable or mobile-type radio frequency communication units may have an adverse effect on
this instrument, resulting in malfunctioning.
7.1 ELECTROMAGNETIC EMISSIONS
Guidance and manufacturer’s declaration – electromagnetic emissions
The Rodenstock Digital Slit Lamp is intended for use in the electromagnetic environment
specified below. The customer or user of the Digital Slit Lamp should ensure that it is used in
such an environment.
Emissions test Compliance Electromagnetic environment – guidance
RF emissions CISPR 11 Group 1 The Rodenstock Digital Slit Lamp uses RF energy only for
its internal function. Therefore, its RF emissions are very
low and are not likely to cause any interference in nearby
electronic equipment.
RF emissions CISPR 11 Class B The Rodenstock Digital Slit Lamp is suitable for use in a
professional healthcare facility environment. The Digital
Slit Lamp is not intended for use in home environment.
Harmonic emissions
IEC 61000-3-2
Class B
Voltage fluctuations /
flicker emissions IEC
61000-3-3
Complies

12 13
EN EN
RSL 4500digital and RSL 5000digital by RODENSTOCK RSL 4500digital and RSL 5000digital by RODENSTOCK
7.2 ELECTROMAGNETIC IMMUNITY
Guidance and manufacturer’s declaration – electromagnetic immunity
The Rodenstock Digital Slit Lamp is intended for use in the electromagnetic environment
specified below. The customer or user of the Digital Slit Lamp should ensure that it is used in
such an environment
Immunity test IEC 60601 Test
level
Compliance
level
Electromagnetic
environment – guidance
Electrostatic
discharge (ESD).
IEC 61000-4-2
± 8 kV contact
± 15 kV air
± 8 kV contact
± 15 kV air
Floors should be wood, concrete
or ceramic tile. If floors are
covered with synthetic material,
the relative humidity should be at
least 30%.
Electrical fast
transient/burst. IEC
61000-4-4
± 2 kV for power
supply lines
± 1 kV for power
supply lines
N/A
N/A
Mains power quality should be
that of a typical professional
healthcare facility environment.
Surge.
IEC 61000-4-5
± 1 kV line(s) to
line(s)
± 2 kV line(s) for
input/output line(s)
N/A
N/A
Mains power quality should be
that of a typical professional
healthcare facility environment.
Voltage dips, short
interruptions and
voltage variations
on power supply
input lines.
IEC 61000-4-11
UT= 0% 0.5 cycle
(0, 45, 90, 135, 180,
225, 270, 315°)
UT= 0%; 1 cycle
UT= 70%;
25/30 cycles (@ 0°)
UT= 0%;
250/300 cycle
UT= 0% 0.5 cycle
(0, 45, 90, 135, 180,
225, 270, 315°)
UT= 0%; 1 cycle
UT= 70%;
25/30 cycles (@ 0°)
UT= 0%;
250/300 cycle
Mains power quality should be
that of a typical professional
healthcare facility environment. If
the user of the Digital Slit Lamp
requires continued operations
during power mains interruptions,
it is recommended that the Digital
Slit Lamp be powered from an
uninterruptible power supply.
Power frequency
(50/60 Hz)
magnetic field. IEC
61000-4-8
30 A/m 30 A/m Power frequency magnetic fields
should be at a level characteristic
of a typical location in a typical
professional healthcare facility
environment.
Note: UTis the a. c. mains voltage prior to application of the test level.
Immunity
test
IEC 60601
Test level
Compliance
level
Electromagnetic environment
– guidance
Portable and mobile RF communications equipment
should be used no closer to any part of the Digital
Slit Lamp, including cables, than the recommended
separation distances calculated from the equation
applicable to the frequency of the transmitter.
Recommended separation distance
Conducted
RF IEC
61000-4-6
6 Vrms 150kHz
to 80MHz
6 V d = 1.2 √ p
Radiated
RF IEC
61000-4-3
10 V/m 80MHz
to 2.7GHz
10 V/m d = 1.2 √ p 80MHz to 800 MHz
d = 2.3 √ p 800MHz to 2.7GHz
Where p is the maximum output power rating of the
transmitter in watts (W) according to the transmitter
manufacturer and d is the recommended separation
distance in metres (m).
Field strengths from fixed RF transmitters, as
determined by an electromagnetic site survey¹,
should be less than the compliance level in each
frequency range.²
Interference may occur in the vicinity of
equipment marked with this symbol.
Note: At 80MHz and 800MHz, the higher frequency range applies. These guide lines may not apply in all situations.
Electromagnetic propagation is affected by absorption and reflection from structures, objects and people.
1 Field strengths from fixed transmitters, such as base stations ( cellular / cordless) telephones and land mobile
radios, amateur radio, AM and FM radio broadcast and TV broadcast cannot be predicted theoretically with
accuracy.To assess the electromagnetic environment due to fixed RF transmitters, an electromagnetic site survey
should be considered. If the measured field strength in the location in which the Rodenstock Slit Lamp is used
exceeds the applicable RF compliance level above, the Rodenstock Slit Lamp should be observed to verify normal
operation. If abnormal performance is observed, additional measures may be necessary, such as re-orientating or
relocating the Rodenstock Slit Lamp.
2 Over the frequency range 150kHz to 80 MHz, field strengths should be less than 10 V/m.
7.3 RECOMMENDED SAFE DISTANCES
Recommended separation distances between portable and mobile RF
communications equipment and the Digital Slitlamp
The Digital Slit Lamp is intended for the use in an electromagnetic environment in which radiated
RF disturbances are controlled. The customer or the user of the Digital Slit Lamp can help prevent
electromagnetic interference by maintaining a minimum distance between portable and mobile
RF communications equipment (transmitters) and the Digital Slit Lamp as recommended below,
according to the maximum output power of the communications equipment.

14 15
EN EN
RSL 4500digital and RSL 5000digital by RODENSTOCK RSL 4500digital and RSL 5000digital by RODENSTOCK
Rated maximum output
power of transmitter (W)
Separation distance according to frequency of
transmitter (m)
150 kHz to 80MHz
d = 1.2√ p
80MHz to 800MHz
d = 1.2√ p
800MHz to 2.7GHz
d = 2.3√ p
0.01 0.12 0.12 0.23
0.1 0.38 0.38 0.73
1 1.2 1.2 2.3
10 3.8 3.8 7.3
100 12 12 23
For transmitters rated at a maximum output power not listed above, the recommended
separation distance in metres (m) can be determined using the equation applicable to the
frequency of the transmitter, where p is the maximum output power rating of the transmitter in
watts (W) according to the transmitter manufacturer.
Note: At 80MHz and 800MHz, the separation distance for the higher frequency applies.
These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and
reflection from structures, objects and people.
8. TECHNICAL SPECIFICATIONS
Digital System Camera
Camera Resolution 2048 x 1536
Pixel Class: 3 MPixel
Sensor size: 1/1.8"
Sensor Technology: CMOS COLOR
PC Specification PC compliant with Electrical Safety (Medical) EN/IEC 60601-1
CPU: i5, 8/256GB SSD
Memory: 8GB RAM or higher
2 USB slots must be available, USB port: 3.0 or higher which will
provide power to the camera (5V and up to 1A) and receive the
video data.
Hard disk speed 5200 rpm or higher
Operating system: Microsoft Windows 10 Pro
Windows 10 Pro
Recommended screen resolution: 1920 x 1200 pixels
Software requirements CE compliant or FDA cleared camera imaging software
Weight, packed (approx.)
Digital Slit Lamp complete 20.0Kg, 75 x 54 x 45cm W x D x H
Protection against ingress IPxO
Class II ME equipment
Insulation between mains parts and the functional earth provide at least two means of protection.
Power Supply
Power supply unit Switch mode, (100V-240V input) +/- 10% multi plug compliant to EN/
IEC 60601-1 EN/IEC 61000-6-2, EN/IEC 61000-6-3
Fuse T2.5AH, 250V
Power supply output 12V DC: 2.5 amps must be EN/IEC 60601 compliant
Complies with Electrical Safety (Medical) EN/IEC 60601-1
Electromagnetic compatibility EN/IEC 60601-1-2
Ophthalmic instruments - Fundamental requirements and test methods
ISO 15004-1
Ophthalmic instruments - Optical radiation hazard ISO 15004-2
Fuse ratings and quantity
2.5 amp anti-surge
Fuse current 2.5A
Voltage rating V AC 250V
Breaking capacity 1500Amps
Blow characteristic: Time Delay
If the Digital Slit Lamp is used with power supplies or cables other than those supplied, this
may result in increased emissions or decreased immunity of the Digital Slit Lamp in relation to
EMC performance.
It should be noted that neither the power supply nor the cables provided with the Digital
Slit Lamp should be used on other equipment. To do so may result in increased emissions or
decreased immunity of the other equipment in relation to EMC performance.
Environmental Conditions:
USE
35°C
10°C
90%
30%
1060 hPa
800 hPa
Shock (without packing) 10 g, duration 6 ms

16 17
EN EN
RSL 4500digital and RSL 5000digital by RODENSTOCK RSL 4500digital and RSL 5000digital by RODENSTOCK
USE
STORAGE CONDITIONS
*50°C
-10°C
95%
10%
1060 hPa
700 hPa
TRANSPORT CONDITIONS
*50°C
-40°C
95%
10%
1060 hPa
500 hPa
Vibration, sinusoidal 10 Hz to 500 Hz: 0.5g
Shock 30 g, duration 6 ms
Bump 10 g, duration 6 ms
*This instrument does not meet the temperature requirements of ISO 15004-1 for storage and transportation. Do
not store or transport this instrument in conditions where the temperature may rise above 50 °C.
9. DIGITAL ACCESSORIES/SPARES
Item Part Number
DSL DIGITAL LEFT/RIGHT LABEL EP79-00766
1.27mm A/F ALLEN KEY 3020-P-7068
5mm L-Shaped Hexagonal Key EP79-10892
6mm L-Shaped Hexagonal Key EP79-10905
Black Patient Handle EP79-80070
1.27mm A/F ALLEN KEY EP39-80329
1m DSL to PSU Cable EP39-80321
5mm L-Shaped Hexagonal Key 3020-P-7077
6mm L-Shaped Hexagonal Key 3020-P-5221
Black Patient Handle 3020-P-5039
Cable Clip 3020-P-7054
Chin Rest Pins (406) EP39-80365
Digital Base to Computer Cable EP39-80364
DSL Accessory Kit Packaging EP39-80250
DSL Digital Background Illum.Assy 3020-P-7014
DSL Digital Backlight Filters 3020-P-5240
DSL DIGITAL LEFT/RIGHT LABEL EP39-80324
DSL DIGITAL X-Y PAD EP39-19072
DSL Illum Projection Mirror-Small 3020-P-7117
DSL Refraction Stand Cable Kit EP39-80173
DSL Screw Kit EP39-80174
DSL Table Template 3020-P-7013
Dust Cover - No branding 3020-P-5040-ROD
Fixation&Illum to 6 Pin Connector 3020-P-7071
Linear Gear Rack (405) 3020-P-7107
Linear Gear Rack Cover/silver EP39-80169
Refraction Cable (XY-Bulb) 3020-P-7013
Rodenstock PSU 12V 3020-P-5040-ROD
USB3 Type-A to Micro-B Cable Assy 3020-P-7107
XY Pad (405) EP39-80169

18
EN
RSL 4500digital and RSL 5000digital by RODENSTOCK
10. PACKAGING AND DISPOSAL INFORMATION
Disposal of old electrical and electronic equipment
This symbol on the product or on its packaging and instructions indicates
that this product shall not be treated as household waste.
To reduce the environmental impact of WEEE (Waste Electrical Electronic
Equipment) and minimise the volume of WEEE entering landfills we
encourage at product end of life that this equipment is recycled and reused.
If you need more information on the collection reuse and recycling then please
contact B2B Compliance on 01691 676124 ([phone]). (UK only).
Any serious incident that has occurred in relation to the device must be reported
to the manufacturer and the competent authority of your Member State.

Contact
Manufacturer
Keeler Limited
Clewer Hill Road
Windsor
Berkshire
SL4 4AA UK
Freephone 0800 521251
Tel [phone]
Fax[phone]
EP59-39800 Issue A Date of Issue 12/05/2021
SUPPLIER
Rodenstock Instruments
Business Unit of Tomey GmbH
Wiesbadener Straße 21
90427 Nürnberg Germany
Tel [phone]
Fax [phone]
Visiometrics, S. L.,Vinyals, 131
08221 Terrassa, Spain
