Rohde & Schwarz CLIPSTER 6 Mk2 User manual

R&S®CLIPSTER Mk2
Mastering Station
User Manual (Hardware)
Version 04
2904.4460.02

CLIPSTER
2User Manual (Hardware) | 2904.4460.02 - 04
© 2022 Rohde & Schwarz GmbH & Co. KG
Hanomaghof 1, 30449 Hanover, Germany
Phone: [phone]
Internet: https://www.rohde-schwarz.com
Support: https://www.rohde-schwarz.com/support
Subject to change – Data without tolerance limits is not binding.
R&S® is a registered trademark of Rohde & Schwarz GmbH & Co. KG.
Trade names are trademarks of the owners.
Throughout this manual, products from Rohde & Schwarz are indicated without the ® symbol,
e.g. R&S®CLIPSTER is indicated as CLIPSTER.

3
User Manual (Hardware) | 2904.4460.02 - 04
CLIPSTER
Contents
About ................................................................................................................5
About this Documentation ....................................................................................................... 5
Required Reading ................................................................................................................5
Additional Documentation .................................................................................................... 5
Chapters Overview ................................................................................................................... 6
Safety and Regulatory Information ................................................................7
Safety Instructions ................................................................................................................... 8
Lifting and Carrying the Product ........................................................................................... 8
Choosing the Operating Site ................................................................................................ 9
Setting Up the Product ......................................................................................................... 9
Connecting to Power ............................................................................................................ 9
Cleaning the Product .......................................................................................................... 10
Connecting to a Network .................................................................................................... 10
Meaning of Safety Labels ................................................................................................... 11
Handling Batteries Safely ................................................................................................... 11
Labels on the Product ............................................................................................................ 12
Warning Messages in the Documentation ........................................................................... 13
Korea Certification Class A ................................................................................................... 13
CE Declaration of Conformity ............................................................................................... 14
FC Declaration of Conformity ................................................................................................ 15
Product Description ......................................................................................17
Overview of the Front ............................................................................................................. 17
Front Cover ........................................................................................................................ 17
The Front of the System ..................................................................................................... 18
Overview of the Rear .............................................................................................................. 21
The Rear of the System ..................................................................................................... 22
Main Connector Panel ........................................................................................................ 23
Digital Video I/Os ................................................................................................................ 24
ATX Panel .......................................................................................................................... 27
Slot Panel Connectors ........................................................................................................ 28
Power Supply ..................................................................................................................... 30
Important Notes ...................................................................................................................... 31
........................................................................................................................................... 32
Installation and Operation ............................................................................33
Lifting and Carrying ............................................................................................................... 33
Unpacking the System ........................................................................................................... 33
Choosing the Operating Site ................................................................................................. 34
Mounting the System into a Rack ......................................................................................... 34
Rack System Precautions .................................................................................................. 34
Mounting the System .......................................................................................................... 35
Connecting Monitor, Mouse and Keyboard ......................................................................... 38
Connecting to Power .............................................................................................................. 39

CLIPSTER
4User Manual (Hardware) | 2904.4460.02 - 04
Operating the System ............................................................................................................39
Starting the System ............................................................................................................ 39
First Login ........................................................................................................................... 40
Shutting Down the System ................................................................................................. 41
IPMI Login .......................................................................................................................... 42
Maintenance .................................................................................................. 43
Safety during Maintenance .................................................................................................... 43
SSD Disk Maintenance ........................................................................................................... 44
RAID Storage Protection .................................................................................................... 45
Removing the Front Cover ................................................................................................. 46
Identifying a Defective SSD Disk ........................................................................................ 46
SSD Disk Replacement ...................................................................................................... 47
Removing the Top Cover ....................................................................................................... 50
Recovery of the System Disk ................................................................................................ 51
Fan Maintenance .................................................................................................................... 55
Preparations ....................................................................................................................... 55
Replacing the Fan .............................................................................................................. 57
Power Supply Maintenance ................................................................................................... 58
Power Supply ..................................................................................................................... 58
Replacing a Power Supply Unit .......................................................................................... 59
Cleaning .................................................................................................................................. 59
Storage .................................................................................................................................... 59
Disposal................................................................................................................................... 60
Appendix........................................................................................................ 61
Troubleshooting ..................................................................................................................... 61
Technical Data ........................................................................................................................ 62
General Technical Data ...................................................................................................... 63
Dimensions ......................................................................................................................... 63
Hardware Performance Specifications ............................................................................... 64
Signal In- and Outputs ........................................................................................................ 67
Packing Instructions .............................................................................................................. 71
Index............................................................................................................... 77

About
5
User Manual (Hardware) | 2904.4460.02 - 04
About this Documentation
CLIPSTER
About
This documentation describes how to use the hardware of CLIPSTER, the
real-time conforming and mastering system by Rohde & Schwarz.
This chapter contains the following sections:
●About this Documentation (page 5)
●Chapters Overview (page 6)
About this Documentation
This documentation contains installation, operation and maintenance instruc-
tions as well as safety instructions which must be followed by the client
company and the system operator. For this reason, the manual should
always be accessible in the immediate vicinity of the system.
Required Reading
The client company and operator of the system are advised to read this
manual, and to follow the instructions.
Each person who is responsible for installation, operation, maintenance or
setting of the system must read and understand this manual.
Additional Documentation
Additional documentation can be downloaded from https://gloris.rohde-
schwarz.com after registering/logging in to access restricted information.
There you may find updated manual versions as well as further information
about your product.

About
Chapters Overview
CLIPSTER
6User Manual (Hardware) | 2904.4460.02 - 04
Chapters Overview
The chapters contain the following information:
Chapter "About" (page 5) States the audience this manual is written for, and
provides information on additional documentation.
Chapter "Safety and Regula-
tory Information" (page 7)
Provides all required safety instructions and
important notes you must adhere to protect your
equipment and avoid personal injury.
Chapter "Product Descrip-
tion" (page 17)
This chapter gives an overview of the front and rear
panel of the system detailing the respective controls,
connectors and interfaces.
Chapter "Installation and
Operation" (page 33)
Describes the hardware installation of the system.
Explains how to operate the system, i.e. how to start
and shut down the device.
Chapter "Maintenance"
(page 43)
Details basic maintenance work that can be done by
the customer, for example, in case of a disk, fan or
power supply unit failure.
"Appendix" (page 61) Provides technical details and general information
about the hardware of the system. Furthermore, it
gives hints how to resolve irregularities during opera-
tion.

Safety and Regulatory Information
7
User Manual (Hardware) | 2904.4460.02 - 04
CLIPSTER
Safety and Regulatory Information
The product documentation helps you use the product safely and efficiently.
Follow the instructions provided here and in section "Safety Instructions"
(page 8).
Intended use
The R&S system may only be used according to its intended function as
described in "Product Description" (page 17) and within the specified envi-
ronmental conditions as described in the data sheet. Any other use or exten-
sion of this function is considered inappropriate. Inappropriate use may lead
to situations resulting in personal injury or property damage.
Observe the operating conditions and performance limits stated in the data
sheet.
Target audience
Each person who is responsible for installation, operation, maintenance or
setting of the system must read and understand this manual.
To use this manual you should know how to handle computer equipment.
Furthermore, to connect the R&S system to a network you should have
experience as a network administrator and know how to set up the required
network connections on the installation site both in hard- and software.
When performing maintenance tasks on the hardware of the R&S system,
you must be qualified to work on, repair and test electrical equipment.
Where do I find safety information?
Safety information is part of the product documentation. It warns you of
potential dangers and gives instructions on how to prevent personal injury or
damage caused by dangerous situations. Safety information is provided as
follows:
●In chapter "Safety Instructions" on page 8. General safety information is
provided in many languages as printed "Safety Instructions". The printed
"Safety Instructions" are delivered with the product.
●Throughout the documentation, safety instructions are provided when
you need to take care during setup or operation.
This chapter contains the following sections:
●Safety Instructions (page 8)
●Labels on the Product (page 12)
●Warning Messages in the Documentation (page 13)
●Korea Certification Class A (page 13)
●CE Declaration of Conformity (page 14)
●FC Declaration of Conformity (page 15)

Safety and Regulatory Information
Safety Instructions
CLIPSTER
8User Manual (Hardware) | 2904.4460.02 - 04
Safety Instructions
Products from the Rohde & Schwarz group of companies are manufactured
according to the highest technical standards. To use the products safely,
follow the instructions provided here and in the product documentation. Keep
the product documentation nearby and offer it to other users.
Use the product only for its intended use and within its performance limits.
Intended use and limits are described in the product documentation such as
the data sheet, manuals and the printed safety instructions. If you are unsure
about the appropriate use, contact Rohde & Schwarz customer service.
Using the product requires specialists or specially trained personnel. These
users also need sound knowledge of at least one of the languages in which
the user interfaces and the product documentation are available.
If any part of the product is damaged or broken, stop using the product. Only
service personnel authorized by Rohde & Schwarz are allowed to repair the
product. Contact Rohde & Schwarz customer service at:
http://www.customersupport.rohde-schwarz.com.
The following topics are covered:
●Lifting and Carrying the Product (page 8)
●Choosing the Operating Site (page 9)
●Setting Up the Product (page 9)
●Connecting to Power (page 9)
●Cleaning the Product (page 10)
●Connecting to a Network (page 10)
●Meaning of Safety Labels (page 11)
●Handling Batteries Safely (page 11)
Lifting and Carrying the Product
The system can weigh up to 45kg (99lbs). Use appropriate lifting methods.
Follow the instructions provided by the equipment manufacturer.
The product is heavy. Do not move or carry the product by yourself. A single
person can only carry a maximum of 18 kg safely depending on age, gender
and physical condition. Use the product handles to move or carry the
product. Do not lift by the accessories mounted on the product. Accessories
are not designed to carry the weight of the product.
When closing any drawers, do so firmly, ensuring the latches are engaged.

Safety and Regulatory Information
9
User Manual (Hardware) | 2904.4460.02 - 04
Safety Instructions
CLIPSTER
Choosing the Operating Site
Only use the product indoors. The product casing is not waterproof. Water
that enters can electrically connect the casing with live parts, which can lead
to electric shock, serious personal injury or death if you touch the casing. If
Rohde & Schwarz provides a carrying bag designed for your product, you
can use the product outdoors.
Unless otherwise specified, you can operate the product up to an altitude of
2000 m above sea level. The product is suitable for pollution degree 2 envi-
ronments where nonconductive contamination can occur. This equipment is
to be installed for operation in an environment with ambient temperature
below 35ºC (95ºF), and humidity 5 - 95%.
The system is to be operated only when mounted and mechanically secured
into a 19-inch wide rack.
Setting Up the Product
Always place the product on a stable, flat and level surface with the bottom
of the product facing down. If the product is designed for different positions,
secure the product so that it cannot fall over.
If stacking is possible, keep in mind that a stack of products can fall over and
cause injury.
If you mount products in a rack, ensure that the rack has sufficient load
capacity and stability. Observe the specifications of the rack manufacturer.
Always install the products from the bottom shelf to the top shelf so that the
rack stands securely. Secure the product so that it cannot fall off the rack.
Unplug the system before you move it or if you think it has become damaged
in any way.
Connecting to Power
The product is an overvoltage category II product and has to be connected
to a fixed installation used to supply energy-consuming equipment such as
household appliances and similar loads. Be aware that electrically powered
products have risks, such as electric shock, fire, personal injury or even
death.
Maintenance inside the system should only be performed by personnel quali-
fied for handling and testing electrical equipment. Exercise utmost care when
performing any kind of work inside the system while it is on.
Take the following measures for your safety:
●The enclosure must only be operated from a power supply input voltage
range of 100-127 VAC and 200-240 VAC, frequency is 50 to 60 Hz.

Safety and Regulatory Information
Safety Instructions
CLIPSTER
10 User Manual (Hardware) | 2904.4460.02 - 04
●The plug on the power supply cord is used as the main disconnect
device. Ensure that the socket outlets are located near the equipment
and are easily accessible.
●A safe electrical earth connection must be provided to the power supply
cords. Check the grounding of the casing before applying power.
●Provide a suitable power source with electrical overload protection to
meet the requirements laid down in the technical specification.
●Before switching on the product, ensure that the voltage and frequency
indicated on the product match the available power source. If the power
adapter does not adjust automatically, set the correct value and check
the rating of the fuse.
●If a product has an exchangeable fuse, its type and characteristics are
indicated next to the fuse holder. Before changing the fuse, switch off the
instrument and disconnect it from the power source. How to change the
fuse is described in the product documentation.
●Only use the power cable delivered with the product. It complies with
country-specific safety requirements. Only insert the plug into an outlet
with protective conductor terminal.
●Only use intact cables and route them carefully so that they cannot be
damaged. Check the power cables regularly to ensure that they are
undamaged. Also ensure that nobody can trip over loose cables.
●If the product needs an external power supply, use the power supply that
is delivered with the product or that is recommended in the product docu-
mentation or a power supply that conforms to the country-specific regula-
tions.
●Ensure that you can disconnect the product from the power source at
any time. Pull the power plug to disconnect the product. The power plug
must be easily accessible. If the product is integrated into a system that
does not meet these requirements, provide an easily accessible circuit
breaker at the system level.
Cleaning the Product
Use a dry, lint-free cloth to clean the product. When cleaning, keep in mind
that the casing is not waterproof. Do not use liquid cleaning agents.
Connecting to a Network
Before connecting the product to a local area network (LAN), consider the
following:
●Always install the latest firmware for the components of your system to
reduce security risks.
●For Internet or remote access, use secured connections if applicable,
such as HTTPS, SFTP, FTPS instead of HTTP, FTP.
●Ensure that the network settings comply with the security policies of your
company. Contact your local system administrator or IT department
before connecting your product to your company network.

Safety and Regulatory Information
11
User Manual (Hardware) | 2904.4460.02 - 04
Safety Instructions
CLIPSTER
●When connected to a network, the product may potentially be accessed
from the Internet, which may be a security risk. For example, attackers
might misuse a network to remotely access and damage the product.
Meaning of Safety Labels
Safety labels on the product warn against potential hazards.
Handling Batteries Safely
The product contains lithium polymer or lithium ion cells or batteries. The use
of the word battery in the following always means all types. Only the battery
contents are potentially hazardous. As long as a battery is undamaged and
the seals remain intact, there is no danger.
Impact, shock or heat can cause damage such as dents, punctures and
other deformations. A damaged battery poses a risk of personal injury.
Handle a damaged or leaking battery with extreme care. Immediately venti-
late the area since the battery releases harmful gases. If you come into
contact with the battery fluid, immediately remove all contaminated clothing.
Irritation can occur if the battery fluid comes in contact with your skin or
eyes. Immediately and thoroughly rinse your skin or eyes with water and
seek medical aid.
For safe handling, follow these rules:
●Do not short-circuit the battery.
Potential hazard
Read the product documentation to avoid personal injury or product
damage.
Heavy product
Be careful when lifting, moving or carrying the product. Carrying the
product requires at least two people or transport equipment.
Electrical hazard
Indicates live parts. Risk of electric shock, fire, personal injury or even
death.
Hot surface
Do not touch. Risk of skin burns. Risk of fire.
Protective conductor terminal
Connect this terminal to a grounded external conductor or to protective
ground. This protects you against electric shock should an electric
problem occur.

Safety and Regulatory Information
Labels on the Product
CLIPSTER
12 User Manual (Hardware) | 2904.4460.02 - 04
●Do not mechanically damage the battery. Do not open or disassemble
the battery.
●Do not expose the battery to high temperatures such as open flames, hot
surfaces and sunlight.
●Only use the battery with the designated product.
●Only use the appropriate charger to charge the batteries. If the batteries
are improperly charged, there is a risk of explosion.
●Store the battery at room temperature (approximately 20°C | 68°F)
enclosed in the original packaging.
●Dispose of batteries separately from normal household waste as speci-
fied by the local waste disposal agency.
If you disregard these safety regulations, you risk serious personal injury or
even death due to explosion, fire or hazardous chemical substances
When replacing a defective battery, only use the same battery type. When
returning batteries to Rohde & Schwarz subsidiaries, choose a carrier quali-
fied to transport dangerous goods and follow the carrier’s transport stipula-
tions in line with IATA-DGR, IMDG-Code, ADR or RID. If you need
assistance, contact the carrier or customer service.
California, USA Only
The Lithium battery adopted on the motherboard of this system contains
Perchlorate, a toxic substance controlled in Perchlorate Best Management
Practices (BMP) regulations passed by the California Legislature.
When you discard the Lithium battery in California, USA, please follow the
related regulations in advance. Perchlorate Material-special handling may
apply, see www.dtsc.ca.gov/hazardouswaste/ perchlorate.
Labels on the Product
Labels on the casing inform about:
●Personal safety, see "Meaning of Safety Labels" on page 11
●Product and environment safety, see table below.
●Identification of the product
Labels regarding product and environment safety
Labeling in line with EN 50419 for disposal of electrical and electronic
equipment after the product has come to the end of its service life. For
more information, see "Disposal" on page 60.

Safety and Regulatory Information
13
User Manual (Hardware) | 2904.4460.02 - 04
Warning Messages in the Documentation
CLIPSTER
Warning Messages in the Documentation
A warning message points out a risk or danger that you need to be aware of.
The signal word indicates the severity of the safety hazard and how likely it
will occur if you do not follow the safety precautions.
DANGER
Imminently hazardous situation. Will result in death or serious injury if not
avoided.
WARNING
Potentially hazardous situation. Could result in death or serious injury if not
avoided.
CAUTION
Potentially hazardous situation. Could result in minor or moderate injury if
not avoided.
NOTICE
Potential risks of damage. Could result in damage to the supported product
or to other property.
Korea Certification Class A
이 기기는 업무용 (A 급 ) 전자파 적합기기로서 판매자 또는 사용자는 이 점
을 주의하시기 바라며 , 가정외의 지역에서 사용하는 것을 목적으로 합니다 .

Safety and Regulatory Information
CE Declaration of Conformity
CLIPSTER
14 User Manual (Hardware) | 2904.4460.02 - 04

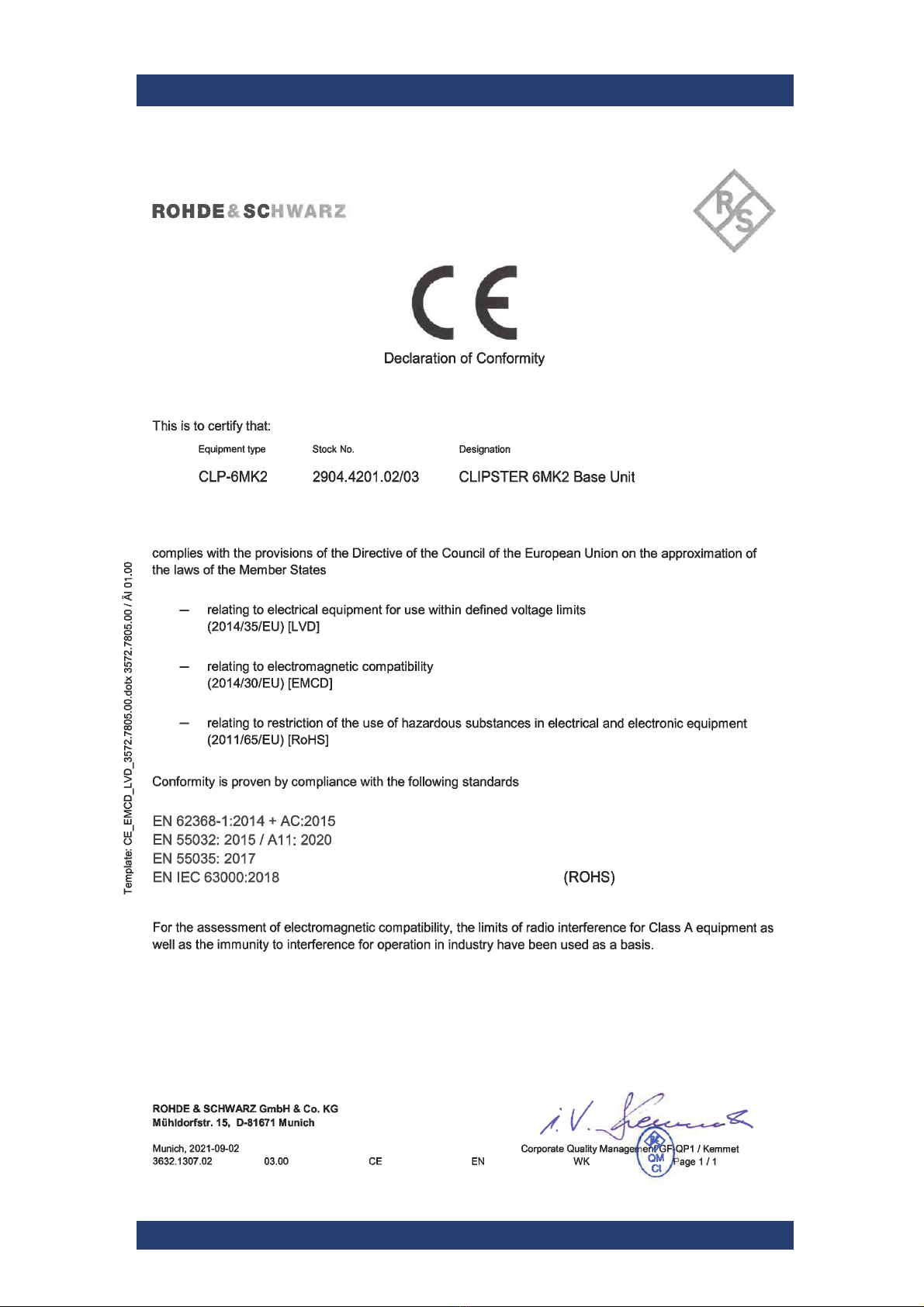

CE
Declaration of
Conformity

Safety and Regulatory Information
15
User Manual (Hardware) | 2904.4460.02 - 04
FC Declaration of Conformity
CLIPSTER
Declaration of Conformity
ROHDE & SCHWARZ GmbH & Co. KG
Mühldorfstr. 15, D-81671 Munich
Munich, 2021-12-02
3632.1307.22
01.00
FCC SDoC
EN
Page 1 / 1
Manufacturer:
Rohde & Schwarz GmbH & Co. KG
Mühldorfstraße 15
81671 München, Germany
Model:
CLP-6MK2
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following to conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause
undesired operation.
Classification:
Class A Digital Device subject to Part 15
We hereby declare that the equipment bearing the trade name and model number specified above was
tested conforming to the applicable FCC rules under the most accurate measurement standards possible,
and that the necessary steps have been taken and are in force to assure that production units of the same
equipment will continue to comply with the Commission’s requirements.
U.S. Responsible Party:
Rohde & Schwarz USA, Inc.
6821 Benjamin Franklin Drive
Columbia, MD 21046
Contact:
[email protected]warz.com
FC Declaration of Conformity

Safety and Regulatory Information
FC Declaration of Conformity
CLIPSTER
16 User Manual (Hardware) | 2904.4460.02 - 04

Product Description
17
User Manual (Hardware) | 2904.4460.02 - 04
Overview of the Front
CLIPSTER
Product Description
CLIPSTER is a powerful high-resolution video workstation with enormous
flexibility, designed to meet the demands of modern post production work-
flows. CLIPSTER processes both compressed and uncompressed single
image and container files in any resolution up to 4K in RGB 16 bit as well as
numerous audio and metadata formats. Arbitrary combinations of codecs,
resolution, bit depth and color volume can be assembled on the timeline and
will be processed without mezzanine conversion to the designated output
format, ensuring the preservation of quality and creative intent.
The hardware allows for real-time in- and output of monoscopic or stereo-
scopic video in combination with up to 16 channels of audio.
This chapter is divided into following sections:
●Overview of the Front (page 17)
●Overview of the Rear (page 21)
●Important Notes (page 31)
Overview of the Front
This section gives an overview of the front of the system.
The following topics are covered:
●Front Cover (page 17)
●The Front of the System (page 18)
●Operation Panel (page 19)
●SSD Disk Array (page 20)
Front Cover
The front of the system is equipped with a front cover for mechanical protec-
tion and sufficient air circulation.
CLIPSTER chassis front view

Product Description
Overview of the Front
CLIPSTER
18 User Manual (Hardware) | 2904.4460.02 - 04
The front plate covers the SSD disk array, and the operating panel. If you
need access to one of the SSD disks, or to the operating elements, the front
plate has to be unlocked and removed, see also "Removing the Front Cover"
(page 46).
The Front of the System
Once the front cover is removed you have access to the operation panel, the
SSD disk array and the USB ports:
Front view without front cover
Operation items
No. Item Description
1Operation Panel Provides access to all operating items, see
"Operation Panel" (page 19)
2SSD Disk Array When purchased with an internal storage option,
the Solid State Disks will be mounted in these
drive trays. See also "SSD Disk Array"
(page 20).
3USB 3.0 Ports 2 x USB 3.0 Type A port to connect external
devices to the system.
1 2 3

Product Description
19
User Manual (Hardware) | 2904.4460.02 - 04
Overview of the Front
CLIPSTER
Operation Panel
With the operation items at the system’s front the hardware of CLIPSTER
can be controlled (e.g. turned on or off). There you can also find LEDs that
allow you to assess the state of the system.
Operation Items
The System ID Button is linked to the ID button on the ATX connector panel
on the rear of the system (see "ATX Panel" on page 27). Pressing either
button once will illuminate the System ID LED on the Front Operation Panel
and an LED located inside of the ID button on the rear. Pressing either
button again will turn both LEDs off.
Power Button
Power Status LED
Drive Activity LED
LAN Activity LED
System Alert LED
System ID LED
System ID Button
System Reset Button

Product Description
Overview of the Front
CLIPSTER
20 User Manual (Hardware) | 2904.4460.02 - 04
SSD Disk Array
The SSD disks of the disk array are used to store your video and audio data.
It is the main storage of the R&S system. To prevent data loss in case an
SSD disk fails, it is RAID protected.
Once the front cover is removed, you have access to the SSD disk array:
SSD disk array
The status of a single disk is indicated by two LEDs on the front of the disk
carrier:
Status LEDs on Disk Drive
Further information about RAID can be found in section “RAID Storage Pro-
tection” on page 45.
The system disks are not among the SSD disks of the SSD disk array. They
are installed on the back of the system.
SSD disk array
Activity LED Error LED
