User’s Guide
Figure 1. BM2P061MF-EVK-001
AC/DC Converter
Flyback Type PWM Mode
Isolated 5 V 2 A 12 V 1 A
Non-Isolated 18.7 V 0.1 A 24 W
BM2P061MF Evaluation Board
BM2P061MF-EVK-001
General Description
The evaluation board outputs an isolated 5 V voltage, an isolated 12 V voltage and a non-isolated 18.7 V output from a 90 Vac to 264 Vac input,
The maximum output power can output 24W.
BM2P061MF which is PWM method DC/DC converter IC built-in 650 V MOSFET is used.
Low on-resistance 1.0 Ω 650 V MOSFET built-in contributes to high efficiency (84.5 % typ).
PWM controller for AC / DC power supplies, the BM2P061MF provides the optimum system for all products with outlets.

2/18
User’s Guide
BM2P060MF-EVK-001
© 2022 ROHM Co., Ltd. No. 65UG064E Rev.001
NOV.2022
Figure 2. Temperature derating curve
Performance Specification
Not guarantee the characteristics is representative value.
Unless otherwise specified VIN = 230 Vac , IOUT5 = 2 A IOUT12 = 1 A IOUT18 = 0.1 A, Ta = 25 °C
(Note 1) Not include spikes noise.
Derating
Parameter Symbol Min Typ Max Units Conditions
Input Voltage Range VIN 90 230 264 V
Input Frequency fLINE 47 - 63 Hz
Output Voltage 1 VOUT5 4.8 5.0 5.2 V
Output Current Range 1 (Note 1) IOUT5 0.005 - 2.0 A
Output Ripple Voltage 1 (Note 1) VRIPPLE 0.06 0.1 Vpp
Output Voltage 2 VOUT12 10.6 11.9 13.2 V
Output Current Range 2 IOUT12 0.05 1.0 A
Output Ripple Voltage 2 (Note 1) VRIPPLE12 0.08 0.24 Vpp
Output Voltage 3 VOUT18 16.0 18.7 20.3 V
Output Current Range 3 IOUT18 0.02 0.1 A
Output Ripple Voltage 3 (Note 1) VRIPPLE18 0.08 0.35 Vpp
Maximum Output Power POUT 24.0 W
Standby Input Power PINSTBY - 31 100 mW IOUT = 0 A VIN = 230 V
Power supply efficiency η 80.0 84.5 - %
Oprating Temperature -10 +25 +65 °C
0
5
10
15
20
25
30
10 30 50 70
P
OUT
(W)
Ambient Temparature Ta (℃)

3/18
User’s Guide
BM2P060MF-EVK-001
© 2022 ROHM Co., Ltd.
No. 65UG064E Rev.001
NOV.2022

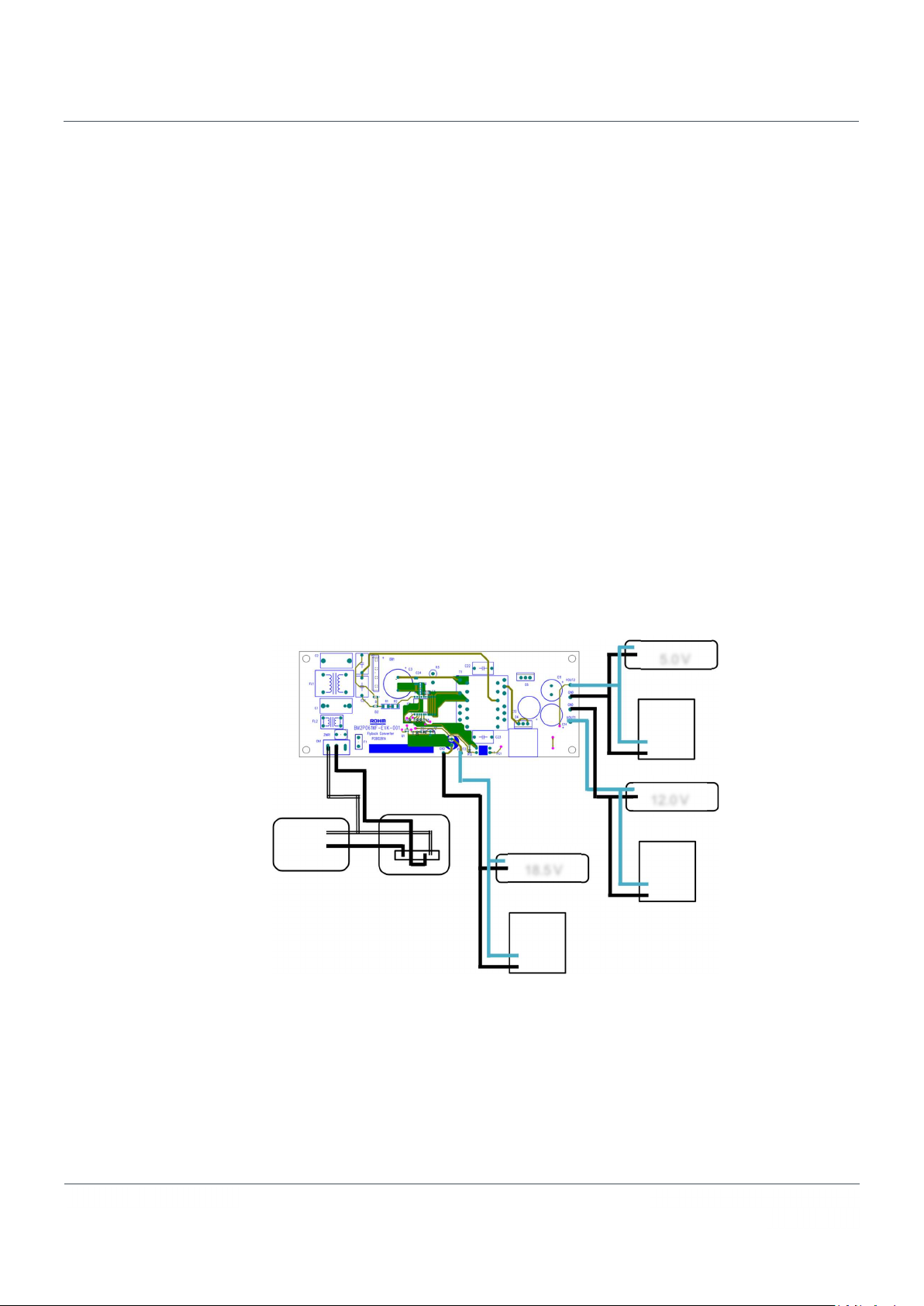

Figure 3. Diagram of How to Connect
Operation Procedure
1. Operation Equipment
(1) AC power supply (90 Vac to 264 Vac, 100 W or more)
(2) Load equipment (2 A at maximum value)
(3) DC voltmeter
2. Connect method
(1) Preset the AC power to 90 Vac to 264 Vac and turn off the power output.
(2) Set the load below the rated current of each output to disable the load.
(3) Connect the N pin of the power supply to the CN1-1: AC (N) pin and the L pin to the CN1-2: AC (L) pin with a pair of
wires.
(4) Connect the positive pin of each load to each VOUT pin and each negative pin to the GND pin with a pair of wires.
(5) When connecting a power meter, connect as follows. (For details, refer to the User's Manual of the electricity meter
you are using.)
(6) Connect the positive pin of a DC voltmeter to each VOUT pin and the negative pin to each GND pin for each output
voltage measurement.
(7) AC power supply switch is ON.
(8) Make sure that the DC voltmeter reading is at the set voltage (5.0 V).
(9) Electronic load switch is ON.
CN1-2 AC (L)
CN1-1 AC (N)
5.0
Ｖ
12.0
Ｖ
18.5
Ｖ
AC Power Supply
DC Meter
DC Meter
Load
Load
Load
Power Meter
DC Meter

4/18
User’s Guide
BM2P060MF-EVK-001
© 2022 ROHM Co., Ltd. No. 65UG064E Rev.001
NOV.2022
Application Circuit
This evaluation board operates in flyback mode at a maximum frequency of around 65 kHz..
The output (5 V) voltage is monitored by a feedback circuit and fed back to the FB pin of BM2P061MF through a opto - coupler.
At startup, the voltage at the VCC pin rises as the voltage is supplied from the DRAIN pin to the VCC pin through the start circuit.
When the VCC pin voltage exceeds the UVLO release voltage of 14.0 V (Typ), the BM2P061MF starts operating.

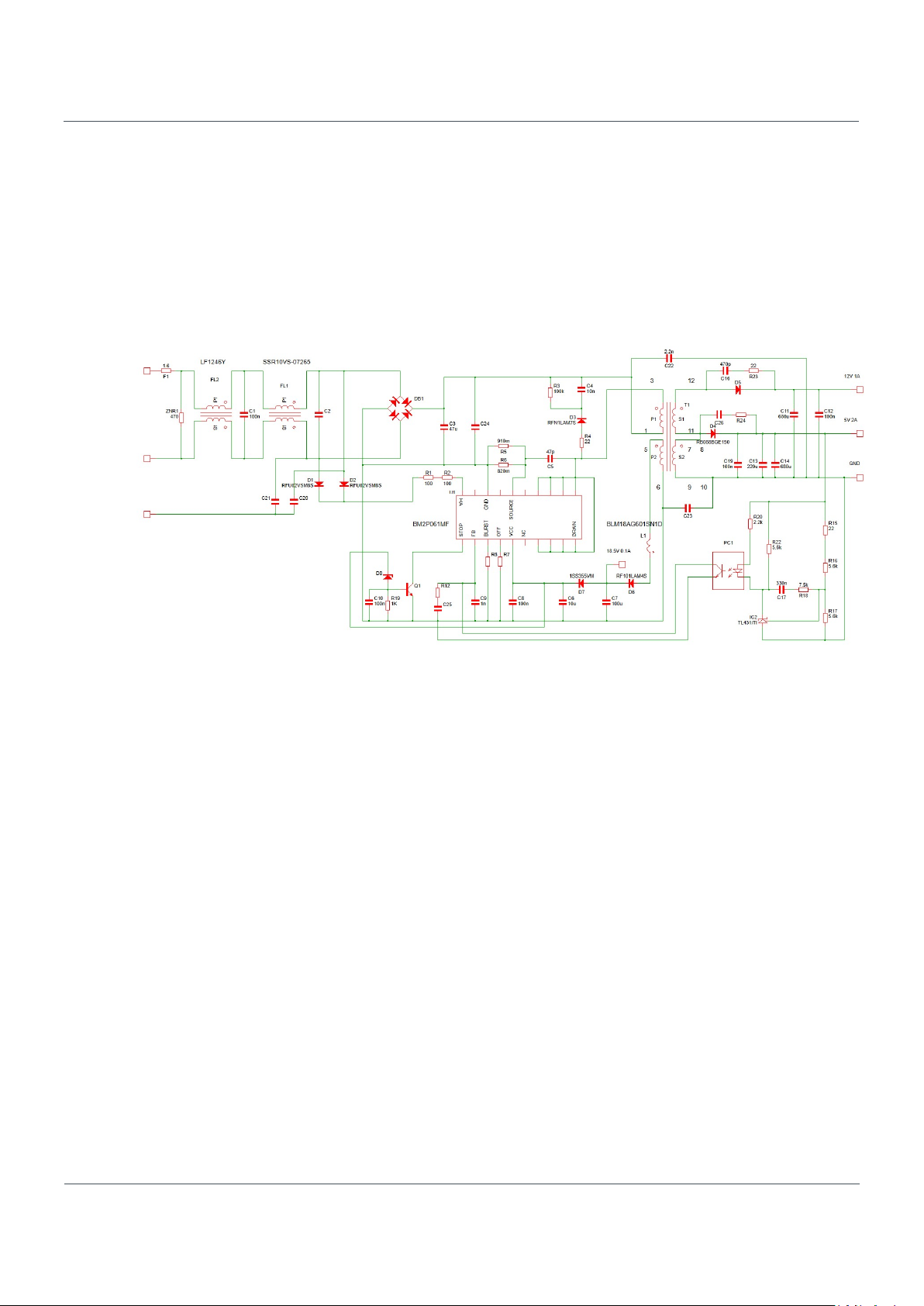

The demo board schematic is shown in Figure below and the list of parts is tabulated on page 15.

5/18
User’s Guide
BM2P060MF-EVK-001
© 2022 ROHM Co., Ltd.
No. 65UG064E Rev.001
NOV.2022
Figure 4. Pin Configuration
BM2P061MF General Description
Features
 AC Low Voltage Protection Function (AC UVLO)
 X Capacitor Discharge Function
 VCC Pin Low Voltage Protection (VCC UVLO)
 PWM Type Current Mode Control
 Frequency Reduction Function
 Burst Operation at Light Load
 External Burst voltage setting function
 Minimum ON width adjustment at light load
 Soft Start Function
 FB Pin Overload Protection Function (FB OLP)
 Over Current Protection Function by cycle
 Over Current Compensation by AC voltage detection.
 External Stop Function
 Dynamic Over Current Protection
 Leading Edge Blanking
Key Specifications
■ Operation Power Supply Voltage Range
VCC Pin Voltage: 11 V to 60 V
DRAIN Pin Voltage: 650 V (Max)
 Current at Switching Operation: 850 μA (Typ)
 Current at Burst Operation 400 μA (Typ)
 Switching Frequency 65 kHz (Typ)
 MOSFET ON Resistor 1.0 Ω (Typ)
 Operation Temperature Range -40 °C to +105 °C
Package W (Typ) x D (Typ) x H (Max)
SOP20A 12.8 mm x 10.3 mm x 2.65 mm
Applications
AC Adapters, Each Household Applications and Power
Supplies for Motor
Pin Configuration
Pin Descriptions
No. Pin name I/O Function No. Pin name I/O Function
1 STOP I External stop pin 11 DRAIN I/O MOSFET Drain pin
2 FB I/O Feedback pin 12 DRAIN I/O MOSFET Drain pin
3 BURST I Burst setting pin 13 DRAIN I/O MOSFET Drain pin
4 OFF I MIN on setting pin 14 DRAIN I/O MOSFET Drain pin
5 VCC I/O Power supply input pin 15 N.C. - No connection
6 N.C. - No connection 16 SOURCE I/O MOSFET source pin
7 DRAIN I/O MOSFET Drain pin 17 N.C. - No connection
8 DRAIN I/O MOSFET Drain pin 18 GND I/O GND pin
9 DRAIN I/O MOSFET Drain pin 19 N.C. - No connection
10 DRAIN I/O MOSFET Drain pin 20 VH I AC voltage start-up pin
N.C.VH SOURCE
STOP BURSTFB
N.C.GND
VCC DRAINDRAINDRAINDRAIN
DRAINDRAINDRAINDRAIN
N.C.
OFF N.C.

6/18
User’s Guide
BM2P060MF-EVK-001
© 2022 ROHM Co., Ltd.
No. 65UG064E Rev.001
NOV.2022

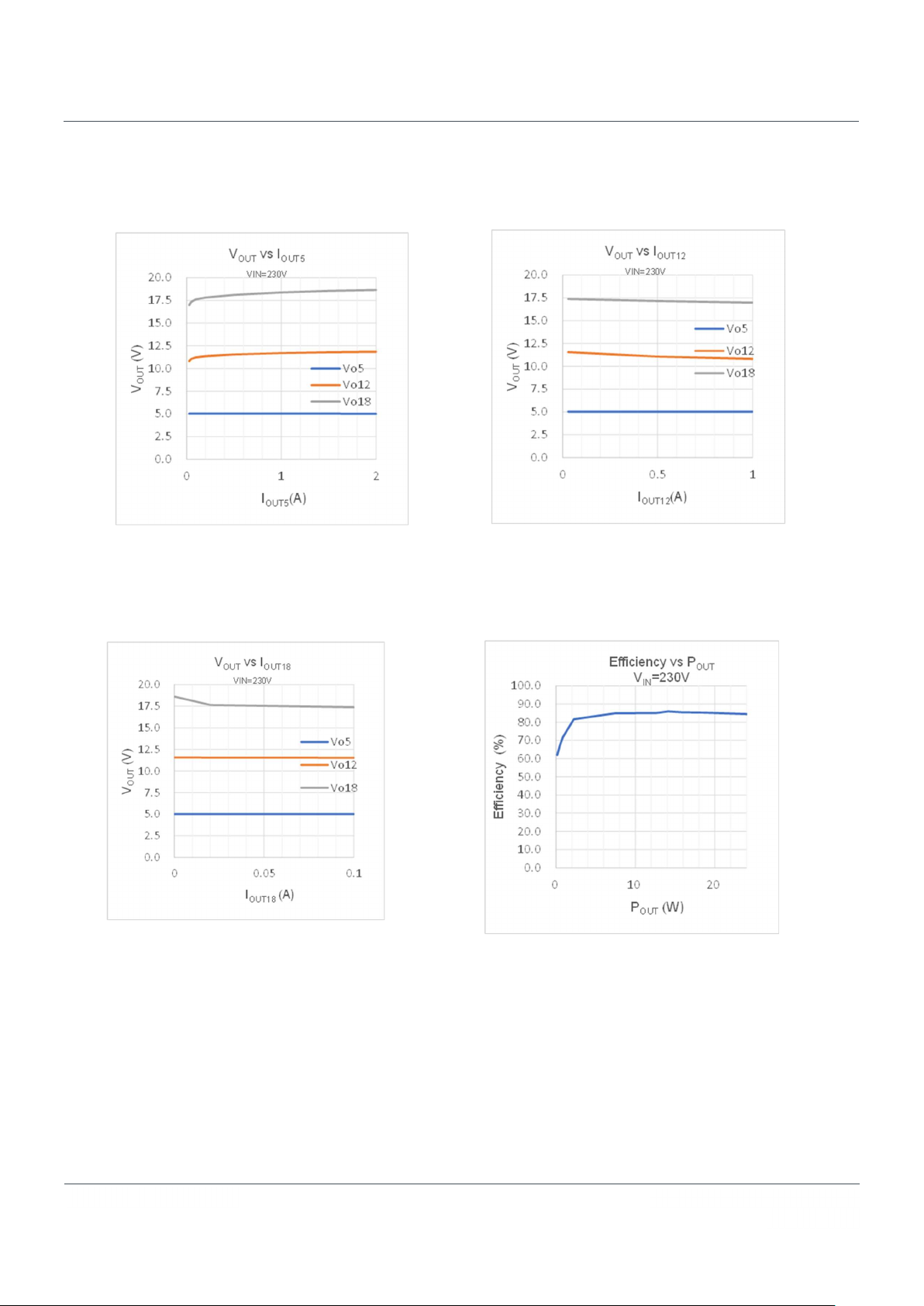

Figure 8. Efficiency vs Output Power
Figure 7. Output Voltage vs Output Current (I
OUT18
)
Figure 5. Output Voltage vs Output Current (I
OUT5
) Figure 6. Output Voltage vs Output Current (I
OUT12
)
Measurement Data
1. Load Regulation
V
OUT2,
I
OUT2
= 0 A
V
OUT1

7/18
User’s Guide
BM2P060MF-EVK-001
© 2022 ROHM Co., Ltd.
No. 65UG064E Rev.001
NOV.2022

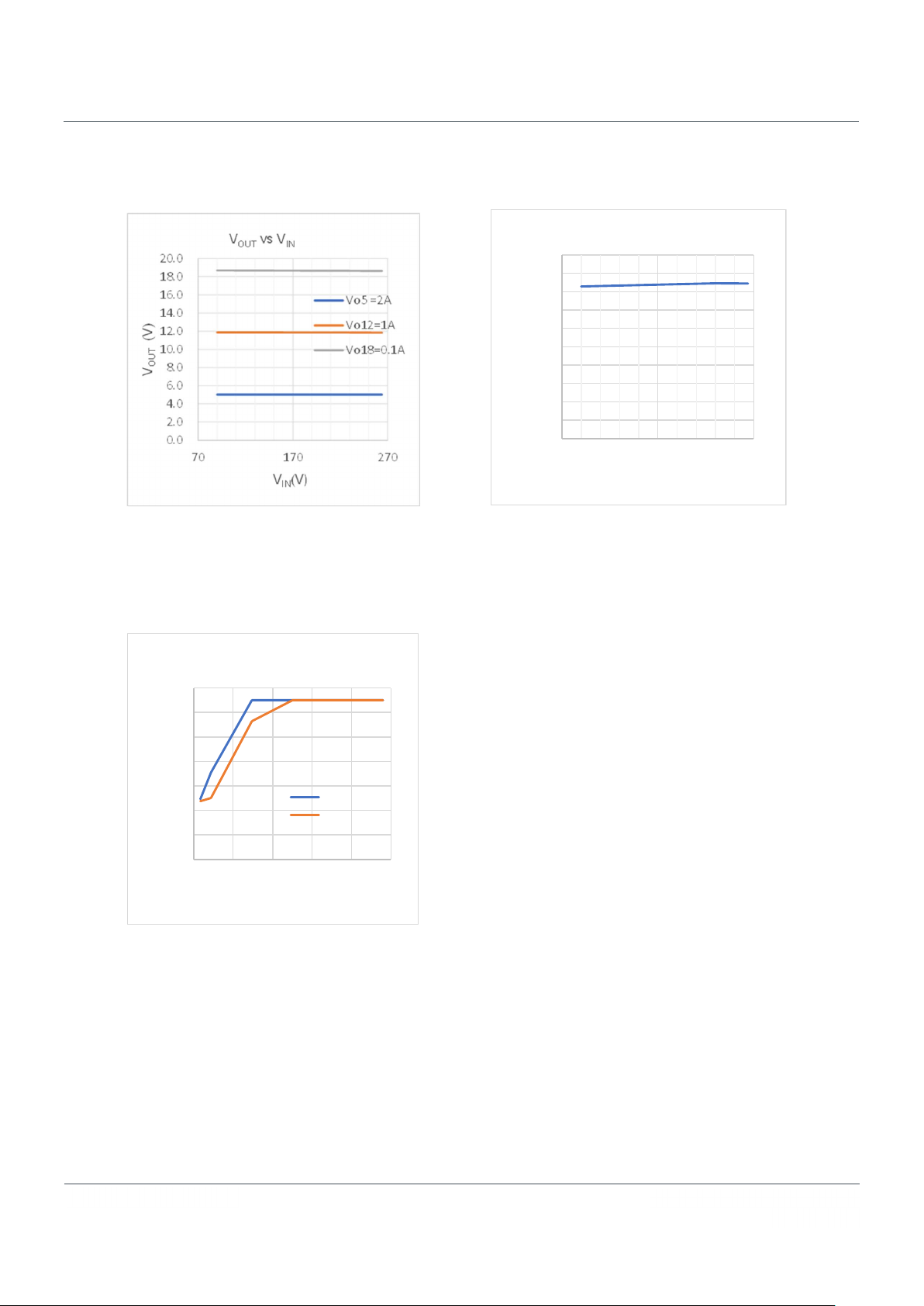

Figure 9. Output Voltage vs Input Voltage Figure 10. Efficiency vs Input Voltage
Figure 11. Frequency vs Output Power
Measurement Data – continued
2. Line Regulation
3. Switching Frequency
0.0
10.0
20.0
30.0
40.0
50.0
60.0
70.0
80.0
90.0
100.0
70 170 270
Efficiency (%)
V
IN
(V
)
Efficiency vs V
IN
P
OUT
=24W
0
10
20
30
40
50
60
70
0 5 10 15 20 25
SwF (kHz)
P
OUT
(W)
SwF vs P
OUT
VIN=90V
VIN=230V

8/18
User’s Guide
BM2P060MF-EVK-001
© 2022 ROHM Co., Ltd.
No. 65UG064E Rev.001
NOV.2022
Figure 12. VIN = 0 V to 230V Rated load
Figure 13. C1 Voltage
Measurement Data – continued
4. Input Voltage Slowup
5. Input Capacitor (C1) Discharge operation
100 V / Div
C1 Voltage
MOSFET V
DS
100 V / Div
Input Voltage V
IN
250 V / Div

9/18
User’s Guide
BM2P060MF-EVK-001
© 2022 ROHM Co., Ltd. No. 65UG064E Rev.001
NOV.2022
Figure 14. Drain Voltage VIN = 90 Vac, VOUT5 Shorted Figure 15. Drain Voltage VIN = 264 Vac, VOUT5 Shorted
Figure 16. VIN = 90 Vac, Rated load Figure 17. VIN = 264 Vac, Rated load
Measurement Data – continued
6. Switching Wave Form
7. Startup Wave Form
VOUT5
VDS
IOUT5
Output Voltage VOUT5
5 V / Div
250 V / Div
5 V / Div
Input Voltage VIN
Output Voltage VOUT5
Input Voltage VIN
5 V / Div
250 V / Div
100 V / Div
10 A / Div
VOUT5
VDS
100 V / Div
IOUT5
5 V / Div
10 A / Div
Output Voltage VOUT18
Output Voltage VOUT12
Output Voltage VOUT12
Output Voltage VOUT18

10/18
User’s Guide
BM2P060MF-EVK-001
© 2022 ROHM Co., Ltd.
No. 65UG064E Rev.001
NOV.2022
Figure 18. V
IN
= 90 Vac, I
OUT5
= switch 0.05 A /2.0 A Figure 19. V
IN
= 90 Vac, I
OUT12
= switch 0.03 A / 1.0 A
Figure 20. V
IN
= 90 Vac, I
OUT18
= switch 0.02 A /0.1 A
Measurement Data – continued
8. Dynamic Load Fluctuation
V
OUT5
I
OUT5
0.2 V / Div
1 A / Div
V
OUT12
I
OUT12
2 V / Div
1 A / Div
V
OUT18
2 V / Div
I
OUT18
0.1 A / Div

11/18
User’s Guide
BM2P060MF-EVK-001
© 2022 ROHM Co., Ltd.
No. 65UG064E Rev.001
NOV.2022

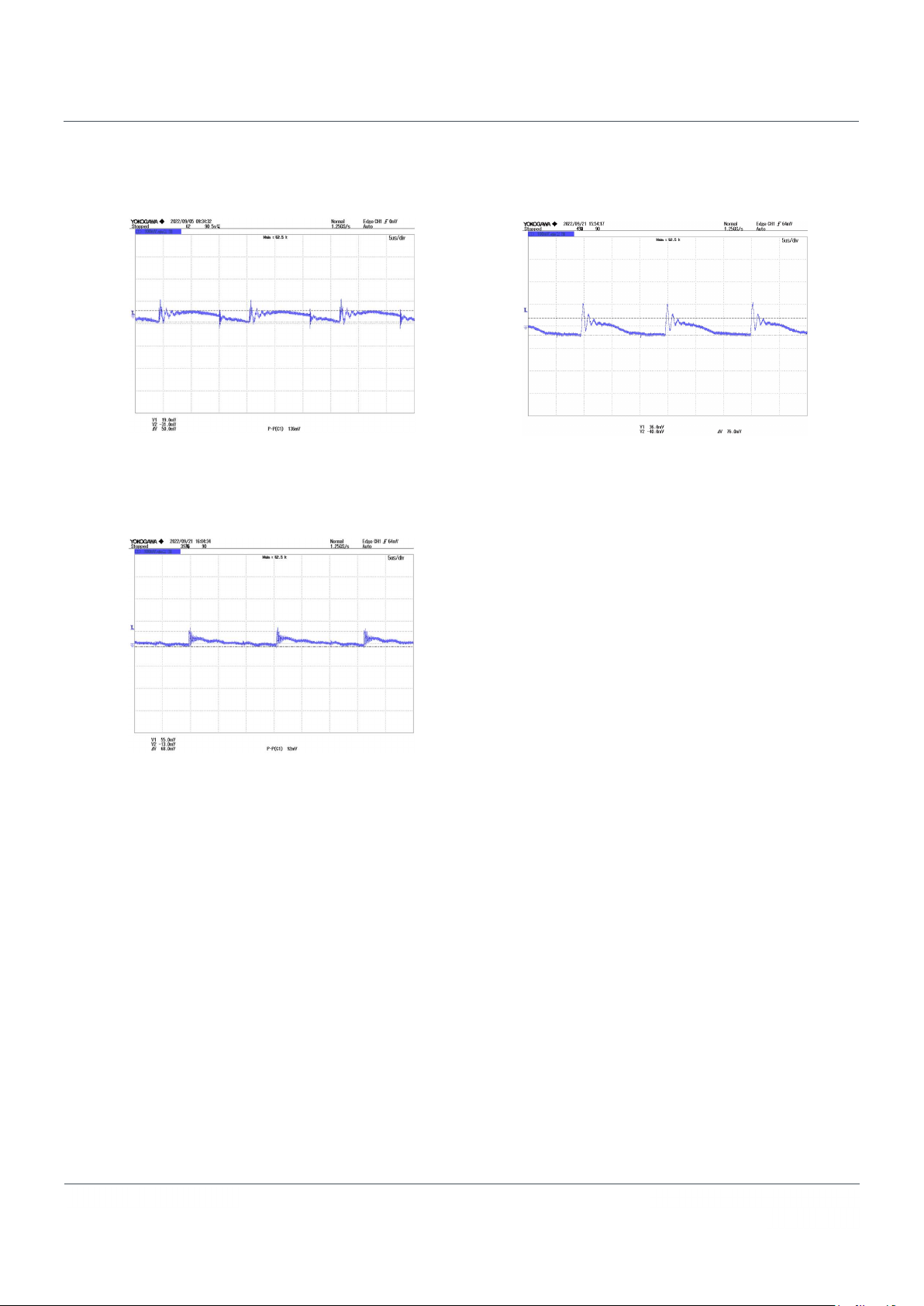

Output Ripple Voltage V
RIPPLE2
= 0.10 Vpp
0.2 V / Div
Figure 21. V
IN
= 90 Vac, I
OUT5
= 2.0 A Figure 22. V
IN
= 90 Vac, I
OUT12
= 1.0 A
Figure 23. V
IN
= 90 Vac, I
OUT18
= 0. 1A
Measurement Data – continued
9. Output Voltage Ripple Wave Form
Output Ripple Voltage V
RIPPLE
= 0.050 Vpp
0.1 V /Div
Output Ripple Voltage V
RIPPLE
= 0.076 Vpp
0.1 V /Div
0.1 V /Div
Output Ripple Voltage V
RIPPLE
= 0.092 Vpp

12/18
User’s Guide
BM2P060MF-EVK-001
© 2022 ROHM Co., Ltd. No. 65UG064E Rev.001
NOV.2022
Table 1. Surface Temperature of Parts (Ta = 23.6 °C)
Measurement Data – continued
10. Temperature of Parts Surface IOUT1
They are measured after 15 minutes from applying a power supply.
Part Condition
VIN = 90 Vac, Rated Load VIN = 264 Vac, Rated Load
IC1 61.1 °C 57.7 °C
Diode D1 65.5 °C 64.6 °C

13/18
User’s Guide
BM2P060MF-EVK-001
© 2022 ROHM Co., Ltd.
No. 65UG064E Rev.001
NOV.2022
Figure 24. V
IN
: 115 Vac / 60 Hz, I
OUT5
:2 A
IOUT12
:1 A I
OUT18
:0.1 A
Figure 25. V
IN
: 230 Vac / 50 Hz, I
OUT5
:2 A
IOUT12
:1 A I
OUT18
:0.1 A
Measurement Data – continued
11. EMI Conducted Emission:CISPR22 Pub 22 Class B
QP margin: 13.1dB
AVE margin: 6.4dB
QP margin: 10.5dB
AVE margin: 8.4dB

14/18
User’s Guide
BM2P060MF-EVK-001
© 2022 ROHM Co., Ltd. No. 65UG064E Rev.001
NOV.2022
Figure 26. BM2P061MF-EVK-001 Schematics
Schematics
VIN = 90 Vac to 264 Vac、VOUT5= 5 V / 2 A VOUT12=1 A VOUT18=0.1 A

15/18
User’s Guide
BM2P060MF-EVK-001
© 2022 ROHM Co., Ltd. No. 65UG064E Rev.001
NOV.2022
Parts List
Materials may be changed without notifying.
Items
Specifications
Parts name
Manufacture
C1
0.1uF/310V
890334025017CS
WURTH
C3
47 μF/450V
450BXW47MEFR18×20
Rubycon
C4
10nF/500V
885342208009
WURTH
C5
47pF/1 kV
GRM31A7U3A470JW31D
MURATA
C6
10uF/50V
860020672010
WURTH
C7
100uF/50V
860080674009
WURTH
C8,C10,C12,C19
0.1uF/100V
HMK107B7104KA-T
TaiyoYuden
C9
1000pF/50V
HMK107B7102KA-T
TaiyoYuden
C11
680uF/35V
860080578019
WURTH
C13
220uF/35V
APSG250ELL221MHB5S
CHIME-CON
C14
680uF/35V
860080578019
WURTH
C16
470pF/250V
885342208023
WURTH
C17
0.33uF/25V
TMK107BJ334KA-T
TaiyoYuden
C22
2200 pF,Y1:300 Vac
DE1E3RA222MA4BP01F
MURATA
C2,C18,C20,C21,C23,C24,C25,C26
-
Non-Mounted
CN1
B03P-NV
JST
D1,D2
800 V 0.2 A
RFU02VSM8S
ROHM
D3
FRD 700 V 1 A
RFN1LAM7S
ROHM
D4
SBD 150 V 10 A
RB088T150NZ
ROHM
D5
SBD 200 V 20 A
STPS20200CFP
ST
D6
FRD 400 V 1 A
RF101LAM4S
ROHM
D7
90V 0.1A
1SS355VMTE-17
ROHM
DB1
600V
D2SBA60-7000
Shidengen
F1
1 A, 300 V
36911000000_
LITTELFUSE
FL1
0.7A 26.5mH
SSR10VS-07265
TOKIN
FL2
LF1246Y
ALPHA TRANS
IC1
BM2P061MF
ROHM
IC2
TL431BIDBZT
TI
L1
BLM18AG601SN1D
MURATA
PC1
LTV-817
LITE-ON
Q1
2SCR523UB
ROHM
R1,R2
100
ESR18EZPJ101
ROHM
R3
100k/2W
ERG2SJ104E
Panasonic
R4
22
MCR18EZPJ220
ROHM
R5
0.91
LTR18EZPFLR910
ROHM
R6
0.82
LTR18EZPFLR820
ROHM
R15
22
MCR03EZPJ220
ROHM
R16,R17
5.6k
MCR03EZPFX5601
ROHM
R18
7.5k
MCR03EZPJ752
ROHM
R19
1k
MCR03EZPJ102
ROHM
R20
2.2k
MCR03EZPJ222
ROHM
R22
5.6k
MCR03EZPJ562
ROHM
R23
22
ESR18EZPJ220
ROHM
R7,R8,R12,R24
-
Non-Mounted
T1
XE2637YA
ALPHA TRANS
ZD1
27V
UDZV27B
ROHM
HEAT1
20.0K/W
OSH-1625-SFL
RYOSAN
HEAT2
32.3K/W
OSH-1525-SFL
RYOSAN
TP1.TP2,TP3,TP4,TP5,TP6
CD-10-15
MAC8
PCB
PCB0281A

16/18
User’s Guide
BM2P060MF-EVK-001
© 2022 ROHM Co., Ltd. No. 65UG064E Rev.001
NOV.2022

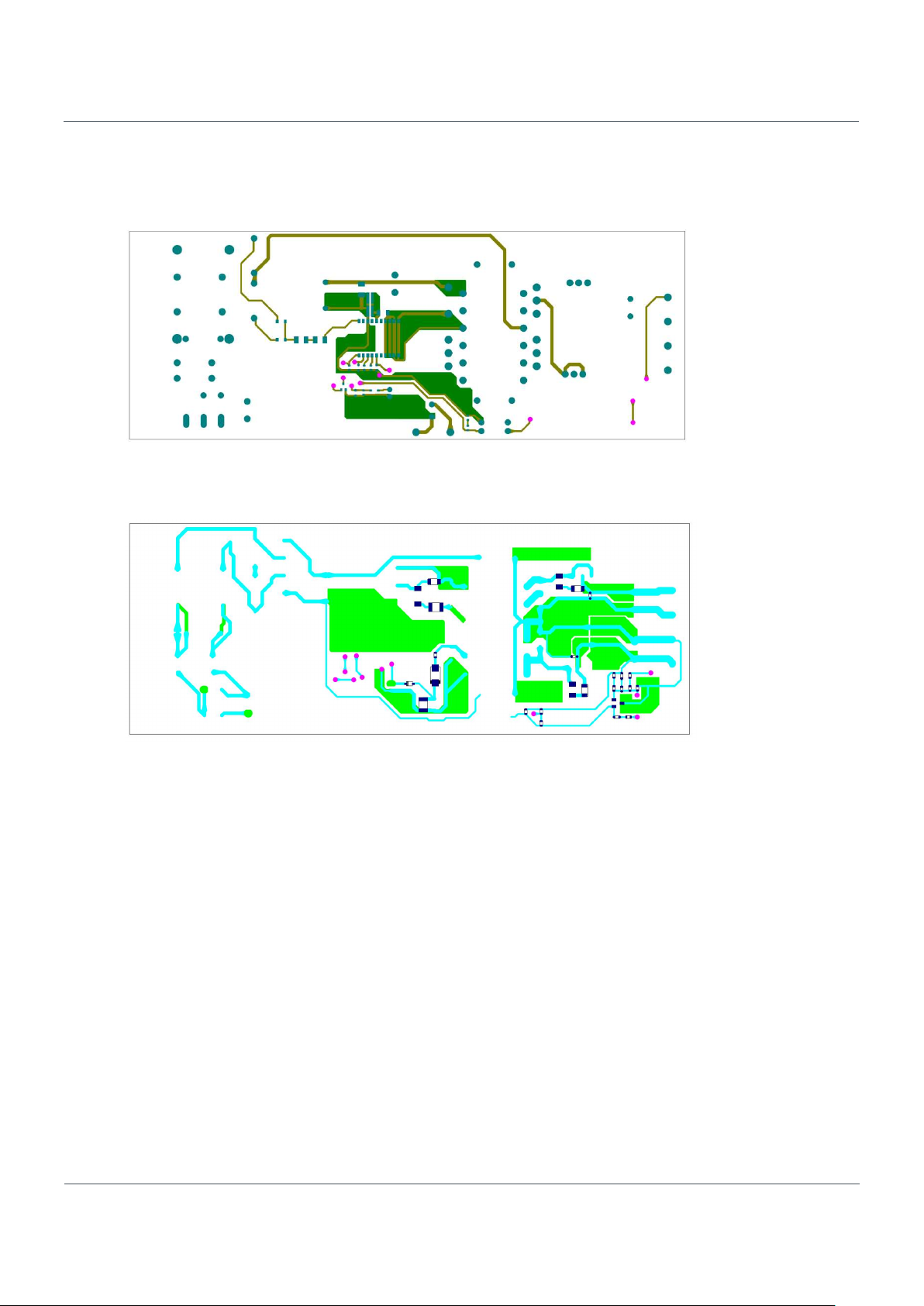

Figure 27. TOP Layout (Top view)
Figure 28. Bottom Layout (Top View)
Layout
Size: 160 mm x 55 mm

17/18
User’s Guide
BM2P060MF-EVK-001
© 2022 ROHM Co., Ltd.
No. 65UG064E Rev.001
NOV.2022

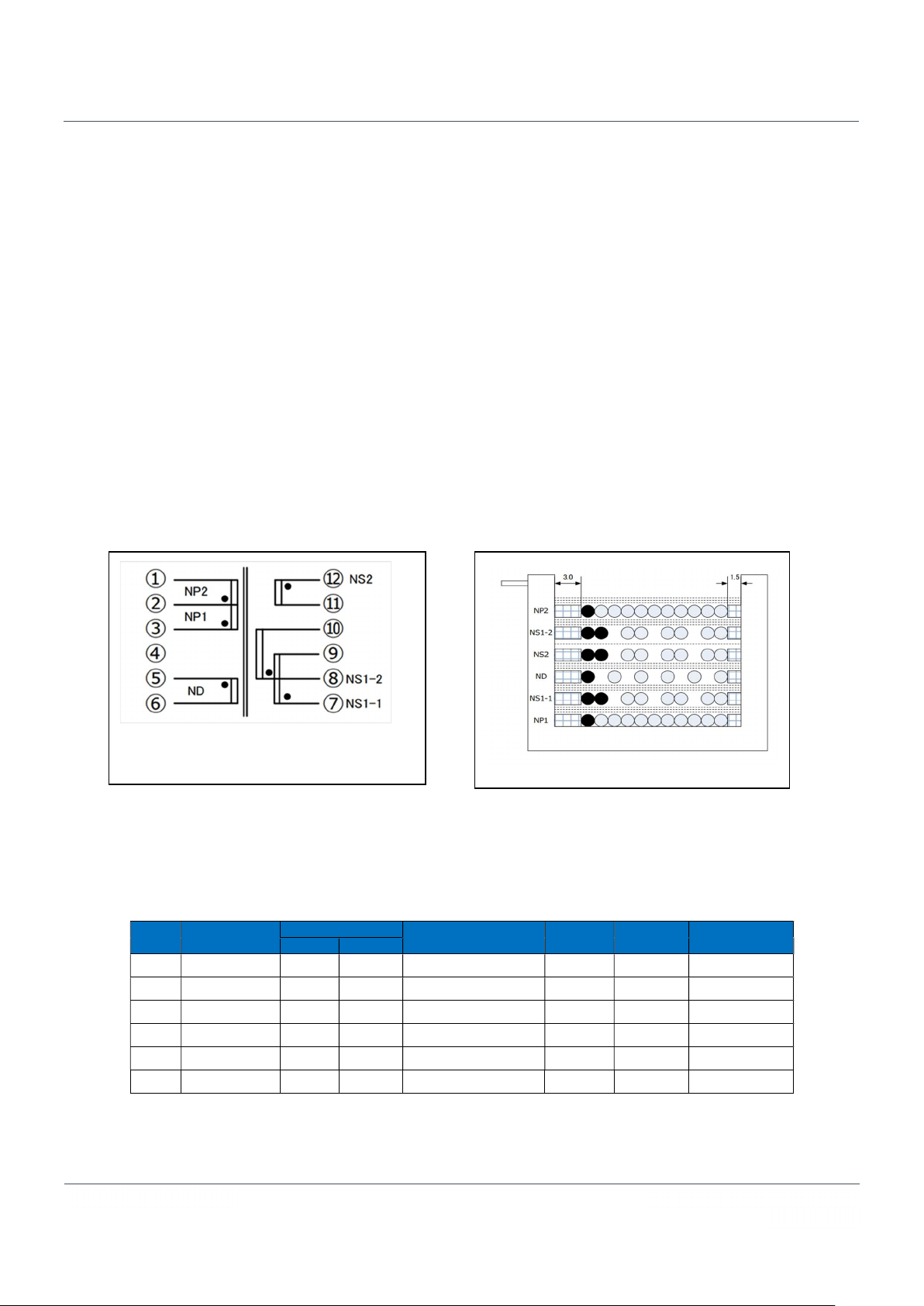

Figure 29. Circuit Diagram Figure 30. Structure Diagram
Table 2. Product Specification of XE2637Y_A
Specification of the Transformer
Manufacture Alphatrans Co., Ltd. (1-7-2, Bakurou-cho, Chuo-ku, Osaka City, 541-0059, Japan)
http//www.alphatrans.jp/
Product Name: XE2637Y_A
Bobbin: 12PIN
Core: ER28
 Primary Inductance: 493 μH ±10 %
(100 kHz, 1 V)
 Withstand Voltage
Between Primary and Secondary: AC1500 V
Between Primary and Core: AC1500 V
Between Secondary and Core: AC500 V
■ Insulation Resistance 100 MΩ or more (DC500 V)
No. Transfomer Winding Pin Wire Turn
Number
Tape
Layer
Wire
Specification
S
tart
F
inish
1 NP1 3 2 2UEW / Φ0.40 × 1 24 3 COMPACT
2 NS1-1 7 9 2UEW / Φ0.45 × 2 5 3 COMPACT
3 ND 5 6 2UEW / Φ0.20 × 1 17 3 COMPACT
4 NS2 12 11 2UEW / Φ0.45 × 2 6 1 COMPACT
5 NS1-2 8 10 2UEW / Φ0.45 × 2 5 3 COMPACT
6 NP2 2 1 2UEW / Φ0.40 × 1 25 3 COMPACT

18/18
User’s Guide
BM2P060MF-EVK-001
© 2022 ROHM Co., Ltd. No. 65UG064E Rev.001
NOV.2022
Revision History
Date Rev. Changes
23.November.2022 001 New Release
