ROBOTIC VACUUM CLEANER
Mamba RM-02
Thanks you for buying a Rohnson robot vacuum cleaner with
digital brushless motor ( BLDC)
Scan with your phone or QR code to find out more
about your machine
USER MANUAL

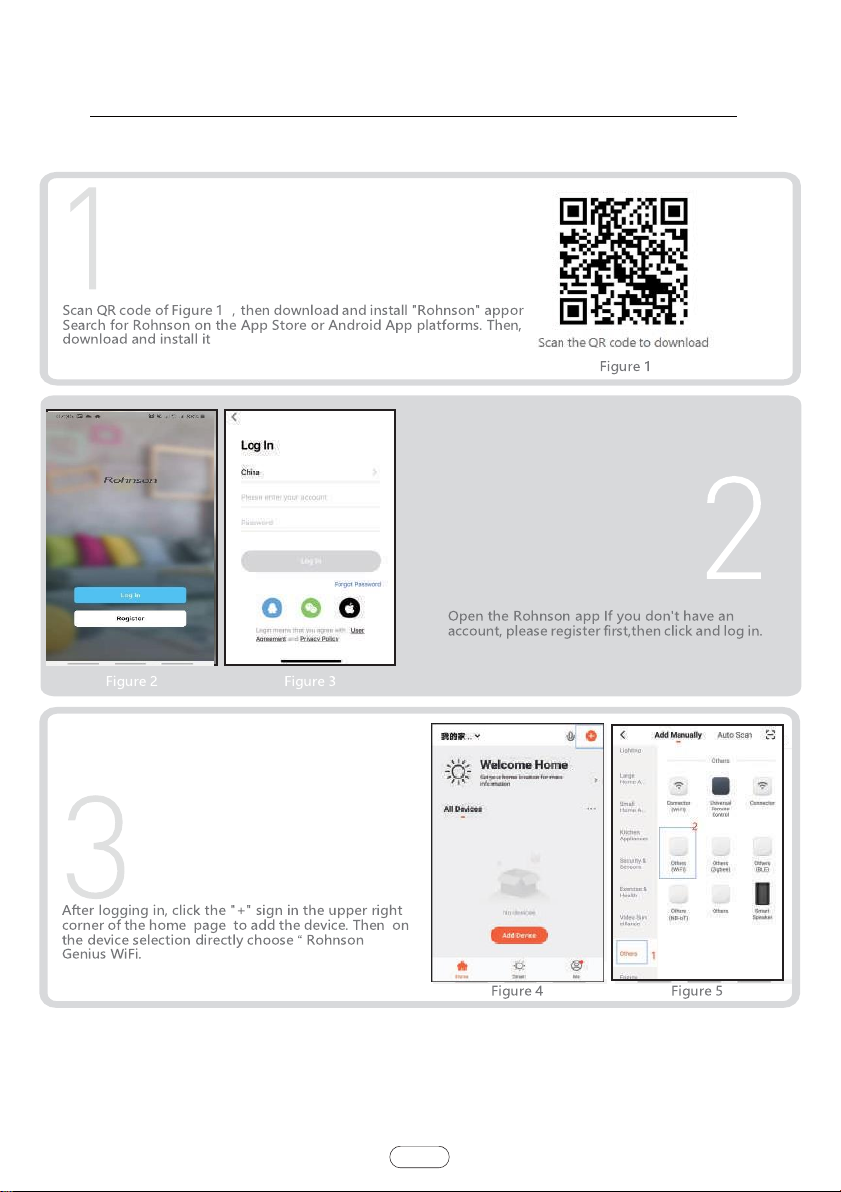

Wi-Fi Setup Instructions
1
In order to improve the product, we reserve the right to update the app and software.
The final interface is subject to the actual product, thank you.

Wi-Fi Setup Instructions
2
In order to improve the product, we reserve the right to update the app and software.
aiting

Safety Instruction
3
Before using this product,please read the safety instructions below and follow
all the routine safety precautions.
Please read the instructions carefully and keep them for future reference.
Any operation that does not conform to the instructions may cause damage to the product.
Warning
01. Do not disassemble,repair or refit the product without authorization;otherwise it may damage
the product or pose a hazard.
02. Do not use the product in an environment with risk of fire or explosion.
03. This product can only use the original power adapter;otherwise the product may be damaged
or catch on fire.
04. Do not stand or sit on this product;doing so could damage the product or cause it to fall over.
05.When the metal part of the power plug is dusty,please wipe it with a dry cloth.
06. The power adapter is applied to a 100-240V AC voltage.Please plug into the socket properly
and keep away from children.
07. Do not wash or soak the main body and electronic accessories in the water;otherwise the
product may be damaged by a short circuit.
08. Do not damage,load weight on,heat,pull,or bend it.
09. During cleaning,please pay attention to the safety of toddlers and elders at home to avoid injury.
(Please pay special attention to toddlers).
10. This product is for home use.Please do not use it outdoors.
11. Do not allow metal and conductive materials to come in contact with the battery;doing so may
cause a short circuit.
Attentions
01. Do not touch the product with wet hands;doing so may cause an electric shock.
02. Please do not place the product in places where it could easily fall,such as tables,chairs,high
platforms in room,etc.
03. The product has a sophisticated design and should be protected from long-term exposure to
sunlight.
04. Please do not use the product in humid environments,such as bath-rooms.
05.Please do not place the product near cigarette butts,lighters or other open fires.
06.Please clean the product after finishing charging.
07. Please turn off the power switch on the side of the robot when the product is out of service for
a long time.
Safety considerations of Main Body and Accessories

Safety Instruction
4
08. Please check carefully to see if the power adapter is connected to the socket prior to use,to
avoid damage to the robot.
09. Before using the product,please remove all vulerable items on the floor,such as glass,
lamps,and items such as wires and curtains that may entangle with the side brush and
suction passages.
10.When the dust box is full,please empty it before using again.
11.Please do not use the robot to clean the construction waste.
12.Before the product is scrapped,please remove the battery from the robot.When you
remove the battery,please ensure that the product is not connected to a power supply.
Please recycle the battery safety or environmental protection.
Danger
01.Always use a dedicated battery adapter to avoid leakage,heating or rupture.
02.Do not short-circuit the battery or remove the battery;doing so may cause leakage,
heating or rupture.
03. Do not transport or preserve with necklaces,hairpins,and other metal objects;doing so
may lead to short circuit,resulting in leakage,heating or rupture.
04. Do not burn or heat the battery;doing so may cause leakage,heating or rupture.
Attention
01. If abnormal overheating is discovered during charging,stop using it immediately to avoid
leakage,heating or rupture.
02. To prolong the service life of the battery,please remove the battery and place it in a cool,
dry environment if it is out of service for a long time;this will avoid leakage,heating or
rupture.
03. Do not soak in water or let it come into contact with any liquid;otherwise it may cause
leakage,heating and rupture.
04. Be sure to stop using it immediately in case of any exception(e.g.discoloration or
deformation),to avoid leakage,heating and rupture.
05. Always use tape to insulate the battery’s electrode when recycling or disposing of it.
06. If the battery leaks, wipe it clean with a dry cloth, recycle it in time, or discard it.
07. Put the recycled batteries in the recycling bins set up by the community, hotels, schools,
large shopping malls, supermarkets, etc or the hazardous trash can collected by
professional recycling agencies. Discarded product batteries must be removed and
discarded in accordance with local laws and regulations.
Safety Considerationsfr Rechargeable Battery

Safety Instruction
5
Warning
01. When skin or clothing is exposed to the battery electrolyte,immediately wash with clean water
to avoid inflammation of skin,etc.
02. Do not use the rechargeable battery on other devices.This battery is only suitable for this robot.
03. If the battery’s outer box is found to be deformed and expanded,or leakage of electrolytes is
found, do not charge or continue to use to avoid danger.
04. Do not throw or inflict a strong impact on the battery;doing so may cause leakage,heating and
rupture.
05. Do not disassemble the battery pack;doing so may cause battery rupture and electrolyte
outflow,leading to fire,explosion and other dangers.

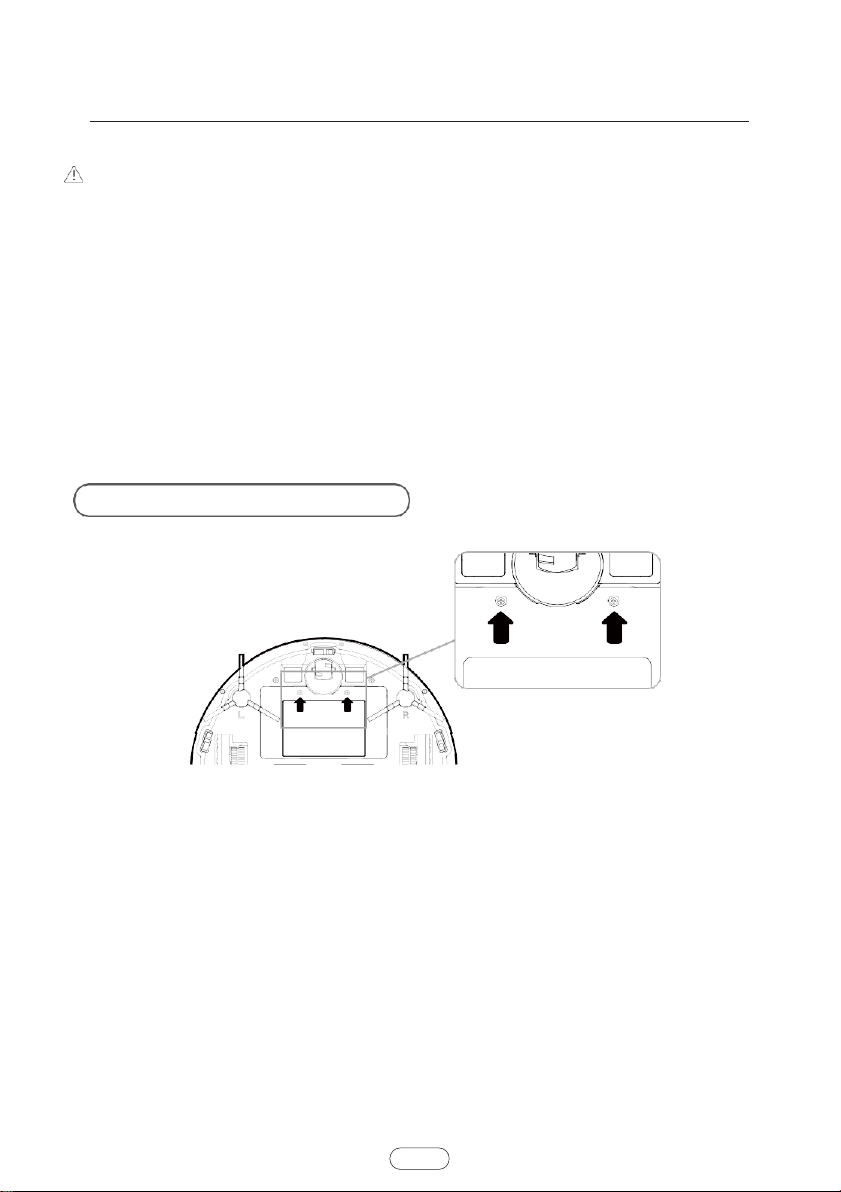

01. Take out two screws on the battery cover with a screw driver.
02.Take out the battery cover.
03.Take out the battery and unplug the electric wires to remove the battery.
How to remove the battery

Product Components
6
Main Body Dust Collector Dust bin
Remote Controller
Water Tank Component
Mop
Side Brushes High-efficient HEPA 14 Filter
3.1Name of Parts

Product Components
7
Accessories of some models may be slightly different and they are subject to the actual received products.

Product Components
8
1. Universal Wheel
2. Electrode Slice
3. Side Brush
4. Battery Cover
5. Side Wheel
6. Suction Port
7. Dust box
8. The UVC lamp
9.Dust collection port
Main Body
Main Body
9

Product Components
9
Dust Box
Main Body
1.Pre-filter 2.High-efficient filter 3.Filter sponge 4.Dust Box 5.Dust box cover
6.Dust box contact sheet 7.Dust box conducting sheet 8.Cleaning Tool

Product Components
10
1
3 2
4
5
6 7
8
9

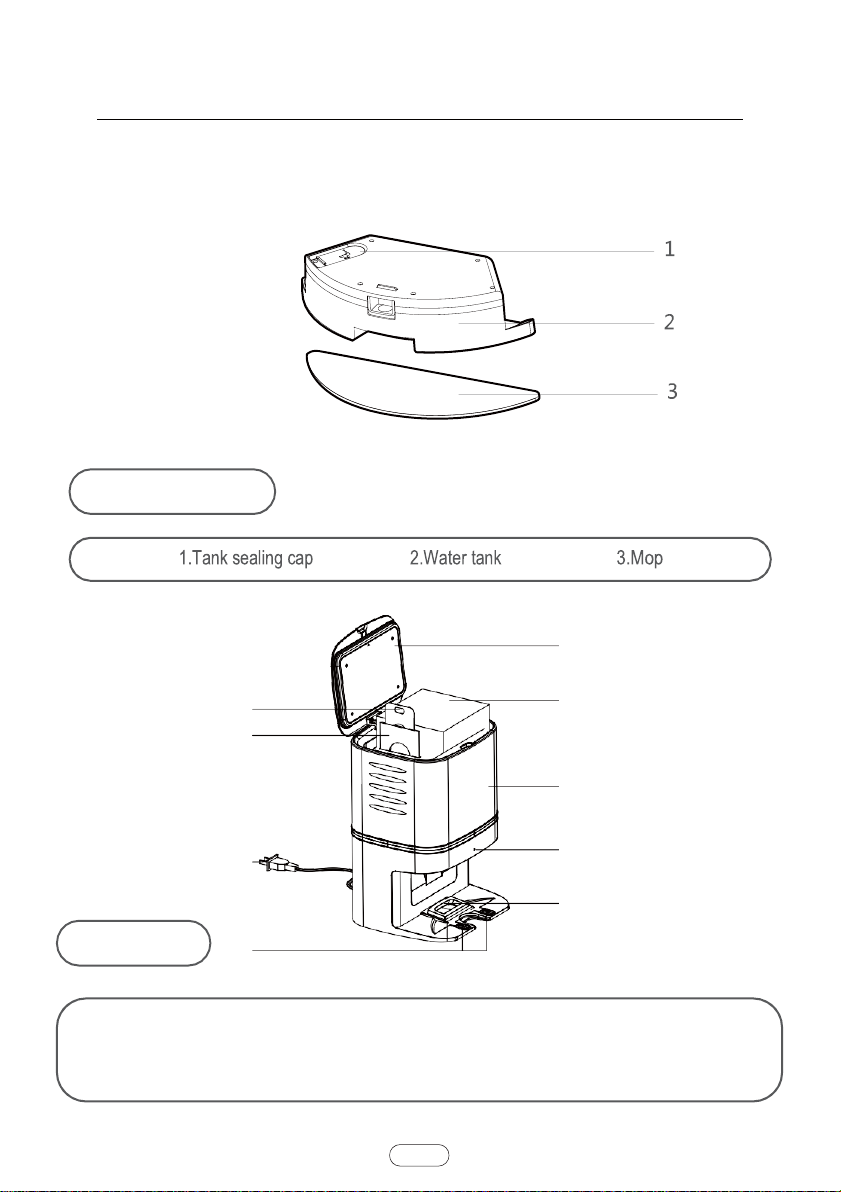

1.Lid 2.Dust bag
3.Dust bag handle
4.Dust bag guide plate
5.Body 6.Power cord
7.Status indicator
8.Dust box suction port
9.Charging port
Water Tank Component
Charging base

Product Components
11
Diameter of the main body
Thickness of the main body
Net weigh of the main body
330mm
101mm
3.1kg
Voltage
Battery capacity
Main body button type
14.8V
5200mAh
LED button
Water tank capacity
Dust box capacity
Cleaning cloth （ polyester cotton ）
350ml
600ml
295X100X4mm
Charging Type
Charging duration
Manual/Automatic
300-360min
3.2 Product Specification
Electronic
Accessory
Structure

Product Components
12
Multiple smart cleaning modes
4 cleaning modes are designed to suit different needs, which can be switched by the
remote controller and App, greatly improves the cleaning efficiency and saves 30% of
the power.
Humanized design
It is simple to operate, pressing the Control Button to start cleaning.
Follow the Voice Prompt and let the robot start working for you.
Dust box can be washed with water
The dust box and the pre-filter can be directly flushed with water without too much labor,
which can avoid secondary pollution caused by dust flying!
3.3 Product Characteristics

Instructions for Use
13
4.1 Attention

Instructions for Use
14
Please do not stand in narrow places such as thresholds and aisles to avoid missing
sweeping. When the robot is working, please ensure that the object with the thickness
less than 1.8 cm is not placed in the cleaning area to prevent the machine from
climbing and jamming.
Please pay attention to remove sundries , such as the power cords, toys, etc, which are
scattered on the ground may catch or entangle the Robot.
Do not use the mopping function on the carpet! If there is a carpet in the house, please
roll up the edge of the carpet in advance.

Instructions for Use
15
Power On/Off
Display Screen
Plan Cleaning
(Smart Cleaning)
Confirm
Suction Setting
Spot cleaning
Return for Auto Charging
Direction
Clock Setting
Schedule Setting
Plan Cleaning button
No matter what mode the robot is in, this button will bring it to the plan cleaning mode.
Return for Auto Charging
Pressing this button to shift the mode as recharging, and the logo will be displayed on the
screen of the remote controller.
Forward /+
At the standby mode, press this button to continue moving forwards, and release it to return
to standby mode. At the Schedule setting mode, press this button to increase the number.
4.2 Remote controller instruction

Instructions for Use
16
Back Button /-
Press this button and robot will rotate 180 degrees in situ.
In the modes of Schedule Setting and Clock Setting, press this button will decrease the number.
Left Arrow
At the standby mode, press this button to continue turning left, and release it to return to
standby mode. At the Schedule setting mode, press this button to switch from minute to hour.
Right Arrow
At the standby mode, press this button to continue turning right, and release it to return to
standby mode. At the Schedule setting mode, press this button to switch from hour to minute.
Confirm button
During operation, press this button to stop the robot, and it is still working at the pause.
In the Schedule setting mode or Clock setting mode, this button can save all settings.
Suction Setting button
At any cleaning mode, press this button to adjust the suction power. There are Normal
suction and Powerful Suction for your option.
Clock Setting button
Press this button to enter the Clock Setting mode and press the Confirm button to exit.
Schedule Setting button
At the standby mode, press this button to enter the Schedule Setting mode, and the display
flashes icon . At the Schedule Setting mode, press this button to save the data and exit the
Schedule Setting mode, and the display will always display the icon . At the Schedule
setting mode, press this button for 3S to cancel the Schedule Setting function, and the
displayed icon will disappear.
Press this button to enter spot cleaning, the robot will have the voice indication and
start to clean a specific spot of your home according to a spiral route:
Taking its current position as the center of the circle and cleaning counterclockwise, the radius
gradually increases. After reaching the maximum radius of 1.5M, the robot will rotate 180 ° and
gradually decrease the radius until returning to its original position.
While encountering obstacles during cleaning, the robot will rotate 180 °, then continue to
clean in the opposite direction according to the spiral route.
Please note don’t use this function in the corner of your home to avoid the robot being stuck.
Or else the robot will have alarm when stuck in a corner, but it can only automatically stop
cleaning after 2.6min.
Display preset time Display clock time

Instructions for Use
17
Reminder: Please make sure the dust bag is installed properly in the first time.
4.3 Operating Instructions
Lay Jichenbao flat, with a distance of 5cm from the back to the wall, no objects within 1M
from left or right and 2M to front, and no objects with strong reflective surfaces such as
mirrors.
Placement of the Charging Base
