Rohnson R-1219 User manual

1
Handheld Vacuum Cleaner
INSTRUCTION MANUAL
Model：R-1219

2
For your safety, please read this manual carefully before use. Improper operation may
result in product damage or even personal injury. Please keep this manual properly for
future use and maintenance.
IMPORTANT
1. Read this instruction booklet carefully.
2. Before using the appliance, check that the mains power voltage corresponds to the
voltage shown on the rating plate.
3. The appliance should be connected to a correctly earthed 10 power socket.
4. Always remove the plug from the power socket when the appliance is not in use and
before carrying out any cleaning or maintenance operations.
5. Always remove the plug from the power socket before opening the appliance.
6. Never use methylated spirits or other solvents to clean the appliance.
7. Do not use the appliance to vacuum liquids.
8. Never leave the appliance unattended when it is switched on. Keep the appliance out
ot the reach of children or the infirm.
9. This appliance is suitable for domestic use only. Use as described in this instruction
booklet.
10.Do not switch the appliance on if it appears to be faulty in any way.
11.For repairs or accessories. Contact your dealer or an authorized Service Center.
12.If the supply cord is damaged, it must be replaced by the manufacturer or its service
agent or a similarly qualified person in order to avoid a hazard.
13.This appliance can be used by children aged from 8 years and above and persons
with reduced physical, sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved. Children shall not play
with the appliance. Cleaning and user maintenance shall not be made by children
without supervision.
14.Keep the appliance and its cord out of reach of children less than 8 years.
15.Do not remove the plug from the socket by pulling the cable or the appliance itself.
16.Do not use the appliance to vacuum lighted matches, cigarette ends and hot ash.
17.Do not use the appliance on wet surfaces.
18.Do not obstruct the air intake or outlet vent.
19.Do not use the appliance to vacuum needles, drawing pins or strings.
20.Do not remove the plug from by pulling the cable or appliance itself
21.Do not run the appliance over the power cable
22.Do not obstruct the air intake or outlet vent

3

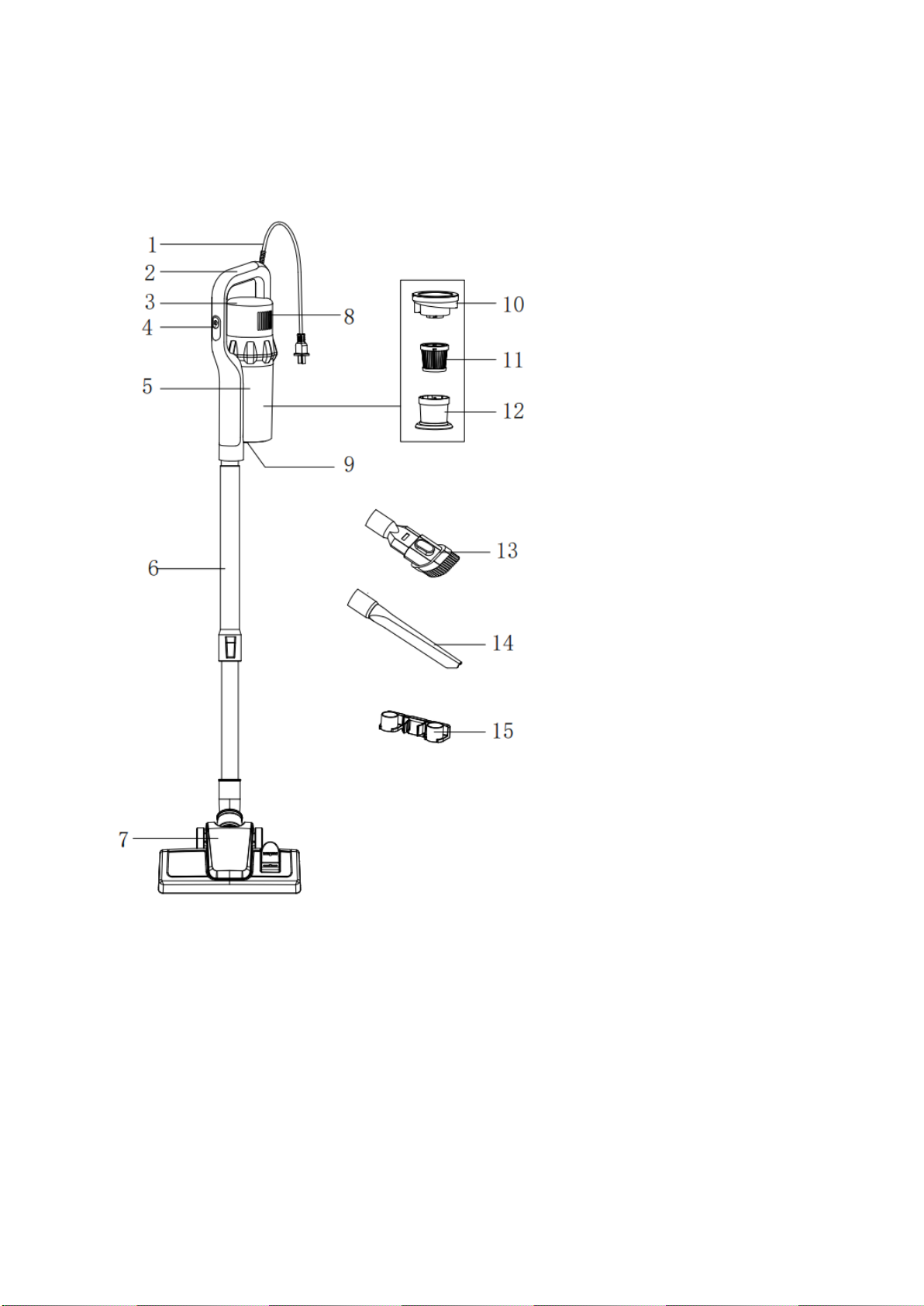

Description
1. Power cord 10. Dust cup cover
2. Handle 11. HEPA filter
3. The main machine 12. Stainless steel filter
4. ON/OFF switch button 13. 2 in 1 brush
5. Dust cup 14. Crevice nozzle
6. Aluminum conductive tube 15. Hanger
7. Electric floor brush
8. Air outlet
9. Dust cup releasing button

4
Operation instructions

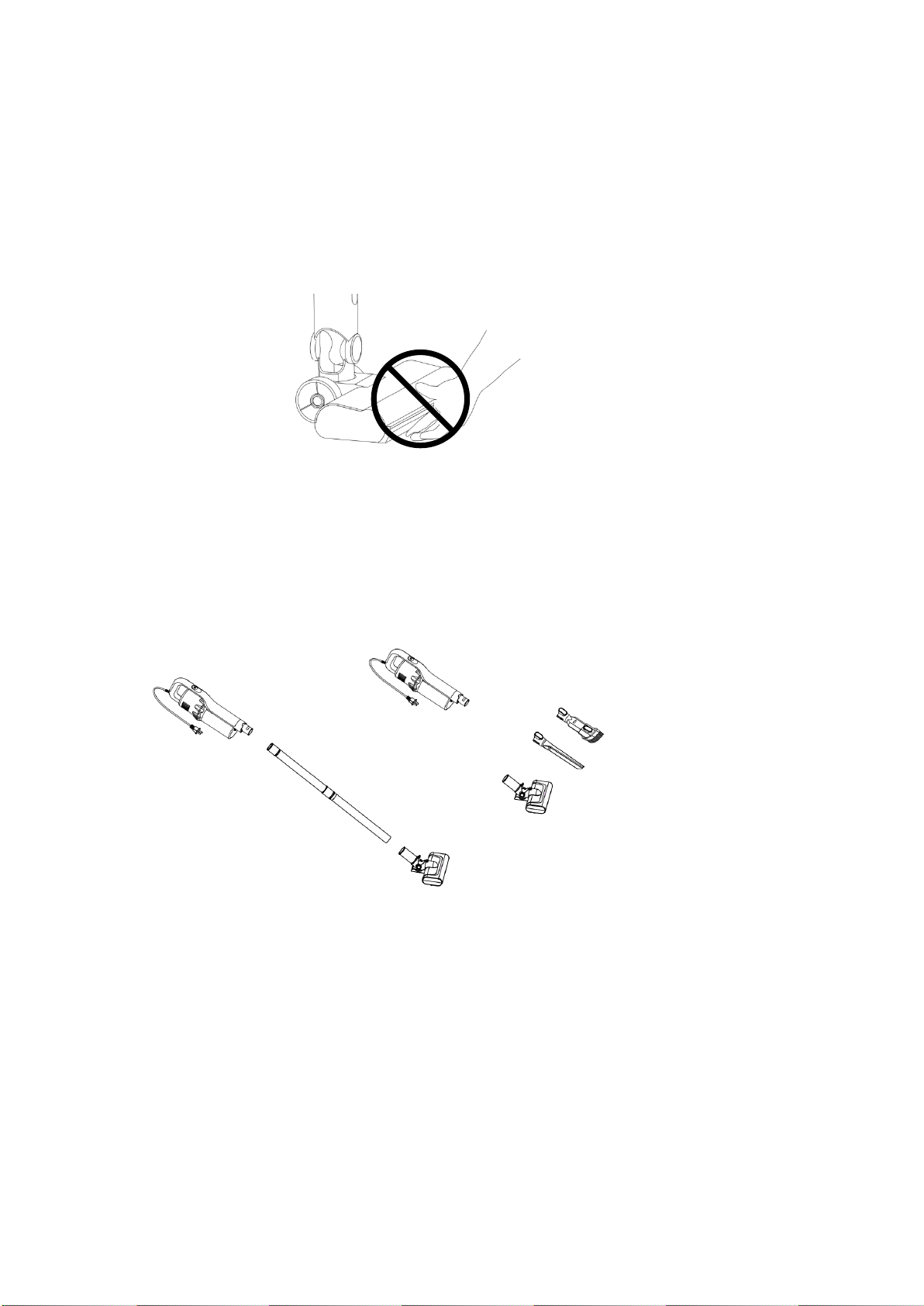

WARNING: The electric brush contains moving parts! To avoid personal injury, do not touch
the roller brush when running the vacuum cleaner, for example, touching the rotating roller
brush may cause cuts, scratches, or other injuries; to maintain the vacuum cleaner, please
turn off the machine first, and be careful if you use it near children (Fig. 1).
WARNING: Do not use the vacuum cleaner without the filter installed.
1. According to the cleaning requirements, select the appropriate accessories, then insert
the accessories into the dust suction position of the main unit, and ensure that they
are installed in place. (Figure 1)
2. Before use the device, check if in the roller brush have stuck sharp objects to avoid
scratching the floor.
Figure 1
Figure 1

5
3. After plugging the power cord into the socket and powering on, press the power switch,
and the vacuum cleaner will start working. (Figure 2)
4. During the working process of the machine, the position of the air outlet cannot cover
any objects, and do not cover any objects around the air outlet, otherwise the machine
will be overheated and cause abnormalities in the machine. Do not cover the air outlet
after the product is used, so that the internal heat of the machine will disperse as soon
as possible to ensure the service life of the machine.
NOTE: The electric motor of this appliance is fitted with a thermostat. If the
device overheats, the device will automatically shut down the device. If this
happens, follow these steps:
a. Turn off the device and unplug from the wall socket.
b. Let the unit cool, and when the unit has cooled, check and clean the filter.
c. Reinsert the plug into the wall outlet and turn on the device.
5. After use, press the power switch, then turn off the vacuum cleaner.

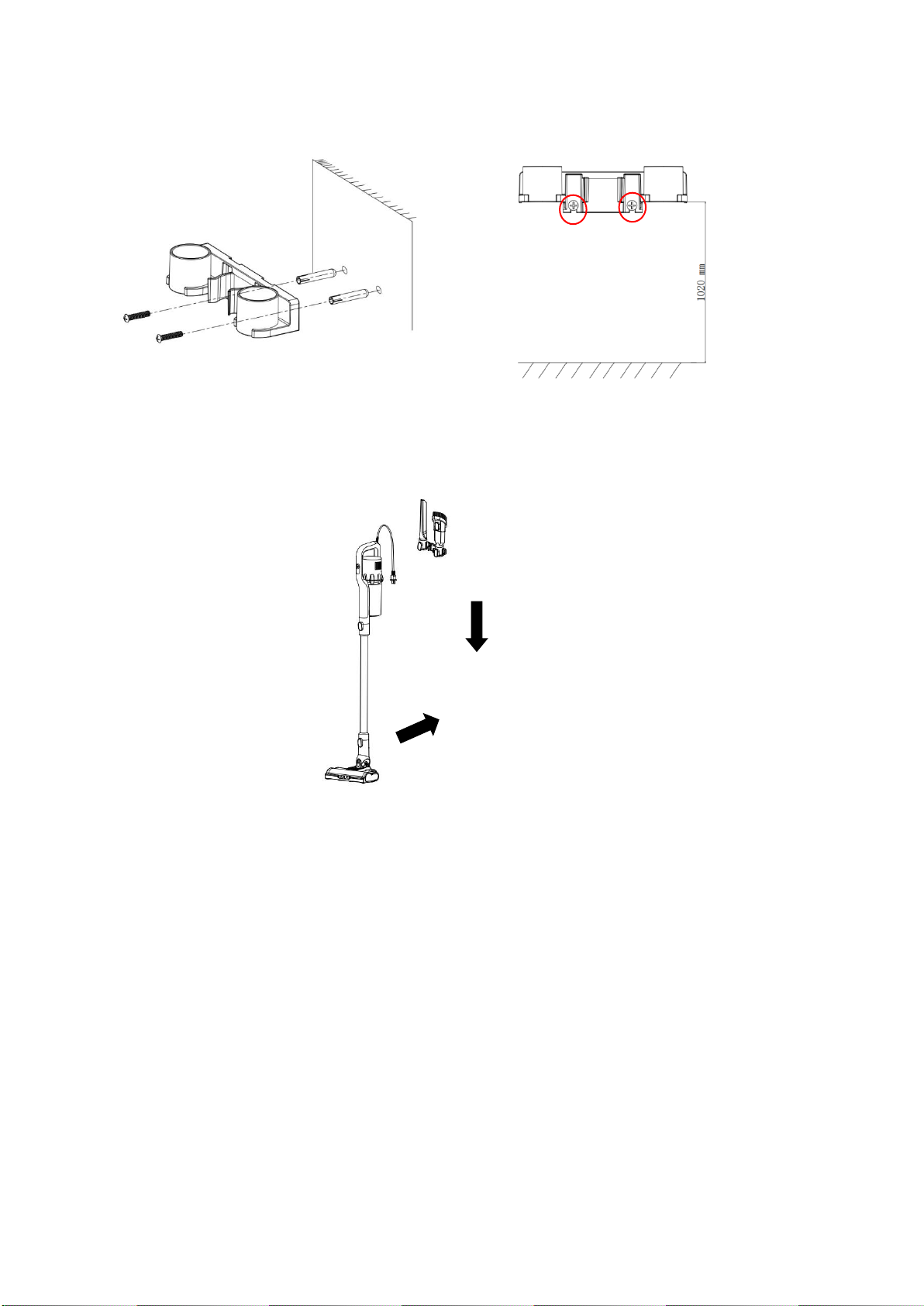

Installation and use of the hanger
1. Take the hanger and screws out of the bag, drill two holes with a diameter of 6mm on
the wall, 1020mm above the ground, and insert the expansion rubber sleeve into the
holes. Then align the mounting holesof the accessory bracketwith those of the expanded
rubber sleeve. Fix with the screws. Note the position and height (Figure 3)
Figure 2

6
2. After fixing, the crevice nozzle and two-in-one brush can be inserted into the mounting
hole of the hanger from the top, which is convenient to take out and store when using; After
use, the handle of the machine can be inserted into the card slot of the hanger for easy
access to the next use (Figure 4).
Cleaning and maintenance
WARNING: Before performing any maintenance, please make sure that the vacuum cleaner
is turned off and the power cord is unplugged from the socket, otherwise it may cause electric
shock or other personal injury.
Cleaning up the dust cup:
Warm reminds: In order to achieve the best dust absorption effect, please empty the
dust cup after every use. Please do not use the vacuum cleaner without the filter installed.
1. Press down the dust cup release button and remove the dust cup from the machine. (Figure
3)
Figure 3
Figure 4

7
2. Take the filter assembly out of the dust cup, and then pour out the dust. (Figure 4)
3. After cleaning, put the filter assembly back into the dust cup, and then install the dust cup
in the machine.
Cleaning up HEPA filter and filter cover
Warm reminds: Use a clean filter to keep the vacuum cleaner with the best dust absorption
effect. Clean the filter after every use to maintain good dust absorption performance or
purchase a new filter to replace.
1. Please check the filter frequently. When the surface of filter cover and HEPA filter have a
lot of hair fibers entangled and accumulated, or there is a clear accumulation of dust, please
clean up in time.
2. Take out the HEPA filter and filter cover: as shown in Figure 4, remove the dust cup from
the machine, then take out the filter assembly, after that turn the filter cover counterclockwise
to remove it from the assembly, and then rotate the HEPA counterclockwise to remove it.
(Figure 5).
Figure 3
Dust cup release
button
Figure 4
Figure 5

8
3. Clean the HEPA filter, tap it lightly or brush the dust with soft brush. Clean the HEPA filter
and filter cover with warm water.
Warm reminds: Do not use dirty water for cleaning, do not place the HEPA filter, filter
cover in the wet place. Do not expose the filter or speed up the dry with hair dryer, which
may damage the filter and shorten its use life.
WARNING: After cleaning the HEPA filter，filter cover, be sure to use in the dry condition,
such as the use of non-dried filter, may lead to product damage or other personal injury
and property damage.
4. Rotate the clean and fully dried HEPA clockwise to the dust cup cover, then rotate the
filter cover clockwise to install it on the HEPA. After it is in place, you will hear a click. and
then put the filter assembly into the dust cup. Finally, install the dust cup to the main unit,
and locked by buckle.

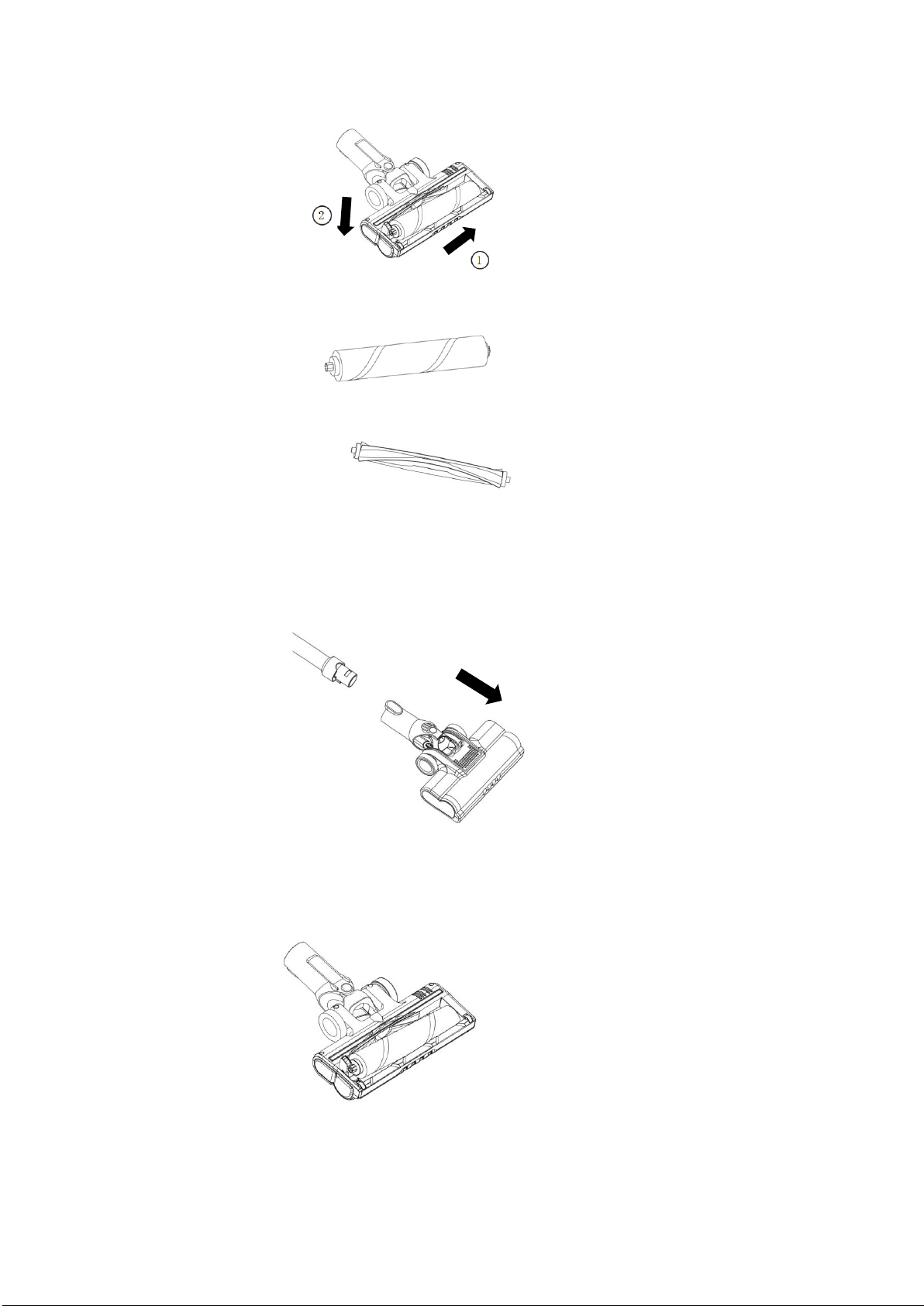

Cleaning and replacing electric floor brush
Tips: After using for a period of time, the roller brush may be entangled with debris
such as thread ends, hair, fibers, etc., which will directly affect the cleaning effect and
need to be cleaned in time.
1.Make sure the vacuum cleaner is switched off. Press the bottom brush release button to
remove the brush, then flip the brush over to reveal the roller brush.
2. On the bottom surface of the floor brush, press and hold the lock and pull it backward, and
the lock will pop up. (Figure 8)
2. Take out the roller brush, and then clean up the debris wrapped around the roller brush, if
necessary, use scissors to cut off the hair, thread, and other debris. If you need to replace
the roller brush, you can also place the removed roller brush at this time and install the new
roller brush in (Figure 9).
3. Insert the roller brush into the floor brush and push it to
the end, then install the roller brush down into the slot,
and buckle the lock, and a click can be heard when it is installed in place (Figure 10).
Lock
Figure 9
Figure 8

9
Soft Roller ideal for floors
Bristle Roller ideal for carpets
Clean the clogged brush hose
1. Press the long tube release button to separate the linkage from the floor brush (Figure 11).
2. Take out the roller brush and clean the adhesive waste in the hose from the suction port at
the bottom of the brush (Figure 12).
Note: Do not use sharp tools to clean the hose to avoid damage to the hose
Figure 10
Figure 11
Figure 12

10
Troubleshooting & Solutions
If you find a problem while using the product, please review the key points and solutions in
the following table first. If the problem still cannot be solved, please contact the after-sales
service center for processing.
WARNING: Please turn off the vacuum cleaner before maintenance, otherwise it may
cause electric shock or other personal injury.
Problem
points
Possible causes
Solutions
Vacuum cleaner
does not run
1.The plug is not inserted in
place, or the socket has no
electricity.
2.The machine switch is not
turned on.
1.Insert the plug again and make
sure that the socket is powered.
2.Turn on the machine and start
switch;
The sound of the
machine is
abnormal
The dust cup is full of garbage,
or the air-duct is blocked;
Take out the dust cup and clean up
the garbage or blockages
The suction
power is
weakened
1.The dust cup is full
2.The filter needs to be cleaned
3.Need to replace a new filter
4.The connection of the
aluminum tube, the flat suction
nozzle，other accessories, and
handheld vacuum cleaner are
not installed in place
5. The suction nozzle is blocked,
and the tube is blocked
1.Clean the dust cup
2.Clean the filter according to the
instructions on the manual
3.Contact customer service to
purchase a replacement filter
4. Follow the instructions to reinstall
5. Clean the nozzle and tube
according to the instructions
Dust spurts out
when using
1.Without HEPA filter installed
2.The installation position of the
HEPA filter is incorrect
3.The HEPA filter is damaged
and needs to be replaced
1.Check whether the HEPA filter has
been installed correctly according to
the instructions
2.Install the HEPA filter correctly
according to the instructions
3.Contact customer service to
purchase a replacement HEPA filter

11
IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE PRODUCT IN
ACCORDANCE WITH EC DIRECTIVE 2002/96/EC.
At the end of its working life, the product must not be disposed of as urban waste. It must be
taken to a special local authority differentiated waste collection centre or to a dealer providing
this service. Disposing of a household appliance separately avoids possible negative
consequences for the environment and health, deriving form inappropriate disposal and
enables the constituent materials to be recovered to obtain significant savings in energy and
resources. As a reminder of the need to dispose of household appliances separately, the
product is marked with a crossed-out wheeled dustbin.
