ROIDMI Self-Cleaning and Emptying Robot Vacuum Manual

Scan the QR code for manuals

in multiple languages

Contents

Safety precautions

Product Introduction

Product use

APP installation and use

Product disassembly and cleaning

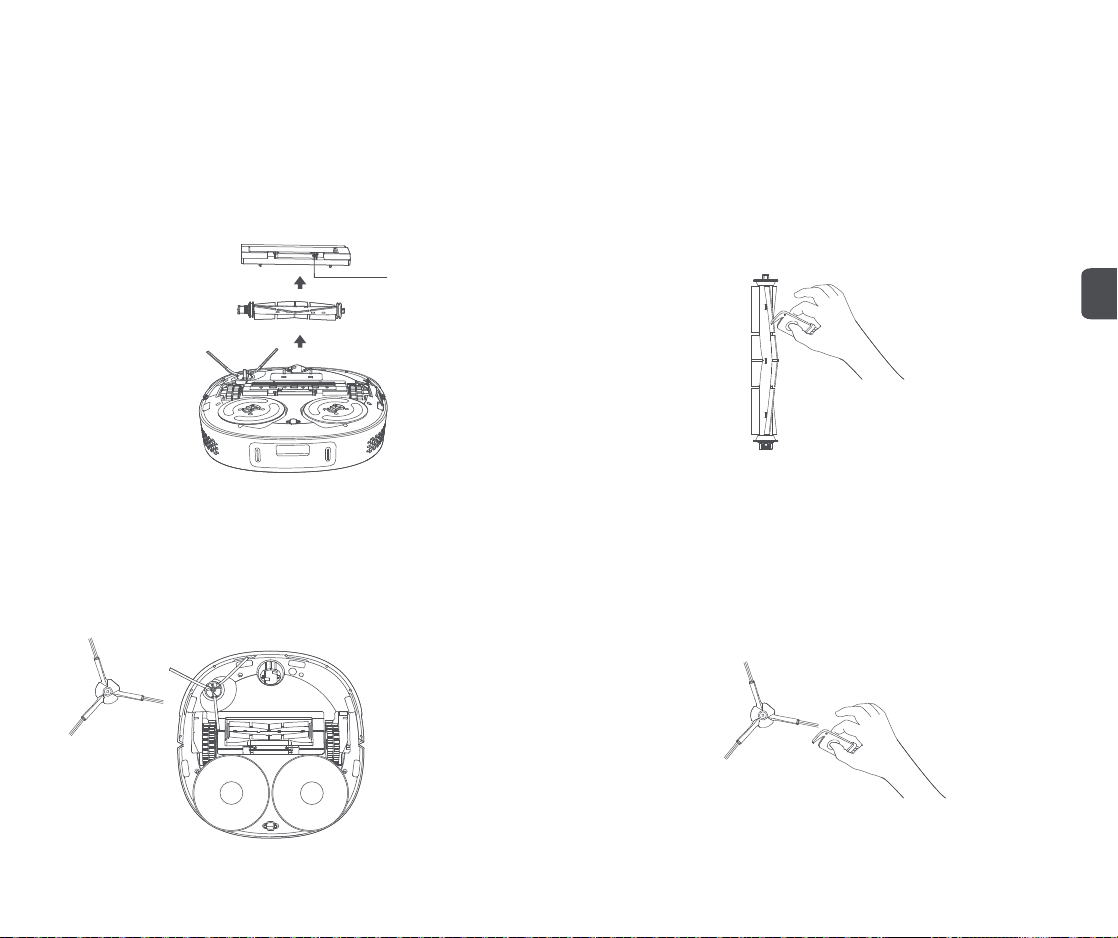

Roller brush assembly, disassembly and cleaning

Side brush removal and cleaning

Removal and cleaning of dust box and filter element

Mop disassembly and cleaning

Robot cleaner part cleaning

Base station cleaning

Robot cleaner

Dust box

Warning (Robot cleaner）

Warning (Base station)

Base station

Mi Home APP Installation

Quick product installation and use

Product Operation and Programming

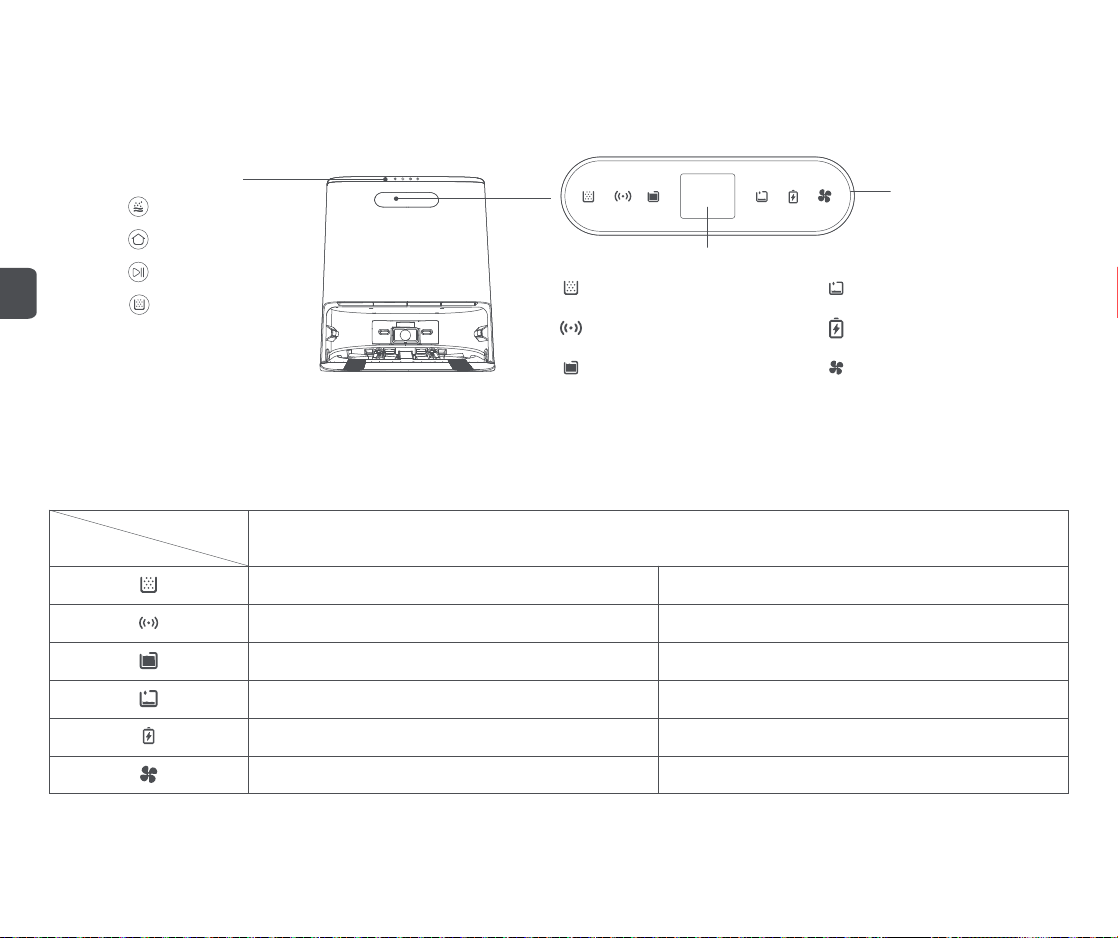

Base station display functions introduction

Base station status indicators

Troubleshooting

Common problems

ROIDMI APP Installation

Cleaning the base station parts

Basic specifications

Disposal 19

Warranty and limitations of liability 19

Warranty card 20

Maintenance records 20

Safety Precautions

Carefully read the instruction manual before use

Warning:Carefullyreadthefollowingsafetyprecautionsbeforeuseinordertoavoidcausingharmtoyourselfandothersorpropertydamage.The

safety precautions are divided into 2:"Warning" and "Caution" are important instructions for safe use of the appliance be sure to follow them.

Warning (Robot cleaner）

1. Do not use this appliance on wet surfaces such as near water sources, bathrooms etc;

2. Do not use the appliance to clean up liquids, cigarettes, matches or wet garbage;

3. Do not use the appliance to clean flammable liquids such as kerosene, gasoline; objects with sparks, toner cartridges, toners and other

combustible dust or use the appliance near the any of the above items or flammable and explosive gases to avoid fire;

4. Do not disassemble, repair, or modify by yourself, so as to avoid causing fire, injury, or poor operation, except for the replacement of

consumables according to this manual;

5. If the roller brush is abnormal during use, please switch off the appliance and immediately check whether the roller brush is entangled with

hair, fibers or other windings and clean it up;

6. The battery is sealed and poses no safety hazard under normal circumstances. Under extreme conditions, if liquid leaks out of the battery it

may cause irritation or burns. ①If touch accidentally occurs to skin, clean the skin immediately with lots of soap and water. ②If touch with

eyes occurs, immediately rinse with water for at least 15 minutes and seek medical help;

7. Theappliance is not to be usedby persons (including children) with reducedphysical, sensory or mental capabilities, orlack of experience and

knowledge,unlesstheyhavebeen given supervision or instruction. Childrenbeing supervised can not play withthe appliance.

8. Please keep the appliance away from electromagnetic equipment in the hospital;

9. Children should not be allowed to use this appliance as a toy;

10. This appliance can only be used with the cleaning base station provided by the manufacturer;

11. Beforedisposing of the machine, remove the battery fromthemachine. Power off the machine before removing thebattery.The correct tools

are required to take out the battery. To open the bottom cover of the appliance and remove the screws firstly. then proceed to unplug the

battery connection terminal and take out the battery. The used battery pack should be safely recycled and not carelessly disposed of;

12. When the appliance is stored for a long time and is not in use, it is recommended to charge it once a month.

13. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or

lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and

understand the hazards involved

WARNING Precautions that may cause death or serious injury as a result of incorrect operation

Caution Cautions that may cause minor injuries or damage to the product due to incorrect operation

Hereby, [ROIDMI INFORMATION TECHNOLOGY CO., LTD.] declares that the radio equipment type [2.4GHz WLAN Module] is in compliance with

Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address:http://doc.roidmi.com/web/

#/27?page_id=0

Warning (Base station)

Notice (Robot cleaner/Base station）

1. Do not use both the robot cleaner or the base station in outdoor, non-floor, commercial or industrial environments;

2. Do not use in an open environment where there is no protective roof covering;

3. Do not block the exhaust port, so as to prevent appliance body deformation, failure or fire due to overheating;

4. Do not drag the machine, so as not to scratch the base;

5. Do not swing the appliance or allow children to play with it to avoid causing injury or damage to the machine;

6. Do not drop, collide the appliance with other objects, or apply any form of pressure to the machine, so as to avoid malfunctions that could

cause electric shock or fire;

7. Install the roller brush and filter element before use, to avoid affecting the cleaning performance of the machine;

8. Please check if the charging cable of the clean base station is well connected before charging;

9. Before using the robot cleaner, clear the area to be cleaned. Arrange the furniture and other household items neatly and remove power cords

and small items from the ground to prevent the obstruction of the appliance during cleaning;

10. When the appliance is in operation, keep the carpet flat to avoid blocking the appliance during operation;

11. Do not stand in front of the robot cleaner while it is cleaning, lest the host cannot identify the area to be cleaned;

12. Do not use and store the appliance under extreme adverse conditions, such as extreme temperatures, etc. It is recommended to use it at an

indoor ambient temperature, please store it in a cool and dry place;

13. When using the cleaning solution, avoid contact with eyes. If contact with eyes accidentally occurs, rinse thoroughly with water. Do not

swallow or mix with other cleaning agents, chemicals, and medicine.

14. The plug must be removed from the socket-outlet before cleaning or maintaining the appliance

1. Do not plug in or handle the power cord, plug or appliance with wet hands;

2. Do not use damaged power cords or loose sockets;

3. Whencharging the base station, please use AC powerwithrated voltage. Do not use generators or DCpowersupplies to avoid fire and electric

shock;

4. Use a dry cloth to regularly clean dust off the plug to avoid fire due to poor insulation;

5. Be sure to correctly and firmly insert the plug into the socket to avoid electric shock, short circuit or fire;

6. In the event of abnormal failure, please immediately cut off the power supply and stop using it to prevent smoke, electric shock or fire;

7. In event, the base station body deforms, abnormally heats-up, smells burnt or makes abnormal noises while in use, please immediately cut off

the power, unplug it and place the product in an open area, free of combustible materials. To ensure safety, any replacement or maintenance

should only be carried out by the manufacturer or ROIDMI designated maintenance personnel;

8. Be sure to unplug the appliance from the power source before cleaning and maintenance to avoid electric shock or injury;

9. Do not spray water on or immerse the appliance or power cord in water;

10. Do not use other power cords to charge the appliance;

11. When removing the unplugging the base station, be sure to hold the insulated part of the plug and do not pull the power cord to avoid risk of

electric shock;

12. If the body of the base station is damaged, please do not use to clean the base station to avoid the risk of electric shock;

13. This base station is for use only with the robot cleaner designated by the manufacturer;

14. Before charging, ensure that the required power voltage of the base station is consistent with power supply voltage.

15. Do not charge non-rechargeable batteries.

16. Only use the specified power cord to connect to the outlet.

SAVE THESE INSTRUCTIONS

Household use only

Thisequipment has been tested and foundto comply with the limits fora Class B digital device, pursuantto part 15 of the FCCrules. These limits

aredesigned to provide reasonable protectionagainst harmful interference in aresidential installation. This equipment generates,uses and can

radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to

try to correct the interference by one or more of the following measures:

a. for FCC 15b devices (15.105)

c. FCC Part 15.19

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful

interference and (2) this device must accept any interference received, including interference that may cause undesired operation

d. RF exposure statements

ii. for mobile devices with co-location condition ( the transmitting antenna is installed or located more than 20cm away from the body of user

and near by person )

FCC RF Radiation Exposure Statement:

This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed

and operated with a minimum distance of 20 centimeters between the radiator and your body.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions :(1)This device may not cause harmful

interference, and (2)this device must accept any interference received, including interference that may cause undesired operation.

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

ISED Statement

ThisdevicecomplieswithIndustryCanadalicense‐exemptRSSstandard(s).Operationissubjecttothefollowingtwoconditions:(1)Thisdevice

maynotcauseinterference,and(2)Thisdevicemustacceptanyinterference,includinginterferencethatmaycauseundesiredoperationofthe

device.ThedigitalapparatuscomplieswithCanadianCANICES‐3(B)/NMB‐3(B).

LeprésentappareilestconformeauxCNRd'IndustrieCanadaapplicablesauxappareils

radioexemptsdelicence.L'exploitationestautoriséeauxdeuxconditionssuivantes:(1)l'appareilnedoitpasproduiredebrouillage,et(2)l'utilisateur

del'appareildoitacceptertoutbrouillageradioélectriquesubi,mêmesilebrouillageestsusceptibled'encompromettrelefonctionnement.

ThisradiotransmitterhasbeenapprovedbyIndustry Canada to operatewiththeantennatypes listed with themaximumpermissiblegain indicated.

Antenna types not included in this list, having a gain greater than the maximum gain indicated for that type, are strictly prohibited for use with

thisdevice.

Le présentémetteur radio aétéapprouvé par Industrie Canada pour fonctionner avecles types d'antenneénumérés ci-dessous et ayant un gain

admissiblemaximal. Les types d'antenne non inclusdanscetteliste, etdont legainestsupérieur au gain maximal indiqué, sontstrictementinterdits

pour l'exploitation de l'émetteur.

To matain compliance with RF exposure guidelines, place the product at least 20 cm from nearby persons.

Pour rester en conformité avec les consignes d'exposition aux RF, placez le produit à au moins 20 cm des personnes proches.

Product Introduction

Robot Cleaner

LDS sensor

Top cover clasp

Dust collection port

Function buttons

Dust box removal button

Dust box

Reset button

Cleaning brush

Panel

Charging contacts (×2)

Air outlet

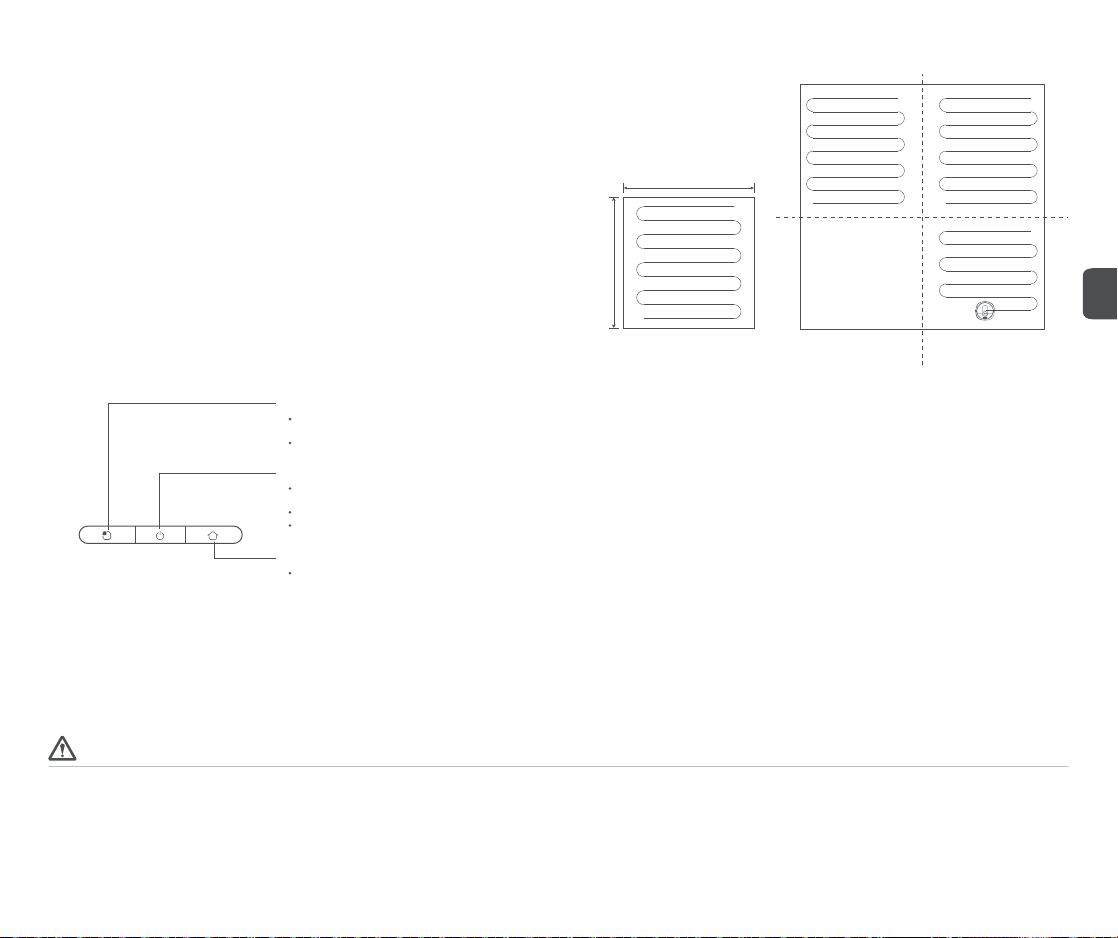

Short press for overall cleaning, automatic

recharge after cleaning

Long press to switch on/off

Switch button

Short press to pause during operation

Recharge button

Short press to recharge

Dust box

Filter

Infrared window/infrared receiving sensor

Function buttons

Bumper

Wall sensors

Dust inlet

Universal wheel

Carpet detection sensor

Directional wheel

Side brush

Anti-fall sensors (×6)

Driving wheels (×2)

Roller brush

Roller box release button

Mops (×2)

Area cleaning button

Shortpresstoclean locally,and automatically

recharge after cleaning

Short press to pause during operation

Dust box release flap

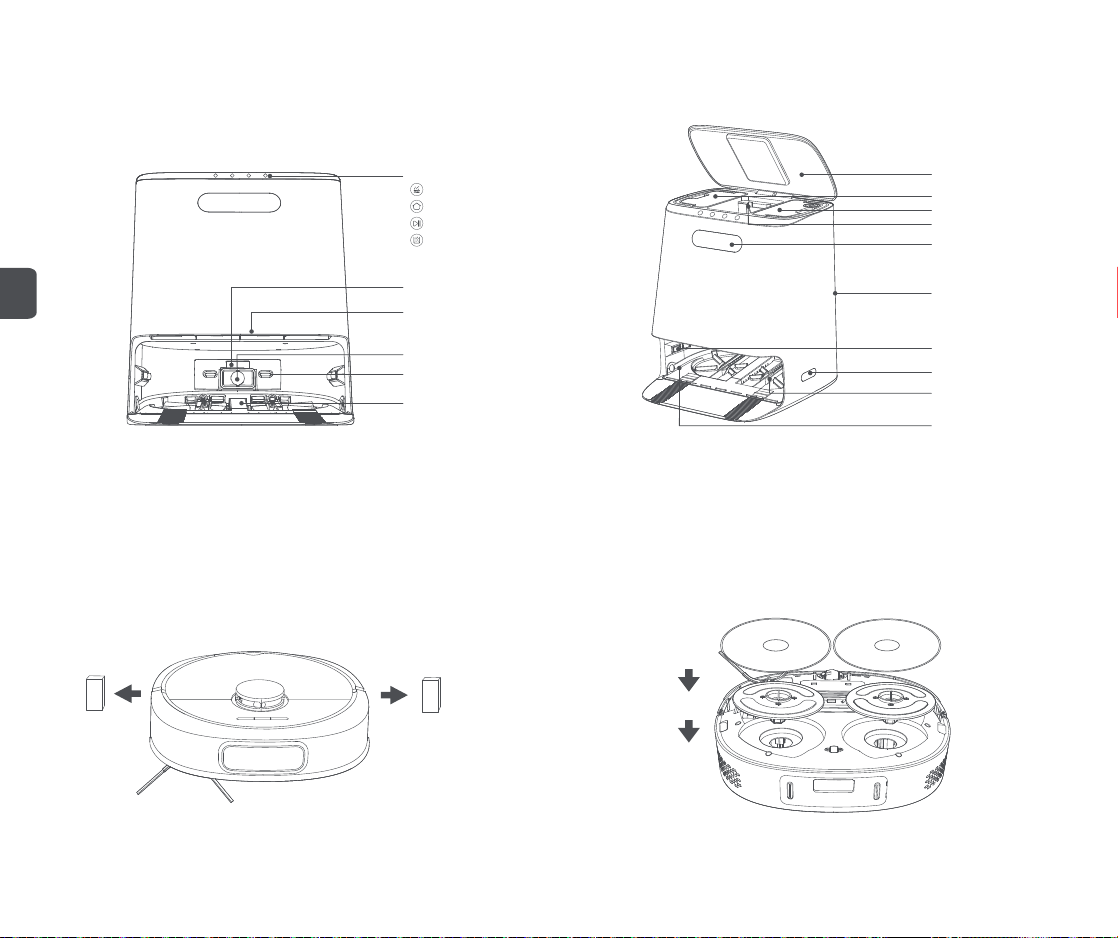

Base station

Quick product installation and use

Product use

Step 1: Remove the protective material from the limit strips on both sides of the bumper;

Display screen

Top cover

Infrared lens (×2)

Cleaning disk

Water level contact

Guide wheels (×4)

Dust bag

Clean water tank

Dirty water tank

Step 2: Paste the mop on the mop support sticking area and install the mop support

component into the bottom groove;

Infrared lens

Charging ports (×2)

Dust collection port

Waste outlet

Long cleaning brush

Function buttons

Cleaning the mop

Recall/issue (robot cleaner)

Start/Pause (base station)

Automatic dust collection

Power connector

Step 3: Find a suitable location to place the base station and ensure that it is placed

horizontally;

Step 5: Connect the base station to the power supply as shown in the figure below, press the recharge button to actively search for the robot cleaner for charging.

Notice

1. Avoid using this appliance around infants or pet rooms and keep it away from infants and pets to avoid danger;

2. In order to facilitate the appliance to smoothly return to the base station after cleaning, it is recommended that the cleaning start-point be from the base station. Do not manually move the

clean base station during the cleaning process;

3. The base station has the functions of collecting dust, charging, cleaning and air-drying the mop. A new dust bag has already been installed before leaving the factory;

4. The base station should be placed horizontally on a non-carpet floor that is more than 1.5m away from the carpet;

5. When the map is first started, the appliance starts from the base station to improve the efficiency of map creation.

>0.5m

>1.5m

MAX line

Water inlet

Recharge button

Step 4: Take out the clean water tank, remove the lid and fill it with clean water (the water

volume should be below the MAX line). Then put back the clean water tank into the base

station and cover the base station;

*Power cord model: ( China: PC323L+LS-60; United Kingdom: AW301+AW104; Korea: AW103+AW104; United States: DHT13+DHT35; Japan: DHT01+DH104; European Union: AW103+AW104;

Australia: LP-23A+AW104 )

* This product only supports 2.4GWiFi

App installation and use

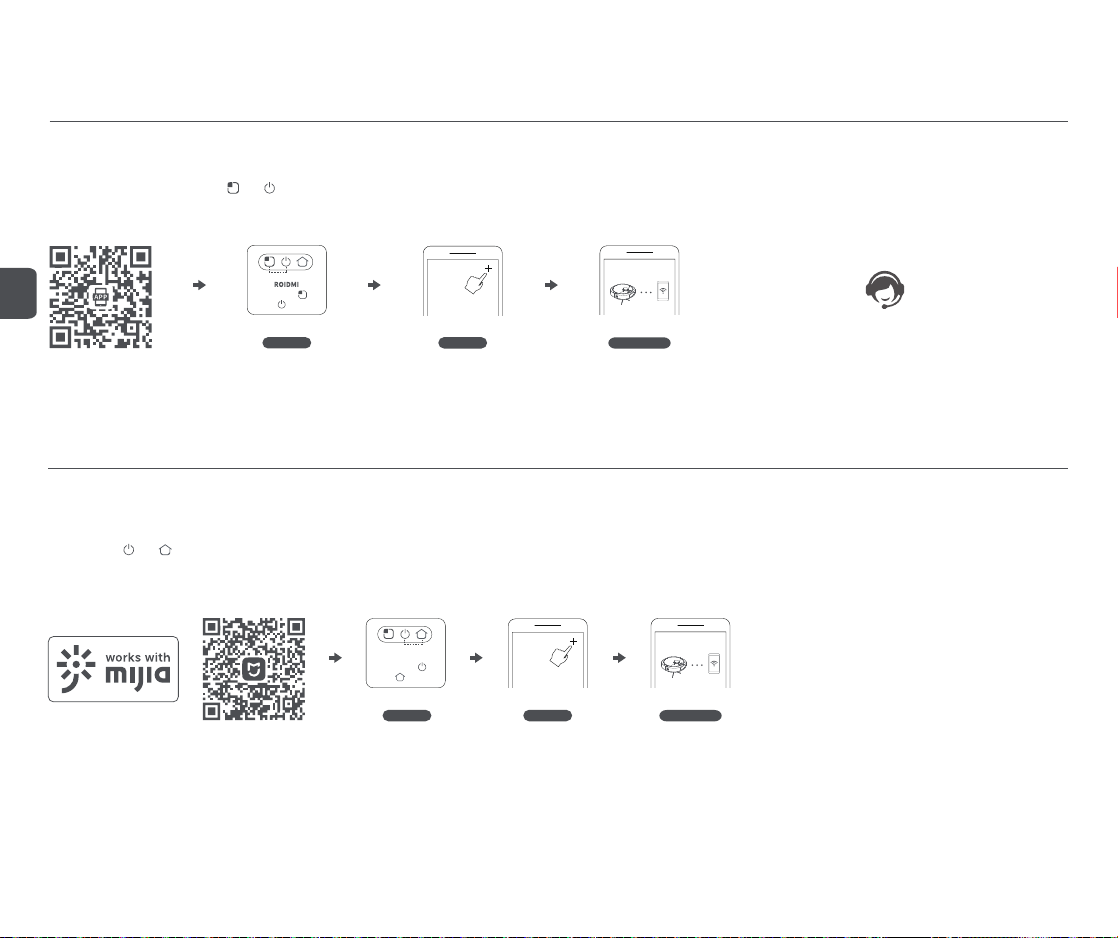

This appliance is compatible with the ROIDMI Platform, and can be controlled by the "ROIDMI" App. It supports both Android and iOS systems.

1. Scan the QR code below or search for "ROIDMI" on the app store to download and install;

3. If you have any questions, please consult customer service or check the official website.

ROIDMI APP Installation

2. Sign in to the app. Long press and buttons on the robot cleaner at the same time for longer than 3 seconds to reset it. Click “+” at the upper right on the app’s homepage to add

device. Select the robot cleaner from the device list and connect it to WiFi according to the prompts.

Add device

Configure network

Add device

Configure network

Reset WiFi

Long press

and to reset

Mi Home APP

This product works with mijia (Mi Home). It can be controlled via Mi Home app and interconnected with other smart devices.

1. Scan the QR code below, or search for “Mi Home” in the app store to download and install the app;

2. Turn on Mi Home app, register an account or sign in to the app;

3. Long press and buttons on the robot cleaner at the same time for longer than 3 seconds to reset it. Click “+” at the upper right on the app’s homepage to add device;

4. In the device category list find the “Robot Cleaner” category, then click your ROIDMI robot cleaner model to enter Network Configuration interface;

5. Perform follow-up operations according to the app’s prompts on network configuration.

Reminder: Actual operations may vary due to upgrade and update of Mi Home app. Please follow the instructions in the app.

Please note that “works with mijia” only certifies the product is compatible with Mi Home app.

Xiaomi and Mijia are not liable for any problems related to the product itself and its manufacturer’s production, executive standards, quality control, etc.

* Some overseas regions do not support connection to Mi Home APP

MIHome

Long press

and to reset

Reset WiFi

Product Operation and Programming

1. Powering on/off the appliance

Afterthefirstcleaning,therobotcleanerwill scan andpartitiontheroomintoasmartmap,andclean

itaccording tothemethod offirst alongthewalls andthen inthebow shape.After thecleaningis

completedtherobot cleanerwillautomatically returnto basestation.

4. Cleaning a localized area

When the main unit is in Standby mode or paused, press the Spot button to start cleaning a

localized area. The cleaning area is a 1.6 m x 1.6 m square centered on the main unit. After

cleaning, the main unit automatically docks.

Cleaning a localized area

1.6m

5. Operation failure

When there is an abnormality in the operation of the robot cleaner, the switch button

indicator light flashes white quickly and voice broadcasts, please refer to this manual on

how to troubleshoot the robot cleaner to solve abnormal problems.

6. Dormant

If there is no operation after more than 10 minutes, the robot cleaner will automatically

enter the dormant state, press any key to restart.

7. Automatic dust collection

After the cleaning is completed, the robot cleaner will automatically return to the base

station for charging and dust collection.

8. Reset button

When the button does not respond or doesn’t power on, reset the system by pressing the

reset button (see page 4 for details), the robot cleaner will automatically reset and start.

after resetting the schedule, cleaning order and cleaning mode settings of the appliance

will be cleared, and WiFi will be reset.

Area 1 Area 2

Area 3Area 4

Note

1. It is recommended to place the robot cleaner in the base station charging position to start cleaning;

2. When the power is insufficient during the cleaning process, the robot cleaner will automatically return to the base station to recharge and return to the last break point to resume cleaning

after sufficient power is replenished;

3. Before using the product, clear the area to be cleaned. Arrange the furniture and other household items neatly and remove power cords and small items from the ground to prevent the

obstructions of the appliance during cleaning;

4. Do not stand in front of the appliance when it is cleaning, lest it cannot identify the area to be cleaned.

Recharge button

Area cleaning button

Shortpresstocleantheareaandautomatically

rechargeafter cleaning

Short press to recharge

Shortpress for overall cleaning and automatic

rechargeafter cleaning

Long press to power on/off

Switch button

Short press to pause cleaning

2. Charging

Poweron: longpress the switchbutton, theswitch button indicator lights upand theappliance

enters standby state.

Shut down: long press the switch button, the indicator light slowly goes out and shutsdown.

Aftercleaning, therobotcleaner willautomatically returntoclean thebase stationandrecharge.

Ifthe robotcleaner does notstart cleaningfrom thebase stationthe rechargefunction may fail

andyou may needto manually placeit onthe base station.

Whentherobot cleanerischarging, theswitchbutton isalwayson andthepower-on/off indicator

blinkswhen it isfully charged.

3. Overall cleaning

Base station display functions introduction

Prompt: For other faults, please check the color screen for specific faults.

Base station status indicator

Automatic dust collection Clean water tank empty

Light strip

After the base station is connected to the power, the light strip is always on; when the dust is collected or in mop cleaning state, the light strip shows a gradient marquee light movement.

Robot cleaner battery statusNetwork connection status light

Color display screen

Dust collection normal indicator light is always on

Running status display

The connection is normal, the indicator light is always on

Dust full indicator flashes

The connection is abnormal, indicator light flashes

The waste water tank is full, indicator light is always on

There is water in the clean water tank, indicator light goes out The clean water tank empty, indicator light flashes

Normal battery , the battery indicator light is off Low battery , indicator light flashes

The air-drying function works normally, indicator light is always on The air-drying function is not activated, indicator light is off

Function buttons

Mop cleaning

Recall/issue (robot cleaner)

Start/Pause (base station)

Automatic dust collection

*Tip: Start by touching the button with your finger

Indicator light State

The waste water tank is not full, indicator light goes out

Smart air-dryingWaste water tank full

Product disassembly and cleaning

The following cleaning steps should be carried out when the appliance is switched off

Roller brush assembly, disassembly and cleaning

Step 1: Remove the roller brush

Turn the appliance over, press the roller brush cover release buttons simultaneously.

Remove the roller brush cover, take out the roller brush and clean;

Step 2: Roller brush cleaning

Usea cleaning brush toclean and cut outthe hair and fibers entangled on theroller brush.

Itis recommended to changethe roller brush every3-6 months.

Side brush removal and cleaning

Step 1: Remove the side brush

Turnthe applianceover, use ascrewdriver tounscrew the screws and takeout theside

brush;

Step 2: Side brush cleaning

Use a cleaning brush to pick up and cut the hair and fiber attached to the side brush to

separate it from the side brush. It is recommended to replace the side brush every 3-6

months.Replace the side brush once done cleaning to ensure the cleaning effect.

Swipe release button

Note

1. Please replace the side brush according to the original factory configuration, so as not to affect the cleaning effect;

2. Please use a screwdriver carefully when replacing the side brush, to avoid injuring yourself;

3. The cleaning brush has a sharp blade which is used to cut the windings that are difficult to clean. Keep it out of reach of children.

Removal and cleaning of dust box and filter element

Step 1: Remove the dust box

Open the top cover upwards, simultaneously press the dust box removal button, and

take out the dust box;

Step 3: Remove the filter element

Theuser can decide whether to clean thefilter element accordingto his ownuse. Take

out the filter element, Clean it with a cleaning tool and then reinstall it by the original

order or replace it with a brand new filter element;

Step 4: Clean the dust box

Rinsethe dust box/filterelement withcleanwater. Replaceit afterit’scompletely dryto prevent

dust from clumping and causing unpleasant odors when used again.

Step 2: Dump the dust box trash

Open the dust box, align the dust box on top of the trash can, and dump the dust. Clean the

hard-to-reach corners with a cleaning brush;

Filter element

Filter

Filter holder

Dust box removal button

Mop disassembly and cleaning

Step1: Removethe mop

Removethe moppingmodule fromthe disk and remove themop fromthe moppingbracket; Step 2: Cleanthe mops

Rinsethe mop with clean water and useit after itdries completely toprevent the dust from

clumpingand causing unpleasant odors when used again.

Note

1. Only replace with the original mop designated by the manufacturer, to avoid affecting the cleaning effect of the appliance due to product incompatibility;

2. Be sure to remove the mop for cleaning to prevent dirty water from overflowing;

3. It is recommended to replace the original mop every 3-6 months to ensure a better cleaning effect.

Step 1: Cleaning the sensors

Wipe and clean the charging contacts, anti-fall sensors, LDS sensors, and infrared

transmitters on the back of the robot cleaner with a soft clean cloth;

Robot cleaner part cleaning

Step 2: Cleaning the universal wheel

Turn over the appliance and pull out the universal wheel to clean the hair and dirt on the

wheel body and axle. The universal wheel can be washed with water, and then reinstall

after complete drying.

Note

1. When cleaning the anti-fall sensors, infrared sensor and charging contacts, please use a dry cloth to prevent damage caused by water;

2. Be careful when using a screwdriver to replace parts to avoid causing damage to the parts.

Take out the dust bag

Step 1: Replacing the dust bag

When the dust bag is full, the dust-full indicator flashes. Replace the dust bag according to the display on the base station. It is recommended to replace it every 6-8 weeks;

Base station cleaning

Insert the dust bag

plate into the slot Close the top cover of

the base station

Open the top cover of

the base station Replace with a new dust bag

Step 3: Clean the infrared lens and charging ports

Wipe and clean the infrared lens and charging ports with a soft clean soft cloth to

ensure that it is clean and free of debris.

Dust channel transparent module

Dust inlet

Infrared lens

Charging ports (×2)

Step 2: Cleaning the dust channel

In the power-off state, check whether there is any abnormal blockage on the transparent

module of the dust channel and the dust inlet. If there is blockage, please clean up the

wedged objects in time;

Troubleshooting

SolutionTroubleshooting (Robot cleaner)

Error 1: Please check whether the radar is blocked and

move to a new position to start or please check if the

radar is stuck

Error 2: Please check whether the obstacle avoidance

sensor is stuck

Please check whether the obstacle avoidance sensor is jammed by debris, remove the debris, and tap the obstacle

avoidance sensor several times to check whether it is flexible

If the above does not work, please move the appliance to a new location to start

Please don't use it in places with strong light

Pleasecheck whether theradar is blockedor jammed bywedged objects, ifthis is the case please remove the foreign objects

When an abnormality occurs during the operation, the switch key indicator light flashes quickly and a voice prompt is given. The following methods can be used to try to solve the fault by

yourself. If the fault cannot be rectified, please contact the after-sales service.

Please check if the appliance is trapped due to too little running space and move it to a new location to start

Error 3: Please wipe the anti-fall sensor and start away

from the dangerous area Please check if the appliance is suspended and move it to a new location to start

Pleasecheckwhetherthe anti-fall sensoristoodirtyor blockedbydustorother debris.Youneedtowipe theanti-fallsensorregularly

Cleaning the base station parts

Step 1: Clean the waste water tank

Open the top cover of the base station, take out the waste water tank, open the waste water

tankflap to pourout thedirty water anduse a long cleaning brushto clean thedirt inthe water

tank. After cleaning and drying, put it back into the base station;

Step 2: Replace the filter sponge of the water purification tank

Openthe top cover ofthe base station andtake out the clean water tank. Thenopen the

cleanwater tank flapand take outthe filter spongeholder along thewater pipe. Openthe

lowercover of thefilter sponge holder,take out thefilter sponge, replacewith a newfilter

sponge and reinstall it;

Clean water tank

release flap Filter sponge holder

Filter sponge

lower cover

Step 3: Clean the cleaning plate/base

Press the cleaning mop button of the base station to discharge water 4 times, each time for 10 seconds, and then press the cleaning mop button once again to automatically suck back the

sewage, use a long cleaning brush to clean the tray/base and put it back in the sun.

Pallet clasp position

Recoverytank release buckle

Error 4: Please check if the roller brush is stuck

Error 5: Please check if the side brush is stuck

Error 6: Please check if the main wheel is stuck

Error 7: Please put back the dust box

Pleasecheck whether there areany entangled objects suchas wool and wires/cords on the indoorfloors and clean themup

Pleasecheck whether the rollerbrush is entangled withwool, wires and other windings. Remove theroller brush and cleanit

The roller brush may tangle and needs to be cleaned regularly

The side brush may tangle and needs to be cleaned regularly

Please check whether there is any debris stuck on the wheels and remove them

Please check whether the mop components are entangled or blocked and remove the wedged objects/entanglements

Please check if the clean water tank is in place or installed in place

Please check if the waste water tank is in place or installed in place

Please put back the dust box, make sure the filter and dust box are installed in place

Please check whether the side brush is entangled with wool, wires or other debris. If so remove the roller brush and clean it

Please check whether there are any entangled objects such as wool or wires on the indoor floor and clean it up

Troubleshooting (Base station) Solution

If the error is still reported after the installation is in place, please try to replace the filter

Error 14: Please clean the filter

Please clear the obstacles near the base station to ensure that there are no obstacles within 1.5 meters in front of the

base station

Error 1: Recharge failed, please clear obstacles near

the base station

Please take out the filter inside the appliance to clean it

Error 3: Please check if the mop component is stuck

Error 4: Please reinstall the clean water tank

Error 6: Please put back the waste water tank

Error 5: No water in the clean water tank

Error 7: The waste water tank is full

Error 8: The waste water tank is abnormal

Please check whether the waste water suction port is blocked, please clean the waste water suction port regularly

Please clean the waste water tank and reinstall it

Please check the clean water tank, please fill up to the maximum MAX line of the clean water tank

Error 8: Low battery, please charge

Error 9: Recharge failed, please check whether the

connection between the appliance and the base station

is normal

Error 10: The battery temperature is abnormal, please

try again later

Error 11: Please check the right wall sensor

Error12:Pleaseplace themachineona levelgroundtostart

Error 13: The fan of the robot cleaner is abnormal

Error 2: Please stay away from the restricted area

before starting

Low battery, please recharge before use

The machine is detected to be tilted during startup, please place the machine on a level ground to restart

The wall sensor is blocked by dust, please wipe the wall sensor on the right

The vacuum fan is not working, please try to reset the system

Please use a dry cloth to wipe the charging contacts of the appliance and the charging ports of the base station

The battery temperature is too high or the temperature is too low, please wait for the battery temperature to be normal

before use

Please move the machine away from the software virtual wall or restricted area and restart it

Please check if the waste water tank cover is closed

Please check if the waste water tank is installed in place

Common problems

Slow charging

Can't charge

Can not boot

Can't recharge

The base station is not powered on, please make sure that both ends of the base station's power cord are plugged in. If the

connection is not good, please clean the base station charging ports and the robot cleaner charging contacts; please make

sure the base station display screen is on

Ifthe battery islow, please chargeit on thebase station beforeusing it; ifthe battery temperature is toolow or toohigh, please

use it at 0-40℃

When used in a high or low temperature environment, in order to extend the battery life, the robot cleaner will automatically

reduce the charging speed; the charging contact area may be dirty, please clean the area with a dry cloth

Thereare too many obstaclesnear the base station,please place the base station in anopen area; the robotcleaner is too far

away from the base station, please try to place the robot cleaner near the base station

Questions Solution

Error 10: The dust bag is not in place, please check if

its installed.

Please check if the dust bag is installed

Error 12: The dust bag is full

Tip: Resetting the system can eliminate some abnormalities.

If the dust bag is installed, please check if the dust bag is inserted all the way

Ifthe dust bag is not full, pleasecheck whether thedust channel ofthe base station is blocked. If thedust channel ofthe base

stationis blocked, please try to clean thedust channel manually

Can't connect to WiFi

Abnormal noise during cleaning

The Wi-Fi connection is abnormal, reset the Wi-Fi and download the latest app to try to connect again

The main brush, side brush or main wheel may be entangled with foreign matter, please clean it after powering it off; the

swivel wheel is dusty or entangled during cleaning, it is recommended to use a screwdriver to pry out and rinse it

The Wi-Fi function is not activated, please reset the Wi-Fi and try again

The Wi-Fi signal is not good, please make sure the robot cleaner is in a good Wi-Fi signal coverage area

Wi-Fi suddenly fails to connect, and you suspect that the home router has a setting error, please contact after-sales service

TheAPPdoes notsupportthecurrent modelofthe device,pleasecheckthe specificsupportedmodel accordingtothe app prompt

Error 9: Please load the cleaning tray

Error 11: The base station wind pressure is abnormal Please check if the top cover of the base station is closed

Error 13: Abnormal dust collection

Error 14: Standby

Pleasecheck whether there isany wedged objectsin the dust collectionport of thedust bag of thebase station, pleaseclean

upthe foreign matter inthe dust collectionport

Please check if the dust box is blocked, please clean the dust box

Please check whether the cleaning tray is in place or installed in place, and reinstall the cleaning tray

Please check if the dust bag is full and replace it in time

Whenreturning tothe base stationwhile moppingthe floor, the clean watertank isnot in placeor entersstandby withoutwater

When returning to the base station, the washing tank is full and enters standby

When returning to the base station in the mopping state, the cleaning disk is not in place and enters standby

When the waste water tank is not in place or the water is full when it returns to the base station in the mopping state, it is not

replaced and enters standby

Decreased cleaning ability The dust box is full, please clean the dust box; the filter is blocked, please clean the filter; the roller brush is entangled with

wedged objects, please clean the roller brush

Whetheritconsumes electricitydirectly atthebase station When the machine is always in the base station, the battery consumption is low, which helps to keep the battery at its best

performance

There is no water in the cleaning plate but the pump

is still working Need to clean and wipe the water level contacts

When the robot is performing network configuration,

the base station network configuration status light is

blinking (>3 minutes)

a.Restart the robot and configure the networkapp; b. Checkwhether the SNof the robot cleaner and the basestation are the

same. If they are inconsistent, you need to manually modify the base station SN to be consistent with the robot cleaner’s SN

through the APP; c.None of the above can solve the problem, please contact the after-sales service for repair.

Timed cleaning does not take effect Timed cleaning will start when the remaining power charge is more than 15%

Dust Collection Time About 12 seconds

Clean Water Tank About 4L Waste Water Tank About 4L

Product Weight About 9.8kg

Rated Input

24V 1.2A

Rated Output

Dust Bag Capacity About 3L

Noise <86dB（A）

Cleaning Power 40W

Product Size 400 × 382 × 465mm

Product Name Base Station JCZ06RM/JCZ06RMBProduct Model

Basic Specifications

Product Name

Operating Voltage

Battery Capacity 5200mAh

Product Weight

Charging Time

Dust Box Volume

About 250 minutes

About 4.2kg

About 220ml

14.4V

SDJ06RM/SDJ06RMB

Charging limit Voltage 24V 1.2A

Product Model

Noise

Rated Power

Product Size

<77dB（A）

48W

330 × 330× 106mm

Can not return return to the base station after partial

cleaning or moving location

Insufficient battery during cleaning, recharge but not

continued Pleasemake sure thatthe hostis not inthe Do Not Disturb mode,it will notcontinue scanningin this mode;manual recharging

orputting the robotcleaner backto the basestation will not continue scanning

Missing sweep of robot cleaner The wall sensor or the anti-fall sensor is dirty, it is recommended to wipe it with a soft dry cloth

The robot will regenerate the map after area cleaning or long-distance movement. If the base station is far away, it may not

be able to automatically recharge. Please manually put the robot back to the base station to charge

Doyouneedtochargeforsixteenhoursforthefirstthreeuses Lithium battery has no memory effect when used, no need to wait when it is fully charged

Self-Cleaning and Emptying Robot Vacuum

Battery Type lithium battery

100-130 V~, 50-60 Hz

Charging PowerDust Collection Power 850W 30W

Base Station Network Standby Power Consumption:1.68W; (Robot Vacuum+Base Station) Network Standby Power Consumption:0.90W; Enter network standby time:5min

Freqency Range：2400-2483.5MHz；Maximum Transmiting Power：20dBm(EIRP)

Class I Laser Product：DC5V,240mA,WA 800nm, IEC

HVIN JCZ06RM/JCZ06RMB

HVIN SDJ06RM/SDJ06RMB

Equipment requirements: support

Support devices with Android5.0 or iOS10 and above (iPhone 5 and above)

This device contains WiFi module to support 802.11 b/g/n transmission protocol

AC white power cord/L=1.35m European regulation 3*0.75mm2 H03VVF input plug 3PIN European regulation elbow / output plug 3Pin font TUV/VDE certification

Disposal

Correct disposal of this product

This marking indicates that this productshould not bedisposed with otherhousehold wastesthroughout theEU. To prevent possibleharm tothe environmentor human health

from uncontrolled waste disposal, recycle it responsiblyto promote the sustainable reuse ofmaterial resources. Toreturn your used device, pleaseuse the return and collection

systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Warranty and limitations of liability

This product is guaranteed for a period of 12 months (defined by local law) from the date of purchase against any failure resulting from manufacturing or material defects.

This warranty does not cover damage caused by improper installation, improper use, or normal wear and tear of the product.

More specifically, the warranty does not cover:

• Dust bag, disposable mop, side brush, filter, mop, main brush and main brush cover are not covered by the warranty as they are consumable items;

• Damage or problems caused by improper use, accident, alteration or electrical connection of improper intensity or voltage;

• Modified products, those whose warranty seal or serial number have been damaged, altered, removed or oxidized;

• Failure of the battery due to overcharging or failure to observe the safety instructions explained in the instruction manual;

• Cosmetic damage, including scratches, dents, or any other element;

• Damage caused by any intervention carried out by an unauthorised person;

• Defects caused by normal wear and tear or due to normal ageing of the product;

• Software updates due to a change in network settings;

• Product failures due to the use of third party software to modify, change or adapt the existing software;

• Product failures caused by use without accessories approved by the manufacturer.

• Oxidised products.

Terms and conditions of implementation:

Toobtaina warranty service,youarerequestedto returnyour product tothe customer service deskof your retail outlet with yourproof of purchase (receipt, invoice, …), the product and its supplied accessories,

with its original packaging.

It is important to have the date of purchase, the model and the serial or IMEI number on hand as information (this information usually appears on the product, the packaging or your proof of purchase).
