Rointe SYGMA User manual

SYGMA
INSTRUCTIONS MANUAL
SYGMA DIGITAL ELECTRIC
WATER HEATER
MOUNTING, INSTALLATION,
STARTING AND OPERATION
EN
7

2
SYGMA
WELCOME
Dear Customer,
Thank you for choosing the SYGMA electric water heater with an
exclusive electronic temperature programmer and made with the
highest quality materials especially for you.
The SYGMA water heaters have exceeded the most stringent quality
controls in order to comply with the most rigorous requirements for
safety.
Thanks to the OPTIMIZER ENERGY PLUS technology, exclusive to the
ROINTE SYSTEM, the electric water heater achieves the maximum
energy saving.
Before using the SYGMA electric water heater, we recommend that
you read this instruction manual in order to ensure correct operation.
IMPORTANT
THIS MANUAL SHOULD BE LEFT WITH THE UNIT AFTER
INSTALLATION

3
TABLE OF CONTENTS
1. INSTALLATION.............................................................................4
1.1. Accessories...........................................................................4
1.2. Placement.............................................................................4
1.3. Location ................................................................................4
1.4. Water System installation ....................................................5
1.5. Electrical Installation ...........................................................6
1.6. Safety ....................................................................................6
2. USE...............................................................................................7
3. ELECTRONIC CONTROL FUNCTION............................................8
4. ADVANCED FUNCTIONALITY.....................................................13
5. OPTIMIZER ENERGY PLUS ........................................................14
6. MAINTENANCE ..........................................................................15
7. CONDITION OF THE GUARANTEE .............................................16

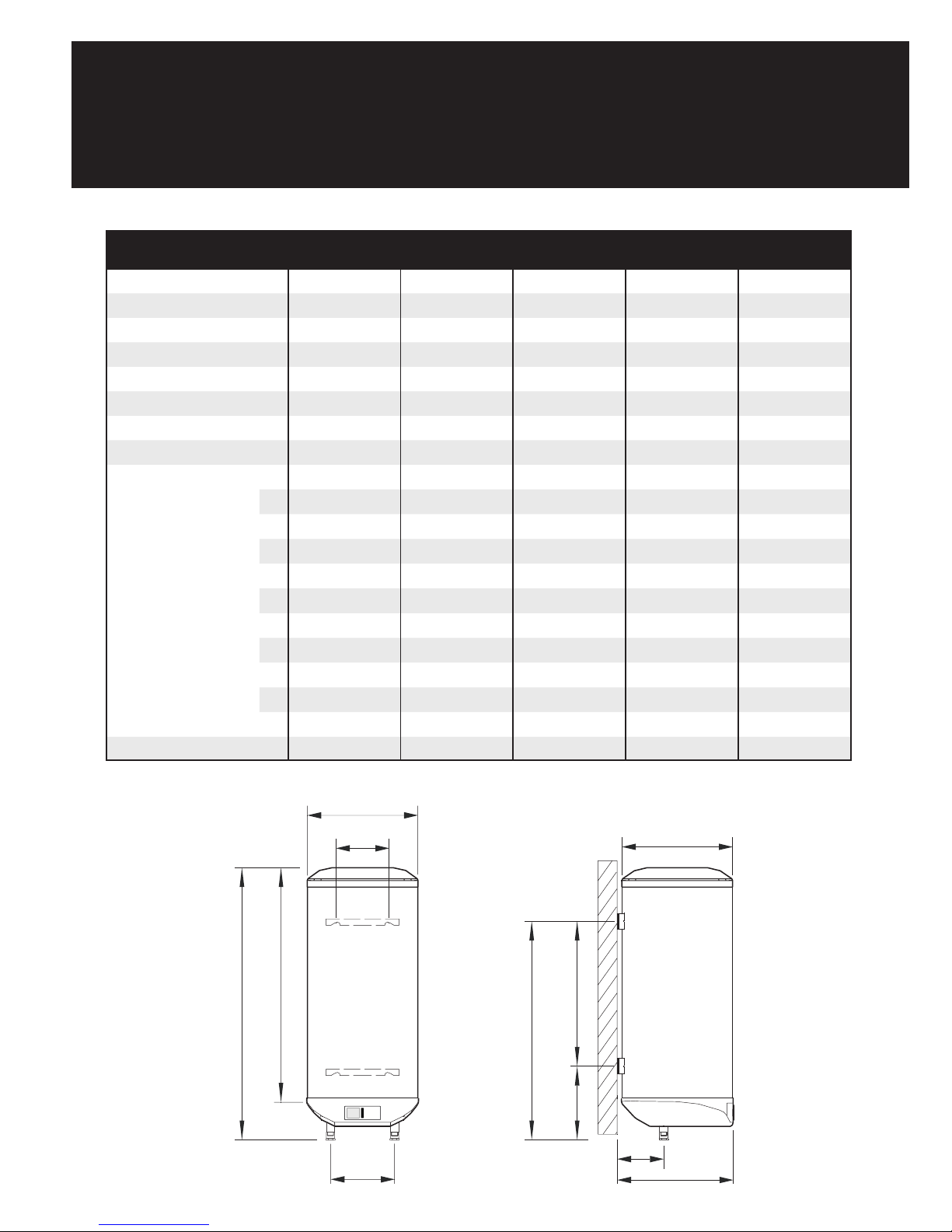

8. DIMENSIONS AND TECHNICAL CHARACTERISTICS ................20
ATTENTION:
If you are the owner of a model bought in the UK or Éire, please refer
ONLY to its manual as the specifications of the water heaters are different.
ENGLISH

4
SYGMA
1. INSTALLATION
1.1. Accessories
The electric water heater, or boiler by accumulation under pressure,
is provided with basic elements for its installation, such as:
• Insulating sockets.
• Safety valve.
These accessories are
included within the
packaging.
1.2. Placement
In order to fix the
heater to the wall, you
will have to use suitable
rawlplugs, screws, or
other fittings to support
the weight of the heater
when it is full.
1.3. Location
It is essential that the
heater is situated as
near as possible to the
place where hot water
is required. In this way,
water temperature
loss in the pipework
can be avoided. Leave
a minimum space of

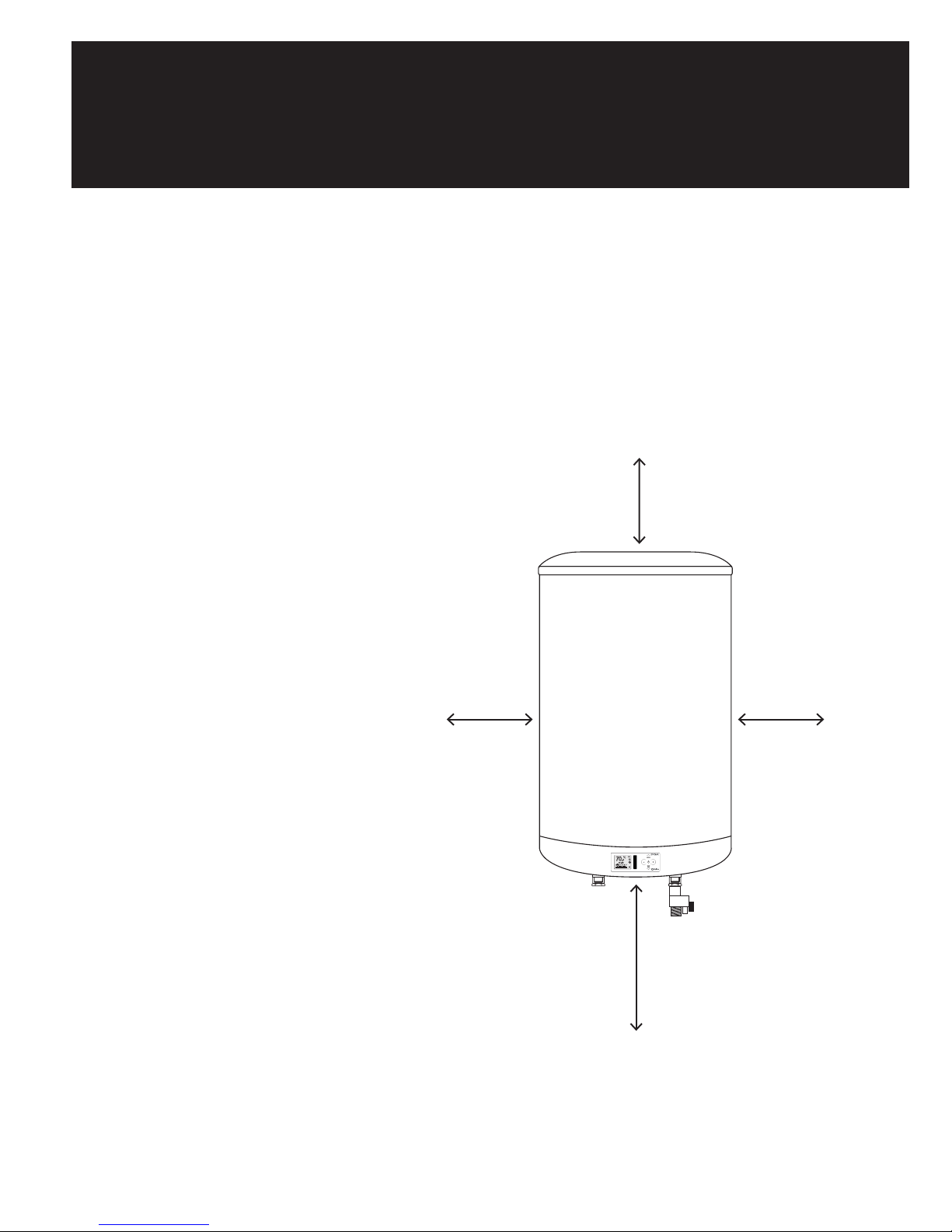

Figure 1 - Minimum margins for
servicing and repairs.
150 mm
100 mm 100 mm
540 mm
H C

5
500 mm below where the pipes exit the heater to allow access for
maintenance and repair and any necessary future maintenance
operations.
Do not install the heater horizontally with the wall supports
horizontal or over the floor.
1.4. Water system installation
WARNING TO THE INSTALLER: the insulating sockets provided
with the heater must be placed on the entrance and exit pipes to
eliminate the risk of galvanic pairs as teflon is used in the thread
of the pipes.
A- The heater MUST be installed with the security fitting that comes
with it. No water system accessory may be placed between the
security fitting and the cold water pipe (stop cock, anti-return, etc).
The security fitting drainage outlet MUST be connected to a water
drainage pipe that has to have a diameter that is at least equal to
the diameter of the pipe connected to the boiler, with a continuous
inclination, open to the atmosphere and with a minimum distance
of 20 mm. During the warm-up time the water expands producing
a drip (approximately 3% of its capacity during each heating cycle).
This is not a cause for concern because it is a normal phenomenon.
Please ensure that the water drainage conduct pipe is protected
from frost. To drain the heater, lift the handle of the security fitting.
It is also necessary for this handle to be periodically checked to
avoid blockage by, for example: mud deposits, limescale deposits,
etc.
B- When the pressure of the network is higher than 5 bars, it is
necessary to install a pressure reducer as near as possible to
the meter.

6
SYGMA
1.5. Electrical installation
The appliance requires a single-phase 230 V supply. It is necessary
to check carefully that the supply voltage agrees with the required
voltage of the appliance. The heater does not need installation
requirements outside the norm, therefore it is suitable for
installation in accordance with the Electrotechnical Low Voltage
Regulations.
The power supply will have to be wired through a omnipolar
interrupter, circuit breaker or contactor. The installation must be
protected with fuses of a rating that corresponds with the intensity
absorbed. The socket must be placed in such a way that when
the heater is installed the plug is accessible. An earth connection
must be included throughout the electrical installation. In order to
ensure this connection the plug comes provided with the relevant
contact. It is important that the style of any other plug used is the
same type as the one provided with the appliance.
The electrical system of the premises or house must be checked
to ensure that it is equipped with an “EARTH” wire. This appliance
complies with the regulations on radio-electric disturbances and
interferences.
NOTE: All maintenance and replacement of the fittings is prohibited
(including the feed cable), unless it is authorised by the Technical
Assistance Department.
1.6. Safety
This water heater can be used by children aged 8 years and above
and persons with reduced physical, sensory or mental capabilities
or lack of experience and knowledge if they are supervised or
have been given instruction concerning use of the appliance in a
safe way and understand the hazards involved. Cleaning and user

7
maintenance shall not be made by children without supervision.
Children must be supervised at all times to ensure that they do not
play with the product.

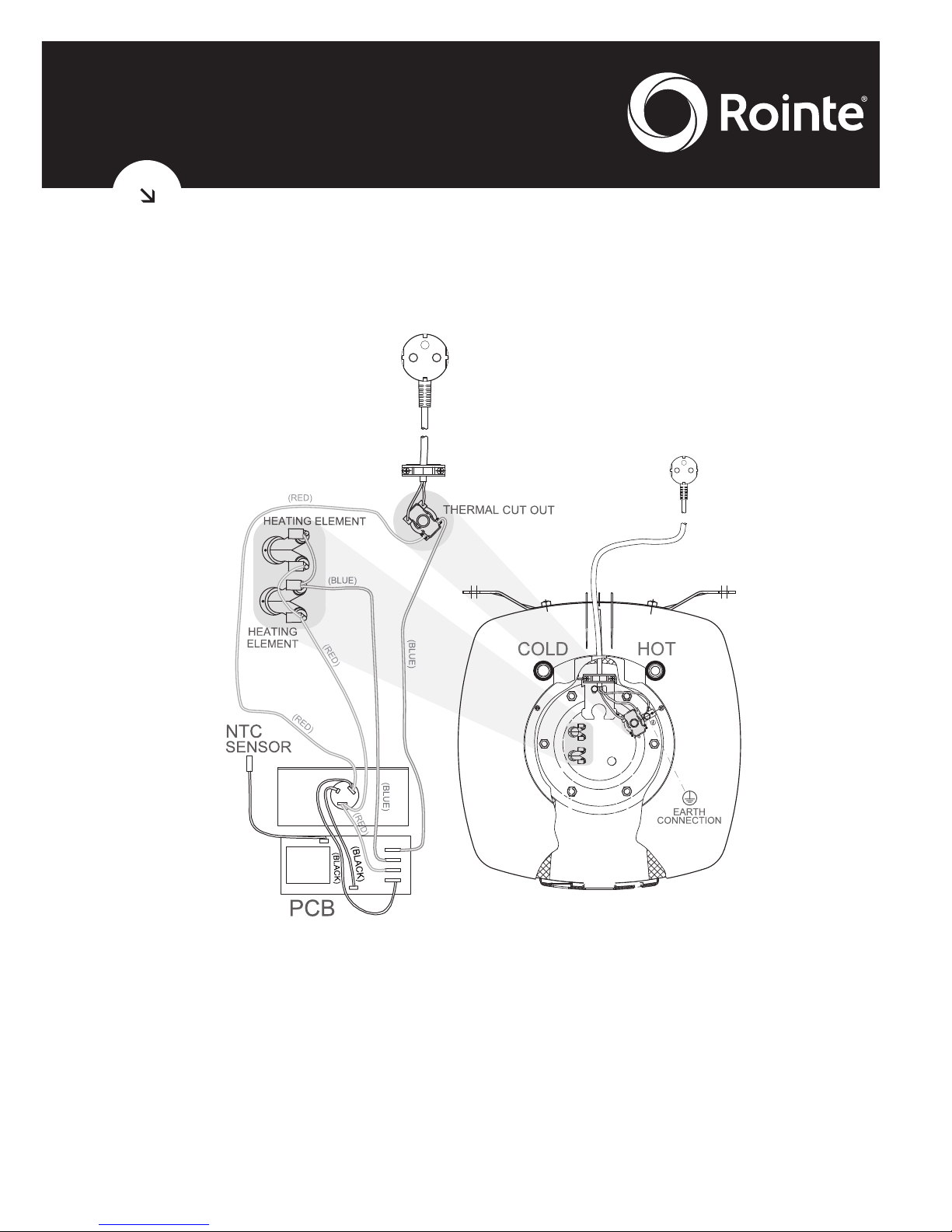

Figure 2 - Wiring diagram
2. USE
2.1. Operation
Filling. Once the heater has been installed, open the stop cock.
Then open the hot water taps. When the water begins to come out
of them the heater is full. Close the taps and check thoroughly that
there are no leaks in the installation. Do not connect the heater to

8
SYGMA
the mains supply before ensuring that it is full of water.
Electrical connection. Plug in the heater, switch on and leave the
appliance connected to the electricity supply. Once a certain amount
of hot water has been used, the thermostat switches the heating
element back on.
Draining. In prolonged periods without use, and if there is risk of
frosts in the premises where it is installed, the heater must be
drained. It is possible to do this using the safety valve.
In all cases:
• Cut the current
• Close the tap where water enters the Installation.
• Drain through the safety group using the lever.
3. ELECTRONIC CONTROL FUNCTION

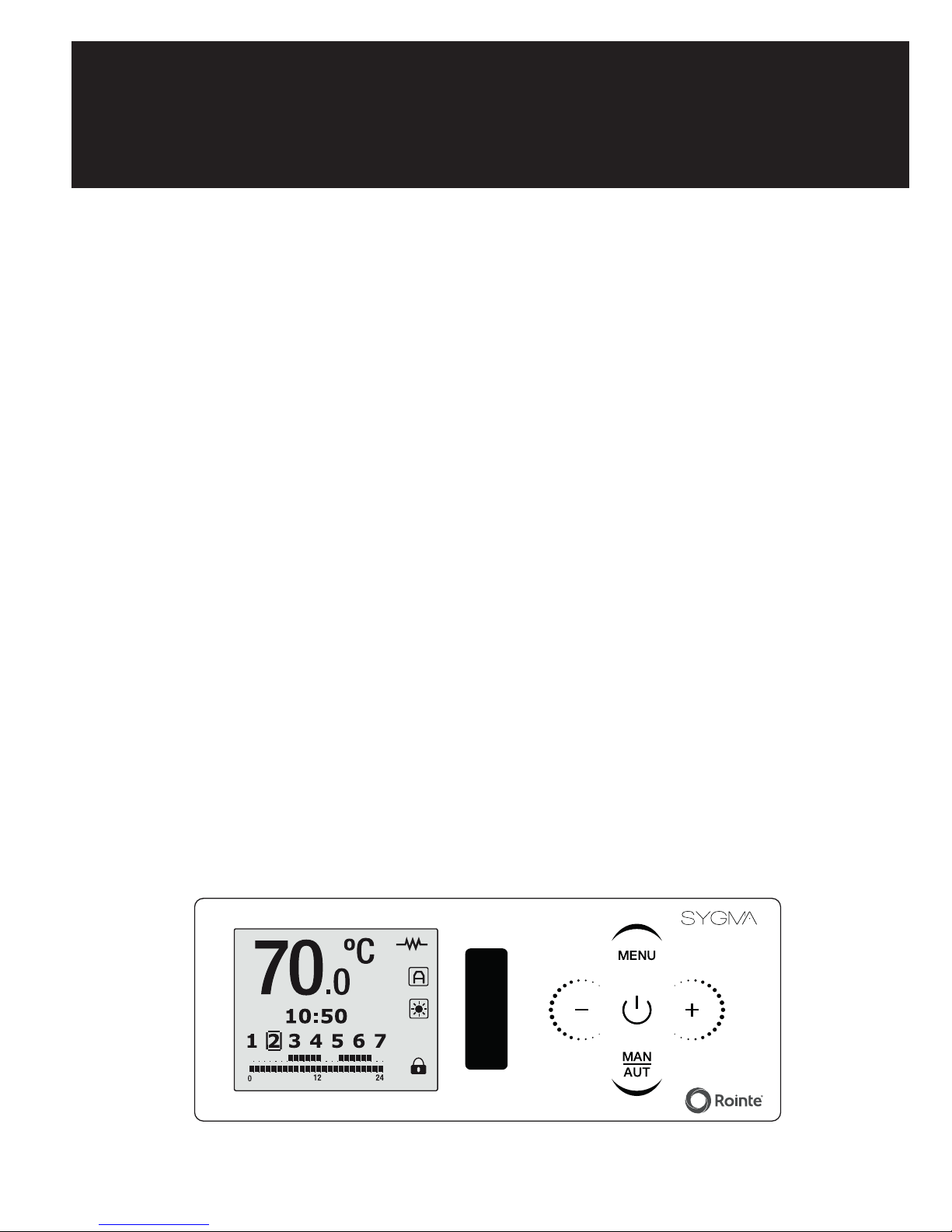

3.1. Front panel description
The following image shows how the front panel of the water heater
looks:
TFT DISPLAY CONTROL PANEL

9
3.1.1. Main information display
4
3
2
1
6
7
5
9
8
NUM. FUNCTION
1PROGRAMMING
2DAYS OF THE WEEK
3TIME OF DAY
4TEMPERATURE SELECTED
5LOCKING THE CONTROL PANEL
6COMFORT / ECO / ANTI-FROST MODE
7MANUAL / AUTOMATIC FUNCTION
8HEATER ELEMENT ON
9OPTIMIZER ENERGY PLUS FUNCTION

10
SYGMA

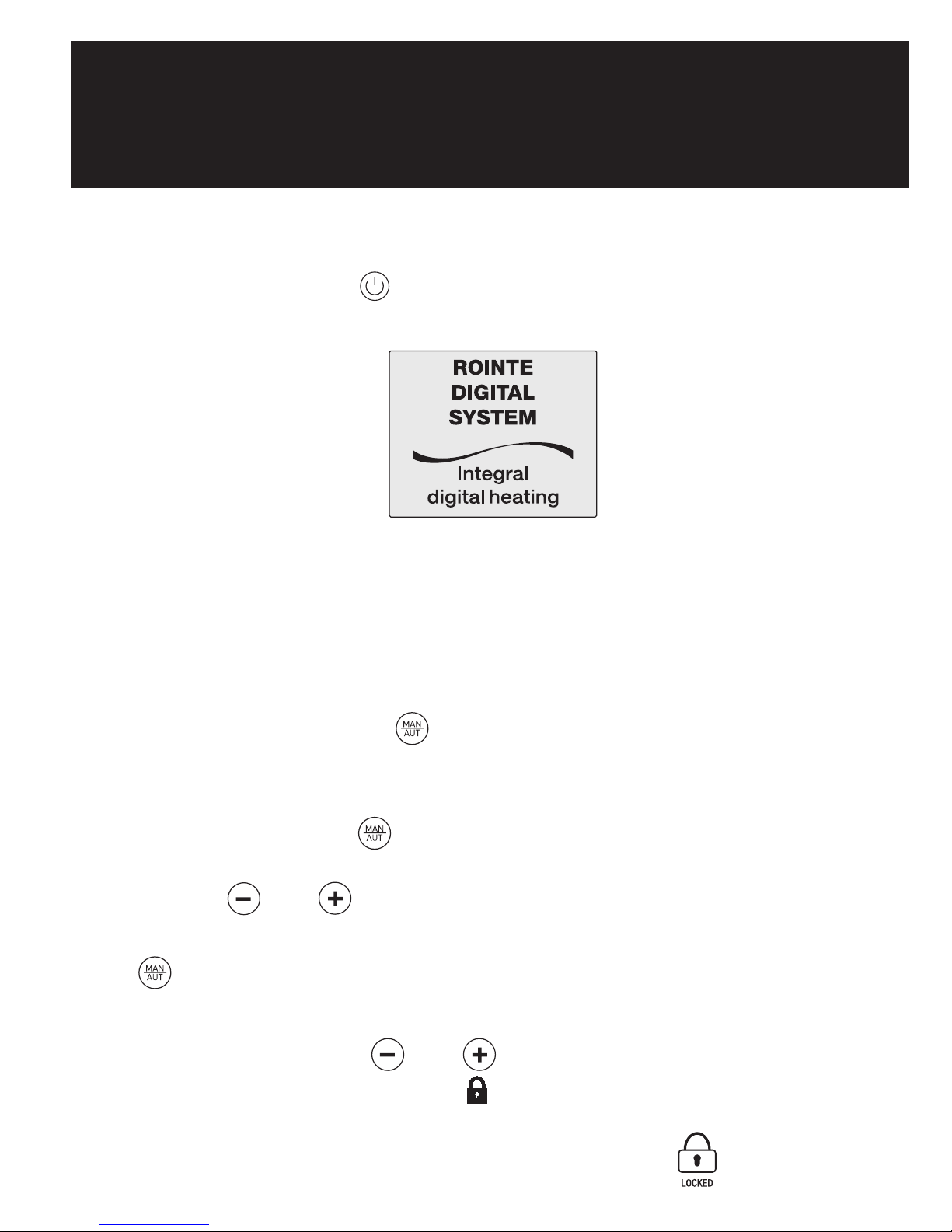

3.2. Switching On & Off (Stand-by)
By pressing the key , we can switch the water heater on or off.
The following image will appear on the screen when switched on:
After 3 seconds, the main information display will be shown. By
pushing the button again the water heater will go into standby
mode with the word “Standby” appearing followed by the Rointe
logo.
3.3. Setting the day and time
By pressing the button for 3 seconds we can access the time
and date adjust feature to adjust the time and date of our water
heater.
Pressing the button flashes up the hours, minutes and days of
the week according to the number of times it is pressed. With the
buttons and we can alter the current settings.
To leave the time and date adjust feature, wait 30 seconds or press
after the date select.
3.4. Locking the control panel
By pressing the keys and at the same time for 3 seconds,
we lock the control panel. The control panel symbol is activated
and the keys will not respond when pressed. The following symbol
will appear on the screen if any button is pushed:

11
To unlock, press the and keys again, at the same time for
3 seconds.

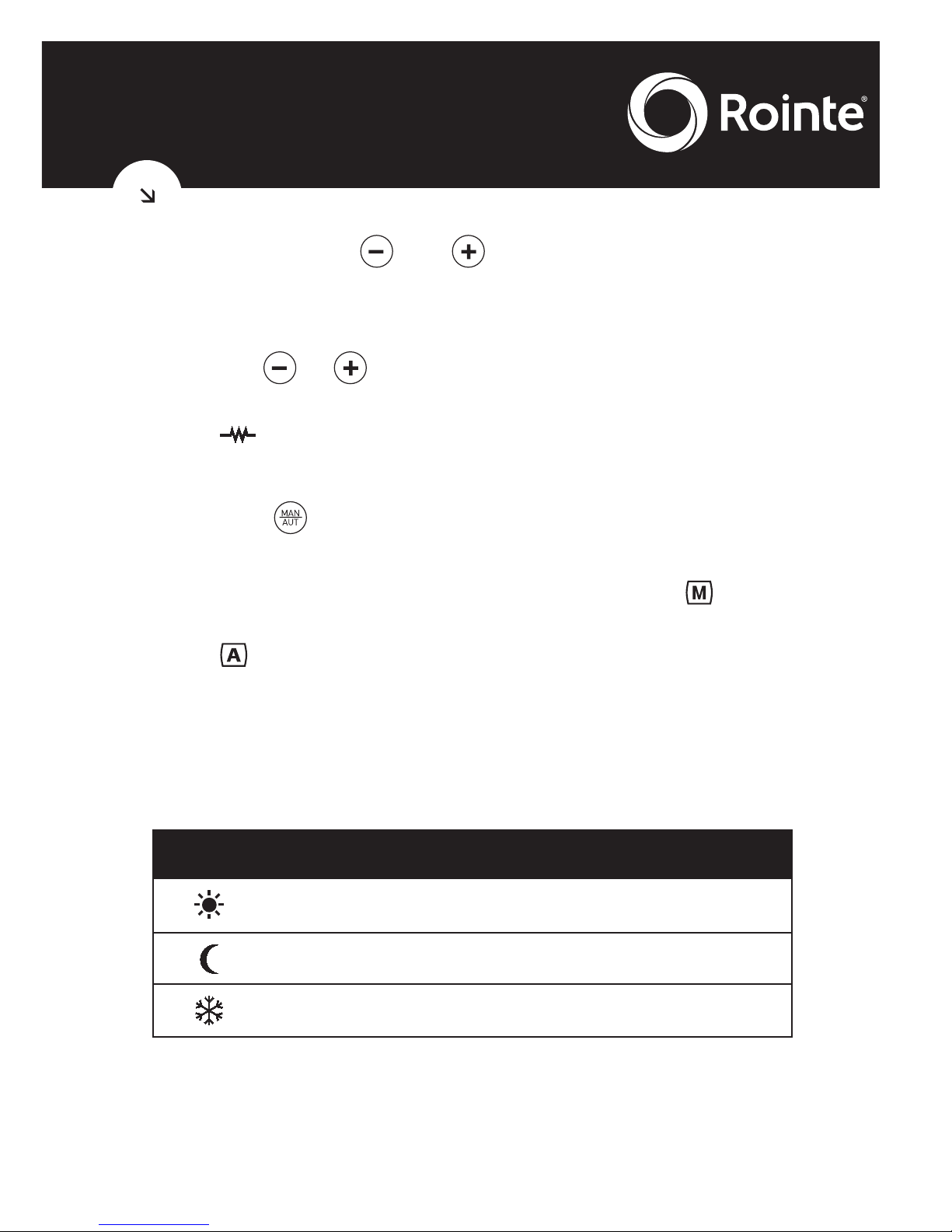

3.5. Temperature selection
By pressing or we change the temperature. When the water
temperature is lower than the one set, the water heater comes on
and the symbol appears.
3.6. Manual/Automatic functions
By pressing we change between the Manual and Automatic
functions.
When the Manual function is selected, the symbol appears on
the display. When the Automatic function is selected, the
symbol appears on the display.
3.6.1. Manual function
This enables you to choose between the COMFORT, ECO and
ANTI-FROST modes of operation, changing the temperature as
indicated in Section 3.5.
ICON MODE TEMPERATURE RANGE
COMFORT 55ºC– 73ºC
ECO 40ºC– 54.5ºC
ANTI-FROST 8ºC
3.6.2. Automatic function
This mode activates the programming set on the water heater.

12
SYGMA
3.7. Menu/Programming function
Pressing for 3 seconds allows you to program the water heater
directly:
1. Select the COMFORT temperature setting (55ºC to 73ºC), using
and . The symbol and the temperature will flash.
2. Press and we can select the ECO temperature (40ºC to
54.5ºC) using and . The symbol and the temperature
will flash.
3. After pressing the button once again, the days of the week
will start flashing and show as DAY1, DAY2, DAY3…. We can go
forwards and backwards using the button and . Press
to select the day or days that we wish to program.
4. Pressing takes us to the hours we wish to program. To
change the hours use the or buttons. The hours selected
will show as 0h, 1h, 2h,… By pressing the button, we can
select the mode required hour by hour: COMFORT, ECO or OFF.
5. To finish the programming, press or leave it for 30 seconds
without pressing any buttons.

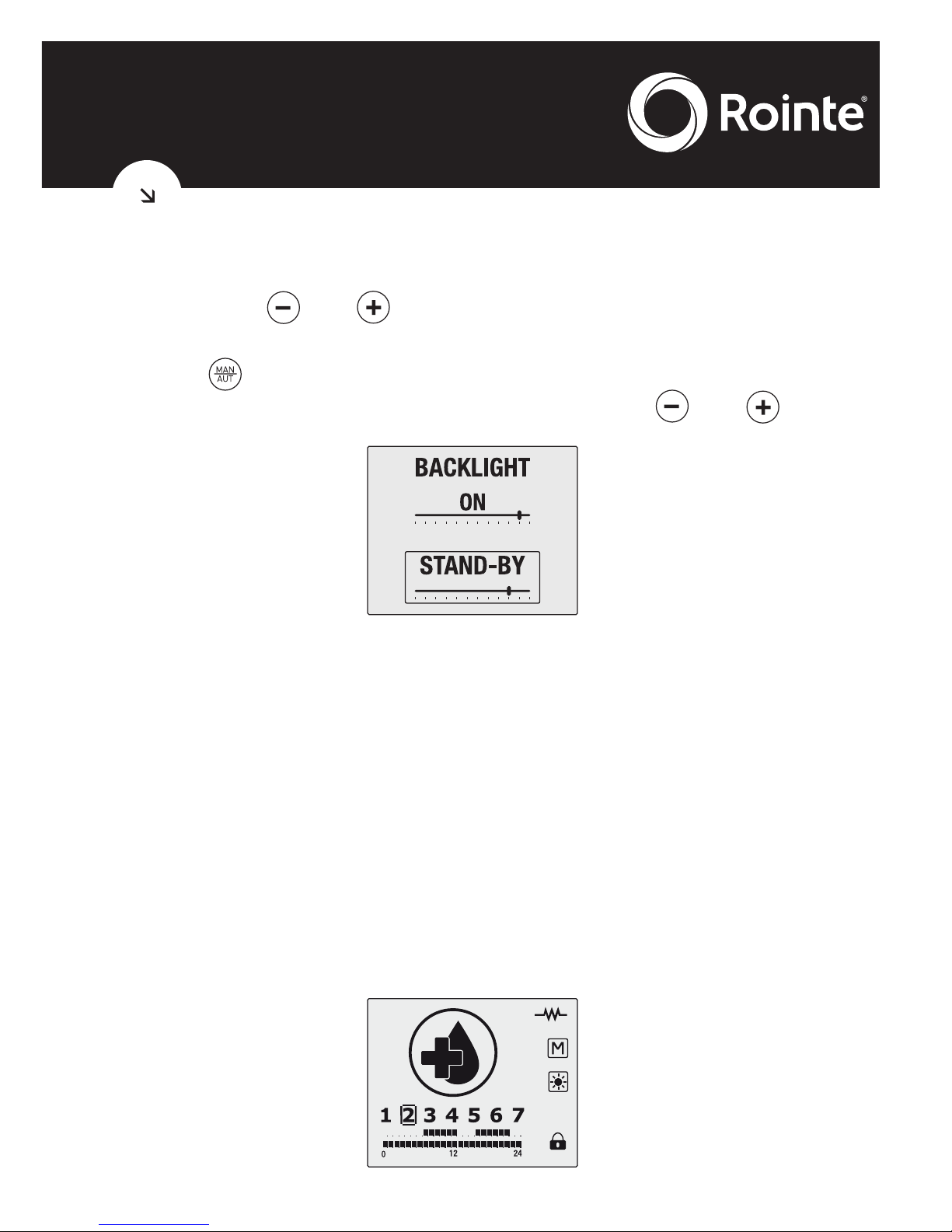

3.8. Screen brightness function
You can change the brightness of the screen by pushing the
button for 3 seconds when the product is in manual mode. Entering
this mode you will see the following screen:

13
In ON mode you can increase or decrease the brightness of the screen
by using the and buttons.
You can change the “Standby” mode brightness by pushing the
button to move the frame to the “STAND-BY” position. You can
then adjust the brightness by pushing the same and keys.
To finish the programming wait for 10 seconds without pressing
any buttons.
4. ADVANCED FUNCTIONALITY
4.1. ANTI LEGIONNAIRE’S DISEASE
Our SYGMA is designed with safety in mind and all the anti
legionnaires’ disease regulations are complied with.
The water heater is automatically set to over 60ºC for at least
one hour once a week. Whilst this mode is active, you will see the
following screen:

14
SYGMA

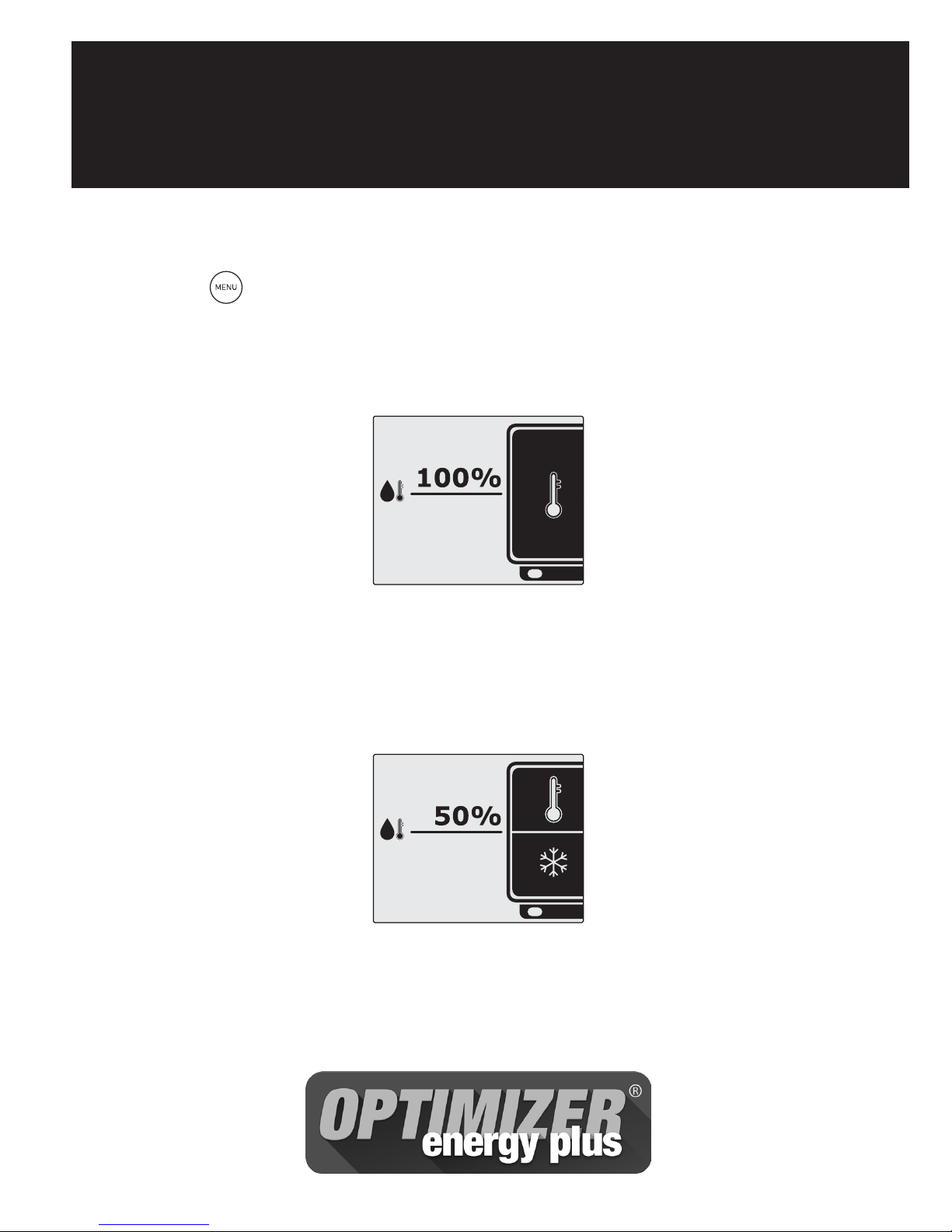

4.2. WATER HEATING PROGRESS
Press we can see the progress of the water heating process
towards the user-established target temperature.
In this image, 100% of the water contained in the water heater is
at the user-defined target temperature.
When the water in the tank is not yet at the user-defined target
temperature indicated on the TFT screen, a percentage value
is displayed. This represents the heating progress towards this
target temperature.
5. OPTIMIZER ENERGY PLUS
This product includes Optimizer Energy Plus Rointe technology to
efficiently manage the energy consumption of the water heater.

15
Optimizer Energy Plus is a technology that bases its operation on
thousands of micropulses being sent to the heating elements to keep
a stable water temperature with a consumption as low as posible.
When the symbol replaces the , then the Optimizer Energy
Plus technology is working.
6. MAINTENANCE
The heater does not need any special maintenance, except an annual
inspection of the magnesium anode. In order to clean it rub with a soft
cloth or damp sponge. Do not use abrasives or detergent.
The electric water heater guarantee is 7 YEARS for the water tank and
2 YEARS for the electronics from the date of purchase. If the water
heater breaks down during this guarantee period the entire appliance
will be replaced. In the Canary Islands, the water tank is guaranteed
for 3 YEARS.
In order to guarantee the life of the water heater, it is a requirement
that the user agrees to an annual inspection of the magnesium anode
to check for erosion. Where erosion is excessive, it should be replaced.
Our guarantee will be applied with the express condition that the
electrical heater has been well installed by QUALIFIED FITTERS and
with the PROTECTIVE SOCKETS which are provided with the appliance
and that there has been an initial inspection of the anode.
Excessive heating by a possible failure of the thermostat is protected
by the safety limiter that cuts the two phases and leaves the heater
without electrical supply. Should this occur, call the Technical
Assistance Department to arrange repair.
IMPORTANT - Never remove the connections cover without first
unplugging the heater from the mains.

16
SYGMA
Cleaning should not be carried out by children without supervision.
Children must be supervised at all times to ensure that they do not
play with the product.
THE MANUFACTURER reserves the right to modify the characteristics
and specifications of the products without prior warning.
7. CONDITION OF THE GUARANTEE
The Guarantee for ROINTE’S heaters is a commercial guarantee that
is offered by us in our capacity as manufacturer, in addition to and
independently from the rights that you receive from the seller as a
result of the purchase, which are regulated by the laws applicable
in the title V of the Real Decreto Legislativo 1/2007, 16 of November,
remaining independent to and compatible with those granted by the
current commercial guarantee.
7.1. What does the Rointe heaters guarantee cover?
The Guarantee for ROINTE’s heaters that we offer as manufacturer
covers, over a term of two years from the appliance delivery date
the repairs made by ROINTE’s Official Technical Assistance Service
on any faults that exist at the time of the delivery of the heater. It
will be understood that the appliance always conforms with and
meets the following requisites:
The guaranteed appliance will correspond to those that have been
expressly destined by the manufacturer for sale and installation,
following all the current and applicable regulations. It will comply
with the description given by ROINTE in the catalogues, web,
instruction and installation manuals. It will be suitable for use in
a manner typically applied to appliances of the same type. It will
offer the quality and expected performance of appliances of the

17
same type. The failure of any of the above that occur within the first
six months after the purchase invoice date, the warranty date, or
the completed guarantee card date, is assumed, unless proved to
the contrary, to have existed at the moment of delivery. After this
period, up to the end of the two year period, it will be up to the user
to prove that any appearance of failure to conform to the requisites
existed at the time of the delivery of the apparatus.
In addition, the guarantee covers during both years from the date
of purchase the cost of those components that are replaced by
Rointe’s Official Technical Assistance Service.
In addition the electric water heater is a guaranteed for 7 years
from the date of purchase, provided that an annual inspection of the
condition of the magnesium anode is made by the Official Technical
Assistance Service and it is replaced when there is excessive erosion.
Remember that while the heater is being repaired or replaced, the
period during which you can excercise your rights with the seller,
and those that are offered in addition by ROINTE’s heater guarantee,
will be temporarily suspended until the repaired or substitue heater
is delivered, from which time the unused guarantee period will be
available, with a minimum period of 6 months in all cases.
EXCEPTIONS: The following cases state exceptions from the present
guaranteed cover, for which all repairs will be charged to the user:
Damage caused deliberately through negligence or wrong use of
the water heater by the client or third parties.
The failures produced by chance causes, strong forces (atmospheric
or geologic phenomena) and generally the failures caused by
elements that don’t belong to the heater.
Faults thatresultfrom anincorrectinstallation orlackofmaintenance

18
SYGMA
of the heater, made by a professional without the necessary
qualification. Guidance can be found within the recommendations
for installation and use as found in the installation manual and in
the instruction booklet.
Corrosion caused by direct exposure to salt water is excluded from
the guarantee. When the product is installed no more than 200m
from the coast the guarantee for damages caused by corrosion the
period will be reduced by 50%.
Aesthetic wear and tear produced by use, the cleaning of limescale
accumulation, revision and substitution of the magnesium anode
as well as other operations of maintenance of the heater.
All heaters must be installed in a way that allows access for our
technicians. The user is responsible for any costs and organization
required to provide access to the heaters for their repair and/or
substitution.
VERY IMPORTANT: in order to be covered by this guarantee, it
is essential that the user can prove to the guarantor’s Official
Technical Assistance Department the date of purchase by means
of the invoice or ticket emitted by the seller of the heater and the
certificate of guarantee. In the case of heaters supplied in newly
built premises, it is sufficient to prove the date of availability of the
heater to the user.
If your ROINTE radiator needs to be sent to the guarantee
service, contact the dealer / installer where it was purchased.
In the event of any problems, you can contact ROINTE on its
TECHNICAL ASSISTANCE HELPLINE 01432 598 024 or e-mail us at
[email protected].

19
European Directive (WEEE) 2012/19/EU
Under the European Directive 2012/19/EU on waste electrical and electronic
equipment (WEEE), the apparatus cannot be disposed in the usual council
bins and containers. They must be separated to optimize the recovery and
recycling of all of the components and materials and reducing the impact
to human health and the environment. The symbol of the container crossed
out over a horizontal line marks all of ROINTE’s products to remind the
consumer of the obligation to separate them on disposal.The consumer
should contact the local authority or original point of sale to learn more
about the correct disposal of this product.
7.2. Cancellation of the present guarantee
This guarantee will be annulled and therefore without any effect,
if the heater has been manipulated, modified or repaired by
unauthorized people or technical services that are not official with
regards to the brand. It will also be annulled if the heater is not
correctly installed with security fittings and the suitable protective
sockets.

20
SYGMA
8. DIMENSIONS AND TECHNICAL CHARACTERISTICS
REFERENCE
SWN050DHW2 SWN075DHW2 SWN100DHW2 SWN150DHW2 SWN200DHW2
CAPACITY (L)
50 75 100 150 200
POWER (W) 230V~
1,600 2,000 2,000 2,000 2,400
HEATING ELEMENTS
2 x 800 W 2 x 1,000 W 2 x 1,000 W 2 x 1,000 W 2 x 1,200 W
THERMAL LOSS
kW in 24h.
at 65°C 1.1 1.2 1.4 1.9 2.3
PLACEMENT
Vertical Vertical Vertical Vertical Vertical
WATER INTAKE (inches)
1/2” 1/2” 1/2” 3/4" 3/4"
EMPTY WEIGHT (kg)
18 25 32 44 56
DIMENSIONS (mm)
A 640 860 1,100 900 1,070
B 680 900 1,150 960 1,120
C 404 404 404 580 580
D 404 404 404 580 580
E 420 420 420 620 620
F 120 120 120 178 178
G 340 573 768 595 685
H 130 142 192 250 250
I 470 715 960 845 935
J 160 160 160 235 235
K 350 350 350 350 350
EAN CODE
8436045911926 8436045911933 8436045911940 8436045911957 8436045911964
D
K
B
A
J
C
F
E
I
G
H
