Rok 150-85-50401 User manual

43cc 6 in l Combination Petrol
Garden Kit
1Ei-Gi5.5r:+ar
INSTRUCTION MANUAL
,i\
#J Wrrning: Fon your personal safeEy,
READ and UNDEFISTAND before using.
SAVE THESE INSTBUCTIONS FOFI FUTUFIE FIEFEFIENCE
Made in china A C €

-

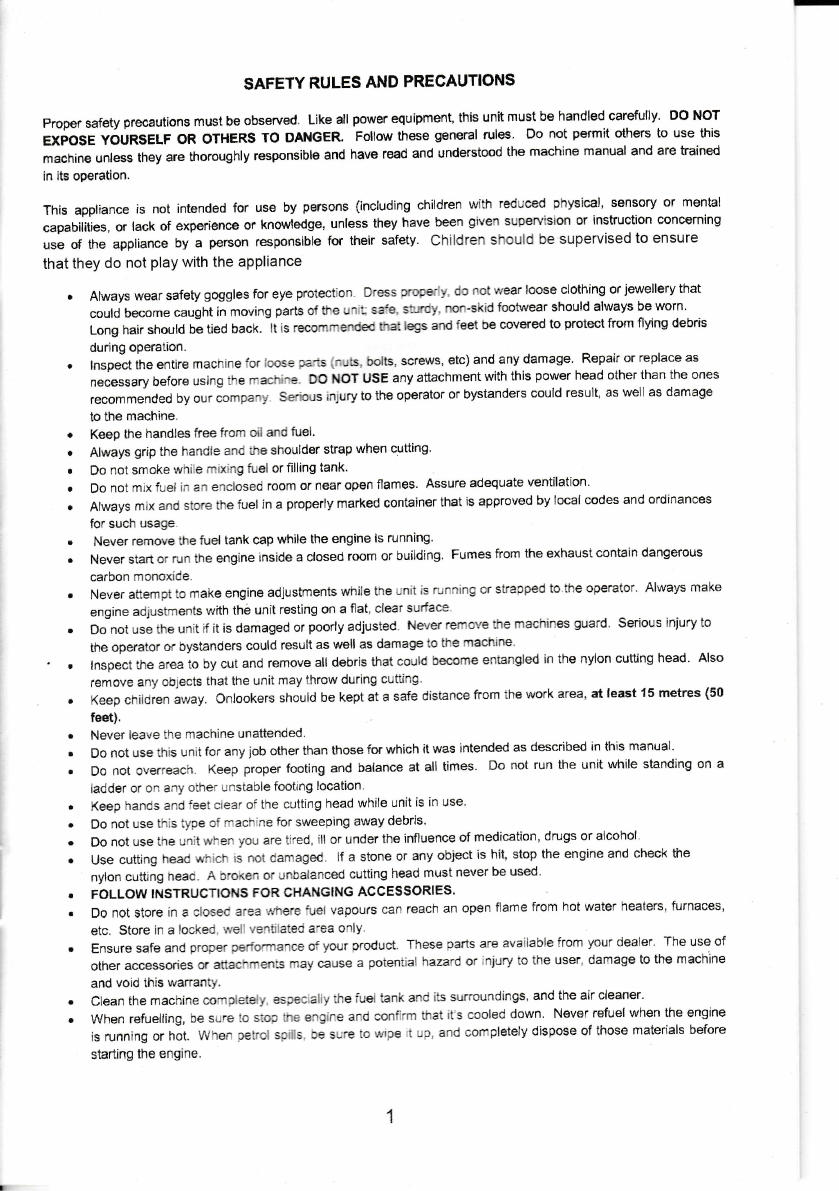

SAFETY RULES AND PRECAUTION$
proper safety precaulions must be observed. Like all power equipment, this unit must be handled carefully' DO NOT
EXPOSE YOURSELF OR OTHERS To ON{GER. Follow these general rules' Do not permit others to use this
machine unless they are thoroughly responsible and have read and understood the machine manual and are trained
in its operation.
This appliance is not intended for use by persons (including children with rec;ced chysical' sensory or mental
capabiiities, or lack of experience or knowledge, unless they have been giver suOervlston or instruction concerning
use of the appliance by a person responsibte for their safety. Children sicu d be supervised to ensure
that they do not play wiih the appliance
r Always wear safety goggles for eye protect'on Dress ro:e-;i d: not vlear loose clothing or jewellery that
could become "rrgi'1 in moving parts of tre lr'- sa'e. s::'cy. nor-skiC footwear should always be worn'
Longhairshouldbetiedback. ttis!-ec,3.rii--3.oectla:tegsa,rdfeetDecoveredtoprotectfromflyingdebris
during oPeration.
r lnspect the entire machine .or lccse t€iS ,-uiS. Dolts, screws, etc) and any damage. Repair or replace as
necessary before uslng :he rr- aci" ^: DO NOT USE any attachment with this power head other than ihe ones
recommended by our ccmpa^y. Se-lous ia;ury to the operator or bystanderE could resuit, as well as damage
to the machine.
. Keep the handles free from ori ano tuel.
r Always grip the handle anc ',lre snoulder strap when cutting'
r Do not smoke w"li,e i'' x ng fuel or fllling tank'
r Donotmjxfuei irareiciosedroomornearopenflames. Assureadequateventilation.
r Always mix and sto!.e tFe fuel in a properly marked container that is approved by local codes and ordinances
for such usaEe
r Never remove :he fuel tank cap while the engine is running'
. Never stan or run ihe engine inside a closed room or buiiding. Fumes from the exhaust contain dangerous
carbon mcnoxiCe.
. Neverattempticmakeengineadjustmentswhjletne;nitisr'-rningcrst,'aopedtotheoperator, Alwaysmake
engine adjustrents with the unit resting on a flat, clear surface
. Do not use ll-e unit if it is damaged or poorly adjusted Never rerc'.'e :he rnachines guard Serious injury to
the operai.or'oi bystanders could result as well as damage 1'o il"e tacr'ine'
. r lnspect r.F,e aiea to by cui and rernove all debris that corrlc become enlangled in the nylon cutting head' Also
remove any oblects that the unii may lhrow during cuti'ing'
. Keep chiicren away. Onlookers should be kept at a safe distance from the work area, at least 15 metres (50
feet).
. Never leave lhe machine unattended
. Do not use rhis unit for any.iob otherthan thoseforwhich itwas intended as described in this manual'
. Do not cverfeacr. Keep proper footing and balance at all times. Do not run the unit while standing on a
ladder or or a,ly o:hei "-nstable footing location
r Keep hancs ana 'eel ctear oi the cutting head while unit is in use'
. Do not use t',s ii'ce :f r-achrne for sweeping away debris'
. Do not use ..,re !^:t wler you are ti:ed, ill or under the influence of medication, drugs or aicohol'
. Use cuttjng head ,!r cl- r:. not can agec. if a stone or any obiect is hit, stop the engine and check the
nylon cutting neac. A c:o(en or.-rnbalanced cutting head mustneverbe used'
. FOLLOW INSTRUCTIONS FOR CHANGING ACCESSORIES'
Do not store in a cLosec ai.3a .^,,here 'uei vapours can reach an open flame from hot water heaters, furnac€s,
etc. Store in a locked. we; venii ated a'ea only
Ensure safe and pioper cefc'.rarce cf your crodu^t, These 3arts are avallable from your dealer' The use of
otheraccessoriesoraliac--en:sFiayc€JSeapoieniial \aza,Cot .rljurytolheuser'damagetothemachine
and void this warraniy.
CleanthemachinecofJie.let,eS'€3ai y:heiuer ..ankancltssurrourdings,andtheaircleaner.
When refuelling, be s".e lc s:ot :rE er!,rg 316 conf''nr trat rts ccoled down. Never refuel when the engine
is running or hot. Wner c€lrol scii,s. f,e si-!'e rc rirr3e i ;r. and completely dispose of those materials before
starting lhe engine.

a
I
a
a
a
When approaching an operator of a machine, carefully call his or her attention and confirm that the operator
has stopped the engine. Be careful not to startle or distract the operator which can cause an unsafe situation.
Never touch the cufting head when the engine is running. lf it is necessary to adjust the prctector or
cutting head, be sure to stop the engine and confirrn that the cutting head has stopped running.
The engine should be turnec oFf 'r.,ren tle nachine is moved between work areas.
Be careful not to hit ihe crtting read aga'rsi stones or the ground. Unreasonable rough operation will
shorted lhe life of the machine as i+ell as create an rrsafe environment for yoursetf and those around you.
Pay attention to loosening and ove,'hea:irg of tarts if there is any abnormality, of the machine, stop
operation immediately and check the mach "e carefui'y. lf necessary, have the machine serviced by a dealer.
Never continue to operate a machine which may be matiJnctoning.
ln stad-up, or during operation of the engine, never :cuc1 1ot pads such as the muffler, spark plug or
surounding areas.
After the engine has stopped, these areas are stilt hot. Never piace the machinery in any places where there
are flammable materials (dry grass, etc), combustible gasses, or cornbust ble liquids.
Pay special attention operation in the rain or just after rain, as the grounc may be slippery.
lf you slip and fall onto the ground or into a hole, release the throttle lever immediately.
Be careful not to drop the machine or hit it againsl obstacles.
Before starting to adjust or repair the machine, be sure to stop the engine and remove the spark plug.
When the machine is piaced in storage for a long time, drain the fuel from the tank and carburettor, clean the
parts. move the machine to a safe place, and confirm that the engine is cooled down.
Make periodic inspections to ensure safe and efficiert oceration. For a thorough inspection of your machine,
please contact a mower shop,
Keep the machine away from fire and sparks.
GRAPHIC WARNINGS
Because a trimmer is a high speed, fast cutting power tool, special safety pre?a.rtion must be observed to reduce the
risk of personal injury. Read this manual carefully. Be familiar with the controls and the proper use of this unit. Know
how to shut it off.
o Waming.
. Read the inslruction manual.
. Wear eye protoction, ear muffles and helmet.
r Wearfoot protection.
. Wearglove to protect your hands.
. Belvare of foot injJry by t'lm:'-rrg irne.
.' Beware of thrown objects hii by cutiing attachment.
Never use dithout properly rnounied guard.
' Do not use blade.
r Keep at least I 5m away from any other p€rson-
o Trirnming line in motion is dangerous and will harm the body if it connects with you.
. Extremely hot surface. Do not touch a hot muffler, gear box or cylinder, you may get burned. These pa(s
get extremely hot from operation and remain hot for a short time afler the unit is turned off.
A
./.\
o
@
@
s
A
A
@
A
A
A
L- AAlways TURN OFF ENGNINE and make sure the cuttiog tool has stopped befo.e cleaning, removing or adiusting
trimming line.
WARNINGI Never modify a kimmer in any way.
lmproper use of the machine can cause SERIOUS OR
FATAL PERSONAL ]NJURY.
WARI{ING! The engine exhaust form this product conlains chemicals to cause cancer. bi(h defects, of other
reproductive harm, simiiar to an aulomobile.
2

Never modify your 6 in1 Petrol Garden Kit for any purpose other than what has been
stated in this manual.
ON THE MACHINE
For safe operation and maintenance, symbols are carved on the
machine.
According to these
lndications, please be careful not to make a mistake
(a).The port to refuel the "MIXED PETROL"
Position: FUEL TANK CAP
BEFORE STARTING THE ENGINE
o Make sure that no persons cr animais are r^,,ithin your work area when you start working.
r Make sure there are no obstacies tn your'*ork area,
r Ensure that your machtne has been fully and properly assenrbled.
r Check that the machine works properiy and make sure, in particular, that the chain rail or
hedge trimmer head sits tightly and properly, and that the On/Off switch works properly. Do
not operate the machine with a damaged or extensively worn cutting device.
o The machine will vibrate during operation. This may cause its screws and parts to loosen.
Therefore, check all screws and parts for tightness'
USING THE PRODUCT
IMPORTANT!
Cut only materials recommended by the manufacturer. And use only for tasks explained in
the manual.
e Keep bystanders and animals at ieast 1 5 m away from the operating point. lf you are
approached, immediately stop the engrne.
r Grip the handles firmly ''vith both rands using your whole hand.
r Assume a firm standing posrtion curing operation:
Make sure you cannot slip orfall over.
Do not stretch your arms toc far in front cf you.
Do not work above shoulder levei.
r After starting the engine, check to make sure that the cutting attachment stops rotating
when the throttle is rnoved fully back to its original position. lf it continues to rotate even
SYMBOLS
m
I
[.

afier the throttle has been moved fully back, turn off the engine and take the unit to the
dealer for repair.
r lf the unit starts to shake or vibrate, turn off the engine and check the whole unit. Do not
use it until the trouble has been properly conected-
r Keep all parts of your body away from rotating cutting attachment and hot surfaces.
I Never touch the muffler, spart< plug, or other metallic parts of the engine while the engine
is in operation or immediatety after shutting dwn tTe engine. Doing so could result in
serious burns or electiel shock-
r While the motor is still hot, keep fte mdrine €Inray fom anything flammable, such as dry
grass, debris,leaves or excessive lubricant.
r Before laying down the machine, make sure fte rnotor is tumed offl
r Never work alone!
Make sure you are withln shouting distance or have visual or sther kind of contact with
another person who will be able to provide first aid in an emergency situation.
r Always be aware of your surroundings and stay alert for possible harzards that you may
not hear due to the noise of the machine
r Never operate the pruner at an angle greater than
being struck by falling obiects during operation-
r Avoid operating while people, especially children
G0" in order to reduce the risk of
are nearby.
MAINTENANCE
r ln order to rnaintain your product in proper working order, perform the maintenance and
checking operations described in the manual at regular intervals.
r Atways be sure to turn off the engine and allow to cml before perfonning any
maintenance or checking procedures.
YI'ARNING!
The metallic parts reach high temperatures immediately after stopping the engine
r Use only origlnal replacement parts. Only these spare paris are guaranteed to be
designed and suitable for use with this machine. Using other sPare parts will void your
warranty and may cause danger to yourself and your surroundings.
r ln the event that any part must be replaced or any maintenance or repair work not
described in this manual must be peformed, please contact our servicing dealer for
assistance.
r Under no circumstances should you ever take apart the product or alter it in any way'
Doing so might result in the product becoming damaged during operation or the product
becoming unable to operate properly.
HANDLING FUEL
r The engine is designed to run on a mixed fuel, which contains highly flammable petrol.
Never store cans of fuel or refill the tank of the unit in any place where there is a boiler,
stove, wood fire, electrical sparks, welding sparks, or any other source of heat or fire which
might ignite the fuel.
o Never smoke while operating the unit or refilling its fueltank'
r When refilting the tank, always turn off the engine and allow it to cool down, Take a
careful look around to rnake sure that there are no sparks or open flames anywhere nearby
before refueling.
r Wipe spitled fuel completely using a dry rag if any fuel spillage occurs during refueling.
r After refueling, screw the fuel cap back tightly onto the fueltank and then carry the unit to
a spot 3 m or more away from where it was refueled before turning on the engine.

TRANSPORT AND STORAGE
. When you finish cutting in one location and wish to continue work in another spot, turn off
the engine, lifi up the unit and carry it paying attention to the blade.
r When transporting or storing the machine always fit the cutting device guard or guide bar
cover.
r When hand-carrying the product, cover over the cutting part if necessary Iift up the
product and carry it paying aftention to the blade.
r Never transport the product over rough roads over long distances by vehicle without
removing all fuel from the fueltank. lf doing so, fuel might leak from the tank during
transport.
r Protect the machine from damage when transpofting it.
KICKBACK SAFEW PRECAUTIONS FOR CHAIN SAVI' USERS
WARNlttlG!
{1} Kickback may occur when the nose or tip of the guide bar touches an obiect, or
when the wood closes in and pinches the saw chain in the cut. Tip contact in some
cases may cause a lightning fast reyerse reaction,kicking the guide bar up and back
towards the operator. Pinching the saw chain along the top of the guide bar may push
the guide bar rapidly back towards the operator. Either of these reaetions may cause
you to lose control of the saw, which could result in serious personal injury.
{2} Do not rely exclusively on the safety devices built into your saw. As a chain saw
user you should take several steps to keep cutting jobs free from accident or injury.
o With a basic understanding of kickback you can reduce or eliminate the element of
surprise. Sudden surprise contributes to accidents.
r Keep a good grip on the saw with both hands, the right hand on the rear handle, and the
left hand on the front handle, when the engine is running, Use a Erm grip with thumbs and
fingers enclrcling the chain saw handles. A firm grip will help you reduce kickback and
maintain control of the saw.
r Make certain that the area in which you are cutting is free from obstructions. Do not let
the nose of the guide bar contaci a log, branch, or any other obstruction which could be hit
while you are operating the saw.
o Cut at high engine speeds.
r Follow the manufacturer's sharpening and maintenance instructions for the saw chain.
r Only use replacement bars and chains specified by the manufacturer or the equivalent.
TfVARNING!
Make sure the chain and guide bar are correctly adjusted before operating the
equipment . Never attempt chain adjustment with the engine running!
r Always make sure the cutting attachment is properly installed and firmly tightened before
cperation.
r Never use a cracked or warped guide bar: replace it with a serviceable one and make
sure it fits properly.
r lf a saw blade bind in a cut, shut off the engine immediately. Push the branch or tree to
ease the bind and free the blade.
r Do not operate the pole pruner with the muffler removed.
r When cutting a limb that is under tenslon, be alert for spring back so that you will not be
struck by the moving limb.
r Always stop the engine immediately and check for damage if you strike a foreign object or
if the machine becomes tangled. Do not operate with broken or damaged equipment.

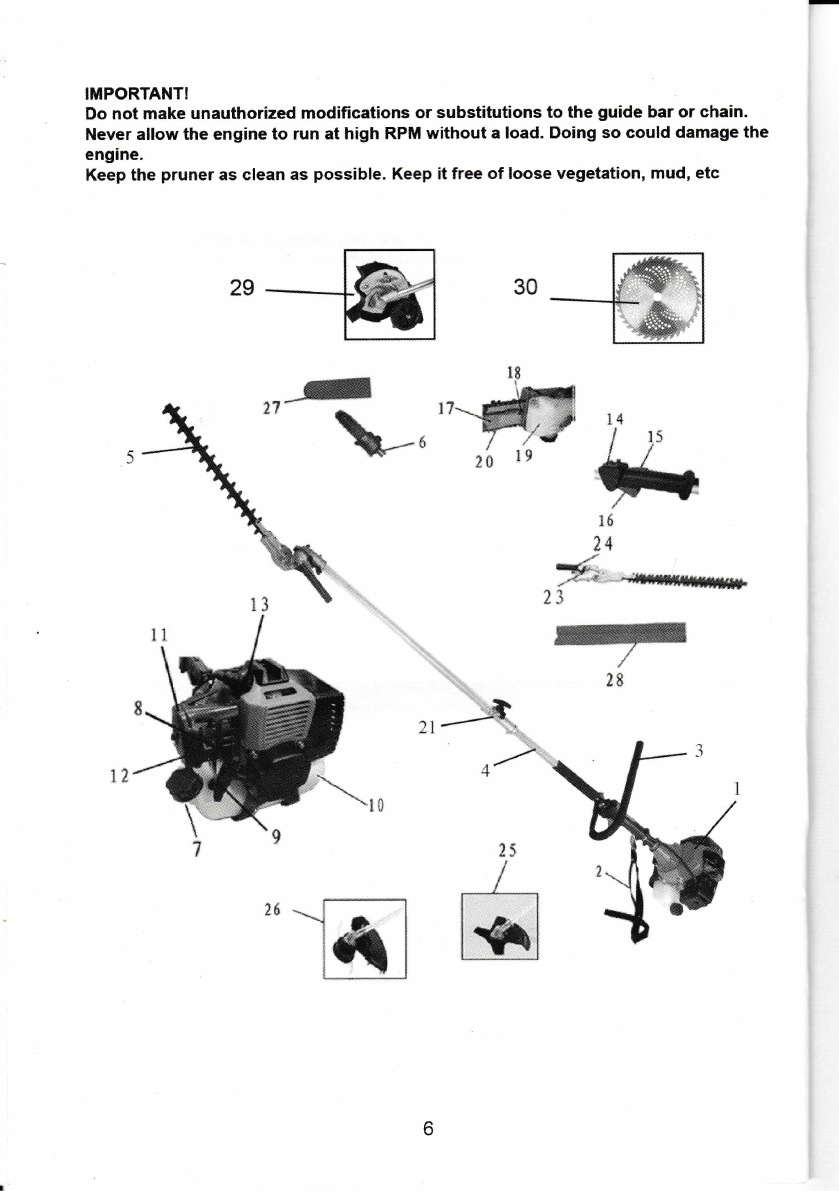

IMPORTANT!
Do not make unauthorized modifications or substitutions to the guide bar or chain.
Never allow the engine to run at high RPM without a load. Doing so could damage the
engine.
Keep the pruner as clean as possible. Keep it free of loose vegetation, mud, etc
,,
4

1 Engine unit
2 Shoulder strap
3 Handle
4 Main shaft
5 Hedge trimmer head assy
6 Chain saw head assy
7 Fueltank cap
8 Primer bulb
9 Starting handle
10 Fueltank
11 Air filter
12 Choke
13 Spark plug cap
14 Switch
ACCESSORIES
r Hexagonalwrench
15 Throttle lock
16 Throttle
17 Guide bar
18 Chain adjusting screw
19 Oiltank
20 Saw chain
21 Joiner Clamp
23 Hedge Trimmer adjusting handle
24 Hedge Trimmer adjusting handle lock
25 Brush cutter head assy ( metal blade)
26 Trim line cutter head assy(nylon cutter)
27 Chain saw bar cover
28 Hedge Trimmer blade cover
29 EdgerAttachment
30 Branch Cutter Blade 407
o Pole chain saw head assy ( include attachment tube)
o Oil bottle
r Pole hedge trimmer head assy ( include attachment tube)
o Screw driver
o Spanner
o Owner's manual
o Brush cutter head assy(include attachment tube)
o Tri blade for brush cutter
r Trimming line head
SET UP THE EQUIPMENT
JOINT ATTACHMENT
1 Press the lock lever down.
2 lnsert the attachment to the main shaft. Fix the lock lever into the hole;
=l=l':: :::ii_:::==:-
€s:
--=€
iii
']r*
"t =tk= -:r.C:::=.
!

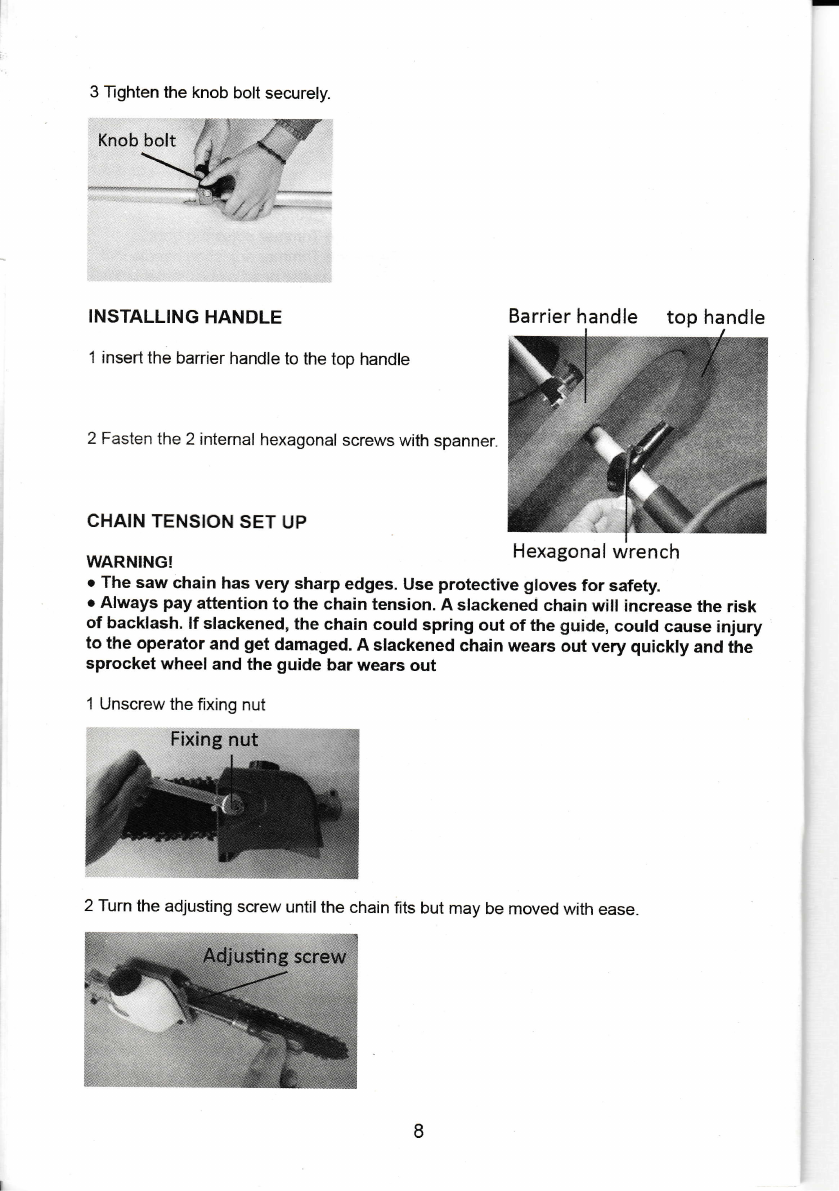

3 Tighten the knob bolt securely.
Knob bolt
INSTALLING HANDLE
1 insert the barrier handle to the top handle
2 Fasten the 2 internal hexagonal screws with spanner
CHAIN TENSION SET UP
WARNING!
Barrier handle top handle
r The saw chain has very sharp edges. Use protective gloves for safety.
r Always pay attention to the chain tension. A slackened chain will increase the risk
of backlash. lf slackened, the chain could spring out of the guide, could cause injury
to the operator and get damaged. A slackened chain wears out very quickly and the
sprocket wheel and the guide bar wears out
1 Unscrew the fixing nut
2 Turn the adjusting screw untilthe chain fits but may be moved with ease
Hexagonal wrench
Fixing nut =
=*B+

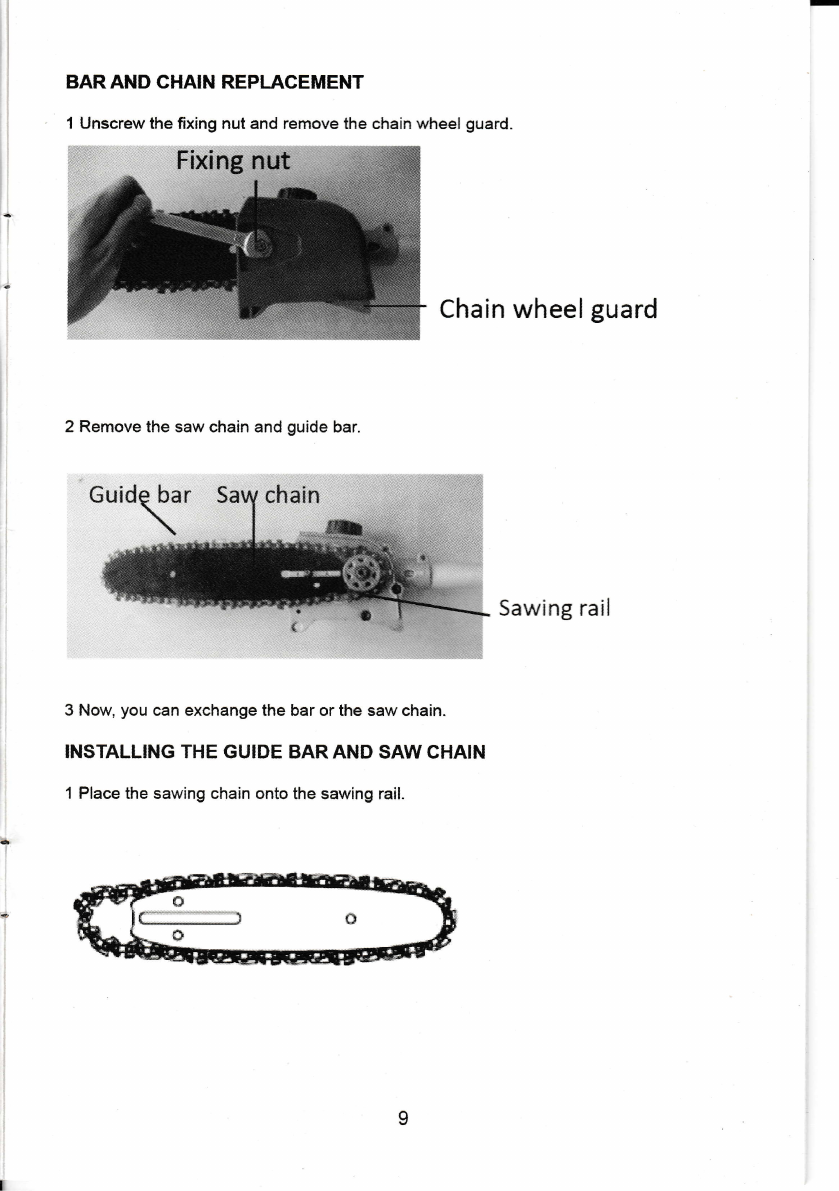

BAR AND CHAIN REPLACEMENT
1 Unscrew the fixing nut and remove the chain wheel guard.
2 Remove the saw chain and guide bar.
3 Now, you can exchange the bar or the saw chain.
IN$TALLING THE GUIDE BAR AND SAW CHAIN
1 Place the sawing chain onto the sawing rail.
Chain wheel guard
Sawing rail

2 Position the guide bar so that the chain tensioning studs project into the guide bar,.
Ensure that the saw chain runs in the correct direction!
tensioning studs
3 Attach the chain wheel protection and then tighten the fixing bolt lightly.
Chain wheel guard
4 Tighten the tensioning screw.
5 Tighten the fixing nut.
NOTE!
The chain should not sag, but it should be possible to pull it a few millimetres away from the
saw rail and may be moved with ease.
cha in
10

CHANGE THE EQUIPMENT FROM ONE ATTAGHMENT TO ANOTHER:
The process is the same for all attachment
1 insert the attachment into the rnain shafi. Rotate the shafi of attachment slightly and let
lock lever fix into its hole.
,h, LW
'rlii***
-""']_=E:l- -*:]il;;-i+i &*.,,.,.-^_
2 Press the safe guard plate down and then tighten the knob bolt securely
i:
-
OPERATION:
BEFORE OPERATIOIII CHECKS
Warning!
For your safety, and to maximize the service life of your equipment, it is very
important to take a fe* momenb hefore you operate the engine to eheck its
eondition. Be sure to take care of any problem you find, or have your servicing dealer
correct it.
Before beginning your preparation checks, be sure the switch is in the OFF position.
Always check the following iterns before you start the engine:
r Cutting head conect mount
r Switches easy operation
11

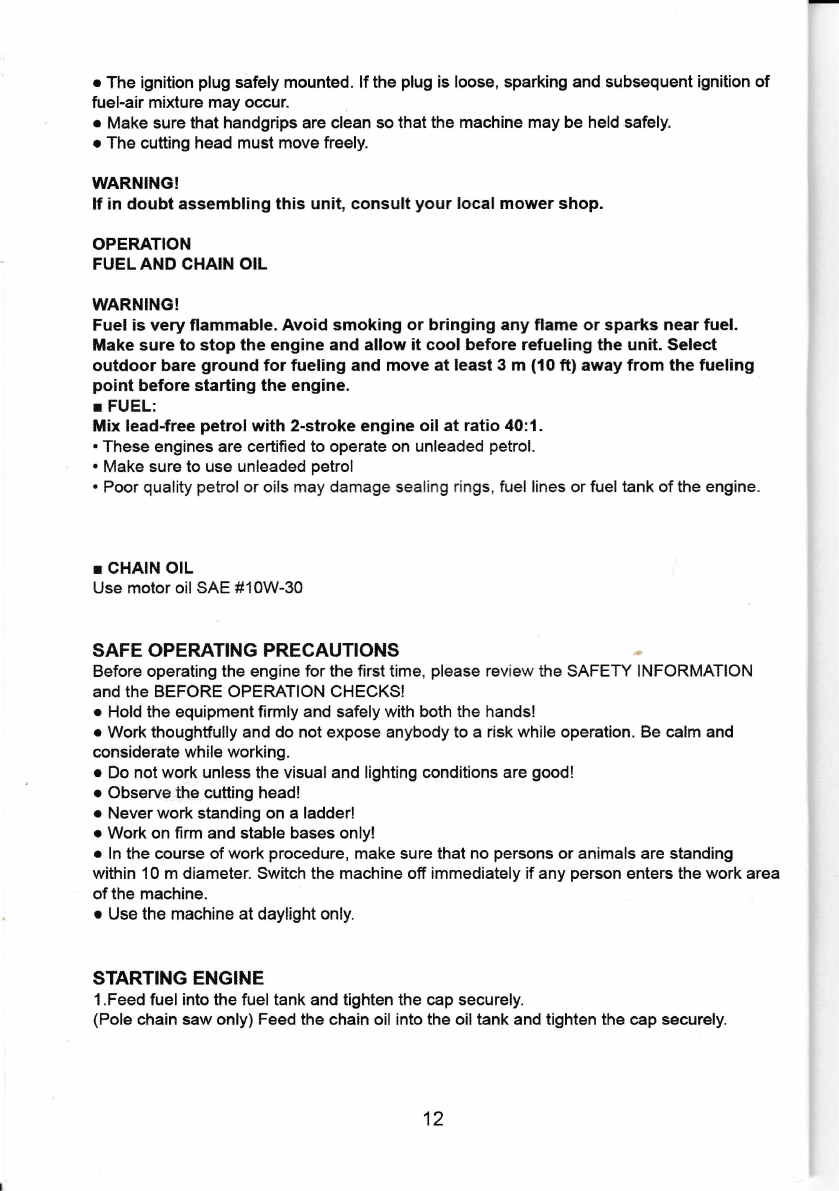

. The ignition plug safely mounted. lf the plug is loose, sparking and subsequent ignition of
fuel-air mixture may occur.
e Make sure that handgrips are clean so that the machine may be held safely.
r The cutting head must move freely.
WARNING!
If in doubt assembling this uni! consult your local mower shop.
OPERATION
FUEL AND CI{AIN OIL
WARNING!
Fuel is very flammable. Avoid smoking or bringing any flame or sparks near fuel.
Make sure to stop the engine and allow it cool before refueling tre unit. Select
outdoor bare ground for fueling and move at least 3 m {10 fr} away from the fueling
point before starting the engine.
r FUEL:
Mix lead-free petrol with 2-stroke engine oil at ratio 40:1.
. These engines are certified to operate on unleaded petrol.
. Make sure to use unleaded petrol
. Poor quality petrol or oils may damage sealing ri*gs, fuel lines or tuel tank of the engine,
r GHAIN OIL
Use motor oil SAE #10W-30
SAFE OP=RATING PREGAUTION$
Before operating the engine for the first time, please review the SAFETY INFORMATION
and the BEFORE OPERATION CHECK$!
r Hold the equipment fimly and safely with both the hands!
r Work thoughtfully and do not expose anybody to a risk while operation. Be calm and
considerate while working.
r Do not work unless the visual and lighting conditions are good!
r Observe the cutting head!
r Never work standing on a ladder!
r Work on firm and stable bases only!
r ln the course of work procedure, make sure that no persons or animals are standing
within 10 m diameter. Switch the machine off immediately if any person enters the work area
of the machine.
r Use the machine at daylight only.
STARTING ENGINE
1.Feed fuel into the fuel tank and tighten the cap securely.
(Pole chain saw only) Feed the chain oil into the oiltank and tighten the cap securely.
12

2.Rest the unit on a flat, firm place. Keep the cutting head off the ground and clear of
surrounding objects, as it will starl rotating upon starting of the engine.
3.Press the primer bulb several times until the overflowing fuel flows out in the clear tube.
4.Move the choke lever to the closed positron.
Choke lever
Itl oN Posirion (CLOSED)-Fully Up
*
ll I oFF Position(oPEN)-Fully Down
5.Set the
Switch
switch to the "START" position. Press down the throttle lock"
IMPORTANT!
Place the unit on a flat, firm place.
Keep the cutting head clear of everything around it.
..,
on/off
13

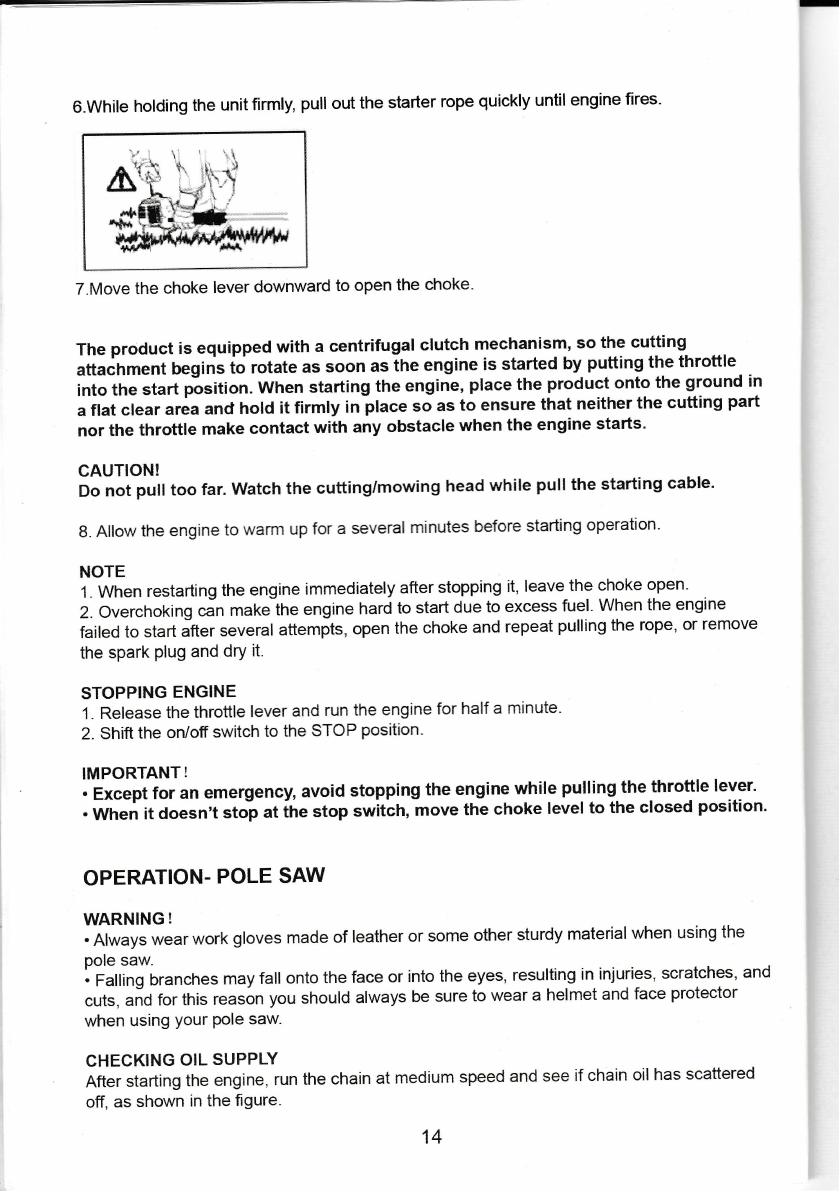

6.While holding the unit firmly, pull out the starter rope quickly until engine fires-
7-Move the choke lever downward to open the choke-
The product is equipped with a centrifugal clutch mechanism' so the cutting
aftachment begins to rotate as soon as the engine is started by putting the throttle
into the start pLsition. When starting the engine, place the product onto the ground in
a flat clear area and hold it firmly in ptace so as to ensure that neither the cufting part
nor the throttle make contact with any obstacle when the engine starts.
CAUTION!
Do not pull too far. Watch the cutting/mowing head while pullthe starting cable.
g. AIlow the engine to warm up for a several minutes before starting operation-
NOTE
1. When restarting the engine immediately after stopping it, leave the choke open.
2. Overchoking can *"k" th" engine hard to start due to excess fuel- When the engine
failed to start after several attempts, open the choke and repeat pulling the rope, or remove
the spark plug and dry it.
STOPPING ENGINE
1. Release the throttle lever and run the engine for half a minute-
2. Shift the on/off switch to the STOP position-
IMPORTANT !
. Except for an emergency, avoid stopping the engine while pulling the throttle lever-
. When it doesn,t stJp at itre stop switch, move the choke level to the closed position.
OPERATION- POLE SAW
WARNING !
. Always wear work gloves made of leather or some other sturdy material when using the
pole saw.
. faling branches may fall onto the face or into the eyes, resulting in injuries, scratches, and
cuts, and for this r""son you should always be sure to wear a helmet and face protector
when using your Pole saw.
CHECKING OIL SUPPLY
After starting the engine, run the chain at medium speed and see if chain oil has scattered
off, as shown in the figure,
14

-
NOTE I
The oil reseruqir has a capaeity suffident to provide about 4CI minutes of cutting time (when
set to deliver the minimum flew rate, or about as long as you'll get *am a tank of fuel)- Be
sure to reftll the oiltank every time when refueling the saw.
ADJUSTII.IG OIL FLOW RATE
WARNIHG !
Never fill the oil reservoir nor adiuet the oiler with the engine running.
An increase in har oil flow rate will speed oil consumption, requiring more frequent
checks on the oil reservoir, To ensure Eufficient lubrication, it may be necessary to
check the oil level msre frequently than at fuel tank refills,
The guide ber and chain are lubricated automatically by a pump that operates
whenever the chain rotatee. The pump is set at the factory to deliver a minimum flow
rate, but it can he adjusted in the field. A temporary increase in oil flow is often
desirable when cutting things like hardwood or wood with a lot of pitch.
Adjust the pamp as Ecllqre:
't. Stop the engine and make sure tfc onloff swit* b in t.te OFF position.
2. Place the unit on its $de wi8t the oil reservoir up.
3. With a screwdriver, push in on the oilfisw rate djusting sctely a*d tum in the desired
direction
IIIIPORTANT !
The oil flow adiusting screw must be pressed in slightly in order to turn. Failure to do
sc could damage the pump and screw.
OPERATIO]II- POLE HEDGE TRIT/ITIIER:
T'YARNING!
This prodsct is equipped with extremely sharp blades, and when used irnproperly
these blades can be extremely dangerous and improper handling can cause
accidents, which may in turn leed to serious iniury or desth. For this reason, you
15
ffi

should always be careful to follow the following instructions when using your
trirnmer.
. Never hold the trirnmer in a way in which the blades are pointed towards someone else.
. Never aHow the blades to come into proximity with your body while the engine of the
trimmer is in operation.
. Atways be sure to turn off the engine before changing t.h* angle cf the blades, rernoving
branches which have become stuck in the blades, or at any oiher iime when corr:ing into
close proximity with the blades.
. Always wear work gloves made of leather or some other sturdy material wh*n using the
trimmer.
" Always place the blade cover provided with the trimmer over the blades when not in use.
' Fatling branches may fall onto the face or into the eyes, resulting in injuries, scratches, and
cuts, and for this reason you should always be sure to wear a helmet and fa*e protector
when using your trimmer.
IMPORTANT
The thickness of branches, which may be eut using this trimmer, is limited to up to
approximately 3116" (5 mm|. Never try to cut branches thicker than this, as doing so
may result in damage to the trimmer.
ADJUSTING NGLE OF THE CUTTING BLADES
1. Stop the engine.
2. Lift the tock lever and press dawn the adjusting lever.
3, Adjust the angle of the blades to the desired angle and release leverE,
OPERATION FOR BRUSH CUTTER
To turn the machine off, the switch has to be in "STOP" position.
. Do not mow at times of generally recognized rest.
. Any hard objects - stones, metal parts etc. - have to be removed. They should be thrown
away as they may cause personal or material damage.
. Working in high shrubs or bushes, the working height must be 15 crn as a minimum.
Grass Mowing
-Working on grass areas, hold the unit at an angle of 30"and make semicircle turns lo the
left and right.
The best results are achieved with grass 15 cm high. lf it is higher it is recommended tc
?HE A
r
16
+

I
I
I

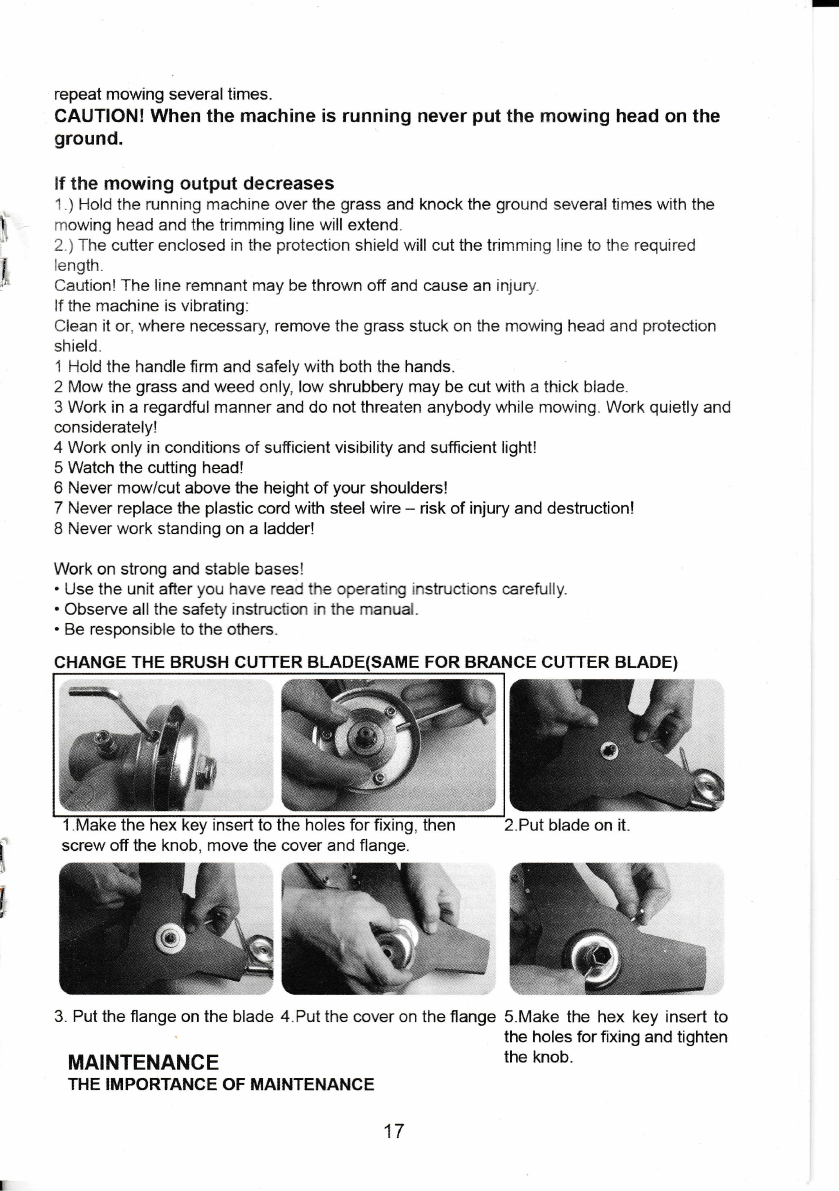

repeat mowing several times.
CAUTION! When the machine is running never put the rnowing head on the
ground.
lf the mowing output decreases
-1.) Hold the running machine over the grass and knock the ground several times with the
mowing head and the trimming line will extend.
2 )The cutter enclosed in the protection shield will cut the trimming line to the required
iength.
Caution! The line remnant n'ray be thrown off and cause an injury
lf the rnachine is vibrating:
Clean it or, where necessary, remove the grass stuck on the rnowing head and protection
shield.
1 Hold the handle firm and safely with both the hands.
2 Mow the grass and weed only, low shrubbery may be cut with a thick blade.
3 Work in a regardful manner and do not threaten anybody while mowing. Work quietly and
considerately!
4 Work only in conditions of sufficient visibility and suffieient lightl
5 Watch the cutting headl
6 Never mow/cut above the height of your shoulders!
7 Never replace the plastic cord with steel wire - risk of injury and destructionl
B Never work standing on a ladder!
Work on strong and stable bases!
. Use the unit after you have read the operating rnstructions carefully.
. Observe allthe safety instruction in the manual.
. Be responsible to the others.
CHANGE THE BRUSH CUTTER E FOR BRANCE CUTTER BLADE)
tng,
screw off the knob, move the cover and flange
t
i
,
3. Put the flange on the blade 4.Put the cover on the flange
MAINTENANCE
THE IMPORTANGE OF MAINTENANCE
S.Make the hex key insert to
the holes for fixing and tighten
the knob-
2.Put blade on it-
17

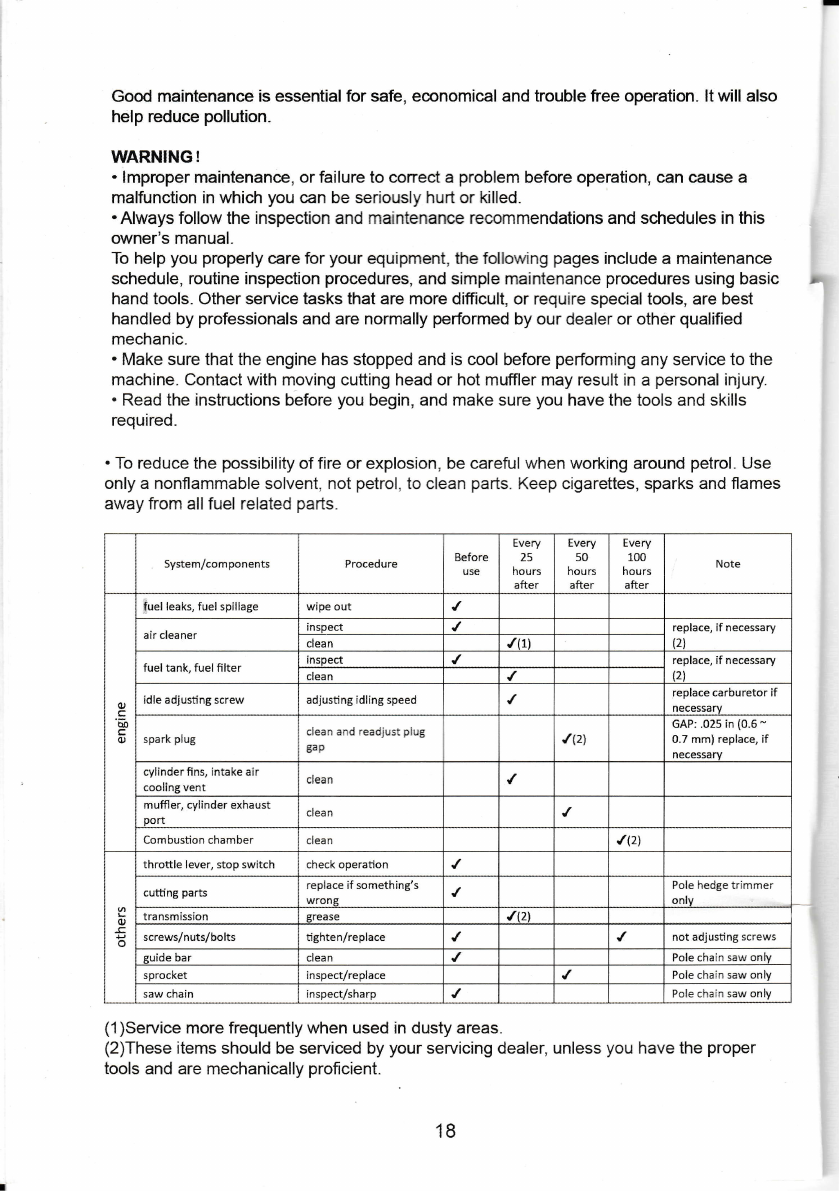

Good maintenance is essential for safe, economical and trouble free operation. lt will also
help reduce pollution.
WARNING !
. lmproper maintenance, or failure to conec.t a problem before operation, can cause a
malfunction in which you can be seriously hurt or killed.
. Always follow the inspection and maintenance recommendations and schedules in this
owner's manual.
To help you properly care for your equipment, the following pages include a maintenance
schedule, routine inspection procedures, and simple maintenance procedures using basic ,
hand tools, Other service tasks that are more difficult, or require special tools, are best
handled by professionals and are normally performed by our dealer or other qualified
mechanic.
. Make sure that the engine has stopped and is cool before performing any service to the
machine. Contact with moving cutting head or hot muffler may result in a personal injury.
. Read the instructions before you begin, and make sure you have the tools and skills
required.
. To reduce the possibility of fire or explosion, be careful when working around petrol. Use
only a nonflammable solvent, not petrol, to clean parts. Keep cigarettes, sparks and flames
away from all fuel related parts.
System/com ponents Procedure Before
use
Every
25
hours
after
Every
50
hours
after
Every
100
hours
after
Note
qJ
'ao
c
0,
fuel leaks, fuel spillage wipe out
air cleaner inspect Ireplace, if necessary
{2)
clean {$l
fuel tank, fuel filter inspect {replace, if necessary
(2t
clean t
idle adjusting screw adjusting idling speed replace carburetor if
necessarv
spark plug clean and readjust ph6
FP t{2) GAP: .025 in (0.6 -
0.7 mm) replace, if
necessarv
cylinder fins, intake air
cooling vent clea n {
muffl er, cylinder exhaust
port clea n I
Combustion chamber clea nt12\
6
g
o
-c
P
throttle lever, stop switch check operation {
cuttint parts replace if something's {Poie hedge trimmer
only
transmission grease {(21
screws/nuts/bolts tighten/replace {Inot adjusting screws
guide bar clean {Pole chain saw only
sprocket inspect/repiace {Pole chain saw only
saw chain inspect/sharp {Pole chain saw only
(1)Service more frequently when used in dusty areas-
(2)These items should be serviced by your servicing dealer, unless you have the proper
tools and are mechanically proficient.
18

ENGINE
AIR CLEANER
The air cleaner clogged, will reduce the engine performance. Check and clean the filter
element in warm, soapy water as required. Dry completely before installing. lf the element is
broken or shrunk, replace with a new one-
SPARK PLUG
Starting failure and misfiring are often caused by a fouled spark plug. Clean the spark plug
and check that the plug gap is in the conect range. For a replacement plug.
Recommended spark plugs: NHSP LD LSRTF or EQUIVALENT BRAND
IMPORTANT!
. Note that using any spark plug other than those designated may result in the engine
failing to operate properly or in the engine becomlng overheated and damaged.
. To install the spark p[ug, first turn the plug until it is finger tight, then tighten it a
quarter turn more with a socket wrench.
Tightening torque: 9.8 - 1{.8 N.m {1 - 1-Z kg.m)
MUFFLER
WARNING!
. lnspect periodicallg the muffler fsr loose fasteners, any damage or corrosion. lf any
sign of exhaust leakage is found, stop using the machine and have it repaired
immediately.
. Note that failing to do so may result in the engine eatching on fire.
Remove the muffler, insert a screwdriver lnto the vent, and wipe away any carbon buildup.
Wipe away any carbon buildup on the muffler exhaust vent and cylinder exhaust port at the
same time.
19
\ r..
<-----:i€*
T
f
S.
I
