ROKAMAT Skate User manual

1) Rokamat Skate (22BG0211)
2) 2014/30/EU, 2006/42/EG, 2012/19/EU, 2011/65/EU,
2001/95/EG, EG No. 1907/2006
3) EN 62841-1:2015/AC:2015, EN 62841-2-4:2014/AC:2015,
EN ISO 12100:2010-11
4) Kammerer GmbH, An der B 10, 75196 Remchingen
Remchingen, 20.01.2022
Beate Kammerer
Head of Technical Documentation
EN
Original Instructions
3
Skate
Art.-Nr. 93000
© Kammerer GmbH. Printed in Germany. Abbildungen unverbindlich.
Technische Änderungen vorbehalten. BA_Skate_EN_001
ROKAMAT
Kammerer GmbH
An der B 10
75196 Remchingen
Deutschland
www.rokamat.com

Skate
2
[1]
6-1
1-1
1-3
1-4
1-6
1-7
[3]
[2]
1-2
[4]
[5]
[6]
[8]
[7]
7-3
7-1
7-2
7-5
4-1
4-2
5-1
1-5
1-8
3-1
3-2
3-3
3-4
4-3
4-4
4-5
7-6
7-4
3-5
0
2-1
I
8-1

Skate en English
3
1. Symbols ......................................................................... 3
2. Safety Instructions .................................................... 3
3. Intended Use ................................................................4
4. Technical Specifications ..........................................4
5. Device Components...................................................4
6. Commissioning............................................................4
7. Instructions for Use...................................................4
8. Working with the Power Tool ................................ 5
9. Maintenance and Care.............................................. 5
10. Spare Parts and Accessories.................................. 5
11. Environmental Protection....................................... 5
12. Declaration of Conformity....................................... 5
13. Troubleshooting ......................................................... 6
For your own protection and for the protec-
tion of your power tool, pay attention to all
parts of the text that are marked with this
symbol!
Risk of electric shock!
Read operating instructions and safety no-
tices! *)
Wear protective goggles! *)
Wear ear protection!
Wear a dust mask!
Disconnect from the power supply!
Two-hand operation *)
Do not dispose of as domestic waste! *)
Important advice/information
Safety class II *)
~ Alternating current *)
Confirms the conformity of the power tool
with the directives of the European Com-
munity. *)
Confirms the conformity of the power tool
with UK legislation. *)
*)These symbols are (also) on the device.
For your safety
Read all safety warnings and instructions.
Failure to follow all safety warnings and in-
structions may result in electric shock, fire
and/or serious injury.
Do not use this power tool before you have
thoroughly read and completely understood
this Instruction Manual and the enclosed
“General Safety Instructions”.
Keep all safety instructions and information for
future reference. Pass on your power tool only to-
gether with these documents.
Please also observe the relevant national indus-
trial safety regulations.
Special Safety Instructions
Safety Warnings common for Grinding:
a] This power tool is designed to be used as a
sander. Read all safety warnings, instruc-
tions, illustrations and specifications pro-
vided with this power tool. Failure to follow all
instructions listed below may result in electric
shock, fire and/or serious injury.
b] This power tool is not suitable for coarse
sanding, sanding with a wire brush and sand-
paper, polishing and abrasive cutting. Ver-
wendungen, für die das Elektrowerkzeug nicht
vorgesehen ist, können Gefährdungen und Ver-
letzungen verursachen.
c] Do not use accessories which are not specifi-
cally designed and recommended by the tool
manufacturer. Just because the accessory can
be attached to your power tool, it does not as-
sure safe operation.
d] The rated speed of the accessory must be at
least equal to the maximum speed marked on
the power tool. Accessories running faster
than their rated speed can break and fly apart.
e] The outside diameter and the thickness of
your accessory must be within the capacity
rating of your power tool. Incorrectly sized
accessories cannot be adequately guarded or
controlled.
f] Threaded mounting of accessories must
match the grinder spindle thread. For acces-
sories mounted by flanges, the arbor hole of
the accessory must fit the locating diameter
of the flange. Accessories that do not match
the mounting hardware of the power tool will
run out of balance, vibrate excessively and may
cause loss of control.
g] Do not use a damaged accessory. Before each
use inspect the accessory such as abrasive
wheels for chips and cracks, backing pad for
cracks, tear or excess wear, wire brush for
loose or cracked wires. If power tool or acces-
sory is dropped, inspect for damage or install
an undamaged accessory. After inspecting
and installing an accessory, position yourself
and bystanders away from the plane of the
rotating accessory and run the power tool at
maximum no-load speed for one minute.
Damaged accessories will normally break
apart during this test time.
h] Wear personal protective equipment. De-
pending on application, use face shield,
safety goggles or safety glasses. Where ap-
propriate, wear dust mask, hearing protec-
tors, gloves and workshop apron capable of
stopping small abrasive or workpiece frag-
ments. The eye protection must be capable of
stopping flying debris generated by various op-
erations. The dust mask or respirator must be
capable of filtrating particles generated by
your operation. Prolonged exposure to high in-
tensity noise may cause hearing loss.
i] Keep bystanders a safe distance away from
work area. Anyone entering the work area
must wear personal protective equipment.
Fragments of workpiece or of a broken acces-
sory may fly away and cause injury beyond im-
mediate area of operation.
j] Hold the power tool by insulated gripping
surfaces only, when performing an operation
where the cutting accessory may contact hid-
den wiring or its own cord. Cutting accessory
contacting a “live” wire may make exposed
metal parts of the power tool “live” and could
give the operator an electric shock.
k] Position the cord clear of the spinning acces-
sory. If you lose control of the power tool, the
cord may be cut or snagged and your hand or
arm may be pulled into the spinning accessory.
l] Never lay the power tool down until the ac-
cessory has come to a complete stop. The
spinning accessory may grab the surface and
pull the power tool out of your control.
m] Do not run the power tool while carrying it at
your side. Accidental contact with the spinning
accessory could snag your clothing, pulling the
accessory into your body.
n] Regularly clean the power tool’s air vents.
The motor’s fan will draw the dust inside the
housing and excessive accumulation of pow-
dered metal may cause electrical hazards.
o] Do not operate the power tool near flamma-
ble materials. Sparks could ignite these mate-
rials.
p] Do not use accessories that require liquid
coolants. Using water or other liquid coolants
may result in electrocution or shock.
Kickback and related warnings
Kickback is a sudden reaction to a pinched or
snagged rotating wheel, backing pad, brush or any
other accessory. Pinching or snagging causes rapid
stalling of the rotating accessory which in turn
causes the uncontrolled power tool to be forced in
the direction opposite of the accessory’s rotation at
the point of the binding.
For example, if an abrasive wheel is snagged or
pinched by the workpiece, the edge of the wheel
that is entering into the pinch point can dig into the
surface of the material causing the wheel to climb
out or kick out. The wheel may either jump toward
or away from the operator, depending on direction
of the wheel’s movement at the point of pinching.
Abrasive wheels may also break under these con-
ditions.
Kickback is the result of power tool misuse and/or
incorrect operating procedures or conditions and
can be avoided by taking proper precautions as
given below.
a] Maintain a firm grip on the power tool and po-
sition your body and arm to allow you to re-
sist kickback forces. Always use auxiliary
handle, if provided, for maximum control over
kickback or torque reaction during start-up.
The operator can control torque reactions or
kickback forces, if proper precautions are
taken.
b] Never place your hand near the rotating ac-
cessory. Accessory may kickback over your
hand.
1. Symbols
2. Safety Instructions
WARNING
Contents

Skate en English
4
.c] Do not position your body in the area where
power tool will move if kickback occurs. Kick-
back will propel the tool in direction opposite to
the wheel’s movement at the point of snagging.
d] Use special care when working corners, sharp
edges, etc. Avoid bouncing and snagging the
accessory. Corners, sharp edges or bouncing
have a tendency to snag the rotating accessory
and cause loss of control or kickback.
e] Do not attach a saw chain woodcarving blade
or toothed saw blade. Such blades create fre-
quent kickback and loss of control over the
power tool.
Additional safety instructions
Never immerse the machine in water or spray it
with water for cleaning, not even the tool holder!
Don’t bend the flexible drive shaft!
Damaged, eccentric or vibrating tools must not be
used.
Do not allow anyone not wearing protective gear to
stand on the discharge side of the tool.
When the safety clutch responds, switch off the
machine immediately!
Do not overload the motor for a long period. Engine
noise should be regular (not wave-like). Unsteady
engine performance can be perceived acoustically.
Take a break when the machine is heated up
strongly and let it cool down again. To that let the
motor idle at top speed for some time.
Don’t put the running motor on the ground! Dirt may
get sucked in and cause damage.
Always use original ROKAMAT abrasives. Foreign
abrasives are not suitable for the speed of the
sander and may break.
Ensure sufficient cable clearance. Use only exten-
sion cables permitted for outdoor use.
Keep the carry case out of reach of children. Chil-
dren may suffocate or be strangled when playing
with the carry case.
Emission levels
NOTE! Values for the A-weighted sound pressure
level and for the total vibration values can be found
in the “Technical specifications” table at page 4.
The vibration emission level given in this infor-
mation sheet has been measured in accordance
with a standardized test and may be used to com-
pare one tool with another. It may be used for a
preliminary assessment of exposure.
CAUTION! The indicated measurements refer to
new power tools. Daily use causes the noise and vi-
bration values to change.
The declared vibration emission level represents
the main applications of the tool. However, if the
tool is used for different applications, with differ-
ent accessories or poorly maintained, the vibration
emission may differ. This may significantly in-
crease the exposure level over the total working
period. However, if the tool is used for different ap-
plications, with different accessories or poorly
maintained, the vibration emission may differ. This
may significantly decrease the exposure level over
the total working period.
CAUTION! The noise produced during work
may damage your hearing.
Wear ear protection!
Environmental conditions
Operation
Temperature range: +5° C to +50° C
Humidity: ≤ 85 %, non-condensing
Climate: dry
Transport and storage
Temperature range: -5° C to +55° C
Humidity: 0 % to 70 %
Climate: dry, roofed, dew protected
Transport and store the power tool only in the car-
rying case. Do not store the power tool and acces-
sories in the case when wet!
The hand-held electric tool Rokamat Skate is in-
tended for leveling and troweling fresh concrete,
screed and similar indoors and outdoors. Activities
where the operator is in a conductive environment
(e.g. activity on liquid concrete, reinforcement, etc.)
require additional protective measures against
electric shock (e.g. a residual current device). Na-
tional regulations must be respected.
The tool is intended for use with original Rokamat
machines and accessories only.
Only sufficiently qualified and trained personnel is
allowed to work with the tool. The intended use in-
cludes the observance of the operating instruc-
tions, in particular the safety instructions and the
observance of generally recognized accident pre-
vention regulations.
The user bears sole responsibility for any damage
caused by inappropriate use.
Concrete power trowel Skate
Item No. 93000
Rated voltage
230 V AC
Frequency
50 Hz
Power
1500 W
No-load speed
85-340 min-1
Maximum tool diameter
450 mm
Tool holder weight
3,1 kg
Total weight
6,4 kg
Dimension compact
(LxHxW)
1135x200x420
mm
Cable length
5,0 m
Safety class
II /
A-weighted sound pressure level (see cap. 2
“Emission levels“):
Sound pressure level LpA
91 dB(A)
Sound power level LWA
102 dB(A)
Uncertainty K
3,0 dB
Total vibration value (see cap. 2 “Emission lev-
els “):
Emission value ah
< 2,5 m/s2
Uncertainty K
1,5 m/s2

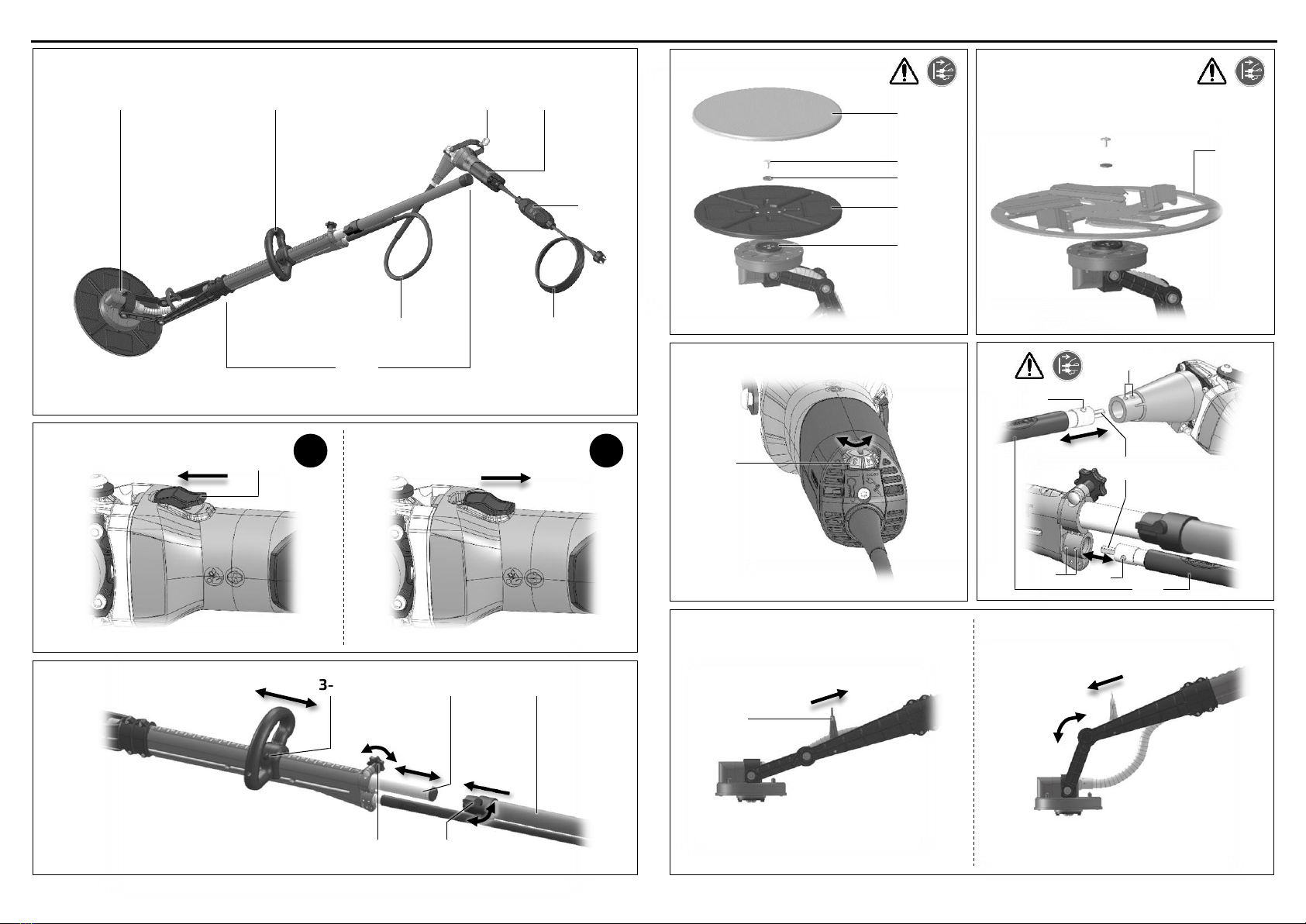

The specified illustrations can be found in fig. [1]
on page 2 of the operating instructions.
1-1 Tool holder
1-2 Handle
1-3 Fastening ring for the (shoulder) belt
1-4 Motor (with gripping surface)
1-5 PRCD
1-6 Mains cable
1-7 Flexible drive shaft
1-8 Gripping surface
Unauthorized voltage or frequency!
Risk of accident!
The mains voltage and the frequency of the
power source must correspond with the specifi-
cations on the machine's name plate.
Motor mounting [1]
The motor [1-4] is not allowed to be placed on the
floor during operation, but must be hooked in the
carabiner of the provided belt (resp. shoulder belt).
Switching the electric power tool on and off
[2]
Switching on: Push the sliding switch [2-1] for-
ward. For continuous activation, now tilt down-
wards until it engages.
Switching off: Press the rear end of the slide
switch [2-1] and release it.
Risk of injury, electric shock!
Always pull the mains plug out of the socket be-
fore performing any type of work on the ma-
chine!
Attaching / removing the supporting plates
[4]
- Loosen the clamping screw [4-2] and remove it
together with the rubber washer [4-3].
- The supporting plate [4-4] can be detached/re-
moved.
- Attaching in reverse order. Ensure that both pins
on the driver disc [4-5] mate with the drill holes
in the supporting plate.
Attaching, changing or removing the trowel
with Velcro [4]
- Place the trowel [4-1] in the center of the sup-
porting plate [4-4] and press on.
- Conduct a test run to check that the trowel is at-
tached in the center.
Attaching, changing or removing the trowel
with blades [5]
- The supporting plate [4-4] must be removed be-
fore the trowel [5-1] is mounted (see above).
Before switching on the power tool: Unpack
power tool and accessories and check that no
parts are missing or damaged.
6. Commissioning
7. Instructions for Use
4. Technical Specifications
5. Device Components
3. Intended Use
WARNING
WARNING
CAUTION

Skate en English
5
- Centre trowel directly on the driver disc [4-5]. En-
sure that both pins on the driver disc mate with
the drill holes in trowel.
- Then turn the clamping screw [4-2] clockwise to-
gether with the rubber washer [4-3] to tighten
them.
- Removing in reverse order.
Angle adjustment [8]
- Pull lever [8-1].
- Set the desired angle.
- Release lever and allow bolt [9-1] to engage.
The angle adjustment allows for ergonomic work.
It should also be ensured that the abrasive always
lies parallel on the surface to be worked on.
Handle [3]
- Push in the bolt [3-1] on the handle [1-2].
- Move handle [1-2] to desired position.
- Loosen bolt [3-1] and allow to engage.
Telescopic tube [3]
- Open the clamping screw [3-5].
- Move the telescopic tube [3-2] to the desired po-
sition.
- Lock the clamping screw [3-5].
Handle extension [3]
- Loosen clamping lever [3-4].
- Push handle extension [3-3] onto the handhold
and to the desired position.
- Lock the clamping lever [3-4].
1. Attach trowel.
2. Attach motor to (shoulder) belt.
3. Insert mains plug.
4. Set required speed.
5. Hold the power trowel with both hands at the
gripping surfaces. This provides the best possi-
ble combination of range and leverage for the
application.
6. Switch on the device.
7. Press the trowel gently against the work sur-
face.
10. Increase the pressure to bring the sanding
sheet into contact with the work surface.
After finishing work
Once you have finished the troweling work, set the
power tool down.
Risk of damage to the device!
Do not set the power tool down with the tool
disc facing downwards!
Risk of injury, electric shock!
Always disconnect the mains plug from the
socket before performing maintenance work on
the machine!
Repairs may be carried out by an authorized cus-
tomer service center only.
Check the plug and the cable regularly in order to
avoid a hazard.
During the warranty period do not loosen the
screws on the housing. Non-compliance will deem
the guarantee obligations of the manufacturer null
and void.
Remove dust from the motor regularly
It is possible that particles deposit inside the power
tool during operation. This impairs the cooling of
the power tool. Conductive build-up can impair the
protective insulation of the power tool and cause
electrical hazards.
The power tool should be cleaned regularly, often
and thoroughly through all front and rear air vents
using a vacuum cleaner or by blowing in dry air.
Prior to this operation, separate the power tool
from the power source and wear protective glasses
and dust mask.
Replacement of the flexible drive shaft [7]
Disassembling: On the motor side, press in the
press button [7-1] in the borehole [7-2] with a tool
(e.g. screwdriver) and pull out the protective hose
[7-6]. Now the shaft core [7-3] can be replaced.
To replace the protective hose [7-6], it must also be
loosened on the side of the tool holder. To do this,
press in the press button [7-5] in the borehole [7-4]
with a tool (e.g. screwdriver) and pull out the pro-
tective hose [7-6].
Mounting: In reverse order. Make sure that the
shaft core [7-4] is threaded into the square in each
case.
Check all wearing parts once a month.
Other accessories, in particular insertion tools, can
be found in the manufacturer’s catalogues. Ex-
ploded drawings and spare-part lists can be found
on our homepage: www.rokamat.com.
Use only original ROKAMAT spare parts and work
tools!
The generated grinding dust may contain harmful
substances. Dispose appropriately.
Observe national regulations on environmentally
compatible disposal and on the recycling of dis-
used machines, packaging and accessories.
For Great Britain and EU countries: Never
dispose of power tools in your household
waste! In accordance with WEEE relating
for electrical and electronic waste and im-
plementation of national law, used electri-
cal tools must be collected separately and
disposed of in an environmentally friendly
manner at recycling centers.
Separate the motor from the rest of the
machine before disposal. Make used tools
unusable by removing the mains cable.
Please ask your dealer about disposal options!
It is expressly declared that the grinder listed on
the first page under 1) from the serial number indi-
cated onwards complies with all relevant provi-
sions of the directives or regulations listed in 2) and
that the harmonized standards listed in 3) have
been applied. The technical documentation is avail-
able from the authorized documentation agent
named in 4).
Risk of damage to the device!
The two boreholes for the push button at the
drive shaft serve as length adjustment between
shaft core and protective hose. The shaft core
should be freely movable in length and must not
get compressed!
9. Maintenance and Care
WARNING
CAUTION
8. Working with the Power Tool
10. Spare Parts and Accessories
CAUTION
ADVICE
11. Environmental Protection
ADVICE
12. Declaration of Conformity

Skate en English
6
Problem
Possible causes
Remedy
Motor runs, but the sup-
porting plate does not ro-
tate.
Shaft core broken.
Exchange shaft core.
The electronic signal dis-
play [6-1] lights up and
the load speed decreases.
There is too much load on the
machine.
Run the machine in idling until the
electronics signal indicator switches
off.
The machine does not
start. The electronic sig-
nal display [6-1] flashes.
The restart protection is active. If
the mains plug is inserted with
the machine switched on, or if the
power supply is restored follow-
ing an interruption, the machine
does not start up.
Switch the machine off and on again.
Motor power fluctuates.
Carbon brushes worn.
Replace carbon brushes.
Skate not working.
Cable break.
Replace mains plug.
Interruption to power supply.
Switch the power tool off and on
again.
Skate does not run
smoothly over the sur-
face.
Wrong speed set.
Adjust speed.
Deformed trowel.
Use a new trowel.
Trowels not mounted correctly.
Check that the trowels are correctly
seated.
Groove formation on the
surface.
Wrong speed set.
Adjust speed.
Material to be processed is too
moist.
Allow material to dry longer.
Too much pressure on the sur-
face.
Reduce contact pressure.
13. Troubleshooting
If problems other than those listed occur, please contact your ROKAMAT service workshop or your local
specialist.
