USER MANUAL
Series EE and ECS2
Stroke 670/650/500/470
METRIC

ROL | ERGO Sweden W: www.rolergo.com P: [phone]
CONTENTS
1. IMPORTANT INFORMATION - SAFETY FIRST!..................... 3
1.1 Important saftey instructions .........................................................................................4
1.2 User information.................................................................................................................. 7
1.3 Before you start...................................................................................................................8
1.4 Electrical rating....................................................................................................................8
2. ASSEMBLY & ADJUSTMENT.................................................... 8
2.1 Assembly Instruction.........................................................................................................8
2.2 Setup procedure..................................................................................................................9
2.3 Optional mounting guidelines .......................................................................................9
2.4 System configuration (example) .................................................................................10
2.5 Adjustments .........................................................................................................................11
3. ASSEMBLY & ADJUSTMENT................................................... 11

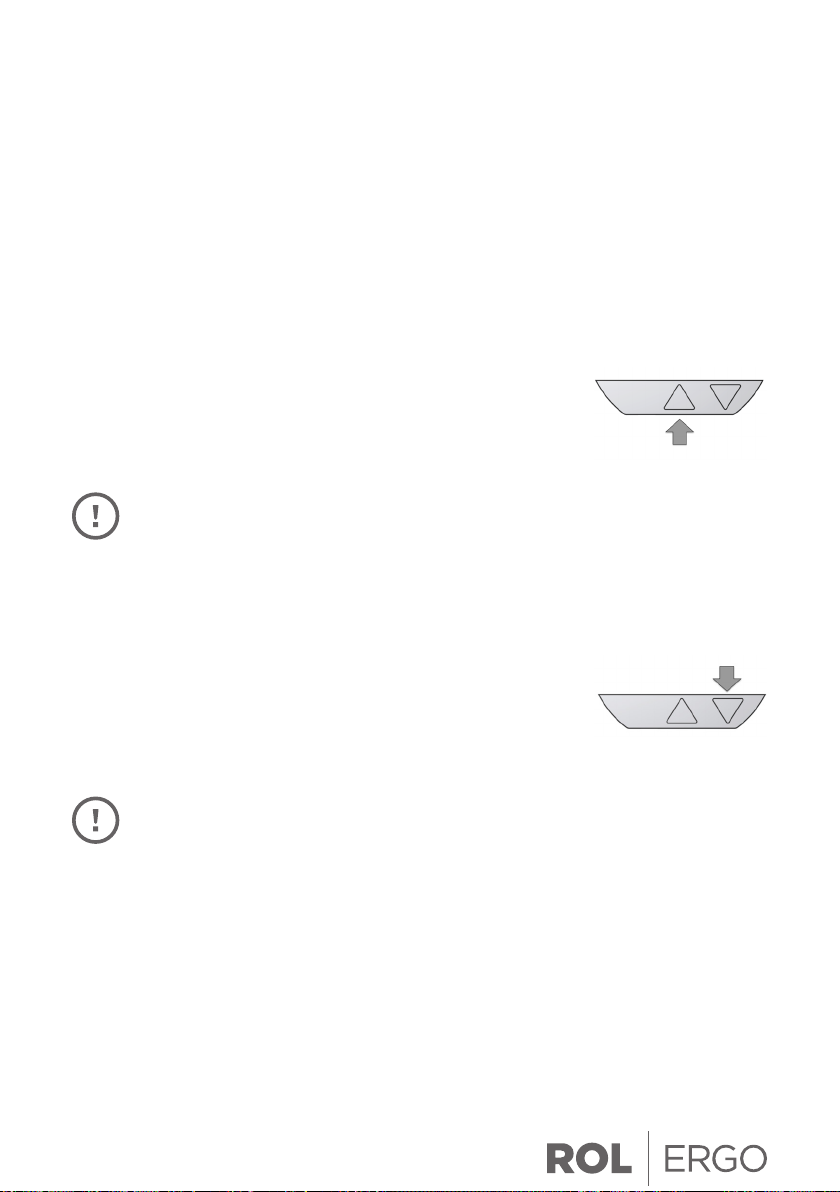

3.1 Basic functions....................................................................................................................12
3.2 Advanced functions, Manuel reset ............................................................................. 13
4. MAINTENANCE & REPAIRS................................................... 14
4.1 Cleaning, Inspection and Storage............................................................................... 14
4.2 User Maintenance ............................................................................................................ 14
4.3 Repairs................................................................................................................................... 14
4.4 Servicing of double-insulated products................................................................... 16
5. APPENDIX ............................................................................... 16

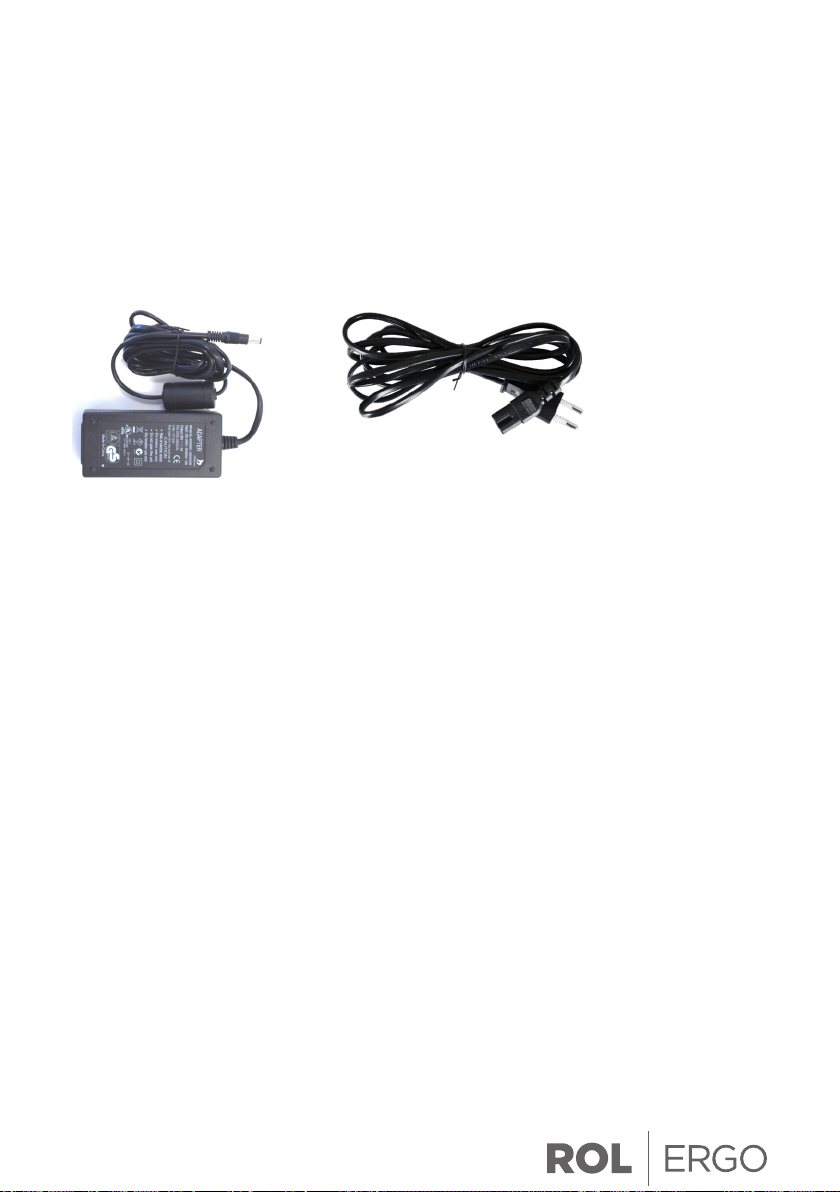

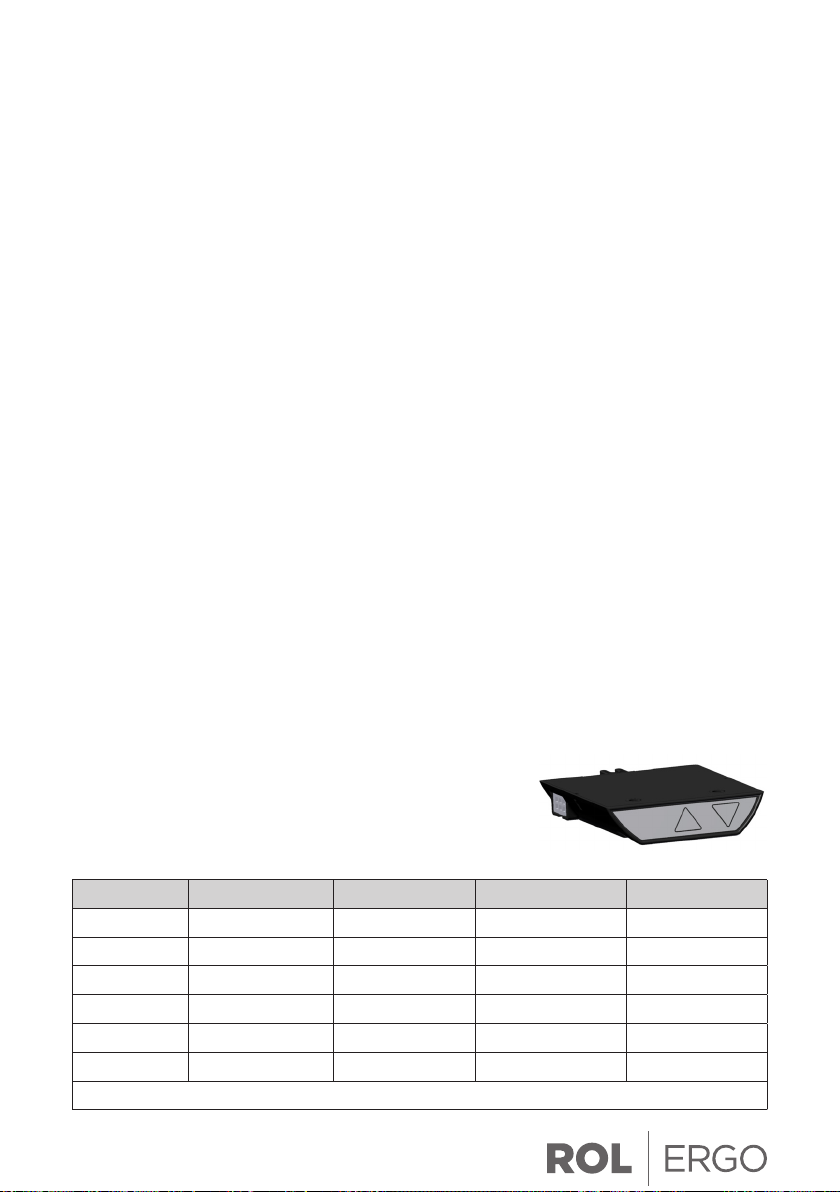

5.1 Accessories, Series EE, ECS2 ...................................................................................... 16

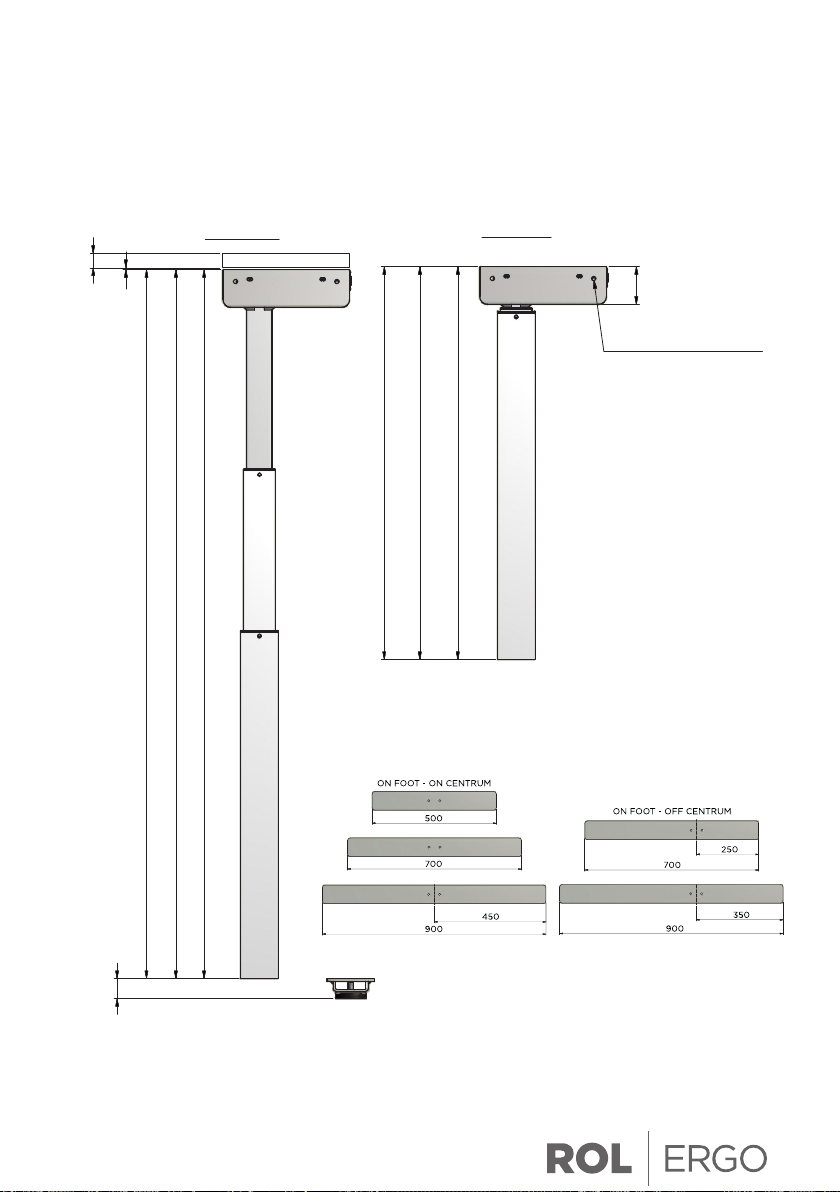

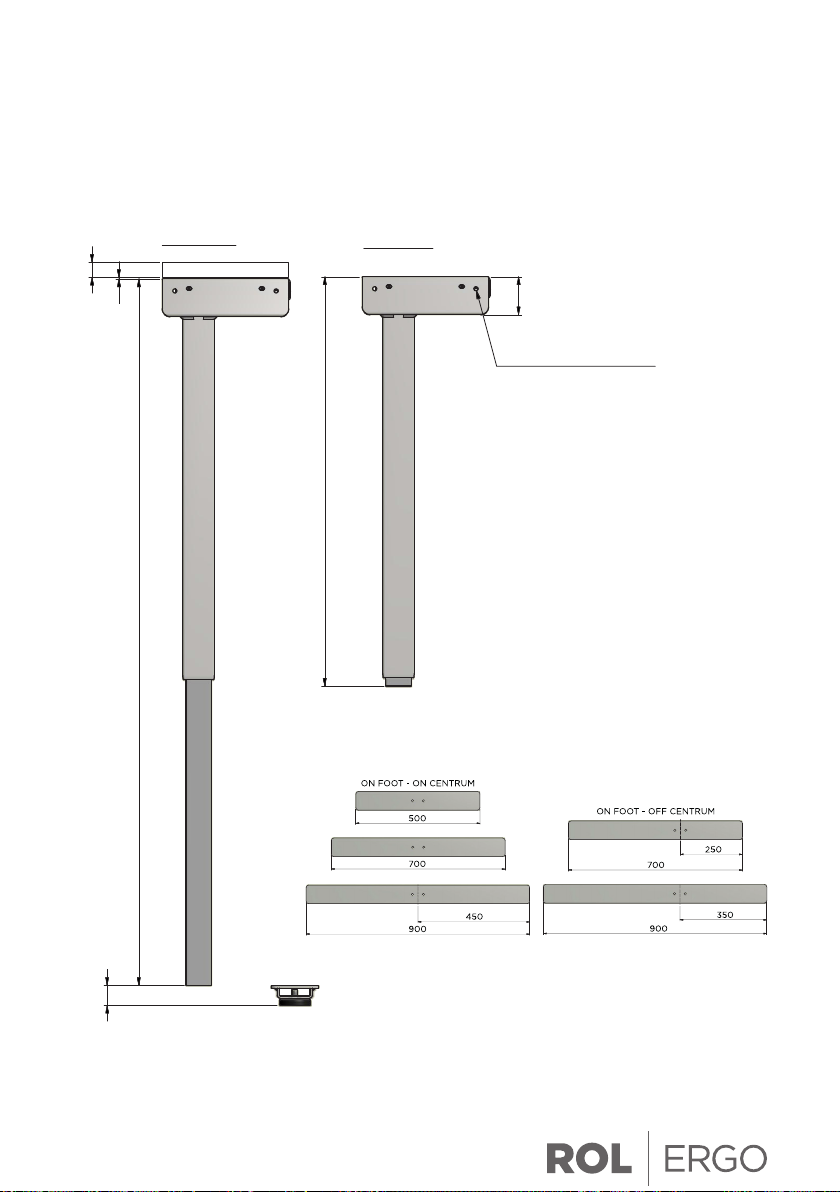

5.2 Dimensions column system: Series EE, ECS2 ...................................................... 18
with 670/650/500 stroke ............................................................................................. 18
5.3 Dimensions column system: Series EE, ECS2 ...................................................... 19
with 470 stroke .................................................................................................................. 19

3
ROL | ERGO Sweden W: www.rolergo.com P: [phone]
Your safety and the safety of others is very important. Please familiarize yourself with all
instructions and safety warnings before operating the table. Please keep this manual for
future reference.
To help you make informed decisions about safety, we have provided operating proce-
dures and other information on labels and in this user’s manual. This information alerts
you to potential hazards that could hurt you or others. It is not practical or possible to
warn you about all the hazards associated with operating or maintaining a table. Please
use your own good judgment.
You will find important safety information in a variety of forms. Safety Messages
preceded by a safety alert symbol and one of three signal words: DANGER,
WARNING or CAUTION. These safety messages are listed in order of severity, identify
the general risks and what actions you are to take to avoid the risks. These signal words
mean:
DANGER
Indicates an imminent hazardous with a high risk of serious injury or death.
WARNING
Indicates a potentially hazardous situation that if not avoided may could result in
serious injury or death.
CAUTION
Indicates a potential hazardous, which may result in minor or moderate injury. It
may also be used to alert against unsafe practices.
NOTICE
Indicates an alert to call attention to proper assembly instructions or particular
operation procedures to assure correct equipment function and to avoid equip-
ment damage or wear.
The information and specifications included in this manual were in eect at the time of
approval for printing. Knoll reserves the right to discontinue or change specifications or
design at anytime without notice and without incurring any obligation whatever.
1. IMPORTANT INFORMATION - SAFETY FIRST!

ROL | ERGO Sweden W: www.rolergo.com P: [phone]
4
Please save this instruction.
When using an electrical table, basic precautions should always be followed, including
the following. Read all instructions before using table.
DANGER
To reduce the risk of electric shock:
1. Always unplug this furnishing from the electrical outlet before cleaning.
WARNING
To reduce the risk of burns, fire, electric shock, or injury to persons:
1. Unplug from outlet before putting on or taking o parts.
2. This table is not intended for use by children or individuals with a physical or other
impairment that may aect the ability to safely operate equipment. ,
3. Use this table only for its intended use as described in these instructions. Do not use
attachments not recommended by the manufacturer.
4. Never operate this table if it has a damaged cord or plug, if it is not working proper-
ly, if it has been dropped or damaged, or exposed to water. In the event of any such
event please return the table to a service center for examination and repair.
5. Keep the cord away from heated surfaces.
6. Never operate the table with the air openings blocked. Keep the air openings free
of lint, hair, and the like.
7. Never drop or insert any object into any opening.
8. Do not use outdoors.
9. Do not operate the table in a potentially explosive atmosphere.
10. To disconnect, turn all controls to the o position, then remove plug from outlet.
WARNING
Risk of Electric Shock:
1. Connect this table to a proper outlet only. For loading always put heavier items
at the bottom and not near the top in order to help prevent the possibility of the
furnishing tipping over.
1.1 Important saftey instructions

5
ROL | ERGO Sweden W: www.rolergo.com P: [phone]
WARNING
Risk of Injury to Persons:
1. Do not use this table to lift people and do not use the table to lift heavy part or use
this table as a platform for storage.
2. Maximum intended load is 120 kg uniformly distributed (265 pounds) including the
table top.
DANGER
Risk of electric shock, injury, or death:
1. Improper usage, abuse, or misuse of the power supply, handset, motors and other
electrical components may result in an electrical shock injury or possible death.
2. Do not open the power supply unit or handset under any circumstances. The power
supply and handset contain no serviceable parts.
3. Do not modify or make any changes to the power supply, handset or other electrical
devices.
4. During installation, repair, cleaning, or maintenance work, the power cable must be
disconnected from the outlet.
5. Improper usage, abuse, or misuse of the power supply, handset, motors and other
electrical components may result in an electrical shock injury or possible death.
6. Do not open the power supply unit or handset under any circumstances. The power
supply and handset contain no serviceable parts.
7. Do not modify or make any changes to the power supply, handset or other electrical
devices.
8. During installation, repair, cleaning, or maintenance work, the power cable must be
disconnected from the outlet.
9. The engines/motors control unit is not designed for continuous operation. Changing
the desktop position without interruption must not exceed the duty cycle indicated
on the power supply. The unit is thermally protected and will temporarily shut down
if use exceeds the duty cycle. Allow a 9-minute cooling period for the control unit
to reset.
10. The power supply unit may only be operated with voltage as specified on the power
supply label.
11. Only use the power cord supplied with the power supply. Check that it is not dama-
ged. Do not operate the power supply unit if the power cord is damaged.
12. Connect the power supply to a proper outlet only. To disconnect turn all controls to
the o position, then remove plug from outlet.

ROL | ERGO Sweden W: www.rolergo.com P: [phone]
6
13. In the event of a malfunction (e.g. if the control unit keeps adjusting the desk becau-
se a movement button has jammed), please unplug the unit immediately.
14. Do not expose the power supply, handset or other electrical device to water or other
liquids including moisture, drips, splashes or spills. Only clean electrical device with
a dry cloth.
15. Do not operate the power supply, handset or other electrical device in a potentially
explosive atmosphere. Do not operate where aerosol spray products are being used
or where oxygen is being administered.
16. Do not use the desk with it has been dropped or damaged. Contact the manufactu-
rer for examination or repair.
17. It is not allowed to connect self-constructed products to the power supply, handset
or other electrical device. To prevent damage, use only components recommended
by the manufacturing company.
WARNING
Risk of injury, or death:
1. During the raising or lowering of the table there exists a risk of squeezing or
pinching between the moving desktop and fixed objects.
2. The necessary safety margins depend on the greatest type of injury risk that can
be predicted. Where possible small pinch points exist (i.e. fingers) use at least 2,5
cm (1 inch) safety margin and for body or head (especially where children may be
present) use a minimum of 40 cm (16 inch) count from the floor or from their top of
the table feet if that is relevant
3. During the lowering or rising of the desktop, the operator must ensure that no per-
son or object risk being harmed by the operation.
4. This tag (as right) should be located on the table
during the initial installation.
5. Keep children away from moving parts and under-
neath the table.
6. The intended use of the table is adjusting a work
surface between sitting and a standing position. The
table is not designed for other uses.
7. The table must only be operated while in an upright
position and must under no circumstances be
operated while upside down.
8. The table must not be overloaded. The maximum
allowable load is shown on the power supply label.

7
ROL | ERGO Sweden W: www.rolergo.com P: [phone]
9. The table must be operated in a dry, enclosed space, such as an oce or similar.
10. Do not operate outdoors.
11. The table is equipped with Collision Detection System (CDS). In the event of a faulty
(motor or component) the desktop may move slightly before the safety feature is
engaged. Stay clear of pinch points when the desktop is moving.
12. This table is not intended for use by individuals (including children) with limited
physical, sensory or mental abilities or with a lack of experience and/or lack of ex-
pertise, unless they are supervised by a person responsible for their safety or have
received instructions from that person on how to use the control unit.
13. Children must be supervised at all times to ensure that they do not play with the
control unit.
14. The table may not be used to lift people. Do not sit or stand on a table while it is be
raised or lowered.
15. The table must not be structurally or technically altered or modified in any way.
1.2 User information
This column system is rated for commercial use only and is rated for a maximum load
of 120 kg, uniformly distributed (265 pounds) including the tabletop. The motors may
only be used continuously for 1 minute after which the table wills automatically shut-o
9 minutes.

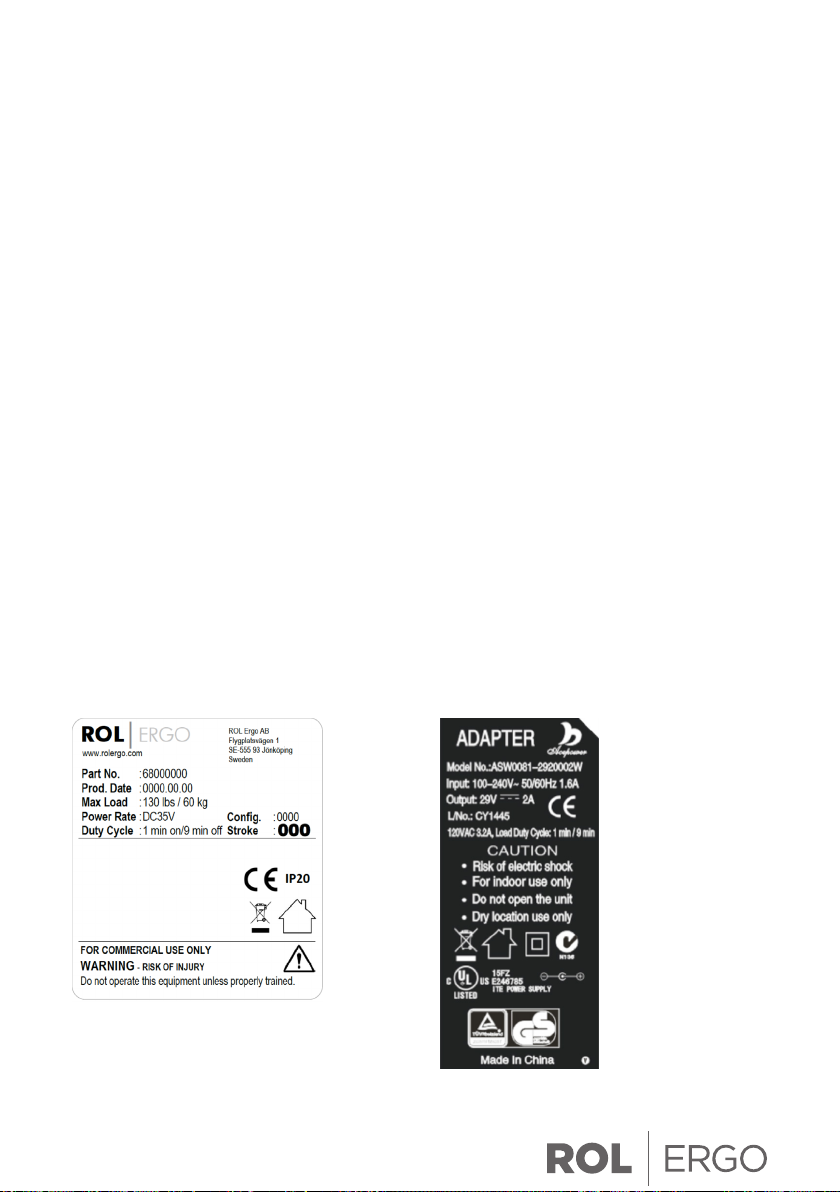

Typical Product Label with Date
of Manufacture Typical power supply label

ROL | ERGO Sweden W: www.rolergo.com P: [phone]
8
1.3 Before you start
Check for and remove obstacles in path of the table top. Before first use, the control unit
must register the lowest point of elevation to reset, as follows:
Under normal conditions the system communicate internal and know the position of
each column. If divergence between the columns will be discovered, please do a manual
reset as listed in section 3.2.
1.4 Electrical rating
Electrical rating, input: 100-240 VAC, 50-60Hz. Output 29V.
2. ASSEMBLY & ADJUSTMENT
2.1 Assembly Instruction
The ocial assembly instruction will be found with the base components.
Make sure to ask your desk vendor for an approved combination of desktop and frame.

9
ROL | ERGO Sweden W: www.rolergo.com P: [phone]

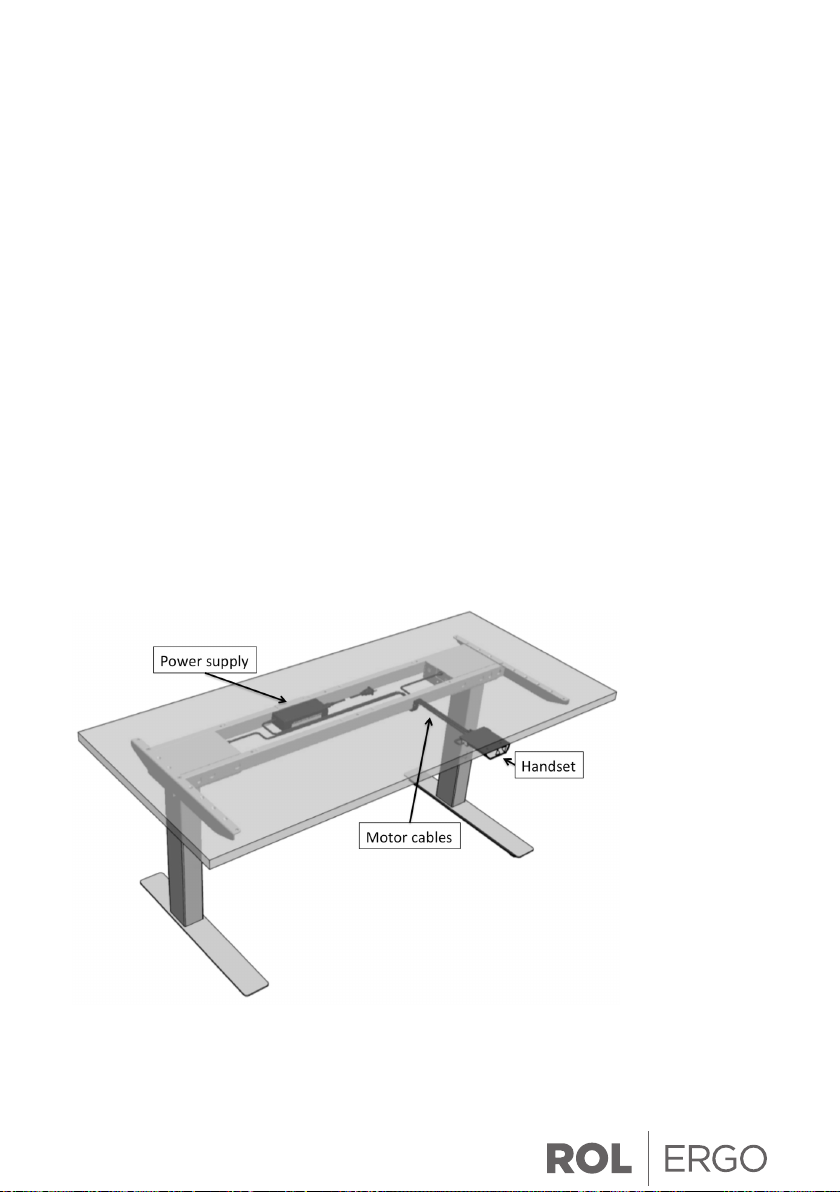

2.2 Setup procedure
CAUTION
Risk of electrical shock:
The power cord must be unplugged while the control unit is being commissioned. This
table is equipped with ROL iDrive system, to setup the controlling device proceed as
follows.
1. Connect the handset to the relevant 8-pin motor cables (2)
2. Connect the Power Supply to the handset. 5,5mm DC power
3. Connect the power supply to the main.
After a reset/homing the table is ready for use, connect the power cord to the outlet
please do a manual reset/homing as section 3.2 The initial reset drive the motors in a
slow speed.
2.3 Optional mounting guidelines
NOTICE
When components like Power Supply, motor cables or handset shall be disconnected, be
sure to unlock the 8pin connector on the cable properly! There is a fixing hook on this
connector that must be pressed.

ROL | ERGO Sweden W: www.rolergo.com P: [phone]
10
DANGER
Grounding Instruction:
This product does NOT require grounding to earth.
This product is double insulated and equipped with a non-
polarized 120V plug and 2-conductor cord. The plug must be
plugged into an appropriate building outlet that is properly
installed in accordance with all local codes and ordinances.
DANGER
Risk of electrical shock:
Improper connection of the equipment can result in a risk of electric shock. Check with
a qualified electrician for any concerns. Do not modify the plug provided with the pro-
duct – if it will not fit the outlet have a proper outlet installed by a qualified electrician.
This product is designed for the voltage indicated on the power supply label. No adap-
ters should be used with this product.
CAUTION
Risk of electrical shock:
Before you plug in the power cord, check the following again:
• The voltage must be as specified on the power supply label.
• When the power cord is plugged in, the electrical control devices are operational.
NOTICE
In case of a main power breakdown, or if the power cord is unplugged during the mo-
vement of the drives, a manual reset may be necessary! Please see section 3.2 manual
reset.
2.4 System configuration (example)
The figure below shows the motor driving assignment for a configuration example.
This configuration consists of:
1. Power Supply
2. Motor cables
3. Handset

11
ROL | ERGO Sweden W: www.rolergo.com P: [phone]
2.5 Adjustments
The table control, handset and motors are sealed units and have no parts that can be
serviced or adjusted by the user. In case of failure or unexpected operation or from
maintenance control your vendor and arrange for service by a qualified technician.
3. ASSEMBLY & ADJUSTMENT
To ensure safe operation of the ECS2 control unit, please observe the following safety
instructions:
CAUTION
Risk of injury and electric shock.
Keep children away from electric height-adjustable desks, control units and handset.

ROL | ERGO Sweden W: www.rolergo.com P: [phone]
12
CAUTION
Risk of Pinching.
When you change the desktop position (especially without using pinch protection), you
must ensure that no people or objects are located in the hazardous area nor may reach
into it.
NOTICE
In case of a main power breakdown, or if the power cord is unplugged during the move-
ment of the drives, a manual reset may be necessary! Please see section 3.2.
NOTICE
The control unit might be damaged by power surges. Unplug the power cord during a
thunderstorm or if you do not intend to use the desk for a longer period.
3.1 Basic functions
NOTICE
You must read the user manual carefully before installing or operating the control unit.
If chosen handset doesn’t fit to this user manual, please see actual user manual for actual
handset.
Over load protection!
If the total load on the equipment is to high you will only be able to drive for 2 seconds.
The system will then stop and you need to release button and press button again.
Over heat protection!
If heavy loaded and driven continuously for a long period of time the motor might get
very hot. This is observed by the software and if overheated system will shut down and
you will have to wait about 5 minutes before being able to run again.

13
ROL | ERGO Sweden W: www.rolergo.com P: [phone]
Pinch protection (optional)!
The ECS is equipped with an intelligent software pinch protection. During loo ration the
currents to each connected motor is continuously measured and any variation of current
is evaluated about 50 times each second! If a collision is detected system will immedia-
tely stop and back o about 2 cm!
IMPORTANT! Make sure to remove the blocking item causing the pinch before trying to
operate the table again. Failure to do so may cause injury to user or equipment.
3.1.1 Upward desktop movement
This function enables you to adjust the desktop upwards. To
change its position, proceed as follows: Press the desktop up
button. Keep pressing the button until the required desktop
height is reached.
NOTICE
The desktop will continue moving upwards until you release the button or the maximum
height is reached
3.1.2 Downward desktop movement
This function enables you to adjust the desktop downwards. To
change its position, proceed as follows: Press the desktop down
button. Keep pressing the button until the required desktop
height is reached.
NOTICE
The desktop will continue moving downwards until you release the button or the mini-
mum height is reached.
3.2 Advanced functions, Manuel reset
In case of exchanged parts (ie motor, electronics) there could be a need of a manual
reset so columns and handsets correspond to each other. Even poor connection of the
cables could create a need of resetting.

ROL | ERGO Sweden W: www.rolergo.com P: [phone]
14
CAUTION Risk of Pinching.
4. MAINTENANCE & REPAIRS
4.1 Cleaning, Inspection and Storage
Clean the table frame by wiping it down with a microfiber cloth. Never use solvent or
abrasive or corrosive compounds.
Products must be cleaned at regular intervals to remove dust and dirt and inspected for
mechanical damage and normal wear and tear. Worn-out parts must be replaced.
Unplug the power cord if you do not intend to use the desk for a longer period.
Do not store table or cables in direct sunlight.
4.2 User Maintenance
Products are closed units and require no internal maintenance. Legs must be inspected
at attachment points, wires, piston rod, cabinet, and plugs, check that legs function cor-
rectly.
• Inspect legs for loose connections and damaged plugs/wires.
• Inspect power supply for loose connections and damaged plugs/wires.
• The power supply and the handset is sealed and maintenance free.
4.3 Repairs
Check all screws and bolts after the first week of use and tighten screws and bolts

15
ROL | ERGO Sweden W: www.rolergo.com P: [phone]
where necessary to ensure safe operation of the table.
If the table cannot be raised or lowered, check the cable connection between:
• the power supply and the motor/motor house (leg system)
• the handset and the motor/motor house
• the legs/motors
If the table still does operational, the control system may have triggered the overheating
or duty cycle protection. Please wait for at least 9 minutes and try again before procee-
ding.
If a control unit is replaced, a manual reset is required. Follow these steps as section 3.2.
If the table is still not operational, please contact your vendor for further assistance.
The control system is equipped with safety features; the intermittency function and the
overheating protection and memory function
Duty cycle function
The duty cycle factor of the table 1:9 meaning 1 minute of operation must be followed
by 9 minutes of inactivity. If this limitation is exceeded, the table will become inoperable
until the control box resets automatically.
Overheating protection
The table will become inoperable if the overheating protection is triggered and will re-
turn to operation automatically once the heat has dissipated suciently.
Memory function
The control system (each column) will retain information regarding the elevation of the
table at all times. This information will remain stored even in case of power failure or if
the power cable is disconnected from the power outlet.
Over load protection
If the total load on the equipment is to high you will only be able to drive for 2
seconds. The system will then stop and you need to release button and press button
again.
Over heat protection!
If heavy loaded and driven continuously for a long period of time the motor might get
very hot. This is observed by the software and if overheated system will shut down and
you will have to wait about 5 minutes before being able to run again.

ROL | ERGO Sweden W: www.rolergo.com P: [phone]
16
Pinch protection (optional)!
The ECS2 is equipped with an intelligent software pinch protection. During loo ration the
currents to each connected motor is continuously measured and any variation of current
is evaluated about 50 times each second! If a collision is detected system will immedia-
tely stop and back o about 2 cm!
IMPORTANT! Make sure to remove the blocking item causing the pinch before
trying to operate the table again. Failure to do so may cause injury to user or
equipment.
Soft start – Progressive acceleration allows for soft starts and stops.
Speed – the speed of the table varies with load.
4.4 Servicing of double-insulated products
In a double-insulated product, two systems of insulation are provided instead of groun-
ding. No grounding means is provided on a double-insulated product, nor is a means for
grounding to be added to the product.
Servicing a double-insulated product requires extreme care and knowledge of the sys-
tem, and is to be done only by qualified service personnel. Replacement parts for a
double-insulated product must be identical to the parts they replace. A double insulated
product is marked with the words ”DOUBLE INSULATION” or ”DOUBLE INSULATED”.
The symbol (square within a square) is also able to be marked on the product.
5. APPENDIX
5.1 Accessories, Series EE, ECS2
Handset: ECS2 /Control unit P/N se chart below
Width x depth x height 95x106x22mm, 95 gr
Stroke mm AC-O, White AC-On, White AC-O, Black AC-On, Black
420 68004741
470 68004725 68002459
500 68002469 68002466 68002463 68002460
600 68002470 68002467 68002464 68002461
650 68002471 68002468 68002465 68002462
665 68004757
AC = Anti Collision. White/Black = colour for handset houseing.

17
ROL | ERGO Sweden W: www.rolergo.com P: [phone]
Power supply:
Length x width x height 152 x 59 x 34 mm 360 gr P/N 68002235
Cables:
Length 1500mm (primary side) separately item, 78 gr P/N 68002232
Length 3000mm (primary side) separately item, 133 gr P/N 68002233
Length 2000mm (secondary side, fixed connected to the power supply)

ROL | ERGO Sweden W: www.rolergo.com P: [phone]
18
5.2 Dimensions column system: Series EE, ECS2
with 670/650/500 stroke
31
500 stroke 1122
MAX LEVEL
WORKTOP
MIN LEVEL
500 stroke 622
60
M8x1.25
Fixing holes for crossbar
x
4
650 stroke 1235
650 stroke 585
MIN LEVEL
MAX LEVEL
WORKTOP
670 strike 1255
M8x1.25
Fixing holes for crossbar
60
647
470 stroke
31
470 stroke 1117
x
4
670 stroke 585

19
ROL | ERGO Sweden W: www.rolergo.com P: [phone]
5.3 Dimensions column system: Series EE, ECS2
with 470 stroke
31
500 stroke 1122
MAX LEVEL
WORKTOP
MIN LEVEL
500 stroke 622
60
M8x1.25
Fixing holes for crossbar
x
4
650 stroke 1235
650 stroke 585
MIN LEVEL
MAX LEVEL
WORKTOP
670 strike 1255
M8x1.25
Fixing holes for crossbar
60
647
470 stroke
31
470 stroke 1117
x
4
670 stroke 585
68006673-A © ROL ERGO
