18 19
V-Compact®Series TD-4S
Expanded with New
Sounds and Features
With four times the wave memory of its predecessor,
the TD-4 is loaded with great drum and percussion
instruments and kits. Kits can be customized with
virtual tuning and muffling for the kick, snare and
toms. Natural ambience effects can be adjusted as
well.
●Wave-expanded sound module with 125
instruments and 25 kits
●
Tuning and Muffling for the kick, snare and toms can
be adjusted via the buttons and dial on the front
panel
●C oach Mode with new exercises, such as Warm Ups
and Tempo Check for building your accuracy and
endurance
●Quick Rec function for recording your performance
with just one button
●Mix In connector for playing along with external
audio sources
●Center mounted TD-4 sound
module with new sounds and
more accurate sensing
●Patented mesh head for the
snare for a great feel
●Velocity-sensitive toms and
cymbals with choke capability
●Unique and newly-designed
drum stand that is compact,
lightweight, and stable
●Expandable with an optional pad
or replace the ride cymbal to a
CY-12R/C 3-way trigger V-Cymbal
●Compatible with optional
VH-11 V-Hi-Hat to mount on
conventional hi-hat stands
●Cable harness and DB-25
connector for fast and clean
cable connection
TD-4S
V-Drums
®
V-Compact
®
Series
TD-4 Percussion Sound Module
MDS-4 Drum Stand for TD-4S

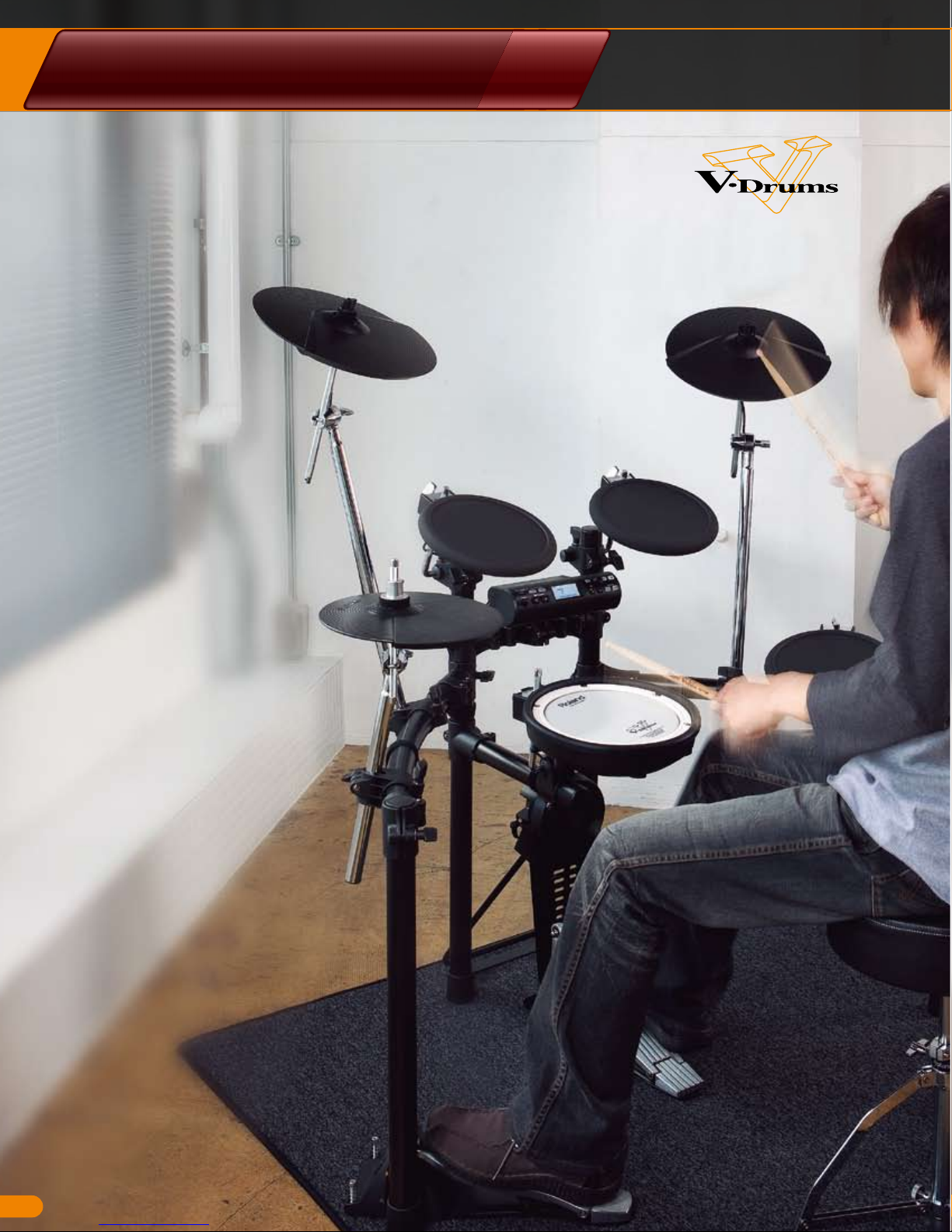

The TD-4S sets up quickly
and securely with Roland’s
new MDS-4 Drum Stand.
Stylish and lightweight,
the MDS-4 keeps V-Pads,
V-Cymbals®, and the
TD-4 securely in place
during performance. It
also easily accommodates
commercially available
double kick pedals.
Fun to Play, Comfortable to Use,
and Great for Practice
A dream for drummers,
the new TD-4S offers
outstanding feel,
versatility and affordability.
With Roland’s patented
mesh V-Pad™snare, the TD-4S
is a pleasure to play. It’s ideal
for practice, thanks to its Mix
In function, Coach Mode
and Quick Rec. It’s also a
great choice for the project
studio, with improved sound
quality and expressiveness,
and MIDI output for sequencing
or triggering other sounds.
TD-4S Kit Configuration
------------------------------------------------------------------------------
Percussion Sound Module TD-4 x 1
V-Pad PDX-8 x 1
Dual-Trigger Pad*PD-8 x 3
Dual-Trigger Cymbal Pad CY-8 x 2
Dual-Trigger Cymbal Pad CY-5 x 1
Kick Trigger Pad KD-8 x 1
Hi-Hat Control Pedal FD-8 x 1
Drum Stand MDS-4 x 1
* PD-8 is used as a single trigger pad for the TD-4.
1200 mm / 47-1/4 inches (W)
TD-4S Specifications
■Dimensions 1200 (W) x 1100 (D) x 1250 (H) mm / 47-1/4(W) x 43-5/16 (D) x 49-1/4 (H) inches
(including Sound Module, Kick Trigger, Cymbals, and Stool) ■Weight 12.2 kg /26 lbs 15
oz(excluding Stand) ■Accessories Drum Key, Setup Guide ■Options Cymbal Mount: MDY-10U,
Pad Mount: MDH-10U, Personal Drum Monitor: PM-10, PM-30, V-Drums Accessory Package:
DAP-3, V-Drums Mat: TDM-10
* The specifications are subject to change without notice.
TD-4 Specifications
■Drum Instruments 125 ■Drum Kits 25 ■Instrument Parameters KICK, SNARE, TOM, PERC:
Tuning, Muffling ■Mixer Parameters Pad Volume, Pan, Kit Volume, Cross Stick Volume
■Ambience Types 9 ■Coach Mode Warm Ups, Time Check, Tempo Check, Quiet Count, Auto Up/
Down ■Quick Rec Resolution: 96 ticks per quarter note, Recording Method: Real-time, Maximum
Note Storage: approx. 9,000 Notes ■Display Custom (backlit LCD) ■Connectors Trigger Input
connector (DB-25 type), (Kick, Snare, Tom1, Tom2, Tom3, Hi-Hat, Crash1, Crash2, Ride, Hi-Hat
Control), Output Jacks (L (MONO), R) (Stereo 1/4 inch phone type), Phones Jack (Stereo 1/4 inch
phone type), Mix in Jack (stereo miniature phone type), MIDI OUT Connector ■Output
Impedance 1.0 k Ω■Power Supply AC Adaptor (DC 9 V) ■Current Draw 500 mA ■Dimensions
224.0 (W) x 151.1 (D) x 65.1 (H) mm / 8-7/8 (W) x 6 (D) x 2-9/16 (H) inches ■Weight 477 g / 1 lb 1
oz (excluding AC Adaptor) ■Accessories Owner’s Manual, AC Adaptor (PSB-1U), Special
Connection Cable, Wing Bolt (M5 x 10) x 2, Sound Module Mounting Plate ■Options Pads (PD-8,
PDX-8, PD-85, PD-105, PD-125), Cymbals (CY-5, CY-8, CY-12R/C, CY-14C, CY-15R), Kick Triggers
(KD-8, KD-85, KD-120), Hi-Hats (VH-11), Hi-Hat Control Pedal (FD-8), Stand (MDS-4), Cymbal
Mount (MDY-10U), Pad Mount (MDH-10U), Acoustic Drum Trigger (RT-10K, RT-10S, RT-10T),
Personal Drum Monitor: PM-10, PM-30, V-Drums Accessory Package: DAP-3, V-Drums Mat
(TDM-20/TDM-10)
* The specifications are subject to change without notice.
MDS-4 Specifications
■Required Space for Set-up 1000 (W) x 700 (D) x 850 (H) mm/ 39-3/8 (W) x 27-9/16 (D) x 33-1/2 (H)
inches ■Weight 9.1 kg / 20 lbs 1 oz (including Hi-Hat Mount and Cymbal Mounts) ■Accessories
Pad Mount x 4, Hi-Hat Mount x 1, Cymbal Mount x 2, Owner’s Manual, Drum Key, Cable Tie x 6
* The specifications are subject to change without notice.
CY-8
CY-8
PD-8 PD-8
PD-8
PDX-8 KD-8
TD-4
CY-5
FD-8
■Rear Panel
■Front Panel
1100 mm / 43-5/16 inches (D)
V-Tour Series
* Kick pedal not included
* Connection cables are hidden for photography purposes
