rollease acmeda AUTOMATE Series User manual

AUTOMATE™
Li-ion Solar Charging Power Panel
SOLAR
POWERED
FEATURES:
• Plug n’ play for all AUTOMATE Li-ion motors & rechargeable battery packs
• Sleek design allows for unobtrusive placement behind most headrails
• Parallel wiring options support large shades
• Monosilicon/crystal technology allow for up to 30% more efficiency than alternatives
• Low light harvesting technology supports power generation in varied conditions
AUTOMATE | Li-ion Solar charging power panel provides supplemental power to all Li-ion
wirefree motors or rechargeable battery packs.
The monosilicon/crystal solar panel provides power in varied conditions including low
light situations. Panels can also be wired in parallel to provide additional power for
larger applications.
Users can refer to the AUTOMATE Solar Guide for direction related to regional solar
conditions and expected performance.
INSTR. MTSOLPAN-B V1.4 OCT 2017

2 | Automate™Programming Instructions | MTSOLPAN-B ROLLEASE ACMEDA
CONTENTS
KIT COMPONENTS
1 INSTALLATION 5
2 DIMENSIONS 7
3 TROUBLE SHOOTING 8

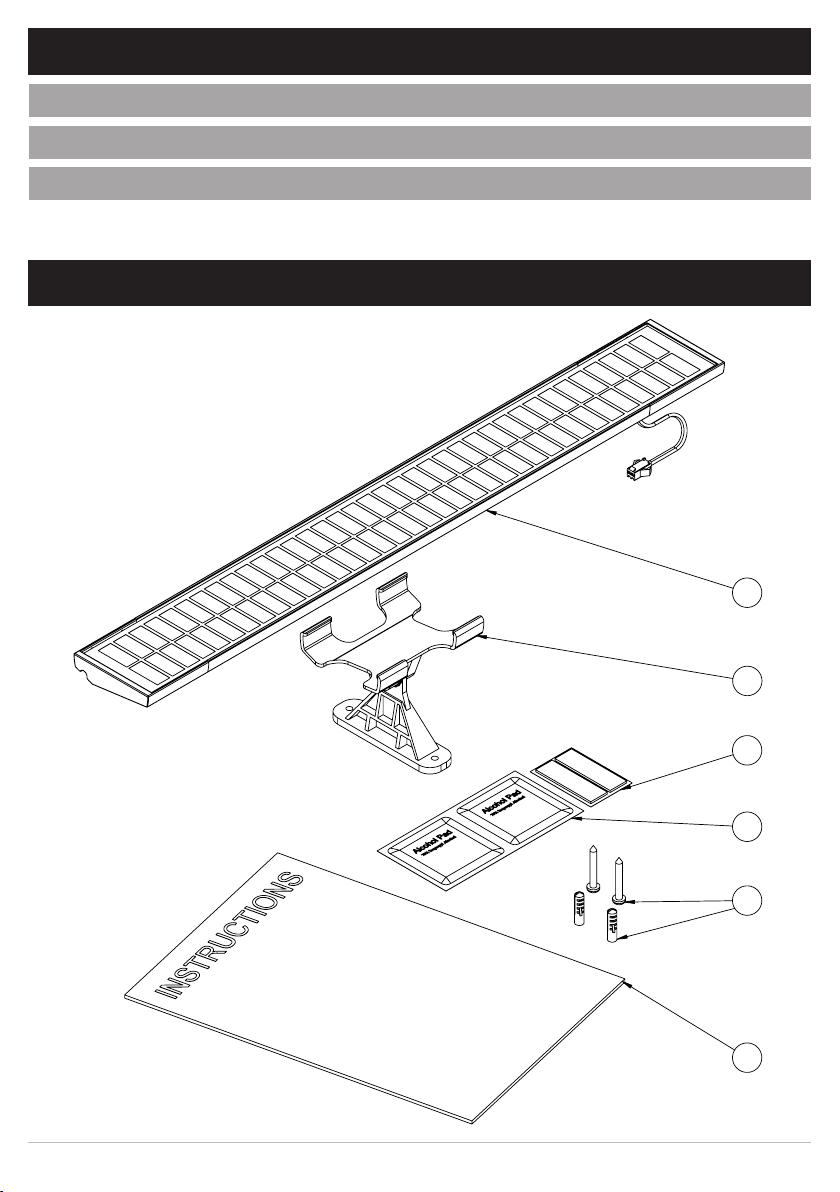

1. Solar Panel
2. Solar Panel Mounting Bracket
3. Double Sided Adhesive Tape x 2
4. Alcohol Wipe x 2
5. Self Tapping Screw & Drywall Anchor x 2
6. Installation Instructions
3
6
4
2
1
5

3 | Automate™Programming Instructions | MTSOLPAN-B ROLLEASE ACMEDA
SAFETY INSTRUCTIONS
WARNING: Important safety instructions to be read before installation.
Incorrect installation can lead to serious injury and will void manufacturer’s liability and warranty.
CAUTION
• Do not expose to moisture or extreme temperatures.
• Do not allow children to play with this device.
• Use or modification outside the scope of this instruction manual will void warranty.
• Installation and programming to be performed by a suitably qualified installer.
• For use with Li-ion motors only.
• Do not cut power cables.
• Use only Rollease Acmeda hardware.
• Do not expose the Solar panel to water or install in humid or damp environments.
• Do not drill into motor body or Solar panel body.
• The routing of cable through walls shall be protected by isolating bushing or grommets.
• Ensure power cable and aerial is clear and protected from moving parts.
• If cable or power connector is damaged do not use.
Important safety instructions to be read prior to operation.
• It is important for the safety of persons to follow the enclosed instructions. Save these instructions for future reference.
• Persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge
should not be allowed to use this product.
• Keep remote controls away from children.
• Frequently inspect for improper operation. Do not use if repair or adjustment is necessary.
Do not dispose of in general waste.
Please recycle batteries and damaged electrical products appropriately.

4 | Automate™Programming Instructions | MTSOLPAN-B ROLLEASE ACMEDA
1 INSTALLATION
Step 1.
IMPORTANT!
Locate the optimal position for solar panel in window.
Ensure all components are available for installation scenario.
Avoid covering of whole solar panel cell.
Ensure solar panel has adequate exposure to sunlight.
When selecting a position for solar panel, consider any external obstructions like trees, building,
signs, etc. that may limit the amount of sun light reaching onto the solar panel.
IMPORTANT!
Fully charge the Motor or Battery Pack before beginning Solar Panel installation.
Compatible components:
Installation Scenarios:
PARTS DESCRIPTION
MTSOLPAN-B Solar Panel for 18/25/28/35/45mm Battery Motors (Optional)
MTDCB-CHARGE Region Specific Recharger for DC Battery Motors (18/25/28/35/45) (Optional)
MTBPCKR-28 Rechargeable Battery Pack (Optional)
MTDCB-CBLXTxx DC Battery Motor Cable extender 6”/48”/96” (152/1219/2438mm) (Optional)
MTDCBxxxxx AUTOMATE | Li-ion Motor (18/25/28/35/45)
MTDCB-YCBL-SOL Solar Panel Y Harness Cable
Li-ion Motor
DC Motor
Battery Pack
Plug directly into Motor
or use:
Solar Panel Y Cable
or
Cable Extender
for parallel Solar
Panels
OPTIONAL
OPTIONAL
Solar Panel
Solar Panel
Charger
Female
Male

5 | Automate™Programming Instructions | MTSOLPAN-B ROLLEASE ACMEDA
IMPORTANT!
Clean the window or surface with alcohol wipe.
Allow surface to dry.
Peel protective film off adhesive tapes.
Press firmly onto fixing surface.
Apply hand pressure for 5 seconds and check if firmly attached.
iii.
Ensure any cables are kept clear of fabric at all times.
Step 3. Connect Solar Panel cable (female) connector to required (male) connector.
IMPORTANT!
Any partial or total covering of any solar panel cell will affect solar panel performance.
OPTION B.
Clean Solar panel front surface with alcohol wipe.
Allow surface to dry.
Peel protective film off one side of adhesive tape and attach to one end of Solar panel.
Press adhesive tape firmly onto Solar panel surface for 5 seconds to ensure good adhesion.
Ensure that adhesive tape does NOT cover any portion of the Solar panel cells.
Repeat previous steps for attaching adhesive tape to other end of Solar panel.
i.
ii.
Attaching Solar Panel via Adhesive Tape to a Window or surface
Step 2.
OPTION A.
Installing Solar panel
Install mounting bracket to wall/mounting point.
Fix Solar panel to mounting bracket.
i.
ii.
Attaching Mounting Bracket to Window Frame

6 | Automate™Programming Instructions | MTSOLPAN-B ROLLEASE ACMEDA
2 DIMENSIONS
SPECIFICATION TABLE
Parameters Value
Power output
(Under 1 SUN - 1000W/m²)W 2.3±0.2
Max Average Voltage output V 12.3±0.1
Max Average Current mA 190±20
Minimum Lux value to start
output KLux 10±5
408mm (16.063 in)
L = 150 10mm
(5.91
0.39in)
Dim L = Length of cord
between PV panel and
connector
20mm (0.797 in)
44mm (1.732 in)
72mm (2.837 in)
375mm (14.769 in)
75mm (2.953 in)
62mm (2.441 in)
54mm
(2.126 in)
2x
3.60 (0.142 in)
408mm (16.063 in)
L = 150 10mm
(5.91
0.39in)
Dim L = Length of cord
between PV panel and
connector
20mm (0.797 in)
44mm (1.732 in)
72mm (2.837 in)
375mm (14.769 in)
75mm (2.953 in)
62mm (2.441 in)
54mm
(2.126 in)
2x
3.60 (0.142 in)
408mm (16.063 in)
L = 150 10mm
(5.91
0.39in)
Dim L = Length of cord
between PV panel and
connector
20mm (0.797 in)
44mm (1.732 in)
72mm (2.837 in)
375mm (14.769 in)
75mm (2.953 in)
62mm (2.441 in)
54mm
(2.126 in)
2x
3.60 (0.142 in)

7 | Automate™Programming Instructions | MTSOLPAN-B ROLLEASE ACMEDA
3 TROUBLE SHOOTING
Problem Cause Remedy
Motor is not responding
Remote control battery is
discharged Replace battery
Battery is inserted incorrectly
into remote control Check battery polarity
Radio interference/shielding
Ensure remote is positioned
away from metal objects and the
antenna on motor is kept straight
Motor distance is too far from
remote control Move Remote to a closer position
Battery power depleted Recharge with AC adapter
(Optional)
Incorrect wiring
Check that motor wiring is
connected correctly (refer to motor
installation instructions)
Motor beeps 10 times when in use
Battery voltage is low / Solar
Panel issue
Solar Panel not providing enough
power
Check connection and positioning
of Solar panel. Ensure sun
exposure is adequate.
Recharge with AC adapter
(Optional)

8 | Automate™Programming Instructions | MTSOLPAN-B
