RollEase Easy Spring Plus User manual

Cordless Roller Shade
with Easy Spring Plus
Fabrication & Installation Instructions

Types of Systems by Headrail/Tools Needed for All Systems_________________ page 3
1-1/4” (32mm) Single System w/RE0080110 Headrail with Adjuster Wheel
Parts Needed_______________________________________________________ page 4
System Diagram____________________________________________________ page 5
1-1/2” (38mm) Single System w/RE0080110 Headrail with Adjuster Wheel
Parts Needed_______________________________________________________ page 6
System Diagram____________________________________________________ page 7
1-1/2” (38mm) Single System w/RE0080110 Headrail without Adjuster Wheel
Parts Needed_______________________________________________________ page 8
System Diagram____________________________________________________ page 9
1-1/4” (32mm) Single System w/RE0080810 Headrail
Parts Needed______________________________________________________ page 10
System Diagram___________________________________________________ page 11
1-1/4” (32mm) Dual System w/RE0080810 Headrail with Adjuster Wheel
Parts Needed______________________________________________________ page 12
System Diagram___________________________________________________ page 13
1-1/2” (38mm) Single System w/Cassette 100 & 120 without adjuster wheel
Parts Needed______________________________________________________ page 14
System Diagram___________________________________________________ page 15
Universal Instructions
Step 1: Headrail ___________________________________________________ page 16
Step 2: Cut Tube, Fabric, & Hem Bar _________________________________ page 16
Step 3: Attach Hem Bar to Fabric and Fabric to tube_____________________ page 17
Step 4: Insert Spring & Stop _________________________________________ page 17
Step 5: Pre-rotate Spring____________________________________________ page 17
Step 6: Install Brackets into Headrail RE0080110 _______________________ page 18
Step 6: Install Brackets into Headrail RE0080810 _______________________ page 19
Step 6: Install Brackets into Cassette Headrail __________________________ page 20
Step 7: Install Mounting Brackets and Headrail _________________________ page 21
Step 8: How to adjust spring & stop after installation _____________________ page 22
Installed Shade (Inside & Outside Mount)______________________________ page 23
1

Reference Section
1-1/4” (32mm) Spring Selector _______________________________________ page 24
1-1/2” (38mm) Spring Selector ___________________________________page 25 & 26
Pre-Rotation Charts_____________________________________________page 27&28
2

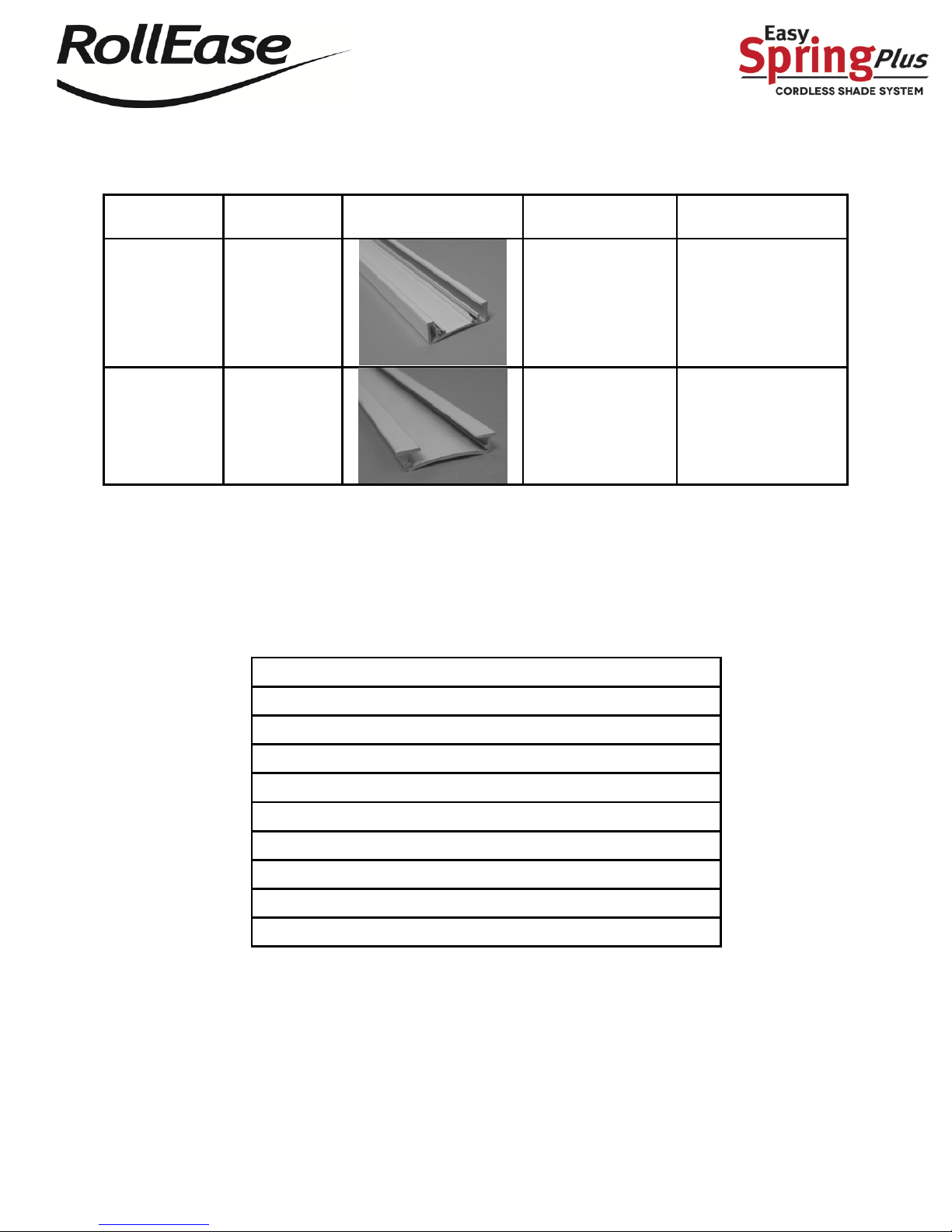

Types of System by Headrail
Description
Item #
Light Gap Over
Headrail
Systems Available
Easy Spring
Plus
Headrail
Single
System
RE0080110
0.158”
(4mm)
1-1/4” (32mm) Single
System
1-1/2” (38mm) Single
System
Easy Spring
Plus
Headrail
Single/Dual
System
RE0080810
0.177”
(4.5mm)
1-1/4” (32mm) Single
System
1-1/4” (32mm) Dual
System
Tools Needed
All Systems
Saw
Screwdriver/Power Drill
Screws for mounting brackets
Allen Wrench
Hammer/Mallet
Measuring Tape
Level
Ladder
Eye Protection
Gloves
3

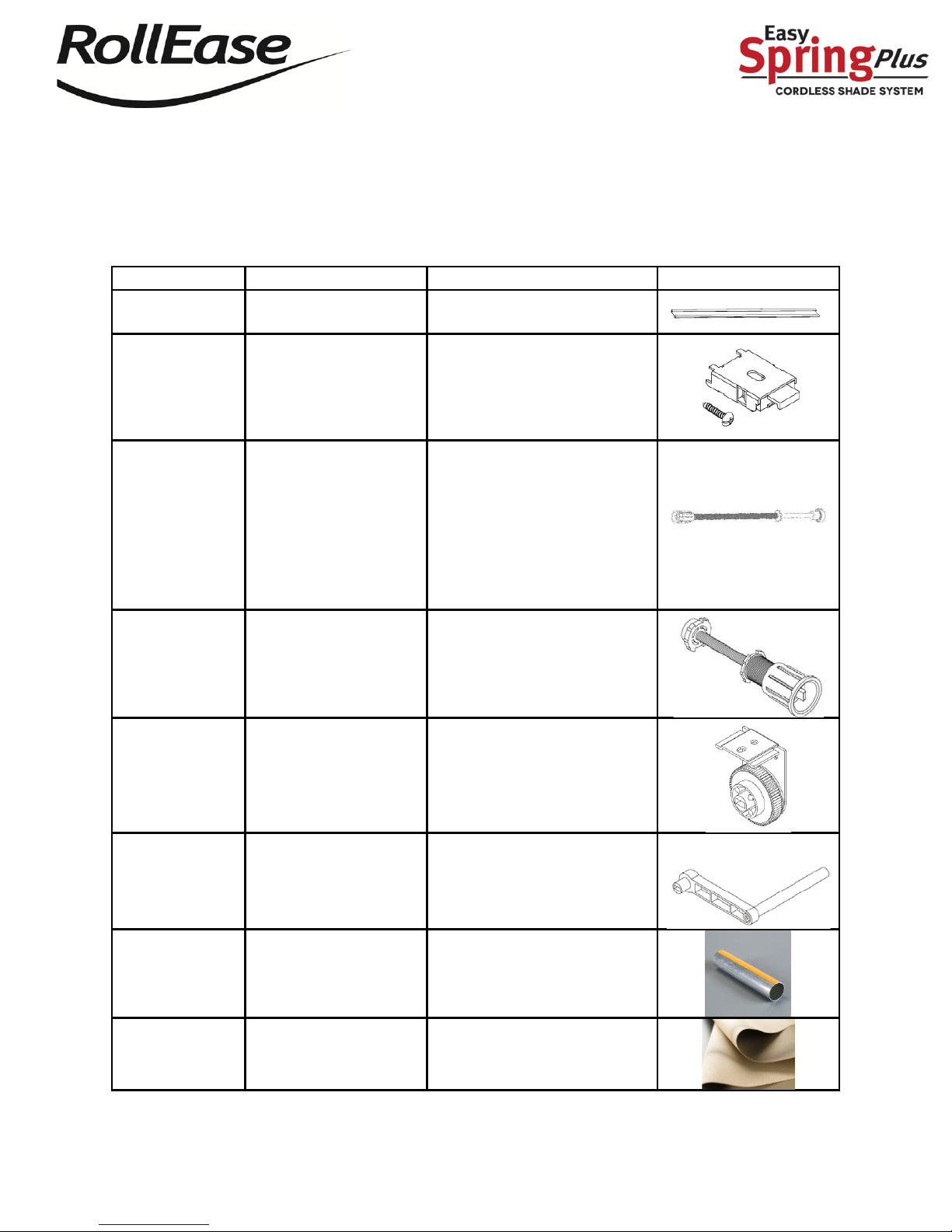

Parts Needed
1-1/4” (32mm) Single System with RE0080110 Headrail &
Brackets with Adjuster Wheel
Quantity
Description
Item Number
1
Easy Spring Plus
Headrail Single System
RE0080110
Varies
dependent on
shade width
(one every 18”
inches)
Mounting bracket
for Headrail
RE0080110
RE0080200
1
1-1/4" (32mm)
Spring (left side)
Choose one:
(use spring selector guide)
RE0081600 – 0.04” x 4.7”
(1.1 x 120mm)
RE0084500 – 0.05” x 11.8”
(1.2 x 300mm)
RE0082300 – 0.06”x 15.7”
(1.4 x 400mm)
1
1-1/4" (32mm) Stop
(right side)
RE0081200 – short (used
only in shades under 25”
wide)
RE0081300 - long
2
1-1/4" (32mm)
Brackets with
Adjuster Wheel
RE0083910
1 Pre-Rotation Tool RE0082700
1 1-1/4” (32mm) Taped
Tube
RTEA3T12 - 12'
RTEA3T16 - 16'
1 Fabric See RollEase Fabric Books
4

System Diagram
1-1/4” (32mm) Single System with RE0080110 Headrail
& Brackets with Adjuster Wheel
5

Parts Needed
1-1/2” (38mm) Single System with RE0080110 Headrail &
Brackets with Adjuster Wheel
Quantity
Description
Item Number
1
Easy Spring Plus
Headrail Single
System
RE0080110
Varies
dependent on
shade width
(one every 18”
inches)
Mounting Brackets
for Headrail
RE0080200
1 1-1/2 (38mm) Spring
RE0080400 – 0.05” x 11.8”
(1.2 x 300mm)
RE0080500 – 0.06” x 17.7”
(1.5 x 450mm)
RE0084400 – 0.7” x 21.7”
(1.7 x 550mm)
1
1-1/2 (38mm) Stop
(one size only) RE0081400
2
1-1/2” (38mm) Bracket
with Adjuster Wheel
RE0080710
1
Pre-Rotation Tool
RE0084200
1
1-1/2” (38mm) Taped
Tube
RTEA4T12 – 12’
RTEA4T16 – 16’
1
Fabric See RollEase Fabric Books
6

System Diagram
1-1/2” (38mm) Single System with RE0080110 Headrail &
& Brackets with Adjuster Wheel
7

Parts Needed
1-1/2” (38mm) Single System with RE0080110 Headrail & Brackets
without Adjuster Wheel
Quantity
Description
Item Number
1
Easy Spring Plus
Headrail Single
System
RE0080110
Varies
dependent on
shade width
(one every 18”
inches)
Mounting Brackets
for Headrail
RE0080200
1 1-1/2 (38mm) Spring
RE0080400 – 0.05” x 11.8”
(1.2 x 300mm)
RE0080500 – 0.06” x 17.7”
(1.5 x 450mm)
RE0084400 – 0.7” x 21.7”
(1.7 x 550mm)
1
1-1/2 (38mm) Stop
(one size only) RE0081400
2
1-1/2” (38mm) Bracket
without Adjuster
Wheel
RE0084610
1
Pre-Rotation Tool
RE0084200
1
1-1/2” (38mm) Taped
Tube
RTEA4T12 – 12’
RTEA4T16 – 16’
1
Fabric See RollEase Fabric Books
8

System Diagram
1-1/2” (38mm) Single System with RE0080110 Headrail & Brackets
without Adjuster Wheel
9

Parts Needed
1-1/4” (32mm) Single System with RE0080810 Headrail &
& Brackets with Adjuster Wheel
Quantity
Description
Item Number
1
Easy Spring Plus
Headrail Single/Dual
System
RE0080810
Varies
dependent on
shade width
(one every 18”
inches)
Mounting Brackets
RE0081110 - White
RE0081030 Anodized
1
1-1/4” (32mm)
Spring (left side)
Choose one:
(use spring selector guide)
RE0081600 – 0.04” x 4.7”
(1.1 x 120mm)
RE0084500 – 0.05” x 11.8”
(1.2 x 300mm)
RE0082300 – 0.06”x 15.7”
(1.4 x 400mm)
1
1-1/4” (32mm) Stop
(right side)
RE0081200 – short
(used only in
windows with
widths too short
to fit long stop)
RE0081300 - long
2
Or use
RE0084010 for
larger projection
1-1/4” (32mm)
50mm projection
Brackets with
Adjuster Wheel
RE0084110
2
1-1/4" (32mm)
57mm projection
Brackets with
Adjuster Wheel
RE0084010
1 Pre-Rotation Tool
RE0082700
1 1-1/4” (32mm) Taped
Tube
RTEA3T12 - 12'
RTEA3T16 - 16'
1 Fabric See RollEase Fabric Books
10

System Diagram
1-1/4” (32mm) Single System with RE0080810 Headrail & Brackets
with Adjuster Wheel
11

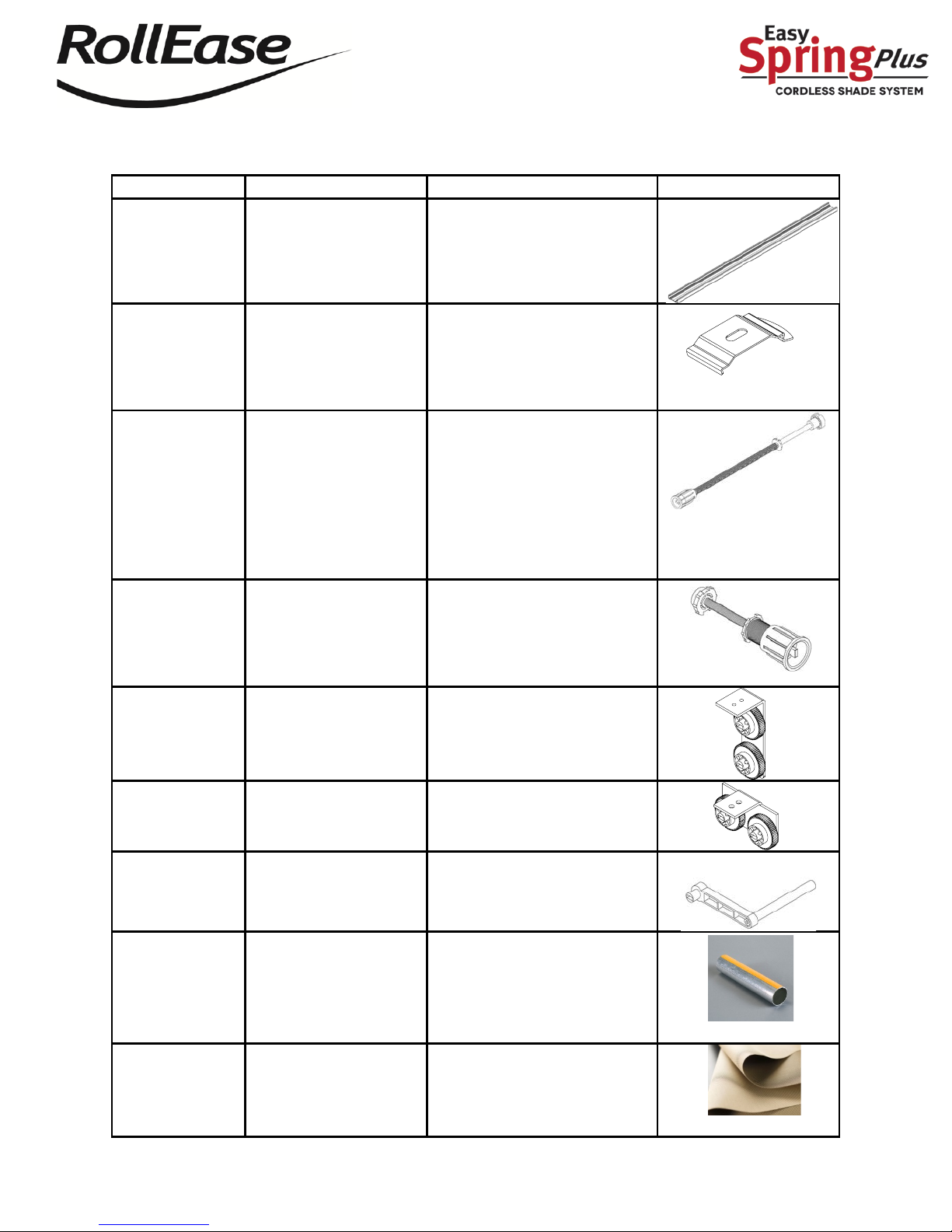

Parts Needed
1-1/4” (32mm) Dual System with RE0080810 Headrail &
& Brackets with Adjuster Wheel
Quantity
Description
Item Number
1
Easy Spring Plus
Headrail Single/Dual
System
RE0080810
Varies
dependent on
shades width
(one every 18”
inches)
Mounting Brackets
RE0081110 - White
RE0081030 - Silver
2
1-1/4” (32mm)
Spring (left side)
Choose one:
(use spring selector guide)
RE0081600 – 0.04” x 4.7”
(1.1 x 120mm)
RE0084500 – 0.05” x 11.8”
(1.2 x 300mm)
RE0082300 – 0.06”x 15.7”
(1.4 x 400mm)
2
1-1/4” (32mm) Stop
(right side)
RE0081200 – short
(used only in
shades under 25”
wide)
RE0081300 - long
2 Double Vertical Bracket
with Adjuster wheel
RE0082610
2
Double Horizontal
Bracket with Adjuster
wheel
RE0084310
1 Pre-Rotation Tool RE0082700
2 1-1/4” (32mm) Taped
Tube
RTEA3T12 – 12’
RTEA3T16 – 16’
2 Fabric See RollEase Fabric Books
12

System Diagram
1-1/4” (32mm) Dual System with RE0080810 Headrail &
& Brackets with Adjuster Wheel
13

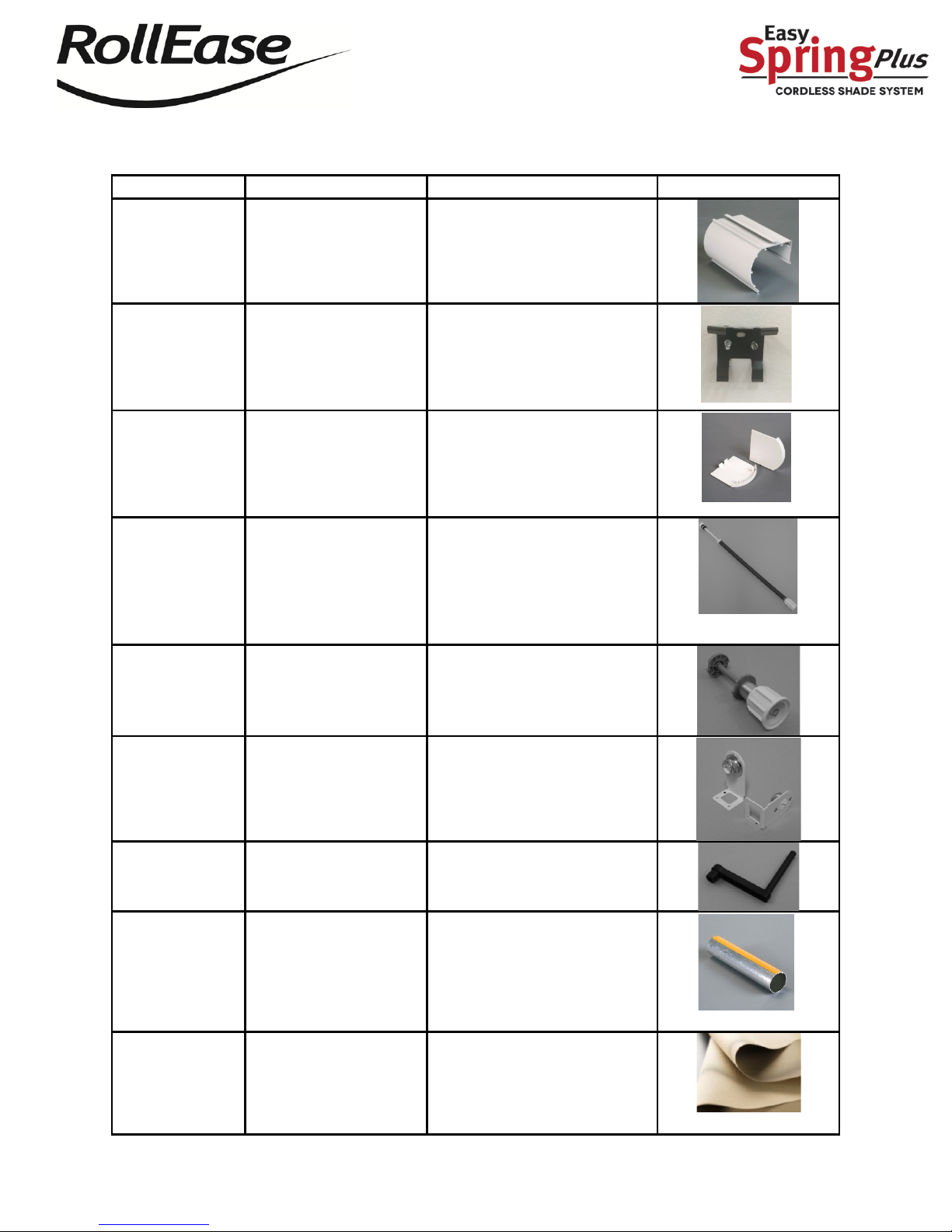

Parts Needed
1-1/2” (38mm) Single System with Cassette 100 or 120 &
Brackets without Adjuster Wheel
Quantity
Description
Item Number
1 Cassette Headrail CRV100 – Cassette 100
or
CRV53 – Cassette 120
Varies
dependent on
shades width
(one every 18”
inches)
Mounting Brackets HDBKT – Cassette 100
or
V2BKTXX – Cassette 120
2 End Caps CREC100 – Cassette 100
or
CREC53 – Cassette 120
1
1-1/2 (38mm) Spring
RE0080400 – 0.05” x 11.8”
(1.2 x 300mm)
RE0080500 – 0.06” x 17.7”
(1.5 x 450mm)
RE0084400 – 0.7” x 21.7”
(1.7 x 550mm)
1
1-1/2 (38mm) Stop
(one size only) RE0081400
2 ESP 1-1/2” (38mm)
Cassette Brackets RE0084710
1
Pre-Rotation Tool
RE0084200
1
1-1/2” (38mm) Taped
Tube
RTEA4T12 – 12’
RTEA4T16 – 16’
1 Fabric See RollEase Fabric Books
14

System Diagram
1-1/2” (38mm) Single System with Cassette 120
& Brackets without Adjuster Wheel
15

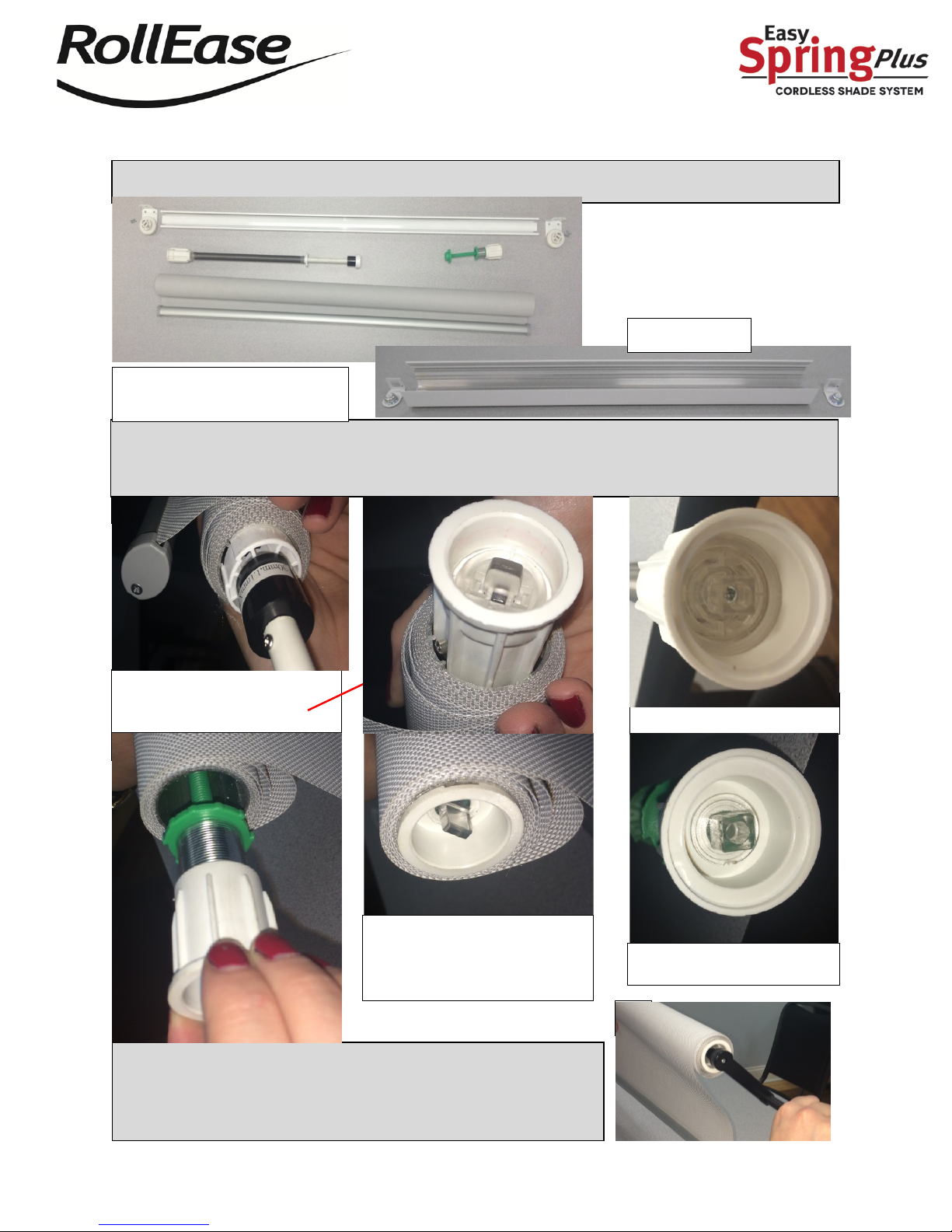

Fabrication Instructions
All Systems
Deductions
Note: For Inside Mount, we recommend deducting 1/8” more for headrail and tube to ensure proper fit in
window frame.
Headrail
Deduction
RE0080110 – single 1-1/4” (32mm) or single 1-1/2” (38mm)
3/16”
RE0080810 – single 1-1/4” (32mm) or dual 1-1/4” (32mm)
5/16"
Headrail RE0080110
Bracket
Deduction
RE0083910 Single 1-1/4” (32mm) w/adjuster wheel
1-1/2”
RE0080710 Single 1-1/2” (38mm) w/adjuster wheel
1-9/16”
RE0084610 Single 1-1/2” (38mm) no adjuster wheel
RE0084710 Single 1-1/2” (38mm) Cassette Bracket with no
adjuster wheel
11/16”
Headrail RE0080810
Bracket
Deduction
RE0084110 Single 1-1/4” (32mm) 50mm projection with
adjuster
1-5/8”
RE0084010 Single 1-1/4” (32mm) 57mm projection with
adjuster wheel
1-5/8”
RE0082610 Double 1-1/4” (32mm) Vertical w/adjuster wheel
1-5/8”
RE0081310 Double 1-1/4” (32mm) Horizontal w/adjuster
wheel
1-5/8”
Step 1: Headrail
Measure your inside or outside mount. Deduct correct measurement (see table below) from the width of
your mount.
This is the size you want to cut your headrail
Step 2: Cut Tube, Fabric & Hem Bar
(see table below for deductions)
2a. Cut tube width of Headrail minus the deductions for the brackets. (Deductions shown below are total for
two brackets)
2b. Cut Fabric and Hem Bar as you would a clutch operated roller shade
16

Fabrication Instructions
All Systems
4a
Step 3: Attach Hem Bar to Fabric and Fabric to tube
Step 4: Insert Spring & Stop (1-1/4” (32mm) shown. (see Spring Selection tables)
4a. Insert Spring into the left side of the tube (unless reverse roll)
4b. Insert Stop into the right side of the tube (unless reverse roll)
4b
Shown: Finished shade. Headrail,
Brackets w/Screws, Spring, and Stop
Align grooves on top and bottom of
spring into grooves on the inside of the
tube.
If using 1-1/2” (38mm), the spring
will look like this
When using the 1-1/4” Stop, it is
recommended to use the larger of the
two stops available (item # RE0081300)
unless width of window is too short to fit
both the stop and spring in the tube.
If using 1-1/2” (38mm), the stop will
look like this
Step 5: Pre-rotate Spring
Using pre-rotation tool, engage tool into the plastic tab on the inside of
the spring and rotate the spring clockwise the desired number of turns
(see pre-rotation chart on following pages)
5
If Using Cassette
17

Note: 1-1/4” brackets with adjuster wheel shown. Instructions are the same for the 1-1/2”
brackets with or without the adjuster wheel
Step 6 Install Brackets and tube into headrail
6a. Insert one bracket into the headrail and use screws provided to lock in place
6b. Insert tube on bracket
6c. Insert other bracket onto tube and slide into headrail and use screws provided to lock in place
6a
Align wings on bracket with the
grooves in the top of the headrail
Slide bracket wings all the way into
the headrail and attach with
provided screws
When aligning the bracket with the headrail for
attachment, make sure the screws flow through the holes
in the bracket directly into the small grooves in the
headrail.
1st bracket – align slot in bracket
with tab in spring
2nd bracket -position tube
under headrail and slide bracket
into headrail until bracket is
fully engaged into spring inside
tube
Both sides will look like this
6b
6c
For Headrail RE0080110
18

Note: 1-1/4” single brackets shown. Instructions are the same for the dual brackets
For Headrail RE0080810
6a
Step 6 Install Brackets and tube into headrail
6a. Insert one bracket into the headrail and use screws attached to bracket to hold in place
6b. Insert tube on bracket
6c. Insert other bracket onto tube and slide into headrail and use screws provided to lock in place
6b
6c
19
