RoomTec X002TZLIND User manual

1
Manual
LED Wall-mounted Mirror

LEDWall-mountedMirror
www.room-tec.com
Instrucons & Installaon
Statement
Please read this instruction carefully before installation, and refer to it again during the installation to ensure a safe and
correct installation of the mirror.
Compliance
All the electrical components used in this product are ETL LISTED. This product passed ETL certification.
Electrical Safety Instructions
INSTALLATION should be made by a qualified / registered electrician. DO NOT attempt to install it by yourself, as
RoomTec will not be responsible for any damage caused during installation.
According to IEEE regulations, this product is suitable for zone 2 and external zone, not zone 0 or zone 1. It is also not
suitable for installation in saunas, steam rooms or shower cubicles.
This product is only suitable for permanent installation, please do not plug in the power strip.
Please make sure to keep the electrical supply off during installation and maintenance. It is recommended to pull out the
fuse or switch off the circuit breaker before installation to disconnect the necessary circuits.
RoomTec LED mirror adopts three-pin plug, power leads must be connected to ground wire.
DO NOT put hard and sharp materials directly against the mirror surface during operation, otherwise it may result in
current leakage and even personal injury accident.
Never forget to turn off the power supply in storm days, otherwise electric components of the product could be
damaged.
DO NOT switch off the power supply directly during normal operation, otherwise electric elements of the product may
be easily damaged.
Please turn off the power supply if the product is not used for a long time.
DO NOT remove protective film or corner protectors until the mirror is completely installed.
PLEASE KEEP THIS MANUAL BOOK FOR FUTURE REFERENCE.
-1-

LEDWall-mountedMirror
www.room-tec.com
Speciaon
Product Name: LED LIGHTED MIRROR Cerates: ETL, CE, ROHS
Brand: RoomTec Input Voltage: 110v
Design Style: Modern Power: 
Feature: Illuminated Lumen: 2500-3000lm
Mirror Shape: Rectangle Input Frequency: 60Hz
Funcon: An-fog, memory funcon Color Temperature: 3000k-6000k oponal
Installaon: Wall mounted IP Rang: IP44
Glass Thickness: 5mm
Light Color Warm/White/Warm white changeable
Touch Sensor Yes
Material: Copper-free silvered glass
+ Aluminum frame
Dimming Funcon: Yes
Warranty: 1year
Hanging Way: 
Applicaon: Bathroom, makeup room
Operaon Instrucons
Light on/o
Power on, then press to turn on, that light will be warm light.



Wiring

can connect the cord to the wall and be controlled by a wall switch.
Cleaning
When the mirror has to be cleaned, please switch off the power first.
DO NOT use abrasives or solvents when cleaning.
DO NOT let water get in the mirror and submerge mirror in water.
Wipe off all water spillages as soon as possible via a soft, damp cloth.
7
140
30
-2-

LEDWall-mountedMirror
www.room-tec.com

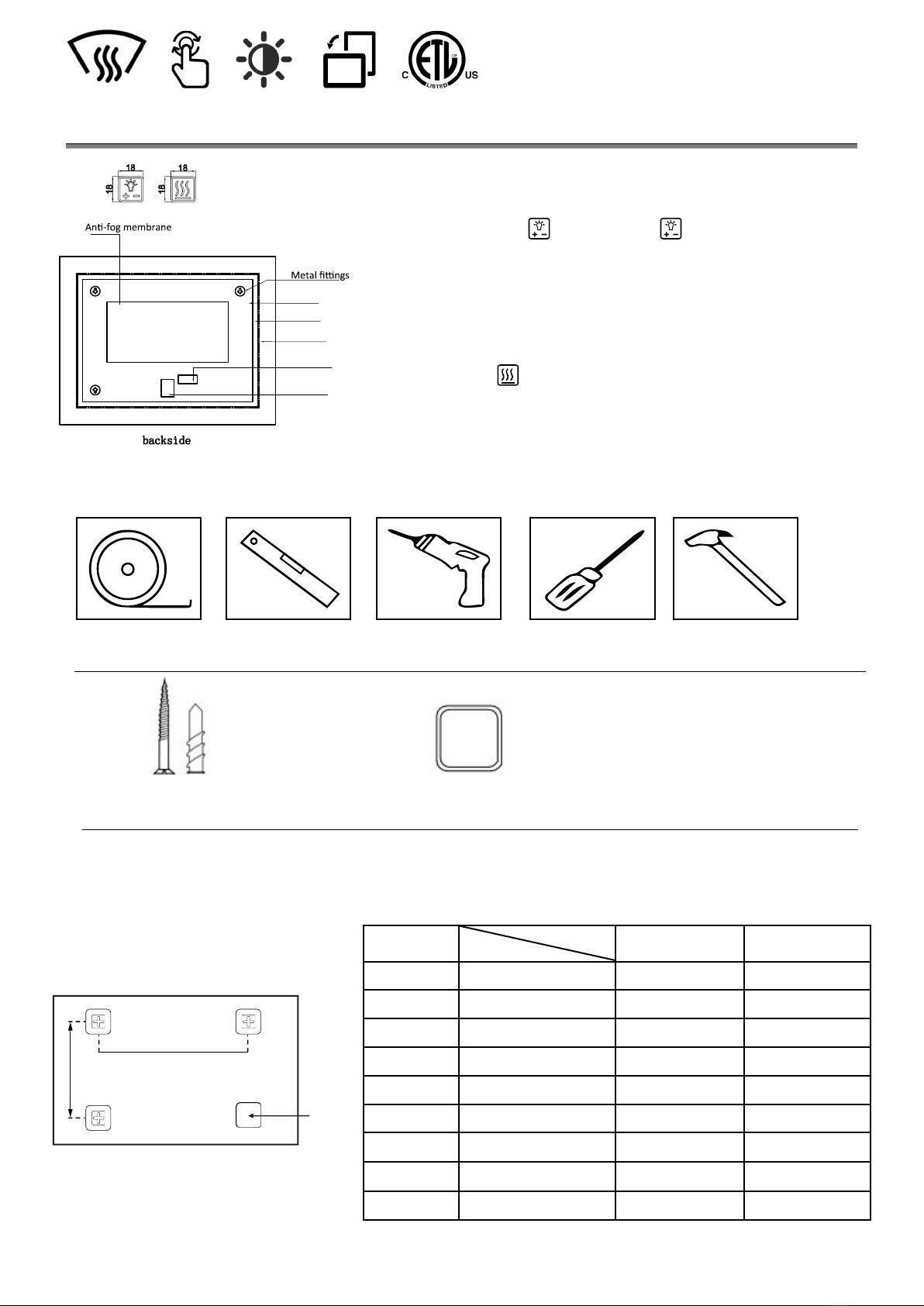

Installaon
Ruler Spirit Level Electrical Drill Screwdriver Hammer
2 x screws and white nylon screw type plug 4xspacer
Step 1
Sk spacers on mirror backside to keep the mirror at, and measure the distance of A/B(two hooks center distance).
PVC back board
Light strip
Back frame
Drive power supply
Touch module
Dimming instrucon
-3-
Measurement A
Measurement B
pacer
Size
Model Measurement A(mm)
637±3mm
328±3mm
480±3mm
632±3mm
785±3mm
936±3mm
368±3mm
477±3mm
520±3mm
520±3mm
520±3mm
520±3mm
520±3mm
559±3mm
X002TZLIND
MA022430TD-OL
MA023030TD-OL
MA023630TD-OL
MA024230TD-OL
MA024830TD-OL
MA032430TD-OL
Measurement B(mm)
06D400484D
462A00494F
7D5D00479D
99C300479C
D470004799
660D004798
CD5F00494D
672±3mm 559±3mmMA033630TD-OL1AE5004901
825±3mm 559±3mmMA034230TD-OLFF8900479A
Power on, then press to turn on. Hold down and the brightness
will change accordingly.
Fog-free instrucon
( For the led mirror with an-fog funcon)
Power on, press , the mirror can be defogging.


LEDWall-mountedMirror
www.room-tec.com

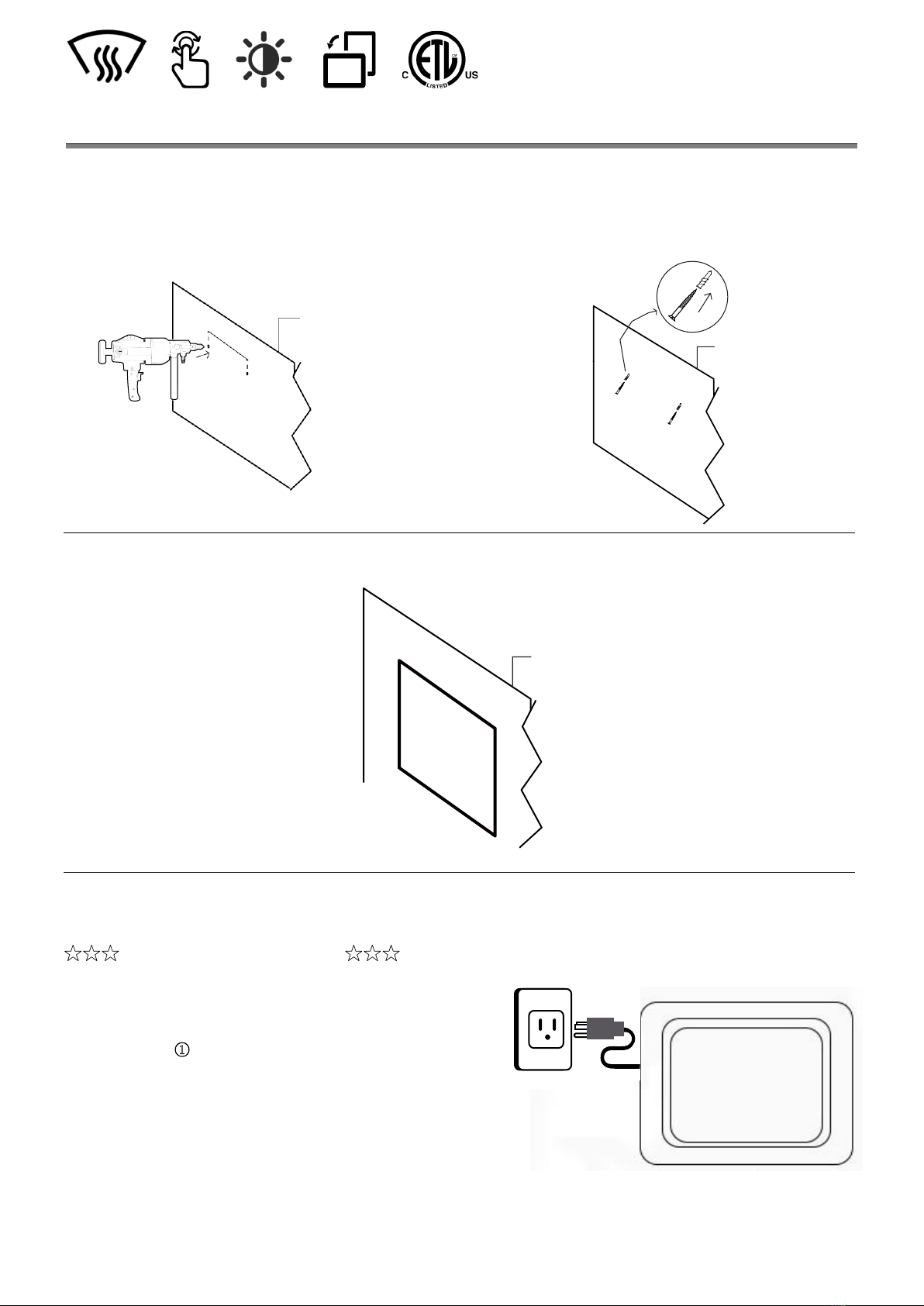

Step 2
Mark two dots on the wall with the length of
A/B then drill holes into those marks.
Step 3
Step 4
Place the white nylon plugs into the holes in the wall then
screw the screws into the plug.
Hang the mirror to wall.
Wall
Wall
M
irror
★★★ About thewire connecon ★★★
There are two ways to connect the circuit for the mirror.
Connecon way ①: Plug the 3-pin plug in the socket on the wall.
Wall
Measurement A/B
-4-

LEDWall-mountedMirror
www.room-tec.com

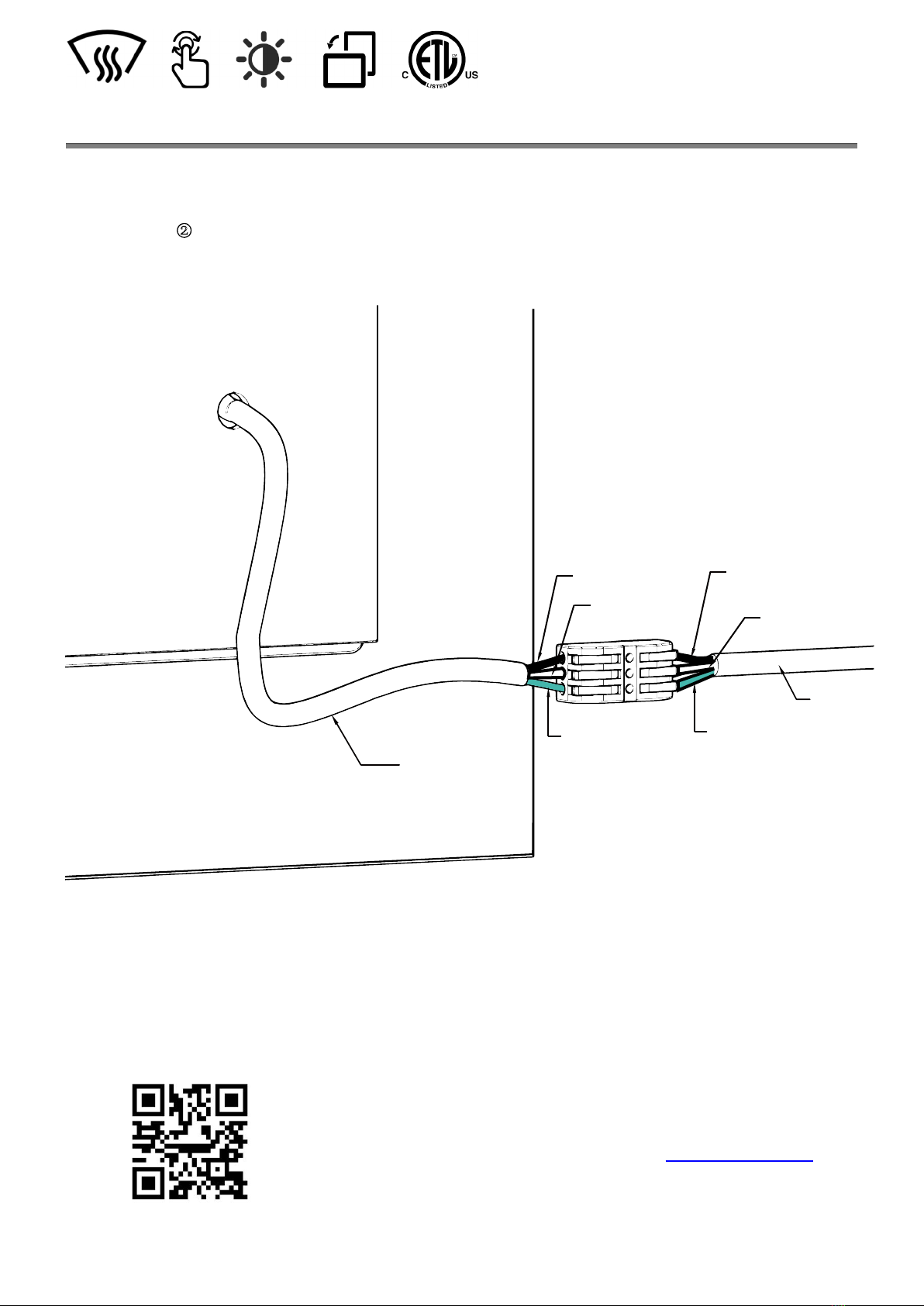

Connecon way ②: Connect the mirror wire with wall switch wire via connector.
Thanks for choosing RoomTec.
Web: www.room-tec.com
Any query please feel free to email our service team : [e-mail].
Scan the QR code to watch the video of installaon.
Field Wire
Neutral/ white
Earth/ Green
Earth/ Green
Neutral/ white
Live/ Black Live/ Black
Input Wire
of Mirror
-5-
