Roost BED SYSTEM User manual

PORTLAND, OREGON
WWW.ROOSTVANS.COM [phone] PG.
1
END USER ASSEMBLY AND INSTALLATION INSTRUCTION MANUAL
BED SYSTEM 144/170 WB 2006+ MB SPRINTER
BED SYSTEM MOUNTS TO LOWER MOUNTING KIT
OPTIONAL FUKiT’S
5/16” TWIRL NUT
4 PER PANEL
1 AMPULE LOCTITE
5/16 RAIL NUT
16 FOR BED FRAME
8 PER PANEL
5/16”-18 X 5/8” FLANGED BUT-
TONHEAD CAP BOLT
12 PER PANEL
1/4”-20 X 3/4” FLANGED BUT-
TON HEAD CAP BOLT
12 PER PANEL
3 PANEL (QUEEN) BED SYSTEM SHOWN
TOOLS NEEDED:
3/16” ALLEN KEY
5/32” ALLEN KEY
PARTS INCLUDED:
RIGHT BED PANEL BRACKETS
2 PER PANEL
LEFT BED PANEL BRACKETS
2 PER PANEL
BED SYSTEM MOUNTS TO LOWER MOUNTING KIT

PORTLAND, OREGON
WWW.ROOSTVANS.COM [phone]
PG.
2
END USER ASSEMBLY AND INSTALLATION INSTRUCTION MANUAL
BED SYSTEM 144/170 WB 2006+ MB SPRINTER

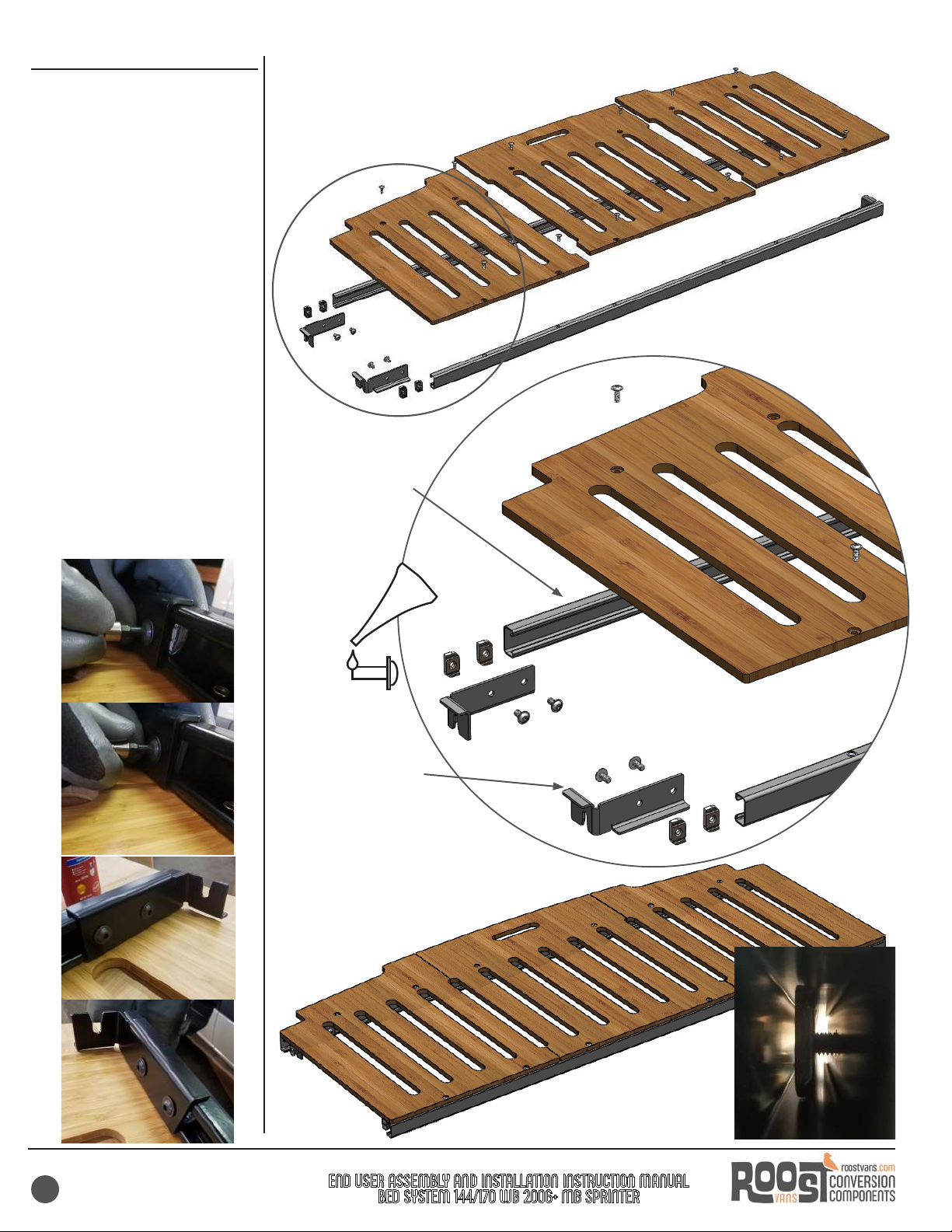

ASSEMBLE REAR BED PANEL
INSTALL SMALLER DIAMETER
1/4”-20 BOLTS THROUGH
BED PANELS INTO RAILS AS
SHOWN. ENSURE PROPER
ORIENTATION OF RAILS.
PREASSEMBLE LEFT AND
RIGHT BRACKETS AS SHOWN
WITH LARGER DIAMETER
5/16”-18 BOLTS AND RAIL
NUTS.
USE 1 SMALL DROP OF LOC-
TITE ON THE END OF THE
BOLT THREADS.
LOOSELY INSTALL LEFT AND
RIGHT BRACKET ASSEMBLIES
ONTO CROSS RAILS. BRACK-
ETS WILL BE ADJUSTED
LATER. ENSURE PROPER
BRACKET IS USED.
ENSURE THAT RAIL NUTS ARE
PROPERLY ENGAGING RAILS
AS SHOWN.
NOTE ORIENTATION
OF RAILS
NOTE ORIENTATION
OF LEFT AND RIGHT
BRACKETS
ENSURE RAIL NUTS ARE PROPERLY
ENGAGING INSIDE OF RAIL

PORTLAND, OREGON
WWW.ROOSTVANS.COM [phone] PG.
3
END USER ASSEMBLY AND INSTALLATION INSTRUCTION MANUAL
BED SYSTEM 144/170 WB 2006+ MB SPRINTER

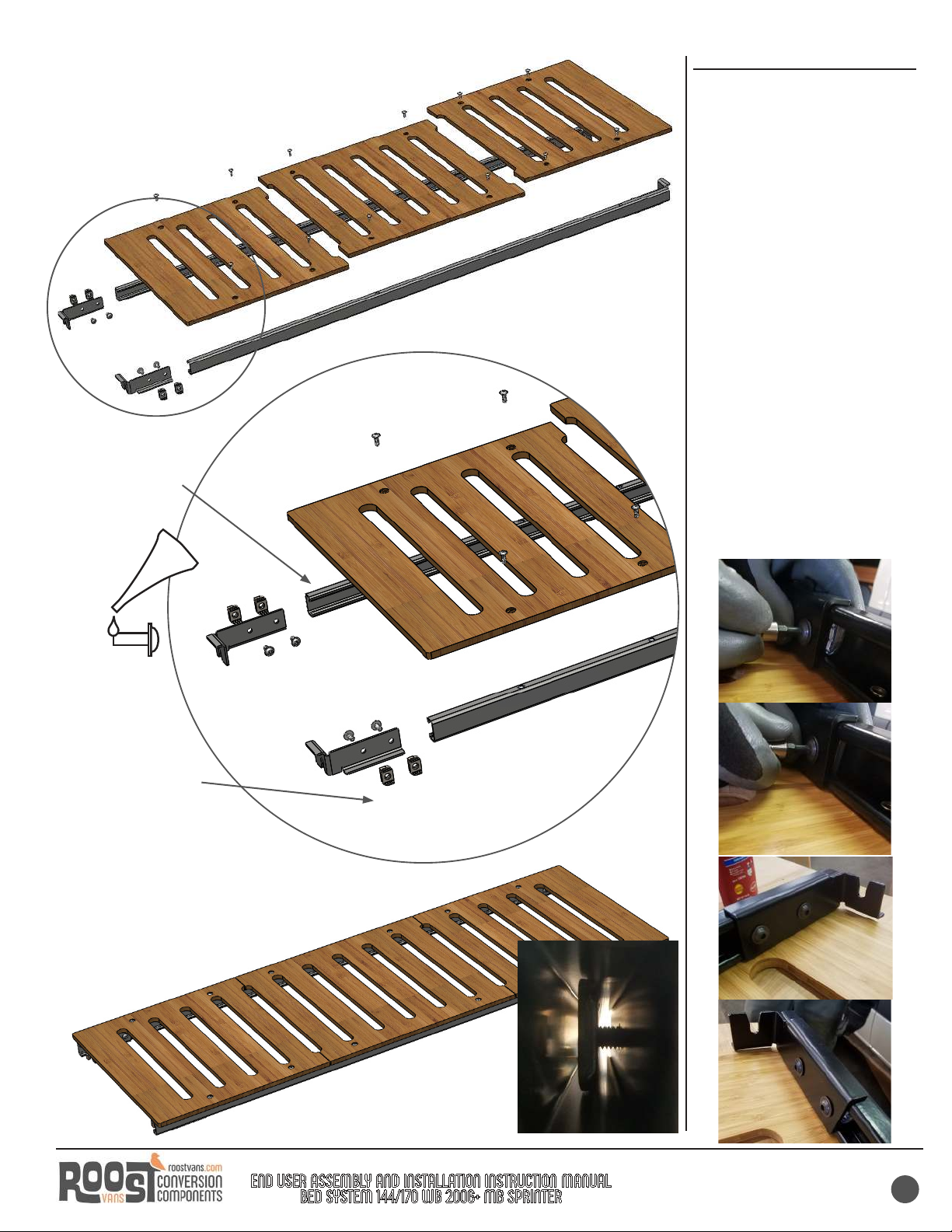

ASSEMBLE MAIN BED PANEL
INSTALL SMALLER DIAMETER
1/4”-20 BOLTS THROUGH
BED PANELS INTO RAILS AS
SHOWN. ENSURE PROPER
ORIENTATION OF RAILS.
PREASSEMBLE LEFT AND
RIGHT BRACKETS AS SHOWN
WITH LARGER DIAMETER
5/16”-18 BOLTS AND RAIL
NUTS.
USE 1 SMALL DROP OF LOC-
TITE ON THE END OF THE
BOLT THREADS.
LOOSELY INSTALL LEFT AND
RIGHT BRACKET ASSEMBLIES
ONTO CROSS RAILS. BRACK-
ETS WILL BE ADJUSTED
LATER. ENSURE PROPER
BRACKET IS USED.
ENSURE THAT RAIL NUTS ARE
PROPERLY ENGAGING RAILS
AS SHOWN.
NOTE ORIENTATION
OF RAILS
NOTE LEFT AND RIGHT
BRACKETS
ENSURE RAIL NUTS ARE PROPERLY
ENGAGING INSIDE OF RAIL

PORTLAND, OREGON
WWW.ROOSTVANS.COM [phone]
PG.
4
END USER ASSEMBLY AND INSTALLATION INSTRUCTION MANUAL
BED SYSTEM 144/170 WB 2006+ MB SPRINTER

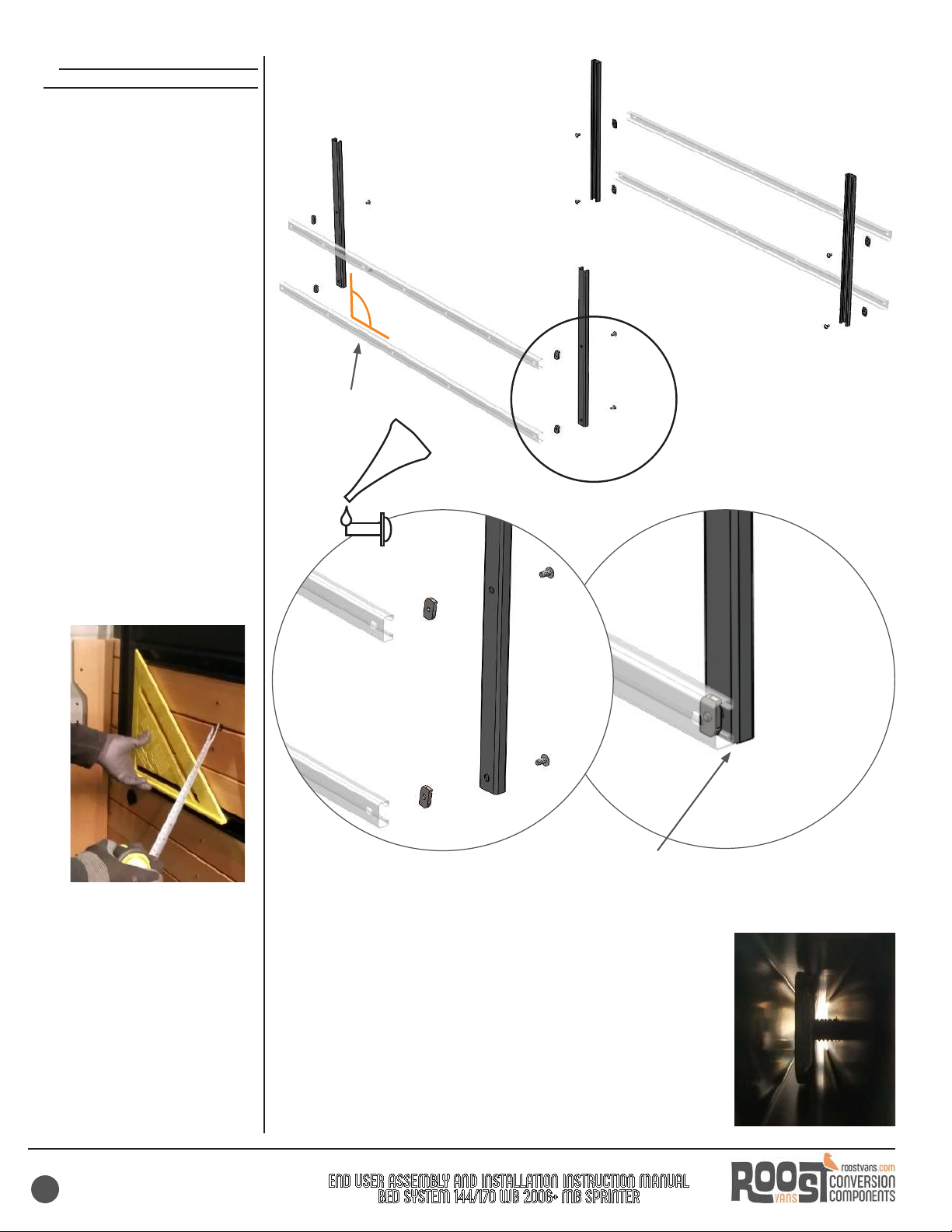

NOTE BED POST IS
FLUSH WITH FRONT
OF MOUNTING RAIL ON
BOTH SIDES
INSTALL BED POSTS INTO
LOWER MOUNTING SYSTEM
PREASSEMBLE 4X BED
POSTS AS SHOWN WITH
LARGER DIAMETER 5/16”-18
BOLTS AND RAIL NUTS.
USE 1 SMALL DROP OF LOC-
TITE ON THE END OF THE
BOLT THREADS.
TEMPORARILY SECURE 4X
BED POSTS.
ENSURE THAT RAIL NUTS ARE
PROPERLY ENGAGING RAILS
AS SHOWN.
TEMPORARILY SECURE
FRONT BED POSTS FLUSH
WITH FRONT FACE OF
MOUNTING KIT REAR RAILS.
VERIFY ALL VERTICAL BED
POSTS ARE SQUARE TO
HORIZONTAL MOUNTING KIT
REAR BED POSTS WILL BE
SPACED PROPERLY IN FOL-
LOWING STEP
ENSURE RAIL NUTS ARE PROPERLY
ENGAGING INSIDE OF RAIL
ENSURE BED
POSTS ARE
SQUARE

PORTLAND, OREGON
WWW.ROOSTVANS.COM [phone] PG.
5
END USER ASSEMBLY AND INSTALLATION INSTRUCTION MANUAL
BED SYSTEM 144/170 WB 2006+ MB SPRINTER

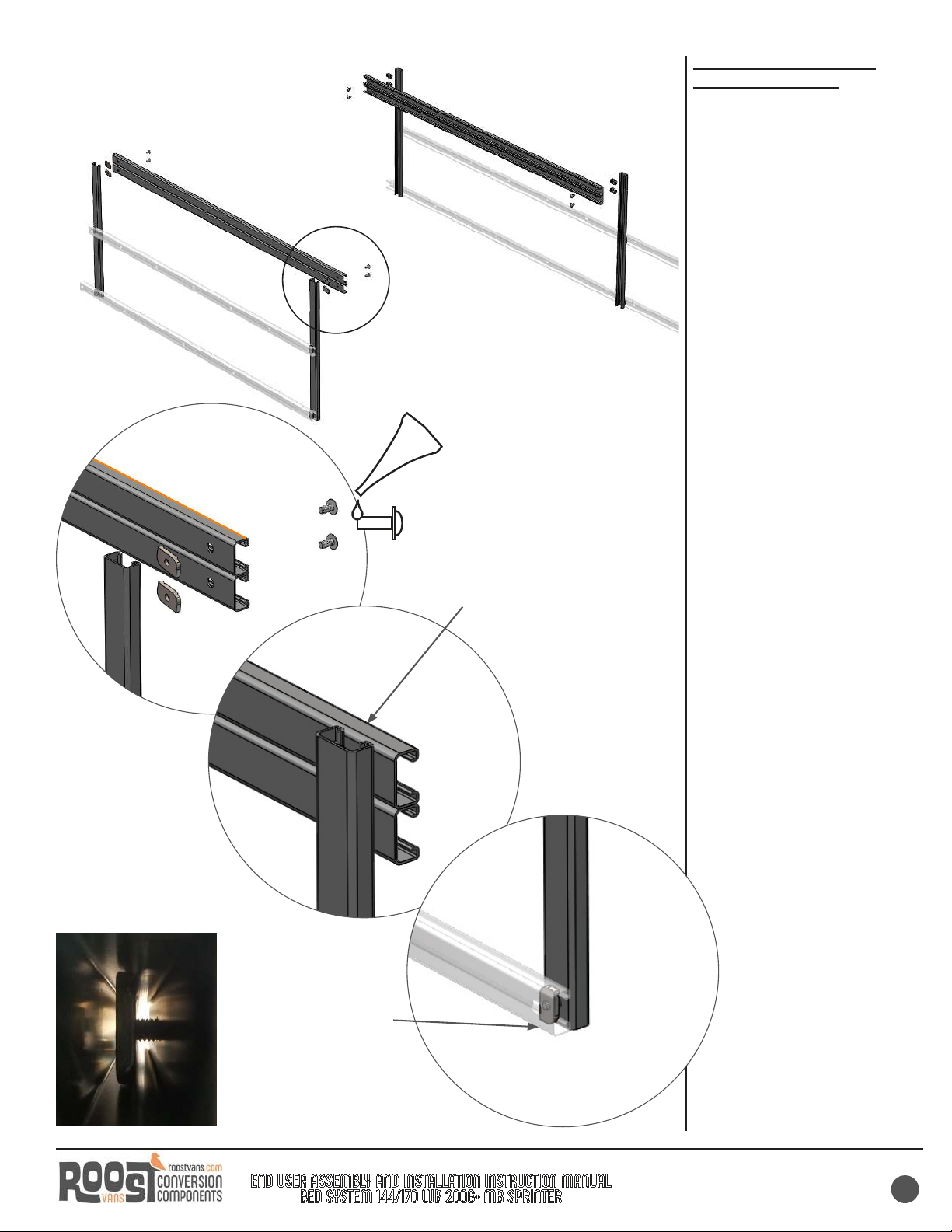

INSTALL BED RAIL AND
SPACE BED POSTS
PREASSEMBLE 2X BED RAILS
AS SHOWN WITH LARGER DI-
AMETER 5/16”-18 BOLTS AND
RAIL NUTS.
USE 1 SMALL DROP OF LOC-
TITE ON THE END OF THE
BOLT THREADS.
TEMPORARILY SECURE BED
RAIL INTO BED POSTS, ALIGN-
ING BED RAIL TO BE FLUSH
WITH THE TOP OF THE BED
POST AT ALL 4 CORNERS.
HEIGHT WILL BE ADJUSTED IN
NEXT STEP.
ENSURE THAT RAIL NUTS ARE
PROPERLY ENGAGING RAILS
AS SHOWN.
VERIFY AGAIN THAT VERTICAL
BED POSTS ARE SQUARE TO
HORIZONTAL MOUNTING KIT.
PERMANENTLY SECURE
BED POSTS TO HORIZONTAL
MOUNTING KIT, TIGHTENING
ALL 8 BOLTS.
NOTE BED RAILS ARE
FLUSH WITH TOP OF
OF BED POSTS ON
BOTH SIDES
ENSURE RAIL NUTS ARE
PROPERLY ENGAGING
INSIDE OF RAIL
SECURE ALL 8 BED
POST BOLTS

PORTLAND, OREGON
WWW.ROOSTVANS.COM [phone]
PG.
6
END USER ASSEMBLY AND INSTALLATION INSTRUCTION MANUAL
BED SYSTEM 144/170 WB 2006+ MB SPRINTER

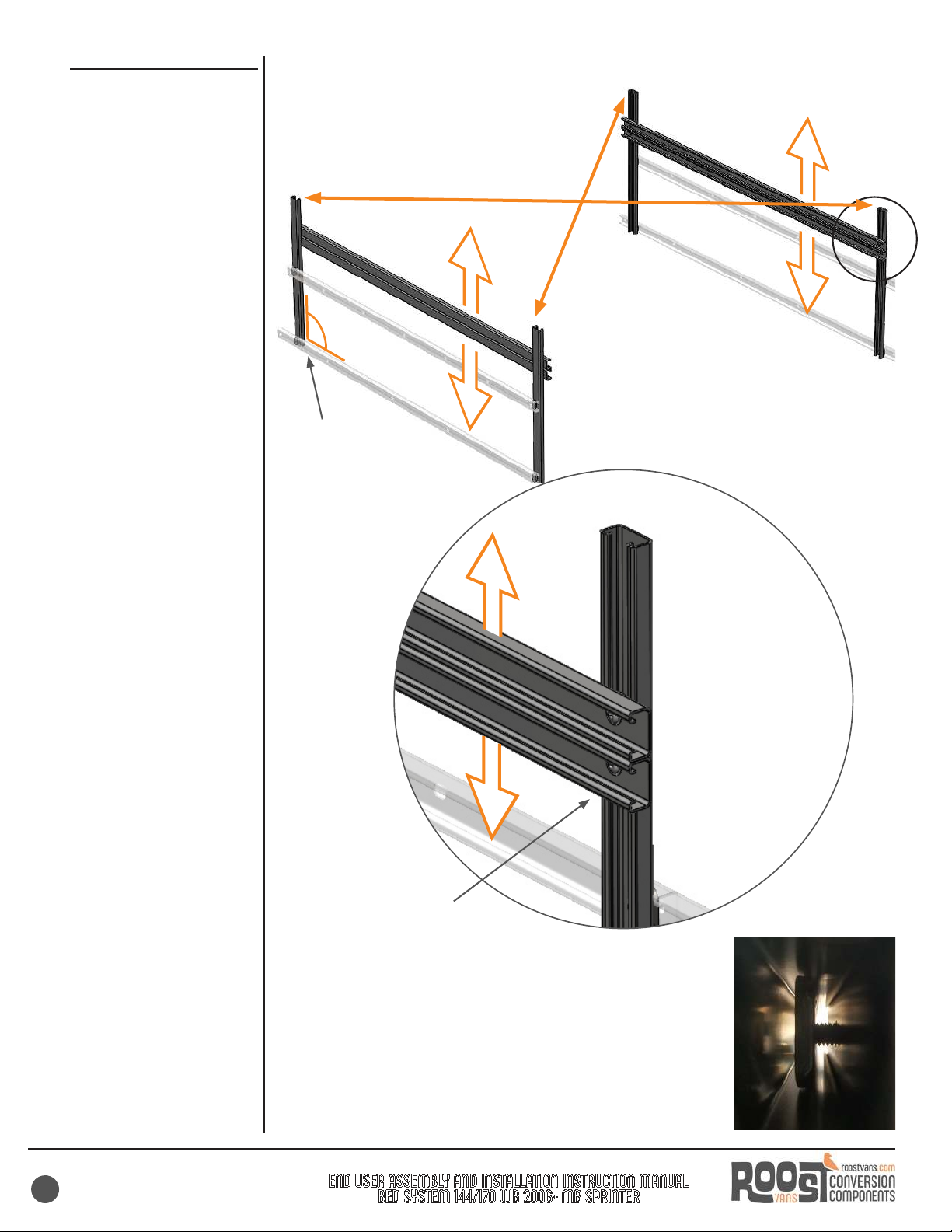

ADJUST HEIGHT OF BED
SLIGHTLY LOOSEN BED RAIL
ATTACHMENT BOLTS AND AD-
JUST BED RAIL TO DESIRED
HEIGHT.
ENSURE BED RAIL IS SQUARE
TO BED POSTS AND BED
POSTS ARE SQUARE TO
MOUNTING KIT.
MEASURE TOP OF BED
POSTS CORNER TO COR-
NER. DIMENSION SHOULD BE
CLOSE, PLUS OR MINUS 1/4”
ENSURE BED RAIL HEIGHT
MATCHES ON BOTH SIDES.
ENSURE THAT RAIL NUTS
ARE PROPERLY ENGAGING
RAILS AS SHOWN AND FULLY
TIGHTEN.
ENSURE RAIL NUTS ARE PROPERLY
ENGAGING INSIDE OF RAIL
LOOSEN AND ADJUST
HEIGHT OF BED RAIL
TO MATCH ON BOTH
SIDES
MEASURE AND ENSURE
BED FRAME IS SQUARE
ENSURE BED
POSTS ARE
SQUARE

PORTLAND, OREGON
WWW.ROOSTVANS.COM [phone] PG.
7
END USER ASSEMBLY AND INSTALLATION INSTRUCTION MANUAL
BED SYSTEM 144/170 WB 2006+ MB SPRINTER
STOP: IF INSTALLING A FLIP
UP KIT(S) DO SO NOW FOL-
LOWING THE FUKiT INSTRUC-
TIONS
PREINSTALL BED PANEL
MOUNTING HARDWARE
INSTALL QTY 4) 5/16” TWIRL
NUTS PER PANEL AS SHOWN,
THEY WILL BE SLID INTO
EXACT POSITION LATER. EN-
SURE THEY ARE INSTALLED
IN UPPER PORTION OF BED
RAIL.
WHEN INSTALLING TWIRL
NUTS, PUSH IN AND ROTATE
90 DEGREES. SPRING WILL
RETAIN NUT IN POSITION.
NUTS CAN BE SLID ALONG
RAIL.
SPARINGLY DROP LOCTITE
ONTO LARGER DIAMETER
5/16”-18 BOLTS AND LOOSELY
INSTALL INTO TWIRL NUTS
LEAVING PLENTY OF THREAD
EXPOSED. THESE WILL BE
POSITIONED AND TIGHTENED
LATER.
SPRING NUT IS FULLY
ENGAGED

PORTLAND, OREGON
WWW.ROOSTVANS.COM [phone]
PG.
8
END USER ASSEMBLY AND INSTALLATION INSTRUCTION MANUAL
BED SYSTEM 144/170 WB 2006+ MB SPRINTER
INSTALL REAR BED PANEL
EXTEND THE BED BRACKETS
SO THAT THEY WILL REST
ON TOP OF THE BED RAIL OR
FUKiT WHEN THE PANEL IS
PLACED.
PLACE THE BED PANEL ON
THE BED RAILS AND POSI-
TION THE CAPTURED BOLTS
SO THAT THEY ENGAGE THE
BED BRACKETS AS SHOWN.
KEEP ASSEMBLY SECURE
BUT DO NOT FULLY TIGHTEN
BOLTS YET TILL ALL PANELS
ARE IN PLACE
NOT ENTIRELY NECESSARY,
BUT THIS STEP CAN BENEFIT
FROM TWO PEOPLE DURING
INITIAL SETUP.
BED BRACKET WRAPS
AROUND BOLT AND
BED BRACKET RESTS
ON TOP OF BED RAIL

PORTLAND, OREGON
WWW.ROOSTVANS.COM [phone] PG.
9
END USER ASSEMBLY AND INSTALLATION INSTRUCTION MANUAL
BED SYSTEM 144/170 WB 2006+ MB SPRINTER
INSTALL MAIN BED PANELS
EXTEND THE BED BRACKETS
SO THAT THEY WILL REST
ON TOP OF THE BED RAIL OR
FUKiT WHEN THE PANEL IS
PLACED.
REPEAT PRIOR STEPS FOR
THE REMAINING PANELS
ENSURING BED BRACKETS
WRAP AROUND BOLTS AND
BED BRACKETS REST ON TOP
OF BED RAILS
KEEP ASSEMBLY SECURE
BUT DO NOT FULLY TIGHTEN
BOLTS YET TILL ALL PANELS
ARE IN PLACE
SPACE BED PANELS APPROXI-
MATELY 1/2” APART FRONT TO
BACK.
CENTER BED PANELS BE-
TWEEN BED FRAME
AFTER PANELS ARE IN THE
PROPER POSITION, TIGHTEN
ALL BOLTS TO BED BRACK-
ETS, 12 PER PANEL
TO REMOVE BED PANELS
SLIGHTLY LOOSEN 4 PANEL
TO BED RAIL BOLTS. THEN
SLIP BED PANEL OFF OF BED
RAIL. KEEP BED RAIL BOLTS
IN POSITION
ENSURE THAT BED PANELS
ARE CENTERED BETWEEN
BED FRAME
USE SEAMS IN BED PANELS
TO VERIFY BED PANELS ARE
IN ALIGNMENT
FINAL STEP - TIGHTEN THESE BOLTS TO
BED BRACKETS AFTER PANELS ARE PROP-
ERLY POSITIONED AND BED RAIL BOLTS
ARE TIGHTENED
TIGHTEN BOLTS CONNECT-
ING BED BRACKETS TO BED
RAILS.

PORTLAND, OREGON
WWW.ROOSTVANS.COM [phone]
PG.
10
END USER ASSEMBLY AND INSTALLATION INSTRUCTION MANUAL
BED SYSTEM 144/170 WB 2006+ MB SPRINTER

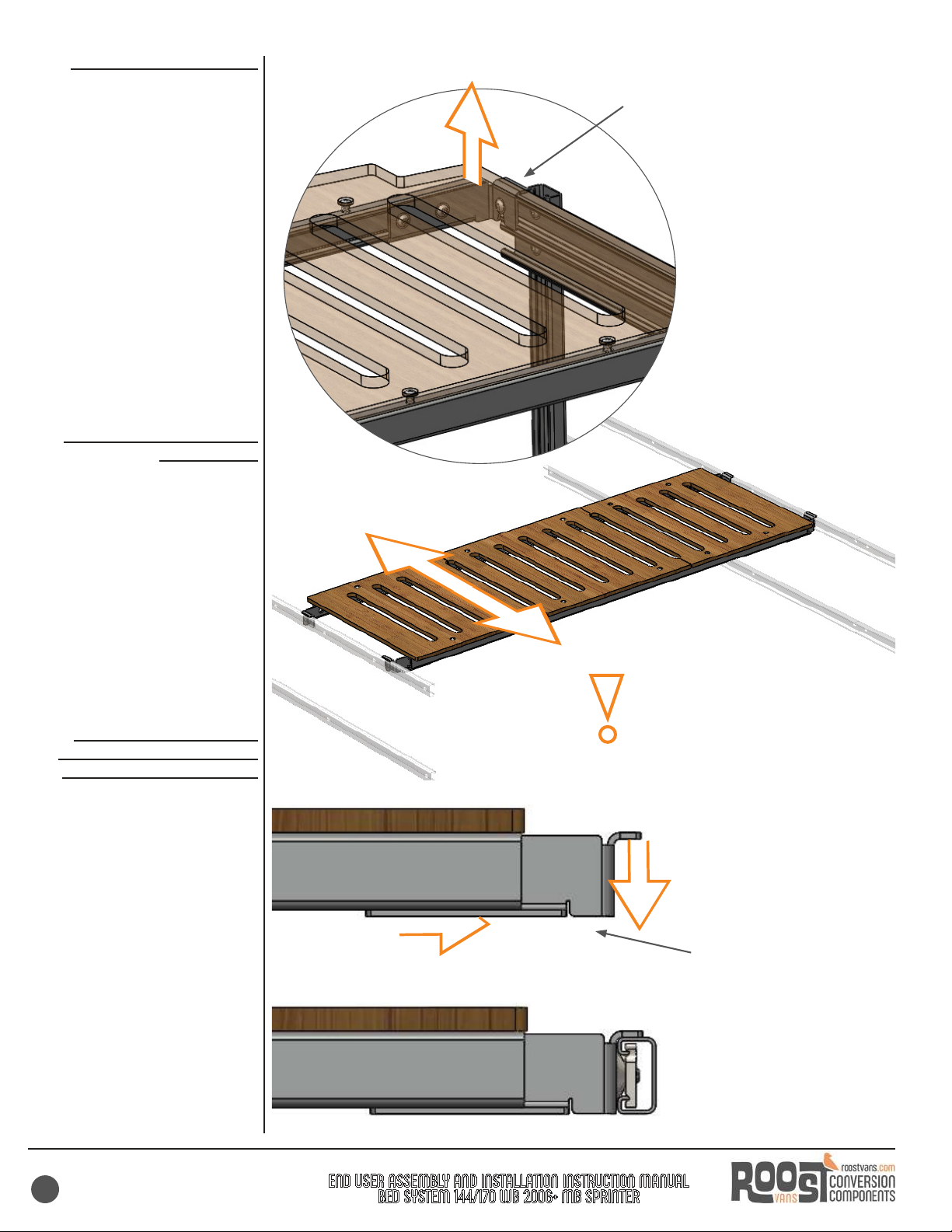

REMOVING BED PANELS
TO REMOVE BED PANELS
SLIGHTLY LOOSEN 4 BRACK-
ET TO BED RAIL BOLTS. THEN
LIFT BED PANEL OFF OF BED
RAIL. KEEP BED RAIL BOLTS
IN POSITION.
ADJUSTING POSITION OF
BED PANELS
LOOSEN BOLT ATTACHING
BED PANEL BRACKET TO BED
RAIL, AND SLIDE BED PANEL
FORWARDS AND BACK-
WARDS. RETIGHTEN BOLTS.
INSTALLING BED PANEL
ONTO MOUNTING KIT FOR
USE AS A BENCH OR BED
BED PANELS CAN BE MOUNT-
ED ONTO THE HORIZONTAL
MOUNTING KIT.
LOOSEN BOLTS ATTACHING
BED PANEL BRACKETS TO
BED CROSS RAILS.
ADJUST BED BRACKET
WIDTHS AS NEEDED TO FIT.
INSTALL ONTO MOUNTING KIT
IN THE SAME MANNER AS THE
BED RAIL NOTED ABOVE.
ADDITIONAL MOUNTING
HARDWARE CAN BE PUR-
CHASED IF NEEDED.
SLIGHTLY LOOSEN THIS BOLT (4
PLACES) TO REMOVE BED PANEL
OR TO LOOSEN BED PANEL WHEN
USED AS A BENCH AND SLIDE
FRONT TO BACK
ADJUST BED PANEL BRACKET
TO ATTACH TO LOWER MOUNT-
ING KIT
AFTER REMOVING OR LOOS-
ENING AND ADJUSTING BED
PANELS, ALWAYS SECURE AND
TIGHTEN BRACKET BOLTS
