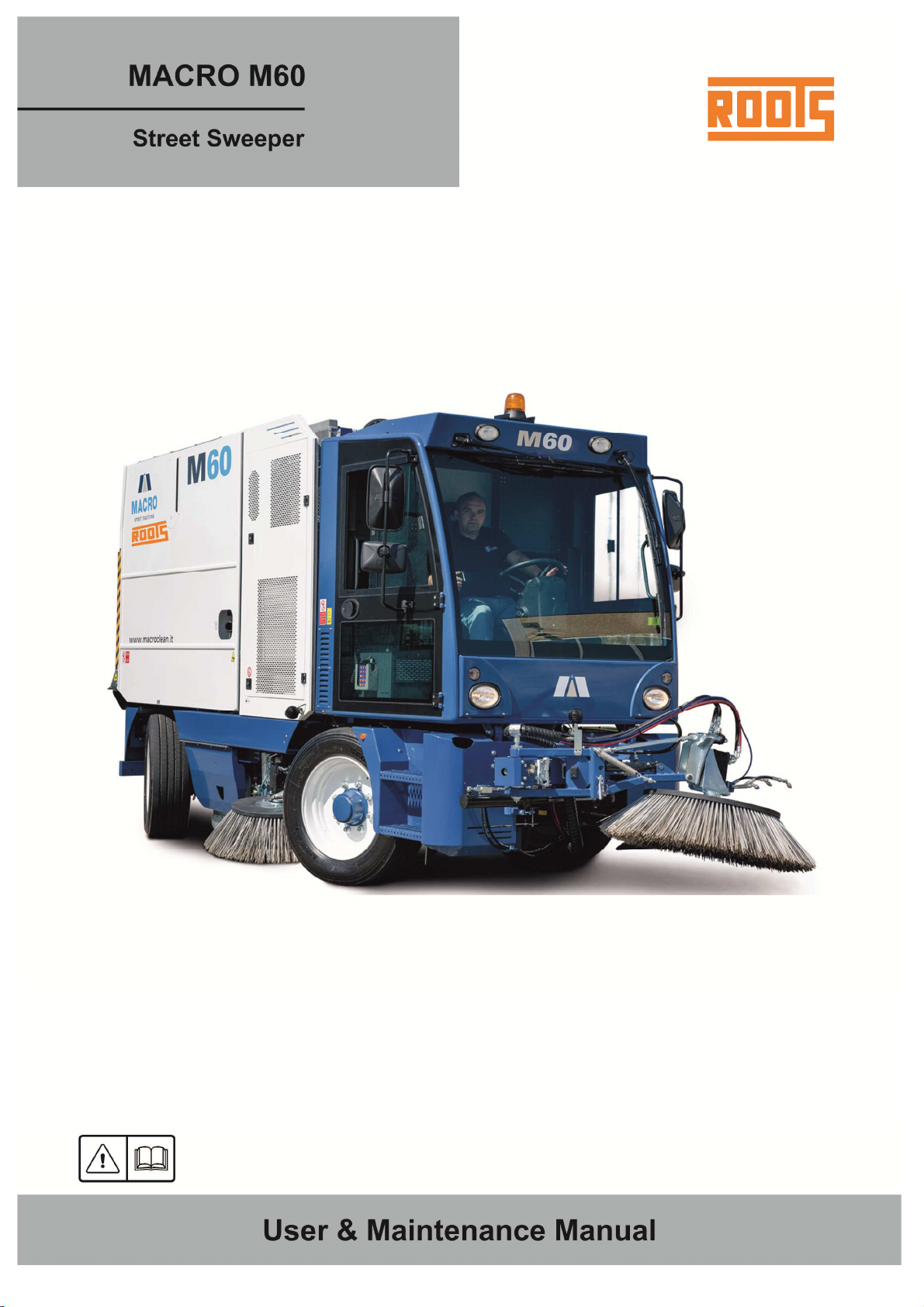

ROOTS MACRO M60 Operating instructions

Sommario
Sommario.......................................................................................................................................... 2
Chapter 1 Preamble........................................................................................................................... 2
1.1 IDENTIFICATION OF THE MACHINE 2
1.2 DECLARATION OF CONFORMITY 3
1.3 IDENTIFICATION OF MANUFACTURER 4
1.4 OTHER MANUALS OF REFERENCE 4
1.5 GENERAL WARNINGS 4
1.6 USE AND MAINTENANCE MANUAL 4
1.6.1 PURPOSE ................................................................................................................................................ 4
1.6.2 PRESERVATION ....................................................................................................................................... 5
1.6.3 CONSULTATION ...................................................................................................................................... 5
1.6.4 UPDATE .................................................................................................................................................. 5
1.6.5 ATTACHMENTS ....................................................................................................................................... 5
1.7 TERMINOLOGY AND MEANING 5
1.7.1 HAZARDOUS AREAS ................................................................................................................................ 5
1.7.2 EXPOSED PERSON ................................................................................................................................... 5
1.7.3 OPERATOR .............................................................................................................................................. 5
1.7.4 USER ....................................................................................................................................................... 5
1.7.5 LEFT OR RIGHT SIDE ............................................................................................................................... 5
1.8 DUTIES OF THE EMPLOYER 6
1.9 OPERATOR'S RESPONSIBILITY 6
1.10 PRECAUTIONS FOR THE SAFETY OF OPERATORS 6
1.11 PRECAUTIONS TO BE OBSERVED WITH ENGINE RUNNING 7
1.12 CAUTION SIGNS 8
Chapter 2 Transport, Handling, Installation...................................................................................... 9
2.1 UNLOADING AND HANDLING 9
2.2 PACKAGING 13
2.3 INSTALLATION 13
2.4 GENERAL CHECKS 13
Chapter 3 Description of the Machine and Technical Feat ures..................................................... 14
3.1 NAME OF THE MACHINE 14
3.2 FORESEEN USE 14
3.3 LAY-OUT OF THE MACHINE 14
P/N: 571001082-00, Rev-A, 07/2017

3.4 DESCRIPTION OF THE MACHINE 15
3.4.1 Cha i .......................................................................................................................................... 15
3.4.2 Endothermic Engine ..................................................................................................................... 16
3.4.3 Cabin ............................................................................................................................................. 19
3.4.4 Wa te hopper ............................................................................................................................... 20
3.5 OPERATION OF THE MACHINE 21
3.5.1 Hydro tatic traction ..................................................................................................................... 21
3.5.2 Traction axle ................................................................................................................................. 22
3.5.3 Steering ........................................................................................................................................ 22
3.5.4 Brake ........................................................................................................................................... 22
3.6 CLEANING SYSTEM 23
3.6.1 General information ..................................................................................................................... 23
3.6.2 Operating principle....................................................................................................................... 23
3.6.3 General operation of weeping .................................................................................................... 23
3.6.4 Main component of the cleaning y tem ................................................................................... 24
3.6.5 Information on the bru he ......................................................................................................... 25
3.7 WATER SYSTEM 25
3.8 HYDRAULIC SYSTEM 27
3.9 ELECTRIC SYSTEM 28
3.9.1 General de cription ...................................................................................................................... 28
3.9.2 Batterie ....................................................................................................................................... 28
3.9.3 Light ............................................................................................................................................ 29
3.9.4 Road command ........................................................................................................................... 29
3.9.5 SWEEPING CONTROLS AND COMMAND ...................................................................................... 32
3.10 SAFETY SYSTEMS 33
3.10.1 SAF ETY DEVICES FOR SIDE BRUSHES ......................................................................................... 33
3.10.2 SAFETY DEVICES FOR 3RD BRUSH (if pre ent) ........................................................................... 35
3.11 "M60" MAIN TECHNICAL DATA 38
3.12 DIMENSIONS 41
3.13 ENVIRONMENTAL VALUES 42
3.13.1 MANUFA CTURING ..................................................................................................................... 42
3.13.2 STORAG E ................................................................................................................................... 42
Chapter 4 Use.................................................................................................................................. 43
4.1 TRAVEL CONTROLS 43
4.2 COMMANDS ON STEERING COLUMN 44
4.3 PARKING BRAKE 45
4.4 DASHBOARD WARNING LIGHTS AND GAUGES 46

4.5 BRAKING SYSTEM PRESSURE GAUGES 47
4.6 SWEEPER COMMANDS 48
4.6.1 Hydraulic command control panel ..................................................................................................... 48
4.6.2 SWEEPER CONTROL PANEL .................................................................................................................. 49
4.6.3 SWEEPER INDICATOR LIGHTS ............................................................................................................... 50
4.6.4 3RD BRUSH CONTROL PUSH-BUTTON PANEL (OPTION) ...................................................................... 51
4.7 AIR CLIMATE SYSTEM CONTROL PANEL 52
4.8 INSTRUCTION FOR USE 53
4.8.1 STARTING THE ENGINE ......................................................................................................................... 53
4.8.2 Travel mode ......................................................................................................................................... 56
4.8.3 OPERATION MODE FOR SIDE AND CENTRAL BRUSHES ........................................................................ 56
4.8.4 SUSPENSION of ACTIVITY ..................................................................................................................... 59
4.8.5 WASTE DISCHARGE .............................................................................................................................. 59
4.8.6 CLEAN POLLUTION FILTER BEFORE DISCHARGE DEBRIS ...................................................................... 60
4.8.7 MACHINE STOP .................................................................................................................................... 60
4.9 SAFETY DEVICES 61
4.10 CAMERA SYSTEM 61
4.11 USE OF 7” WIDE TFT LCD MONITOR 63
4.11.1 CONTROL KEYS MENU ........................................................................................................................ 63
4.11.2 DETAILS OF THE FUNCTIONS MENU .................................................................................................. 64
4.12 CABIN HANDLING MECHANISM 66
4.13 TOWING THE VEHICLE IN AN EMERGENCY 67
Chapter 5 Cleaning and Maintenance ............................................................................................... 1
5.1 Genera l Information 1
5.2 General cleaning of the machine 1
5.3 REGULAR MAINTENANCE 1
5.3.1 CHECKING THE OIL LEVEL IN THE DIESEL ENGINE .................................................................................. 3
5.3.2 CHECKING THE BATTERY FLUID LEVEL ................................................................................................... 5
5.3.3 CHECK THE TIRE PRESSURE .................................................................................................................... 6
5.3.4 CHECK THE OIL LEVEL IN THE HYDRAULIC SYSTEM ................................................................................ 7
5.3.5 CLEAN THE WATER FILTER IN THE DUST SUPPRESSION SYSTEM ........................................................... 8
5.3.6 CLEANING OF THE NOZZLES OF THE DUST DAMP SYSTEM .................................................................... 9
5.3.7 CHECK THE SLIDES ................................................................................................................................ 11
5.3.8 CLEAN THE PREFILTER AND AIR FILTER IN THE DIESEL ENGINE ........................................................... 11
5.3.9 CHECK THE CLEANLINESS OF THE HYDRAULIC OIL RADIATOR FINS ..................................................... 14

5.3.10 CHECK THE CLEANLINESS OF THE ENGINE RADIATOR FINS ....................................................... 15
5.3.11 CHECK THE CLEANLINESS OF THE AIR CLIMATE RADIATOR ....................................................... 16
5.3.12 WASH THE VERTICAL LOADER MECHANISM .............................................................................. 17
5.3.13 WASH THE WASTE CONTAINER .................................................................................................. 17
5.3.14 GREASING OPERATIONS ............................................................................................................. 19
5.3.15 CHECK ENGINE COOLANT LEVEL ................................................................................................ 19
5.3.16 REPLACEMENT OF THE CAB AIR FILTER ...................................................................................... 20
5.3.17 REPLACEMENT OF FUSES ........................................................................................................... 21
5.3.18 BRUSH PRESSURE ADJUSTMENT ................................................................................................ 25
5.3.19 CHECK AND ADJUST THE POSITION OF THE SIDE BRUSHES ....................................................... 25
5.3.20 CHECK AND ADJUST THE POSITION OF THE THIRD BRU SH (if pre ent) .................................... 29
5.3.21 BRU SH REPLACEMENT ............................................................................................................... 31
5.3.22 BULB REPLACEMENT .................................................................................................................. 32
5.3.23 WHEEL RIM FITTING ................................................................................................................... 38
5.3.24 BRA KE MAINTENANCE............................................................................................................... 38
5.3.25 Topping up the wind creen wa hing liquid................................................................................ 39
Chapter 6 Dismantling, Disposal .................................................................................................... 39
6.1 DISMANTLING 39
6.1.1 De cription ................................................................................................................................... 39
6.1.2 DISMANTLING THE HYDRAULIC SYSTE MS ................................................................................... 40
6.1.3 MECHANICAL DISMANTLING ........................................................................................................ 40
6.1.4 PACKAGING .................................................................................................................................. 40
6.2 DISPOSAL 40
6.2.1 WASTE OILS .................................................................................................................................. 40
6.2.2 EXHAUSTED LEAD BATTERIES ....................................................................................................... 40
6.2.3 MATERIAL COLLECTED BY THE MACHINE..................................................................................... 40
6.2.4 SCRAPPING ................................................................................................................................... 41
Chapter 7 ATTACHMENTS .......................................................................................................... 42

1
-
1
INFORMATION
The Instructions for Use are integral part of the machine and must come along with it for the entire
lifetime until demolition.
Before executing any operation with or on the machine, read and understand all the procedures and the
warnings described in this Manual.
For every operation always refer to what prescribed in this Manual and strictly respect all the reported
indications.
Forbid the use of the machine to the operators who do not know the prescriptions and the procedures
contained in the Manual.
Under the directive 89/392 CE, DPR459 of 24/07/1996 and following updates, we specify that
"OPERATOR" means the person responsible for the installation, the operation, the adjustment, the
maintenance, the cleaning, the repair and the transport of the machine.
The company Roots Multiclean Ltd. will not consider itself as responsible for troubles, accidents, etc.
due to the bad knowledge of the procedures contained in this Manual.
The same rules for the execution of modifications, of changes or for the installation of accessories not
previously authorized.

1
-
2
Chapter 1 Preamble
1.1 IDENTIFICATION OF THE MACHINE
The machine is identified by the CE Marking prepared according to the specifications of Machinery
Directive 2006/42/EC and subsequent amendments. The following figure shows an example of an ID
plate for the machine, which is riveted on the right side of the inner bonnet, in front of the driver's seat.
Pict. 1-1 Manufacturer plate : M60ST
INFORMATION
Refer to these details to order spare parts and for each type of contact with the manufacturer
(correspondence - information request).
INFORMATION
The machines may be updated or aesthetically modified and, therefore, may have different
parts to those shown here, without this affecting the descriptions contained in these
instructions.

1
-
3
1.2 DECLARATION OF CONFORMITY
Each machine is provided with the Declaration of Conformity. Roots Multiclean Ltd..guarantees
compliance of its machine with the directives mentioned and affixes the marking on the machine

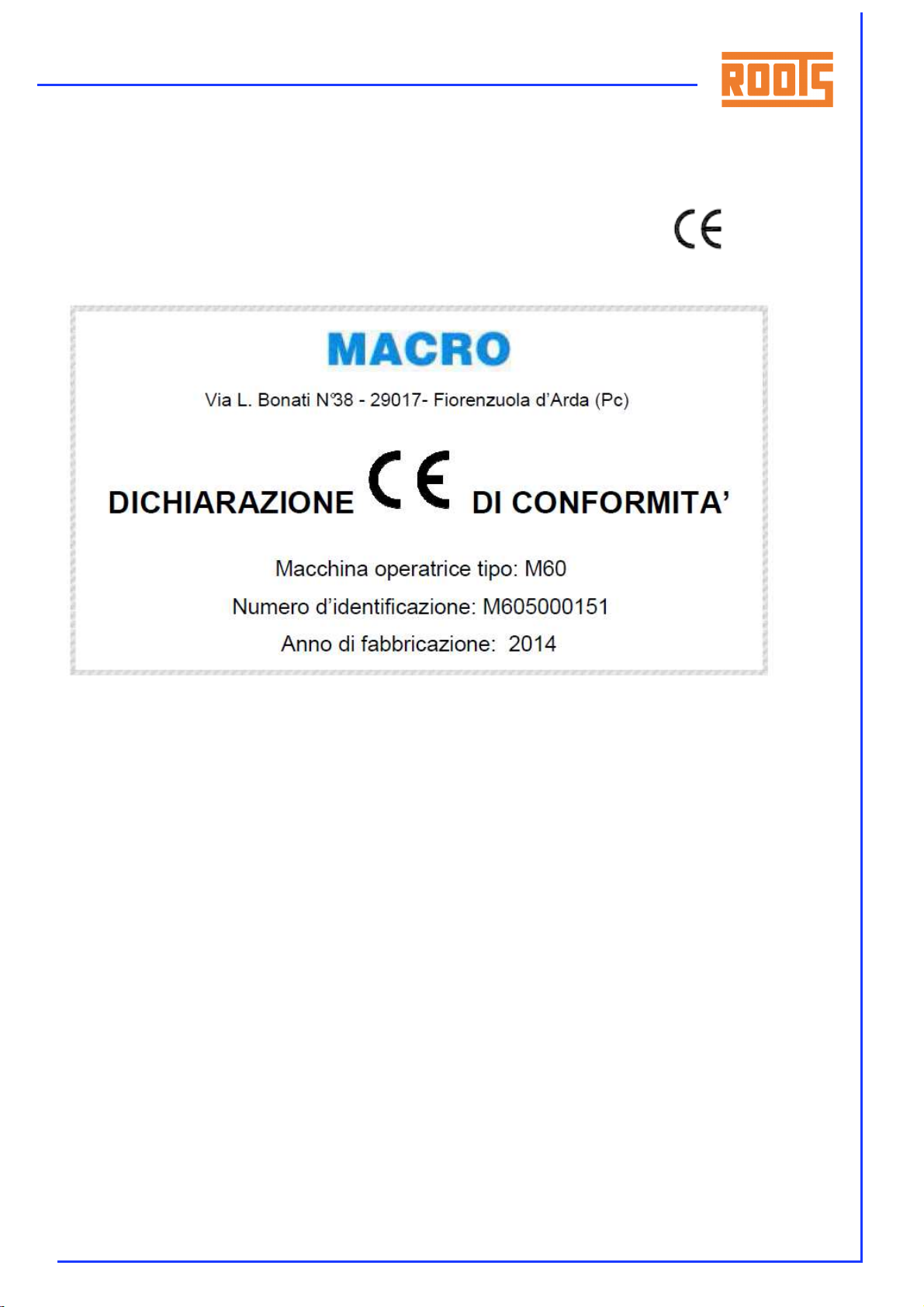

itself. Below is an example of a Declaration of Conformity for the M60 type operating machine
Certifichiamo la conformità ai requisiti delle direttive:
2006/42/CE - 2000/14/CE - 2004/108/CE
La documentazione tecnica corrispondente può essere messa a disposizione.
Nella costruzione e produzione sono state osservate le seguenti norme:
EN ISO 12100-1/2003: Sicurezza delle macchine, Terminologia di base, linee guida generali di
progettazione
EN ISO 13857/2008: Sicurezza delle macchine Distanze di sicurezza contro il raggiungimento di punti
pericolosi con le quote articolate superiori
EN 982/2008: Requisiti tecnici di sicurezza di impianti tecnici contenenti fluidi e loro coponenti -
idraulica
EN 13019/2001: Ma cchine per la pulizia del fondo stradale. Requisiti di sicurezza
Livello di potenza sonora rilevato: xx [dB (A)]
Livello di potenza sonora garantito: xx [dB (A)]
La procedura di valutazione della conformità corrisponde all’allegato V della direttiva 2000/14/CE

1
-
4
1.3 IDENTIFICATION OF MANUFACTURER
MACRO
1.4 OTHER MANUALS OF REFERENCE
•Operating Instructions Manual for Diesel Engine OM 904 LA.
INFORMATION
Roots Multiclean Ltd. being committed to continuous product and quality development,
reserves the right to modify the data contained in this publication at any time.
1. GENERAL WARNINGS
This chapter contains some warnings that allow you to properly use the machine without danger for the
Operators and property. Below, in more detail, are those warnings that must be perfectly understood to
correctly perform the operations stated in the various chapters.
We have chosen to use a few but clear attention pictograms, in order to make consultation easier and
immediate.
DANGER
The operations representing a potentially dangerous situation for operators are
highlighted by the symbol shown at the side.
These operations may cause slight or severe physical injuries, including death. ONLY proceed with the
operations being performed if the conditions highlighted by this symbol are complied with.
ATTENTION
The operations representing a potentially dangerous situation for operators are highlighted
by the symbol shown at the side.
These operations must be correctly performed to avoid causing damage to property or to the surrounding
environment. ONLY proceed with the operations being performed if the conditions highlighted by this
symbol are complied with.
1.6 USE AND MAINTENANCE MANUAL
1.6.1 PURPOSE
The purpose of this Manual is to provide the Customer and all personnel interacting with the machine,
all the information necessary to properly use and maintain it in optimal conditions, with particular
attention for this to happen in the highest safety conditions.

1
-
5
1.6.2 PRESERVATION
In order to properly preserve the Manual, it is recommended to:
–use the manual so that it does not deteriorate in any way;
–not remove, add, modify or rewrite any part of the Manual; any changes to it shall only be made
by Roots Multiclean Ltd.,
–keep the manual in areas protected from moisture, so as not to jeopardize its durability;
–deliver the manual to any other user or subsequent owner of the machine.
1.6.3 CONSULTATION
–This manual consists of 6 chapters numbered according to the logic [a.b.c] where [a] indicates
the chapter, [b] the paragraph and [c] the sub-paragraph.
–The pages are numbered according to the logic [aa.bb] where [aa] indicates the number of the
chapter and [bb] indicates the page of the chapter itself.
1.6.4 UPDATE
In the case of significant changes to the machine due to the installation of new parts, the Manufacturer
will prepare updated Instructions that will be sent to the Customer together with the purchased part.
After receiving the manual update, destroy the obsolete copies.
1.6.5 ATTACHMENTS
For clarity of consultation, not all descriptions of the procedures are contained in this Manual. The
relative
Instructions are attached to it, separately.
1.7 TERMINOLOGY AND MEANING
1.7.1 HAZARDOUS AREAS
Any area within or near a machine in which there is a health and safety risk for an exposed person.
1.7.2 EXPOSED PERSON
Any person who is wholly or partially inside a hazardous area.
1.7.3 OPERATOR
The person or persons in charge of installing, operating, adjusting, servicing, cleaning and transporting
the machine.
1.7.4 USER
Company or person legally responsible for the machine.
1.7.5 LEFT OR RIGHT SIDE
They refer to the vehicle pointing in the forward direction.

1
-
6
1.8 DUTIES OF THE EMPLOYER
The employer is responsible for disclosing this document to all personnel that will interact with the
machine. The employer also commits to update the manual with the parts that Roots Multiclean Ltd..
will send in the case of changes to the machine. In the case of loss or destruction of the manual, the
employer commits to request the missing parts or the full manual to Roots Multiclean Ltd.
1.9 OPERATOR'S RESPONSIBILITY
The operator is responsible for the daily maintenance of the machine:
–he must care for it and keep it in good working conditions;
–he must inform the manager or technical service when a scheduled maintenance intervention is
required or in the case of damage or breakages;
–do not carry unauthorized people, animals or objects on the machine;
–for transfers, respect the safety regulations for circulation.
–the machine is not to be used for toxic-harmful materials. If necessary, contact the manufacturer
in advance.
DANGER
In the case of a machine malfunction, check the procedures in the various chapters.
1.10 PRECAUTIONS FOR THE SAFETY OF OPERATORS
For the driver:
–It is forbidden for unauthorized personnel and personnel untrained on the running, to use the
sweeper. The following pre-requisites are needed for training:
•the driver must be an adult, having the necessary licence for driving the machine regardless of
the type of use, in normal physical and mental conditions. It is forbidden to drive the machine
while under the influence of substances that can alter the nervous reflexes of the driver (alcohol,
drugs, etc...).
•Caution, it is dangerous to use the machine without being trained and/or authorized, you may
cause damage to yourself, to property or to others.
•Do not use the machine in flammable areas or with an explosion hazard.
•Before getting out of the machine, stop the brushes, pull the parking brake, turn off the engine
and remove the key.
•Go slowly on slopes, uneven or slippery ground.
•Be careful when changing direction.
•Operate the machine with care when lifting the container for emptying.
For the maintenance technician:
–To prevent possible injuries, the equipment is fitted with an automatic safety lock system in the
container which keeps it raised even in the case of malfunction or loss of pressure to the
hydraulic and pneumatic systems.
–During maintenance, keep away from moving parts.
–Avoid wearing loose or unbuttoned clothing.
–To lift the machine, use equipment suitable for its overall weight.
–Protect your eyes and hair when cleaning using compressed air or water guns.
–Disconnect the battery cables before working next to the electrical system.
–Avoid contact with battery acid, do not touch high temperature parts, wait for the engine to cool
down.

1
-
7
–Engine maintenance must be carried out with the engine cold.
–Do not smoke while pouring fuel.
–Keep flames and sparks away from the machine.
For the machine:
–For the machine to travel on public roads, it must have vehicle registration documentation and a
number plate for operating machine.
–The machine must be used as sweeper. Do not use it for purposes other than those for which it
was designed.
1.11 PRECAUTIONS TO BE OBSERVED WITH ENGINE RUNNING
–Do not remove the oil level dipstick.
–Do not remove the radiator cap.
–Do not remove the coolant drain plug.
–Do not stay too long in a closed place.
–Provide adequate ventilation or consult the competent managers.

1
-
8
1.12 CAUTION SIGNS
There are CAUTION stickers affixed on the machine.
It is compulsory to acknowledge them before any use.
In the event of non-indelible stickers, remember to replace them when reading becomes difficult.

1
-
9
Chapter 2 Transport, Handling, Installation
DANGER
Disclose the Instructions in this chapter to all personnel involved in the transportation
and handling of the machine.
INFORMATION
It is essential, for this purpose, to print this chapter in single volume to make it accessible
to Operators.
DANGER
For safety reasons, mobile parts must be blocked prior to transport.
2.1 UNLOADING AND HANDLING

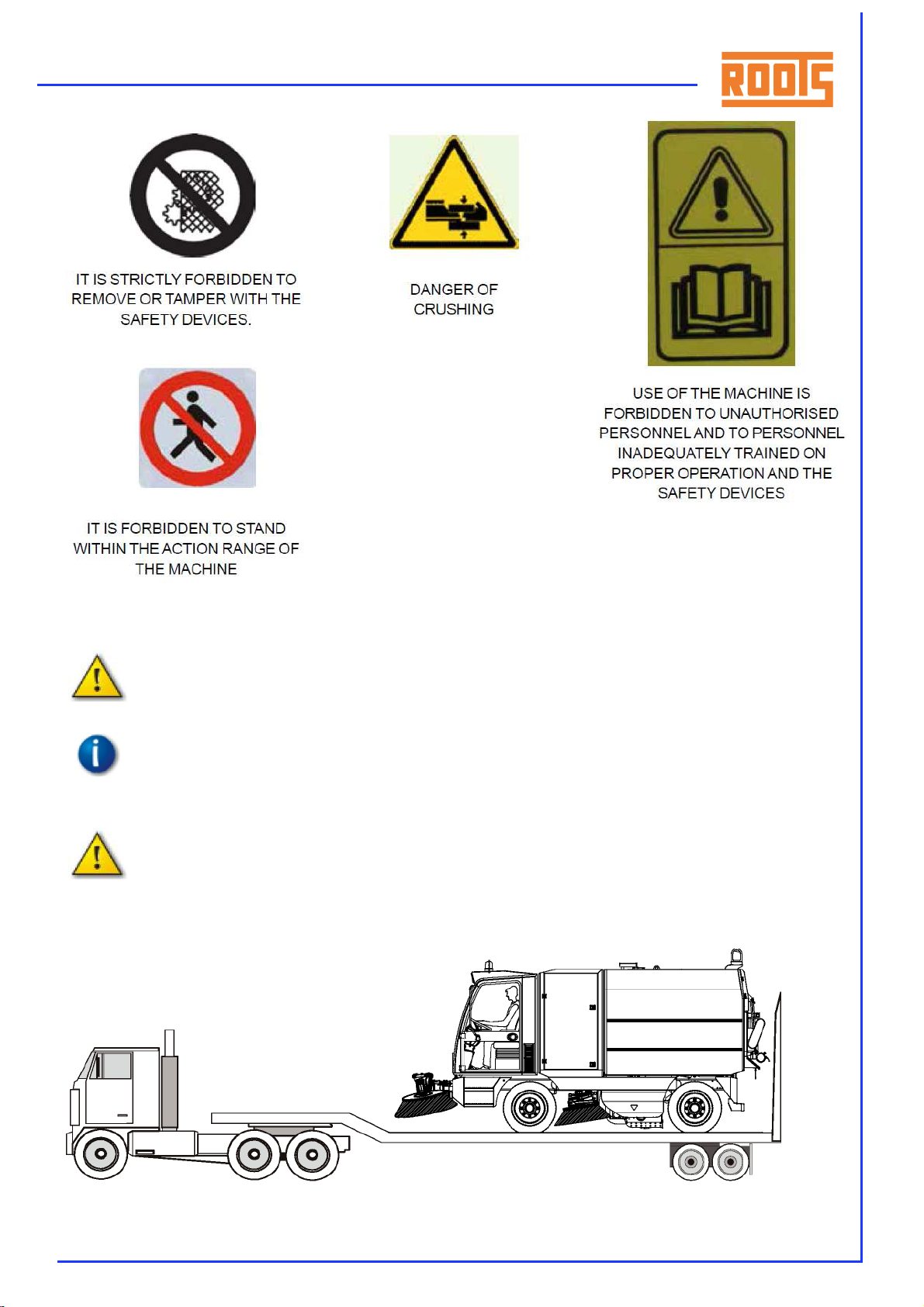

Pict. 2-1 Machine transportation with vehicle transporter
The machine can be independently moved on road or with a vehicle transporter of adequate capacity.

1
-
10
For proper unloading and handling, we recommend the presence of two Operators equipped with Safety
Helmet, Gloves and Safety shoes.
These Operators must pay the utmost attention during all transport stages and stay a safe distance from
the machine when close proximity is not strictly necessary.
DANGER
Prohibit any person from standing close in order to avoid contact with any projected
parts and objects in case of an accidental fall.
DANGER
Pay attention to transiting means and people during unloading.
The entire area involved in handling the machine, including between the transport means' parking area
and the machine's installation area must be identified and inspected beforehand in order to detect the
presence of "hazardous areas".
DANGER
It is forbidden to stand or pass under the machine.
Perform the following operations to proceed with loading the machine onto the transport vehicle:
INFORMATION
For details regarding the maneuvers described below, refer to the description and figures
given in Chapter 4 "Use", in this manual.
–Turning on the machine
–Turn the third brush (optional) to the right or to the left.

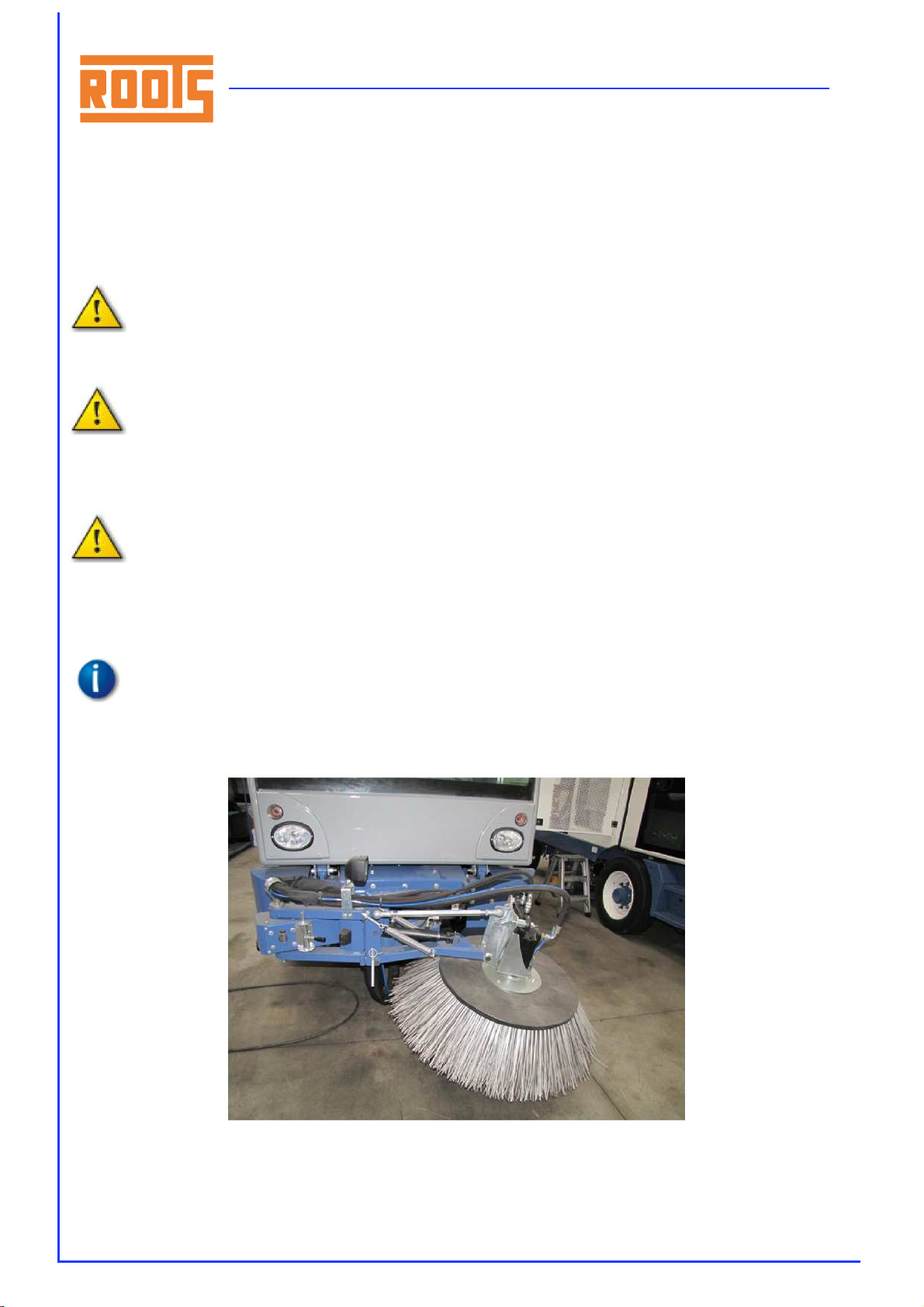

Pict. 2-2 Position of third brush (if present)
–Ensure the third brush is blocked (par. 3.10.2).
–With motor idle and parking brake engaged, turn the selector "Transfer-Work" present on the
Control Panel to pos. WORK.

1
-
11
Pict. 2-3 Control Panel
–Ensure the central brush is lifted.
–Ensure the side brushes are lifted and blocked (par. 3.10.1).
–Select the driving direction using the lever right of the steering wheel (DEV2).

1
-
12
Pict. 2-4 Controls/Indicators on dashboard
–Press the accelerator to move, climbing onto the vehicle transporter.
Pict. 2-5 Move the Machine onto the vehicle transporter
–Once having reached the correct position, stop the machine and engage the parking brake.
DANGER
Make sure the machine is properly secured to the trailer by means of suitable ropes,
using the appropriate connections on the reaction rod supports of the frame.

1
-
13

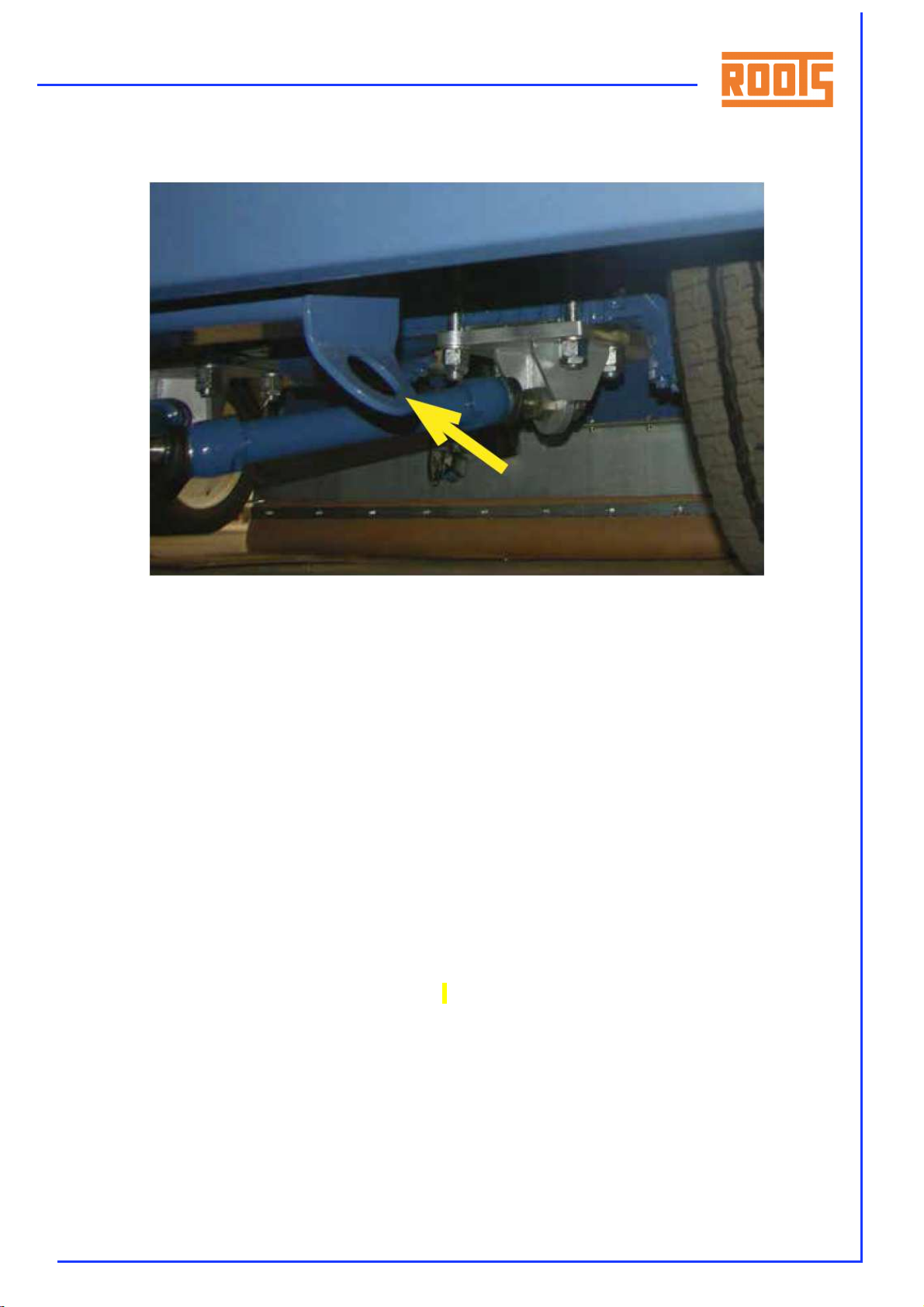

Pict. 2-6 Hooking points for the safety ropes (1 of 4)
Unloading must be carried out by following the operations in reverse order.
2.2 PACKAGING
Any packaging must be disposed of by the user according to the standards in force in his/her country.
2.3 INSTALLATION
The machine is delivered fully assembled and perfectly operational, so it is not necessary for the
customer to perform installation operations.
2.4 GENERAL CHECKS
–Make sure the machine has been checked prior to delivery (check on the warranty certificate).
–Check that the machine has not been damaged during transport and prepare for commissioning
by following the manual instructions.
–Check the hydraulic oil level in the appropriate tank.
–Check the brake oil level.
–Check the engine oil level.
–Check the liquid level in the expansion tank.
–Refuel.
–Start the machine as described in par. 4.8.1.

1
-
14
Chapter 3 Description of the Machine and Technical Features
3.1 NAME OF THE MACHINE
The machine is called:
M60 Mechanical - Suction Street Sweeper.
3.2 FORESEEN USE
The M60 Mechanical - Suction Street Sweeper has been designed to perform a complete cleaning cycle
of urban areas: sweeping, collection and discharge of material collected.
INFORMATION
Any use different to that indicated is not foreseen and can cause damage to the machine
and to the Operators.
Sweeping is via two side brushes that convey the dirt to the centre of the vehicle, towards a central brush
that projects the dirt inside a central loader mechanism which carries it into the hopper.
The side sweeping unit is formed by the brushes. A high capacity vacuum turbine, actuated by a
hydraulic engine, creates a vacuum inside the waste hopper and in the loader, sucking the dust produced
by the brushes. The waste collected in the hopper can be discharged on the ground, or in another hopper,
through tipping of the rear tipper. The sweeper is intended for use by personnel experienced in the
management of operating machines and equipped with suitable driving license (B or higher).
3.3 LAY-OUT OF THE MACHINE
The machine can be divided into 5 main sections:
–Chassis
–Cabin
–Engine and servo
–Waste hopper
–Cleaning system
