ROOTS RootsSweep RB120 User manual

1
RootsSweep RB120
Read this manual completely and understand the
instructions before operating the machine.
“English Version”
Operator’s Manual
RootsSweep RB120
Ride-On-Sweeper
Battery
24V

2
RootsSweep RB120

3
RootsSweep RB120
P/N: 557610059-00, Rev-A, 07/2021
Prepared by KM, NPM TD Dept.
TABLE OF CONTENTS
Introducon
Know Your Machine
Inial Set-up
Machine Operaon
Troubleshoong
Table Of Contents & Important Note
Technical Specificaons
Safety Instrucons
Working Principle
Controls
Maintenance
Do & Don’ts
5
12
24
29
44
74
3
8
17
26
35
71
IMPORTANT NOTE:
Roots Multiclean Ltd. (RMCL) is not liable for any legal claims that
may arise as a direct or indirect result of the contents of this
manual.
Roots Multiclean Ltd.
R.K.G. Industrial Estate, Ganapathy,
Coimbatore - 641 006, India.
USER MANUAL
ROOTS philosophy is to continually improve all of its products. For this
reason we may modify the design, appearance and engineering of our
products periodically.
Therefore, some changes, modifications and improvements may not be
covered in this manual.
For the latest Operator’s Manual, visit:
www.rootsmulticlean.com/user-manual/

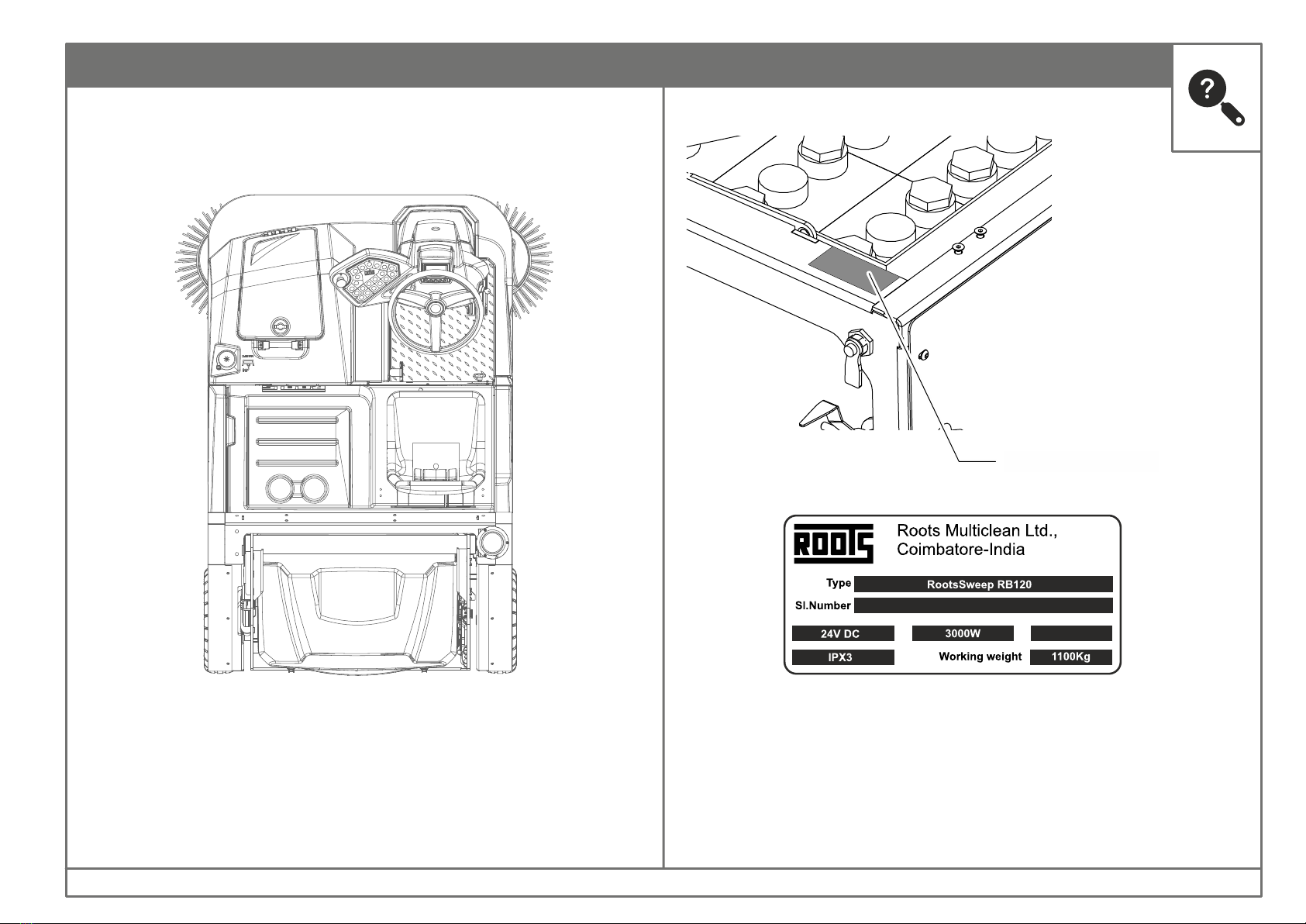

MACHINE DATA
Please fill at the time of commissioning for future reference:
Model -
Serial No. -
Battery Serial No. -
Commissioning Date -

4
RootsSweep RB120 INTRODUCTION

5
RootsSweep RB120
PREFACE
We are pleased with you having chosen the for your RootsSweep RB120
cleaning requirements. Backed by our industry expertise that spans across
two decades, we assure you that the machine comes with ROOTS promise of
quality, efficiency and performance.
We advise you to carefully read through the instructions prior to the
operation of the machine. This manual contains detailed instructions for the
proper operation of the machine, along with important information
regarding its handling, care, maintenance and service needs.
We are sure that you will find the machine and its performance to your
utmost satisfaction. Once again, we thank you for choosing as a trusted us
partner for your cleaning requirements.
Usage, Handling & Modification
Use of the product beyond the specified scope of functioning is deemed
improper and the manufacturer cannot be held liable for any damages which
may arise due to this.
This machine may be used only by persons who are trained or are familiar
with the machine and are aware of the possible hazards involved. The
appropriate Accident Prevention Regulations as well as applicable general
regulations pertaining to Safety and Health at the work place must be
adhered to by the user.
Modifications made to machine without the manufacturer's consent will
relieve the manufacturer of responsibility and any possible liability for
consequential damage.
Dear Customer,
Acceptance of the Machine
On arrival of the machine at the shipping address, please check for any
damage that may have occurred as a result of transit. In the event of any such
damage, the purchaser is bound by responsibility to send a claim letter to the
concerned dealer with a copy of the invoice. The letter should be authorized
sent within 24 hours of receipt of the machine.
Notes on Warranty
Refer the Warranty manual supplied along with the machine.
NOTE:
ILLUSTRATIONS SHOWN IN THIS MANUAL ARE FOR REPRESENTATIVE
PURPOSE ONLY. ACTUAL PRODUCT MAY VARY.
ROOTS reserves the right to change the product or contents of this manual
without prior information.
For Engine, Battery, Motors, Blowers or other OEM components related
information kindly refer to their manufacturers manual supplied along
with the machine for instructions regarding usage, maintenance and
service.
INTRODUCTION
Prior to first operation, read the manual carefully and strictly comply with
the instructions contained.
The Operator’s Manual is an integral part of the machine and must not be
misplaced.

6
RootsSweep RB120
INTRODUCTION - INTENDED USE
INTENDED USE
This machine is intended for industrial/commercial use, for example in
factories, large open spaces, car parks, warehouses, schools, airports,
retail centers, etc. It is designed to sweep hard floor surfaces in an
indoor/outdoor environment. This machine is not intended for sweeping
wet or slushy areas. Do not use the machine on soil, grass or artificial turf.
Use only recommended brooms.
This machine is not intended for use on public roadways.
Do not use this machine in any other way other than described in this
Operator’s Manual.

7
RootsSweep RB120 TECHNICAL SPECIFICATION

8
RootsSweep RB120

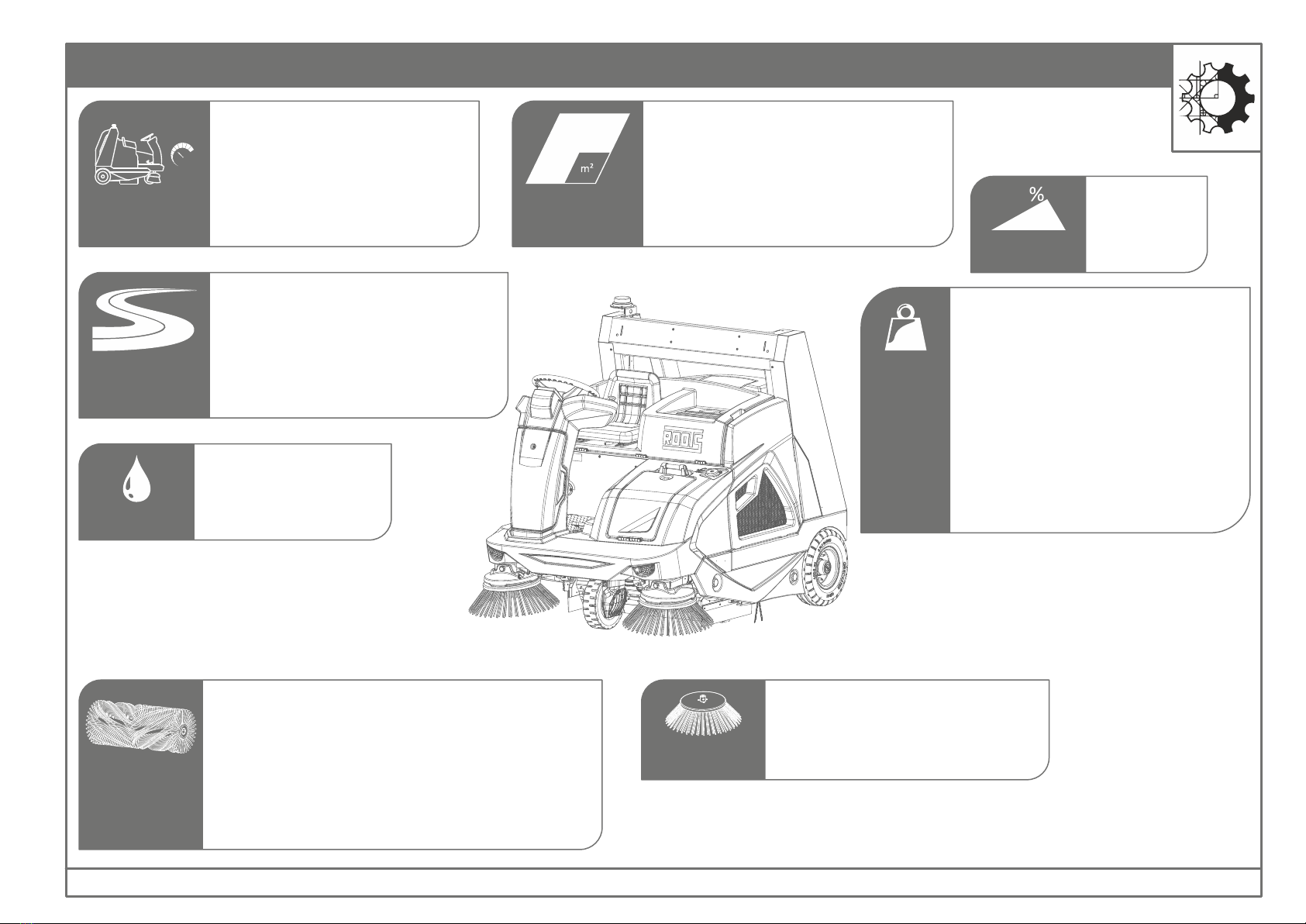

TECHNICAL SPECIFICATION
DRIVING
PERFORMANCE
Forward Speed
(Transport mode)
Reverse Speed
Sweeping Speed
-
-
-
9 - 10 km/h
2 - 3 km/h
7 - 8 km/h
SWEEPING
PATH
With Main Broom
With Right Side Broom
With both Side Brooms
-
-
-
850 mm
1200 mm
1550 mm
SWEEPING
PERFORMANCE
(Theorecal)
With Right Side Broom -9600 m²/hr
(for 1 min. max)
Max - 20 %
GRADABILITY
Main Broom Length
Main Broom Diameter
Wear Limit (Diameter)
Broom Speed (Min.)
Sweeping Track
Quanty of Bristle Row
850 mm
360 mm
295 mm
500 rpm
40 - 50 mm
8 x 2 Rows, V-Shape
-
-
-
-
-
-
MAIN
BROOM
Side Broom Diameter
Speed (Min.)
500 mm
125 rpm
-
-
SIDE BROOM
WEIGHT
Dead Weight
(Without 480 Ah baery)
Dead Weight
(Without 420 Ah baery)
Admissible Total Weight
(480 Ah baery with
operator wt 80 kg)
Admissible Total Weight
(420 Ah baery with
operator wt 80 kg)
700 kg
685 kg
0
1200 kg
1140 kg
-
-
-
-
-
Side Broom Water
Tank Capacity - 40 Liters
WATER SPRAY
(Theorecal)
With both Side Brooms -12400 m²/hr

9
RootsSweep RB120
TECHNICAL SPECIFICATION
Sealing Strips
(Le, Right, Rear)
Sealing Strip
(Front)
1.0 / 1.0 / 4.0 mm
(Ground clearance)
With contact to the
floor
-
-
SEALING STRIP
HOPPER
Theorecal Hopper Volume
Maximum Liing Height
Maximum Liing Weight
-
-
-
155 Litres
1640 mm
240 kg
FILTER
Filter Surface
Panel Filter
-
-
7.1 m²
1
HYDRAULIC
Model
Power
Hydraulic Oil
Tank Capacity
-
-
-
-
Bucher
24V, 800W, 0.75 cc
Mineral Oil HLP 46 / ISO VG 46
2.5 Litres
TYRES
Rear Tyre Size
Inflaon Pressure
Solid Rubber Tyres
(Oponal)
-
-
-
4.00-8
8 bar
4.00-8
Sound Pressure Level
(at 1.5 m distance) -75 dB(A) ELECTRICAL
&
BATTERY
Service Voltage
AC Drive Motor (24V AC)
Main Broom Motor
Side Broom Motor
Sucon Fan Motor
Vibrator Motor
Baery Rang
-
-
-
-
-
-
-
24V / DC
1200 Was
1200 Was
250 Was
300 Was
150 Was
24V, 420 Ah
24V, 480Ah (oponal)
Turning
Radius - 1800 mm
TURNING
RADIUS (Max.)
SOUND LEVEL

10
RootsSweep RB120
Dimensions:
TECHNICAL SPECIFICATION
Length - 1915 mm
Height - 1640 mm
Height w/ Over Guard (Oponal) - 2020 mm
Width with one side broom - 1345 mm
Width - 1250 mm

11
RootsSweep RB120 SAFETY INSTRUCTIONS

12
RootsSweep RB120

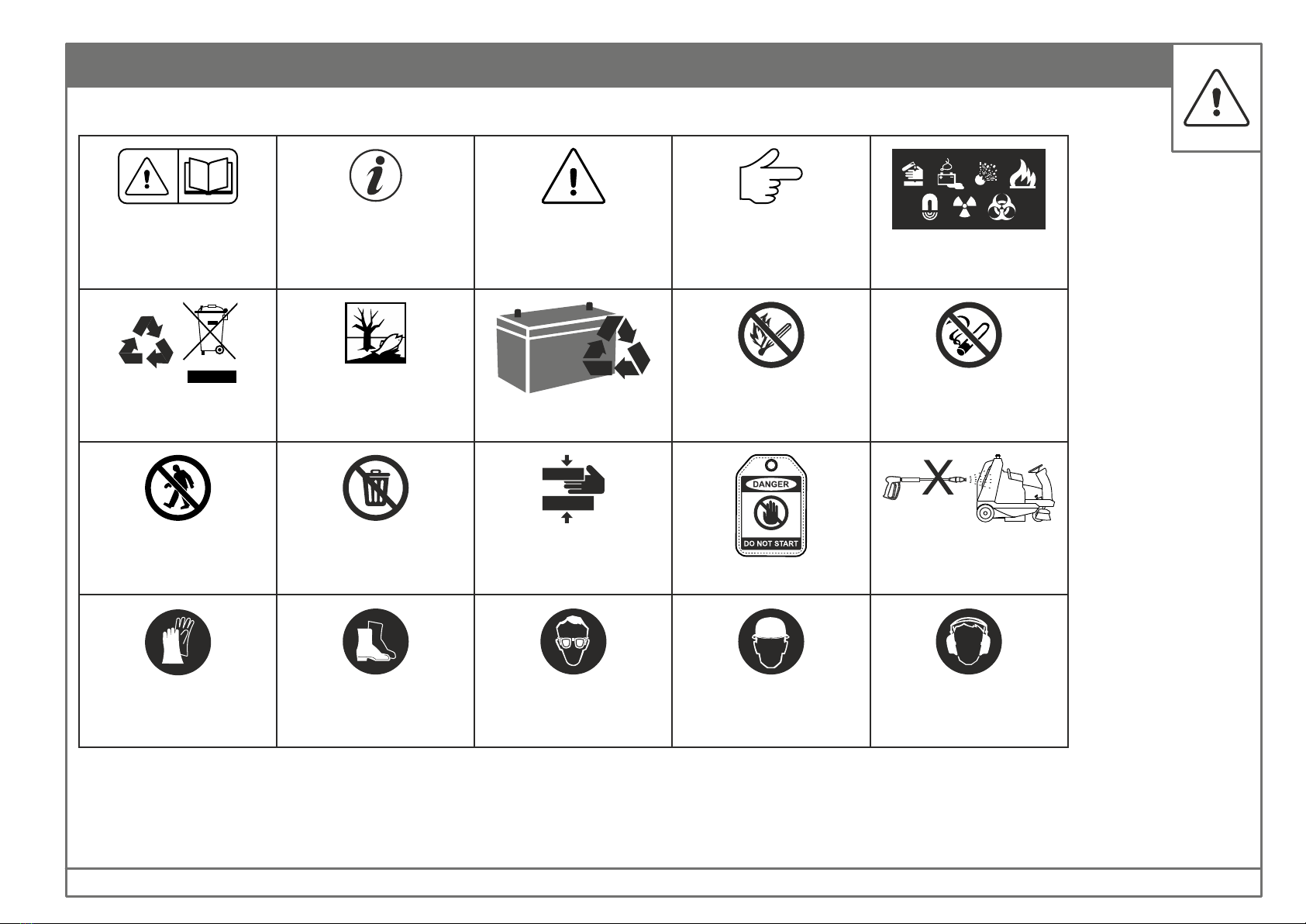

GENERAL SAFETY SYMBOLS
Prior to first operation, read the manual carefully and
strictly comply with the instructions contained.
Read
manual
Important information on handling the machine in
order to maintain operability.
Caution
(the machine)
Due to use of substances representing an inherent
danger to health of environment.
Ecological hazard
(the environment)
Safety provisions in dangerous situation caused by
misuse, inaccurate adherence to instruction or
prescribed work routine.
Safety Provisions
(persons & goods)
SAFETY INSTRUCTIONS
SAFETY INSTRUCTIONS
Applicaon
=The machine with working equipment must be checked to ensure that it
is in proper working order and is operang safely prior to use. Otherwise,
the machine must not be used.
=The machine is not suitable for sweeping dust which endangers health,
unless expressly specified otherwise. Please follow the safety
instrucons in the operang manual.

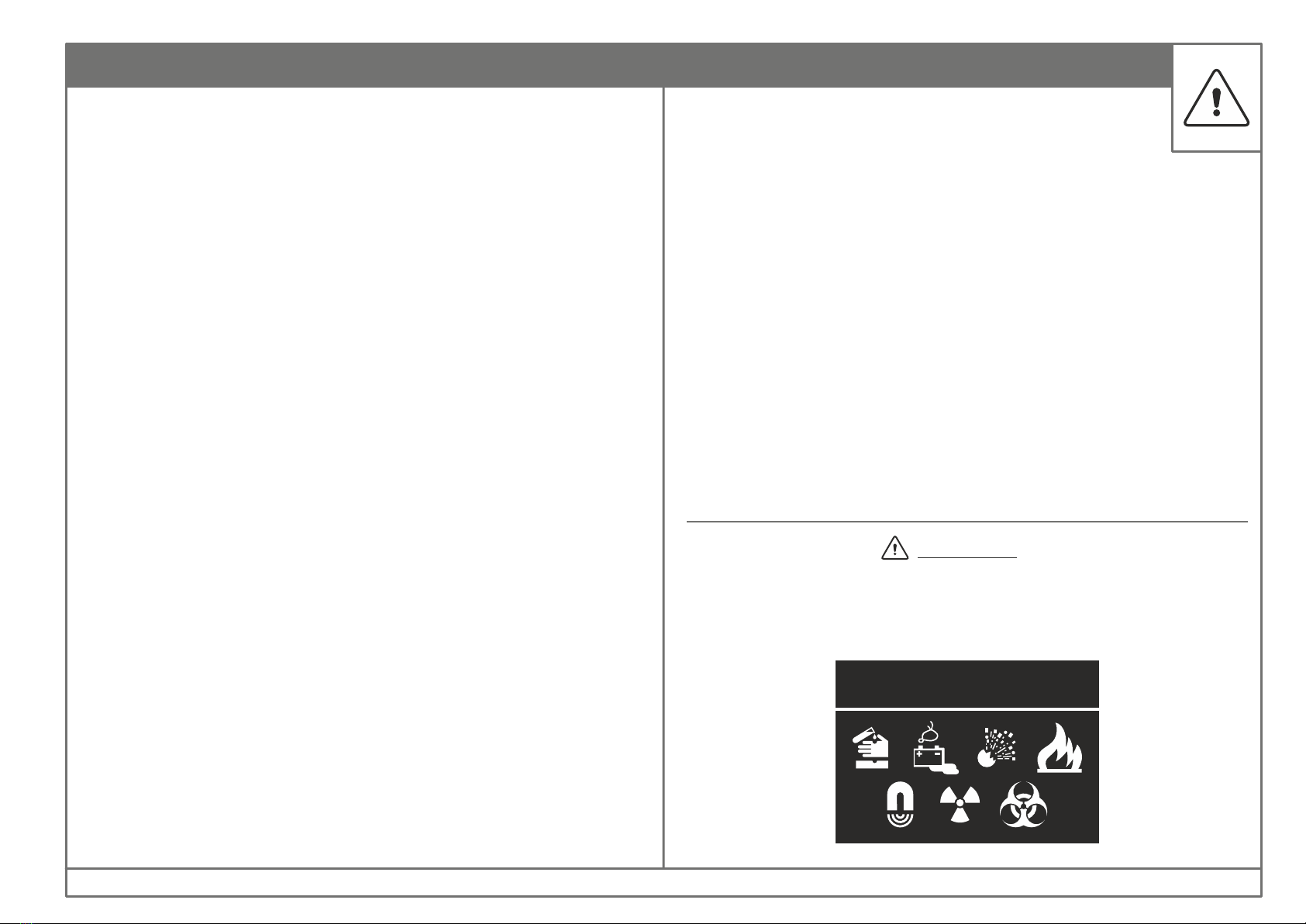

=Never sweep explosive liquids, combusble gases, explosive dusts as
well as undiluted acids and solvents. This includes petrol, paint thinner or
heang oil which can generate explosive fumes or mixtures upon contact
with the sucon air. Acetone, undiluted acids and solvents must also be
avoided as they can harm the materials on the machine.
=Do not sweep any burning or glowing object.
=The machine should not be used in sub-zero temperatures.
=If the machine is used in hazardous areas (e.g. filling staons) the
corresponding safety provisions must be observed.
=The machine may only be operated on the surfaces approved by the
company or its authorised representaves.
=Protect the machine from frost.
Operaon
=This machine is not intended for use by persons (including children) with
limited physical, sensoric or mental capacies or lack of experience
and/or skills, unless such persons are accompanied and supervised by a
person in charge of their safety or if they received precise instrucons on
the use of this machine.
=Children should be supervised to prevent them from playing with the
machine.
=The operator must use the machine properly. The person must consider
the local condions and must pay aenon to third pares, in parcular
children, when working with the machine.

13
RootsSweep RB120
SAFETY INSTRUCTIONS
=For devices fied with ignion key, remove the ignion key to prevent
accidental or unauthorized use.
=Prior to starng work, the operator must ensure that all protecve
devices are properly installed and funcon correctly.
=The operator of the machine is liable for accidents with other individuals
or their property.
=Ensure that the operator wears ght-fing clothes. Wear sturdy shoes
and avoid wearing loose-fing clothes.
=Check the immediate vicinity prior to starng (e.g. children). Ensure
sufficient visibility.
=The machine may only be used by persons who have been instructed in
handling the machine or have proven qualificaon and experse in
operang the machine or have been explicitly assigned the task of
handling the machine.
=Do not open the hood when the engine is running.
=On sloped surfaces, the sloping angle and the driving direcon should not
exceed the values given in the Operang Instrucons.
Transport
=The machine has to be secured properly during transportaon. Drain
water from the tank before transporng on a truck.
Maintenance
=Maintenance work may only be carried out by approved customer
service outlets or experts in this field who are familiar with the respecve
safety regulaons.
=Please observe the local safety regulaons regarding portable
commercially used machines.
=Always use appropriate gloves while working on the device.
=First switch off the machine and remove the ignion key before
performing any cleaning or maintenance tasks on the machine, replacing
parts or switching over to another funcon.
=Always disconnect the baery when working on the electrics.

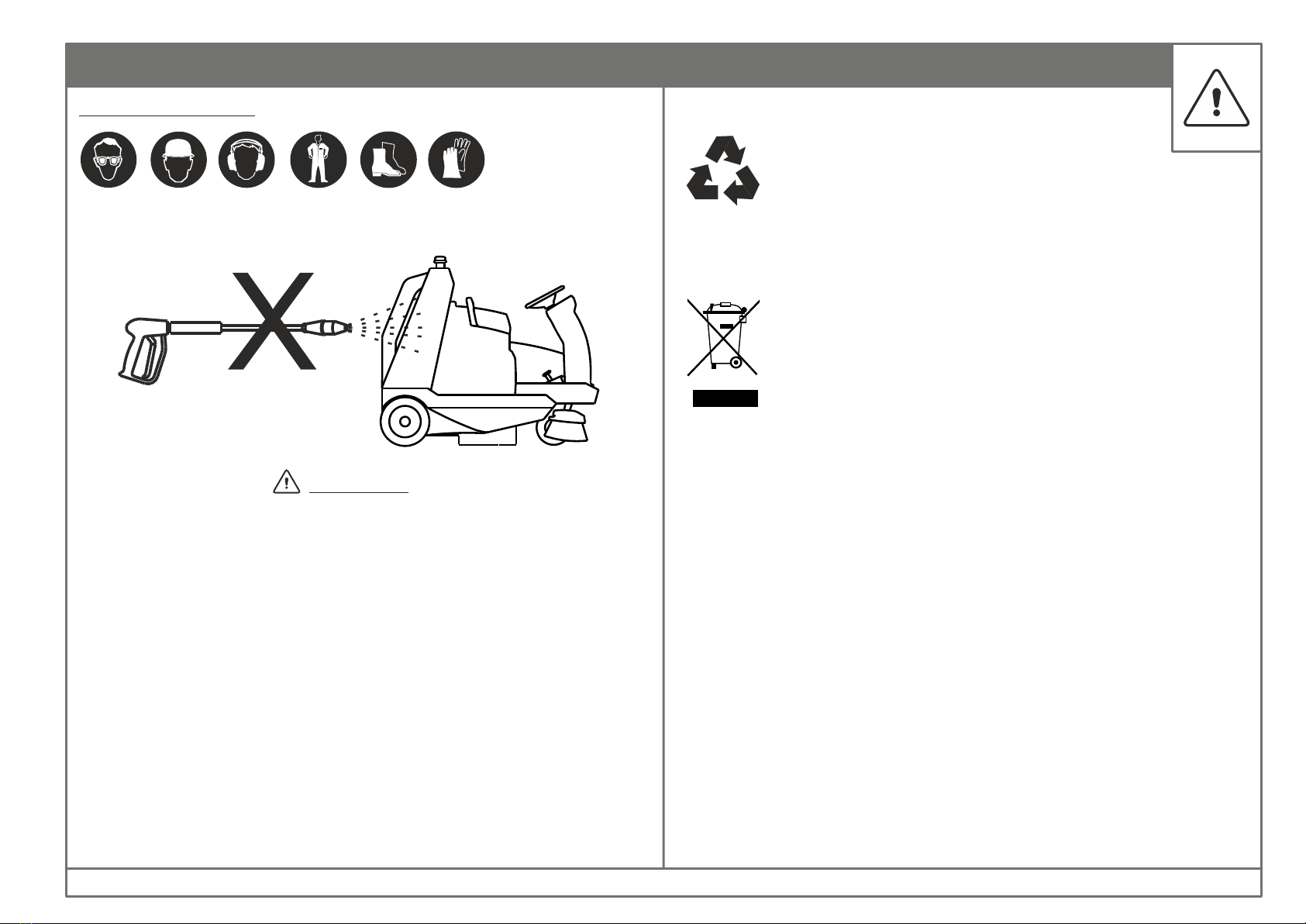

=Do not clean the machines with a high-pressure water jet
(danger of short circuits or other damage).
Spare Parts & Accessories
=To avoid risks, all repairs and replacement of spare parts may only be
carried out by the authorised service personnel only.
=Use only accessories and spare parts which have been approved by the
manufacturer. The exclusive use of original accessories and original spare
parts ensures that the machines can be operated safely and trouble free.
Pneumac Tyres Equipped Machines
=In machines with screwed wheel rims: Check and confirm that all the
screws of the rim are ghtened before correcng the tyre filling pressure.
=Check the pressure reducer on the compressor for the correct seng
before correcng the tyre pressure.
=Do not exceed maximum tyre pressure.
WARNING!
DO NOT SWEEP CORROSIVE/BATTERY
FLUIDS/EXPLOSIVE/FLAMMABLE/
MAGNETIC/RADIOACTIVE/BIOHAZARD MATERIALS
DO NOT SWEEP

14
RootsSweep RB120
WARNING!
DO NOT CLEAN THE MACHINE WITH A HIGH PRESSURE
CLEANER. THERE IS RISK OF DAMAGING THE ELECTRICAL
PARTS OR RISK OF SHORT CIRCUIT.
SAFETY INSTRUCTIONS
Wear PPE as necessary.
Cleaning Instructions:
ENVIRONMENTAL RESPONSIBILITY
The packaging material can be recycled. Please do not place the packaging
into the ordinary refuse for disposal, but arrange for the proper recycling.
Old machines contain materials that can be recycled. Please arrange for
the proper recycling of old machines. Batteries, electrical & electronic
components contain substances that must not enter the environment.
Please dispose off your old machine, batteries, electrical & electronic
components using appropriate collection systems at the end of the
product’s life cycle.

15
RootsSweep RB120
SAFETY INSTRUCTIONS
SYMBOLS & HAZARDS PICTORIAL DEFINITIONS
Read Manual
Recycle/Do Not Throw
In Garbage
Informaon
Environmental Hazard
General Warning
Baery: Recycle
Cauon
No Fire/Matches
Toxic Hazard
No Smoking
No Passengers
Do Not Throw
In Garbage Hand Crush Hazard Do Not Start Tag
Wear Gloves Wear Safety Shoes Wear Safety Glasses Wear Safety Helmet Wear Ear Muff
No HPJC

16
RootsSweep RB120 KNOW YOUR MACHINE

17
RootsSweep RB120
KNOW YOUR MACHINE
1
6
7
8
10
11
12
9
13
14 15
16
17
18
19
20
21
22
23
24

18
RootsSweep RB120
KNOW YOUR MACHINE
25
26
27
28 29
54
3
2
32 30
31

19
RootsSweep RB120
KNOW YOUR MACHINE
33
34
35
1. Steering Wheel
2. Control Panel
3. Display Panel
4. Accelerator Pedal
5. Brake Pedal
6. Operator Seat
7. Beacon Lamp
8. Front Column Cover
9. Drive Motor
10. Right Side Broom
11. Le Side Broom (if equipped)
12. Top Cover w/Cupholders
13. Rear Tyres
14. Boom Side Cover - Le
15. Boom Side Cover - Right
16. Side Cover - Right
17. Side Cover - Le
18. Fresh Water Fill Port
19. Hydraulic Power Pack
20. Cover Panel
21. Filter Box
22. Panel Dust Filter
23. Liing Arm
24. Hopper
25. Baery Pack
26. Water Spray Nozzle
27. Headlamp
28. Main Broom Adjustment Knob
29. Front Flap Open/Close Pedal
30. Main Broom Access Door
31. Side Broom Adjustment Knob
32. Main Broom Dust Sealing Strips
33. Electrical Components Panel
34. Control Panel Buons
35. Main Broom Wear Indicator

20
RootsSweep RB120
Operator Orientaon: Machine Nameplate
1. Front
2. Right
3. Rear
4. Le
KNOW YOUR MACHINE
1
3
42
Machine Nameplate
