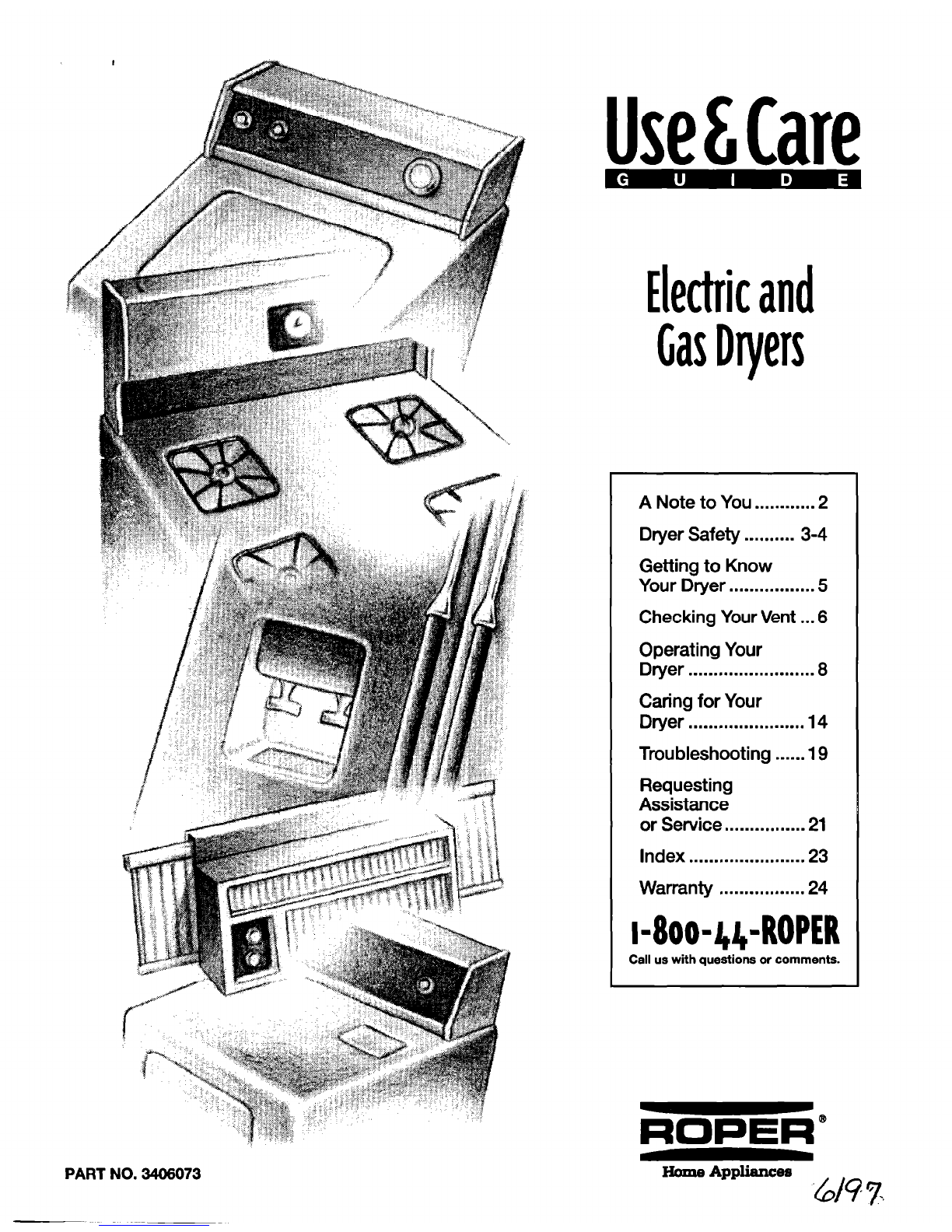

Roper Roper LER5848EQ3 User manual

Electricand
GasDryers
A Note to You ............2
Dryer Safety .......... 3-4
Getting to Know
Your Dryer .................5
Checking Your Vent ...6
Operating Your
Dryer .........................8
Caring for Your
Dryer ....................... 14
Troubleshooting ......19
Requesting
Assistance
or Service ................ 21
Index ......,................ 23
Warranty ,................ 24
I-~oo-~~-ROPER
Call us with questions or comments.
PART NO. 3406073

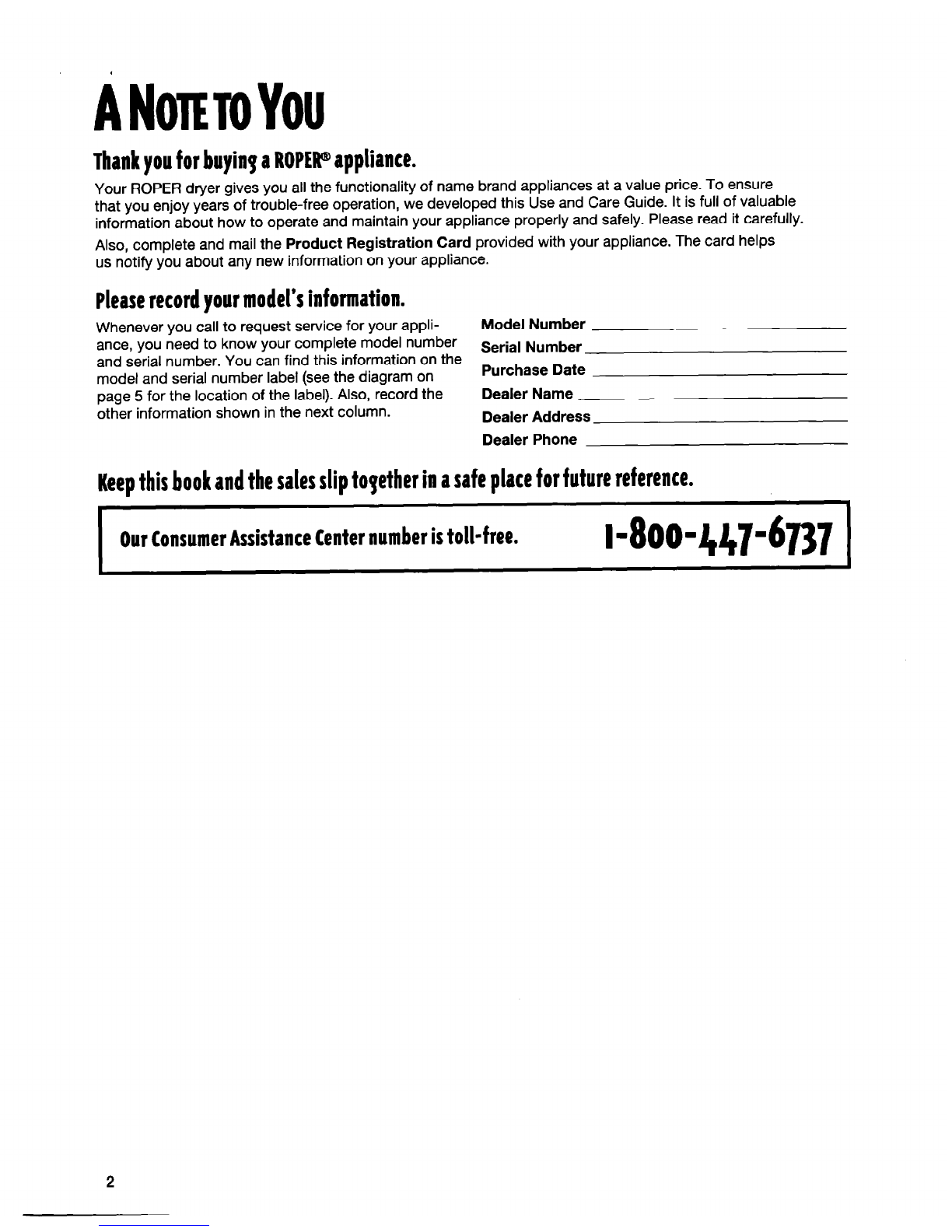

ANOTETOYOU
Thankyouforbuy@ aROPER@appliance.
Your ROPER dryer gives you all the functionality of name brand appliances at a value price. To ensure
that you enjoy years of trouble-free operation, we developed this Use and Care Guide. It is full of valuable
information about how to operate and maintain your appliance properly and safely. Please read it carefully.
Also, complete and mail the Product Registration Card provided with your appliance. The card helps
us notify you about any new information on your appliance.
Pleaserecordyourmodel’sinformation.
Whenever you call to request service for your appli- Model Number
ante, you need to know your complete model number Serial Number
and serial number. You can find this information on the
model and serial number label (see the diagram on Purchase Date
page 5 for the location of the label). Also, record the Dealer Name
other information shown in the next column. Dealer Address
Dealer Phone
Keepthisbookandthesalessliptopetherinasafeplaceforfuturereference.
OurConsumerAssistanceCenternumberistoll-free.
1-800-447-6737
2

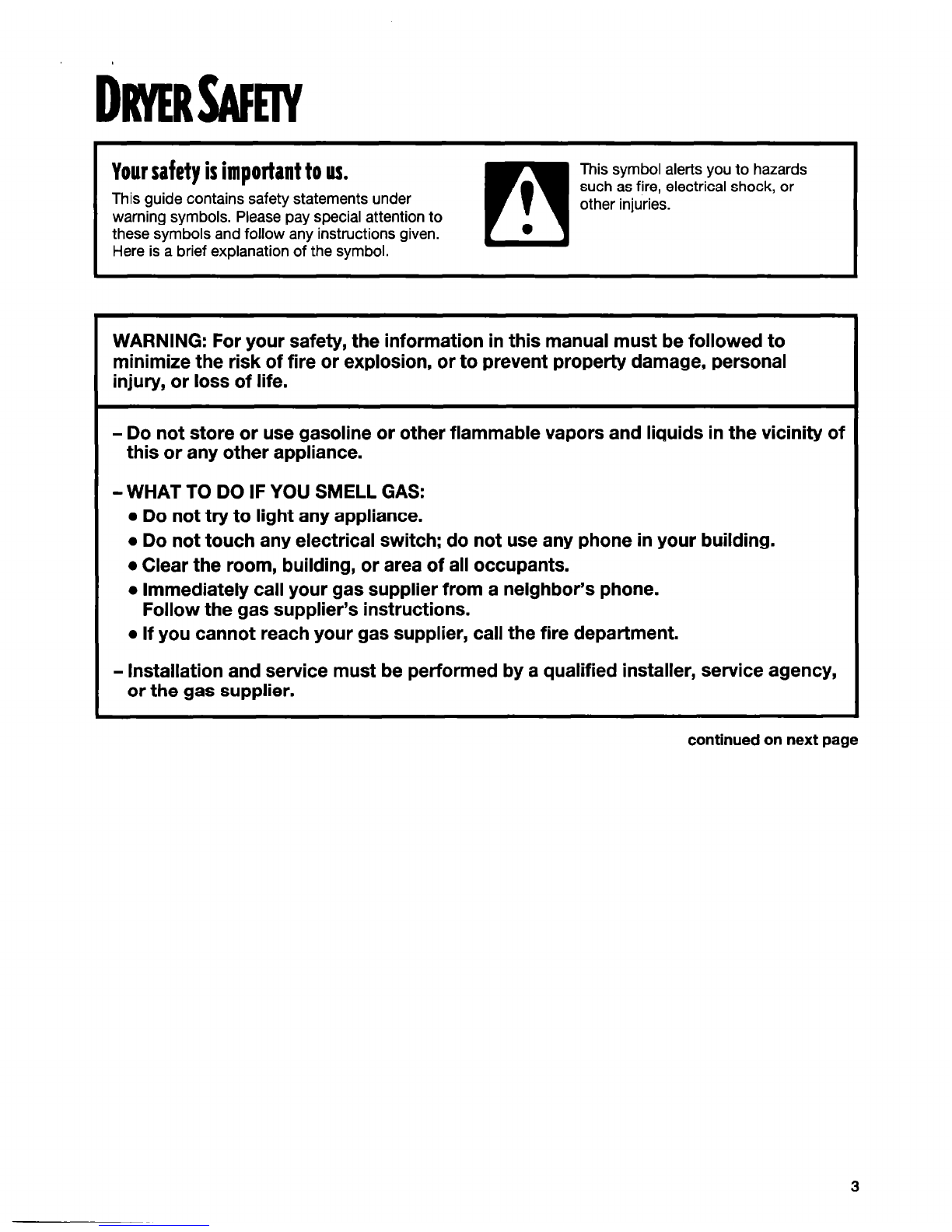

DRIERMY
I
Yoursafetyisimportantto us.
This guide contains safety statements under
warning symbols. Please pay special attention to
these symbols and follow any instructions given.
Here is a brief explanation of the symbol.
q
This symbol alerts you to hazards
f such as fire, electrical shock, or
other injuries.
0
WARNING: For your safety, the information in this manual must be followed to
minimize the risk of fire or explosion, or to prevent property damage, personal
injury, or loss of life.
- Do not store or use gasoline or other flammable vapors and liquids in the vicinity of
this or any other appliance.
-WHAT TO DO IF YOU SMELL GAS:
l Do not try to light any appliance.
l Do not touch any electrical switch; do not use any phone in your building.
l Clear the room, building, or area of all occupants.
l Immediately call your gas supplier from a neighbor’s phone.
Follow the gas supplier’s instructions.
a If you cannot reach your gas supplier, call the fire department.
- Installation and service must be performed by a qualified installer, service agency,
or the gas supplier.
continued on next page
3

DRIERSAFETY
IMPORTANT SAFETY INSTRUCTIONS
WARNING - To reduce the risk of fire, electric shock, or injury to persons when using the
dryer, follow basic precautions, including the following:
a Read all instructions before using
l Do not repair or replace any part of the
the dryer. dryer or attempt any servicing unless
l Do not dry articles that have been previ- specifically recommended in this Use and
ously cleaned in, washed in, soaked in, Care Guide or in published user-repair
or spotted with gasoline, dry-cleaning instructions that you understand and have
solvents, other flammable, or explosive the skills to carry out.
substances as they give off vapors that
l Do not use fabric softeners or products to
could ignite or explode. eliminate static unless recommended by
l Do not allow children to play on or in the manufacturer of the fabric softener
the dryer. Close supervision of children or product.
is necessary when the dryer is used
l Do not use heat to dry articles containing
near children, foam rubber or similarly textured rubber-
l Before the dryer is removed from service Iike materials.
or discarded, remove the door to the
l Clean lint screen before or after each load.
drying compartment.
l Keep area around the exhaust opening
l Do not reach into the dryer if the drum and adjacent surrounding areas free from
is moving. the accumulation of lint, dust, and dirt.
l Do not install or store the dryer where
l The interior of the dryer and exhaust vent
it will be exposed to the weather. should be cleaned periodically by qualified
l Do not tamper with controls. service personnel.
l See Installation Instructions for grounding
requirements.
- SAVE THESE INSTRUCTIONS -
4

CETTINGMNOWYOURDKVER
The parts and features of your dryer are illustrated on this page. Become familiar with all parts and
features before using your dryer. Page references are included next to some features. Refer to
those pages for more information about the features.
NOTE: The drawings in this book may vary from your dryer model. They are designed to show the
different features of all models covered by this book. Your model may not include all features.
Cycle control
kl?Ob-
(may include
temperature
settings*)
(pp. 8-l 1)
Model and
serial number
DIyer drum -
@. 15)
Otherdoors:
Temperature
Large side-swing door*
(Reversible door. See
Installation Instructions)
Exhaust grill
Wide-opening
hamper door*
Additionalfeaturesyourdryermayhave
End of cycle signal (p. 8)
Drying rack (p. 13)
Drum light (p. 16)
* On some models
5

CHECKINGYOURVENT
Your dryer must be properly installed and vented to achieve maximum drying efficiency and
shorten drying times. Install your dryer in a well-ventilated room where the temperature is always
above 45°F (7%). Also make sure that your dryer is leveled. Refer to your Installation Instructions
for more information.
VENTING
Fire Hazard
Use a heavy metal vent.
Do not use a plastic vent.
Do not use a metal foil vent.
Failure to follow these instructions can
result in death or fire.
If the dryer is not properly installed and vented, it
will not be covered under the warranty.
NOTE: Service calls caused by improper venting
will be paid for by the customer, whether it was a
paid installation or self-installed. For paid installa-
tion, call the company that installed the vent for
adjustment.
1. Four-inch heavy metal
length requirements a
2. Use a 4” exhaust hood. Smaller hoods increase
)rflexible metal vent must
be used. Do not use
plastic vent or flexible
metal foil vent. Do not
kink or crush flexible
metal vent. It must be
completely extended to
allow adequate exhaust
air to flow. Check vent
after installation. Refer
to your Installation
Instructions for proper
vent.
drying times.
3. The exhaust vent can be routed UD, down, let?,
right, or straight but the
back of the dryer. Space
requirements are listed
in your Installation
Instructions.

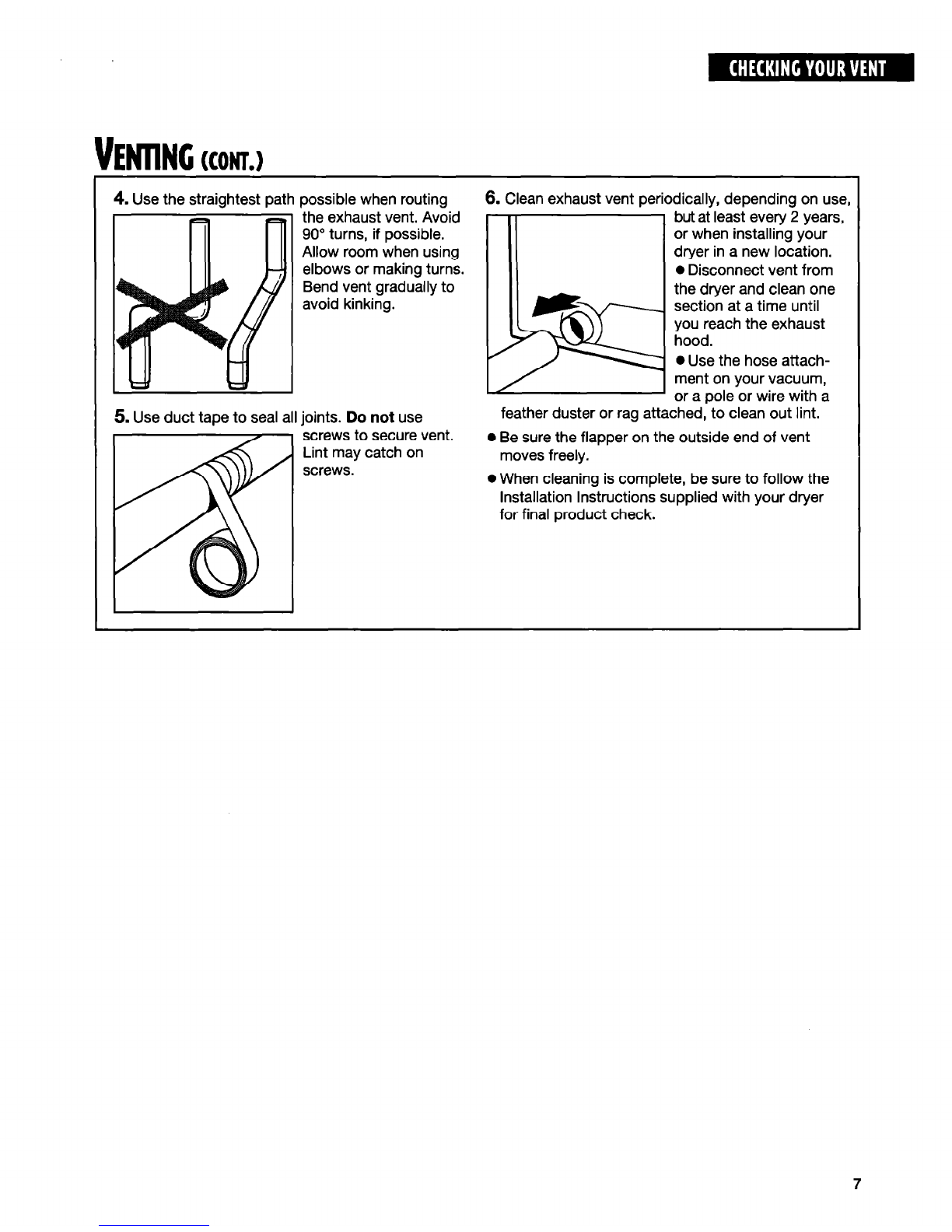

4. Use the straightest path possible when routing
the exhaust vent. Avoid
90” turns, if possible.
Allow room when using
elbows or making turns.
Bend vent gradually to
avoid kinking.
I joints. Do not use
screws to secure vent.
Lint may catch on
screws.
6. Clean exhaust vent periodically, depending on use,
~~~~~gp
the dryer and clean one
section at a time until
you reach the exhaust
hood.
0 Use the hose attach-
feather duster or rag attached, to clean out lint.
a Be sure the flapper on the outside end of vent
moves freely.
0 When cleaning is complete, be sure to follow the
Installation Instructions supplied with your dryer
for final product check.
7

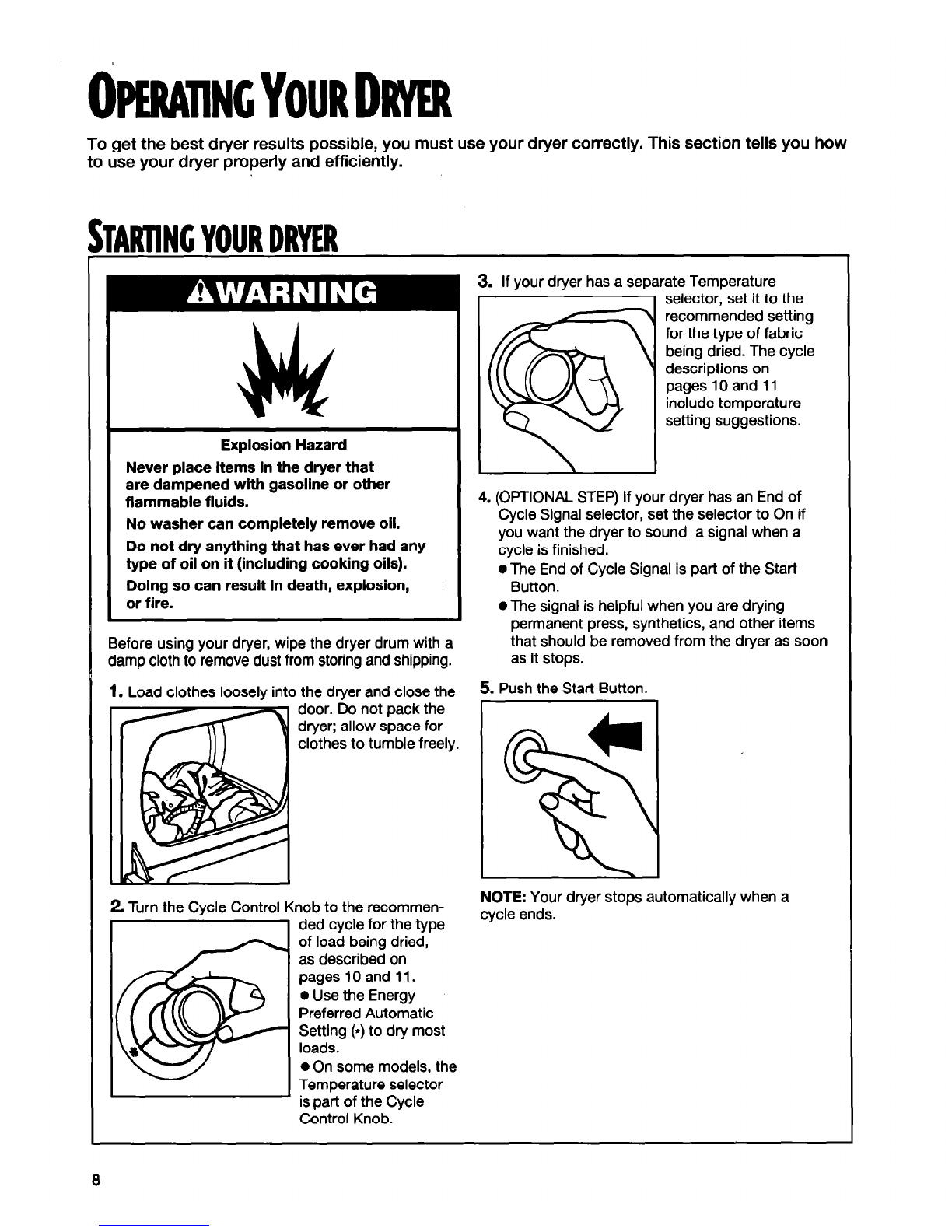

To get the best dryer results possible, you must use your dryer correctly. This section tells you how
to use your dryer properly and efficiently.
;TARTlNCYOURDRYER
Explosion Hazard
Never place items in the dryer that
are dampened with gasoline or other
flammable fluids.
No washer can completely remove oil.
Do not dry anything that has ever had any
type of oil on it (including cooking oils).
Doing so can result in death, explosion,
or fire.
Before using your dryer, wipe the dryer drum with a
damp cloth to remove dust from storing and shipping.
1. Load clothes loosely into the dryer and close the
door. Do not pack the
dryer; allow space for
clothes to tumble freely.
2. Turn the Cycle Control Knob to the recommen-
- ded cycle for the type
of load being dried,
as described on
pages 10and 11.
0 Use the Energy
I Preferred Automatic
- Setting b) to dry most
loads.
l On some models, the
Temperature selector
is part of the Cycle
Control Knob.
3. If your dryer has a separate Temperature
selector, set it to the
recommended setting
for the type of fabric
being dried. The cycle
descriptions on
pages 10 and 11
include temperature
setting suggestions.
4. (OPTIONAL STEP) If your dryer has an End of
Cycle Signal selector, set the selector to On if
you want the dryer to sound a signal when a
cycle is finished.
l The End of Cycle Signal is part of the Start
Button.
l The signal is helpful when you are drying
permanent press, synthetics, and other items
that should be removed from the dryer as soon
as it stops.
5. Push the Start Button.
NOTE: Your dryer stops automatically when a
cycle ends.

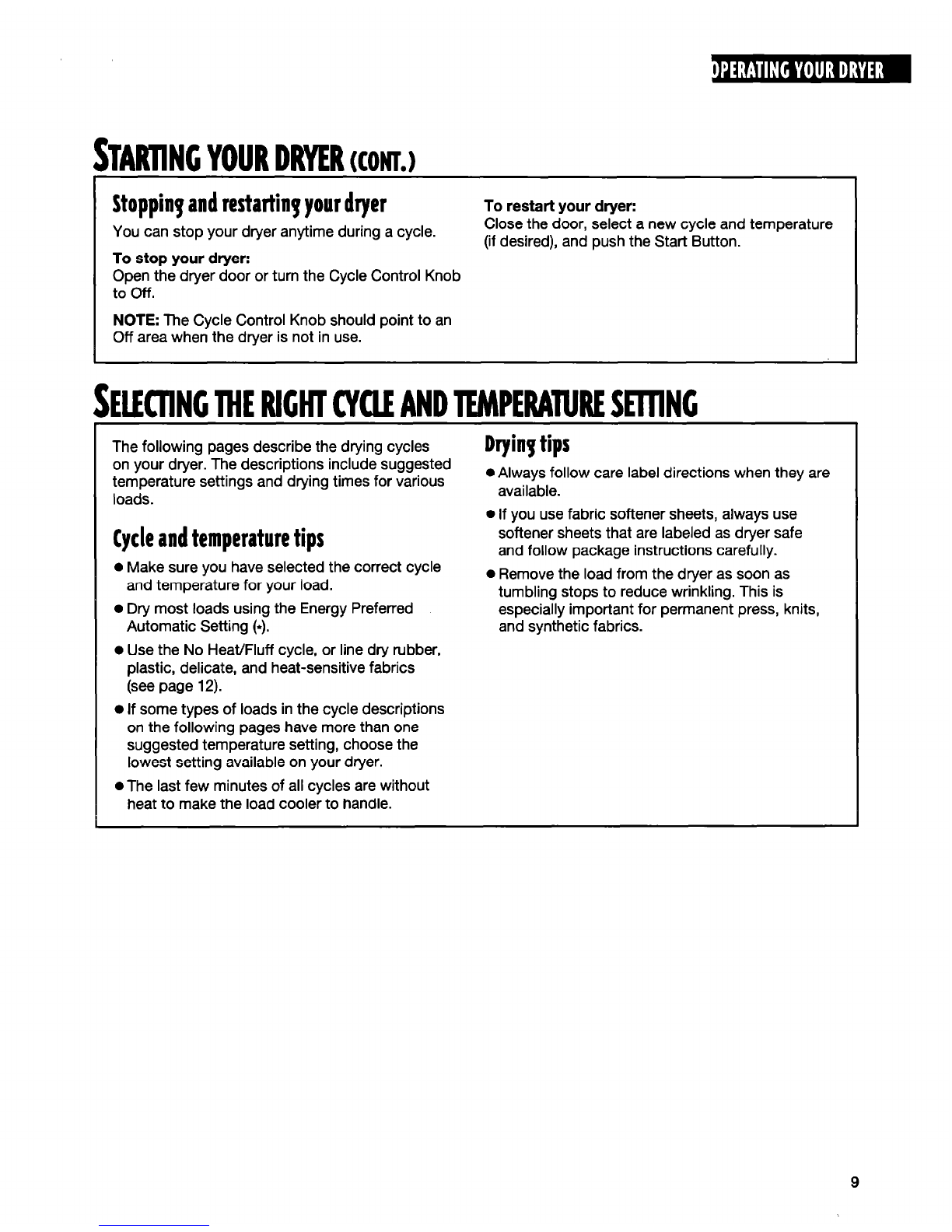

STARTINGYOURDRYER KONL)
stoppingandrestartingyourdryer
You can stop your dryer anytime during a cycle.
To restart your dryer:
Close the door, select a new cycle and temperature
(if desired), and push the Start Button.
To stop your dryer:
Open the dryer door or turn the Cycle Control Knob
to off.
NOTE: The Cycle Control Knob should point to an
Off area when the dryer is not in use.
SEWING MERIGHTMII ANDTEMPERATURESEITING
The following pages describe the drying cycles
on your dryer. The descriptions include suggested
temperature settings and drying times for various
loads.
Cycleandtemperaturetips
0 Make sure you have selected the correct cycle
and temperature for your load.
l Dry most loads using the Energy Preferred
Automatic Setting (e).
l Use the No Heat/Fluff cycle, or line dry rubber,
plastic, delicate, and heat-sensitive fabrics
(see page 12).
l If some types of loads in the cycle descriptions
on the following pages have more than one
suggested temperature setting, choose the
lowest setting available on your dryer.
l The last few minutes of all cycles are without
heat to make the load cooler to handle.
Dryingtips
0 Always follow care label directions when they are
available.
0 If you use fabric softener sheets, always use
softener sheets that are labeled as dryer safe
and follow package instructions carefully.
0 Remove the load from the dryer as soon as
tumbling stops to reduce wrinkling. This is
especially important for permanent press, knits,
and synthetic fabrics.

CYCLIDESCRlPllONS
Automaticcycle(s)
Use an Automatic cycle to dry most loads. The
Automatic cycle shuts
off the dryer when the
selected dryness is
reached. The Cycle
Control Knob does not
move until the load is
almost dry. After the
cool-down, the Knob
automatically turns to
an Off area and tum-
bling stops.
0 If the load is drier than you like, select a setting
closer to Less Dry the next time you dry a
similar load.
0 If the load is not as dry as you like, complete
drying using a Timed cycle. Select a setting
closer to Very Dry the next time you dry a
similar load.
Drying time with an Automatic cycle varies accord-
ing to the type of fabric, size of load, and dryness
setting. Your model may not have all heat settings
listed. Some general guidelines are:
0 Use a high heat setting for drying heavyweight
items, such as towels and work clothes.
a Use a medium heat setting for drying
mediumweight items, such as sheets, underwear,
permanent press clothes, and some knits.
l Use a low heat setting for drying lightweight
items such as lingerie, blouses, dresses, and
some knits.
NOTE: If you have any questions about drying
temperatures for various loads, refer to care label
directions.
Timedcycle(s)
Use a Timed cycles to complete drying if some
items are damp after
the Automatic cycle.
The Timed cycle is also
useful for:
l Heavyweight and
bulky items, such as
bedspreads and work
clothes, and large loads
that require a long drying
time. Set your dryer for
High heat.
0 Lightweight items, such as lingerie, blouses, and
knits that require a short drying time. Set your
dryer for Low heat.
l Drying time and temperature will depend on your
dryer model.
NoHeathff cycle
(onsomemodels)
Use the unheated No Heat/Fluff cycle for items that
require drying without
heat. The chart on page
12 includes examples of
items that require drying
without heat.
NOTE: If your model
does not have the No
Heat/Fluff cycle, line dry
heat-sensitive items.
DampDryfeature
(onsomemodels)
Use the Damp Dry feature in the Timed cycle to dry
items to damp level or
to dry items that do not
require an entire drying
cycle. Two examples are
heavy cottons, such as
jeans, which you do not
want to become stiff, or
cotton clothes which are
easier to press when
damp. Set the Tempera-
ture selector to High heat.
10

CYCLEDESCRIPTION
(CONTJ
WrinkleFreefeature WRINKLEPREVENTTMfeature
(onsomemodels) (onsomemudeM
Low heat. You do not have to set the Cycle Control Knob for
the WRINKLE PREVENT feature. If you do not open
the dryer door within a few minutes after the cycle
stops, the WRINKLE PREVENT feature takes over
to protect the load.
A signal sounds every few minutes when
WRINKLE PREVENT is running. The signal and
cycle stop when you open the dryer door.
11

DHEAT/FLUFFCYCE
he chart below includes examples of items that
squire drying without heat. Use the No Heat/Fluff
ycle, or place the items on a line or rack to air dry.
1Line dry bonded or laminated fabrics.
1Always follow care label directions when they are
available.
Fire Hazard
Use No Heat/Fluff cycle or line dry items
listed below.
Do not use heat to dry these items.
Failure to do so can result in death or fire.
TYPE OF LOAD
RUBBER, PLASTIC, HEAT-SENSITIVE FABRICS
Foam Rubber - Pillows, padded bras, stuffed toys
l Make sure coverings are securely stitched.
l Shake and fluff pillows by hand several times during the
No Heat/Fluff cycle.
l Make sure pillows are completely dry. Foam rubber pillows
take a long time to dry.
Plastic - Shower curtains, tablecloths
Rubber-backed rugs
Olefin, Polypropylene, Sheer nylon
Reset cycle as needed to complete drying.
NO HEAT/FLUFF CYCLE*
(minutes)
20-30
20-30
40-50
1O-20
12

USINGTHEDRYINGRACK
--.I.- 1.11 I.mII..- 1-m-1
Your dryer may include a drying rack. If your model 3. Close the door.
doesn’t include one, you can order a drying rack
by calling l-666-447-6737, from anywhere in the
U.S.A. You will hear a recording. Follow the instruc-
tions to place an order.
The drying rack lets you dry items without
tumbling them. The rack does not move, but the
drum turns.
1. Fit rear pegs of the rack into spaces in the back
wall of the dryer. Lower
the front so the legs
rest on the dryer
opening. d temperature, or the No
Heat/Fluff cycle.
2. Put wet items on top of the rack. Leave space
between the items
so air can reach all
surfaces.
l See chart below for
suggested cycles and
settings for items that
might best be rack
dried. Drying time will
depend on amount of
moisture items hold.
NOTE: Make sure nothing hangs over the edge of
the rack.
5. Push the Start Button.
NOTE: The rack must be removed for normal
tumbling. Automatic cycles do not work with the
Foam rubber fille
l Reset cycle as needed to complete drying.

CARINGFORYOURDKYER
Proper care of your dryer can extend its life and help your dryer operate efficiently.
CIIANINC~iiEutmsam
--------- ---- ---- - ----- -
Everyloadcleaning
The lint screen is located under a lid on top of the
dryer. Clean it before each load. A screen blocked
by lint can increase drying time.
To clean:
1. Open the lid and pull the lint screen towards you.
\/I
2. Roll lint off the screen with your fingers. Do not
I rinse or wash screen to
remove lint. Wet lint is
hard to remove.
3. Push the lint screen firmly back into place and
close the lid.
IMPORTANT:
0 Do not run the dryer with the lint screen loose,
damaged, blocked, or missing. Doing so can
cause overheating and damage to both the dryer
and fabrics.
a Some towels made of synthetic fibers and natural
fibers (polyester and cotton blends) may shed
more lint than other towels, causing your dryer’s
lint screen to fill up faster. Be sure to remove
lint from the lint screen, before and after drying
new towels.
ASneededcleaning
Laundry detergents and fabric softeners can cause
a residue buildup on the lint screen. This buildup
can cause longer drying times for your clothes, or
cause the dryer to stop before your load is com-
pletely dry. You may be able to see this buildup, or
the lint may be falling off the screen because it is
clogged.
Clean the lint screen with a nylon brush every six
months or more frequently if it becomes clogged
due to a residue buildup.
Use the following method:
1. Wet both sides of lint screen with hot water.
2. Wet a nylon brush with hot water and liquid
WA ;~;e$,~~~::h
w 1 buildup.
-- l
3. Rinse screen with hot water.
4. Thoroughly dry lint screen with a clean towel;
replace in dryer.
14

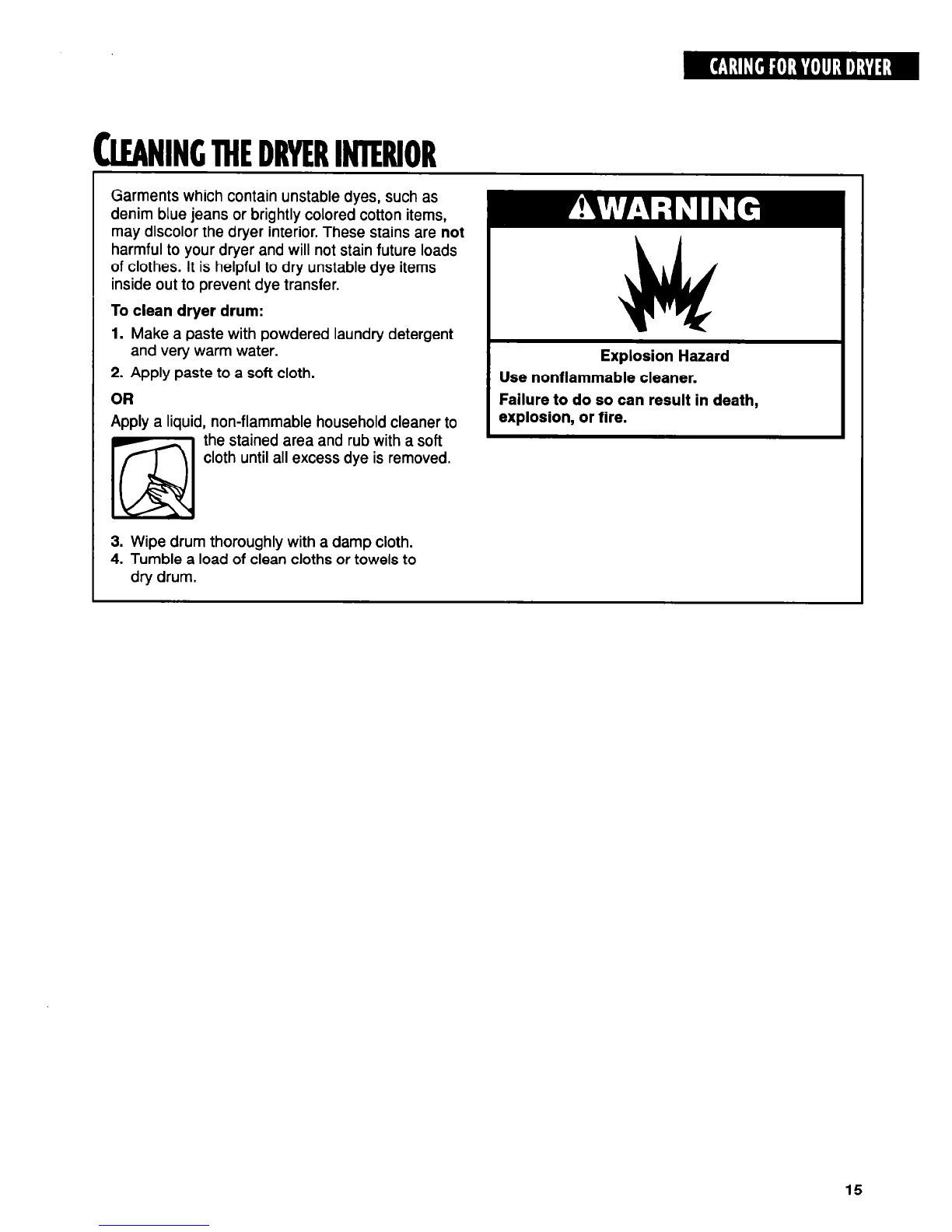

WNINC niEDRKRINTERIOR
--------- m-w- -----m- ------Y-ll
Garments which contain unstable dyes, such as
denim blue jeans or brightly colored cotton items,
may discolor the dryer interior. These stains are not
harmful to your dryer and will not stain future loads
of clothes. It is helpful to dry unstable dye items
inside out to prevent dye transfer.
To clean dryer drum:
1. Make a paste with powdered laundry detergent
and very warm water.
2. Apply paste to a soft cloth.
OR
Apply a liquid, non-flammable household cleaner to
the stained area and rub with a soft
cloth until all excess dye is removed.
Explosion Hazard
Use nonflammable cleaner.
Failure to do so can result in death,
explosion, or fire.
3. Wipe drum thoroughly with a damp cloth.
4. Tumble a load of clean cloths or towels to
dry drum.
15

The dryer light automatically turns on inside
the dryer drum when you open the door. See
instructions below to change your drum light.
Fire Hazard
Replace light bulb cover before
operating dryer.
Failure to do so can result in death or fire.
Tochangedrumlight:
1. Unplug the dryer or disconnect the electricity
leading to the dryer at the main power supply.
2. Open the dryer door. Remove the light bulb
cover from the back
wall of the dryer by
removing the screw
located in the lower
right corner of the
cover.
4. Replace the bulb with a 1O-watt appliance
bulb only.
5. Replace the light bulb cover.
CHANCM~iiEDRUMucm
3. Remove the light bulb by turning it
counterclockwise.
6. Reconnect power supply.
16

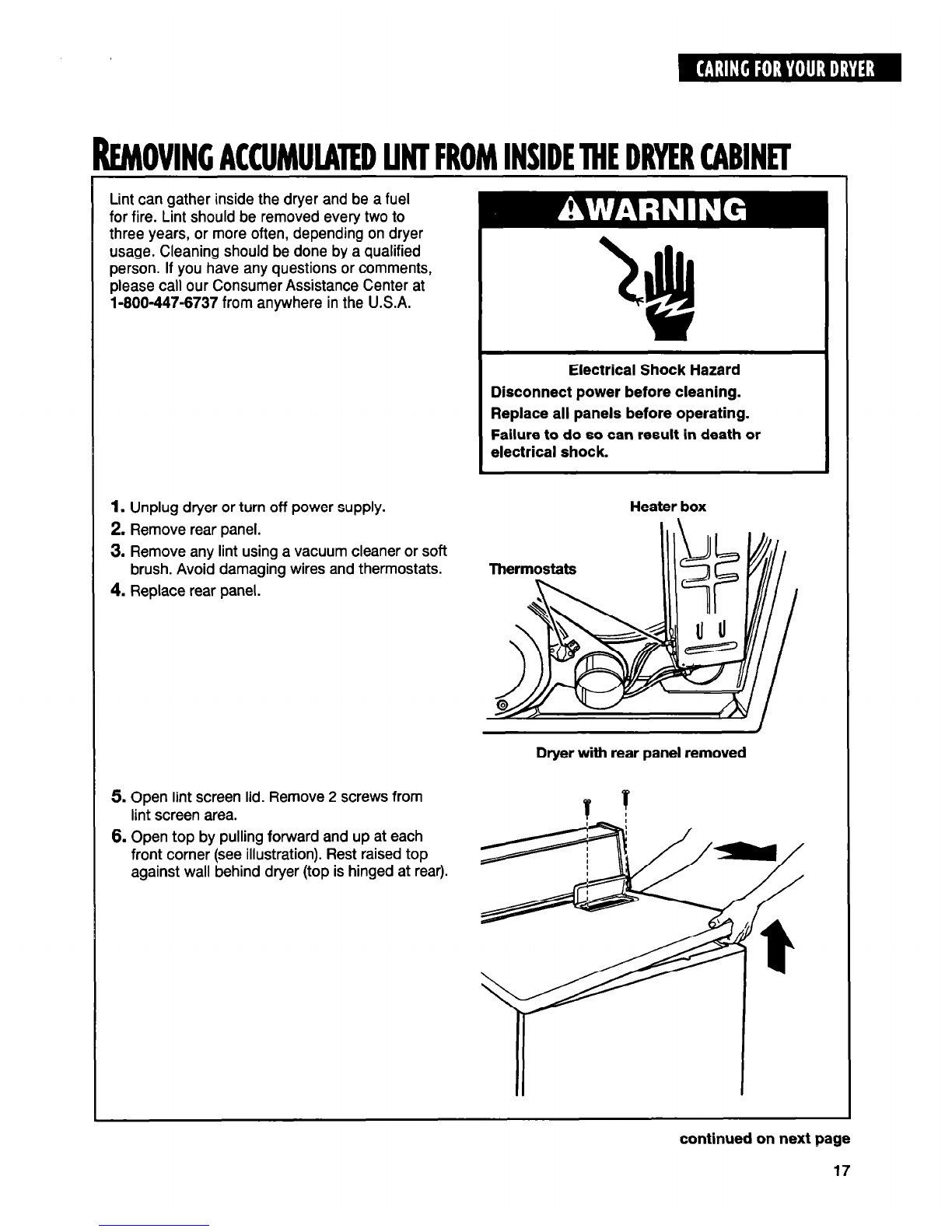

Lint can gather inside the dryer and be a fuel
for fire. Lint should be removed every two to
three years, or more often, depending on dryer
usage. Cleaning should be done by a qualified
person. If you have any questions or comments,
please call our Consumer Assistance Center at
I-800-447-6737 from anywhere in the U.S.A.
Electrical Shock Hazard
Disconnect power before cleaning.
Replace all panels before operating.
Failure to do so can result in death or
electrical shock.
1. Unplug dryer or turn off power supply.
2. Remove rear panel. Heater box
3. Remove any lint using a vacuum cleaner or soft
brush. Avoid damaging wires and thermostats.
4. Replace rear panel.
Dryer with rear panel removed
5. Open lint screen lid. Remove 2 screws from
lint screen area.
6. Open top by pulling forward and up at each
front corner (see illustration). Rest raised top
against wall behind dryer (top is hinged at rear).
continued on next page

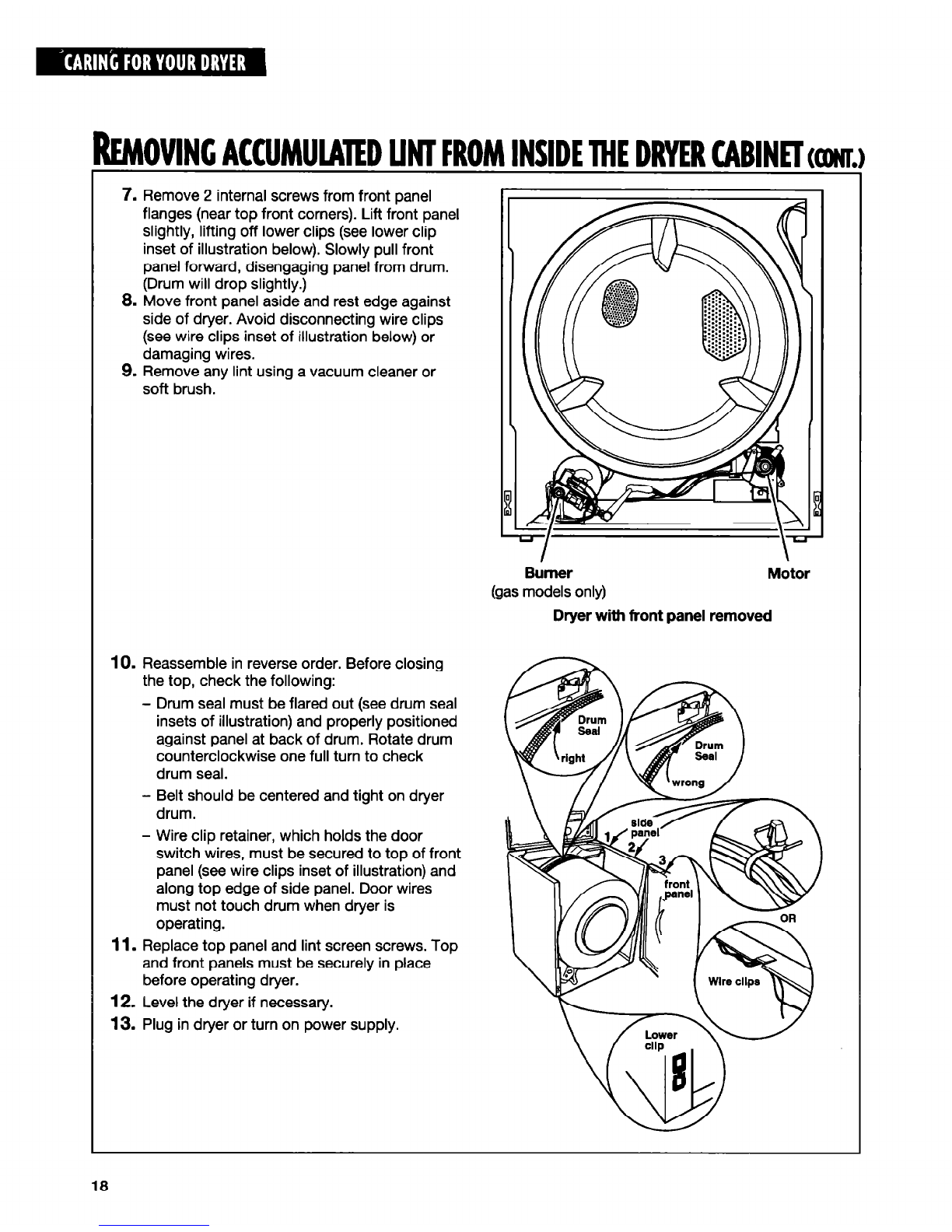

kIMlOVINGACCUMUWEDUNTFROMINSIDEMEDRYERCABINETmr,
7. Remove 2 internal screws from front panel
flanges (near top front corners). Lift front panel
slightly, lifting off lower clips (see lower clip
inset of illustration below). Slowly pull front
panel forward, disengaging panel from drum.
(Drum will drop slightly.)
8. Move front panel aside and rest edge against
side of dryer. Avoid disconnecting wire clips
(see wire clips inset of illustration below) or
damaging wires.
9. Remove any lint using a vacuum cleaner or
soft brush.
10. Reassemble in reverse order. Before closing
the top, check the following:
- Drum seal must be flared out (see drum seal
insets of illustration) and properly positioned
against panel at back of drum. Rotate drum
counterclockwise one full turn to check
drum seal.
- Belt should be centered and tight on dryer
drum.
- Wire clip retainer, which holds the door
switch wires, must be secured to top of front
panel (see wire clips inset of illustration) and
along top edge of side panel. Door wires
must not touch drum when dryer is
operating.
11. Replace top panel and lint screen screws. Top
and front panels must be securely in place
before operating dryer.
12. Level the dryer if necessary.
13. Plug in dryer or turn on power supply.
Bumer
(gas models only) Motor
Dryer with front panel removed
18

Most laundering problems are easily solved if you understand the cause. Check the following list
for common laundry problems and the next page for common dryer problems. If you need
further assistance, see “Requesting Assistance or Service” on page 21.
NOTE: In the following list, the most common laundry problems are listed first.
:OMMONLAUNDRYPROBLEMS
Problem ... Cause ...
Slow drying or clothes still wet
l Incorrect cycle or temperature setting selected.
l Full or clogged lint screen. (See page 14.)
l Exhaust vent clogged, restricted, or too long. (See pages 6-7 and
Installation Instructions.)
l Dryer located in room with temperature below 45” (7°C).
l Load too large and bulky to dry quickly.
l Drying heavy fabrics (denim, towels) with light fabrics (synthetics,
permanent press).
a Fabric softener sheet blocking exhaust grill inside dryer drum.
Lint
l Full lint screen. (See page 14.)
0 Load not properly sorted.
l Overdrying, especially synthetic fabrics that cause lint-attracting
static electricity.
l Load size too big or heavy.
a Tissue or paper left in pockets.
l Pilling (surface fuzz caused by normal wear and laundering)
attracts lint.
Static electricity 0 Overdrying.
l Dryer fabric softener improperly used. See package directions.
l Load includes synthetics, synthetic blends, permanent press, and
knit fabrics that build UDstatic electricitv.
Wrinkling
l Overloading.
a Overdrying, especially permanent press and synthetic fabrics.
l Large items balling or rolling up.
0 Clothes left in drver at end of cvcle.
Shrinking
Greasy spots/stains
Color change
Garment damage
l Overdrying.
0 Fabric or garment is not designed for tumble drying.
a Dryer settings incorrect for fabric type.
l Care label instructions not followed.
l Dryer fabric softener improperly used. Do not add to a warm load.
0 Drying soiled items.
0 Drying dark colors with light colors.
0 Drying colorfast colors with non-colorfast colors.
a Zippers, snaps, and hooks left open.
l Strings and sashes not tied to prevent tangling.
0 Care label instructions not followed.
19

COMMONDRYERPROBLEMS
I. Dryerwill notstart.
Is the dryer door firmly closed?
Are the controls set in an ON position?
Did you firmly push the Start Button?
El
Is the power cord plugged in?
ELI
0 Have you blown a fuse or tripped a
circuit breaker? Electric dryers use
2 household fuses or breakers.
2. Lintaccumulationinhoodorexhaust
vent,orextendeddryinytimes.
Is lint screen full?
q
Is exhaust vent or outside exhaust
hood clogged with lint? Refer to
venting section on pages 6-7.
3.Noheat For gas dryers, is the valve open on
the supply line? Also, some dryers
may have an internal gas valve. See
Installation Instructions.
q
For electric dryers, have you blown a
0 fuse or tripped a circuit breaker?
Electric dryers use 2 household fuses
or breakers. The drum may be turning
but you may not have heat.
4.Noises If the dryer hasn’t been used forawhile,
there may be a thumping sound during
the first few minutes of operation.
If noises continue, call the Consumer
Assistance Center.
5. odor
La
When operating a new dryer, the
new electric heating element may have
an odor.
Are household chemical odors being
drawn into dryer? Proper ventilation
must be used if painting or staining near the dryer.
NOTE: Store and use paints, varnishes, etc. away
from your dryer whenever possible.
If you still have problems, see “Requesting Assist-
ance or Service” on page 21.
20
