Ropex PEX-W5 User manual

ROPEX Industrie-Elektronik GmbH Phone : [phone] E-Mail : [email protected]
Adolf-Heim-Str. 4 Fax : [phone] Internet : www.ropex.de
74321 Bietigheim-Bissingen / Germany 27. February 2019, Version 1 Subject to technical changes
PEX-W5
Operating instructions
Application:
The current transformer PEX-W5 belongs to the RES or UPT temperature controller and is a
part of the primary controlled impulse temperature control system.
Storage of the operating instructions:
Please read the operating instructions carefully before using the current transformer. Retain
the operating instructions for future reference and ensure that important information and
functions are available to the user.
Copyright 2019:
All contents, in particular texts, photographs and graphics, are protected by copyright. All
rights, including to replication, publication, editing and translation, are reserved.

Safety
Page 2 PEX-W5 Version 1
1 Safety
Intended Use
The current transformer may only be operated when correctly connected to the temperature
controller. For more information, refer to the “Startup” and “Power supply” chapters in the
corresponding documentation for the temperature controller.
The documentation of the temperature controllers is available in the download section at:
www.ropex.com.
CAUTION Non-observance or improper use may jeopardize the safety or the
malfunction of the control loop. This is the responsibility of the user.
Hazard classes
The table below shows the dangers and possible consequences of the keywords in the
operating instructions.
Keyword Definition Consequences for
DANGER Imminent danger High level of risk that
can result in death or
serious injury
People
WARNING Possible dangerous
situation Medium level of risk that can result in serious
injury
People
CAUTION Less dangerous
situation Slight or minor injuries People
NOTE Possible harmful
situation Damage to the machine, its environment and the
product
Equipment
INFORMATION Additional information People

Safety
Version 1 PEX-W5 Page 3
Maintenance
The current transformer requires no special maintenance. Regular testing or retightening of
the terminals is recommended. Dust deposits on the current transformer can be removed with
dry compressed air.
NOTE
Dust depositis and contamination by liquids may lead to the loss of
function.
Installation in a control cabinet or terminal box with IP54 is
recommended.
Disposal
This device is covered by the EU Directive 2012/19/EU on the reduction of the increasing
amount of electrical waste, the aim of which is to reduce waste from electrical and electronic
equipment and to dispose of it in an environmentally sound manner.
INFORMATION This device must not be disposed of in the residual waste.
To ensure material recycling or proper disposal, place the device in the designated municipal
collection point and observe the local regulations.
Careless and uncontrolled disposal can cause damage to the environment and human
health. By ensuring that your product is disposed of or recycled in a responsible manner, you
contribute to the protection of the environment and human health.

Dimensions and assembly
Page 4 PEX-W5 Version 1

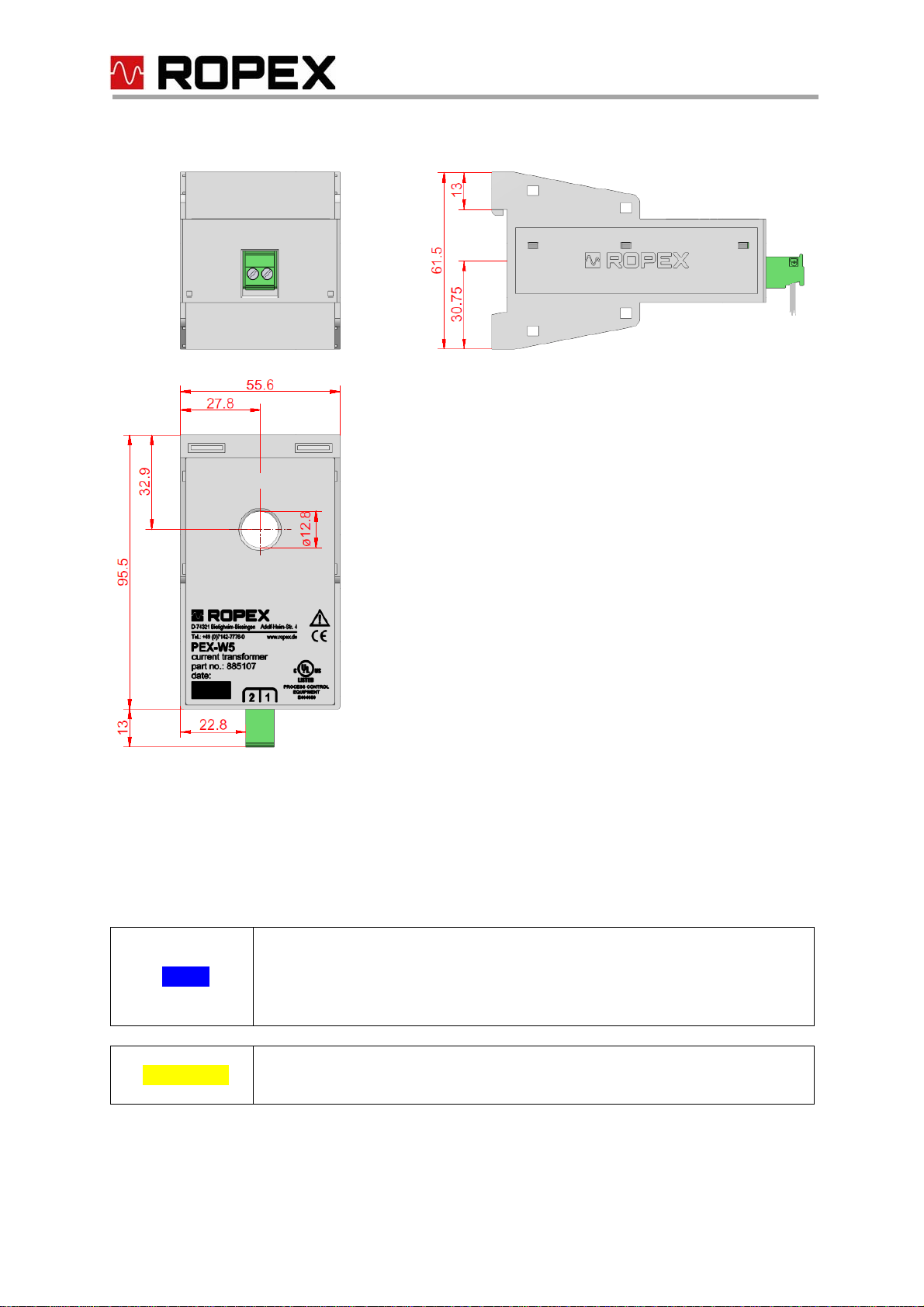

2 Dimensions and assembly
The current transformer is mounted on a top hat rail (TS35) measuring 35 x 7.5 mm or 35 x
15 mm in accordance with DIN EN 50022.
Through the opening in the current transformer (diameter 12.8 mm), the high-current cable
connected to the sealing tool must be routed. If the high current cable cannot be routed
through the opening, a high current bar must be ordered, see chapter 3, how to order.
The green connection terminal is intended for the measuring line IRto the temperature
controller.
NOTE
The general connection of the current transformer to the control system
can be found in the corresponding controller documentation. Please note
the connection in individual cases according to the ROPEX application
report.
CAUTION_The power supply to the temperature control circuit must be switched off
before working on electrical equipment is connected.

Technical data
Version 1 PEX-W5 Page 5
3 Technical data
PEX-W5
Design Housing for electrical cabinet mounting on a TS35 top hat rail
in accordance with DIN EN 50022
Dimensions Width: 55.6 mm
Height: 64.5 mm
Depth: 108.5 mm
Weight 0.18 kg including the plug-in connector part
Housing material Plastic, polycarbonate, UL-90-V0
UL file E464680
Mounting When mounting the device, a clearance of 20 mm to other
devices is recommended.
When mounting multiple current transformers, no clearance is
required between the transformers.
For mounting on a horizontal hat rail, the clip must face
downward.
For mounting on a vertical hat rail, end holders are necessary
to mechanically fix the device.
Degree of protection IP 20
Ambient conditions: Max. altitude 2000 m
Ambient temperature: +5°C to 45°C
Max. relative humidity: 80% at temperatures up to 31°C,
decreasing linearly to 50% at 45°C
Connecting cable Rigid or flexible cables are suitable
Cross-section: 0.2 to 1.5 mm² (AWG 24…16) via the plug-in
connector
Connector: Tightening torque 0.5 to 0.6 Nm
Tool: Screwdriver SZS 0.6x3.5 mm
Note:
If ferrules are used, they must be crimped in accordance with
DIN 46228 or IEC/EN 60947-1 to ensure proper electrical
contact.
Measuring range Measuring current IR= 500 A (peak current)
The continuous current is limited by the cable.
Power loss Maximum 2.0 W (average)

How to order
Page 6 PEX-W5 Version 1

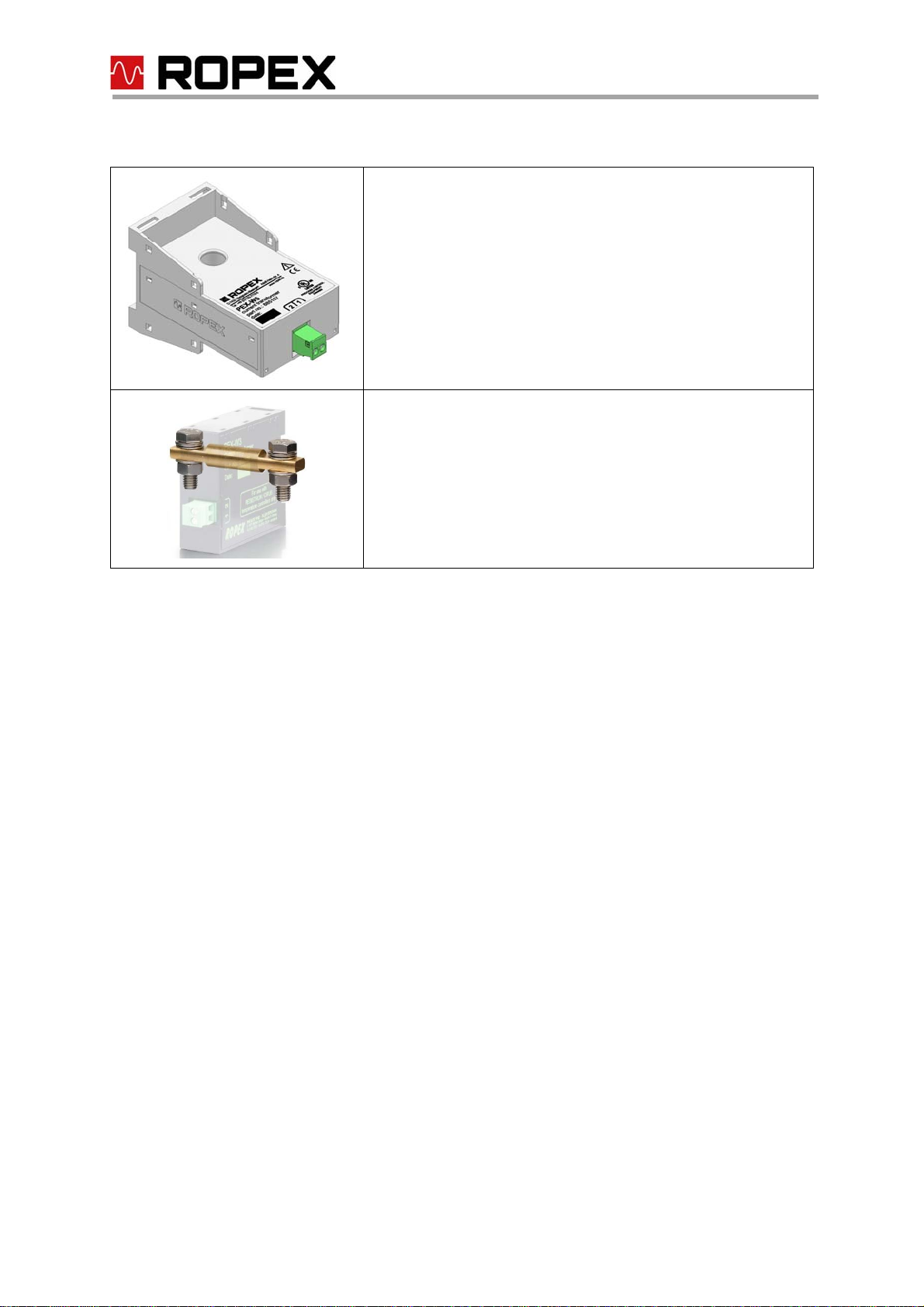

4 How to order
Current transformer
PEX-W5: Article number 885107
High current bar
HCB: article number 885110
