ROPOX Toilet lifter Electric
User manual
This manual should always be in close proximity of the
product.
TF 200.06.0006_ENG / Date 26-04-2021

TF 200.06.0006_ENG
2
Table of content
1. Symbols used in this manual.................................................................................................................. 3
2. General safety........................................................................................................................................... 3
2.1 Product Unit label ...................................................................................................................... 5
3. General requirements .............................................................................................................................. 6
3.1 Product information....................................................................................................................... 6
3.2 Product description ....................................................................................................................... 7
3.3 Intended use.................................................................................................................................. 7
3.4 Intended operator.......................................................................................................................... 7
3.5 Essential performance .................................................................................................................. 7
3.6 Non clinical functions .................................................................................................................... 7
3.7 Clinical functions ........................................................................................................................... 7
3.8 Product dimensions....................................................................................................................... 8
4. Instructions for use.................................................................................................................................. 9
4.1 Installation of product................................................................................................................. 9
4.1.1 Installation interface................................................................................................................ 9
4.1.2 Construction ......................................................................................................................... 10
4.1.3 mounting the product............................................................................................................ 11
4.1.4 Pair Bluetooth....................................................................................................................... 14
4.2 Operating the product.............................................................................................................. 20
4.3 Residual risk ............................................................................................................................ 20
4.4 Installation of accessories........................................................................................................ 21
4.4.1 Installation of height adjustable toilet support arms ............................................................. 21
4.4.2 Installation of backrest.......................................................................................................... 26
5. Trouble shooting .................................................................................................................................... 27
6. Cleaning .................................................................................................................................................. 27
7. Maintenance............................................................................................................................................ 27
7.1 Periodic maintenance .............................................................................................................. 28
7.2 Calibration of actuator.............................................................................................................. 28
8. Components part list.............................................................................................................................. 28
9. Environmental protection...................................................................................................................... 28
10. Electromagnetic compatibility .............................................................................................................. 29
10.1 Suitable Environments......................................................................................................... 29
10.2 Adjacent and stacked use.................................................................................................... 29
10.3 Cables.................................................................................................................................. 29
10.4 RF portable equipment ........................................................................................................ 29
11 Accident reporting.................................................................................................................................... 30

TF 200.06.0006_ENG
3
1. Symbols used in this manual
Warning Symbol
Indication of potentially hazardous situation. If not avoided it can
result in serious injury or death.
Caution Symbol
Indication of potentially hazardous situation which may result in
minor or moderate injury.
It may also be used to alert against unsafe practices.
Notification Symbol
This symbol is used to notify correct use and handling of the
product.
2. General safety
This manual must be read and understood before use and
installation. Always keep this manual in close proximity of the
product.
The use, installation and service of this product must be in
compliance with this manual to avoid accidents and serious
personal injury.
Never use or handle this product in other ways specified in
this manual as it can result in personal safety hazards and/or
cause damage to the product.
Persons installing and/or using this product either as operator
or user should have the necessary safety information and
access to this manual.
If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified
designated persons in order to avoid a hazard.

TF 200.06.0006_ENG
4
Do not perform repairs, disassembly or assembly operations,
add-ons, re-adjustments or modification of the product
beyond what is described in this manual. These must be
carried out by Ropox or Ropox authorized personnel. Do not
perform service while in use.
This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the
hazards involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by
children without supervision.
Do not use the product if it has defects or have become
damaged before being repaired or replaced.
If the control box makes unusual noise or smells, switch off
the mains voltage immediately.
Take care that the cables are not damaged.
Unplug the mains cable on mobile equipment before it is
moved.
The products must only be used in an environment that
corresponds to their IP protection..
The information in this manual is based on correct installation
in accordance with installation instructions for this product.
Ropox cannot be held liable if the product is used in any way
that differs from stated in this manual and/or installation
instruction.
Ropox reserve the right to amend this manual and reference
documents without prior notice.

TF 200.06.0006_ENG
5

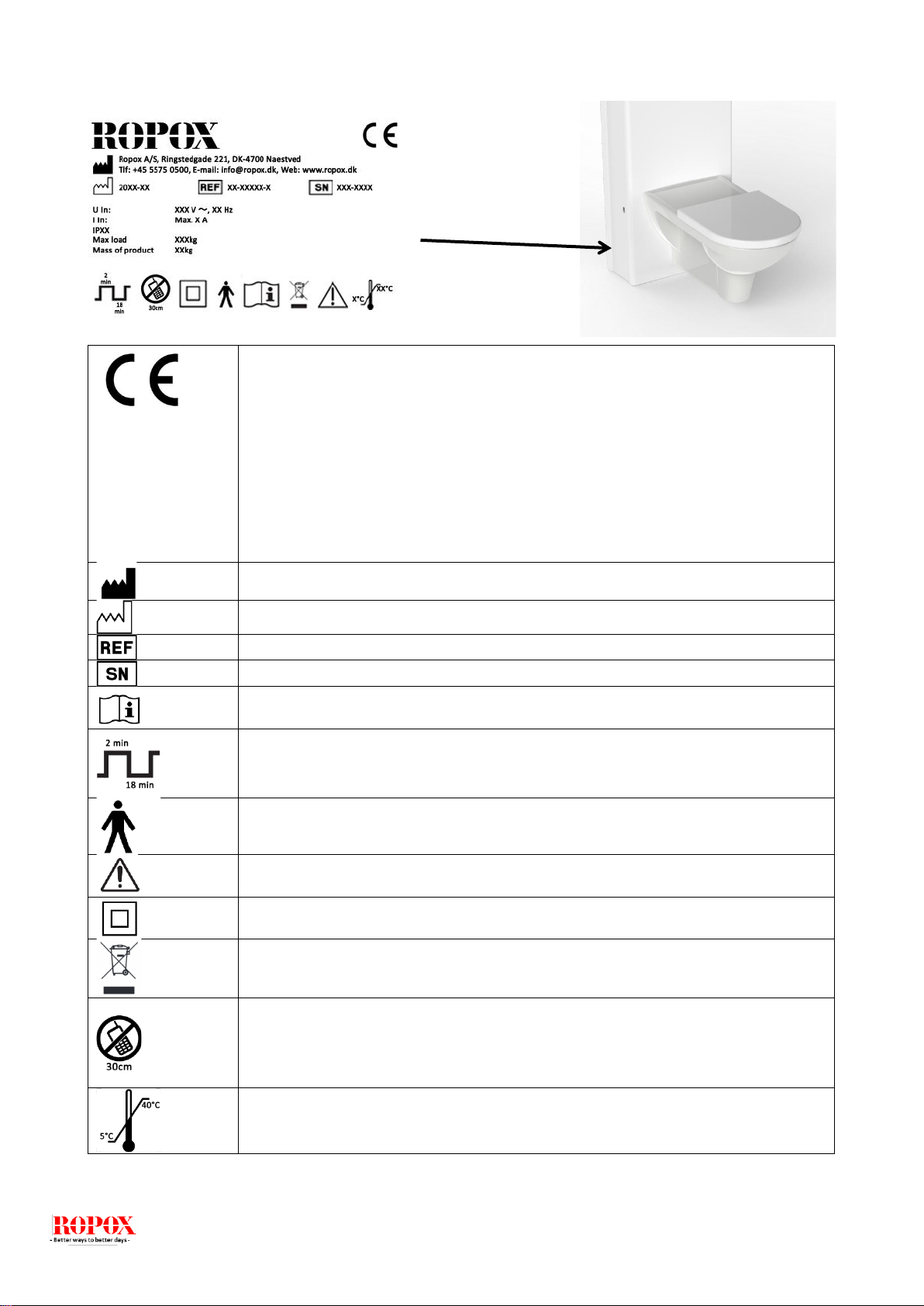

2.1 Product Unit label
This product is CE-marked in accordance with:
European Medical Device Directive 93/42/EEC, including
amendments incorporated in Directive 2007/47/EEC.
European Medical Device Regulation (EU)2017/745
Council Directive 2006/42/EC on machinery
Council Directive 2011/65/EU, RoHS
Manufacturer name and address
Date of production
Stock number
Serial number
Consult manual before use
Operating interval of electrically operated equipment. The use of electrical
height adjustable equipment can run at maximum 2 minutes, followed by an
18-minute break.
Type B applied part. The product complies with IEC 60601-1 requirements
to provide protection against electric shock.
Consult manual for important safety related information, warnings and safety
precautions.
Class II, double isolated electrical components.
Do not dispose as unsorted municipal waste. Product must be returned to a
designated recycling station.
Mobile phones or other portable RF emitting equipment should be no closer
to the product than 30cm.
Operating and storing temperatures may not exceed 5-40C°

TF 200.06.0006_ENG
6
3. General requirements
3.1 Product information
Manufacturer:
Ropox A/S
Ringstedgade 221, DK-4700 Naestved
[phone]
Email: [email protected]
Product models
Part number
Model
Configuration
40-45027
Toilet lifter
Electric
Expected service life
according to ISO
17966:2016
5 year
MDD Class
93/68/EEC
MDR Class
2017/745
Class I
Applied part
classification
60601-1
Type B applied part
MEE Class
60601-1
Class II
Intended environments
This product is to be used only in:
Proffesional Healtcare Environment
Homecare Environment
The device is not intended for use in special environments as defined by IEC
60601-1-2
Maximum user weight
according to ISO
17966:2016
400kg
Power supply
100-240V ~50/60Hz
I in
Max 2.0A
Intermittence
2min use / 18min pause
Height adjustment
405-655mm
Speed of actuation
≈8mm/s
IP rating
IPX6
Ambient temperature
5-40C° Operation and storage
Materials in contact with
patient
Component
Covers
Material description
ABS/PMMA plastic
Reference datasheet

TF 200.06.0006_ENG
7
Accessories
Item nr
40-45011
40-45012
40-45013
40-45014
40-45016
40-45018
40-45008
40-45100
40-45101
Model
Height adjustable toiletsupports, Short straight
Height adjustable toiletsupports, Long straight
Height adjustable toiletsupports, Short Wave
Height adjustable toiletsupports, Long Wave
Height adjustable toiletsupports, Bariatric Long straight
Height adjustable toiletsupports, Bariatric Long wave
Clamps, for height adjustment without tools
Backrest long (70cm Toilet)
Ryglæn, Short (56cm Toilet)
3.2 Product description
The ROPOX toilet lifter electric can be set in heights ranging from 405-655mm by the use of the wireless
handset. Height adjustment will meet different sitting height needs various patient heights.
3.3 Intended use
The ROPOX height adjustable toilet lifter is intended to be used in both homecare and professional
healthcare environments. Adjusting the height will meet ergonomic demands emerging from various patient
heights.
The toilet lifter is not intended for playing, or as a training device.
3.4 Intended operator
The intended operator may include all that have read and understood this manual exempt kids.
3.5 Essential performance
The device does not have any function related to basic safety or essential performance. In case of loss or
degradation of performance, the user can get of the toilet.
3.6 Non clinical functions
Height adjusting offers better ergonomics to user and caretaker.
3.7 Clinical functions
This product do not offer clinical benefit for patients, when used as intended by the manufacturer.

TF 200.06.0006_ENG
8
3.8 Product dimensions

TF 200.06.0006_ENG
9
4. Instructions for use
4.1 Installation of product
4.1.1 Installation interface

TF 200.06.0006_ENG
10
4.1.2 Construction
Notification!
The toilet lifter is supplied with a set of 6 screws and rawlplugs suitable for mounting
in a concrete wall. The fitter should always consider the material, condition, and
strength of the wall and use screws and rawlplugs suitable for the specific wall type.
Caution!
Maximum pulling force per screw is 44kg, at 400kg max user weight according to ISO
17966: 2016

TF 200.06.0006_ENG
11
4.1.3 mounting the product.
a. Line up frame with threaded foots. Mark holes 6X and drill holes for appropriate rawl plugs
b. Connect water hose on wall outlet and electric outlet before securing frame to the wall
c. Secure frame to wall

TF 200.06.0006_ENG
12

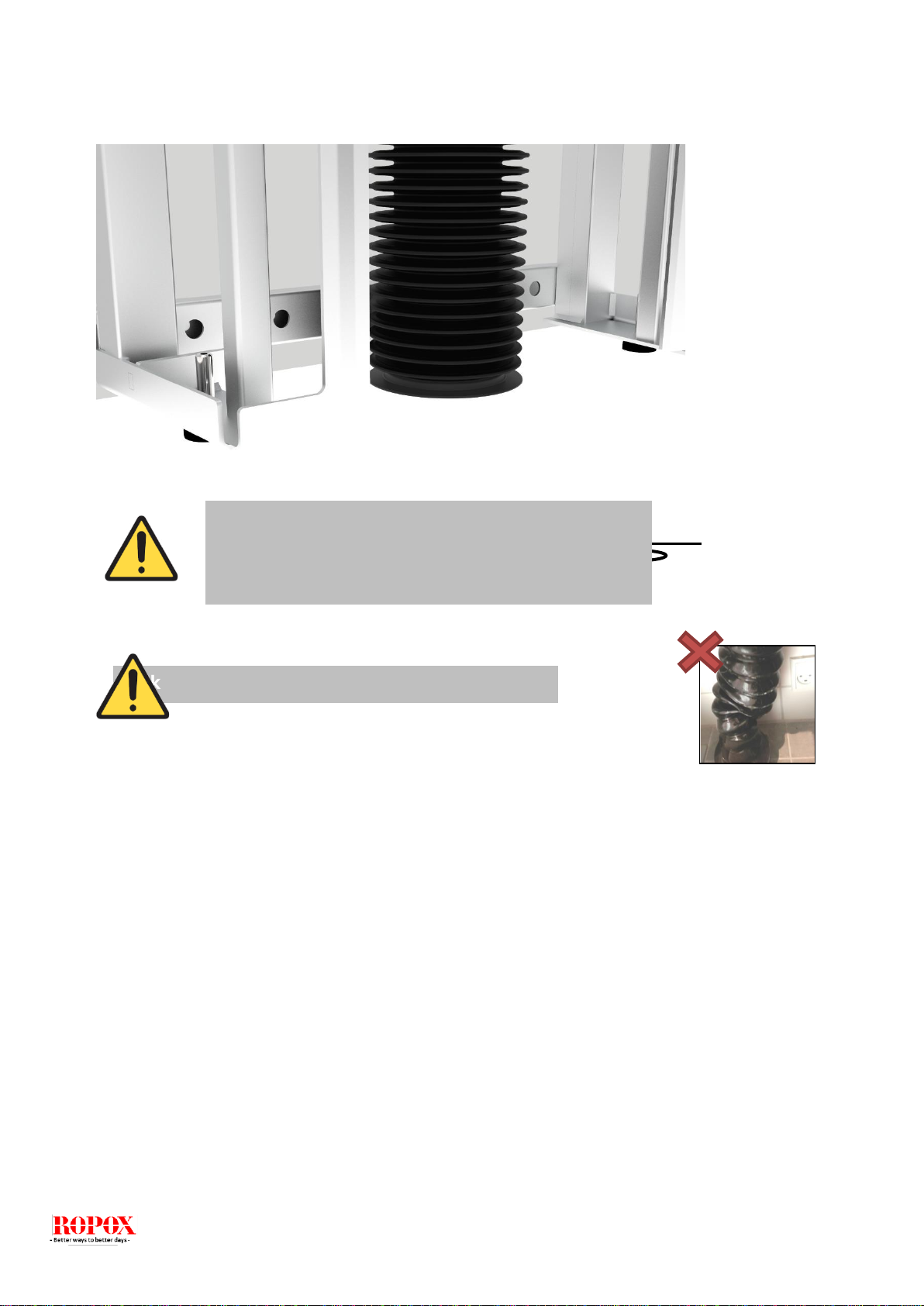

d. Mount the drain bellow as instructed below
Drain finished at floor level:
Flex pipe is mounted on the drain adapter with a hose clamp,
which is then pressed into the drain.
Make sure the bellow is not twisted

TF 200.06.0006_ENG
13

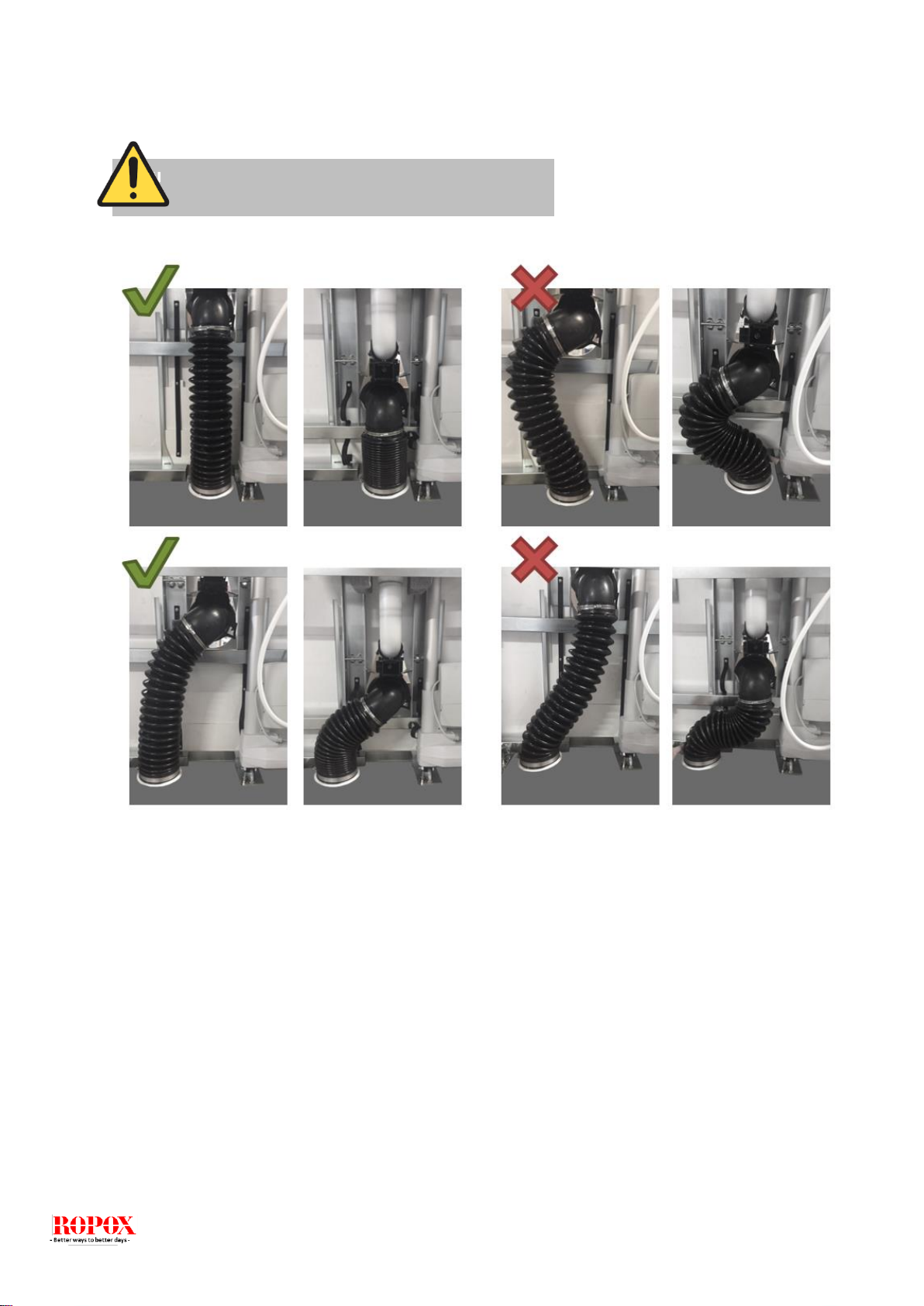

Mount the bellow as shown below for correct
flow

TF 200.06.0006_ENG
14

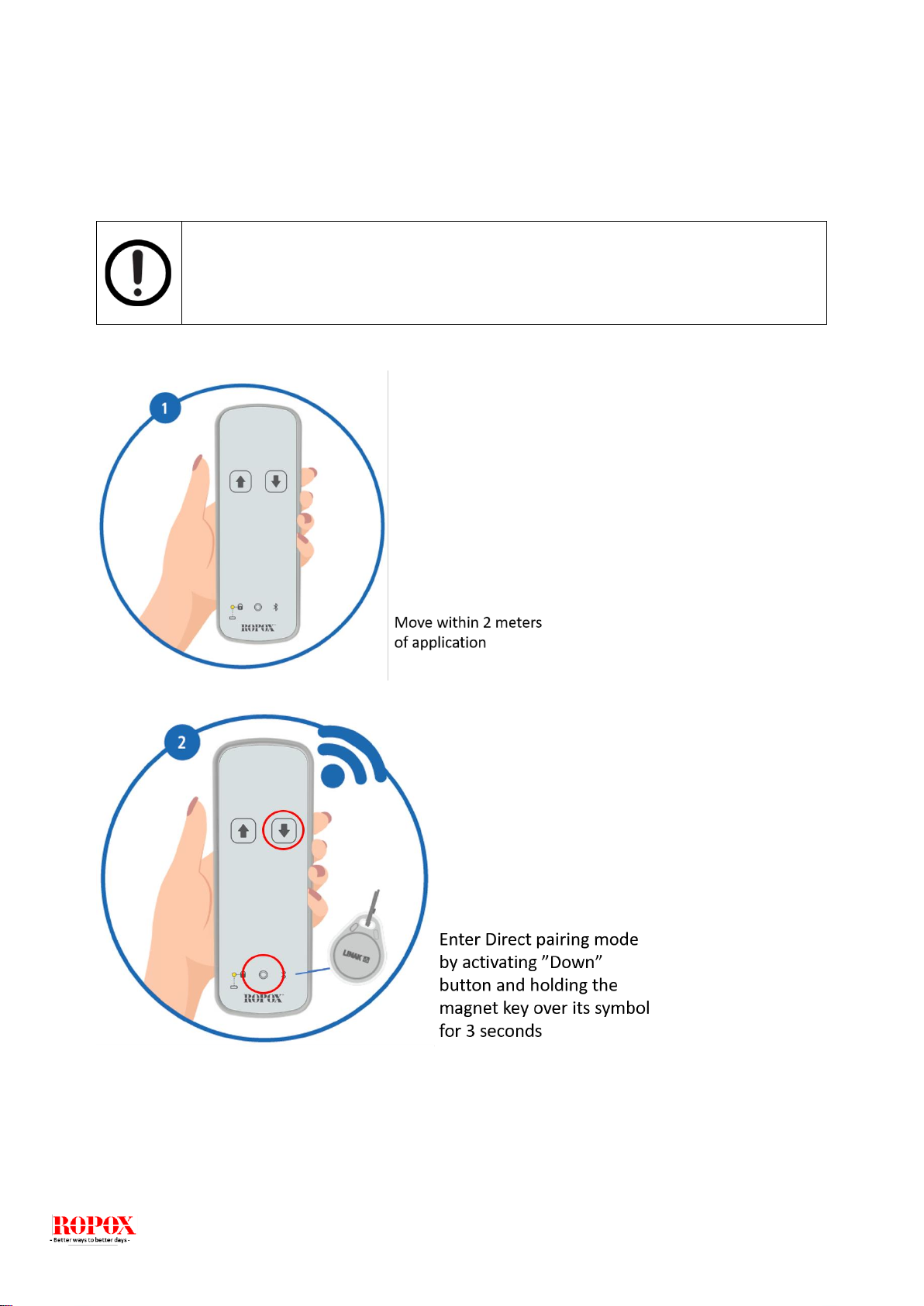

4.1.4 Pair Bluetooth
Notification!
Pair the remote to the product and test full stroke before continuing installation !

TF 200.06.0006_ENG
15
Notification!
When pairing is complete test product stroke. Make sure all cables, water connection and
drain connection travels freely. The electrical connection shall travel unhindered, and may
not get intangled in other installations.

TF 200.06.0006_ENG
16

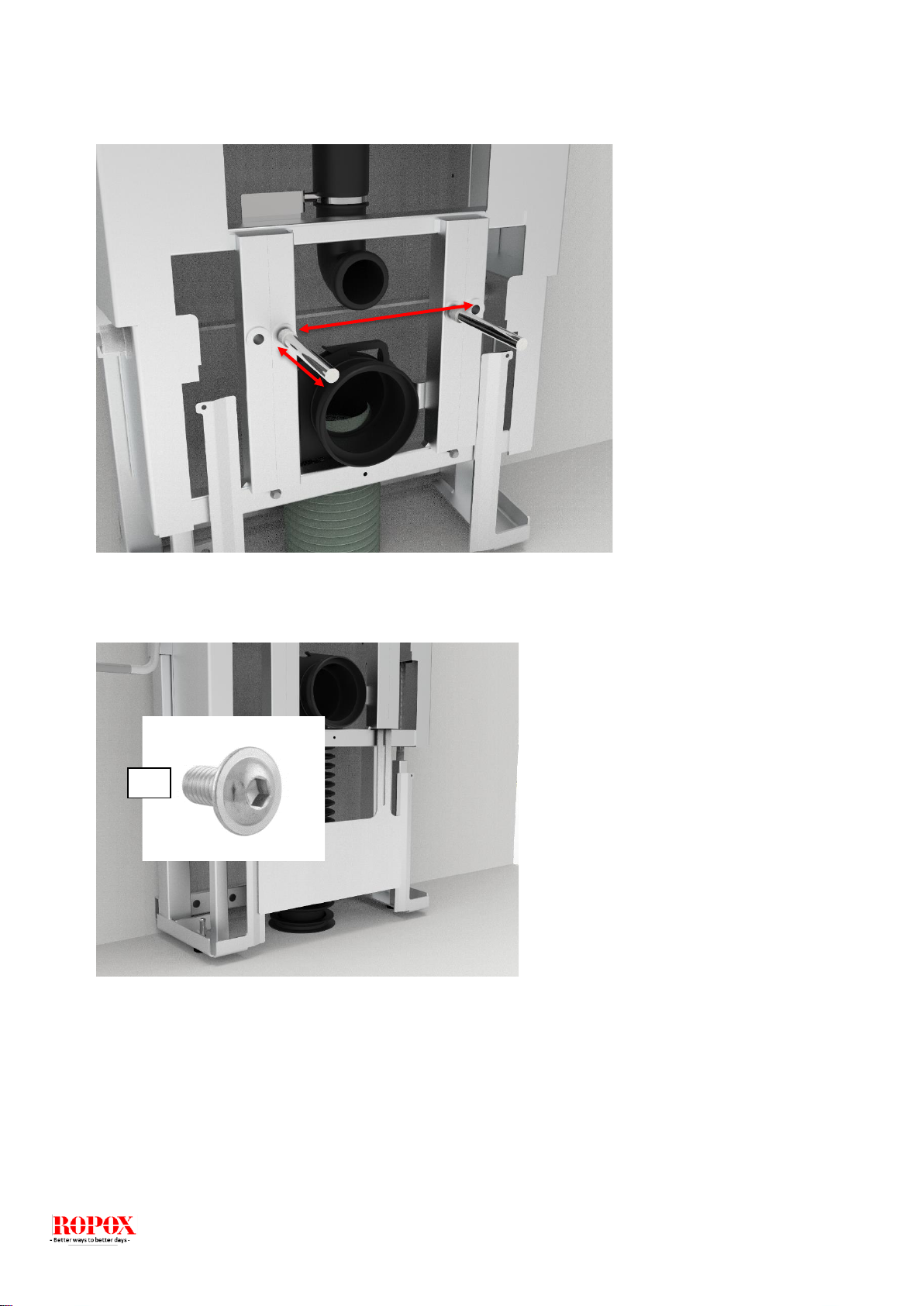

e. Cut threaded rods to length and secure them in the frame.
f. Mount inner covers 1 and 2
2x

TF 200.06.0006_ENG
17
g. Mount outer cover
2x

TF 200.06.0006_ENG
18

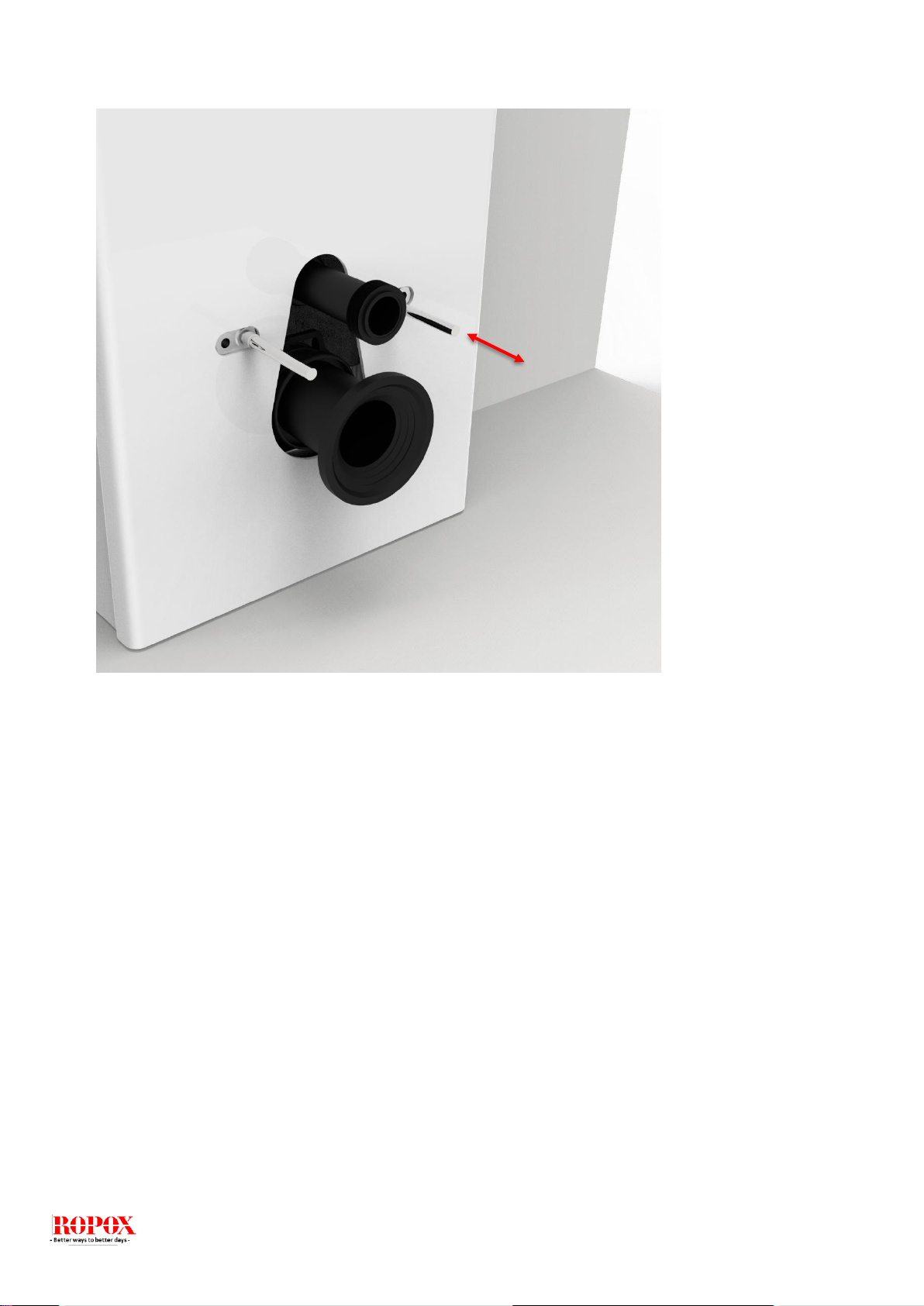

h. Shorten Ferrule and flush pipe to length and mount them

TF 200.06.0006_ENG
19
i. Mount the toilet and press pad
j. Finish the installation by checking:
1. Rigidity test, sit on the toilet and check screw connections are firm.
2. Check full travel of the product goes unhindered
3. Check flushing and leaks.

TF 200.06.0006_ENG
20
4.2 Operating the product
Operating the product is done by using the wireless handset.
Pairing should be done prior operation.
Warning!
The product should always be able to travel the full range of actuation without colliding
with objects. Failing to do so will compromise the product stability.
Special care should be taken in ensuring that no children or adults are sited under the
product as severer injury from entrapment may occur.
4.3 Residual risk
Warning
Be aware that there are no persons, body parts
under the toilet when it is driven down, as a danger
of clamping may occur.
Caution
Do not place the hand between the wall and the
movable cover, as a danger clamping may occur.
Warning
In case of incorrect installation of plumbing parts,
water leaks can occur on the floor, which may
increase the risk of falling.
