Rose Point nemo User manual

nemo
gateway
Installation Guide

WARNINGS
Use of the Nemo Gateway is at your own risk. Rose Point Navigation
Systems does not warrant the accuracy of any information processed by the
Nemo Gateway.
The Nemo Gateway contains magnetic material and should not be placed
near a compass or other device that may be sensitive to magnetic
interference.
The information in this user guide is subject to change without notice.
COPYRIGHTS AND TRADEMARKS
Copyright © 2017 Rose Point Navigation Systems.
All rights reserved.
Rose Point Navigation Systems and Nemo Gateway are trademarks of Rose
Point Navigation Systems, Inc. The names of any other companies and/or
products mentioned herein may be the trademarks of their respective
owners.
The NMEA®name, NMEA 2000®and NMEA logo are copyrights held by the
NMEA. All uses in this manual are by permission and no claim on the rights
to the NMEA name or logo are made in this manual.
Rose Point Navigation Systems
18005 NE 68th Street
Suite A100
Redmond, WA 98052
Phone: [phone]
Fax: [phone]
E-Mail: [e-mail]
www.rosepoint.com
Updated September, 2017

Nemo Gateway
Contents
Introduction ..................................................................... 1
Device Connectivity......................................................... 2
Gateway Connections...................................................... 3
Gateway Configuration................................................. 14
Specifications................................................................. 19
Troubleshooting ............................................................ 20
Use and License Agreement ......................................... 22
Return Policy.................................................................. 23

Nemo Gateway 1
Introduction
Thank you for purchasing a Rose Point Navigation Systems Nemo Gateway. The
Nemo Gateway is a bridge between the NMEA 0183, NMEA 0183-HS, NMEA
2000 marine electronic device network communication standards and your
shipboard Ethernet-compatible navigation systems and devices (e.g. computers
running Coastal Explorer/Rose Point ECS, tablets, phones).
The Nemo Gateway has been certified by the NMEA to meet the NMEA 2000
standard and conforms to the NMEA 0183 and NMEA 0183-HS standards. Due
to the technical nature and complexity of these standards it is recommended
the Nemo Gateway is installed by an NMEA certified installer.
Package Contents
•This installation guide
•Nemo Gateway
•Power terminal connector
•NMEA 0183/0183-HS terminal connectors
Installation Requirements
The minimum requirements for using the Nemo Gateway are:
•An iOS or Android device with companion app installed or PC running
the latest version of Rose Point ECS™or Coastal Explorer™
•Ethernet cable
•Ethernet network or available Ethernet port on PC running Rose Point
ECS™or Coastal Explorer™
•8 - 32 VDC power source, negative ground
•Secure mounting in a dry location
•No strain shall be placed on any connectors

2 Rose Point Navigation Systems
Device Connectivity

Nemo Gateway 3
Gateway Connections
POWER
The Nemo Gateway may be powered by 8 –32 volts DC, negative ground. If an
AC to DC adapter is being used, it needs to be a 12V 2A adapter, and must be
connected to an uninterrupted power supply. The Nemo Gateway needs to be
protected with an inline 3-amp fast acting fuse or circuit breaker.
Recommendation: The power source should be independent of the vessels
starting battery system.
ETHERNET
Connect an Ethernet cable between the ETHERNET port on the Nemo Gateway
and your PC or network (router, switch or hub). If connecting the Nemo
Gateway to your network, your PC(s) may connect to the same network via
Ethernet or Wi-Fi. If utilizing Wi-Fi, your router or access point would provide
the Wi-Fi connectivity.
When connecting to an existing network the Nemo Gateway should be able to
operate without additional configuration, either by acquiring a DHCP or Link-
Local IP address. Changes to the configuration can be made following the steps
in section Device Configuration of this manual.
The Nemo Gateway can output NMEA 0183 information over UDP, allowing
multiple devices on the same network to receive data simultaneously.
Recommendation: All devices critical to the navigation system should use a
wired Ethernet connection.
NMEA 2000
The Nemo Gateway has been certified by the NMEA to meet version 3.10 of the
NMEA 2000 standard.
The Nemo Gateway has a single NMEA 2000 terminal used to connect it to the
bus with a drop cable. Ensure that the drop cable used to connect to the NMEA
2000 backbone is no more than 6 meters in length.

4 Rose Point Navigation Systems
Accessory Port (ACCY)
The ACCY port is reserved for future use. Please do not plug any devices into
the ACCY port unless specifically approved by Rose Point Navigation Systems.
Please refer to our website for updates regarding the use of this port.
NMEA 0183
The Nemo Gateway conforms to the NMEA 0183 and NMEA 0183-HS marine
electronic device network communication standard. All NMEA 0183 ports are
capable of communicating in NMEA 0183 (4800 baud) and NMEA 0183-HS
(38,400 baud) modes via two talker ports and four listener ports.
NMEA 0183 and NMEA 0183-HS standards define device ports as either Talker
or Listener. A Talker is a port on a device (e.g. GPS) that is transmitting
information. A Listener is a port on a device (e.g. chart plotter) that is receiving
information. Some devices are capable of being both a Talker and a Listener, for
example an AIS transponder or chart plotter.
Common talker devices include GPS’s, depth sounders, water speed indicators,
compasses, and wind indicators. Common listener devices include: AIS
transceivers, autopilots and chart plotters. Most of the common listener devices
mentioned will also have Talker ports
Note: A Talker may be connected in parallel to up to 10 Listeners, while a
Listener may only connect to a single Talker.
Note: Talker 1 and Listener 1 operate at the same baud rate, but are otherwise
independent. Talker 2 and Listener 2 can also only have one baud rate, but are
otherwise independent.
Example:
Nemo Port 1 Talker - Connect autopilot ("Talking to AP")
Nemo Port 1 Listener - Connect GPS device ("Listening to GPS")
Baud Rate set to 4,800 for Nemo Port 1 –This setting applies to both parts of
the port (Autopilot and GPS)
When using NMEA 0183-HS, a three conductor, shielded cable is to be used and
requires two connections to be made in addition to the A and B wires used in
the NMEA 0183 protocol. These additional connections are a common ground

Nemo Gateway 5
line (C) and shield (S). The ground line (C) is connected to both devices while the
shield (S) is only connected to the Talker. (See page 13)
Default port configuration
The following table describes the default port configuration. These defaults may
be adjusted in Rose Point ECS or Coastal Explorer or the companion app.
Changes to the configuration can be made by following the steps in section
Device Configuration of this manual.
Port Number
Protocol
Baud Rate
1
NMEA 0183-HS
38,400 baud
2,3,4
NMEA 0183
4800 baud
Typically, an AIS transponder would be connected to port 1, while other NMEA
0183 devices should be connected to ports 2, 3 and 4. If you are not connecting
an AIS or other NMEA 0183-HS device you may change the configuration and
use port 1 for a NMEA 0183 device.
Automatic Protocol (Baud Rate) Detection
The Nemo Gateway is capable of automatically detecting the protocol (baud
rate) of devices connected to the NMEA 0183 and NMEA 0183-HS ports. This
feature is enabled within Rose Point ECS, Coastal Explorer or via the Nemo
Gateway companion app (available on iOS or Android).
NMEA 0183 Compatibility
The Nemo Gateway conforms to version 4.10 of the NMEA 0183 standard and is
compatible with older versions.
Note: Current versions of the standard require use of differential pair wiring for
communication via the RS-422 protocol while older versions (and non-
compliant devices) use the RS-232 protocol which uses a single signal wire and
a ground connection.

6 Rose Point Navigation Systems
The documentation for some devices may reference the NMEA 0183 and NMEA
0183-HS connections in different ways, please use the following pages to
identify how to connect the Nemo Gateway to other devices.
If it is unclear how to connect your NMEA compatible device to the Nemo
Gateway please contact the manufacture of the connecting device for additional
support. See the “Sample Wiring” section to see how sensors should be
connected to the Nemo Gateway. Additional sample wiring schematics are
available on the support page at
www.rosepoint.com.www.rosepoint.com.www.rosepoint.com.www.rosepoi
nt.com.www.rosepoint.com.www.rosepoint.com.www.rosepoint.com.
NMEA 0183 / NMEA 0183-HS Listeners
The four differential opto-isolated three terminal listener ports conform to the
NMEA 0183 and NMEA 0183-HS marine electronic device network
communication standard. These ports are capable of interfacing with most fully
and partially compliant devices that are transmitting any properly formed
sentences. Only NMEA 0183 and NMEA 0183-HS devices are to be connected to
these ports.
The Nemo Gateway will receive all properly formed NMEA 0183 and NMEA
0183-HS sentences.
Each listener port is isolated from all other listener ports. Each listener is
designed for operation with a minimum differential input voltage of 2.0 Volts
and shall not take more than 2.0 mA from the line at that voltage.
The listener circuit consists of an Altec PHP03-3.81 connector followed by a 240
ohm resister on the A line followed by isolation and protection circuitry.
NMEA 0183 / NMEA 0183-HS Talkers
The two differential four-terminal talker ports conform to the NMEA 0183 and
NMEA 0183-HS marine electronic device network communication standard.
These ports are capable of interfacing with most fully and partially compliant
devices transmitting any properly formed sentences. Only NMEA 0183 and
NMEA 0183-HS devices are to be connected to these ports.

Nemo Gateway 7
The Nemo Gateway is capable of sending all properly formed NMEA 0183 and
NMEA 0183-HS sentences.
Each talker port is capable of driving a load of 50 mA using a 5V differential pair.
The circuit is composed of a UA9638 driver connected to an Altec PHP04-3.81
terminal.

8 Rose Point Navigation Systems

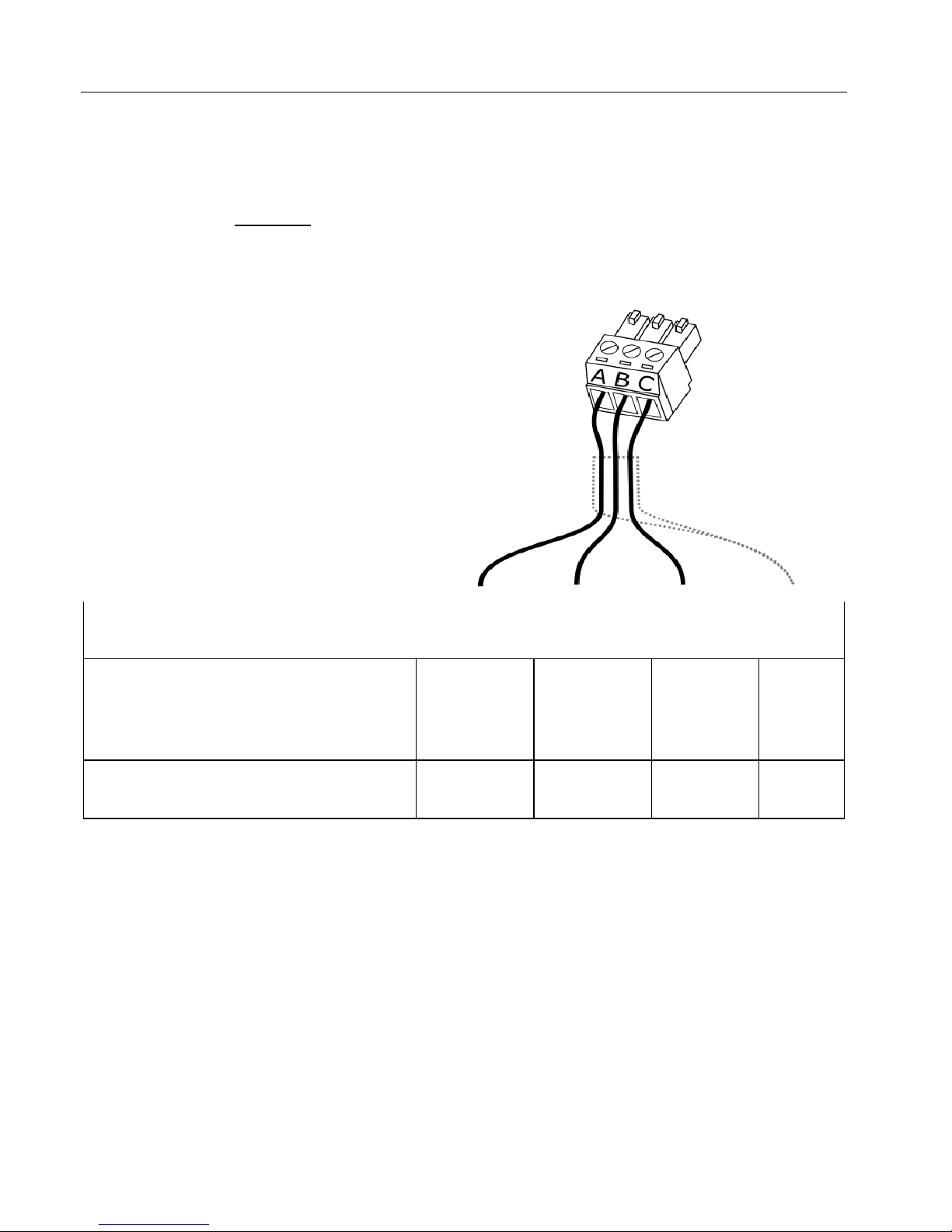

Connecting Nemo LISTENER Port to a Talker (RS- 422)
(Compliant with NMEA 0183 v2.x –4.x and NMEA 0182-HS 1.x)
Nemo Gateway receives data through these ports.
DEVICE BEING CONNECTING TO NEMO GATEWAY
Name / Label
+
A / +
-
B / -
0183-HS
C
Shield
S
Description
Data-H
Data-L
Ground
Shield
Note: NMEA 0183-HS C and Shield must be connected when connecting to
NMEA 0183-HS (38,400 baud) devices. Non NMEA 0183-HS devices may not
have a Ground and Shield.
Nemo Gateway LISTENER port
connector

Nemo Gateway 9
Connecting Nemo TALKER Port to Listener (RS-422)
(Compliant with NMEA 0183 v2.x –4.x and NMEA 0183-HS 1.x)
Nemo Gateway sends data through these ports.
DEVICE BEING CONNECTING TO NEMO GATEWAY
Name / Label
+
A / +
-
B / -
0183-HS
C
Description
Data-H
Data-L
Ground
Note: NMEA 0183-HS C must be connected when connecting to NMEA 0183-
HS (38,400 baud) devices. Non NMEA 0183-HS devices may not have a Ground
and Shield.
Nemo Gateway TALKER port
connector

10 Rose Point Navigation Systems
Connecting Nemo LISTENER Port to Talker (RS-232)
(Compatible with NMEA 0183 v1.x)
Nemo Gateway receives data through these ports.
DEVICE BEING CONNECTING TO NEMO GATEWAY
Name / Label
+
Signal Out
Data Out
Tx
-
Ground
Common
Description
Data-H
Data-L
Nemo Gateway LISTENER port connector

Nemo Gateway 11
Connecting Nemo TALKER Port to Listener (RS-232)
(Compatible with NMEA 0183 v1.x standard)
Nemo Gateway sends data through these ports.
DEVICE BEING CONNECTING TO NEMO GATEWAY
Name / Label
+
Signal In
Data In
Rx
-
Ground
Common
Description
Data-H
Data-L
Nemo Gateway TALKER port connector

12 Rose Point Navigation Systems
Sample Wiring –AIS (Bi-Directional)

Nemo Gateway 13
Sample Wiring –Multiple Sensors

14 Rose Point Navigation Systems
Gateway Configuration
Rose Point ECS or Coastal Explorer
Note: You must install the latest release of Rose Point ECS™or Coastal
Explorer™to ensure proper communication with the Nemo Gateway.
Coastal Explorer 2011 / Rose Point ECS 2011:
In Rose Point ECS or Coastal Explorer use Main Menu > Configure Vessel and
Electronics > Electronics. Then select the appropriate device in the list and
click Gateway Settings
Coastal Explorer 4.0 / Rose Point ECS 4.0:
In Rose Point ECS or Coastal Explorer use Settings > Electronics > Rose Point
Nemo Gateway > Gateway Settings
The system’s default web browser will open and present the Configuration
Interface.
See “Configuration Interface”for additional information. For a more detailed
explanation of Nemo Configuration, please see our Nemo Gateway support
page on www.rosepoint.com.www.rosepoint.com.
Companion App
The companion app “Nemo Gateway” may be installed on iOS and Android
devices through their respective app stores.
Accessing Configuration Interface
Connect the mobile device to the WiFi network that the Nemo Gateway is
connected to.
Launch the companion app and wait for your Nemo Gateway to be discovered.
Once discovered; click or tap on Nemo Gateway listing.
This will launch the Configuration Interface.

Nemo Gateway 15
See “Configuration Interface” for additional information.
Configuration Interface
See “Accessing Configuration Interface” to launch the Configuration Interface.
Security
To prevent unintentional changes, you may enable “Password Mode”. This
option can be found in the System Settings > Security section and will enable
the requirement to enter a user name and password prior to adjusting any
settings.
When enabling the “Password Mode”, you must provide the user name and
password you wish to use.
To reset the credentials please see “Reset” in “Troubleshooting”.
NOTE: The Nemo Gateway does not provide secure data transmission,
secure firmware updates, or encrypted storage of settings and information.
It is required for the user to maintain physical security of the Ethernet
network to which the Nemo Gateway is connected.
Firmware
Firmware information is available in the System Settings > Firmware section of
the app. If an update is available there will be a notice on the top of the main
view.
The version currently installed on the Gateway will be displayed, as well as if an
update is available.
“Firmware Update Available” and an Update Now button is displayed on the
Firmware view when the firmware is out of date. Select the Update Now button
to install the latest version of firmware. The new firmware will then download,
install, and the gateway will reboot.
The “Branch” section allows the user to select what version of firmware will be
downloaded. This option should be left on Default unless otherwise instructed
by Rose Point Navigation Systems.

16 Rose Point Navigation Systems
Update from File can be used to install a firmware version that the user has
stored locally on their system.
IP Address
Select “IP Address” from the menu bar. Click on the “Edit” button to adjust the
settings.
The Gateway is capable of acquiring a DHCP address (default) or being set to a
static IP.
Port Configuration
Each port’s settings can be modified by selecting the desired port from the
menu bar.
For more information about outputting NMEA data from ports; see section
“Advanced Port Output”.
Restart System
Select “Restart System” from the menu bar. Then select the Restart button on
the confirmation panel.
System Logs
System Log files may be acquired by selecting “Log Files” from the System
Settings menu. Log files may also be downloaded or emailed depending on
whether a PC or a mobile device is being used, respectively. These logs are used
for troubleshooting purposes, and may be requested by Rose Point Navigation
Systems if there are issues with the device.
Sensors
The Nemo Gateway is capable of interpreting NMEA data being processed
through its data ports. This allows the Nemo Gateway to distinguish between
devices and assign priorities to sensors.
When the Nemo is generating NMEA data using "Auto" as the source (see
"Advanced Port Output"), having properly prioritized sensors will guarantee that
the Nemo is listening to and generating data from the appropriate sensors.
