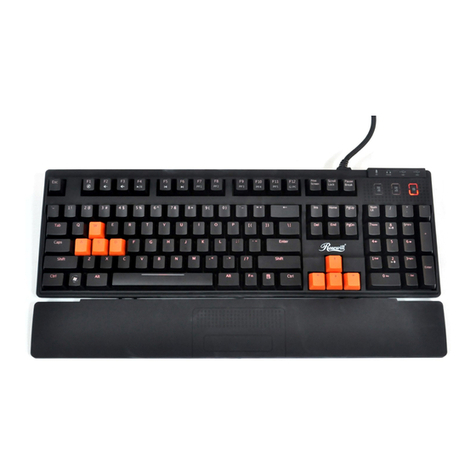

Rosewill RK-8100 User manual

Clavier de jeu à touches entièrement programmables
RK-8100
User Manual
Gaming Keyboard with
fully programmable keys

User manual
Gaming Keyboard with fully programmable keys RK-8100
1
1
2
2
3
3
4
5
6
7
7
8
1.Hardware and Software Installation
2.Software Installation Verification
3.Main Frame of UI
4.UI Configuration Guide
5.UI main frame includes
6.Advance
7.Profile Selection
8.UI function settings including
9.Macro items includes
10.Macro items includes
11.Set Up Mouse Button
12.Function Selection
CONTENTS

User manual
Gaming Keyboard with fully programmable keys RK-8100
Hardware and Software Installation
1
Software Installation Verification
2
1
Please make sure keyboard is connected to PC before software installation.
Connect the keyboard USB connectors to a PC and observe for [Hardware found]
notice
Place the enclosed CD driver into CD/DVD-ROM and follow the steps on screen to
complete software installation and restart the computer.
Activate your Interface (GUI) from clicking bottom right side icon on desktop after
PC is on
When keyboard USB port is unplugged, Octopus Clicker icon will disappear at the
same time.
If a reminder of software installation compatibility shows up, please click “
Continue” to move on to next stage.
* Please make sure keyboard is connected to PC before software installation.
* Please do not connect keyboard to any other USB ports after installation. In case
connecting to any other USB ports, users shall install software again.
You need to verify if
installation is complete or not
through hardware manager
Please click “ My
Computer”from mouse right
button then click “ Attributes”
on left button. Then “
Hardware” Then “ Hardware
Manager”.
Please check and ensure
two items “ gaming keyboard
“ , “ human interface input
device” are inclusive in the
list of hardware manager.
1.
2.
3.
1.
2.
3.
4.
5.

User manual
Gaming Keyboard with fully programmable keys RK-8100
2
Main Frame of UI
3
UI Configuration Guide
4
Picture below shows UI.
UI is a program to customize users’ functions or settings.
Set button in the process, when the set position before the pointer
button will show three-dimensional effect.
After setting complete, key rim presents in highlighting display. In
addition, it will reveal the content of settings when cursor clicks on.
Due to the long Macro setting, Macro will display Marco itself.
Manual
Layer to reset current settings. Dialogue window as below.
Please confirm OK to apply setting. Please click Cancel to undo

User manual
Gaming Keyboard with fully programmable keys RK-8100
3
UI main frame includes
5
Advance
6
UI main frame includes 10 profiles.
Each Profile possesses 3 Layers.
Layers are classified by colors
Layer1-Red
Layer2-Green
Layer1-Blue
provision of settings as below.
Custom Personal Quick Switch:
A quick switch between PC mode and gaming mode. Definitions as follows.
Quick Switch Between Keyboard Tables
1)Use default “ shift + ESC”
Use default “ shift + ESC” to define
2)Custom Personal Quick Switch:
Users can choose Shift, Ctrl, Alt or any alphabet keys to customize personal quick
switch. Please avoid same composition with Microsoft default value. Otherwise,
this setting will be invalid. If current setting is complete, please click “ OK” or click “
Cancel” to undo the setting.

User manual
Gaming Keyboard with fully programmable keys RK-8100
4
Profile Selection
7
Media Player Option
1)Windowns Media Player
2)iTunes
3)Real Player
4)Winamp
* If Media Player Option is not installed, this option is not available.
* Update software ―( Not activated yet)
Provision of settings as below.
Profile01 :
To modify current settings, please click “ Profile01” to activate panel and choose
profile from list. After modification complete, please click “ OK “ or “ Apply” to
execute. Otherwise, please click “ Cancel” to
Undo. Profile can function as Import, Export or reset current settings.
Reset All :
Dialogue window as follows,

User manual
Gaming Keyboard with fully programmable keys RK-8100
5
UI function settings including
8
Linked Application
► allows you to execute profiles or log in program to proceed “ Auto Switch”.
► Please click left button on mouse on chosen area to browse till profile or quick
switch found.
► Please click OK or Cancel to finish this task.
* Users have to link files to Linked Application to perform Auto-Switching.
Auto-Swtich
► allows you to activate or inactivate “ Auto-Swtich” function.
► Please click auto-switching dialogue window beside files to execute this function.
“ V” indicates auto-switching function is activated.
Reset
Dialogue window as below.
Provision of settings as below.
Single Key:
Allows users to swap alphabet keys to other keys. When users is going to set a multi-
combination assignment, warning window will appear as below.
Macro:
allows users to set up sequence of keys and mouse buttons.
UI will keep Marco to replay later.

User manual
Gaming Keyboard with fully programmable keys RK-8100
6
Macro items includes
9
It is a sequence list of replay varieties of keys, delay and other functions when Macro
Mouse Button:
Allows users to transform keyboard function to mouse button.
L
L
Record :
Start to record Marco
Stop :
Stop record Macro
Move Up :
Click mouse’s left button to
“ move up” any event. It
allows you to move up any
event to preferred location
in the sequence list.
Move Down :
Click mouse right ( left)
button to move down any
event. It allow you to move
down any event to preferred
location in the sequence list.
COPY :
Copy one segment of Marco
Add Delays :
Allows users to add delays in
sequence list manualy. Simply
choose one event’s delays Once
at a time then choose delay
time and click “ add” button.
Select All :
Select all events in the
sequence list.
Select All Delays :
Only select all delays from
sequence list. If you like make
all delays in same period or
cancel all right away, please
select the specific option dialogue.
Delete :
Deletece list.

User manual
Gaming Keyboard with fully programmable keys RK-8100
7
Macro items includes
10
Delays time :
Allows users to add delays time in Macro
Ignored Delays Between Events:
System will not record the time difference between delay time of “ click” and
“ release” button and actual time in the progress of recording Macro.
Record with Auto Delay :
System will record the time difference between delay time of “ click” and
“release” button and actual time.
Time Repeat :
Input number of time repeat
Repeat as key is holding down:
Allows users to record Macro content when key is holding down
Repeat until next key is Pressed:
Repeat same Macro until next key is Pressed
Repetition interval :
Set up repetition interval between Marco
Users can set up mouse button through sketch map. When “
press” button, button color becomes red. When “ release”
button, button color return original white. “ Press” and “
Release” button is regarded as two motions.
In the progress of setting Marco, there is a maximum of 128 through “ press” and “
release” method. Warming window will show up if limit is reached.
Click [OK/Cancel] to complete Macro setting
Set Up Mouse Button
11
Mouse Button:
Allows users to transform keyboard
function to mouse button.

User manual
Gaming Keyboard with fully programmable keys RK-8100
8
Function Selection12
Internet HotKeys :
Insert a varieties of
operations in
compliance with
Windows operation
system ’s basic
commands.
Office HotKeys:
Insert a varieties of
operations in
compliance to
Windows operation
system and Microsoft
Office ’s basic
commands.
Media HotKeys :
Insert a varieties of
operations in
compliance to
Windows operation
system ’s basic
commands.
Additional
command :
Insert a varieties of
operations in
compliance to
Windows operation
system ’s basic
commands.
Profile Switch :
Allows users to switch to
designated Profile and
Layer. Arrow up means
adding to Profile 10 or
Layer 3 and choose to
perform OSD ( On-Screen
Display) or not.
Launch Program :
Users need to find out .exe
format file to execute games or
launch program after log in
program. This setting will reveal
file name and location.
Reset Key to Default:
This allows users to reset Macro
key, single key or launch program
to default.
Disable Button : Allows users to disable specific buttons.
Config : Config is to launch software interface.
Exit: Exit will turn off tray icon and stop launch program in gaming keyboard. If users
need to launch program again, please restart PC.
* SPECIFICATION SUBJECT TO CHANGE WITHOUT NOTICE.
* ALL PRODUCTS AND COMPANY NAME REFERENCED HEREIN ARE
TRADEMARKS OF THEIR RESPECTIVE COMPANIES.

www.rosewill.com
