Rosewill RHRC-11001 User manual

Infrared Windows Vista®/Window®7 MCE Remote
Control with Learning Function
RHRC-11001
User Manual
Thank you for purchasing a quality Rosewill Product.
Please register your product at: www.rosewill.com for complete warranty information and future support
for your product.

Infrared Windows Vista ® /Window ® 7 MCE Remote Control with Learning Function RHRC-11001 User Manual
1
INDEX
1. Introduction…………………………………………………………….…………2
2. Appearance…………………….………..…………………………….…………2
3. Features…………..…………………..……………………………….…………3
4. Package Contents………………………….…………………….......…………3
5. System Requirements.....………………………………………….……………3
6. Installation and Operation……..…...……………………………..………….…3
7. Specifications………………….…………………………………………………5
8. Appendix-Learning unction….……………………….….……………………...6
9. Key Definition………………..….………………………………….…….……..18
10. Use Media Center Remote Control with Netflix………………………...….21
11. Troubleshooting….…………………….……………………………...……….22
Caution!
No part of manual may be reproduced or modified without our express written permission; otherwise the
right of using the device will be cancelled.
Trademarks
Microsoft®, Windows®, Windows 8, Windows® 7 and Windows Vista® are U.S. registered trademarks
of Microsoft Corporation. IBM, DOS, and PC are registered trademarks of IBM Corporation. All brands,
products and companies are trademarks of registered trademarks of their respective companies.
Notice
The information contained in this document is subject to change without notice. All rights are reserved.
No part of document may be photocopied, reproduced, or translated to another language, for any
purpose, without our express written permission.

Infrared Windows Vista ® /Window ® 7 MCE Remote Control with Learning Function RHRC-11001 User Manual
2
Introduction:
RHRC-11001 Media Center Remote Control with IR606Q Transceiver is your best solution to control the
MCE on your Desktop or Laptop. It is compatible with Microsoft®Windows®MCE certification and Green
Button regulation. The easy connection between RHRC-11001 and IR606Q makes your entertainment
more joyful.
Appearance:
Media Center Remote Control: RHRC-11001 Transceiver: IR606Q
US version for US region IR606Q Transceiver

Infrared Windows Vista ® /Window ® 7 MCE Remote Control with Learning Function RHRC-11001 User Manual
3
Features：
RHRC-11001 Remote Control
1. Microsoft®Windows®MCE certification and Green Button support
2. With all of the buttons and functions necessary for Microsoft®certification, including official Green
Button.
3. Small USB dongle style receiver
4. Use standard Microsoft®drivers, no software to install.
5. It could wake the system from S1 or S3
6. Infrared Rays Frequency：38KHz；Infrared Rays transmission distance：21 ft -33 ft
IR606Q Transceiver
1. Small USB dongle type transceiver and easy to connect with your computer.
2. Support one indication LED for the system level interaction: blink during working mode and turned
off during sleep mode.
3. Use in-box Windows® drivers.
4. RC6, QP and MCIR keyboard protocols are supported
5. Receive the signal from MCE remote control or MCE keyboard using a normal IR receiver.
6. Be able to use learning IR receiver to learn the signal from the remote control of set-top box. After
finishing learning procedures, the MCE remote control can replace the remote control of set-top
box.
7. Be able to use transmitter jack to emit the signal to control set-top box.
8. It can wake the system from sleep mode.
9. It consumes around 1.5mA in sleep mode.
Package Contents：System Requirements：
zMedia Center Remote Controller RHRC-11001 x 1
zTransceiver IR606Q (USB Port) x 1
zUser’s Manual
zAAA battery x 2
zUSB cable x 1
zIR Blaster cable x 1
zIntel® Pentium® 1GHz CPU or faster
z512MB RAM or above (1G recommended)
zDesktop or laptop computer running Windows 8
PRO, Windows® 7 Home Premium, Professional or
Ultimate or Windows® Vista Home Premium or
Ultimate
zUSB Port; PC platform
zGraphics card capable of DirectX9
Installation and Operation：
1. Battery Installation -- Open the battery cover of the Remote Control and install 2 AAA batteries
correctly.
2. Receiver Installation -- Plugging IR606Q Transceiver (with USB Port on it) into the USB port of your
computer.
If your package comes with a USB cable, you can use the USB cable to bridge between your

Infrared Windows Vista ® /Window ® 7 MCE Remote Control with Learning Function RHRC-11001 User Manual
4
USB port and the IR606Q Transceiver and then put the IR606Q Transceiver in front of you to
get a better signal transmission.
3. Software Installation -- Insert the Installation CD into your CD-ROM or DVD-ROM drive. Click next
and follow the installation program.
Installation will install PowerConfig in your system. If the autorun is disable. Double click the
CD-ROM driver ID, and then double-click the PowerConfig.exe. PowerConfig.exe is green program
and it will not waste any system resource. Click exit to close program, there is no uninstall
procedure.
4. Hardware Operation -- Before you start use, please make sure the distance between RHRC-11001
Remote Control and IR606Q Transceiver is within the effective range and the Remote Control is
aimed at the IR Transceiver. You can start using your Remote Control by pressing any key you want.
5. Software Operation – After you execute PowerConfig, there is an icon show in task bar.
Click right mouse key on the icon to get the menu.
6. You can choose TV or PC mode from Setup,

Infrared Windows Vista ® /Window ® 7 MCE Remote Control with Learning Function RHRC-11001 User Manual
5
and start to Media Center or Netflix once your press the green button.
Choose Autorun on startup can execute PowerConfig when windows boot up. Finally, press Exit to
quit PowerConfig.
Specifications：
RHRC-11001 Remote Control:
zOperation Voltage: 2.4V~3.2V; Battery: AAA battery x 2
zPower Consumption with input signal: < 450mA
zInfrared Rays Frequency: 38KHz; Infrared Rays transmission distance: 21 ft~33 ft
zRemote Control size: 1.57” x 7.28” x 0.94”
zRemote Controller Button Number: 44 buttons
IR606Q Transceiver:
zTransceiver size: 1.89" x 1.89" x 0.76"
zTransceiver interface：USB Port
zOperation Voltage：4.75V~5.25V
zOne normal IR receiver for receiving the signal from RHRC-11001 MCE remote control
(long-range IR, 7~10 meters apart)
zOne learning IR receiver for receiving the signal from set-top box remote control for learning
set top box commands(use 5 centimeters or less apart)
zTwo transmitter jacks for connecting IR blaster to emit IR signal to control set-top box after
finishing setup procedures
Appendix – Learning Function
․ Setup of IR606A/Q, IR blaster, USB cable, TV tuner card, Set-Top Box (STB), and remote
control
1、Plug the IR blaster and USB cables into the IR606A/Q

Infrared Windows Vista ® /Window ® 7 MCE Remote Control with Learning Function RHRC-11001 User Manual
6
2、Connect the 4-in-1 video input cable to the TV tuner card then plug the video cable (Yellow
connecter) and audio cable (Red-White connecter) to the STB and TV tuner card individually.
Note: The 4-in-1 video input cable is provided by video capture card or TV tuner card. Video
cable and audio cable are provided by STB
3、Attach the IR blaster close to the STB receiver
4、When configuring the MCE remote to work with your set-top box, hold the remote near the
IR606A/Q (5 cm or less)

Infrared Windows Vista ® /Window ® 7 MCE Remote Control with Learning Function RHRC-11001 User Manual
7
․Start to the Learning Function of IR606A/Q
5、Use the MCE remote control to start Windows Media Center and choose Tasks Settings
6、Choose TV
7、Choose Set Up TV Signal

Infrared Windows Vista ® /Window ® 7 MCE Remote Control with Learning Function RHRC-11001 User Manual
8
8、Confirm the TV Signal Setup
9、Start Seting Up Your TV Signal
10、Choose the Region you belong to

Infrared Windows Vista ® /Window ® 7 MCE Remote Control with Learning Function RHRC-11001 User Manual
9

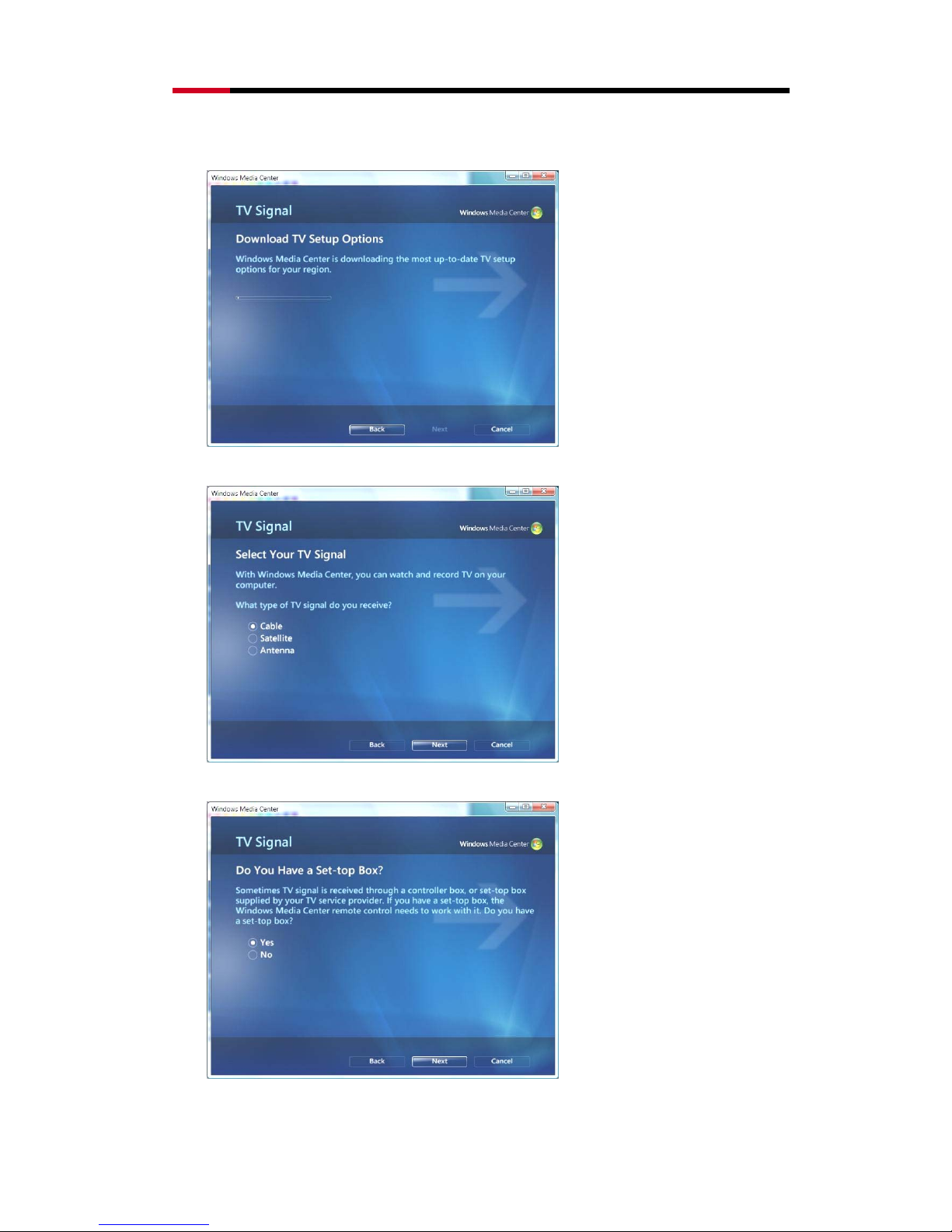

11、Connect to the Internet to download the TV service setup options
12、Specify how you receive TV signal
13、Make sure whether you have a set-top box or not

Infrared Windows Vista ® /Window ® 7 MCE Remote Control with Learning Function RHRC-11001 User Manual
10
14、Before you set up your set-top box, you need to check the listed items
15、Select the input TV Signal
16、Check if your set-top box works with a remote control

Infrared Windows Vista ® /Window ® 7 MCE Remote Control with Learning Function RHRC-11001 User Manual
11
17、A message tells you that you are going through the identification process to check if your
STB remote is already included in the MCE’s database
18、Please follow the instructions to identify the set-top box remote from number“0”
19、If the set-top box remote is not recognized, confirm whether start the learning process

Infrared Windows Vista ® /Window ® 7 MCE Remote Control with Learning Function RHRC-11001 User Manual
12
20、Hold the set-top box remote near and pointed towards the learning IR receiver
21、Confirm whether you have a button to change channels
22、Start to input key settings for the remote,a total of 13 keys (0~9,channel up, channel down,
and ok) or 12 keys(0~9, channel up, channel down)

Infrared Windows Vista ® /Window ® 7 MCE Remote Control with Learning Function RHRC-11001 User Manual
13
23、After the inputting is done, pick up your Windows Media Center remote to continue. From
now on, you can use the MCE remote RHRC-11001 instead of the remote control of set-top
box to switch channels

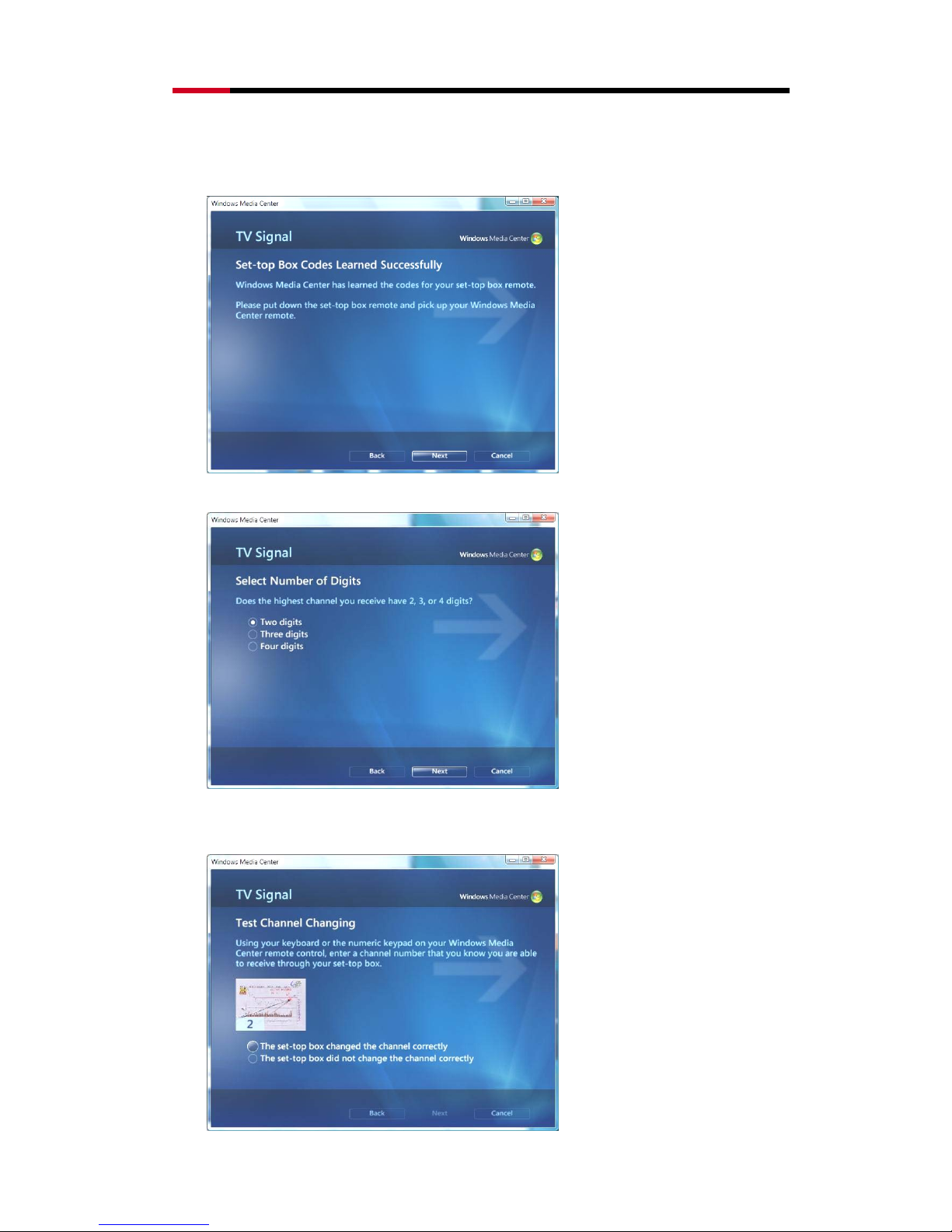

24、Specify the maximum of channel digit numbers your set-top box can support
25、Use the MCE remote to test out if the connection works. Aim at the IR blaster.

Infrared Windows Vista ® /Window ® 7 MCE Remote Control with Learning Function RHRC-11001 User Manual
14
26、Check whether the channel is changed correctly
27、Set the IR Signal Speed with channel up & channel down to make sure it works ok
28、Confirm IR Signal Speed

Infrared Windows Vista ® /Window ® 7 MCE Remote Control with Learning Function RHRC-11001 User Manual
15
29、TV Signal done, meaning you finish the whole learning process
Troubleshooting:
Question Possible Reason Solution
RHRC-11001
Remote Control
doesn’t work
zNo battery installed, battery dead, or
the batteries are not installed properly
zUn-correct MCE installation
zUn-properly connection between the
receiver and the computer
zCheck the battery installation and
correct it
zCheck the installed MCE program
zCheck the connection between the
receiver (USB port) and computer
(USB port) and correct it

Infrared Windows Vista ® /Window ® 7 MCE Remote Control with Learning Function RHRC-11001 User Manual
16
Key Definition：
No. ICON Function Function Description
1 Start Start the MCE
2 Power Turn on/off the power
3 Rec Record the TV program you are watching
4 Stop Stop all the on going function
5 Rew Move backward
6 Play Run the function you want
7 Fwd Move forward
8 Skip Back Jump back to the previous one
9 Pause Stop all the on going function temporary
10 Skip Fwd Jump to the next one
11 Back Go back to the upper function group
12 Guide Start the Guide function
13 Left Move to the left side
14 Right Move to the right side
15 Live TV Start the TV
16 OK Run the current pointed function
17 Up Move to the up side

Infrared Windows Vista ® /Window ® 7 MCE Remote Control with Learning Function RHRC-11001 User Manual
17
No. ICON Function Function Description
18 Down Move to the down side
19 Videos Start Videos Function
20 Music Start Music Function
21 Radio Start Radio Function
22 Pictures Start Picture Function
23 Vol Tune the volume up/down
24 Ch/Pg Change the channel
25 DVD Menu Open the DVD menu
26 Clear Clear what you just input/choose
27 Enter Confirm what you just input
28 Recorded TV Start the Recorded TV function
29 Mute Turn off the vol immediately
30 More Provide information of the current status
31 1 Number 1
32 2 Number 2
33 3 Number 3
34 4 Number 4

Infrared Windows Vista ® /Window ® 7 MCE Remote Control with Learning Function RHRC-11001 User Manual
18
No. ICON Function Function Description
35 5 Number 5
36 6 Number 6
37 7 Number 7
38 8 Number 8
39 9 Number 9
40 0 Number 0
41 */. */.
42 # #

Infrared Windows Vista ® /Window ® 7 MCE Remote Control with Learning Function RHRC-11001 User Manual
19
Use Media Center Remote Control with Netflix:
1. Navigation – You can use up, down, left, right and OK key to do navigation for Netflix
service.
Moreover, you can use fast forward, back forward, skip, play, stop and pause etc., multimedia control
keys for Netflix.
2. Search – You can use Media Center Control input method to search your preference movie titles.
Use Navigation key move to Search, press OK. When system appear below dialog, use number key to
input the text.
1
2
