Roshults 50 LPG User manual

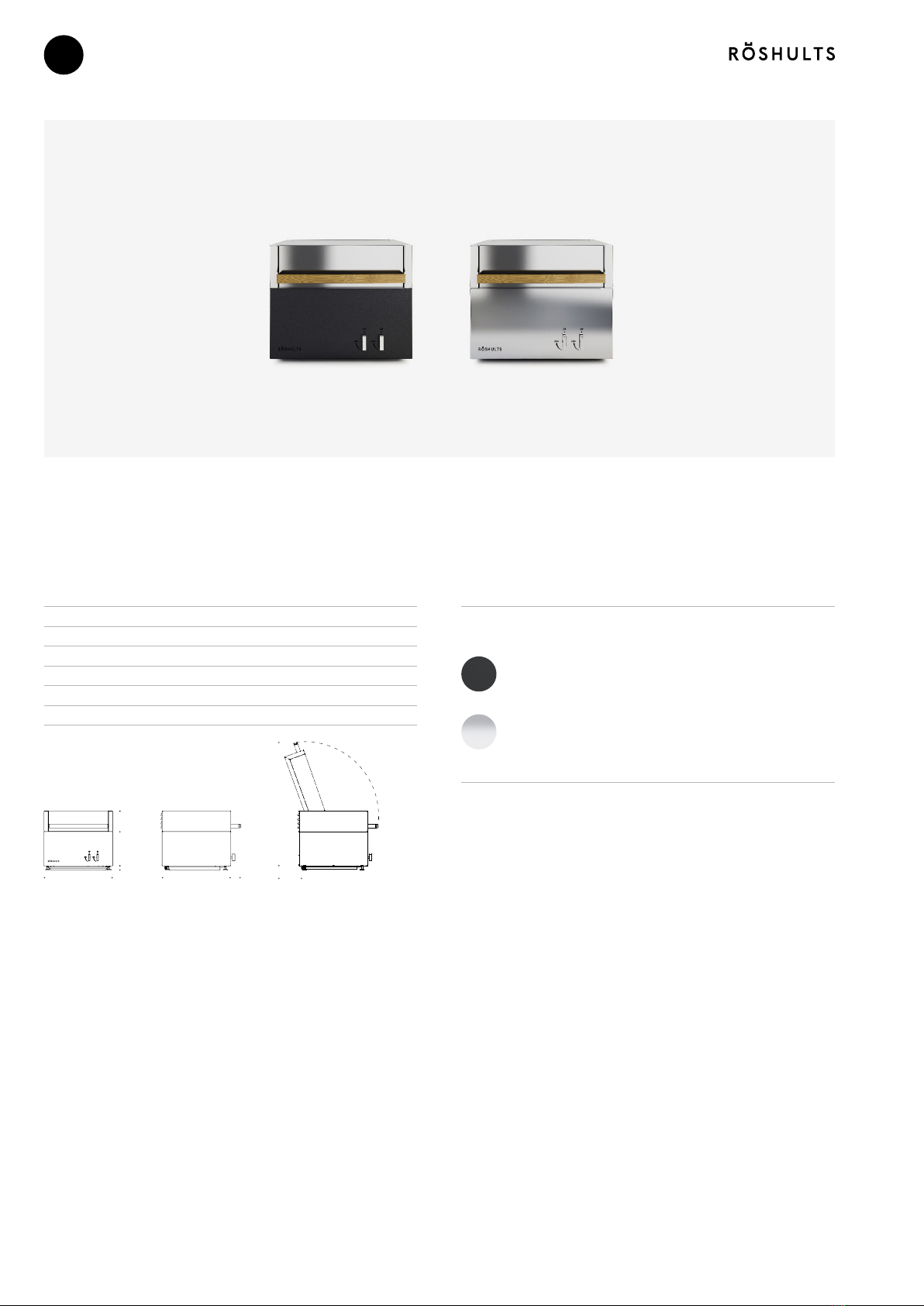

MODULE GAS GRILL 50 LPG/NG
EN
User Manual
22.01.11

EN
USER MANUAL Module Gas Grill 50 LPG/NG
3 / 20
IT IS IMPERATIVE THAT YOU READ THIS MANUAL BEFORE
USING THE GRILL. FOR OUTDOOR USE ONLY.
Danger!
If you smell gas
• Shut off gas to the appliance.
• Extinguish any open ame.
• Open lid.
• If odor continues, keep away from the appliance and immediately
call your gas supplier or your re department.
Warning!
• Do not store or use gasoline or other ammable liquids or vapors
in the vicinity of this or any other appliance.
• A propane cylinder not connected for use shall not be stored in
the vicinity of this or any other appliance.
Warning!
• Never operate this appliance unattended .
• If a re should occur , keep away from the appliance and
immediately call your re department . Do not attempt to
extinguish and oil or a grease re with water.
Failure to follow these instruction could result in re , explosion or
burn hazard which could cause property damage ,personal injury or
death.
• THIS INSTRUCTION MANUAL CONTAIN IMPORTANT
INFORMATION NECESSARY FOR THE PROPER ASSEMBLY
AND SAFE USE OF THE APPLIANCE.
• READ AND FOLLOW ALL WARNINGS AND INSTRUCTIONS
BEFORE ASSEMBLING AND USING THE APPLIANCE.
• KEEP THIS MANUAL FOR FUTURE REFERENCE.
Precautions
Warning!
• Do not try lighting this appliance without reading the “LIGHTING
INSTRUCTIONS” section of this manual.
TESTED IN ACCORDANCE WITH ANSI Z21.89-2017·CSA 1.18-2017
STANDARD FOR OUTDOOR COOKING GAS APPLIANCES. THIS GRILL IS
FOR OUTDOOR USE ONLY.
Check your local building codes for the proper method of instal-
lation. in the absence of local codes, with either the National Fuel
Gas Code, ANSI Z223.1/NFPA 54, Storage and Handling of liqueed
Petroleum,ANSI/NFPA58; or the Natural Gas and Propane Installation
Code, CSA B149.1, or the Propane Storage and Handling Code, CSA
B149.2 this unit should be installed in accordance with the National
Fuel Gas Code No. Z223.1-1988 and the National Electrical Code
ANSI/NFPA No. 70-1990. CSA B1491.1,or the Propane Storage and
Handling Code, CSA B149.2.
This outdoor cooking gas appliance is not intended to be installed
in or on boats. This appliance is not intended to be installed in or
recreational vehicles.
Keep the fuel supply hose away from any heated surface.
California proposition 65-warning
The burning of gas fuel generates some byproducts, which are on
the list of substances which are known by the State of California to
cause cancer or reproductive harm. California law requires busi-
nesses to warn customers of potential exposure to such substances.
To minimize exposure to these substances, always operate this unit
according to the use and care manual, ensuring you provide good
ventilation when cooking with gas.
• The use of alcohol, prescription, or non-prescription drugs may
impair the consumer’s ability to properly assembly or safety
operation the appliance
• When cooking with oil or grease, have a type BC or ABC re
extinguisher readily available
• In the event of an oil or grease re do not attempt to extinguish
with water, Immediately call the re department. A Type BC or
ABC re extinguisher may, in some circumstances contain the
re.
• In the event of rain, snow, hail, sleet or other forms of
precipitation while cooking with oil or grease, cover the cooking
vessel immediately and turn off the appliance burners and gas
supply. Do note attempt to move the appliance or cooking vessel.
• Keep children and pets away from the appliance at all times.
• Do not move the appliance when in use .
• This appliance is not intended for and should never be used as
a heater.
Safety practices to avoid personal injury
When properly cared for, your Röshults Grill will give safe, reliable ser-
vice for many years. However, extreme care must be used since the
grill produces intense heat and that can increase accident potential.
When using this appliance, basic safety practices must be followed,
including the following:
• Read this Care and User Manual carefully and completely before
using your grill to reduce the risk of re, burn hazard or other
injury.
• Do not repair or replace any part of the grill unless specically
recommended in this manual. All other service should be
referred to a qualied technician
CHILDREN SHOULD NOT BE LEFT ALONE OR UNATTENDED IN AN
AREA WHERE THE GRILL IS BEING USED. NEVER ALLOW THEM TO
SIT, STAND OR PLAY ON OR AROUND THE GRILL AT ANY TIME.

EN Module Gas Grill 50 LPG/NG USER MANUAL
4 / 20
DO NOT STORE ITEMS OF INTEREST TO CHILDREN AROUND OR BE-
LOW THE GRILL OR IN THE SIDEBOARD. NEVER ALLOW CHILDREN
TO CRAWL INSIDE OF THE GRILL OR SIDEBOARD.
Never let clothing, pot holders or other ammable materials come in
contact with or get too close to any grate, burner or hot surface until it
has cooled. Fabric may ignite and result in personal injury.
For personal safety, wear proper apparel. Loose tting garments or
sleeves should never be worn while using this appliance. Some syn-
thetic fabrics are highly ammable and should not be worn while cook-
ing. Only certain types of glass, heat-proof glass ceramic, earthenware,
or other glazed utensils are suitable for grill use. Theses types of mate-
rials may break with sudden temperature changes. Use only on low or
medium heat settings according to the manufacturer’s directions.
Do not heat unopened food containers as a build-up of pressure may
cause the container to burst.
Use a covered hand when opening the grill lid. Never lean over an open
grill.
WHEN LIGHTING A BURNER, ALWAYS PAY CLOSE ATTENTION TO
WHAT YOU ARE DOING. BE CERTAIN YOU ARE TURNING THE IGNI-
TER LABELED FOR THE BURNER YOU INTEND ON USING.
DO NOT OPERATE BURNERS ON HIGH WITH LID CLOSED.
Precautions
Warning!
Never cover slots, holes ,or passage in the oven bottom or cover an
entire rack with material such as aluminum foil. Doing so block air ow
through the oven and may cause carbon monoxide poisoning. Alumi-
num foil lining may trap heat causing a re hazard.
When using the grill, do not touch the grill rack, burner grate or im-
mediate surroundings as these areas become extremely hot and could
cause burns. Use only dry potholders. Moist or damp potholders on
hot surfaces may cause burns from steam. Do not use a towel or bulky
cloth in place or potholders. Do not let potholders touch hot portions of
the grill rack.
Grease is ammable. Let hot grease cool before attempting to handle
it. Avoid letting excess grease deposits collect in the grease tray at the
bottom of the grill’s rebox. Clean often.
Aluminum foil lining may trap heat causing a re hazard.
For proper lighting and performance of the burners keep the burner
ports clean. It is necessary to clean them periodically for optimum
performance (see section Care & Maintenance). The burners will only
operate in one position and must be mounted correctly for safe opera-
tion.
Clean the grill with caution. Avoid steam burns; do not use a wet
sponge or cloth to clean the grill while it is hot. Some cleaners produce
noxious fumes or can ignite if applied to a hot surface.
INSECT WARNING! SPIDERS AND INSECTS CAN NEST IN THE
BURNERS OF THIS AND ANY OTHER GRILL, AND CAUSE THE
GAS TO FLOW IMPROPERLY. THIS IS A VERY DANGEROUS
CONDITION WHICH CAN CAUSE A FIRE TO OCCUR BEHIND THE
VALVE PANEL, THEREBY DAMAGING THE GRILL AND MAKING IT
UNSAFE TO OPERATE. INSPECT THE GRILL TWICE A YEAR.
Be sure all grill controls are turned off and the grill is cool before
using any type of aerosol cleaner on or around the grill. The chemical
that produces the spraying action could, in the presence of heat, ig-
nite or cause metal parts to corrode. Do not use the grill for cooking
excessively fatty meats or products which promote are-ups. Do not
operate the grill under unprotected combustible construction. Use
only in well ventilated areas. Do not use in buildings, garages, sheds,
breezeways or other such enclosed areas.
THIS UNIT IS FOR OUTDOOR USE ONLY.
Keep the area surrounding the grill free from combustible materials,
trash, or combustible uids and vapors such as gasoline or charcoal
lighter uid.
Do not obstruct the ow of combustion and ventilation air. If the unit
is stored indoors ensure that it is cool. If propane is used, the cylinder
must be unhooked and the propane cylinder stored outside in a well-
ventilated area, out of the reach of children.
DO NOT USE BRIQUETTES OF ANY KIND IN THE GRILL.
The Röshults Grill is designed for optimum performance without the
use of briquettes. Do not place briquettes on the radiant as this will
block off the area for the grill burners to vent. Adding briquettes can
damage ignition components and knobs, and void the warranty.
Never use the grill in extremely windy conditions. If located in a con-
sistently windy area (oceanfront, mountaintop, etc.) a windbreak will
be required (see below). Always adhere to the specied clearance.
NEVER USE A DENTED PROPANE TANK

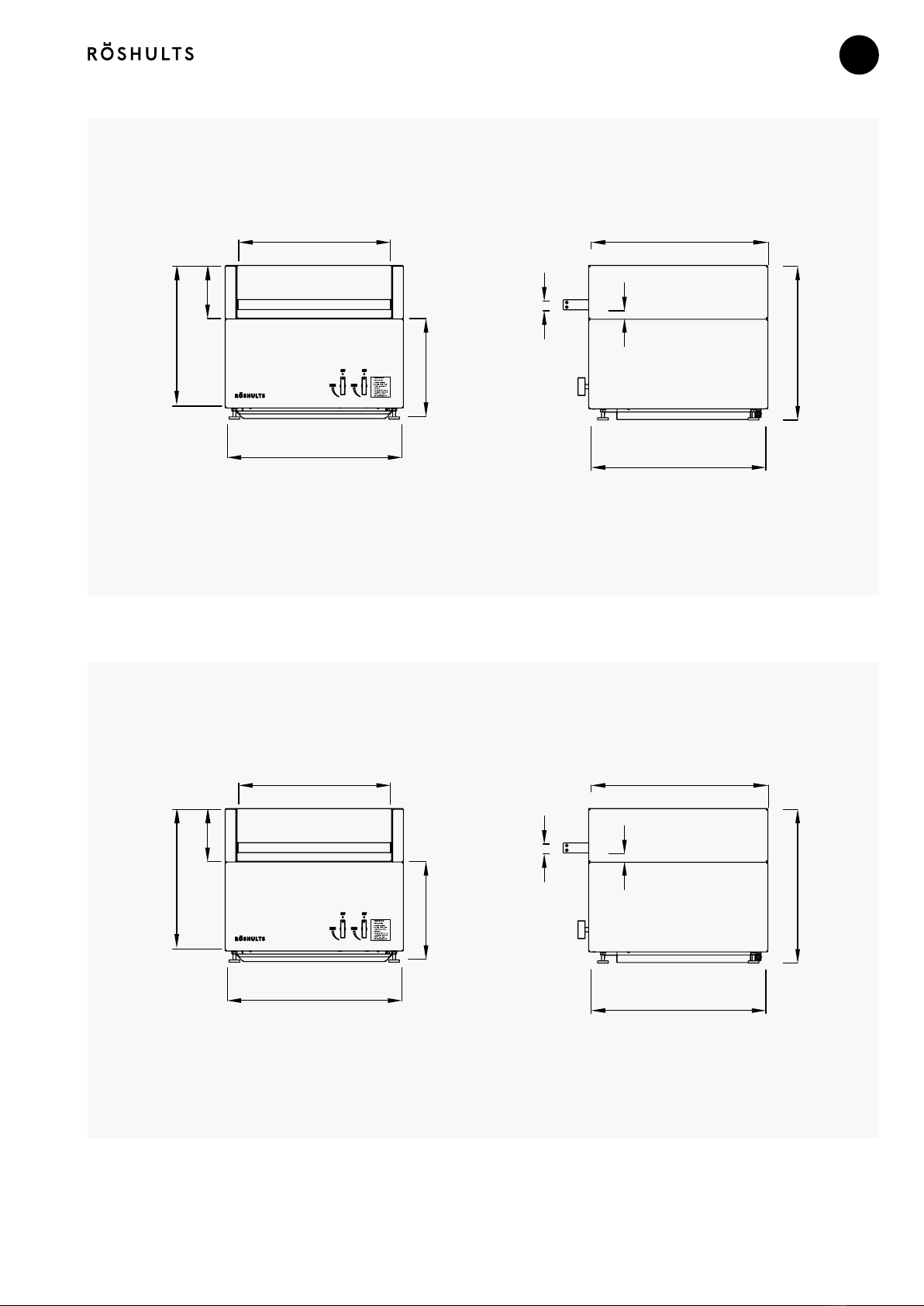

Placement of the grill
Clearance
To Non-Combustible Construction
A minimum of 3” clearance from the back of the grill to non-com-
bustible construction is required for the lid to open fully. The outdoor
cooking gas appliance shall not be used under overhead combustible
construction.
DO NOT INSTALL THIS UNIT INTO COMBUSTIBLE ENCLOSURES.
Location
When determining a suitable location take into account concerns
such as exposure to wind, proximity to trac paths and keeping any
gas supply lines as short as possible. Locate the grill only in a well-
ventilated area. Never locate the grill in a building, garage, breezeway,
shed or other such enclosed areas without an approved ventilation
system. During heavy use, the grill will produce a lot of smoke. Lock
the wheels (if used) after the grill is placed in a suitable position.

EN
USER MANUAL Module Gas Grill 50 LPG/NG
5 / 20
The propane gas supply cylinder(s) to be used must be provided
with a cylinder connection device compatible with the connection
for outdoor cooking appliances.
Connection:
Your gas grill is equipped with gas supply orices for use only with
liquid propane gas. It is also equipped with a high capacity hose/
regulator assembly for connection to a standard 20lb. L.P. cylinder
(18-1/4” high, 12-1/4” diameter).
To connect the L.P. gas supply cylinder, please follow the steps
below:
1. Make sure tank valve is in its full off position (turn clockwise to
stop)
2. Check tank valve to assure it has proper external male threads
(type 1 connection per ANSIZ21.81)
3. Make sure all burner valves are in their off position.
4. Inspect valve connections, port, and regulator assembly. Look
for any damage or debris. Remove any debris. Inspect hose
for damage. Never attempt to use damaged or obstructed
equipment. See your local L.P. gas dealer for repair.
5. When connecting regulator assembly to the valve, hand tighten
the nut clockwise to a complete stop. Do not use a wrench to
tighten. Use of a wrench may damage the quick coupling nut and
result in a hazardous.
6. Open the tank valve fully (counterclockwise). Use a soapy water
solution to check all connections for leaks before attempting
to light the grill, see below. If a leak is found, turn the tank valve
off and do not use the grill until a local L.P. gas dealer can make
repairs.
Gas hook-up
Only the pressure regulator and hose assembly supplied with the
grill should be used. Any replacement pressure regulator and hose
assembly must be specied by the grill manufacturer.
This is a liquid propane congured grill. Do not attempt to use a
natural gas supply unless the grill has been recongured for natural
gas use.
Total gas consumption (per hour) of The BBQ Grill Gas Module X with
all burners on “HIGH”:
Main burners 13,000 Btu/hr.
Total 26,000 Btu/hr.
The installation of this appliance must conform with local codes or,
in the absence of local codes, with the national fuel gas code, ANSI
Z223. 1a-1988. Installation in Canada must be in accordance with
the Standard Can1-b149.1 and/or .2 (installation code for gas burn-
ing appliances and equipment) and local codes.
Requirements L.P.
Warning!
Place dust cap on cylinder valve outlet whenever the cylinder is
not in use. Only install the type of dust cap on the cylinder valve
outlet that is provided with the cylinder valve. Other types of caps
or plugs may result in leakage of propane.
A dented or rusty L.P. tank may be hazardous and should be checked
by your L.P. supplier. Never use a cylinder with a damaged valve. The
L.P. gas cylinder must be constructed and marked in accordance
with the specications for L.P. gas cylinders of the U.S. Department
of Transportation (DOT), or the National Standard of Canada, CAN/
CSA-B339, Cylinders, Spheres and Tubes for Transportation of Dan-
gerous Goods; and Commission.
The cylinder must be provided with a shut valve terminating in an L.P.
gas supply cylinder valve outlet specied, as applicable, for connec-
tion type QCC1 in the standard for compressed gas cylinder valve
outlet and inlet connection ANSI/CGA-V-1.
The cylinder supply system must be arranged for vapor withdrawal.
The cylinder must include a regulator to protect the cylinder valve.
Manifold pressure: Propane gas 11” water column, Natural gas pres-
sure 7” water column.
Inlet pressure: Propane gas 25-250 psi, Natural gas pressure 8” water
column.The outdoor cooking gas appliance must be isolated from
the gas supply piping system by closing its individual manual shut-
off valve during any pressure testing of the gas supply piping system
at test pressures equal to or less than 1/2 psi (3.5 kPa).
L.P. Gas hook-up:
Ensure that the black plastic grommets on the propane cylinder valve
are in place and that the hose does not come into contact with the
grease tray or the grill head.
Warning!
The propane gas supply cylinder(s) to be used must be provided
with a listed overlling prevention device.

EN Module Gas Grill 50 LPG/NG USER MANUAL
6 / 20
Installation of Cylinder:
Warning!
Place the unit on leveled surface to prevent possible tipping.
Step1: Using L type connector to connect Regulator
Step2: Put the pressure reducing valve joint to the Cylinder joint and
close them clockwise tightly.
To disconnect L.P. gas cylinder: Turn the burner valves off. Turn the
tank valve off fully (turn clockwise to stop). Detach the regulator
assembly from the tank valve by turning the quick coupling nut
counterclockwise.
Leak testing
General
Although all gas connections on the grill are leak tested at the fac-
tory prior to shipment, a complete gas tightness check must be
performed at the installation site due to possible mishandling in ship-
ment, or excessive pressure unknowingly being applied to the unit.
Periodically check the whole system for leaks following the proce-
dures listed below. If the smell of gas is detected at anytime you
should immediately check the entire system for leaks.
Before testing
The outdoor cooking gas appliance and its individual shut-off valve
must be disconnected from the gas supply piping system during
any pressure testing of that system at test pressures in excess of
0.5 psi (3.5 kPa).
Make sure that all packing material is removed from the grill includ-
ing the burner tie-down straps. Please remove the ’Fire Tested’ label
from the rear burner before use. All burners in your new Röshults grill
have been re tested at the factory. You may notice a slight discolor-
ation due to the factory re testing.
DO NOT SMOKE WHILE LEAK TESTING.
NEVER LEAK TEST WITH AN OPEN FLAME.
Make a soap solution of one part liquid detergent and one part water.
You will need a spray bottle, brush, or rag to apply the solution to the
ttings. For the initial leak test, make sure the L.P. cylinder is full.
To test
Make sure all control valves are in the “OFF” position. Turn the gas
supply on. Check all connections from the L.P cylinder to and includ-
ing the connection to the manifold pipe assembly (the pipe that goes
to the burners).
Apply a soapy water mixture to the following:

EN
USER MANUAL Module Gas Grill 50 LPG/NG
7 / 20
A. Cylinder.
B. The inlet end of the corrugated pipe is connected to the gas valve,
and the other end is connected with L type connector.
C. Gas valve.
D. The corrugated pipe outlet is connected gas valve.
E. The corrugated pipe outlet are aligned to the burner hole.
F. L type connector.
G. The reducing valve is connected to L type connector and other
end is connected the gas cylinder (clockwise).
Soap bubbles will appear where a leak is present. If a leak is present,
immediately turn off the gas supply, tighten any leaking ttings, turn
gas on, and recheck.
Should the gas continue to leak from any or all of the ttings, turn off
the gas supply, and contact our customer service at [phone]
10.
Only those parts recommended by the manufacturer should be used
on the grill. Substitution will void the warranty. Do not use the grill
until all connections have bezaen checked and do not leak.
Gas ow check:
Each grill burner is tested and adjusted at the factory prior to
shipment; however, variations in the local gas supply may make it
necessary to adjust the burners. The ames of the burners should be
visually checked.
Flames should be blue and stable with no yellow tips, excessive
noise or lifting. If any of these conditions exist, check to see if the
air shutter or burner ports are blocked by dirt, debris, spider webs,
etc. If you have any questions regarding ame stability, please call
customer service [phone].
ALWAYS CHECK FOR LEAKS AFTER EVERY L.P. TANK CHANGE.
Check all gas supply ttings for leaks before each use. It is handy
to keep a spray bottle of soapy water near the shut-off valve of the
gas supply line. Spray all the ttings. Bubbles indicate leaks.
Disconnected L.P. cylinders must have threaded valve plugs tightly
installed, and must not be stored in a building, garage or any other
enclosed area.
The gas must be turned off at the supply cylinder when the unit
is not in use. If the appliance is stored indoors the cylinder must
be disconnected and removed from the appliance. Cylinders must
be stored outdoors in a well-ventilated area out of the reach of
children.
Installer nal checklist
Specied clearance maintained 24” from combustibles.
All internal packaging removed. Knobs turn freely.
Burners are tight and sitting properly on orices.
Pressure regulator connected and set for 11” W.C. L.P. gas. Gas
connections to grill using hose & regulator assembly provided
(pre-set for 11.0” water column).
Unit tested and free of leaks User informed of gas supply shut
off valve location.
User, please retain these instructions for future reference.
Propane cylinder cautions
A. Do Not store a spare Propane-gas cylinder under or near this
appliance.
B. NEVER ll the cylinder beyond 80 percent full.
C. If the information in “A” and “B” is not followed exactly, a re
causing death or serious injury may occur.
Operating instructions
General use of the grill
Each main burner is rated at 13,000 Btu/hr. The main grill burners
encompass the entire cooking area and are side ported to minimize
blockage from falling grease and debris.
Above the burners are stainless steel radiant (ame tamer). The ig-
niter knobs are located on the lower center portion of the valve panel.
Each rotary igniter is labeled on the control panel.
Using the grill:
Grilling requires high heat for searing and proper browning. However,
when grilling large pieces of meat or poultry, it may be necessary to
turn the heat to a lower setting after the initial browning. This cooks
the food through without burning the outside.
Food cooked for a long time or food basted with a sugary marinade
may need a lower heat setting near the end of the cooking time.
To begin:
Make sure the grill has been leak tested and is properly located.
1. Remove any remaining packing material.
2. Light the grill burners using the instructions in this manual see
page 7.
3. Push and Turn the control knob(s) and preheat the grill for 5
minutes. The grill lid is to be closed during the appliance preheat
period.
4. Place the food on the grill and cook to the desired doneness.
Adjust heat setting, if necessary. The control knob may be set to
any position between “
OFF
HIGH
”.
Note: The grill is designed to grill eciently without the use of lava
rocks or briquettes of any kind. Heat is radiated by the stainless-steel
ame tamers positioned above each burner.
Note: The hot grill sears the food, sealing in the juices. The longer the
preheat, the faster the meat browns and the darker the grill marks.
DO NOT LEAVE THE GRILL UNATTENDED WHILE COOKING.

EN Module Gas Grill 50 LPG/NG USER MANUAL
8 / 20

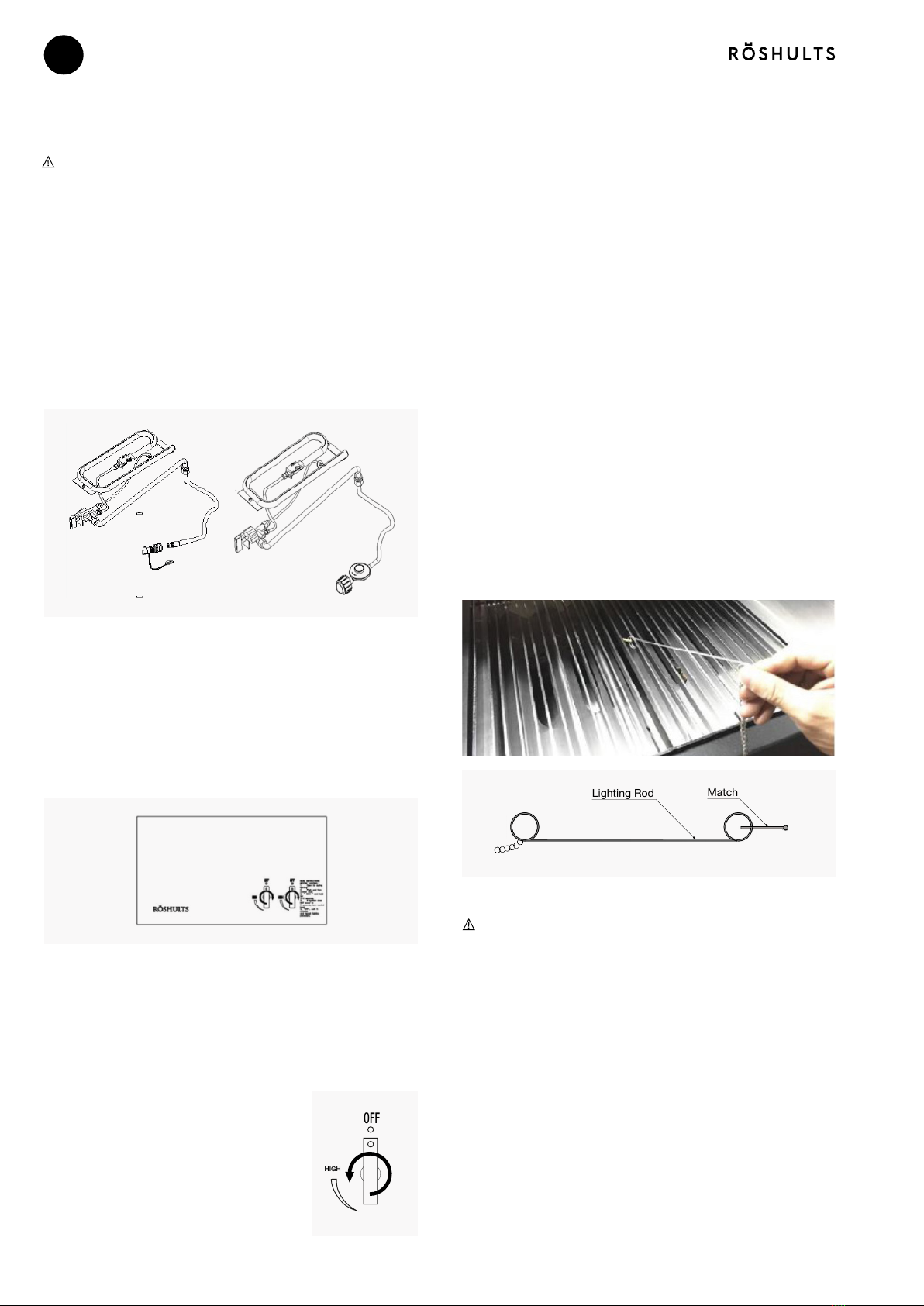

To match light the grill:
If the burner will not light after several attempts then the burner can
be match lit. If you’ve just attempted to light the burner with the
igniter, allow 5 minutes for any accumulated gas to dissipate. Keep
your face and hands as far away from the grill as possible. Insert a lit
extended match or lighter through the cooking grids to the burner.
Press the control knob and rotate left to the light setting, continue to
press the knob until the burner ignites. Burner should light immedi-
ately. If the burner does not light in 4 seconds turn the knob off, wait
5 minutes and try again.
Lighting using match light extension rod
1. Turn OFF all burner valves.
2. Make sure the lid is open
3. Place a lighted match between the coils on the extension rod and
hold next to the burner.
4. Turn the control knob(s) to the “HIGH/light” position, Burner
should light immediately.
5. If the burner does not light in 4 seconds, turn the knob off, wait 5
minutes and repeat above procedures.
6.
Danger!
Keep your face and hands as far away from the grill as possible
when lighting it.
Flame Characteristics
This procedure outlines how to check for the proper burner ame
characteristics. Check for proper burner ame characteristics. Each
burner is adjusted prior to shipment; however, variations in the local
gas supply may take minor adjustments necessary.
Burner ames should be blue and stable with no yellow tips, exces-
sive noise, or lifting. If any of these conditions exist call our customer
service line. If the ame is yellow, it indicates insucient air. If the
ame is noisy and tends to lift away from the burner, it indicates too
much air.
Lighting Rod Match
Lighting instructions
Warning! Important!
Before lighting
Open the door of the gas cylinder cabinet.
Inspect the gas supply hose prior to turning the gas “ON”. If there is
evidence of cuts, wear, or abrasion, it must be replaced prior to use.
Only the manufacturer’s supplied replacement should be used.
Do not use the grill if the odor of gas is present. Only the pressure
regulator and hose assembly supplied with the unit should be used.
Never substitute regulators for those supplied with the grill. If a re-
placement is necessary, contact the factory for proper replacement.
Screw the regulator (type QCC1) onto the tank. Leak check the hose
and regulator connections with a soap and water solution before
operating the grill (see assembly instruction).
To light the grill burner
Make sure all knobs are “OFF” then turn on the gas supply from the
Propane tank. Always keep your face and body as far from the grill as
possible when lighting. Your Röshults grill has a built-in ignition. The
igniter is built in to the valve. To ignite each burner simply push and
turn the control Knobs to the “HIGH” setting, you will hear the valve
click as it sends a spark to the pilot ame. If the burner does not light,
wait 5 minutes for any excess gas to dissipate and then retry.
Lighting the main burner
1. Read all instructions before lighting.
2. Open lid during lighting.
3. Push and and turn the main burner knob to “HIGH”.
Push for 5 seconds.
4. If ignition does not occur in 5 seconds, turn
the knob(s) off, wait 5 minutes, then repeat
the lighting procedure or light by match.
5. To turn burners off, turn the control knob
clockwise until it locks in the OFF position.
Turn gas supply to “OFF”.
OFF
HIGH

EN
USER MANUAL Module Gas Grill 50 LPG/NG
9 / 20

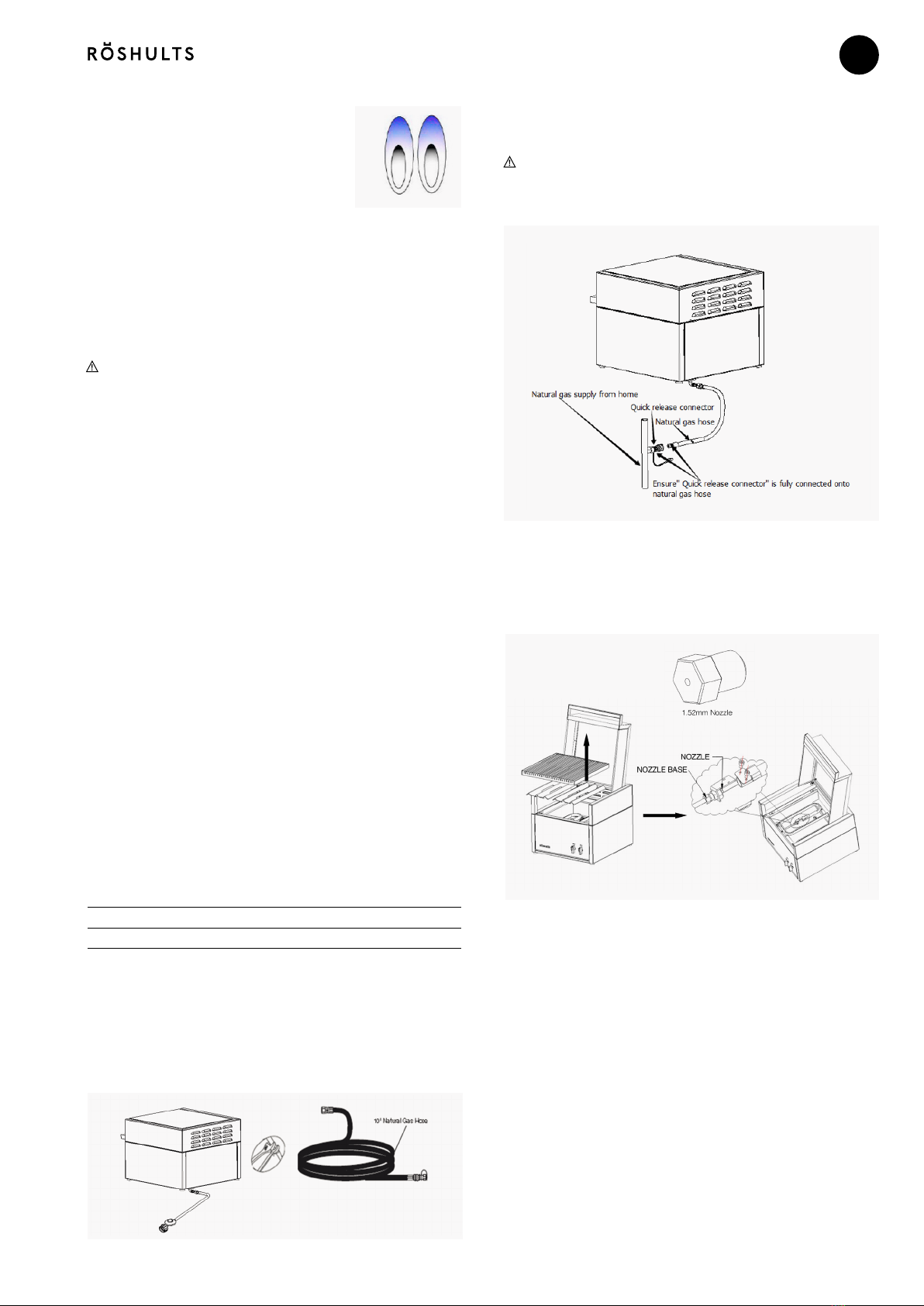

Visually check the burner ames prior to each
use. The ame should look like this picture.
If they do not, refer to the burner maintenance
part of this manual.
Natural Gas Change Connected Instructions
Each conversion kit shall be accompanied by clear, concise printed
instructions and diagrams, stated in terms clearly understandable,
adequate for the proper eld assembly, installation, service, and safe
use of the conversion kit.
Warning!
FIRE, EXPLOSION, AND CARBON-MONOXIDE HAZARD
IF THE INFORMATION IN THESE INSTRUCTIONS IS NOT
FOLLOWED EXACTLY, A FIRE, EXPLOSION, OR PRODUCTION
OF CARBON MONOXIDE MAY RESULT CAUSING PROPERTY
DAMAGE, PERSONAL INJURY, OR LOSS OF LIFE.
This conversion kit shall be installed by a qualied service agency in
accordance with the manufacturer’s instructions and all applicable
codes and requirements of the authority having jurisdiction. If the
information in these instructions is not followed exactly, a re, explo-
sion or production of carbon monoxide may result causing property
damage, personal injury or loss of life. The qualied service agency
is responsible for the proper installation of this kit. The installation
is not proper and complete until the operation of the converted ap-
pliance is checked as specied in the manufacturer’s instructions
supplied with the kit.
Please stick the conversion label after change to Natural gas, that
have ready in conversion kit. The position is nearby main label.
Please re-do the leak testing and try to light the grill after change to
Natural gas immediately.
Natural Gas Conversion kit consists of KJ50A2 10”Natural Hose,
ф1.52mm nozzle, and a conversion label.
Packs list of conversion kits:
REF# DESCRIPTION Q’TY
01 ф1.52mm Nozzle 2
02 KJ50A2 10”Natural Hose 1
1.52 mm nozzle

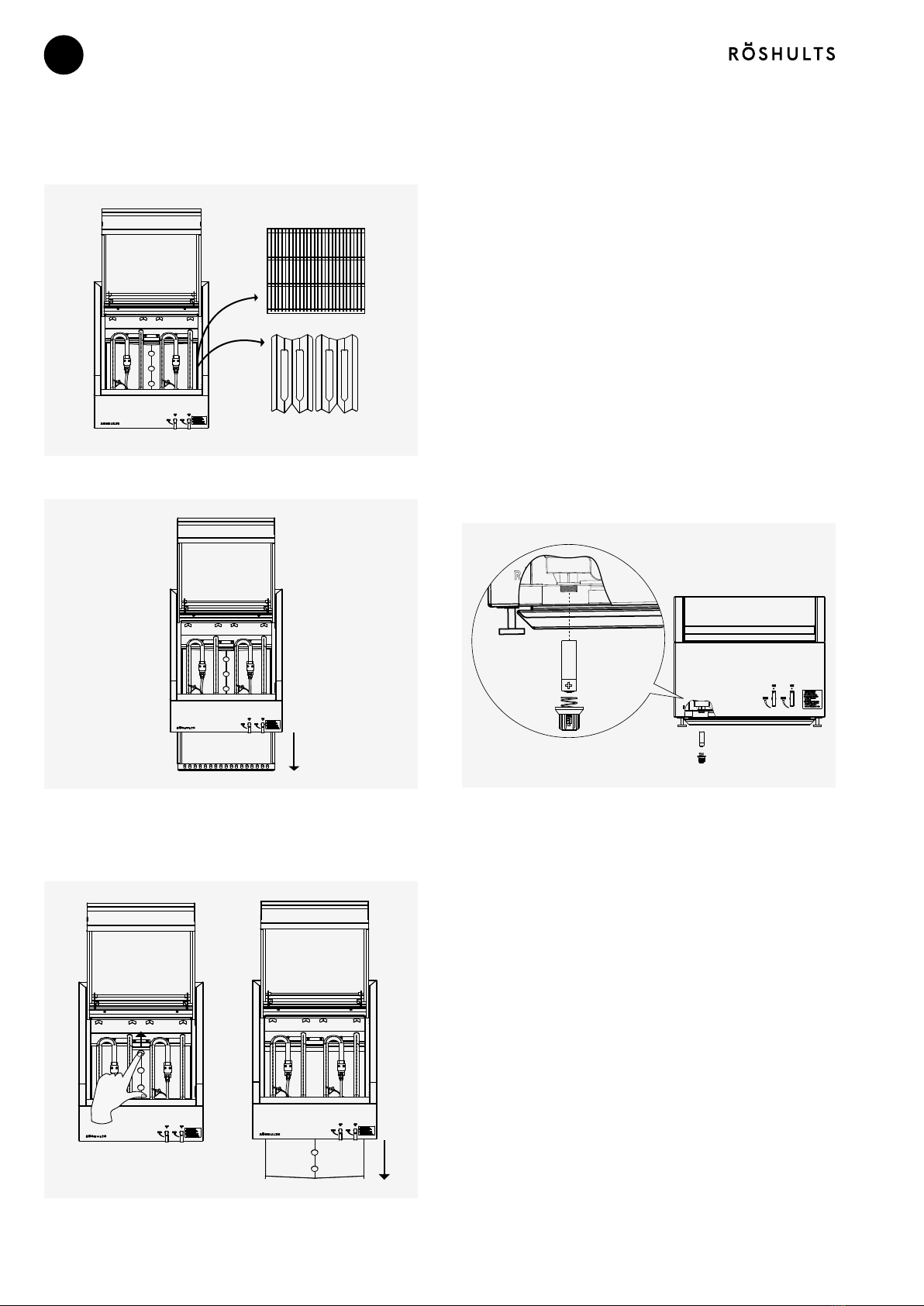

Step 1: Using an adjustable wrench to hold the gas manifold
connection secure, use a 3/4” wrench to loosen the hose connection
nut. Replace existing Propane hose/regulator assembly with natural
gas 10’ hose assembly. Tighten the connection carefully using two
wrenches.
Step 2: Open lid and remove cooking grills and reproof plate.
Set aside for later use.
Warning!
Ensure “quick release connector” is fully connected onto Natural gas
hose.
Step 3: Using the ф1.52mm NG Nozzle to change it.
Step 4: Lock back the nozzle into burner with screws and check that
nozzle is aligned with the burner.

EN Module Gas Grill 50 LPG/NG USER MANUAL
10 / 20
Module Gas Grill 50 LPG/NG

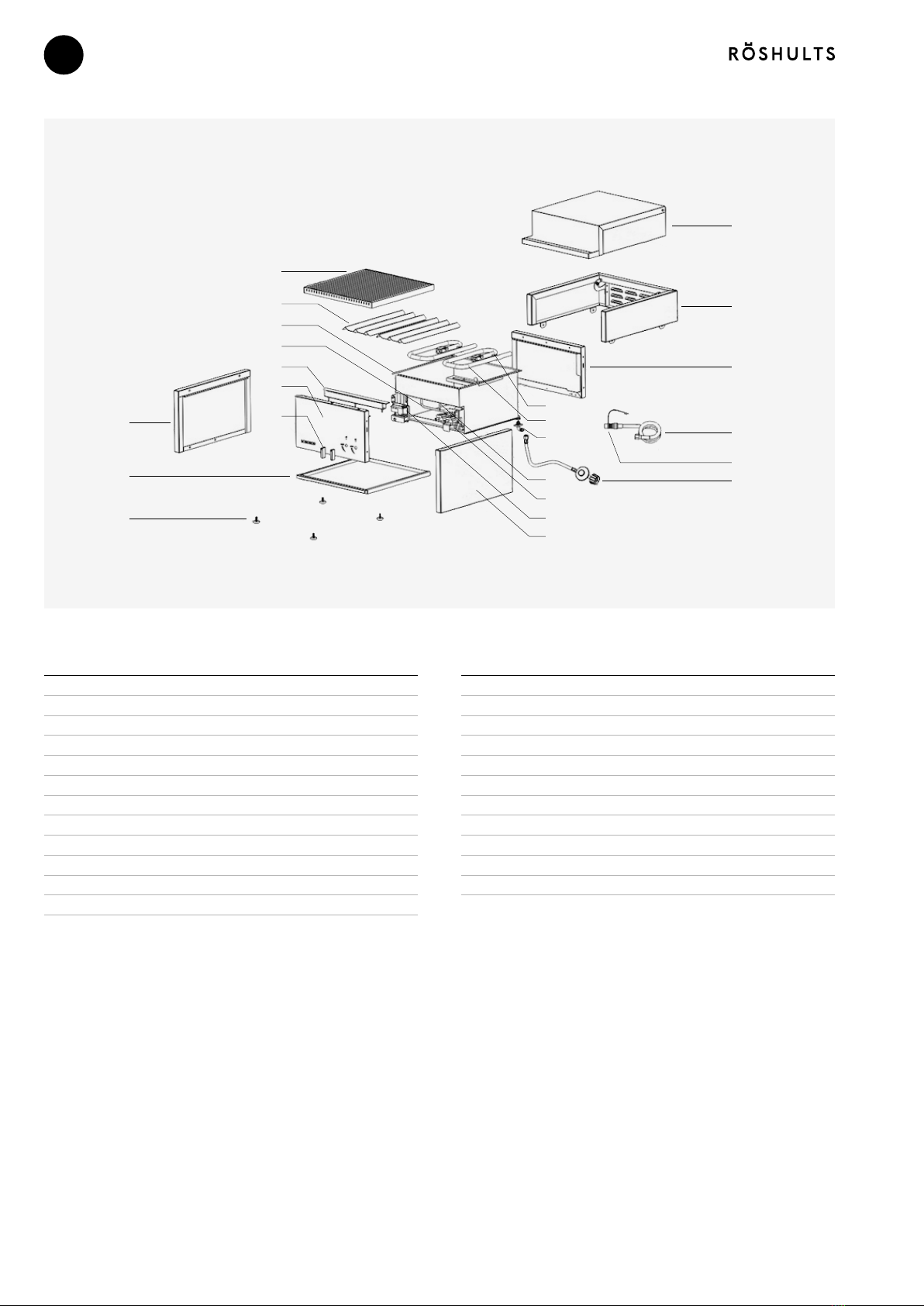

Parts
NO DESCRIPTION Q’TY
01 Feet support 4
02 Drip tray 1
03 Left panel 1
04 Knob 2
05 Front panel 1
06 Decorative plate 1
07 Corrugated pipe 2
08 Oven body 1
09 Fireproof plate 2
10 Grill 1
11 Upper lid 1
12 Lid base 1
NO DESCRIPTION Q’TY
13 Oven rear board 1
14 Thermocouple 2
15 Burner 2
16 Ignition needle 2
17 Air valve 2
18 Igniter 1
19 Right plate 1
20 Propane gas hose assembly 1
21 NG hose assembly 1
22 NG quick coupling 1
23 L type connector 1
01
02
03 04
05
06
08
09
10
07
11
12
21
20
22
14
15
16
17
18
19
23
13
