Rosieres Ris3bc User manual

P21349R01

CERAMIC HOT PLATES TOUCH CONTROL

INSTALLATION INSTRUCTIONS AND RECOMMENDATIONS FOR USING AND MAINTAINING

PLAQUES DE CUISSON VITROCÉRAMQIUE TOUCH CONTROL

INSTRUCTIONS POUR L'INSTALLATION ET CONSEILS D'UTILISATION ET D'ENTRETIEN

CERAMICZNE PŁYTY GRZEJNE Z DOTYKOWYM PANELEM STEROWANIA

INSTRUKCJE DOTYCZĄCE INSTALACJI I ZALECENIA ODNOSZĄCE SIĘ DO UŻYTKOWANIA I KONSERWACJI

RIS3BC-RISD3BC -RIFS4BV

INSTALLATION INSTRUCTIONS AND RECOMMENDATIONS FOR USING AND MAINTAINING

CERAMIC HOT PLATES TOUCH CONTROL..................................................................................................6

INSTRUCTIONS POUR L'INSTALLATION ET CONSEILS D'UTILISATION ET D'ENTRETIEN

PLAQUES DE CUISSON VITROCÉRAMQIUE TOUCH CONTROL.......................................................................13



CERAMICZNE PŁYTY GRZEJNE Z DOTYKOWYM PANELEM STEROWANIA………………....................…..22

Presentation /Présentation /

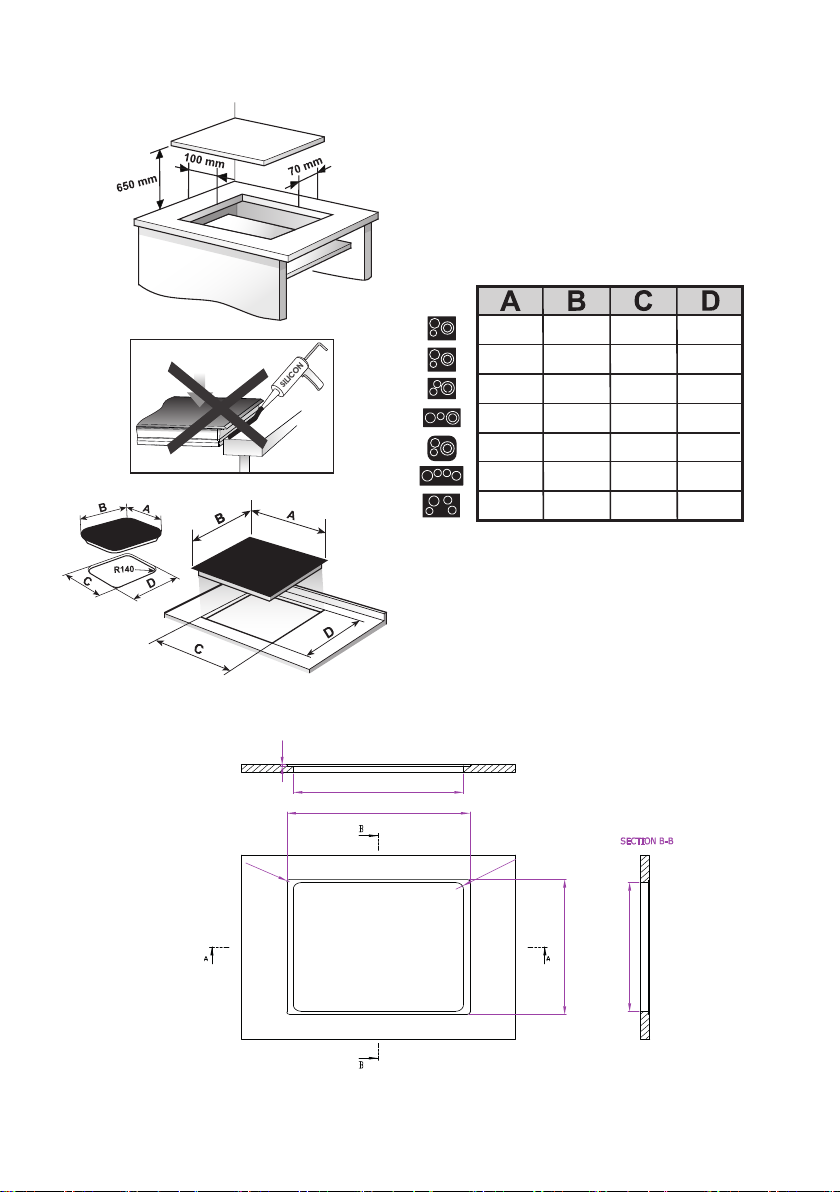

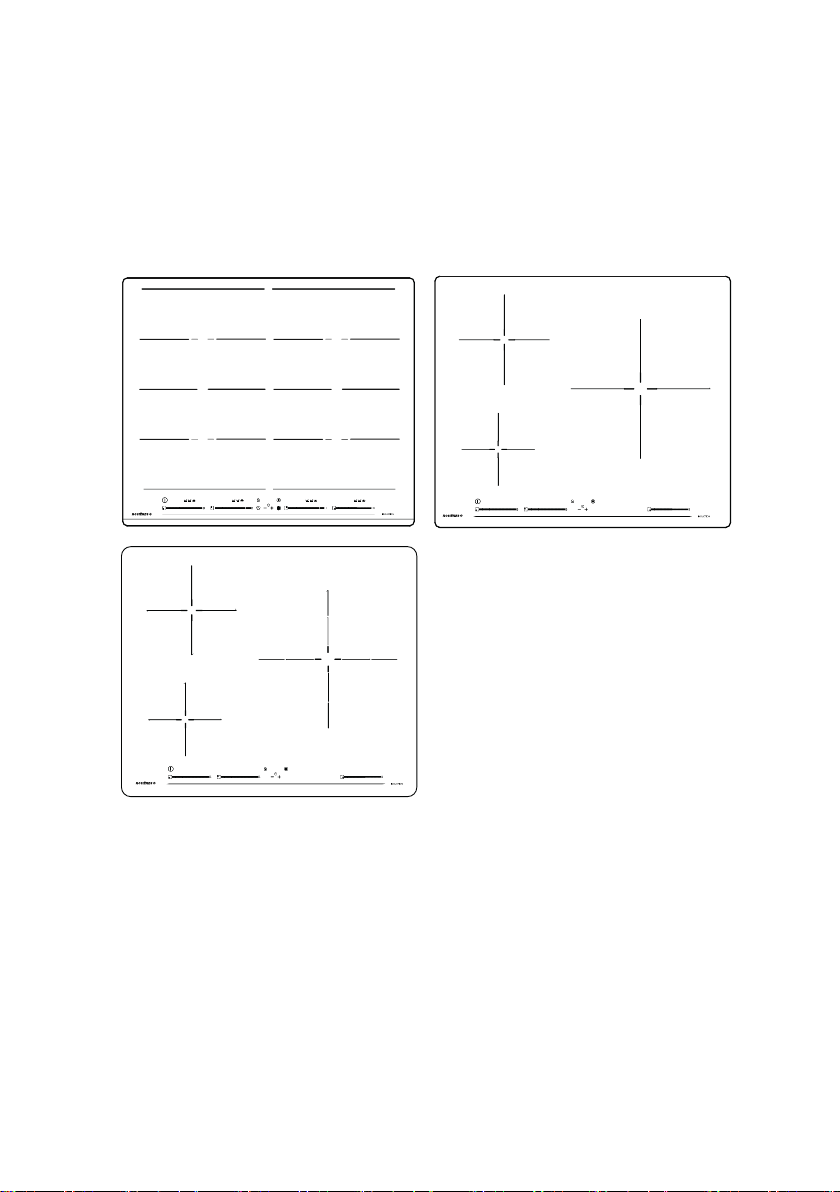

Minimum distances / Distances minimales

Units in mm / Unités en mm

Installation / Montage

605 515 560 490

600 510 560 490

600 435 580 415

800 400 780 380

590 510 570 490

900 400 860 380

800 510 750 490

󰀪

SECTION A-A

560

R8,5

603

rmax20

513

490

STANDARD INSTALLATION SYSTEM FAST-CLICK SYSTEM

Minimum distances / Distances minimales

Units in mm / Unités en mm

Installation / Montage









Safety warnings:

Warning. If the

ceramic glass bre-

aks or cracks, imme-

diately unplug the

stovetop to avoid

electric shocks.

This appliance is

not designed to work

with an external timer

(not built into the

appliance) or a

separate remote

control system.

Do not steam clean

this device.

W a r n i n g . T h e

device and its acces-

sible parts may heat

up during operation.

Avoid touching the

heating elements.

Children younger

than 8 years old must

stay away from the

hob unless they are

permanently

supervised.

This device may

solely be used by

children 8years old

or older, people with

impaired physical,

sensory or mental

abilities, or those who

lack experience and

knowledge, ONLY

when supervised or if

they have been given

adequate instruction

on the use of the

device and

understand the

dangers its use

involves. User clea-

ning and maintenan-

ce may not be done

by unsupervised

children.

Children must not

play with the device.

Warning. It is

dangerous to cook

with fat or oil without

being present, as

these may catch re.

NEVER try to

extinguish a re with

water! In this event

disconnect the

device and cover the

flames with a lid, a

plate or a blanket.

Do not store any

object on the cooking

areas of the induction

hob. Prevent possible

re hazards.

The induction

generator complies

with current EU

legislation We

however recommend

that anyone fitted

with a device such

as a pacemaker

should refer to their

physician, or if in

doubt abstain from

using the induction

areas.

Metal object such

as knives, forks,

spoons and lids may

not be placed on the

surface of the hob as

they may overheat.

After use always

disconnect the hot

plate, do not simply

remove the pot or

pan. Otherwise a

malfunction may

occur if inadver-

tently another pot or

pan is placed on it

within the detection

period. Prevent pos-

sible accidents!

If the supply cord

is damaged, it must

be replaced by the

manufacturer, its

service agent or

similarly qualified

persons in order to

avoid hazard.

WARNING: Use

only stovetop pro-

tectors designed by

appliance manufac-

turer or indicated by

the manufacturer in

the instructions for

use as adequate or

stovetop protectors

incorporated into the

device. The use of

inadequate protec-

tors can cause acci-

dents.

It is necessary to

allow the appliance

disconnection after

i n s t a l l a t i o n .

Disconnection devi-

ces must be incorpo-

rated to the fixed

electrical installa-

tion, according to

the installation regu-

lations.

Installation

Installation with cutlery drawer

       



     

    









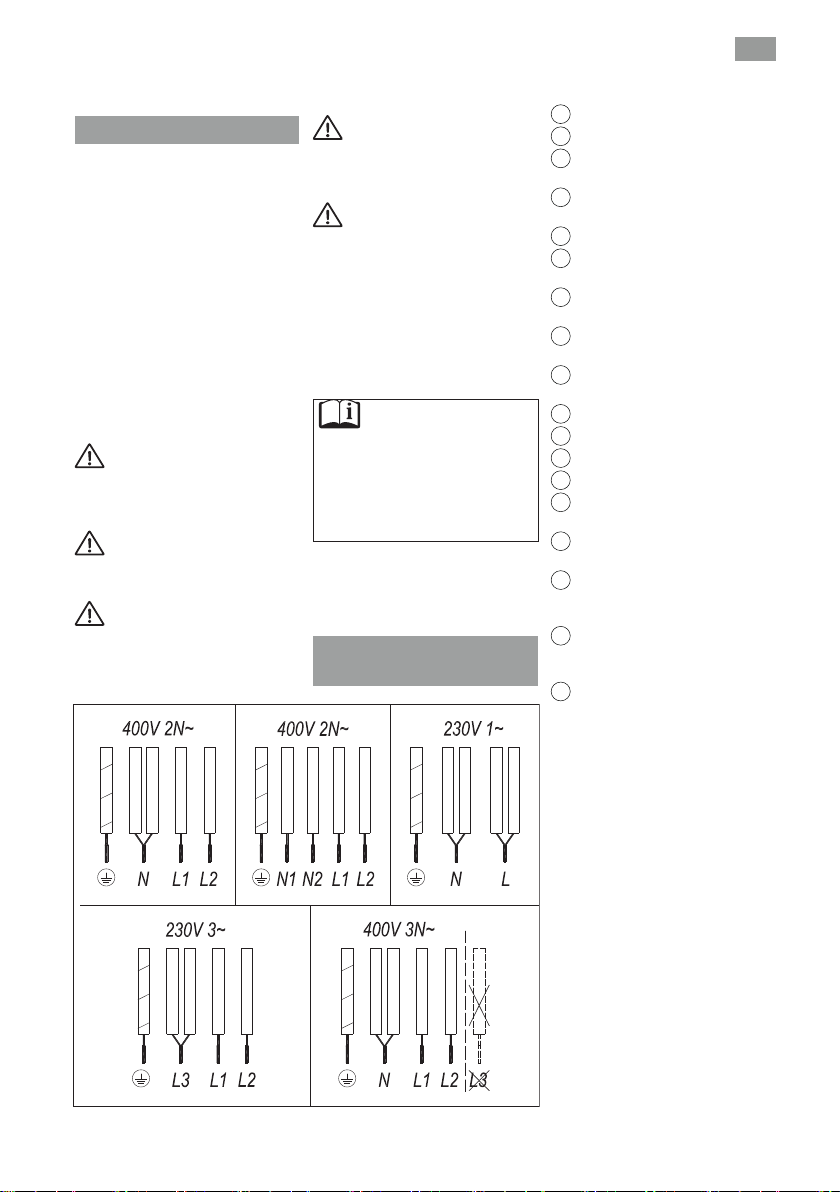

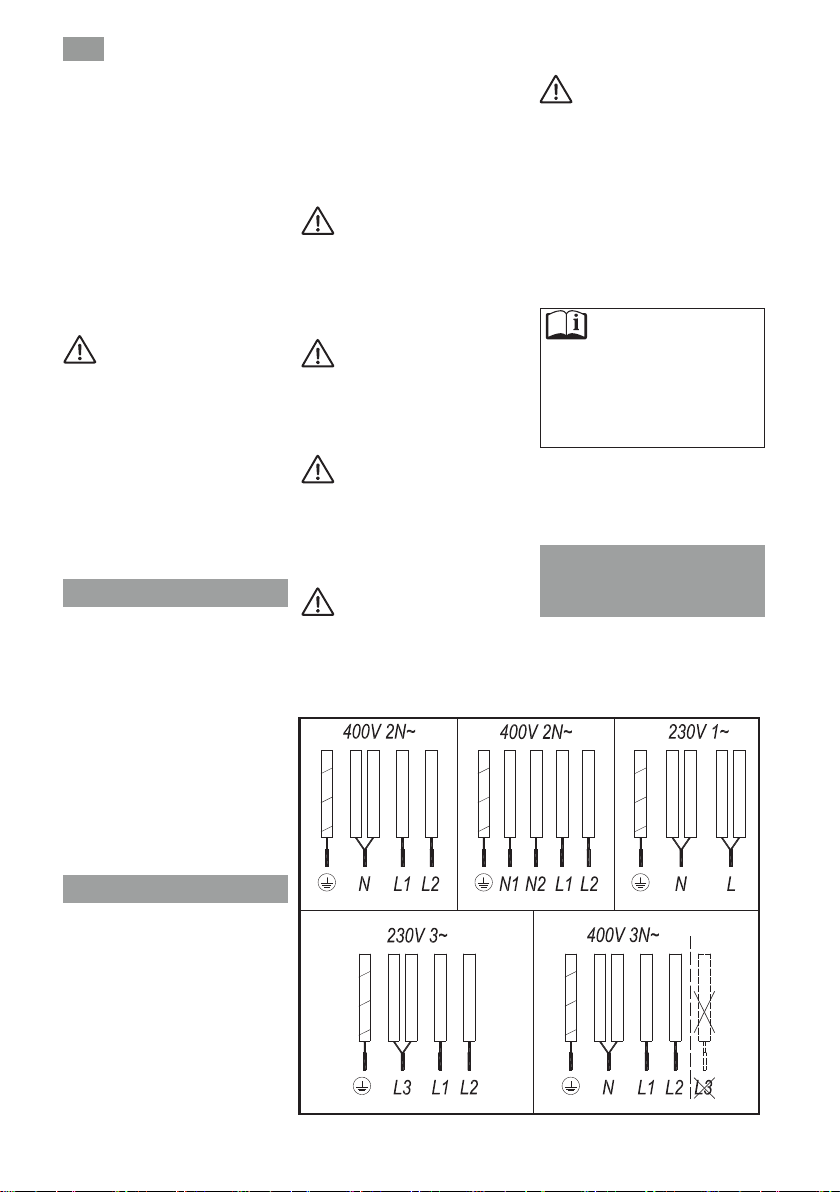

Electrical connection

     

     









  





  

 





Warning:

The electrical connection must

be properly grounded, following

current legislation, otherwise the

induction hob may malfunction.

Unusually high power surges

can damage the control system (like

with any electrical appliance).

It is advised to refrain from

using the induction hob during the

pyrolytic cleaning function in the

case of pyrolytic ovens, due to the

high temperature that this type of

device attains.

Only the official techni-

cal service can handle or repair the

appliance, including replacement

of the power cable.

Before disconnecting the hob

form the mains, we recommend

switching o󰀨 the cuto󰀨 switch and

waiting for approximately 25

seconds before disconnecting from

the mains. This time is required to

allow for the complete discharge of

the electronic circuitry and thus

preclude the possibility of electric

shock from the cable terminals.

Keep the Guarantee

Certificate or the technical

data sheet together with the

instructions manual throughout

the product’s service life. These

contain important technical

information.

Use and

Maintenance

User instructions of the

Touch Control

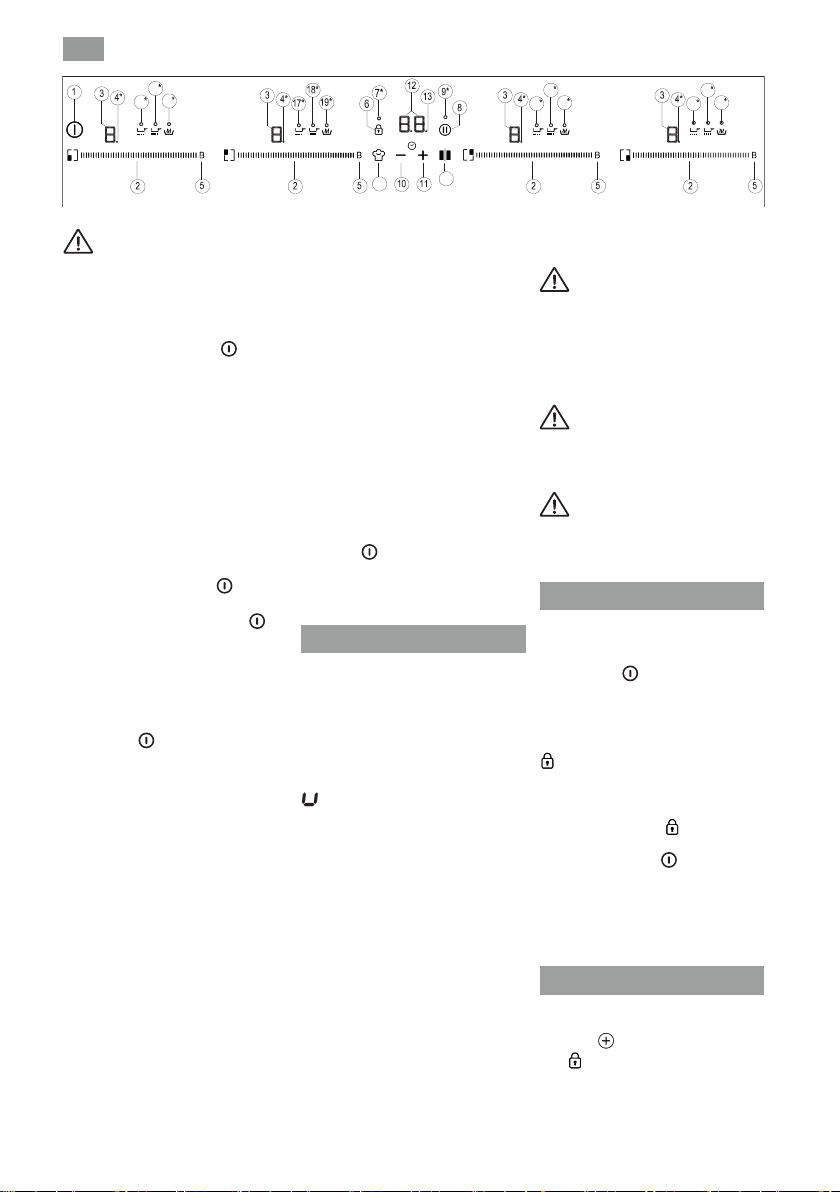

HANDLING ELEMENTS 

󰀨

2 

    



     





    



   



 



    



 

 

12 

 

 



 



 





     





   









       

      

       







   

       







      

     





green-yellow

blue

brown

grey

black

green-yellow

blue

brown

grey

black

green-yellow

blue

brown

grey

black

green-yellow

blue

brown

grey

black

green-yellow

blue

brown

grey

black

g. 1

DO NOT USE L3

In order to select a plate on

these models, directly touch the

cursor slider (2).

SWITCHING ON THE DEVICE

1  













        



󰀨

 



 

      

     





ACTIVATING PLATES

 

 



1       

     

     

 



      







2 





       

     

   



TURNING OFF A PLATE

  



󰀨

 󰀨 

      







󰀨





TURNING ALL PLATES OFF

    



󰀨 

󰀨

󰀨

Pan detector









      







󰀨



     



      

  





󰀨



     



      

  





When nished, turn o󰀨 the

cooking zone by using the touch

controls. Otherwise an undesired

operation could occur if a pan is

accidentally placed on the cooking

zone during the three minutes.

Avoid possible accidents!

Warning : Burn Hazard: don't

place or leave the pot/pan outside

the cooking zones and/or over the

Control panel.

Warning: The bottom surface

of the pot / pan must be at and

must not show any damage or wear.

Child lock Function





󰀨 













    

 

󰀨 

󰀨







Silencer of the beep



 

     



 



Fig.2

18 16





󰀨







    



 





Pause Function



      



Activating the Pause function.

 

      

     

      



Deactivating the Pause function

     

   󰀨  



    



Booster Function

    











1     

   











2      

 













      

     

󰀨





   

     







Timer Function

(countdown clock)







󰀨

    

   

      



Setting a timer on a plate.

      



       





1       



 

 

    



2    

     

 

&       



      

  









3





     



 

 



  󰀨     



  󰀨    

    

      

      

󰀨





      



      

     



       









      



     



Changing the programmed time.

   







  



Disconnecting the clock



   





1 

2 

  





  



Power Management function





     

       

󰀨

       



      



1       

     



2  

󰀨



    

  

3 



 













      









   









      

     













      

   







      



Special functions: Chef

touch (depending on the

model)

    

      

     

    





1 





2      

  

    



      

    

    







      



      

      



󰀨

󰀨

     

 

KEEP WARM FUNCTION

(depending on the model)

    

     



      





 

 



     

      

      

󰀨

MELTING FUNCTION (depending

on the model)

    

    







      





 

 



     

      

      

󰀨

SIMMERING FUNCTION (depending

on the model)

   



      

      

      

      

    

     



     

      

      

󰀨

Flexi Zone function

(depending on the model)



    









 

     



       

     

     

    

     

 

     

    

     








