Ross GearLite CMA-9011 User manual

CMA-9011
SDI Component Monitoring
Amplifier
User Manual

1
Thank you for choosing Ross
You've made a great choice. We expect you will be very happy with your
purchase of Ross Technology.
Our mission is to:
1. Provide a Superior Customer Experience
• offer the best product quality and support
2. Make Cool Practical Technology
• develop great products that customers love
Ross has become well known for the Ross Video Code of Ethics. It
guides our interactions and empowers our employees. I hope you enjoy
reading it below.
If anything at all with your Ross experience does not live up to your
expectations be sure to reach out to us at [email protected].
David Ross
CEO, Ross Video
[email protected]
Ross Video Code of Ethics
Any company is the sum total of the people that make things happen. At
Ross, our employees are a special group. Our employees truly care
about doing a great job and delivering a high quality customer
experience every day. This code of ethics hangs on the wall of all Ross
Video locations to guide our behavior:
1. We will always act in our customers’ best interest.
2. We will do our best to understand our customers’ requirements.
3. We will not ship crap.
4. We will be great to work with.
5. We will do something extra for our customers, as an apology, when
something big goes wrong and it's our fault.
6. We will keep our promises.
7. We will treat the competition with respect.
8. We will cooperate with and help other friendly companies.
9. We will go above and beyond in times of crisis. If there's no one to
authorize the required action in times of company or customer crisis
- do what you know in your heart is right. (You may rent helicopters if
necessary.)

2
CMA-9011 User Manual
• Ross Part Number: 9011DR-004-05
• Release Date: October 3, 2014.
Copyright
© 2014 Ross Video Limited. Ross®, and any related marks are trademarks or
registered trademarks of Ross Video Ltd. All other trademarks are the property
of their respective companies. PATENTS ISSUED and PENDING. All rights
reserved. No part of this publication may be reproduced, stored in a retrieval
system, or transmitted in any form or by any means, mechanical, photocopying,
recording or otherwise, without the prior written permission of Ross Video.
While every precaution has been taken in the preparation of this document, Ross
Video assumes no responsibility for errors or omissions. Neither is any liability
assumed for damages resulting from the use of the information contained herein.
Patents
Patent numbers US 7,034,886; US 7,508,455; US 7,602,446; US
7,802,802 B2; US 7,834,886; US 7,914,332; US 8,307,284; US
8,407,374 B2; US 8,499,019 B2; US 8,519,949 B2; US 8,743,292 B2;
GB 2,419,119 B; GB 2,447,380 B; and other patents pending.

3
Important Regulatory and Safety Notices to Service
Personnel
Before using this product and any associated equipment, refer to the
“Important Safety Instructions” listed below to avoid personnel injury and to
prevent product damage.
Product may require specific equipment, and/or installation procedures to be
carried out to satisfy certain regulatory compliance requirements. Notices have
been included in this publication to call attention to these specific requirements.
Symbol Meanings
Protective Earth — This symbol identifies a Protective Earth (PE)
terminal, which is provided for connection of the supply system’s
protective earth (green or green/yellow) conductor.
This symbol on the equipment refers you to important operating and
maintenance (servicing) instructions within the Product Manual
Documentation. Failure to heed this information may present a major
risk of damage or injury to persons or equipment.
Warning — The symbol with the word “Warning” within the
equipment manual indicates a potentially hazardous situation which, if
not avoided, could result in death or serious injury.
Caution — The symbol with the word “Caution” within the
equipment manual indicates a potentially hazardous situation which, if
not avoided, may result in minor or moderate injury. It may also be
used to alert against unsafe practices.
Warning Hazardous Voltages — This symbol is intended to alert
the user to the presence of uninsulated “dangerous voltage” within the
product enclosure that may be of sufficient magnitude to constitute a
risk of shock to persons.
ESD Susceptibility — This symbol is used to alert the user that an
electrical or electronic device or assembly is susceptible to damage
from an ESD event.

4
Important Safety Instructions
1. Warning – Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. The safe operation of this product requires that a protective earth
connection be provided. A grounding conductor in the equipment's
supply cord provides this protective earth. To reduce the risk of
electrical shock to the operator and service personnel, this ground
conductor must be connected to an earthed ground.
6. Do not defeat the safety purpose of the grounding-type plug. A
grounding type plug has two blades and a third grounding prong. The
third prong is provided for your safety. If the provided plug does not
fit in to your outlet, consult an electrician for replacement of the
obsolete outlet. Protect the power cord from being walked on or
pinching particularly at plugs, convenience receptacles, and point
where they exit from the apparatus.
7. Warning – Indoor Use: WARNING: To reduce the risk of fire or
electric shock, do not expose this apparatus to rain or moisture.
8. Do not block ventilation openings. Install in accordance with
manufacturer's instructions.
9. Do not install near heat sources such as radiators, heat registers,
stoves, or other apparatus (including amplifiers) that produce heat.
10. Do not use this apparatus near water.
11. Only use attachments/accessories specified by the manufacturer.
12. Unplug this apparatus during lightning storms or when unused for
long periods of time.
13. Clean only with a dry cloth.
14. To avoid electrical shock, disconnect the A/C power cord before any
servicing.
15. Refer all servicing to qualified personnel. Servicing is required when
the apparatus has been damaged in any way, such as power-supply
cord or plug damage, liquid has been spilled or objects have fallen
into the apparatus, the apparatus has been exposed to rain or moisture,
does not operate normally, or has been dropped.

5
EMC Notices
United States of America
FCC Part 15
This equipment has been tested and found to comply with the limits for a class A
Digital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to
cause harmful interference in which case the user will be required to correct the
interference at his own expense.
Notice — Changes or modifications to this equipment not expressly
approved by Ross Video Limited could void the user’s authority to
operate this equipment.
CANADA
This Class “A” digital apparatus complies with Canadian ICES-003.
Cet appariel numerique de la classe “A” est conforme a la norme NMB-003 du
Canada.
EUROPE
This equipment is in compliance with the essential requirements and other
relevant provisions of CE Directive 93/68/EEC.
INTERNATIONAL
This equipment has been tested to CISPR 22:1997 along with amendments
A1:2000 and A2:2002, and found to comply with the limits for a Class A
Digital device.
Notice — This is a Class A product. In domestic environments, this
product may cause radio interference, in which case the user may
have to take adequate measures.

6
Maintenance/User Serviceable Parts
Routine maintenance to this GearLite product is not required. This product
contains no user serviceable parts. If the module does not appear to be working
properly, please contact Technical Support using the numbers listed under the
“Contact Us” section on the last page of this manual. All GearLite products are
covered by a generous 3-year warranty and will be repaired without charge for
materials or labor within this period. See the “Warranty and Repair Policy”
section in this manual for details.

7
Environmental Information
The equipment that you purchased required the extraction and use
of natural resources for its production. It may contain hazardous
substances that could impact health and the environment.
To avoid the potential release of those substances into the environment and to
diminish the need for the extraction of natural resources, Ross Video encourages
you to use the appropriate take-back systems. These systems will reuse or
recycle most of the materials from your end-of-life equipment in an
environmentally friendly and health conscious manner.
The crossed-out wheeled bin symbol invites you to use these systems.
If you need more information on the collection, reuse, and recycling systems,
please contact your local or regional waste administration.
You can also contact Ross Video for more information on the environmental
performances of our products.

Introduction (Iss. 05) • 8
Introduction
Overview

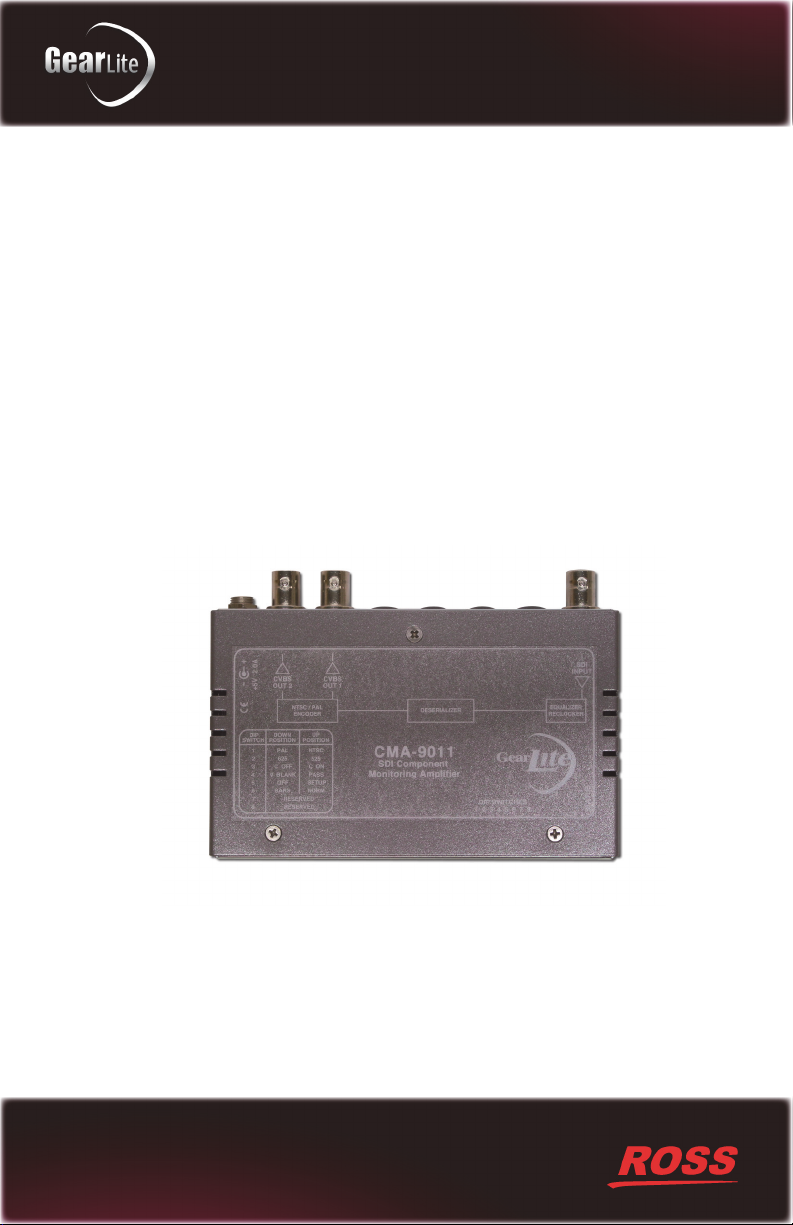

The CMA-9011 SDI Component Monitoring Amplifier is a high quality
monitoring solution for SDI signals and part of a growing family of GearLite
self-contained, small brick-format modules.
The CMA-9011 addresses high quality imaging requirements by converting the
eight MSBs of an SDI Signal to Analog Composite Video (CVBS). A 10bit
DAC and special filtering techniques used in the design achieve a low-artifact
video output.
The front panel of the CMA-9011 chassis provides a power status LED for
visual reference. In addition, user-selectable settings are available to place the
CMA-9011 into the proper operating mode. Some of these modes are:
monochrome output, 75% color bar pattern, and vertical interval blanking.
The CMA-9011provides conversion of 525 and 625 SDI signals (SMPTE
259M). NTSC, PAL, and PAL-N standards are supported. Special measures
have been taken to ensure excellent return loss at both input and output. This
guarantees error-free performance with short cables.
The CMA-9011 is delivered with a universal power adaptor and line cord
suitable for the country of use. Various mounting options are included that allow
a wide range of installation choices. The CMA-9011 provides a
broadcast-quality SDI component monitoring solution in a small, stand-alone
package.
Simplified Block Diagram

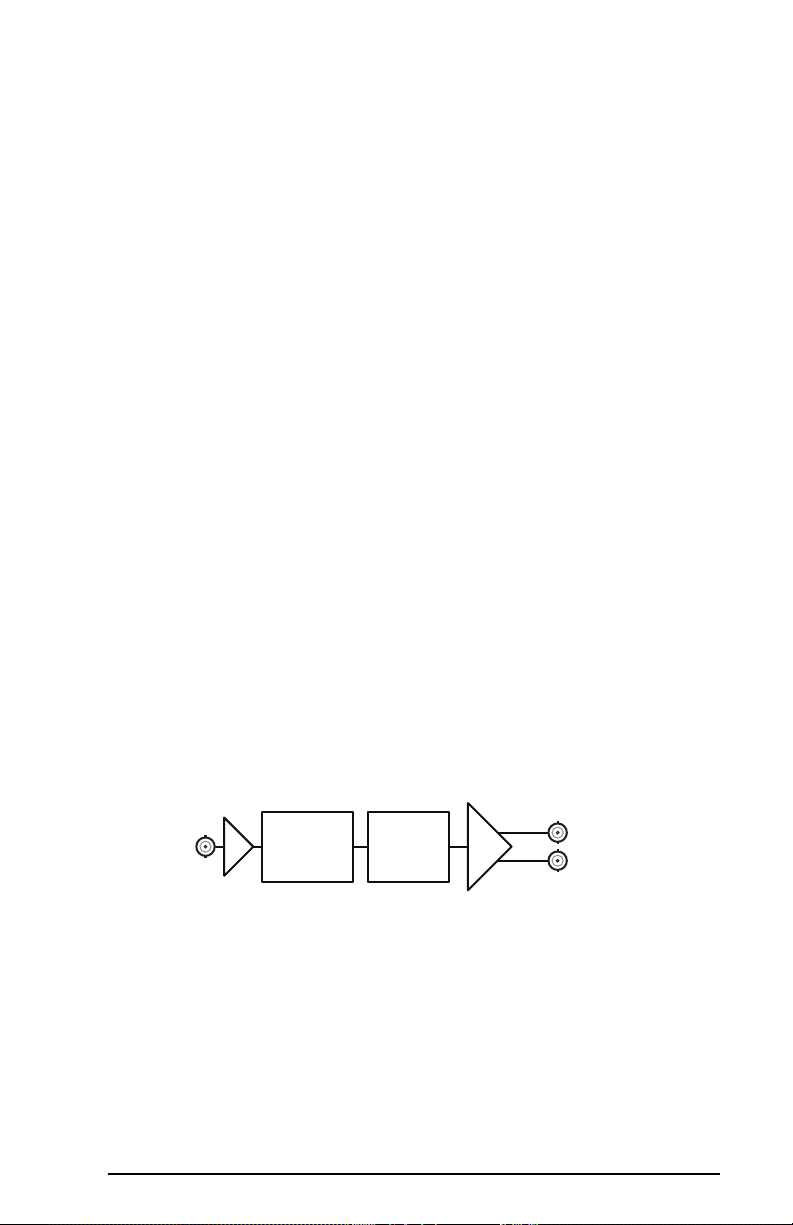

Figure 1 Simplified Block Diagram of CMA-9011 Functions
Features
The CMA-9011 includes the following features:
• NTSC, PAL, or PAL-N ope r a t i on
• 10bit DAC resolution
• 8bit data processing
• Re-clocking to reduce jitter and noise
SDI IN
ANLG CVBS OUT 1
ANLG CVBS OUT 2
EQUALIZER,
RECLOCKER
&
DESERIALIZER
NTSC/PAL
ENCODER

9 • Introduction (Iss. 05)
• Automatic input cable equalization > 250m (> 820ft) of Belden 8281
• Color bar test signal with valid SDI input
• Excellent I/O specifications
• Terminating input 75ohms
• Visual indicator LED for power status
• Small brick form factor
• 5V universal adapter with locking DC connector
• 3-year warranty

Installation (Iss. 05) • 10
Installation
Static Discharge
Whenever handling the CMA-9011 and other related equipment, please observe
all static discharge precautions as described in the following note:
ESD Susceptibility — Static discharge can cause serious damage
to sensitive semiconductor devices. Avoid handling circuit boards in
high static environments, such as carpeted areas, and when wearing
synthetic fiber clothing. Always exercise proper grounding precautions
when working on circuit boards and related equipment.
Unpacking
Unpack each CMA-9011 module you received from the shipping container and
check the contents to ensure that all items are included. If any items are missing
or damaged, contact your sales representative or Ross Video directly.
Mounting and Installation
The CMA-9011 can be mounted in any convenient location. However, to ensure
long life for this product, observe the following precautions and operating
requirements:
• Maintain an ambient temperature of 20°C to 40°C.
• Allow for air circulation around the chassis for convectional cooling.
Many different mounting positions are possible with the included mounting
hardware. Some installation options are permanent and require careful
consideration of the final positioning before installation. Please note that in
some mounting locations, the power adaptor must be affixed in a similar manner
as the chassis.
Other possible options include the use of adhesive magnetic sheets (not
included) affixed to the chassis and the power adaptor, for removable mounting
on metal cabinets etc.
Cable ties may be necessary in some applications to relieve strain on the
mounting hardware and the connectors.
Surface Mount Strips
The included VELCRO® brand surface mount strips allow the GearLite module
and power supply to be affixed to a permanent location during use and easily

11 • Installation (Iss. 05)
removed for adjustments. Carefully consider the installation location before
proceeding; the adhesive is very aggressive and is not easily removed. The
adhesive will cure fully in 24 hours.
To install the Surface Mount Strips
1. Remove the Protective Backing Film from the adhesive on the
bottom of the two VELCRO® brand Surface Mount Strips.
2. Adhere the Surface Mount Strips to the bottom side of the chassis.
(Figure 2)
Figure 2 Surface Mount Installation Option
3. Remove the Protective Backing Film from the other side of the
VELCRO® brand Surface Mount Strips.
4. Press the chassis into position on the surface you want to mount it to.
Operating Tip — An additional VELCRO® brand Surface Mount
Strip is available to mount the power adapter.
Non-Slip Pads
Four non-slip adhesive pads have been supplied for desktop placements. Simply
remove the protective backing film from the adhesive and affix one non-slip pad
to each of the four corners on the bottom of the chassis.
Optional Mounting Accessories
Ross Video is committed to providing practical solutions for the needs of your
high-quality broadcast facility.

Installation (Iss. 05) • 12
Flat Metal Plate
Use the flat metal plate for permanent mounting to a rack, a desk, or any other
location where bolts or screws can be applied. Be sure to position the module to
allow for operator adjustments, if required.
To install the Flat Metal Plate
1. Remove the 2screws from the bottom of the chassis.
2. Install the Flat Metal Plate onto the bottom of the chassis (Figure 3)
using the screws provided in the Mounting Kit. Do not use the screws
removed during Step 1.
Figure 3 Flat Metal Plate Installation Option
3. Install the chassis in the desired location using the Mounting Holes
on the Flat Metal Plate. Mounting screws are not provided by Ross
Video.
Angle Mounting Bracket
The Angle Mounting Bracket (Figure 4) allows a single GearLite module to be
installed in positions not possible with the flat metal plate. The bracket has a 90°
angle. Mounting screws are not provided by Ross Video.

13 • Installation (Iss. 05)
Figure 4 Angle Mounting Bracket

Setup (Iss. 05) • 14
Setup
Power Adapter and Supply
Connect the PS-9000 power adapter to the power supply connector. The
PS-9000 provides up to 2A of regulated +5V DC (5%). The DC power cord has
a locking connector that securely fastens into the power supply DC jack on the
CMA-9011. The CMA-9011 has a standard miniature power jack (center pin
positive).
If using an adapter other than the PS-9000, ensure that:
• the polarity is correct
• the voltage is +5V DC regulated to 5%
• sufficient current for the CMA-9011 is supplied
Caution — Use of improper adapters may damage the CMA-9011
and will void the warranty.
Installations outside of North America using line voltages of 200-240V require a
plug, certified for the country of use, to be installed on the supplied line cord.
Refer to the section “Important Regulatory and Safety Notices to Service
Personnel” at the front of this manual for details.
Cable Connections Overview
Connect the cables to the CMA-9011 according to the designations indicated on
the chassis label and Figure 5. The input is internally terminated at 75ohm. It is
not necessary to terminate unused outputs.
Figure 5 CMA-9011 Connections
DIP Switch Setup
An 8-position DIP switch allows you to configure the CMA-9011 to fit into
almost any installation. (Figure 6) Settings are described in Tabl e 1 .
POWER
SUPPL
Y
SDI IN ANLG CVBS OUT 2
ANLG CVBS OUT 1

15 • Setup (Iss. 05)

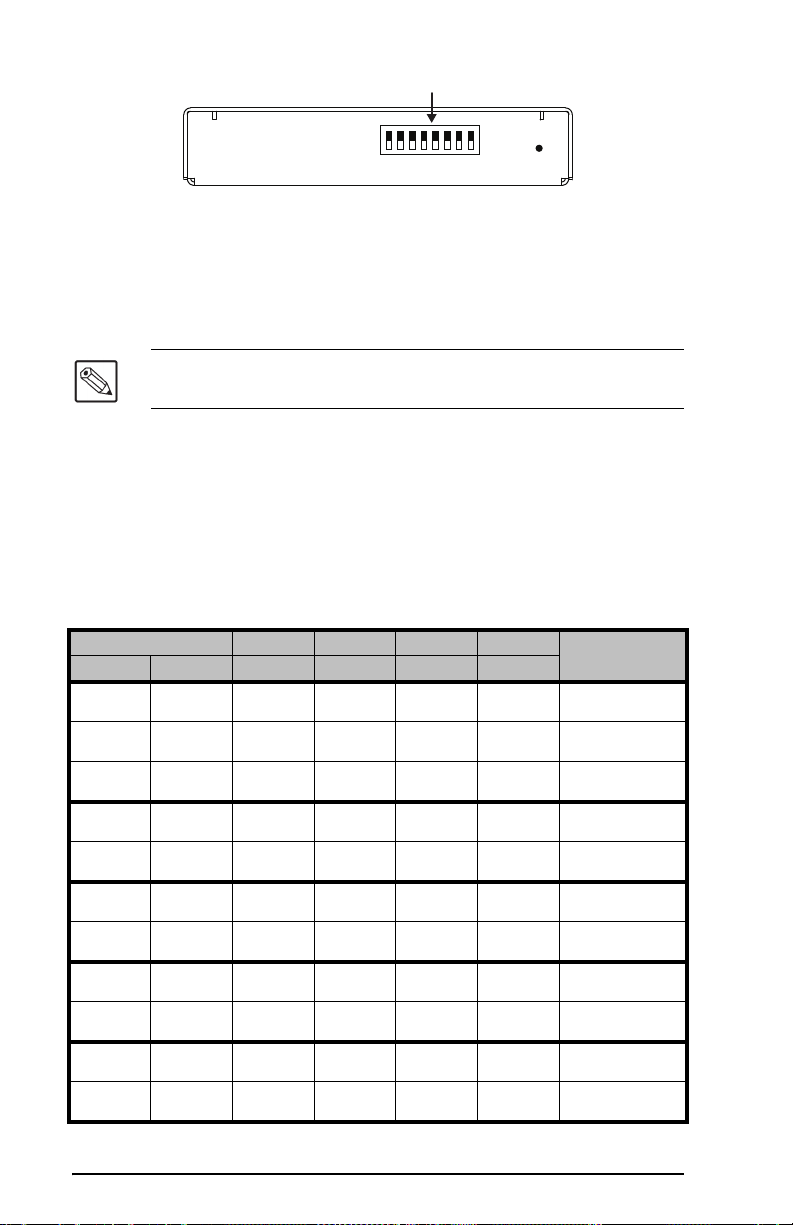

Figure 6 CMA-9011 — DIP Switches
Figure 6 shows all switches in the default UP () position. The DIP switches
are numbered 1-8 starting at the left of the block. The top of the CMA-9011
chassis includes a label that provides a condensed DIP switch settings chart.
This chart is intended as a quick reference guide.
Note — SW1-7 and SW1-8 are not implemented and should be left in
their default UP () position.
Tabl e 1 outlines how to set SW1-1 to SW1-6. The following conventions are
used:
Set the DIP switch in the UP position
Set the DIP Switch in the DOWN position
Table 1 DIP Switch Positions
Video Standard Chroma VI Setup Mode Setting
Selections
SW1-1 SW1-2 SW1-3 SW1-4 SW1-5 SW1-6
 NTSC (525)
 PAL-N (625)
 PAL-B/G (625)
Chroma On
Chroma Off
Pass VI
Blank VI
Setup On
Setup Off
Normal Mode
Color Bars
DIP Switches
1 3 42 5 6 7 8
ON

Setup (Iss. 05) • 16
Status LEDs
The front panel of the module has an LED that displays the status of the
amplifier. Figure 7 indicates the location of the LED and Table 2 describes the
function of the LED.
Figure 7 CMA-9011 Status Indicator LEDs
Table 2 Status LED Descriptions
LED Color Function
STATUS
Green When lit green, this LED indicates that the CMA-9011 is
powered on and functioning correctly.
Flashing
Green
When flashing green, this LED indicates that there is a
problem with the input signal or the CMA-9011 is set to
output Color Bars.
Off When unlit, this LED indicates a loss of power to the
CMA-9011.
STATUS LED
1 3 42 5 6 7 8
ON

17 • Specifications (Iss. 05)
Specifications
Technical Specifications
Specifications are subject to change without notification.
Table 3 CMA-9011 — Technical Specifications
Category Parameter Specification
Serial Digital
Video Input
Number of Inputs 1
Signal Standards
Accommodated
SMPTE 259M (conversion at
270Mbps only)
Input Impedance 75ohm terminating
Return Loss >19dB to 270MHz
Equalization
Automatic, up to 26dB (250m of
Belden 8281 cable) @
270Mbps
Analog
Monitoring
Output
Number of Outputs 2
Video Composite Analog Video
Output Impedance 75ohm
Output Return Loss >45dB to 6MHz
Output Isolation >44dB to 6MHz
Signal Level 1Vp-p nominal
DC Offset for RGB or
Composite Video <± 50mV
Frequency Response ±0.25dB to 5MHz
typically -1dB @ 5.75MHz
Differential Phase <1%
Differential Gain <1°
Outputs Short Circuit
Protected Yes
RMS Noise (unweighted) -53dB 0-5MHz

Specifications (Iss. 05) • 18
Power
Required Voltage +5V DC (5% regulation)
Current Consumption >425mA typical
Total Power >2.2W typical
Other
Operating Range 20°C to 40°C ambient
Dimensions (approx.) 13cm x 9cm x 2.5cm
(5” x 3.5” x 1”)
Weight (approx.) 312g (11oz)
Table 3 CMA-9011 — Technical Specifications
Category Parameter Specification

19 • Service Information (Iss. 05)
Service Information
Warranty and Repair Policy
The GearLite CMA-9011 is warranted to be free of any defect with respect to
performance, quality, reliability, and workmanship for a period of THREE (3)
years from the date of delivery to the customer. In the event that your GearLite
CMA-9011 proves to be defective in any way during this warranty period, Ross
Video Limited reserves the right to repair or replace this piece of equipment
with a unit of equal or superior performance characteristics.
Should you find that this GearLite CMA-9011 has failed after your warranty
period has expired, we will repair your defective product should suitable
replacement components be available. You, the owner, will bear any labor and/
or part costs incurred in the repair or refurbishment of said equipment beyond
the THREE (3) year warranty period.
In no event shall Ross Video Limited be liable for direct, indirect, special,
incidental, or consequential damages (including loss of profits) incurred by the
use of this product. Implied warranties are expressly limited to the duration of
this warranty.
This GearLite SDI Component Monitoring Amplifier User Manual of our
Digital Products line provides all pertinent information for the safe installation
and operation of your GearLite Product. Ross Video policy dictates that all
repairs to the GearLite CMA-9011 are to be conducted only by an authorized
Ross Video Limited factory representative. Therefore, any unauthorized attempt
to repair this product, by anyone other than an authorized Ross Video Limited
factory representative, will automatically void the warranty. Please contact Ross
Video Technical Support for more information.
In Case of Problems
Should any problem arise with your GearLite CMA-9011, please contact the
Ross Video Technical Support Department. (Contact information is supplied at
the end of this publication.)
A Return Material Authorization number (RMA) will be issued to you, as well
as specific shipping instructions, should you wish our factory to repair your
GearLite CMA-9011. If required, a temporary replacement module will be made
available at a nominal charge. Any shipping costs incurred will be the
responsibility of you, the customer. All products shipped to you from Ross
Video Limited will be shipped collect.
The Ross Video Technical Support Department will continue to provide advice
on any product manufactured by Ross Video Limited, beyond the warranty
period without charge, for the life of the equipment.
