Roswell C920-1902 User manual

REV 200423
i-<OSL!Jf L.L.
www.roswel l ma rine. com

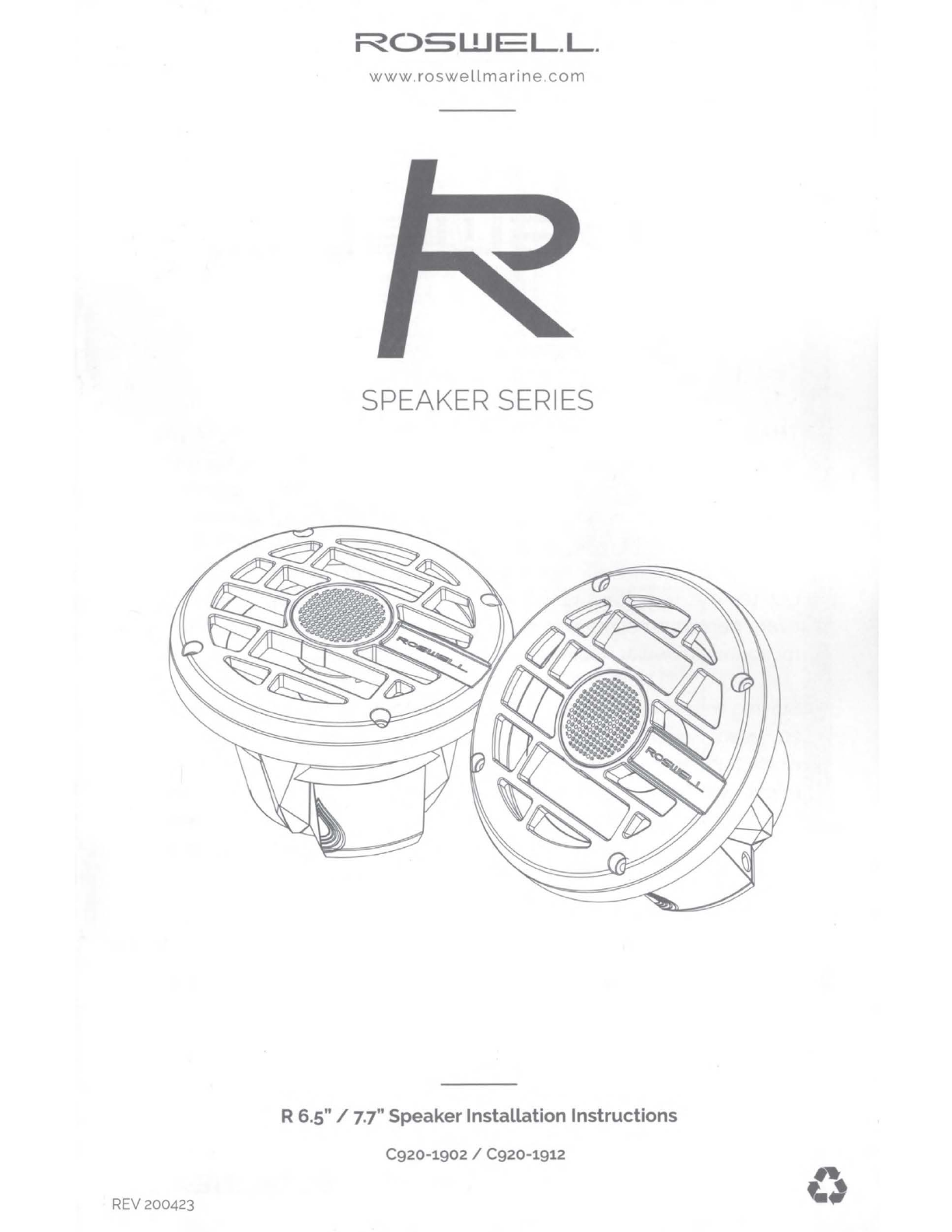

SPEAKER SERIES
R 6. 5" / 7.7" SpeakerInstallation Instructions
C920 - 1902 / C920 - 1912
0

R 6.5" / 7,7'' SpeakerInstallation Instructions
www . roswellmarine.com
RO- ,WEL.L.

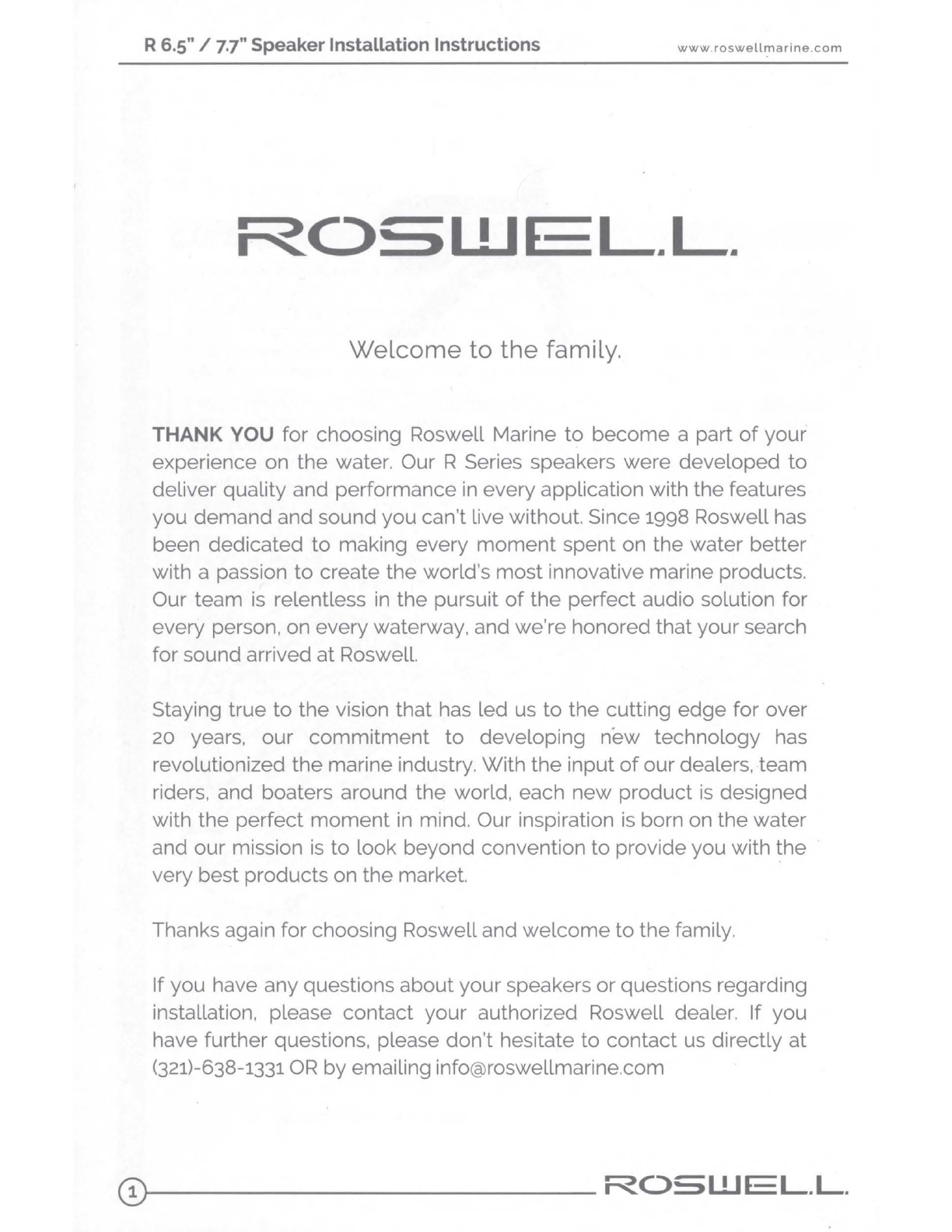

Welcome to the family.
THANK YOU for choosing Roswell Marine to become a part of your
experience on the water. Our R Series speakers were developed to
deliver quality and performance in everyapplication with the features
you demand and sound you can't live without. Since 1998 Roswell has
been dedicated to making every moment spent on the water better
with a passion to create the world's most innovative marine products.
Our team is relentless in the pursuit of the perfect audio solution for
every person, on every waterway, and we're honored that your search
for sound arrived at Roswell.
Staying true to the vision that has led us to the cutting edge for over
20 years, our commitment to developing new technology has
revolutionized the marine industry. With the input of our dealers, team
riders, and boaters around the world, each new product is designed
with the perfect moment in mind. Our inspiration is born on the water
and our mission is to look beyond convention to provide you with the
very best products on the market.
Thanks again for choosing Roswell and welcome to the family.
If you have any questions about yourspeakers or questions regarding
installation, please contact your authorized Roswell dealer. If you
have further questions, please don't hesitate to contact us directly at
(321)-638-1331 OR by emailing info@roswellmarine. com
(D~------------- ROSWEL.L.

R 6.5" / 7.7" Speaker Installation Instructions www.roswellmarine.com
>------ A ____ _____.
r s
DESCRIPTION
6.S"SPECS 7.7"SPECS
A (overall diameter)
6.81 "I 173mm
7.71 "I 1 96mm
B (mounting depth)
3 "/ 76mm
3.46"I 88mm
C(grill height) 1.12
"/ 28.Smm 1.2"/
31mm
D (basket diameter) 5.25"I 133mm 6.26"I 159mm
Nominal Impedance
40 40
Frequency Response 69Hz-20kHz ±3dB 55Hz-20kHz ±3dB
Power 60Watts RMS
80Watts RMS
Sensitivity 87dB @1W/1M 88dB @1W/1M
FEATURES:
• P lug and play installation
• Integrat ed 6 dB/Oct. Crossover Ne t work
• Integratedflying leadconnection foreasyinstallation in ti ght spaces
• Inte gr at ed RGB L ED wi th cont rol l er option
• ASA plastic for marine du rability
• Klip pe l -certified for Guaranteed Performance
i-<OSWf L.L. ---- --------------{ 2

R 6.5" / 7.7" SpeakerInstallation Instructions
www.roswellmarine.com

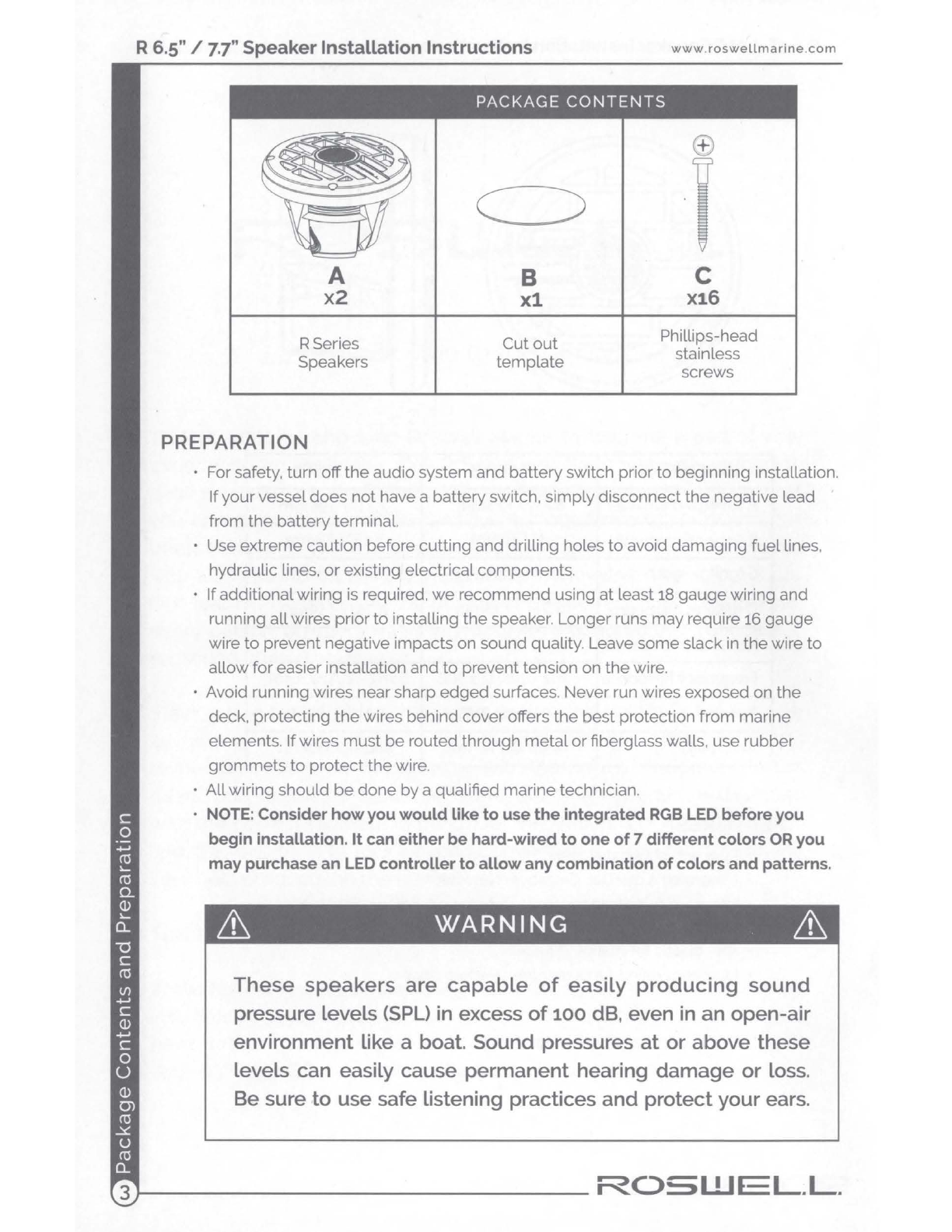

PACKAGE CONTENTS
A
x2
RSeries
Speakers
PREPARATION
B
xl
Cut out
template
i
C
x16
Phillips-head
stainless
screws
For safety, turn off the audio system and batteryswitch prior to beginning installation.
If your vesseldoes not have a battery switch, simplydisconnect the negative lead
from the battery terminal.
Use extreme caution before cutting and drilling holes to avoid damaging fuel lines,
hydraulic lines, or existing electricalcomponents.
Ifadditionalwiring is required, we recommend using at least 18 gaugewiring and
running all wires prior to installing the speaker.Longer runs may require 16 gauge
wire to prevent negative impacts on sound quality. Leave someslack in thewire to
allow foreasier installation and to preventtension on the wire.
· Avoid running wires nearsharp edged surfaces. Neverrun wires exposed on the
deck, protecting the wires behind coveroffers the best protection from marine
elements. If wires must be routed th rough metal or fiberglass walls, use rubber
grommets to protect the wire.
· All wiring should be done by a qualified marine technician.
NOTE: Consider how you would like to use the integrated RGB LED beforeyou
begin installation. It can either be hard-wired to one of 7 different colors OR you
may purchase an LED controller to allow any combination of colors and patterns.
& WARNING &
These speakers are capable of easily producing sound
pressure levels (SPU in excess of 100 dB, even in an open-air
environment like a boat. Sound pressures at or above these
levels can easily cause permanent hearing damage or loss.
Be sure to use safe listening practices and protect your ears.
-------------- ROSWEL.L.

R 6.5" / 7,7" Speaker Installation Instructions
www . roswellmarine . com
TOOLS REQUIRED
Dust Mask Safety
Glasses
-==Cl I
PowerDrill
Masking Tape Center Punch Pen / Pencil
Jigsaw/
Air-saw
Wire Strippers / Crimps
~ (717111 /J
#2 Phillips
Bit
1/8'' & 3/8"
Drill Bit
I Q)==J
Countersink
Bit
18 AWG (Red) HeatShrink Butt Splices(if not using the
OEM quick-connect)
INSTRUCTIONS
Foll ow these illustrated steps to ensure proper installation of your R Series Speakers.
Note: Required tools for each step are Listed in the Left co l umn under each step s Letter.
Locate a suitable area to mount the speaker in yourvessel. Ensure the area is
lar ge enough to evenly mount the speaker and grill. Ensure the area behind the
mounting area is spacious enough to allowproper fit and air flow .
2" clearance
Use the cut out template (C) to
locate and mark the area for the
speakers.
NOTE : If cutting through gelcoat/
fiberglass,use extremecaution
to avoid cracking the gelcoat. We
recommend you tape off the entire
area with low-tack masking tape.
Cut slowlyand carefully.
... ...
... --
First use the 318" drillbitand drillto
startthe hole,then cutthe mounting
holeusingjigsawor air-saw.
ROSWf L.L . ______________ _

R 6.5" / 7,7" Speaker Installation Instructions
www.roswellmarine . com
-=n::=:::J
~
~
~
Place the speakerinto the mounting cutout to ensure it will fit. Remove additional
material if needed. Once the speakerfits properly, align the speaker to the desired
orientation and use a center punch or pencil to mark the mounting holes for the
screws to secure the speaker. Remove speaker from cutout and drill the holes
with a 1/8" drill bit.
1)
--------
c::::::w-= -2)
NOTE: If drillingthrough fiberglass/gelcoat, be sureto run thedrill in reverse untilyou
arethrough thegelcoat, switch thedrillinto forward and finish drillingas normalThen
come backwith acountersink bitand remove thegelcoatsurrounding the hole.This
willhelpavoid cracking/damaging the gelcoataround the mounting location.
Make all connections from the flying lead harness to your in-boatwiring.
flying lead
connection
I
in-boat wiring
I
If you are not using the OEM quick-connect option, the wires may be cut and
crimped as follows:
1) Cut
line--,
Pin Wire
Function
~
Location Color
JJ
1 White Speaker+
2 White/ Speaker-
Black
2) Strip
5/16" of wires and connect
Black
LED12V+
to boat wiring using 18 AWG (Red) 3
Heat Shrink ButtSplices 4
Red Red LED -
o==ro
L5116.J : I 5
Green Green
LED-
I I
butt splice in-boatwiring 6 Blue Blue LED-
-------------- ROSWEL.L.

R6.5" / 7.7" Speaker Installation Instructions
www.roswell m ar i ne . co m
i
Using a #2 phillips-head bit, secure the speaker toth e mo unting location
using (4 ) phillips-head scre ws per speaker.
RECOMMENDED CROSSOVER SETTINGS
With
Subwoofer
Without
Subwoofer
6.5" 7.7"
90-100 Hz depending on 70-80 Hz depend i ng on
Listening Preferences listening preferences
70-80 Hz depending on 50 - 60 Hz depend i ng on
listening preferences listening preferences
Gain setting will be dependenton output voltage of the head unit and RMS
power of theamplifierused. Be carefulwhensetting the amplifierand during
listening sessions; burntvoice coils are not covered underwarranty.
ROSWI L.L. _________ _ ___ _

R6.5" / 7.7" Speaker Installation Instructions
www.roswellmarine . com

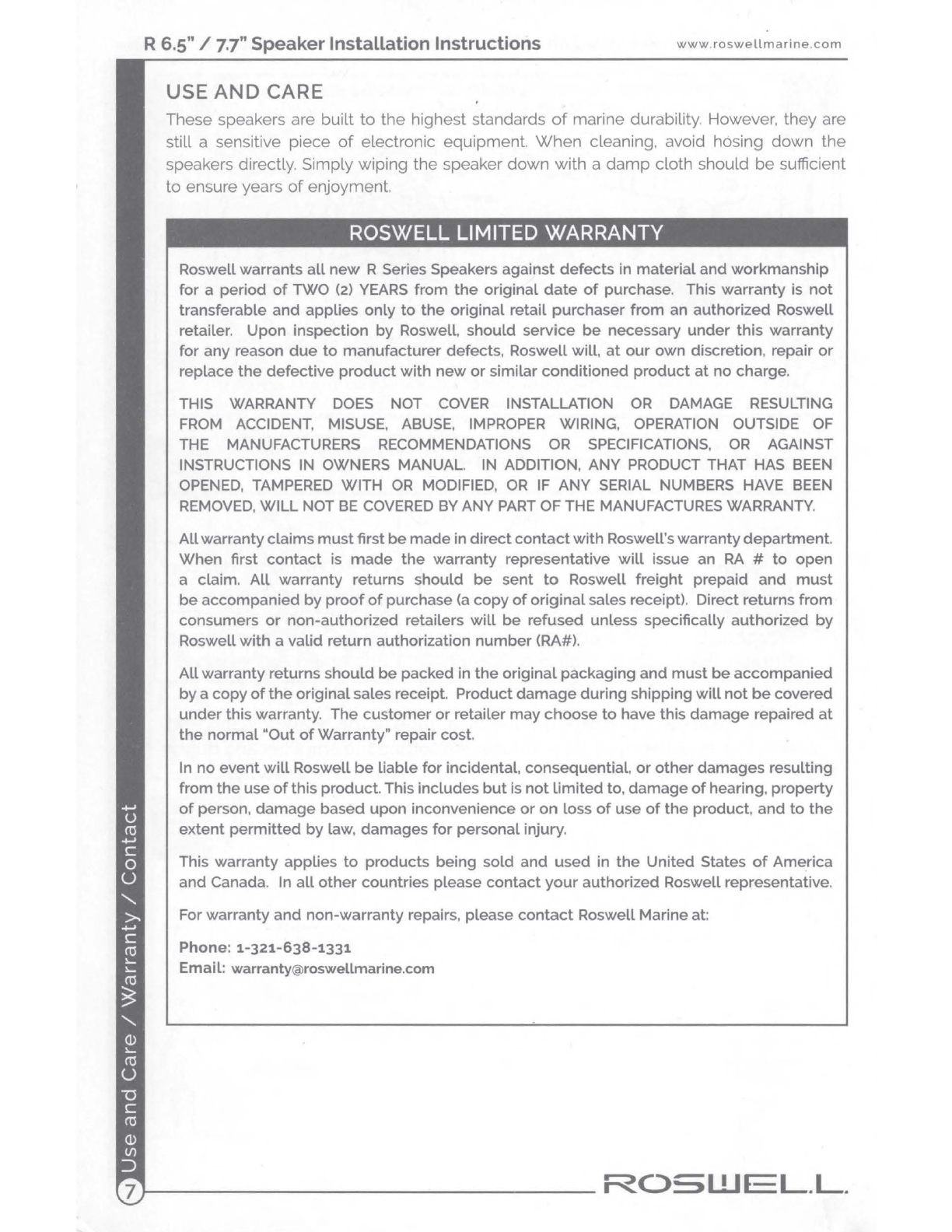

USE AND CARE
These speakers are bui lt to the highest standards of marine du rabilit y. However, th ey are
s till a sensitive piece of ele ct ronic equ ipment. When cl eaning, avoid hosi ng do wn the
speakers dir e ctl y. Simply wiping the speaker down with a damp clo th should be sufficie nt
to ensure years of enjoyment.
ROSWELL LIMITED WARRANTY
Roswell warrants all new R Series Speakers against defects in material and workmanship
for a period of TWO (2) YEARS from the original date of purchase. This warranty is not
transferable and applies only to the original retail purchaser from an authorized Roswell
retailer. Upon inspection by Roswell, should service be necessary under this warranty
for any reason due to manufacturer defects, Roswell will, at our own discretion, repair or
replace the defective product with new or similar conditioned product at no charge.
THIS WARRANTY DOES NOT COVER INSTALLATION OR DAMAGE RESULTING
FROM ACCIDENT, MISUSE, ABUSE, IMPROPER WIRING, OPERATION OUTSIDE OF
THE MANUFACTURERS RECOMMENDATIONS OR SPECIFICATIONS, OR AGAINST
INSTRUCTIONS IN OWNERS MANUAL. IN ADDITION, ANY PRODUCT THAT HAS BEEN
OPENED, TAMPERED WITH OR MODIFIED, OR IF ANY SERIAL NUMBERS HAVE BEEN
REMOVED, WILL NOT BE COVERED BY ANY PART OF THE MANUFACTURES WARRANTY.
ALL warranty claims must first be made in direct contact with Roswell'swarranty department.
When first contact is made the warranty representative will issue an RA # to open
a claim . All warranty returns should be sent to Roswell freight prepaid and must
be accompanied by proof of purchase (a copy of original sales receipt). Direct returns from
consumers or non-authorized retailers will be refused unless specifically authorized by
Roswell with a valid return authorization number (RA#).
All warranty returns should be packed in the original packaging and must be accompanied
by a copy of the originalsales receipt. Product damage during shipping will not be covered
under this warranty . The customer or retailer may choose to have this damage repaired at
the normal "Out of Warranty " repair cost.
In no event will Roswell be liable for incidental, consequential, or other damages r esulting
from the use of this product. This includes but is not limited to , damage of hearing, property
of person, damage based upon inconvenience or on loss of use of the product , and to the
extent permitted by Law, damages for personal injury.
This warranty applies to products being sold and used in the United States of America
and Canada. In all other countries please contact your authorized Roswell representative.
For warranty and non-warranty repairs, please contact Roswell Marineat:
Phone : [phone]
Email: [e-mail]
