Rotary R573 Manual

O
P
E
R
A
T
I
O
N
&
M
A
I
N
T
E
N
A
N
C
E
M
A
N
U
A
L
© Month And Date by Vehicle Service Group. All rights reserved. CO
IMPORTANT Any damage caused by failure to follow the instructions in this manual or improper machine
use shall relieve the manufacturer of all liability.
O
P
E
R
A
T
I
O
N
&
M
A
I
N
T
E
N
A
N
C
E
M
A
N
U
A
L

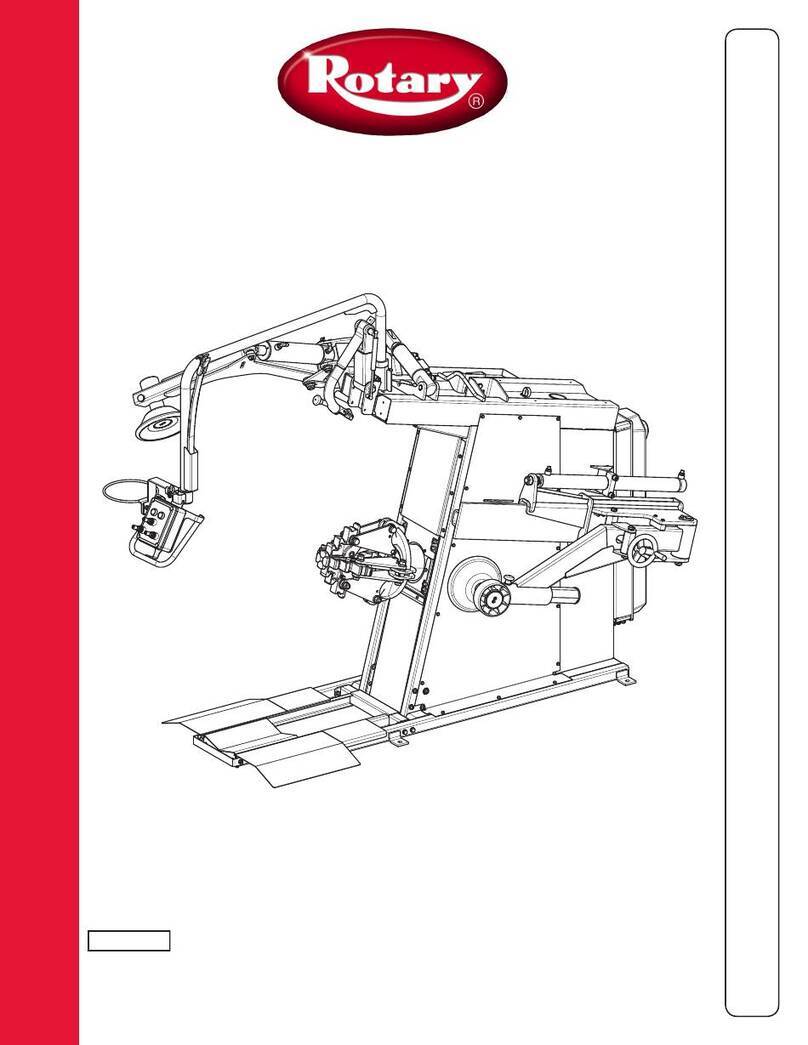

R573 - R573BT Tire Changer
7522-M006-00
Rev. n. 00 (09/2020)

SUMMARY
GENERAL DESCRIPTION __________________________ 4
SYMBOLS USED IN THE MANUAL __________________ 5
INFORMATION PLATE LOCATION TABLE______________ 6
1.0 GENERAL INTRODUCTION ___________________ 8
1.1 Introduction __________________________________ 8
2.0 INTENDED USE ____________________________ 8
2.1 Training of personnel ___________________________ 8
3.0 SAFETY DEVICES___________________________ 9
3.1 Residual risks_________________________________ 9
4.0 IMPORTANT SAFETY INSTRUCTIONS _________ 10
4.1 General safety rules___________________________ 10
5.0 PACKING AND MOBILIZATION FOR
TRANSPORT _____________________________ 11
6.0 UNPACKING _____________________________ 12
7.0 MOBILIZATION ___________________________ 12
8.0 WORKING ENVIRONMENT CONDITIONS_______ 13
8.1 Working position _____________________________ 13
8.2 Installation space ____________________________ 13
8.3 Lighting ____________________________________ 13
9.0 MACHINE ASSEMBLY______________________ 13
9.1 Anchoring system ____________________________ 13
9.2 Fixtures contained in the packing ________________ 13
10.0 ELECTRICAL CONNECTIONS_________________ 14
10.1 Oil check on oil-pressure power unit______________ 14
10.2 Check of motor rotation direction ________________ 15
10.3 Electrical checks _____________________________ 15
11.0 CONTROLS ______________________________ 16
11.1 Cable control device __________________________ 16
11.2 Control device with bluetooth transmission
(standard on some models) _____________________ 17
12.0 USING THE MACHINE______________________ 18
12.1 Precaution measures during tyre removal and fitting _ 18
12.2 Preliminary operations_________________________ 18
12.3 Preparing the wheel __________________________ 18
12.4 Wheel clamping______________________________ 18
12.5 Functioning of tool holder arm ___________________ 20
12.5.1 Tools rotation ____________________________ 20
12.5.2 Tools unit extraction/insertion________________ 20
12.6 Tubeless tyres _______________________________ 21
12.6.1 Bead breaking____________________________ 21
12.6.2 Demounting______________________________ 22
12.6.3 Mounting________________________________ 23
12.7 Tyres with inner tube __________________________ 25
12.7.1 Bead breaking____________________________ 25
12.7.2 Demounting______________________________ 26
12.7.3 Mounting________________________________ 27
12.8 Wheels with bead wire ________________________ 29
12.8.1 Beading and demounting ___________________ 29
12.8.2 Mounting________________________________ 30
13.0 ROUTINE MAINTENANCE___________________ 31
14.0 TROUBLESHOOTING TABLE _________________ 34
15.0 TECHNICAL DATA _________________________ 36
15.1 Technical electrical data _______________________ 36
15.2 Technical mechanical data _____________________ 36
15.3 Dimensions _________________________________ 37
16.0 STORING ________________________________ 38
17.0 SCRAPPING _____________________________ 38
18.0 REGISTRATION PLATE DATA_________________ 38
19.0 FUNCTIONAL DIAGRAMS ___________________ 38
Table A - Electric diagram ___________________________ 39
Table B - Electric diagram (version with bluetooth) ________ 44
Table C - Oil-pressure diagram ________________________ 59
2

Model
FEATURE
R573
R573BT
Tools unit  
Control unit 
Bluetooth control unit 
Self-braking chuck motor  
= standard
3

GENERAL DESCRIPTION FIG. 1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
KEY
1 - Main switch
2 - Selector 1-0-2 self-centring chuck speed control
3 - Tools carriage translation cylinder
4 - Hydraulic power unit
5 - Self-centring chuck
6 - Bead breaking disc
7 - Tool
8 - Jack
9 - Tools holder arm
10 - Tools unit
11 - Chuck carriage translation cylinder
12 - Tools unit positioning lever
13 - Tools carriage
14 - Chuck rotation motor
15 - Chuck carriage
16 - Chuck arm
17 - Chuck opening/closing cylinder
18 - Electric cabinet
19 - Control unit
20 - Movable footboard
21 - Tools holder arm release cylinder
22 - Ramp
23 –Bluetooth handle control (standard on some models)
24 - Standard clamp protections for alloy rims
25 - Clamp for earth moving wheels
26 - Long bead lever
4

SYMBOLS USED IN THE MANUAL
Symbols Description
Read instruction manual.
Wear work gloves.
Wear work shoes.
Wear safety goggles.
Mandatory. Operations or jobs to be per-
formed compulsorily.
Danger! Be particularly careful.
Warning. Be particularly careful (possible
material damages).
Symbols Description
Move with fork lift truck or pallet truck.
Lift from above.
Technical assistance necessary.
Do not perform any intervention.
Risk of crushing and collisions (tools holder
shaft).
Danger: tyre could fall.
Note. Indication and/or useful information.
5

INFORMATION PLATE LOCATION TABLE
VS999918391
VS999918410
VS999911770
VS99990758
VSB1541000
VSB1541000
VS999912850
VSB2167000
VS999912090
VS999912880
VS999912860
VS999912840
VS999912870
●
VSB6419000
VS999912380
VS999916311
VSB6419000
VSB4221000
VS999923820
VS999923160
VS999923830
VS999921101
VS999918410
VSB6419000
VS999921101 VS999918391
VSB4219000
6

Code numbers of plates
VSB1541000 Danger plate
VSB2167000 Obligation to wear protection clothing plate
VSB4219000 Rotation indicating plate
VSB4221000 Grounding plate
VSB6419000 Rotation plate
VS99990758 Electricity danger plate
VS999911770 Unit move indicating plate
VS999912090 Tyre fall danger plate
VS999912380 400V 50Hz 3Ph voltage plate
VS999912840 Danger plate 1
VS999912850 Danger plate 2
VS999912860 Danger plate 3
VS999912870 Danger plate 4
VS999912880 Danger plate 5
VS999916311 Rubbish skip plate
VS999918391 Handle control plate
VS999918410 Self-centring chuck plate
VS999921101 Double speed nameplate
VS999923160 Prop 65 Attention plate
VS999923820 Rotary R573 plate
VS999923830 Rotary R573 plate
•Serial number plate
♦Manufacturer plate
IF ONE OR MORE PLATES DISAPPEAR FROM THE MACHINE OR BECOMES DIFFICULT TO READ. REPLACE IT AND QUOTE
ITS/THEIR CODE NUMBER/S WHEN REORDERING.
7

SOME OF THE PICTURES PRESENT IN THIS MAN-
UAL HAVE BEEN OBTAINED FROM PICTURES
OF PROTOTYPES, THEREFORE THE STANDARD
PRODUCTION MACHINES AND ACCESSORIES
CAN BE DIFFERENT IN SOME COMPONENTS.
1.0 GENERAL INTRODUCTION
This manual is an integral part of the product and must be retained
for the whole operating life of the machine.
Carefully study the warnings and instructions contained in this
manual. It contains important instructions regarding functioning,
SAFE USE and MAINTENANCE.
KEEP THE MANUAL IN A KNOWN, EASILY AC-
CESSIBLE PLACE FOR ALL ACCESSORY OPERA-
TORS TO CONSULT IT WHENEVER IN DOUBT.
THE MANUFACTURER DISCLAIMS ALL RESPON-
SIBILITY FOR ANY DAMAGE OCCURRED WHEN
THE INDICATIONS GIVEN IN THIS MANUAL ARE
NOT RESPECTED: AS A MATTER OF FACT, THE
NON-COMPLIANCE WITH SUCH INDICATIONS
MIGHT LEAD TO EVEN SERIOUS DANGERS.
1.1 Introduction
Thank you for preferring this electro-hydraulic tyre changer. We
feel sure you will not regret your decision.
This machine has been designed for use in professional workshops
and in particular it stands out for its reliability and easy, safe and
rapid operation: with just a small degree of maintenance and care,
this tyre changer will give you many years of trouble-free service
and lots of satisfaction.
2.0 INTENDED USE
The machines described in this manual and their different ver-
sions are tyre changers with electro-hydraulic working, to be
used only for the mounting and demounting of any type of wheel
with whole rim (with groove and bead wire), with dimension and
weight values described in “Technical specifications” chapter.
The machines described in this manual and their different ver-
sions are NOT to be used for tyre inflation.
THIS MACHINE MUST BE USED STRICTLY FOR
THE INTENDED PURPOSE IT WAS DESIGNED
FOR (AS INDICATED IN THIS MANUAL).
THE MANUFACTURER CANNOT BE HELD RE-
SPONSIBLE FOR ANY DAMAGE CAUSED BY IM-
PROPER, ERRONEOUS, OR UNACCEPTABLE USE.
2.1 Training of personnel
The machine may be operated only by suitably trained and author-
ized personnel.
Given the complexity of the operations necessary to manage the
machine and to carry out the operations safely and efficiently, the
personnel must be trained in such a way that they learn all the
information necessary to operate the machine as intended by the
manufacturer.
A CAREFUL READING OF THIS INSTRUCTION
MANUAL FOR USE AND MAINTENANCE AND
A SHORT PERIOD OF TRAINING WITH SKILLED
PERSONNEL CAN BE AN ENOUGH PREVENTIVE
PREPARATION.
8

3.0 SAFETY DEVICES
PERIODICALLY, AT LEAST MONTHLY, CHECK THE INTEGRITY AND THE FUNCTIONALITY OF THE SAFETY AND PROTEC-
TION DEVICES ON THE MACHINE.
All the machines are equipped with:
• “man-operated”controls(immediatestopofoperationwhenthecontrolisreleased).
• Control logic disposition
To prevent the operator from making dangerous mistakes.
• Thermalmagneticswitchonthesupplylineoftheoil-pressurepowerunitmotor:avoidsthemotoroverheatingincaseofintensiveuse.
NO MODIFICATION OR CALIBRATION OF THE OPERATING PRESSURE OF THE MAXIMUM PRESSURE VALVE OR OF THE
HYDRAULIC CIRCUIT PRESSURE LIMITER IS PERMITTED.
• controlledcheckvalveson:
- opening of chuck clamps,
- chuck arm lifting,
- tool holding arm tilting.
These valves have been fit in order to avoid unexpected movements of the clamps, tool or chuck arm (and, as a consequence, the
wheel fall) caused by accidental oil drippings.
• Fusesontheelectricsupplylineofthechuckmotor;
• Automaticpowersupplydisconnectionwiththeopeningoftheelectriccabinet.
• Chuckself-brakingmotor.
• Fixedprotectionsandguards
The machine is fitted with a number of fixed guards intended to prevent potential crushing, cutting and compression risks. These pro-
tections have been realized after risks evaluation and after all machine operative situations have been considered. These protections
can be located in the figure below.
Fig. 2
3.1 Residual risks
The machine was subjected to a complete analysis of risks according to reference standard EN ISO 12100. Risks are as reduced as pos-
sible in relation with technology and product functionality. Possible residual risks have been emphasized through pictorial representations
and warnings which placing is indicated in “ PLATE POSITIONING TABLE” at page 6.
9

4.1 General safety rules
• Anytampering withormodication to themachine not previ-
ously authorized by the manufacturer exempts the latter from all
responsibility for damage caused by or derived from said actions.
• Removingof or tamperingwith the safetydevicesor with the
warning signals placed on the machine leads to serious dangers
and represents a transgression of European safety rules.
• Useofthemachineisonlypermittedinplacesfreefromexplosion
or fire hazard and in dry places under cover.
• Originalsparepartsandaccessoriesshouldbeused.
THE MANUFACTURER DENIES ANY RESPON-
SIBILITY IN CASE OF DAMAGES CAUSED BY
UNAUTHORIZED MODIFICATIONS OR BY THE
USE OF NON ORIGINAL COMPONENTS OR
EQUIPMENT.
• Theinstallationmustbeperformedbyqualiedandauthorized
personnel in full compliance with the instructions given below.
• Ensurethattherearenodangeroussituationsduringthemachine
operating manoeuvres. Immediately stop the machine if it miss-
functions and contact the assistance service of an authorized
dealer.
• Inemergencysituationsandbeforecarryingoutanymaintenance
or repairs, disconnect all supplies to the machine by using the
main switch.
• Themachineelectricalsupplysystemmustbeequippedwithan
appropriate earthing, to which the yellow-green machine protec-
tion wire must be connected.
• Ensurethattheworkareaaroundthemachineisfreeofpotentially
dangerous objects and that there is no oil since this could damage
the tyre. Oil on the floor is also a potential danger for the operator.
OPERATORS MUST WEAR SUITABLE WORK
CLOTHES, PROTECTIVE GLASSES AND GLOVES,
AGAINST THE DANGER FROM THE SPRAYING
OF DANGEROUS DUST, AND POSSIBLY LOWER
BACK SUPPORTS FOR THE LIFTING OF HEAVY
PARTS. DANGLING OBJECTS LIKE BRACELETS
MUST NOT BE WORN, AND LONG HAIR MUST BE
TIED UP. FOOTWEAR SHOULD BE ADEQUATE FOR
THE TYPE OF OPERATIONS TO BE CARRIED OUT.
4.0 IMPORTANT SAFETY INSTRUCTIONS
When using your garage equipment, basic safety precautions should
always be followed, including the following:
1. Read all instructions.
2. Care must be taken as burns can occur from touching hot parts.
3. Do not operate equipment with a damaged cord or if the equip-
ment has been dropped or damaged – until it has been examined
by a qualified service person.
4. Do not let a cord hang over the edge of the table, bench, or
counter or come in contact with hot manifolds or moving fan
blades.
5. If an extension cord is necessary, a cord with a current rating
equal to or more than that of the equipment should be used.
Cords rated for less current than the equipment may overheat.
Care should be taken to arrange the cord so that it will not be
tripped over or pulled.
6. Always unplug equipment from electrical outlet when not in use.
Never use the cord to pull the plug from the outlet. Grasp plug
and pull to disconnect.
7. Let equipment cool completely before putting away. Loop cord
loosely around equipment when storing.
8. To reduce the risk of fire, do not operate equipment in the vicinity
of open containers of flammable liquids (gasoline).
9. Adequate ventilation should be provided when working on
operating internal combustion engines.
10. Keep hair, loose clothing, fingers, and all parts of body away
from moving parts.
11. To reduce the risk of electric shock, do not use on wet surfaces
or expose to rain.
12. Use only as described in this manual. Use only manufacturer’s
recommended attachments.
13. ALWAYS WEAR SAFETY GLASSES. Everyday eyeglasses only
have impact resistant lenses, they are not safety glasses.
14. To reduce the risk of injury, close supervision is necessary when
this product will be used around children. (Pertains to cabinets
only.)
15. To reduce the risk of injury, never overload the drawers or
shelves. Refer to loading instructions.
16. To reduce the risk of electric shock or fire, never overload re-
ceptacles. Refer to markings for the proper load on receptacles.
SAVE THESE INSTRUCTIONS
10

• Themachinehandlesandoperatinggripsmustbekeptcleanand
free from oil.
• Theworkshopmustbekeptclean,dryandnotexposedtoatmos-
pheric agents. Make sure that the working premises are properly
lit.
The machine can be operated by a single operator. Unauthorized
personnel must remain outside the working area, as shown in
Fig. 5.
Avoid any hazardous situations. Do not use air-operated or elec-
trical equipment when the shop is damp or the floor slippery and
do not expose such tools to atmospheric agents.
• Whenoperatingandservicingthismachine,carefullyfollowall
applicable safety and accident-prevention precautions.
The machine must not be operated by untrained personnel.
THE MACHINE OPERATES WITH PRESSURIZED
HYDRAULIC FLUID. MAKE SURE EVERY COMPO-
NENT OF THE HYDRAULIC CIRCUIT IS ALWAYS
PROPERLY LOCKED, ANY PRESSURIZED LEAKS
MAY CAUSE SERIOUS INJURIES OR WOUNDS.
IN CASE OF A CHANCE SUPPLY FAILURE
(WHETHER ELECTRICITY OR OIL-PRESSURE),
MOVE THE CONTROLS TO THE NEUTRAL POSI-
TION.
5.0 PACKING AND MOBILIZATION FOR TRANSPORT
HAVE THE MACHINE HANDLED BY SKILLED PERSONNEL ONLY.
THE LIFTING EQUIPMENT MUST WITHSTAND A MINIMUM
RATED LOAD EQUAL TO THE WEIGHT OF THE PACKED MACHINE
(SEE PARAGRAPH “TECHNICAL SPECIFICATIONS”).
The machine is packed completely assembled.
The displacement must be performed through adequate lifting de-
vice (pallet truck or fork lift truck). Lift the packaging as indicated
in Fig. 3 (forks introduced in the middle to ensure a correct loads
distribution).
Fig. 3
11

6.0 UNPACKING
DURING UNPACKING, ALWAYS WEAR GLOVES
TO PREVENT ANY INJURY CAUSED BY CONTACT
WITH PACKAGING MATERIAL (NAILS, ETC.).
After removing the packing, and in the case of the machine packed
fully assembled, check that the machine is complete and that there
is no visible damage. If in doubt do not use the machine and refer
to professionally qualified personnel (to the seller). The packaging
elements (plastic bags, polystyrene foam, nails, screws, wood, etc.)
must be collected up and disposed of through according to the in
force laws, except for the pallet, which could be used again for
subsequent machine handling.
THE BOX CONTAINING THE FIXTURES IS CON-
TAINED IN THE WRAPPING. DO NOT THROW IT
AWAY WITH THE PACKING.
7.0 MOBILIZATION
If the machine has to be moved.
THE LIFTING EQUIPMENT MUST WITHSTAND A MINIMUM
RATED LOAD EQUAL TO THE WEIGHT OF THE MACHINE (SEE
PARAGRAPH TECHNICAL SPECIFICATIONS). DO NOT ALLOW
THE LIFTED MACHINE TO SWING.
If the machine has to be moved from its normal work post, the move-
ment must be conducted following the instructions listed below.
• Protectthe exposedcornerswith suitable material (Pluribol/
cardboard).
• Donotusemetalliccablesforlifting.
• Movethechucktocompletelyloweredpositionandinthecentre
of the machine in order to ensure a correct load balancing.
• Movethetoolcarriagetolimitswitchtowardsthechuck.
• Disconnectallmachinepowersupplysources.
• Slingwiththreesufcientlylongbelts(300cmatleast)andwith
capacity load at least equal to machine weight (see Fig. 4).
• Liftandtransportwithsuitabledevicewithadequatedimensions.
Fig. 4
12

8.0 WORKING ENVIRONMENT CONDITIONS
The machine must be operated under proper conditions as follows:
• temperature:0°+55°C
• relativehumidity:30-95%(dew-free)
• atmosphericpressure:860-1060hPa(mbar).
The use of the machine in ambient conditions other than those
specified above is only allowed after prior agreement with and ap-
proval of the manufacturer.
8.1 Working position
In Fig. 5 it's possible to define working positions A, B, C, D which
will be referred to in the description of machine operative phases.
Positions A and B must be considered as main positions for tyre
mounting and demounting and for wheel clamping on the chuck,
while positions C and D are the best positions to follow tyre bead
breaking and demounting operations.
Working in these positions allows better precision and speed during
operating phases as well as greater safety for the operator.
8.2 Installation space
FIG. 5
~ 2000 mm
~ 2000 mm
~ 1000 mm
A
B
C D
78,74"
78,74"
39,37"
INSTALL THE MACHINE INDOORS OR IN A ROOFED AREA.
PLACE OF INSTALLATION MUST BE DRY, ADEQUATELY LIT AND
IN COMPLIANCE WITH APPLICABLE SAFETY REGULATIONS.
The location of the machine requires a usable space as indicated
in Fig. 5). The positioning of the machine must be according to the
distances shown. From the control position the operator is able to
observe all the machine and surrounding area. He must prevent
unauthorized personnel or objects that could be dangerous from
entering the area.
The machine must be fixed on a flat floor surface, preferably of
cement or tiled. Avoid yielding or irregular surfaces.
The base floor must be able to support the loads transmitted dur-
ing operation. This surface must have a capacity load of at least
500 kg/m².
The depth of the solid floor must be sufficient to guarantee that the
anchoring bolts hold.
8.3 Lighting
The machine does not require its own lighting for normal working
operations. However, it must be placed in an adequately lit environ-
ment.
For correct lighting, use lamps having total power 800/1200 Watt as
envisaged by UNI 10380.
9.0 MACHINE ASSEMBLY
EACH MECHANICAL INTERVENTION MUST BE
CARRIED OUT BY PROFESSIONALLY QUALIFIED
STAFF.
9.1 Anchoring system
The packed machine is fixed to the support pallet through the holes
prearranged on the frame. Such holes can be used also to fix the
machine to the ground, through floor anchor small blocks (excluded
from supply). Before carrying out the definitive fixing, check that all
the anchor points are laid down flat and correctly in contact with
the fixing surface itself. If not so, insert shimming profiles between
the machine and the fixing lower surface, as indicated in Fig. 6.
Fig. 6
b
a
X
X
X
1
X
X
a=1216 mm /
47.87”
b=2606 mm /
102.60”
• Execute4holeswith12mmdiameterontheoorbytheholeson
thebottomoor;
• insertthesmallblocks(excludedfromsupply)intotheholes;
• xthemachinetothegroundwith4M12x120mmscrews(ex-
cluded from supply) (Fig. 6 ref. 1) (or with 4 12x80 mm stud bolts
(excluded from supply)). Tighten the screws with an approximate
tightening torque of 70 Nm.
9.2 Fixtures contained in the packing
The packing case contains also the fixtures box.
Check that all the parts listed are there.
Description Qty
Clamp for earth moving wheels 1
tandard clamp protections for alloy rims 1
Long bead lever 1
13

10.0 ELECTRICAL CONNECTIONS
EVEN THE TINIEST PROCEDURE OF AN ELEC-
TRICAL NATURE MUST BE CARRIED OUT BY
PROFESSIONALLY QUALIFIED STAFF.
BEFORE CONNECTING THE MACHINE MAKE
SURE THAT:
•THEMAINPOWERRATINGCORRESPONDSTO
THE MACHINE RATING AS SHOWN ON THE
MACHINEPLATE;
•ALLMAINPOWERCOMPONENTSAREINGOOD
CONDITION;
•THE ELECTRICAL SYSTEM IS PROPERLY
GROUNDED (GROUND WIRE MUST BE THE
SAME CROSS-SECTION AREA AS THE LARG-
ESTPOWERSUPPLYCABLESORGREATER);
•MAKESURETHATTHEELECTRICALSYSTEM
FEATURES A CUTOUT WITH DIFFERENTIAL
PROTECTION SET AT 30 MA.
As envisaged by the regulations in force, the machine is not
equipped with a master circuit breaker, but simply has a plug-socket
connection to the electrical mains.
The machine is supplied with a cable. A plug corresponding to the
following requirements must be connected to the cable:
For any other type of power supply, ask the manufacturer at the
time of purchase: a machine functioning under the required voltage
conditions will be prepared.
FIT A TYPE-APPROVED (AS REPORTED BEFORE)
PLUG TO THE MACHINE CABLE (THE GROUND
WIRE IS YELLOW/GREEN AND MUST NEVER
BE CONNECTED TO ONE OF THE TWO PHASE
LEADS).
MAKE SURE THAT THE ELECTRICAL SYSTEM
IS COMPATIBLE WITH THE RATED POWER AB-
SORPTION SPECIFIED IN THIS MANUAL AND
APT TO ENSURE THAT VOLTAGE DROP UNDER
FULLLOAD WILLNOTEXCEED 4%OFRATED
VOLTAGE(10%UPONSTART-UP).
IN CASE OF A CHANCE SUPPLY FAILURE, AND/OR
BEFORE ANY POWER SUPPLY CONNECTIONS,
MOVE THE PEDALS TO THE NEUTRAL POSITION.
10.1 Oil check on oil-pressure power unit
ANY OIL-PRESSURE INTERVENTION MUST BE
CARRIED OUT BY PROFESSIONALLY QUALIFIED
STAFF.
THE OIL-PRESSURE POWER UNIT IS DELIVERED
WITHOUT HYDRAULIC OIL, THEREFORE MAKE
SURE THE TANK PROVIDED IS FILLED WITH AN
APPROXIMATE AMOUNT OF OIL OF 5 LITRES,
ALWAYS BEING CAREFUL NOT TO SPILL IT
OUTSIDE THE TANK.
USE HYDRAULIC OIL WITH A VISCOSITY DEGREE
APPROPRIATE TO THE AVERAGE TEMPERA-
TURES IN THE INSTALLATION COUNTRY AND
IN PARTICULAR:
- VISCOSITY 32 (FOR COUNTRIES WITH ROOM
TEMPERATUREFROM0TO30DEGREES);
- VISCOSITY 46 (FOR COUNTRIES WITH ROOM
TEMPERATURE ABOVE 30 DEGREES).
Class Conformity standard Voltage (V) Current (A) Phases Protection degree
3 Ph double
speed IEC 309 230 16 3P+Ground IP 44
14

FOR ALL MODELS
The machine is equipped with a device for the interruption of the
communication between the control and the electrical panel, when
more than 6 hours have passed after the last executed control. In
this case, just repeat the turning on operations described in the
“Electrical checks” chapter.
ONCE THE ASSEMBLY OPERATIONS HAVE BEEN ENDED, CHECK
ALL MACHINE FUNCTIONS.
Fig. 7
AC
B
KEY
A– Main switch
B– Rotation direction of power unit motor
C – Selector 1-0-2 self-centring chuck speed control
10.2 Check of motor rotation direction
Once the last electrical connection has been terminated, power the
machine with the main switch. Make sure the motor of the hydraulic
power unit rotates in the direction indicated by the arrow (Fig. 7
ref. B) visible on the electric motor cap. If rotation should occur in
the opposite direction, the machine must be immediately stopped
and phase inversion must be executed inside the plug connection
in order to reset the correct rotation direction.
FAILURE TO OBSERVE THE ABOVE INSTRUC-
TIONS WILL IMMEDIATELY INVALIDATE THE
WARRANTY.
10.3 Electrical checks
BEFORE STARTING UP THE TYRE-CHANGER, BE
SURE TO BECOME FAMILIAR WITH THE LOCA-
TION AND OPERATION OF ALL CONTROLS AND
CHECK THEIR PROPER OPERATION (SEE PAR.
“CONTROLS”).
CARRY OUT A DAILY CHECK OF THE MAINTAINED
ACTION CONTROLS CORRECT FUNCTIONING,
BEFORE STARTING MACHINE OPERATION.
Once the plug/socket connection has been made, turn on the ma-
chine using the main switch (Fig. 7 ref. A).
STANDARD ON SOME MODELS
Then horizontally or vertically move the lever (Fig. 9 ref. H): the red
LED (Fig. 9 ref. B) will turn on.
Wait a few seconds for the green LED turning on (Fig. 9 ref. A) and
then release the lever (Fig. 9 ref. H).
In the end, the green LED (Fig. 9 ref. A) flashes to indicate that the
machine is ready for operation.
WHEN A CONTROL IS OPERATED, THE GREEN
LED (FIG. 9 REF. A) LIGHT IS FIXED: IT FLASHES
AGAIN WHEN IT IS RELEASED.
If during the operations the red LED (Fig. 9 ref. B) turns on and the
green led turns off, charge the control batteries with the provided
socket for battery charger, located under the control (Fig. 9 ref. M).
15

Fig. 8
11.0 CONTROLS
11.1 Cable control device
The control (handle control) can be moved according to the position-
ing necessities of the operator.
The operator should place the control in a zone free from obstacles
in order to see clearly and completely the operative zone.
MAKE SURE THERE ARE NO PERSONS OR OB-
JECTS HIDDEN TO THE OPERATOR VISUAL FIELD
BY THE WHEEL SIDE PLAY (ESPECIALLY IN CASE
OF WHEELS WITH LARGE DIMENSIONS).
“Lever A” has four maintained action operative positions:
- Lever rightwards or leftwards, operates respectively the chuck
holder carriage shifting rightwards or leftwards.
- Lever upwards or downwards: it operates respectively the rising
and the lowering of the chuck holding arm.
“Pedal B” controls chuck clockwise and counter-clockwise rotation.
“Push button C” has a maintained action position, and when pressed
it rotates the tool holder head counterclockwise (from behind the
tool).
“Push button D” has a maintained action position, and when pressed
it rotates the tool holder head clockwise (from behind the tool).
“Push button E” has a maintained action position and when pressed,
it operates the self-centring chuck opening.
“Push button F” has a maintained action position, and when pressed
it operates the self-centring chuck closing.
“Push button G” has a maintained action position, and when it is
pressed and lever “A” or “H” is laterally shifted at the same time, it
doubles the translation speed of the self-centring carriage and of
the tool holder carriage respectively.
“Lever H” has four maintained action positions:
- Lever rightwards or leftwards, operates respectively the tool
holder carriage shifting rightwards or leftwards.
- Lever upwards or downwards: it respectively lowers or lifts the
tool holder arm.
THE HANDLE MUST NOT BE PLACED WHERE
WATER STAGNATES.
16

11.2 Control device with bluetooth transmission (standard
on some models)
The control (handle control) can be moved according to the position-
ing necessities of the operator.
The operator should place the control in a zone free from obstacles
in order to see clearly and completely the operative zone.
MAKE SURE THERE ARE NO PERSONS OR OB-
JECTS HIDDEN TO THE OPERATOR VISUAL FIELD
BY THE WHEEL SIDE PLAY (ESPECIALLY IN CASE
OF WHEELS WITH LARGE DIMENSIONS).
The flashing green led “A”, indicates the machine stand-by posi-
tion. When any control is operated, the machine is started and it
is ready for operation. During functioning, the led “A” is turned on
with a fixed light.
The red turned on led “B” and the green turned off led “A” indicate
that the manipulator batteries are exhausted: in order to carry on
the functioning, the batteries must be charged.
IN ORDER TO ACTIVATE THE COMMUNICATION
BETWEEN HANDLE CONTROL AND MACHINE,
ON MACHINE SWITCHING AND AFTER EACH
POSITIONING IN STAND-BY MODE, IT'S NECES-
SARY TO OPERATE ANY JOYSTICK (LEVER “H” OR
LEVER “I”) FOR 5 SECONDS AT LEAST.
“Push button C” has a maintained action position, and when pressed
it rotates the tool holder head counterclockwise (from behind the
tool).
“Push button D” has a maintained action position, and when pressed
it rotates the tool holder head clockwise (from behind the tool).
“Push button E” has a maintained action position and when pressed,
it operates the self-centring chuck opening.
“Push button F” has a maintained action position, and when pressed
it operates the self-centring chuck closing.
“Push button G” has a maintained action position and when it is
pressed and lever “I” or “H” is laterally shifted at the same time, it
doubles the translation speed of the self-centring carriage and of
the tool holder carriage respectively.
“Lever H” has four maintained action positions:
- Lever rightwards or leftwards, operates respectively the tool holder
carriage shifting rightwards or leftwards.
- Lever upwards or downwards: it respectively lowers or lifts the
tool holder arm.
“Lever I” has four maintained action positions:
- Lever rightwards or leftwards, operates respectively the chuck
holder carriage shifting rightwards or leftwards.
- Lever upwards or downwards: it operates respectively the rising
and the lowering of the chuck holding arm.
“Pedal L” starts clockwise and anti-clockwise rotation of the chuck.
When any control is operated, the machine is started again, ready
for operation: led “A” flashes.
THE HANDLE MUST NOT BE PLACED WHERE
WATER STAGNATES.
Fig. 9
17

12.0 USING THE MACHINE
12.1 Precaution measures during tyre removal and fitting
Before fitting a tyre, observe the following safety rules:
• alwaysuseclean,dryandingoodconditionrimsandtyres;in
particular, if necessary, clean the rims after all the old balancing
weights (as well as the adhesive weights on the inner side) have
been removed, and make sure that:
-neitherthebeadnorthetreadofthetyrearedamaged;
- the rim does not produce dents and/or deformation (especially
for alloy rims, dents can cause internal micro-fractures, that
pass unobserved at visual inspection, and can compromise the
solidityoftherimandconstitutedangerevenduringination);
• adequatelylubricatethecontactsurfaceofrimandthetyrebeads,
usingspecictyrelubricantsonly;
• replacetheinnertubevalvewithanewvalve,ifthetyretubehas
ametalvalve,replacethegrommet;
• alwaysmakesure thattyreandrimsizes arecorrectfortheir
coupling;onthecontrary,nevertatyreunlessyouaresureitis
of the right size (the rated size of rim and tyre is usually printed
directlyonthem);
• donotusecompressedairorwaterjetstocleanthewheelson
the machine.
12.2 Preliminary operations
In view of the tyre changer structure and of its intended use, the
operator must work with wheels with large diameter up to 2700 mm
and with remarkable weight up to 3000 kg.
The utmost care while moving the wheels is recommended: make
use of other operators, properly trained and with suitable clothes.
THROUGHOUT TYRE MOUNTING AND DE-
MOUNTING OPERATIONS, THE SELF-CENTRING
CHUCK ROTATION SPEED CAN BE DOUBLED BY
ROTATING THE SELECTOR (FIG. 7 REF. C).
LOW SPEED IS RECOMMENDED FOR WHEELS
WITH GREAT DIAMETER AND WEIGHT.
THE CAREFUL LUBRICATION OF THE TYRE BEADS
IS RECOMMENDED, IN ORDER TO PROTECT
THEM FROM POSSIBLE DAMAGES AND TO
FACILITATE MOUNTING AND DEMOUNTING
OPERATIONS.
12.3 Preparing the wheel
REMOVE THE VALVE STEM AND ALLOW THE
TYRE TO COMPLETELY DEFLATE.
• Removethewheelbalancingweightsfrombothsidesofthewheel.
• Establishfromwhichsidethetyreshouldbedemounted,checking
the position of the groove.
• Findtherimlockingtype.
12.4 Wheel clamping
FOR WHAT CONCERNS THE DIMENSIONS AND
WEIGHT OF THE WHEEL TO BE LOCKED, MAKE
USE OF A SECOND OPERATOR WHO MUST HOLD
THE WHEEL INTO VERTICAL POSITION, IN OR-
DER TO ENSURE SAFE OPERATIVE CONDITIONS.
WHEN HANDLING WHEELS WEIGHING MORE
THAN 500 KG A FORK-LIFT TRUCK OR A CRANE
SHOULD BE USED.
MAKE SURE THAT RIM CLAMPING IS DONE
PROPERLY AND THAT THE GRIP IS SAFE, TO
PREVENT THE WHEEL FROM FALLING DURING
MOUNTING OR REMOVAL OPERATIONS.
DO NOT CHANGE THE SET OPERATING PRES-
SURE VALUE BY MEANS OF THE MAXIMUM
PRESSURE VALVES. THE MANUFACTURER
SHALL NOT BE RESPONSIBLE FOR INJURY
OR DAMAGE ARISING FROM UNAUTHORISED
CHANGES.
Fig. 10
Clamping on the central hole
Fig. 11
Clamping on bead seat
18

OPENING/CLOSING MOVEMENT OF THE SELF-
CENTRING CHUCK CAN GENERATE DANGER
OF SQUASHING, CUTTING, COMPRESSING.
DURING WHEEL LOCKING/UNLOCKING PHASE,
AVOID THAT PARTS OF HUMAN BODY COME
INTO CONTACT WITH MOVING PARTS OF THE
MACHINE.
All wheels must be clamped from the inside.
Clamping on the central flange is always safest.
FOR WHEELS WITH GROOVED RIMS SECURE
THE WHEEL SO THAT THE GROOVE IS FACING
OUTWARDS COMPARED TO THE CHUCK.
If it is not possible to clamp the rim in the hole of the disc, clamp on
the bead seat close to the disc.
TO SECURE WHEELS WITH ALLOY RIMS ADDI-
TIONAL PROTECTIVE CLAMPS ARE AVAILABLE.
THEY ALLOW YOU TO WORK ON THE RIMS
WITHOUT DAMAGING THEM. THE PROTEC-
TIVE CLAMPS ARE FITTED ONTO THE CHUCK’S
NORMAL CLAMPS BY MEANS OF A BAYONET
CONNECTION.
To clamp the wheel proceed as follows:
- Move the tool holder arm to “off-work” position (Fig. 14 ref. 1)
with the help of the provided controls (Fig. 8 and Fig. 9 ref. H);
- Placethewheelverticalonthemachinetable;
- Translate the chuck carriage towards the tyre until the self-
centringarmsareinsertedinsidetherim;
- Adjust the opening of the self-centring chuck through the “open-
ing/closing”control (Fig. 8 and Fig. 9 ref. E/F) according to the
typeofrimtobelocked;
- Use the lever (Fig. 8 ref. A and Fig. 9 ref. I) to position the coaxial
chuck with the wheel centre, in order to make the clamps edges
skimthewheeledge;
- Operate the control (Fig. 8 and Fig. 9 ref. E) until the wheel is
completelyclamped;
- Make sure the rim is always correctly locked and centred, and
the wheel is lifted from the machine platform, in order to prevent
the rim from slipping in the following operations.
KEEP ON OPERATING RIM CLAMPING CONTROL,
UNTIL REACHING THE MAXIMUM OPERATING
PRESSURE (180 BAR), WHICH CAN BE CHECKED
THROUGH THE PREARRANGED PRESSURE
GAUGE.
THROUGHOUT TYRE MOUNTING AND DE-
MOUNTING OPERATIONS, THE SELF-CENTRING
CHUCK ROTATION SPEED CAN BE DOUBLED BY
ROTATING THE SELECTOR (FIG. 7 REF. C).
LOW SPEED IS RECOMMENDED FOR WHEELS
WITH GREAT DIAMETER AND WEIGHT.
THE CAREFUL LUBRICATION OF THE TYRE BEADS
IS RECOMMENDED, IN ORDER TO PROTECT
THEM FROM POSSIBLE DAMAGES AND TO
FACILITATE MOUNTING AND DEMOUNTING
OPERATIONS.
Fig. 12
Locking with extensions
Whenever the rim exceeds the 50” in the locking point, use the ap-
propriate extensions (optional). To avoid damages or scratches on
light alloy rims, the special clamps supplied with the tyre changer
as an optional should be used.
AFTER COMPLETION OF TYRE MOUNT/DE-
MOUNT OPERATIONS DO NOT LEAVE THE
WHEEL CLAMPED ON THE SELF-CENTRING
CHUCK AND NEVER LEAVE IT UNATTENDED
ANYWAY.
THROUGHOUT TYRE MOUNTING AND DE-
MOUNTING OPERATIONS, THE SELF-CENTRING
CHUCK ROTATION SPEED CAN BE DOUBLED BY
ROTATING THE SELECTOR (FIG. 7 REF. C).
LOW SPEED IS RECOMMENDED FOR WHEELS
WITH GREAT DIAMETER AND WEIGHT.
THE CAREFUL LUBRICATION OF THE TYRE BEADS
IS RECOMMENDED, IN ORDER TO PROTECT
THEM FROM POSSIBLE DAMAGES AND TO
FACILITATE MOUNTING AND DEMOUNTING
OPERATIONS.
19

12.5 Functioning of tool holder arm
During the working phases, the tool holder arm can maintain two
firm positions, that is:
1)“Working”position;
2) “Out of work” position.
In “working” position (Fig. 13 ref. 1) the tool holder arm is lowered
towards the chuck and from this position it executes the various tyre
bead breaking, demounting and mounting operations.
Fig. 13
In “out of work” position (Fig. 14 ref. 1): the tool holder arm is in a
vertical position and has to be brought in this position every time it
is not in use and in order to be shifted from one tyre side to another,
during the different working phases.
Fig. 14
The tool holder arm moves from “out of work” position to “working
position” through hydraulic cylinder.
IN WORK POSITION, THE SAFETY JACKS (FIG. 1
REF. 8) MUST BE HOOKED TO THE TOOL CAR-
RIAGE (FIG. 1 REF. 13).
To shift from “work” position to “off-work” position, the tool holder
arm moves by the handle control that activates the cylinder (Fig. 1
ref. 21).
12.5.1 Tools rotation
Toolholderhead180° rotationis automatic, andit takes place
through handle control operation (Fig. 8 and Fig. 9 ref. C and D).
12.5.2 Tools unit extraction/insertion
The tools holder head has two working positions.
THE FOLLOWING OPERATIONS MUST BE CAR-
RIED OUT WITH THE TOOLS HEAD IN “OFF-
WORK” POSITION.
Remove the safety split pin (Fig. 15 ref. 1) and manually extract
the lever (Fig. 15 ref. 2) to change from one position to another.
Manually lift or lower the tools holder head until the locking holes
match (Fig. 15 ref. 3).
WHEN THE TOOL HOLDER HEAD IS LOWERED,
MOVE THE HEAD ITSELF DOWNWARDS WITH
THE FREE HAND.
When the new position has been reached, insert the lever again
(Fig. 15 ref. 2) in the provided hole and assemble the safety split
pin (Fig. 15 ref. 1) again.
Fig. 15
20
