Rotel RD-845 User manual
owner’s
manual
RD-845
STEREO
CASSETTE
TAPE
DECK
ENGLISH.
1
DEUTSCH.
5
FRANCAIS.
8
WARNING
TO
PREVENT
FIRE
OR
SHOCK
HAZARD,
DO
NOT
EXPOSE
THIS
APPLIANCE
TO
RAIN
OR
MOISTURE
Write
your
SERIAL
NUMBER
here.
The
number
is
located
near
the
name
plate
on
the
rear
panel.

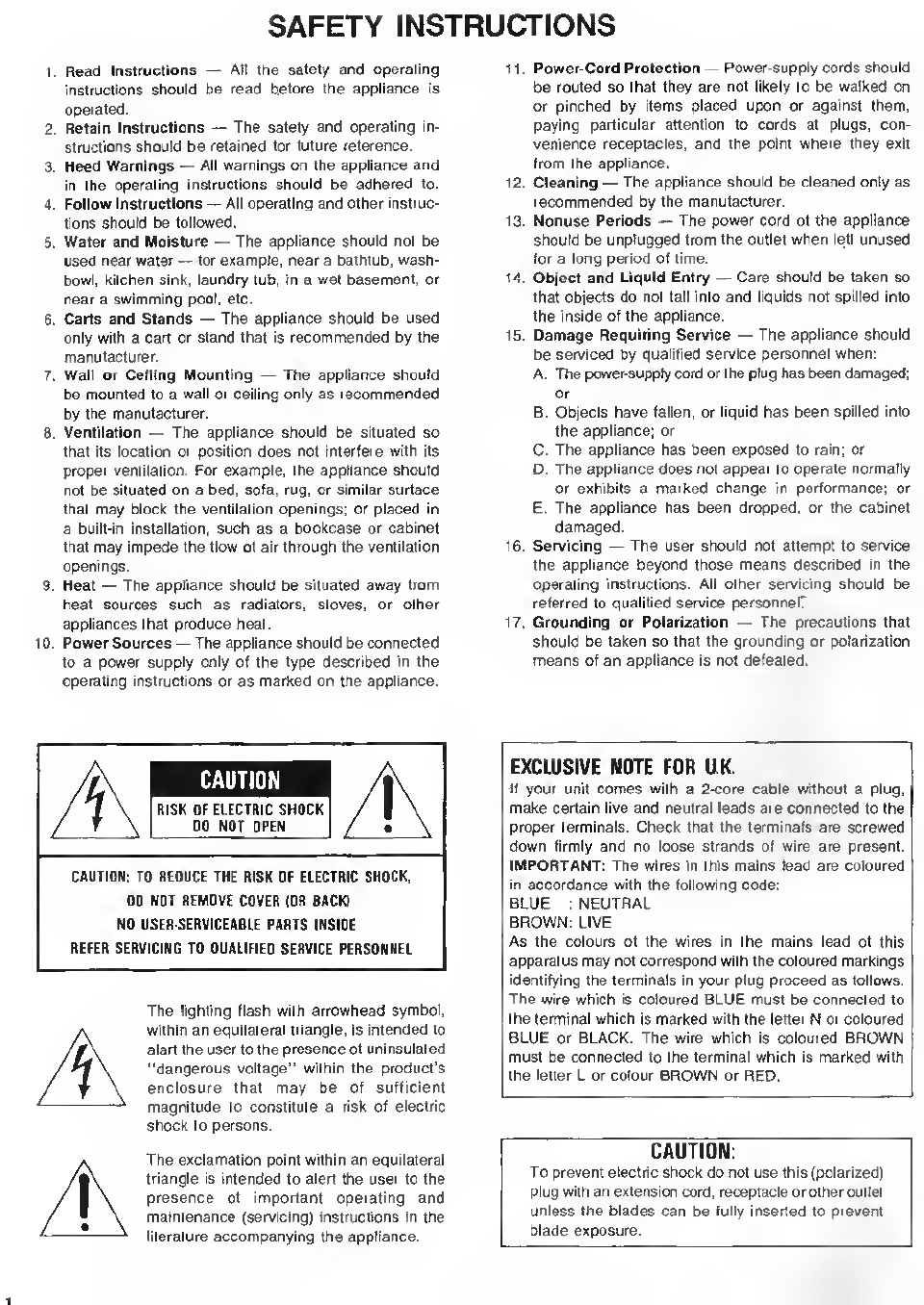

SAFETY
INSTRUCTIONS
1.
Read
Instructions
—
All
the
safety
and
operating
instructions
should
be
read
b.efore
the
appliance
is
operated.
2.
Retain
Instructions
—
The
safety
and
operating
in¬
structions
should
be
retained
for
future
reference.
3.
Heed
Warnings
—
All
warnings
on
the
appliance
and
in
the
operating
instructions
should
be
adhered
to.
4.
Follow
Instructions
—
All
operating
and
other
instruc¬
tions
should
be
followed.
5.
Water
and
Moisture
—
The
appliance
should
not
be
used
near
water
—
for
example,
near
a
bathtub,
wash¬
bowl,
kitchen
sink,
laundry
tub,
in
a
wet
basement,
or
near
a
swimming
pool,
etc.
6.
Carts
and
Stands
—
The
appliance
should
be
used
only
with
a
cart
or
stand
that
is
recommended
by
the
manufacturer.
7.
Wall
or
Ceiling
Mounting
—
The
appliance
should
be
mounted
to
a
wall
or
ceiling
only
as
recommended
by
the
manufacturer.
8.
Ventilation
—
The
appliance
should
be
situated
so
that
its
location
or
position
does
not
interfere
with
its
proper
ventilation.
For
example,
the
appliance
should
not
be
situated
on
a
bed,
sofa,
rug,
or
similar
surface
that
may
block
the
ventilation
openings;
or
placed
in
a
built-in
installation,
such
as
a
bookcase
or
cabinet
that
may
impede
the
flow
of
air
through
the
ventilation
openings.
9.
Heat
—
The
appliance
should
be
situated
away
from
heat
sources
such
as
radiators,
stoves,
or
other
appliances
that
produce
heat.
10.
P
ower
Sources
—
The
appliance
should
be
connected
to
a
power
supply
only
of
the
type
described
in
the
operating
instructions
or
as
marked
on
the
appliance.
11
.
Power-Cord
Protection
—
Power-supply
cords
should
be
routed
so
that
they
are
not
likely
to
be
walked
on
or
pinched
by
items
placed
upon
or
against
them,
paying
particular
attention
to
cords
at
plugs,
con¬
venience
receptacles,
and
the
point
where
they
exit
from
the
appliance.
12.
Cleaning
—
The
appliance
should
be
cleaned
only
as
recommended
by
the
manufacturer.
13.
Nonuse
Periods
—
The
power
cord
of
the
appliance
should
be
unplugged
from
the
outlet
when
left
unused
for
a
long
period
of
time.
14.
Object
and
Liquid
Entry
—
Care
should
be
taken
so
that
objects
do
not
fall
into
and
liquids
not
spilled
into
the
inside
of
the
appliance.
15.
Damage
Requiring
Service
—
The
appliance
should
be
serviced
by
qualified
service
personnel
when:
A.
The
power-supply
cord
or
the
plug
has
been
damaged;
or
B.
Objects
have
fallen,
or
liquid
has
been
spilled
into
the
appliance;
or
C.
The
appliance
has
been
exposed
to
rain;
or
D.
The
appliance
does
not
appear
to
operate
normally
or
exhibits
a
marked
change
in
performance;
or
E.
The
appliance
has
been
dropped,
or
the
cabinet
damaged.
16.
Servicing
—
The
user
should
not
attempt
to
service
the
appliance
beyond
those
means
described
in
the
operating
instructions.
All
other
servicing
should
be
referred
to
qualified
service
personnel?
17.
Grounding
or
Polarization
—
The
precautions
that
should
be
taken
so
that
the
grounding
or
polarization
means
of
an
appliance
is
not
defeated.
|
CAUTION
RISK
OF
ELECTRIC
SHOCK
DO
NOT
OPEN
CAUTION:
TO
REDUCE
THE
RISK
OF
ELECTRIC
SHOCK,
00
NOT
REMOVE
COVER
(OR
BACK!
NO
USER
SERVICEABLE
PARTS
INSIDE
REFER
SERVICING
TO
QUALIFIED
SERVICE
PERSONNEL
The
lighting
flash
with
arrowhead
symbol,
within
an
equilateral
triangle,
is
intended
to
alart
the
user
to
the
presence
of
uninsulated
"dangerous
voltage”
within
the
product’s
enclosure
that
may
be
of
sufficient
magnitude
to
constitute
a
risk
of
electric
shock
to
persons.
A
The
exclamation
point
within
an
equilateral
triangle
is
intended
to
alert
the
user
to
the
presence
of
important
operating
and
maintenance
(servicing)
instructions
in
the
literature
accompanying
the
appliance.
EXCLUSIVE
NOTE
FOR
U.K.
If
your
unit
comes
with
a
2-core
cable
without
a
plug,
make
certain
live
and
neutral
leads
are
connected
to
the
proper
terminals.
Check
that
the
terminals
are
screwed
down
firmly
and
no
loose
strands
of
wire
are
present.
IMPORTANT:
The
wires
in
this
mains
lead
are
coloured
in
accordance
with
the
following
code:
BLUE
:
NEUTRAL
BROWN:
LIVE
As
the
colours
of
the
wires
in
the
mains
lead
of
this
apparatus
may
not
correspond
with
the
coloured
markings
identifying
the
terminals
in
your
plug
proceed
as
follows.
The
wire
which
is
coloured
BLUE
must
be
connected
to
the
terminal
which
is
marked
with
the
letter
N
or
coloured
BLUE
or
BLACK.
The
wire
which
is
coloured
BROWN
must
be
connected
to
the
terminal
which
is
marked
with
the
letter
L
or
colour
BROWN
or
RED.
CAUTION:
To
prevent
electric
shock
do
not
use
this
(polarized)
plug
with
an
extension
cord,
receptacle
or
other
outlet
unless
the
blades
can
be
fully
inserted
to
prevent
blade
exposure.
1

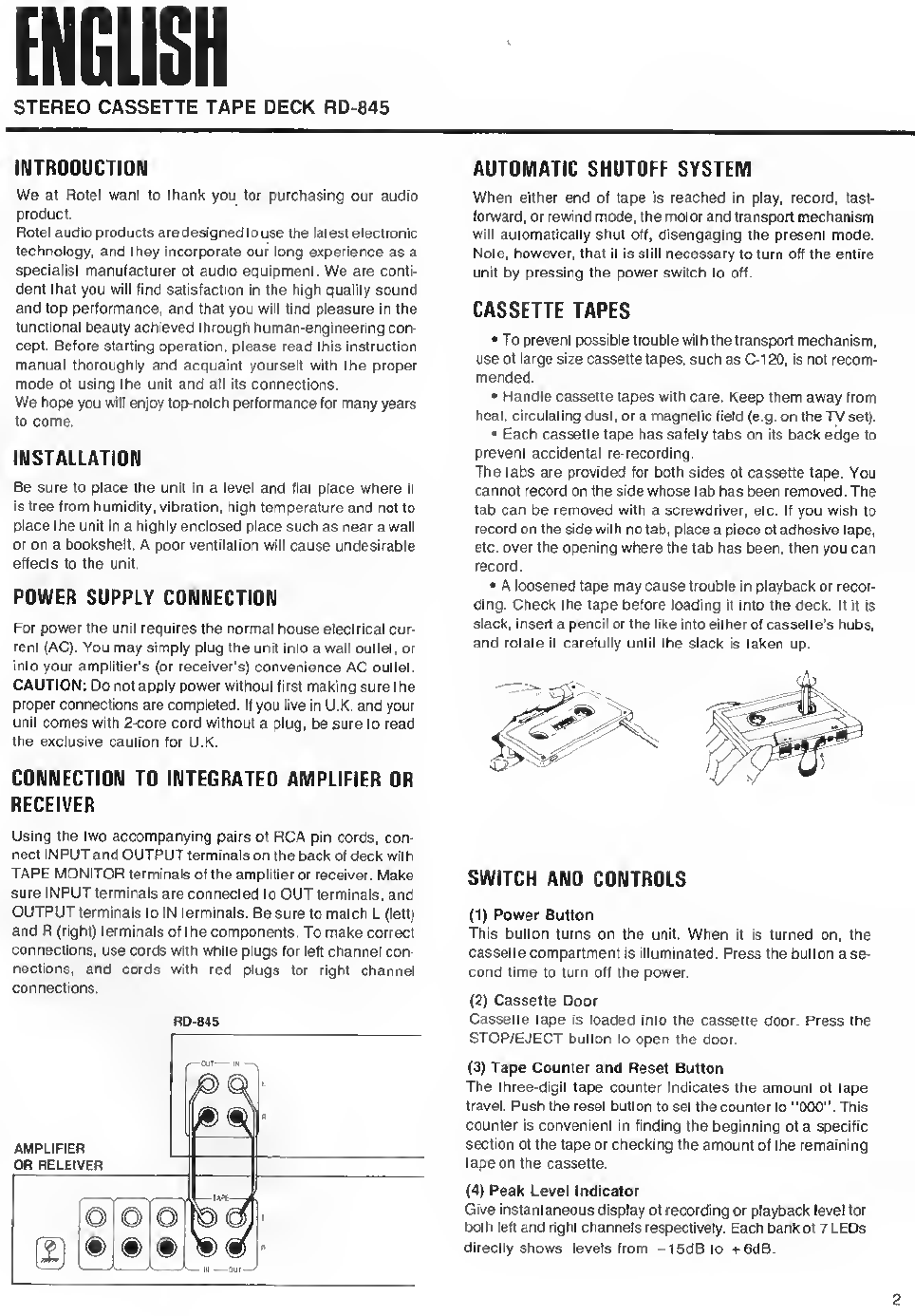

ENGLISH
STEREO
CASSETTE
TAPE
DECK
RD-845
INTRODUCTION
We
at
Rotel
want
to
thank
you
for
purchasing
our
audio
product.
Rotel
audio
products
are
designed
to
use
the
latest
electronic
technology,
and
they
incorporate
our
long
experience
as
a
specialist
manufacturer
of
audio
equipment.
We
are
confi¬
dent
that
you
will
find
satisfaction
in
the
high
quality
sound
and
top
performance,
and
that
you
will
find
pleasure
in
the
functional
beauty
achieved
through
human-engineering
con¬
cept.
Before
starting
operation,
please
read
this
instruction
manual
thoroughly
and
acquaint
yourself
with
the
proper
mode
of
using
the
unit
and
all
its
connections.
We
hope
you
will
enjoy
top-notch
performance
for
many
years
to
come.
INSTALLATION
Be
sure
to
place
the
unit
in
a
level
and
flat
place
where
it
is
free
from
humidity,
vibration,
high
temperature
and
not
to
place
the
unit
in
a
highly
enclosed
place
such
as
near
a
wall
or
on
a
bookshelf.
A
poor
ventilation
will
cause
undesirable
effects
to
the
unit.
POWER
SUPPLY
CONNECTION
For
power
the
unit
requires
the
normal
house
electrical
cur¬
rent
(AC).
You
may
simply
plug
the
unit
into
a
wall
outlet,
or
into
your
amplifier’s
(or
receiver's)
convenience
AC
outlet.
CAUTION:
Do
not
apply
power
without
first
making
sure
the
proper
connections
are
completed.
If
you
live
in
U.K.
and
your
unit
comes
with
2-core
cord
without
a
plug,
be
sure
to
read
the
exclusive
caution
for
U.K.
CONNECTION
TO
INTEGRATED
AMPLIFIER
OR
RECEIVER
Using
the
two
accompanying
pairs
of
RCA
pin
cords,
con¬
nect
INPUT
and
OUTPUT
terminals
on
the
back
of
deck
with
TAPE
MONITOR
terminals
of
the
amplifier
or
receiver.
Make
sure
INPUT
terminals
are
connected
to
OUT
terminals,
and
OUTPUT
terminals
to
IN
terminals.
Be
sure
to
match
L
(left)
and
R
(right)
terminals
of
the
components.
To
make
correct
connections,
use
cords
with
white
plugs
for
left
channel
con¬
nections,
and
cords
with
red
plugs
for
right
channel
connections.
RD-845
AMPLIFIER
—Out—
in
—
P
©
1
fi
OR
RELEIVER
___
©
©
©
(
1
)
<§)
<§>
<§>
»
.
AUTOMATIC
SHUTOFF
SYSTEM
When
either
end
of
tape
is
reached
in
play,
record,
fast-
forward,
or
rewind
mode,
the
motor
and
transport
mechanism
will
automatically
shut
off,
disengaging
the
present
mode.
Note,
however,
that
it
is
still
necessary
to
turn
off
the
entire
unit
by
pressing
the
power
switch
to
off.
CASSETTE
TAPES
•
To
prevent
possible
trouble
with
the
transport
mechanism,
use
of
large
size
cassette
tapes,
such
as
C-120,
is
not
recom¬
mended.
•
Handle
cassette
tapes
with
care.
Keep
them
away
from
heat,
circulating
dust,
or
a
magnetic
field
(e
g.
on
the
TV
set).
•
Each
cassette
tape
has
safety
tabs
on
its
back
edge
to
prevent
accidental
re-recording.
The
tabs
are
provided
for
both
sides
of
cassette
tape.
You
cannot
record
on
the
side
whose
tab
has
been
removed.
The
tab
can
be
removed
with
a
screwdriver,
etc.
If
you
wish
to
record
on
the
side
with
no
tab,
place
a
piece
of
adhesive
tape,
etc.
over
the
opening
where
the
tab
has
been,
then
you
can
record.
•
A
loosened
tape
may
cause
trouble
in
playback
or
recor¬
ding.
Check
the
tape
before
loading
it
into
the
deck.
If
it
is
slack,
insert
a
pencil
or
the
like
into
either
of
cassette's
hubs,
and
rotate
it
carefully
until
the
slack
is
taken
up.
SWITCH
AND
CONTROLS
(1)
Power
Button
This
button
turns
on
the
unit.
When
it
is
turned
on,
the
cassette
compartment
is
illuminated.
Press
the
button
a
se¬
cond
time
to
turn
off
the
power.
(2)
Cassette
Door
Cassette
tape
is
loaded
into
the
cassette
door.
Press
the
STOP/EJECT
button
to
open
the
door.
(3)
Tape
Counter
and
Reset
Button
The
three-digit
tape
counter
indicates
the
amount
of
tape
travel.
Push
the
reset
button
to
set
the
counter
to
“000”.
This
counter
is
convenient
in
finding
the
beginning
of
a
specific
section
of
the
tape
or
checking
the
amount
of
the
remaining
tape
on
the
cassette.
(4)
Peak
Level
Indicator
Give
instantaneous
display
of
recording
or
playback
level
for
both
left
and
right
channels
respectively.
Each
bank
of
7
LEDs
directly
shows
levels
from
-15dBto
+6dB.
2
(5)
Dolby
NR
B/C
Indicator
Either
of
these
indicators
will
light
up
when
Dolby
NR
switch
is
activated
on
and
in
accordance
with
whether
Dolby
type
switch
is
set
at
Dolby
B
or
Dolby
C.
(6)
REC
Indicator
Glows
when
the
unit
is
in
recording
mode.
(7)
Recording
Level
Control
Used
to
adjust
the
recording
level
of
incoming
signals
from
line
source.
(8)
Cassette
Controls
REC
Button
(•)
To
record,
press
this
button.
The
unit
is
now
in
the
recording
mode,
and
the
tape
should
be
winding.
PLAY
Button
(
►
)
Press
this
button
to
start
the
cassette
for
playback
of
recorded
tape.
Rewind
Button
(-«-«)
For
rapid
tape
rewind,
press
this
button.
Fast-Forward
Button
(
►
►
)
Press
this
button
to
advance
the
tape
rapidly
forward.
STOP/EJECT
Button
(
■
/!)
press
this
button
to
stop
the
tape
in
any
mode;
Record,
Playback,
Rewind
or
fast-forward
and
press
this
button
a
se¬
cond
time
to
open
the
door
of
cassette
compartment.
Just
press
this
button
once
then
open
the
door
of
cassette
compartment
when
Tape
in
Stop
mode
or
compartment
is
empty.
To
close
the
door,
gently
push
it
back.
PAUSE
Button
(II)
This
button
is
used
to
stop
the
tape
temporarily
during
recor¬
ding
or
playback.
Pressing
the
button
a
second
time
will
restart
the
tape
in
the
interrupted
mode.
(9)
Tape
Selector
Used
to
select
the
appropriate
recording
bias
and
playback
equalization,
according
to
type
of
cassette
tape
used.
Use
the
METAL
button
for
metal
particle
tape,
the
SPECIAL
but¬
ton
for
chromium
dioxide
tape,
and
the
NORMAL
button
for
normal
tape.
(10)
MPX
Filter
Button
Depress
this
button
when
recording
stereo
FM
broadcasts.
FM
stereo
broadcasting
system
uses
a
19kHz
pilot
signal
which
may
adversely
affect
the
sound
quality
in
some
case.
When
the
MPX
filter
button
is
depressed
to
ON,
the
MPX
filter
is
activated
to
eliminate
the
19kHz
pilot
signal
,
and
clean
stereo
FM
recording
is
achieved.
(11)
Dolby
NR
Button
and
Dolby
B-C
Type
NR
Selector
Depress
the
Dolby
NR
button
when
you
wish
to
record
or
play
back
through
the
built-in
Dolby
noise
reduction
circuit.
Immediately
above
this
button
is
a
switch
for
selecting
Dolby
B-type
or
C-type
noise
reduction.
Select
B-type
by
setting
switch
in
released
position,
and
C-type
by
setting
switch
in
depressed
position.
(12)
Rec
Balance
Control
Adjusts
the
relative
recording
levels
between
the
left
and
right
channels.
Rotate
the
knob
to
the
left
so
that
the
left
channel
sound
is
recorded
at
a
louder
level
than
the
right,
and
vice
versa.
Normally
set
the
knob
at
the
mid-position.
OPERATION
•
Be
certain
that
power
connection
and
connection
with
amplifier
are
properly
made.
•
When
recording,
be
sure
the
safety
tabs
on
the
cassette
tape
are
not
removed.
•
When
recording
from
line
sources,
choose
the
desired
program
(tuner,
turntable,
etc.)
on
your
amplifier.
Recording
1.
When
you
wish
to
record
through
Dolby
B-
or
C-type
NR
circuit,
depress
the
Dolby
NR
button,
and
then
set
the
B-C
type
selector
button
to
the
desired
position.
2.
Set
the
Tape
Selector
according
to
the
type
of
tape
us¬
ed
.
3.
Turn
on
the
deck
Power
switch
4.
Press
PAUSE
button,
then
simultaneously
press
REC
and
PLAY
buttons.
5.
Adjust
the
recording
level
for
left
and
right
channels
with
Recording
Level
control
so
that
the
level
indicator
readings
do
not
exceed
0
dB
position
frequently,
and
when
they
do,
only
very
briefly.
6.
After
adjusting
recording
level,
press
the
PAUSE
but¬
ton
again
to
put
the
unit
into
recording
mode
and
to
start
the
tape.
3
7.
Carefully
watch
the
meter
indication
during
recording
as
well
PAUSE
button
may
be
used
to
temporarily
halt
recording.
8.
Press
STOP/EJECT
button
when
recording
is
finished.
When
the
end
of
the
tape
is
reached,
the
recording
mode
will
automatically
disengage
and
tape
stops.
Playback
1.
Set
the
Dolby
NR
button
in
depressed
position
when
you
play
back
a
tape
recorded
with
Dolby
NR.
Release
the
button
when
you
play
back
a
tape
not
recorded
with
Dolby
NR.
When
you
play
back
a
tape
recorded
with
Dolby
NR,
also
set
the
Dolby
B-C
type
selector
button
according
to
whether
Dolby
NR.
B
or
C.
is
used.
2
Set
the
tape
selector
to
match
the
type
of
tape
used.
3.
Turn
on
the
power
switch
on
your
amplifier,
keeping
its
volume
control
set
to
minimum.
When
using
headphones
con¬
nected
to
the
deck,
the
amplifier
is
not
necessary.
4.
Turn
on
the
Power
switch
on
the
deck.
5.
Press
PLAY
button'and
playback
will
begin.
Raise
the
volume
to
the
desired
level.
6.
To
momentarily
halt
playback,
press
the
PAUSE
button.
When
you
wish
to
end
playback,
press
the
STOP/EJECT
but¬
ton.
When
the
tape
comes
to
an
end,
it
stops
automatically
and
playback
mode
is
disengaged.
HEAD
CLEANING
The
most
frequent
cause
of
failure
to
record
in
one
or
both
channels,
or
of
weak,
distorted
sound,
is
dirty
tape
heads
and
capstan.
So,
be
sure
to
clean
the
heads,
capstan,
pinch
roller
and
tape
guides
as
often
as
possible
using
a
''Q"
tip
dipped
in
ordinary
rubbing
alcohol
or
commercial
liquid
tape
head
cleaner.
Thoroughly
wipe
the
surface
of
the
heads,
capstan,
roller
and
tape
guide.
»
,
i±*
*
*
V
l
.
h
1
JSSr
S2£
HEAD
DEMAGNETIZING
The
tape
heads,
capstan
and
tape
guides
gradually
become
magnetized
with
use,
which
will
eventually
affect
the
sound
quality
of
your
tapes
Demagnetizing
should
follow
cleaning,
but
need
not
take
place
as
often
as
cleaning,
once
after
every
20
to
30
hours
of
use
should
suffice.
A
demagnetizer
may
be
purchased
at
a
moderate
cost
from
any
dealer
carrying
tape
recording
accessories.
Follow
the
instruction
supplied
with
the
demagnetizer.
Caution:
Be
sure
to
turn
off
the
unit
before
you
attempt
demagnetizing.
VOLTAGE
SELECTION
Not
available
for
U.K.,
Canada
and
Scandinavia
The
unit
is
a
variable
voltage
equipment
that
can
run
on
120V,
220V
or
240V
power
supply.
Your
unit
should
already
be
preset
at
the
proper
voltage
for
use
in
your
area.
However,
if
you
move
to
an
area
where
the
power
supply
voltage
is
different,
consult
your
dealer.
SPECIFICATIONS
Heads:
Rec/Play.
......
Sendust
Guard
Erase.Ferrite
core
Track.4-track/2-channel
Tape
Speed.4.8cm/sec.
Motor.
Electronic
DC
Governor
Wow
and
Rutter....0.2%
(DIN)
0.08%
(WRMS)
Distortion
(REC/PB.
400
Hz).
1.0%
(METAL)
Frequency
Response
(-20
dB)
Normal
LH
30
to
15.000Hz*
3dB
SPECIAL
30
to
15.000Hz
♦
3dB
Metal
30
to
16.000Hz
±
3dB
Signal-to-Noise
Ratio
(WTO
0
dB
=
580mV.
Chromium)
Dolby
NR
in
64
dB
(B
type)
72
dB(C
type)
Dolby
NR
out:
55dB
Input
Sensitivity/Impedance
.LINE
58
mV/33
kohms
Output
Level/Impedance
LINE.
Fast
Wind
Time
(C-60)..
Tape
Selector
Normal.
LH.
Special.
Metal.
MISCELLANEOUS
Power
Requirement.120V/60
Hz,
220V/50
Hz.
240V/50
Hz.
or
120.
220.
240V/50-60
Hz
(depending
on
destinations)
Power
Consumption..
22
watts
Dimensions
(Overall).444(W)
x
11S(H)
x
282(D)
mm
17-15/33-
x
4-17/32”
x
11-3/32"
Weight
(net).
4.6kg/10.12
lbs
580
mV/1
kohm
.110
seconds
BIAS
EOUALIZER
..
100%
120
|.S
160%
70
,iS
.
220%
70
,.s
•
Specifications
and
design
subject
to
possible
modification
without
notice.
•
Dolby
and
the
double-D
symbol
are
trade
marks
of
Dolby
Laboratories
Licensing
Corporation
Noise
reduction
system
manufactured
under
license
from
Dolby
Laboratories
Licensing
Corporation.
4
