Roth Pro Audio 5 User manual

Active Speaker System
Exclusive to
User Manual: English
For technical support call 0800 999 3437
Pro Audio 5

2 |Roth Pro Audio 5 User Manual
For technical support call 0800 999 3437
Contents
Important Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Front Panel .............................................. 4
Rear Panel ............................................... 5
Remote Control .......................................... 6
Connecting Your Speakers ................................. 7
Bluetooth Function........................................ 8
Use with TV / DVD Player .................................. 9
Use with iPhone / MP3 Player.............................. 10
Limited Warranty ........................................ 11
Specications ................................... Back Page
Thank you...
Thank you for purchasing the Roth Pro Audio 5 Active Speaker System.
We sincerely hope that you enjoy using these speakers for many years to come.
Turn It Up.

rothaudio.co.uk |3
User Manual
English
For technical support call 0800 999 3437
Important Information
READ BEFORE OPERATING EQUIPMENT
Read all the instructions carefully before using the unit and
keep them for future reference. Check that the voltage
selector is switched to the correct position for your country.
Safety Instructions
- Do not use this product near water or moisture.
- Do not place the unit on sloped or unstable surfaces as
 theunitmayfalloortipover.
- Clean only with a dry cloth. Unplug this product from
the wall outlet.
- Do not attempt to service this product yourself.
- Opening or removing covers may expose you to
dangerous voltages or other hazards.
- Please contact the manufacturer to be referred to an
authorised service centre near you.
- Place the unit on a solid surface.
- Do not block any ventilation openings.
- Topreventriskofreorelectricshock,avoidoverloading
wall outlets.
- Do not put it in a closed bookcase or cabinet that may
 keepairfromowingthroughitsventilationopenings.
- Do not let objects or liquids enter the product.
- Protect the power cord from being walked on or
 pinched,particularlyatplugsandthepointwherethey
exit from the product.
Unpacking
These speakers were carefully tested and inspected during
production and before packaging and shipping. After
unpacking please check for any damage. It is rare that a
unitisdamagedduringshipping,butifthisdoeshappen
contact your retailer immediately.
We recommend that you keep the original carton and
packing material for future shipping.
Recommended Speaker Setup
Correct speaker placement has a huge impact on sound
quality.Therearemanydierenttheories,butallroomsand
tastesaredierentsoit’simpossibletospecifyacorrect
placement. We do suggest you experiment with a few
dierentlocationsseewhatisbestforyou.Forthebest
bass response we recommend that you keep a minimum
distance of 20-25cm between the speakers and the rear
wall. For height positioning the speakers with the tweeters
at eye level of your most common listening position.
Conditioning and Break-in
We recommend that you play between 24 to 48 hours
of music through the speakers before doing any critical
listening or speaker placement.
Cleaning
Wedon’trecommendusinganysolventsorcleanerson
cabinets or speaker drive units. Use a soft clean cloth to
wipe the speakers.
DANGEROUS VOLTAGE
Conductordangerousvoltage,thatmaybeofsufficientmagnitudetoconstitute
ariskofelectricshocktopersonsispresentwithinthisproduct’senclosure.
ATTENTION
Theowner’smanualcontainsimportantoperatingandmaintenance 
instructions,foryoursafety,itisnecessarytorefertothemanual.

4 |Roth Pro Audio 5 User Manual
1
For technical support call 0800 999 3437

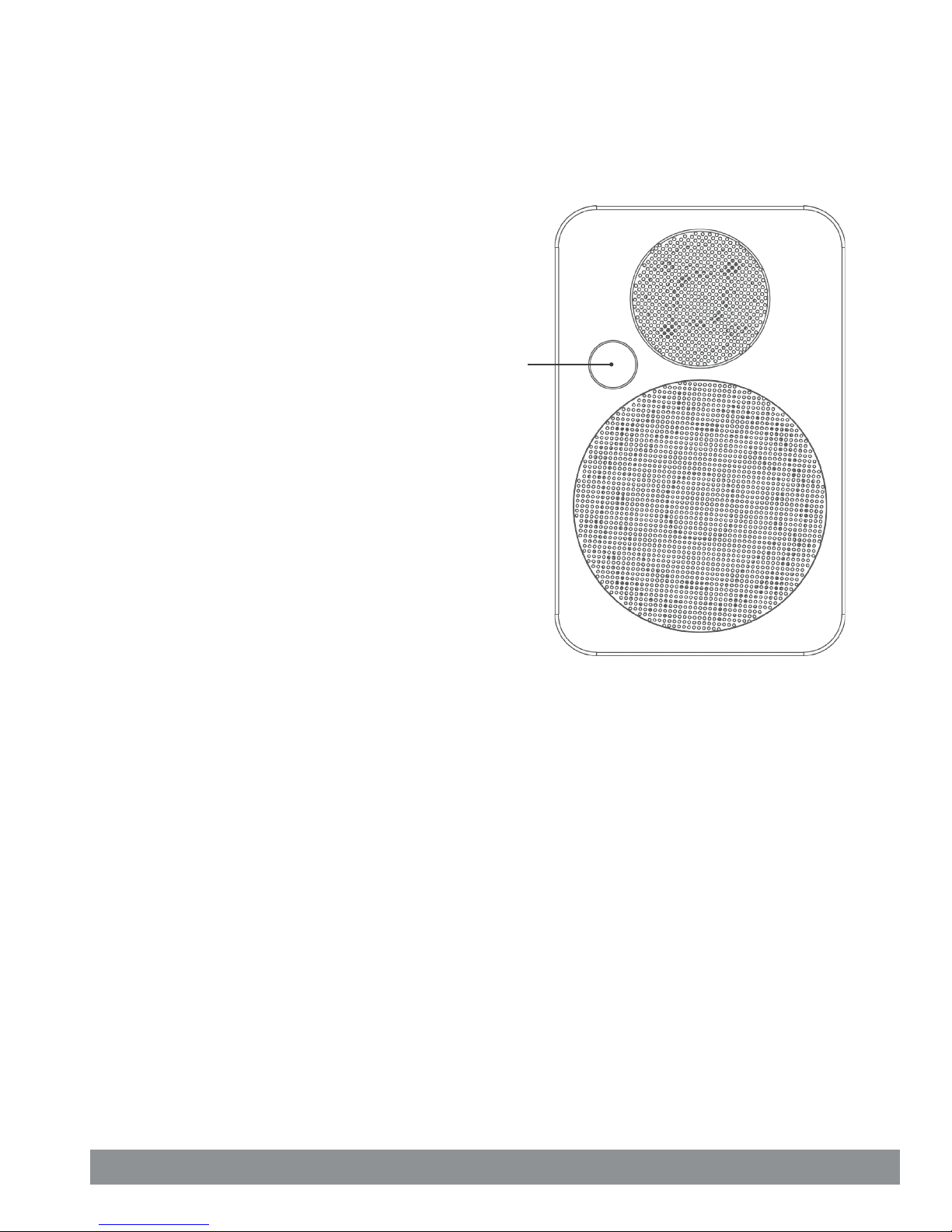

Front Panel
1. Remote Receive Window
Red: Standby or Auto-Standby
(after 60 minutes without playing)
Blinking RED: mute
White: on
Blue: Bluetooth source is connected
Blinking Blue: Bluetooth source is disconnected

rothaudio.co.uk |5
User Manual
English
2
3
4
5
6
7
8
9
10
11
12
For technical support call 0800 999 3437
Rear Panel
2. Volume / Source
Press to change source
Rotate to adjust line level signals (not mic)
3. Mic 1 Gain
4. Mic 1 / XLR Left level switch
Mic - for microphone signals
Line - for line level signals
5. Mic 1 / XLR Left combo inputs
6. PowerOn/O
7. Mic 2 Gain
8. RCA Jack input
9. Left speaker output
 Signaloutput,forconnectingtheleft
passive speaker
10. Mic 2 / XLR Left level switch
Mic - for microphone signals
Line - for line level signals
11. Mic 2 / XLR Left combo inputs
12. Power supply input

6 |Roth Pro Audio 5 User Manual
RCA
BASS TREBLE MIC
VOL +
VOL -
PAIR
For technical support call 0800 999 3437
17
8
11
9
10
12
13
2
4
3
5
6

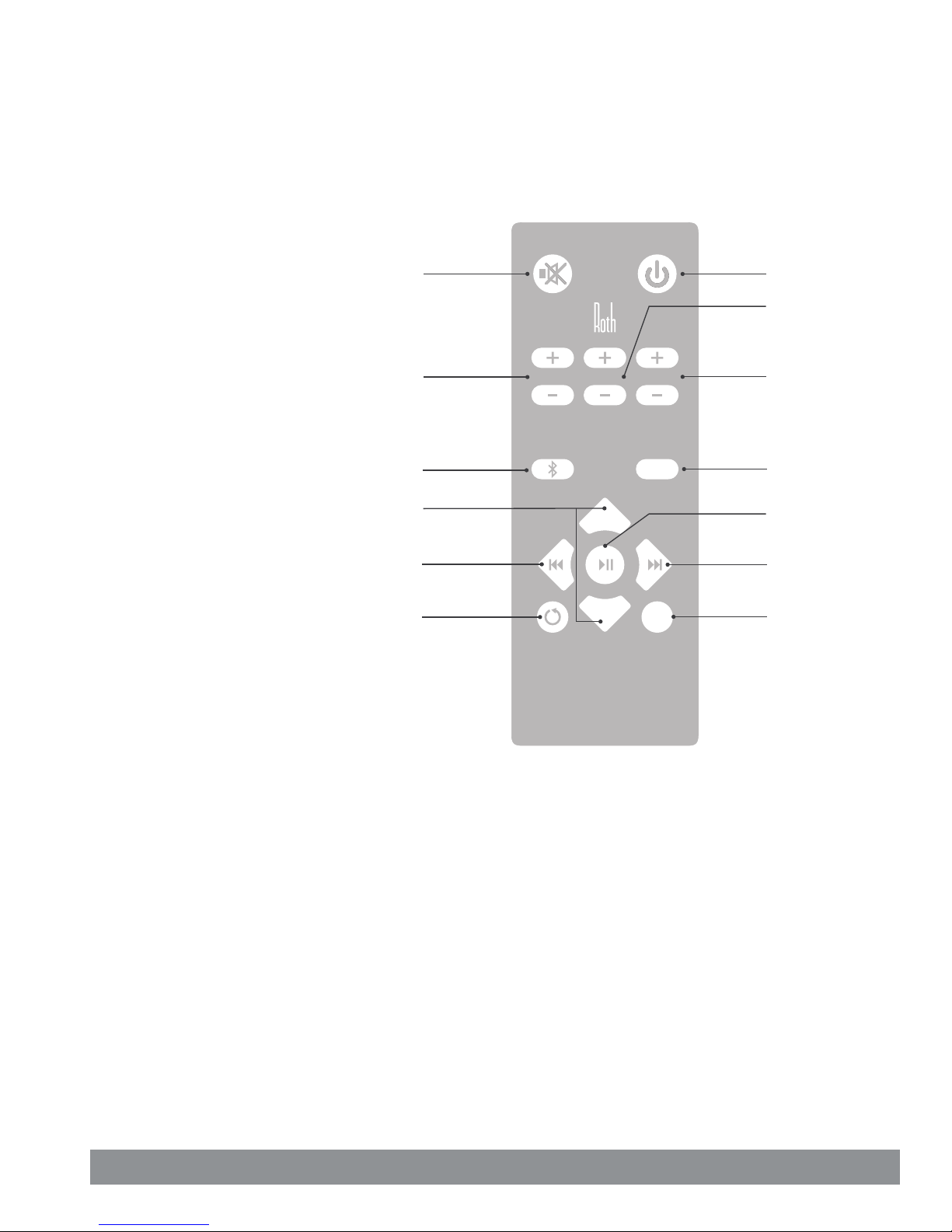

Remote Control
1. Mute button
2. Bass button:
 press“-”,thenbasswilldecrease
 press“+”,thenbasswillincrease
3. Bluetooth input
4. Volume button:
 press“-”,thenvolumewilldecrease
 press“+”,thenvolumewillincrease
5. Previous track
6. Reset treble & bass from 0db
7. Standby button - press to enter
standby mode
8. Treble button:
 press“-”,thentreblewilldecrease
 press“+”,thentreblewillincrease
9. Mic button:
 press“-”,thenMicwilldecrease
 press“+”,thenMicwillincrease
10. RCA jack input
11. Play/Pause
12. Next track
13. Pair - press to enter Bluetooth
pairing mode

rothaudio.co.uk |7
User Manual
English
For technical support call 0800 999 3437
Connecting Your Speakers
Step 1
Connect the speakers using the Speakon connections from the right active speaker to the corresponding socket on the left
speaker using the included cable.
WARNING:
As the Pro Audio 5 is self-powered do not connect the speaker terminals to the speaker outputs of a stereo receiver.
Step 2
Connect the power cord into the left speaker and the other end into the wall outlet.

8 |Roth Pro Audio 5 User Manual
For technical support call 0800 999 3437
Bluetooth Pairing
Pairing Bluetooth device and Pro Audio 5: IfyouhaveaBluetoothaudiodevice,suchasphone,MP3,PC,
Tablet etc. you should follow the pairing procedure.
1. Power on the Pro Audio 5.
2. SelectBluetoothontheunitssuppliedremote,thenpressthepairbutton.
3. The Pro Audio 5 will now be in Bluetooth pairing mode.
4. Enable your Bluetooth device to search for a new Bluetooth connection.
5. “Roth Pro Audio 5” should appear in the list of available Bluetooth devices.
6. ClickthisBluetoothnameandwaitasecond,theBluetoothdevicewillsuccessfullybepairedand
connected with Pro Audio 5. The same Bluetooth device will not require pairing again and will remain
on your device list - you may just need to reconnect from your device.
6. If for any reason the devices do not pair please repeat steps 1 and 2.

rothaudio.co.uk |9
User Manual
English
For technical support call 0800 999 3437
A

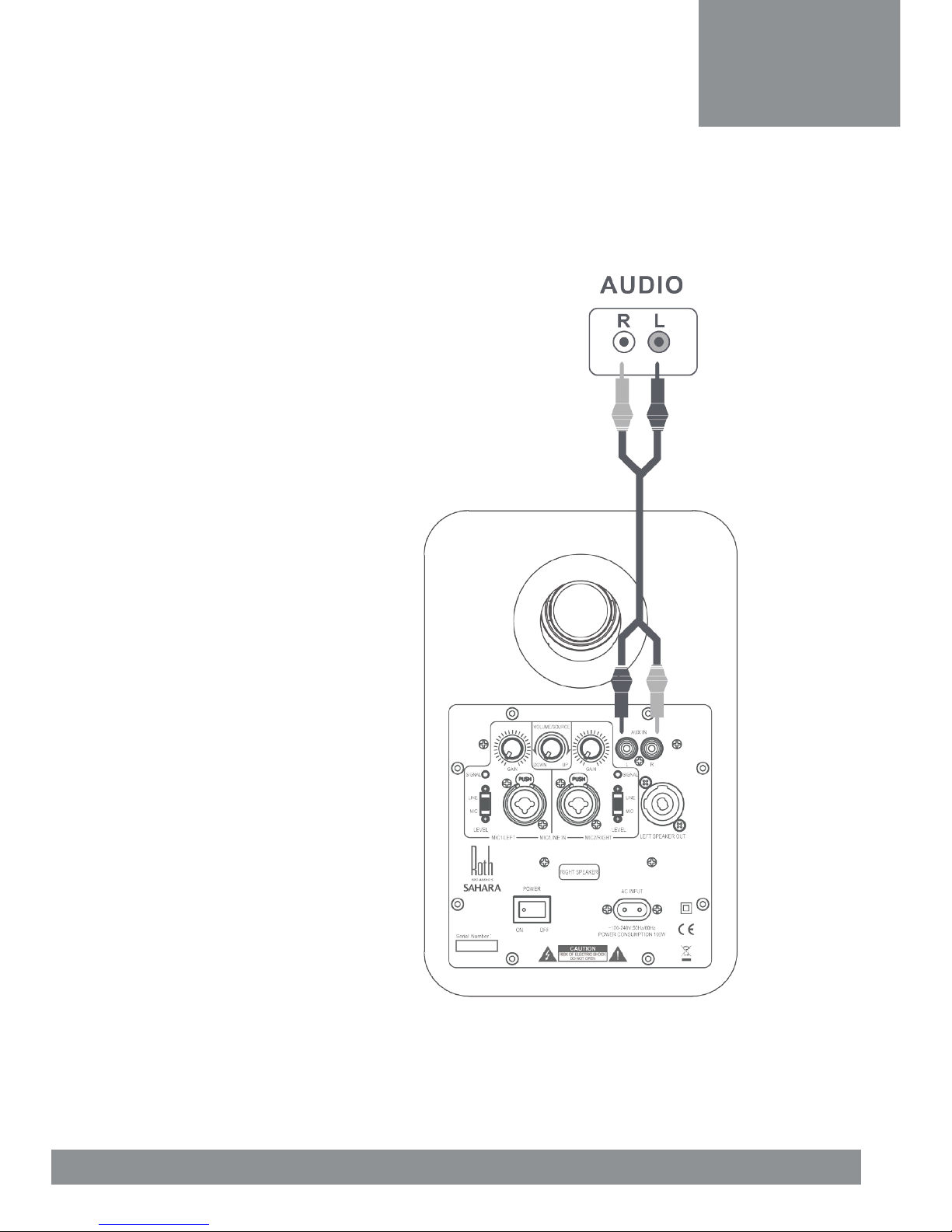

Conguration A
(For use with a TV, DVD, CD-RCA stereo plugs):
ConnecttheRCAL/RtoyourTV,DVDetc.andto
the RCA L/R Inputs on the rear panel of the Roth
Pro Audio 5.
(Lead not supplied)
The Pro Audio 5 can connect with a whole host of devices.
Here are a few examples.

10 |Roth Pro Audio 5 User Manual
For technical support call 0800 999 3437

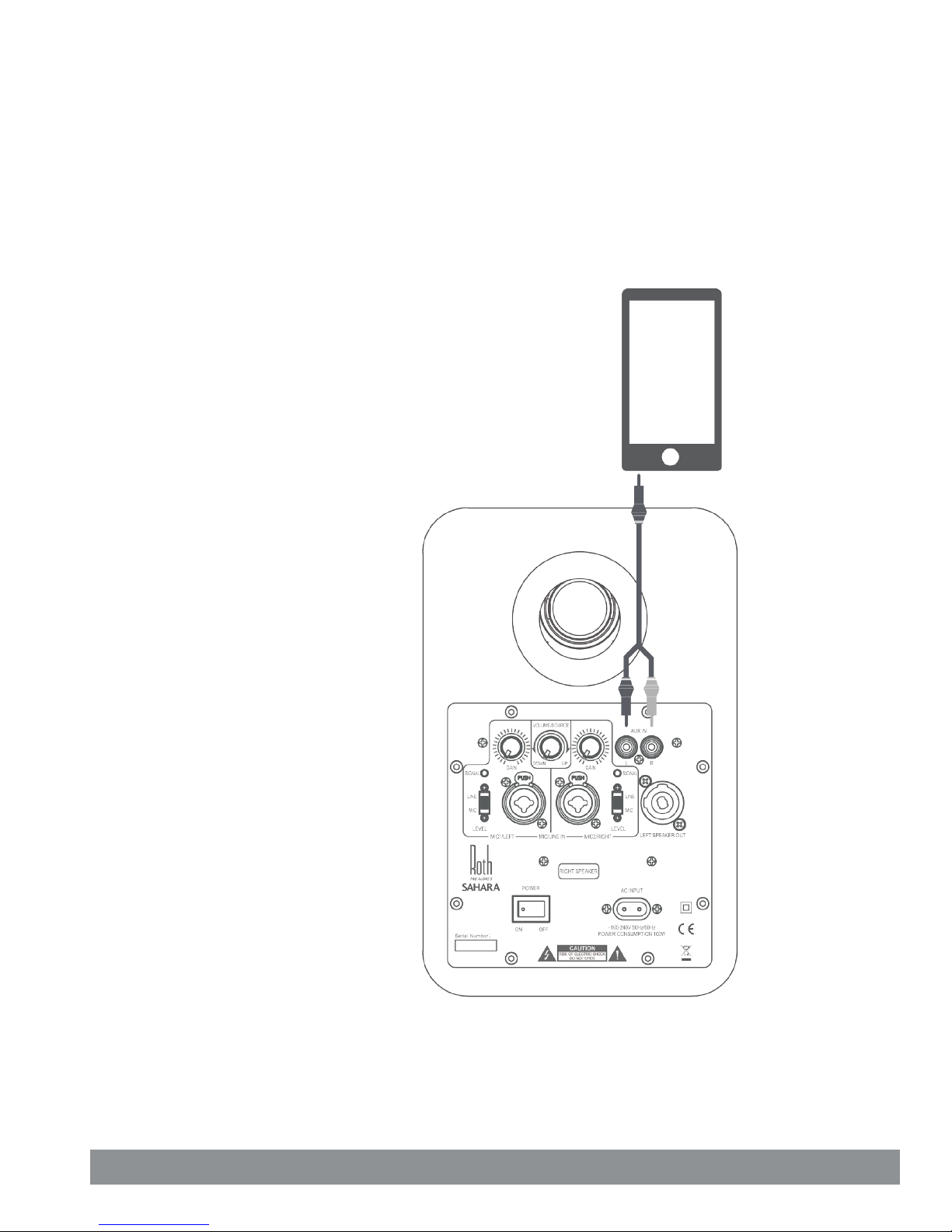

Conguration B
(For use with an iPhone):
Connect the 3.5mm mini jack or Lightning audio
cable from the iPhone to the RCA JACK INPUT on
the rear panel of the Pro Audio 5.
(Leads not supplied)
The Pro Audio 5 can connect with a whole host of devices.
Here are a few examples.
B
YoucanalsoconnectanMP3playerorgamesconsoleusingcongurationB

rothaudio.co.uk |11
User Manual
English
For technical support call 0800 999 3437

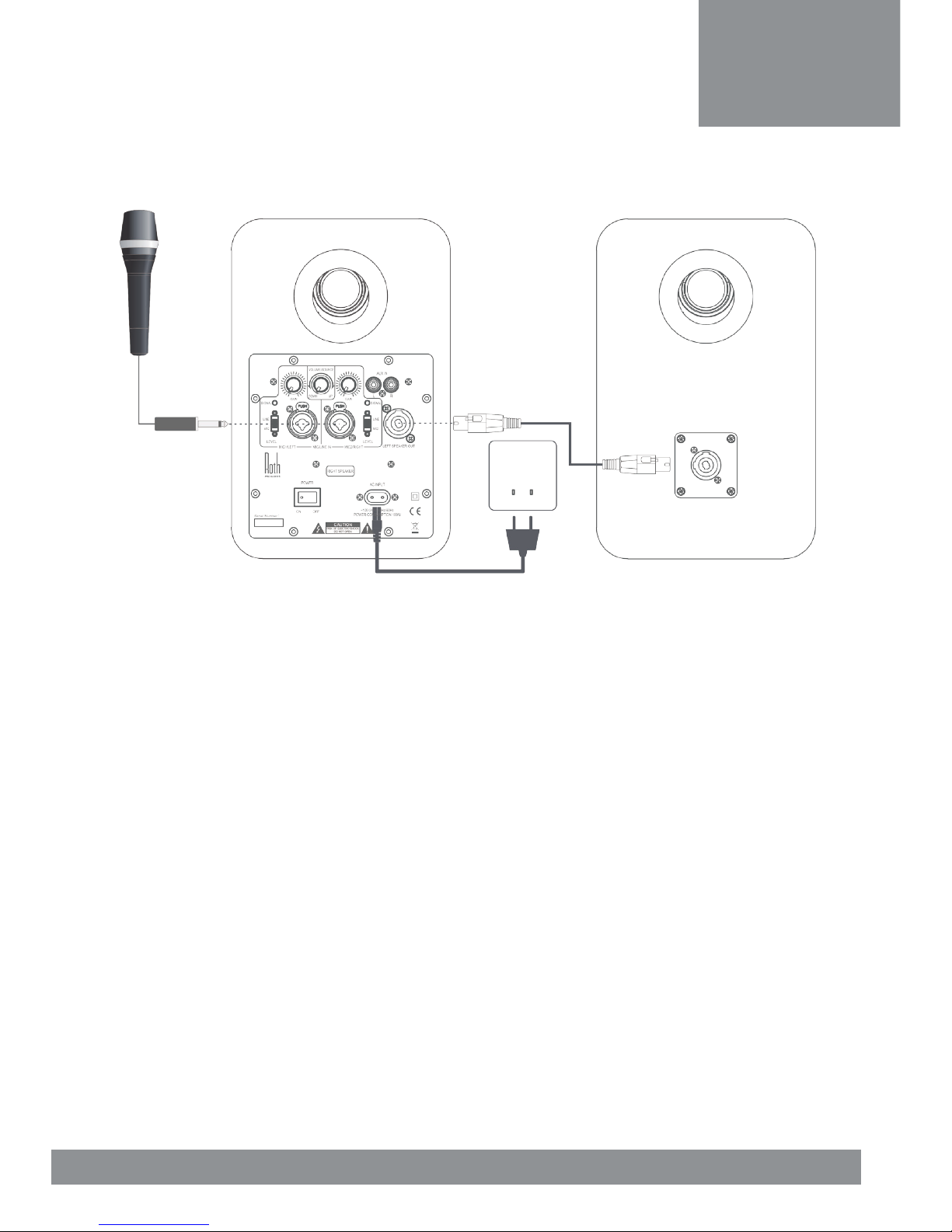

Conguration C
(For use with microphones)
Connect the microphone to either MIC1 or MIC2
combo input, ensure that the corresponding level
switch is set to MIC input. Rotate the gain control
for each input until the desired sound mix is
achieved. Overall MIC level can be adjusted using
the MIC controls on the remote.
The Pro Audio 5 can connect with a whole host of devices.
Here are a few examples.
C

12 |Roth Pro Audio 5 User Manual
For technical support call 0800 999 3437
Conguration D
(Additional line input for use with a TV, DVD, CD):
Individual RCA to 1/4 jack plug adaptors required
(not supplied)
Select LINE input on level switches for MIC 1 and
MIC 2 inputs. Ensure gain controls for both inputs
are set to minimum. Connect left and right audio
line outputs to MIC 1 and MIC 2 combo inputs
using appropriate adaptors (not supplied). Adjust
gain controls to achieve the desired sound mix.
Overall input level can be adjusted using the MIC
controls on the remote.
The Pro Audio 5 can connect with a whole host of devices.
Here are a few examples.
D
YoucanalsoconnectanMP3playerorgamesconsoleusingcongurationD

rothaudio.co.uk |13
User Manual
English
For technical support call 0800 999 3437

14 |Roth Pro Audio 5 User Manual
For technical support call 0800 999 3437

rothaudio.co.uk |15
User Manual
English
For technical support call 0800 999 3437
Limited Warranty
Dear Customer
Thislimitedwarrantyisvalidfortheoriginalownerforaperiodofoneyearfromthedateofpurchase,itisnot
transferable.
What is covered by the limited warranty:
- Thelimitedwarrantycoversallproductionandmaterialdefectsoftheproduct,exceptforthedamagesstatedbelow.
What is not covered by the limited warranty:
- Damagescausedbypackingandtransport.Defectscausedbyaccidents,misuse,normalwearandtear,
 mis-maintenance,voltagevariationandoverloading.
- Damages caused by incorrect installation or operation.
- Damagescausedbymodication.
- Otherdamagesduetoconditionsbeyondthesupplier’scontrolsuchasre,rain,lightning,andotherforce
majeure events.
How to claim parts or repair under warranty:
- Tohaveyourproductservicedunderwarranty,youmustcontactthedealerfromwhereyouboughttheproduct.
- You will need to produce this warranty booklet completed and stamped by your dealer on the date of purchase.
 Alternatively,youwillneedtheoriginalsalesinvoiceorotherproofofownershipanddateofpurchase.
- The supplier is liable only to repair or replace defective parts of products and the supplier is not responsible for indirect
losses or damages arising from the use of the product.
- Transportation costs for servicing are not covered by the warranty.
- Aservicerepairorreplacementcannotexceedthevalueoftheproductunderwarranty,innoeventshallthesupplier
 beresponsibleorliableforspecial,incidental,consequentialorindirectdamages,orrepairbyanon-authorisedservice
centre and use of non-original spare parts.
Dealer name and stamp Date of Purchase
............................................................... ................................................................

Specications
Pro Audio 5 Active Speaker System:
Tweeter - 1 inch soft-dome
Woofer - 5 inch Fibreglass Cone
Nominal Impedance - 4 Ohm
Sensitivity 2.83V (1W/1M) - 87 dB
Power Output - 40W x 2
Frequency Response - 60Hz - 20KHz
Crossover System - 2-way
AmplierType-ClassD
Inputs - 1x RCA / 2x MIC / 2x XLR / 1x Bluetooth
Outputs - Left speaker out
AmplierInputSensitivity-500mV(LineRCA)
Frequency Range - 20Hz-20KHz @ +/-3dB
THD - <0.1%
Remote control included
Dimensions -175mm x 205mm x 272mm
Net Weight - 8.5 Kg
Inaccordancewithourpolicyofcontinuousdevelopment,wereservetherighttochangespecicationswithoutnotice.Photographsareforillustrationonlyandactualproductmayvary.E&OE.
