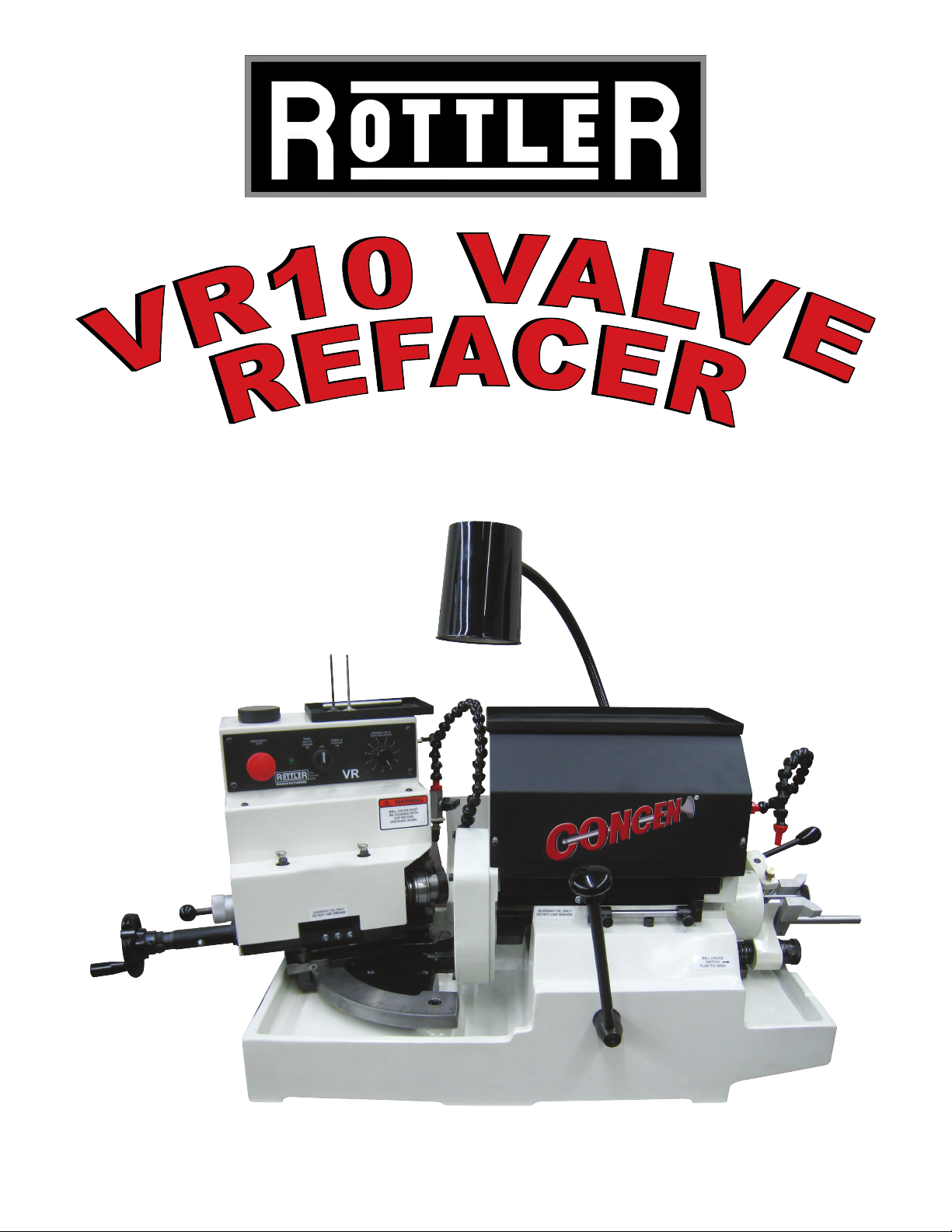

Rottler VR10 User manual

8029 S 200th St Kent, WA 98032 USA | www.rottlermfg.com | Ph: 253-872-7050 | Fax: [phone]
OPERATION AND MAINTENANCE MANUAL
06.11.2019

ORDERING PROCEDURE
Contact your regional Rottler sales rep for assistance in ordering optional equipment, replacement parts,
or tooling.
If you are unable to contact your regional Rottler sales rep, call the factory at 253-872-7050 and ask to
speak to the parts sales specialist.
Have the following information handy to expedite the ordering process:
1. Your name, business name, and contact number
2. Customer number
3. If you don’t have a customer number, your billing address
4. Shipping address if di󰀨erent from billing address
5. Machine model and serial number
6. Part number and description of what you want to order
7. Preferred method of shipment
8. You may also contact us via e-mail with the above information. Send e-mail requests to:
[email protected] or [email protected]
In some cases you may be requested to send a photo of the part you are ordering if it is a replacement
part, or doesn’t appear in the database.
If you are unsure which part you need to order, contact our service department and ask to speak to one of
our service consultants. They will assist you in determining which part you require.
THERE IS A MINIMUM ORDER OF $25.00
MANUAL SECTIONS
INTRODUCTION
INSTALLATION
SAFETY
CONTROL DEFINITION AND SWITCHES
OPERATING INSTRUCTIONS
MAINTENANCE
TROUBLESHOOTING
MACHINE PARTS
OPTIONS
SDS

Section 1 Introduction VR10 Manual
www.rottlermfg.com
I
INTRODUCTION
Contents
Introduction..................................................................................................................1-1
Description...................................................................................................................1-2
Disclaimer ....................................................................................................................1-2
Limited Warranty .........................................................................................................1-3
Online Documentation Access...................................................................................1-4

Section 1 Introduction VR10 Manual
www.rottlermfg.com
1-1
Introduction
READ THE SAFETY CHAPTER BEFORE INSTALLING MACHINE. THOROUGHLY UNDERSTAND
ALL SAFETY ISSUES BEFORE OPERATING MACHINE.
ATTENTION OWNER/BUSINESS MANAGER
To validate the warranty on your new Rottler machine, please
be sure to sign and complete the “Installation Report”
located in the Installation Chapter of this manual.
We suggest that the new user of the VR10 read the CONTROL DEFINITIONS to get an idea how the
machine operates.
The Operating Instructions chapter should be read in order to familiarize the user with the actual button
pushing sequences required to carry out a job. These chapters in the manual should be considered
an introduction. As the operators of the VR10 series machines gain experience with using the di󰀨erent
functions of the machine, complicated setups and programs will make more sense.
The rest of the manual contains information and part number reference on xtures, cutting tools, and
machine maintenance. The operator should read and become familiar with these areas as well.

Section 1 Introduction VR10 Manual
www.rottlermfg.com
1-2
Description
Precision Hardened Tool Steel Chuck System -Pneumatic Operated Quick Action 2 X 3 Ball Precision
Chuck driven by large, heavy duty variable speed gear motor. The 2 X 3 ball chuck allows a wide range
of valve stem diameters to be ground without changing any parts - no collets or wrenches! The 2 X 3 ball
chuck gives extremely accurate run-out for improved sealing, better heat transfer and reduces mechanical
stresses on valves.
3 Phase Grinding Wheel Motor - Single Phase power supply is converted to 3 phase to give smooth
grinding without any vibrations.
Turcite Coated Slideways - Low Friction for smooth stroking of Grinding Wheel over Valve.
Disclaimer
The VR10 Manual (henceforth to be referred to as the “Manual”) is proprietary to Rottler Manufacturing
LLC. (“Rottler Manufacturing”) and no ownership rights are hereby transferred. No part of the Manual
shall be used, reproduced, translated, converted, adapted, stored in a retrieval system, communicated or
transmitted by any means, for any commercial purpose, including without limitation, sale, resale, license,
rental or lease, without the prior express written consent of Rottler Manufacturing.
Rottler Manufacturing does not make any representations, warranties or guarantees, express or implied,
as to the accuracy or completeness of the Manual. Users must be aware that updates and amendments
will be made from time to time to the Manual. It is the user’s responsibility to determine whether there
have been any such updates or amendments. Neither Rottler Manufacturing nor any of its directors,
o󰀩cers, employees or agents shall not be liable in any manner whatsoever to any person for any loss,
damage, injury, liability, cost or expense of any nature, including without limitation incidental, special,
direct or consequential damages arising out of or in connection with the use of the Manual.
Rottler Manufacturing and its employees or representatives are not responsible for any information
regarding nal specications of any workpiece that is created as a nal product when using Rottler
equipment. It is the responsibility of the end user of Rottler equipment to determine the nal dimensions
and nishes of the workpiece that they are working on. Any information regarding nal dimensions and
nishes that appears in any Rottler literature or that is expressed by anyone representing Rottler is to
be regarded as general information to help with the demonstration of or for operator training of Rottler
equipment.

Section 1 Introduction VR10 Manual
www.rottlermfg.com
1-3
Limited Warranty
Rottler Manufacturing Company Model VR10 parts and equipment is warranted as to materials and
workmanship. This limited warranty remains in e󰀨ect for one year from the date of installation or two
years from the date of the original shipment from Rottler or whichever date occurs rst. This only applies
is the machine is owned and operated by the original purchaser and is operated and maintained as per
the instructions in the manual. A machine is warranted only if the Installation Report has been properly
executed by a certied installation person and received by Rottler at the time of actual installation.
The products are warranted upon delivery to conform to their published specications and to be free from
defects in material and workmanship under normal use for a period of one year from shipment. Should a
product not be as warranted, Rottler sole obligation shall be, at its option, to repair, correct or replace the
product or to refund the amounts paid for the Product upon its return to a location designated by Rottler.
No warranty shall extend to rapid wear Products (including tooling) or to Products which have been
subject to misuse (including any use contrary to Rottler instructions), neglect, accident (including during
shipment), improper handling or installation, or subject to any modication, repair or service not certied
by Rottler. Rottler shall not be liable for any consequential, direct or indirect damages or for any other
injury or loss. Buyer waives any right, beyond the foregoing warranty, to make a claim against Rottler.
No warranty is provided for any Products not paid in full.
Merchandise cannot be returned to Rottler without prior approval. Customer must contact the
Parts Department to get approval and to be issued a Return Goods Authorization number (RGR#).
Merchandise authorized for return must be returned prepaid. If merchandise is returned with shipping
charges collect, the actual amount of these charges may be deducted from any credit which may be due
the customer. The RGR # assigned by the Parts Department should be written on the shipping label
and must appear on a copy of the invoice(s) covering the original shipment. This invoice copy must be
included in the box with the parts. Shipment must contain ONLY those items on the RGR as approved
for return. Merchandise must be received within 10 days of the date of RGR or the RGR will be canceled.
All returned merchandise may be subject to a 20% restocking fee on under $1,000.00 amount or 10% on
any items over $1,000.00. Parts or tooling over 30 days old are considered as customer property and can
only be returned with prior approval from Rottler Corporation Management.
The issuance of a RGR DOES NOT guarantee credit - it is only authorization for the return of the goods.
Credit for return merchandise is at the sole discretion of Rottler. Credit will be issued only after inspection
of returned goods.
Tools proven to be defective within the warranty period will be repaired or replaced at the factory’s option.
We accept no responsibility for defects caused by external damage, wear, abuse, or misuse, nor do
we accept any obligation to provide compensation for direct or indirect costs in connection with cases
covered by the warranty.

Section 1 Introduction VR10 Manual
www.rottlermfg.com
1-4
Online Documentation Access
Online documentation for machines and optional equipment can be accessed at the Rottler website. To
access documentation open your browser and navigate to https://www.rottlermfg.com.
Scroll to the bottom of the page and under the Owner Resources title click the type of documentation you
want to access.
If a log in window pops up asking for user name and password ll in the blanks as shown.

Section 1 Introduction VR10 Manual
www.rottlermfg.com
1-5

Section 2 Installation VR10 Manual
www.rottlermfg.com
I
INSTALLATION
Contents
INSTALLATION REPORT.............................................................................................2-2
Installation Procedure.................................................................................................2-6
Unpacking and Lifting.......................................................................................................... 2-6
Location................................................................................................................................. 2-6
Machine Bolting.................................................................................................................... 2-7
Power Supply........................................................................................................................ 2-8
Grounding ............................................................................................................................. 2-9
Transformer Connections.................................................................................................... 2-9
Air Supply.............................................................................................................................. 2-9
Adding Grinding Oil ........................................................................................................... 2-10

Section 2 Installation VR10 Manual
www.rottlermfg.com
2-1
ATTENTION OWNER/BUSINESS MANAGER
To validate the warranty on your new Rottler machine, please
be sure to sign the installation report after the installation
technician has installed the machine and veried the machine
is operating correctly and given the operators operation and
maintenance training.
Thank you for your cooperation and the opportunity to be of
service to you.
ROTTLER MANUFACTURING

INSTALLATION REPORT
VR10
REV 110619
OFFICE USE ONLY
Route to: Parts _____ Service Mgr _____ Assembly Mgr _____ Parts _____ Andy _____ Parts _____
Warranty Exp Date ________
ROTTLER MANUFACTURING MUST HAVE THIS REPORT RETURNED
TO PROPERLY QUALIFY WARRANTY ON EQUIPMENT
Customer:____________________________ Address:_______________________________________
City:_________________________________ State:_____ Zip:_________ Phone:_______________
Country:______________________________
Machine Model:___________ Serial Number:__________ Representative:________________________

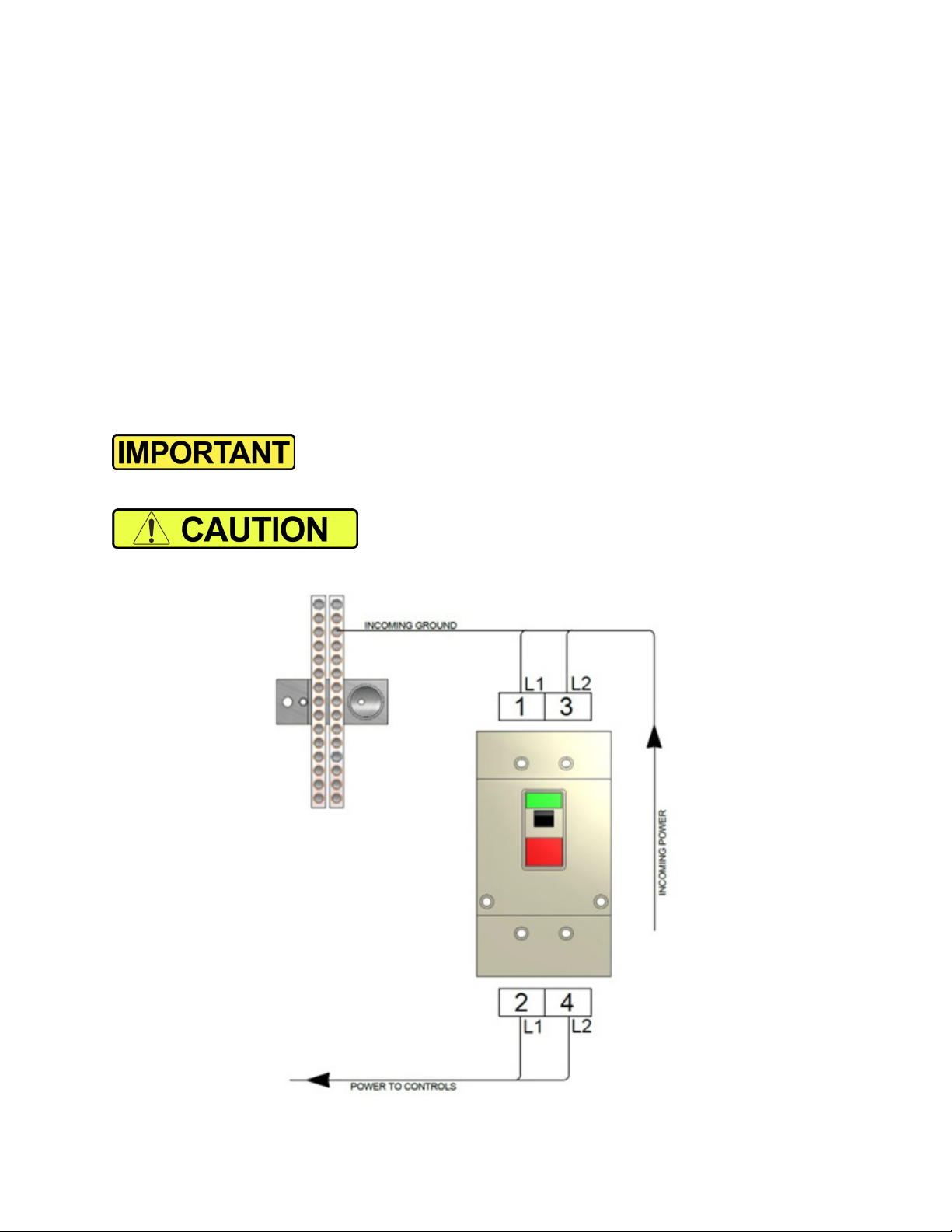

MACHINE INSTALLATION: Electrical information MUST be complete to validate this report.
Customer is responsible for providing electricity to machine in a manner that meets the local
electrical code requirements.
______Check machine with precision level and for equal support on feet.
______For 110V machines plug power cord supplied with machine into suitable 110V AC 20A outlet.
______For 220V version this machine requires 208 to 240V AC 1-phase, 50/60HZ power supply
(measured between L1 and L2). Current requirement is 10 amps. When using two legs of
a three-phase supply, the voltage from each leg to ground must be between 100-120V AC.
Measure the voltages of the power supply twice during installation
(1) _______VAC (2) ________VAC.
______For 220V version measure each leg of the incoming supply to ground. When using a one leg
and neutral of a 380 VAC three phase supply L1 should measure 240 VAC and Neutral should
measure almost 0 VAC.
L1 to ground __________VAC L2 to ground __________VAC.
Make sure all electrical equipment has the proper overload protection. The VR10 should have a stable
power supply to prevent damage and uncontrolled movement of the machine.
Neutral and machine ground are not the same thing. You should measure an
open circuit between Neutral and ground.
IF VOLTAGE IS OUTSIDE THE CORRECT RANGE AT ANY TIME THE
MACHINE WILL NOT OPERATE PROPERLY AND MAY BE DAMAGED.
______BEFORE turning power on to the machine. Check all wires for security by using the correct screw
driver and turning CW until movement stops. Stranded wire can “spread” slightly from vibration
during transport.
______Air of the proper pressure and capacity connected to the machine below 70 to 90 PSI Air supply
must be free from oil and water. Oil or water will damage electrical and air components. Air
pressure should never drop below 70 PSI at any time. Failure to provide adequate air supply may
cause improper clamping.

Section 2 Installation VR10 Manual
www.rottlermfg.com
2-3
______Remove back cover from the Control Panel and recheck/Inspect all wire connections with
a screwdriver for security, Stranded wire used in these machines can spread and loosen a
connection when shipping.

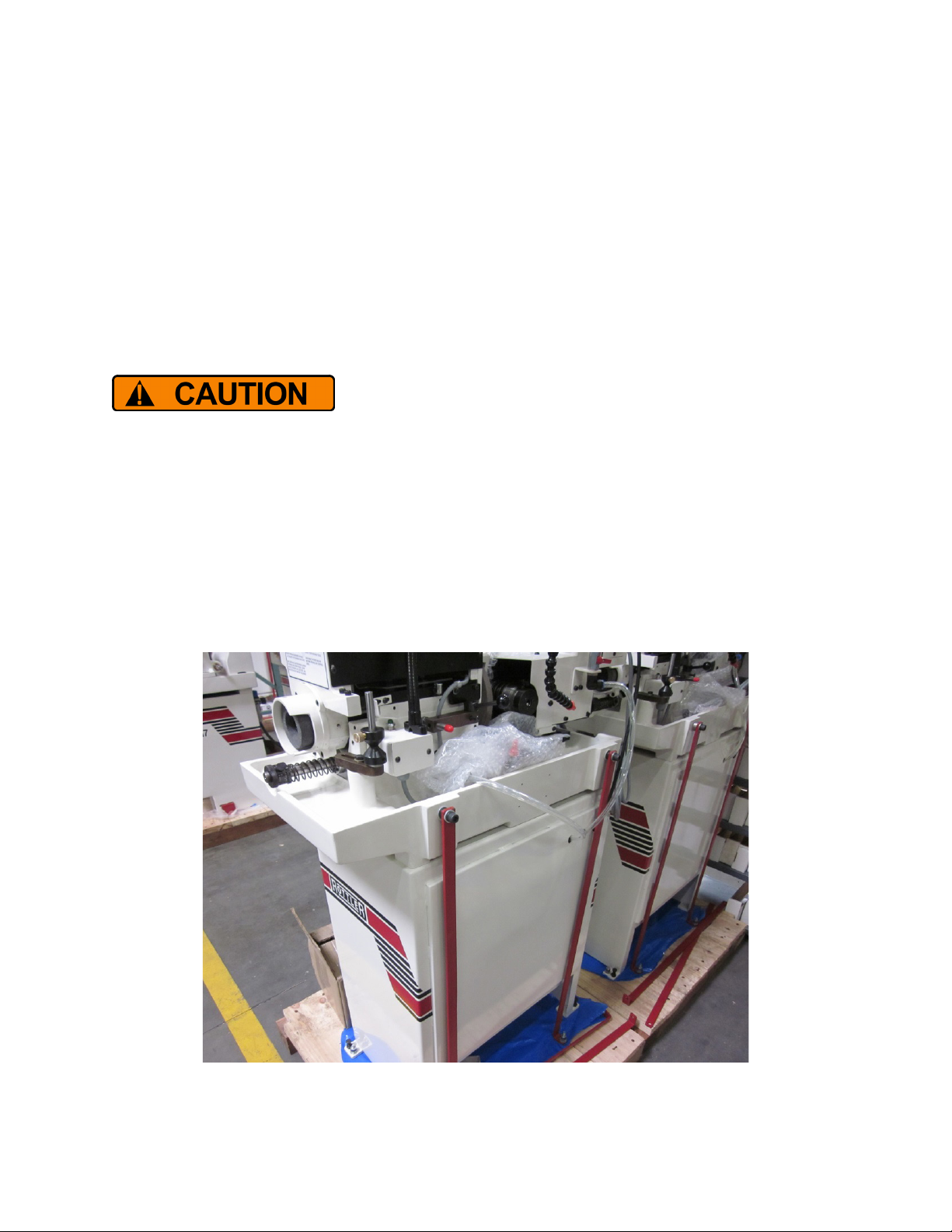

______Remove the shipping bolts and brackets.
______Clean any rust inhibitor from the machine surfaces.
______Conrm that coolant pump is wired and plumbed. See Installation section of manual for detailed
instructions if needed.
______Have the operator read through the operation manual before training begins. This will help him
be familiar with the button pushing sequences. Have the operator read through the manual again
after training and some of the sequences will make more sense.
MACHINE START-UP
When starting the machine for the rst time, it may move out of control. Make
sure all hands are clear of machine parts. Be ready to press the Emergency
Stop button if needed.
______Turn main power on from the main incoming breaker box.
MACHINE MOVEMENTS
______Before mounting the grinding wheel, be sure that the machine is not powered and the emergency
stop is pushed in.
______Always check that it is not damaged does not show any shock or damage mark.
______Start the spindle and verify grinding wheel operation.
INSTRUCTING THE OPERATOR
Note: Rotter employees and representatives per company policy are not permitted to provide end
user of Rottler equipment with any OEM specications for the workpiece that is created by end
user using Rottler equipment.
______Using the operating manual as a guide explain the function of all buttons.
______Cycle all machine movements and supervise the handling of same by operator.
______Fully explain the operation of the machine on seat angle face and stem ends.
______Point out safety features to customer and operator. Do not push any buttons without thinking of
safety rst.
______Check cooling pump and cooling tank for proper operation.
______Explain the importance of using only Rottler grinding oil. Use of non approved grinding oil will
void the warranty.
______The following is a checklist to go through every time the machine is started to begin machining a
seat. Work piece secure Grinding wheel RPM set Valve Rotation RPM set
______Proceed to have operator to machine a valve under you control.
______Parts ordering, refer the to the operating manual for part numbers and description.
______Review Emergency stop procedure and with operator per operating manual.
______Explain the importance of ball chuck maintenance per instructions in manual.

Section 2 Installation VR10 Manual
www.rottlermfg.com
2-4
Rottler Manufacturing and its employees or representatives are not responsible for any information
regarding nal specications of any workpiece that is created as a nal product when using Rottler
equipment. It is the responsibility of the end user of Rottler equipment to determine the nal dimensions
and nishes of the workpiece that they are working on. Any information regarding nal dimensions and
nishes that appears in any Rottler literature or that is expressed by anyone representing Rottler is to
be regarded as general information to help with the demonstration of or for operator training of Rottler
equipment.
Note: Rotter employees and representatives per company policy are not permitted to provide end user of
Rottler equipment with any OEM specications for the workpiece that is created by end user using Rottler
equipment.
General remarks on machine performance, adjustments as received and any further organization or parts
required to complete the installation.
____________________________________________________________________________________
____________________________________________________________________________________
____________________________________________________________________________________
____________________________________________________________________________________
____________________________________________________________________________________
____________________________________________________________________________________
____________________________________________________________________________________
____________________________________________________________________________________
____________________________________________________________________________________
____________________________________________________________________________________
____________________________________________________________________________________
Instructions given to:___________________________________________________________________
Sales/Service Engineer: _______________________________________________ Date_____________
Shop Foreman/Superintendent or Owner: _________________________________ Date_____________
Once completed send this form to:
Rottler Manufacturing
attn: Parts Department
8029 S 200 St
Kent, WA 98032 USA
Alternately you may send this form via fax or e-mail:
fax: [+1] 253-395-0230
e-mail: [email protected]

Section 2 Installation VR10 Manual
www.rottlermfg.com
2-5

Section 2 Installation VR10 Manual
www.rottlermfg.com
2-6
Installation Procedure
Unpacking and Lifting
Use care when removing the crate materials from the machine. Be careful not to use force on any part of
the machine.
Remove the shipping screws (4) from the skid; the shipping brackets will be painted red and lifting bracket
on yellow for easy identication. These screws are located at the four bottom corners of the Main Base.
The machine can be lifted by ropes once duly secured by.
THIS MACHINE IS TOP-HEAVY. Use care when lifting and moving
Machine
Location
For a suitable working level, suggest to rise the machine up to some 650 mm.
Avoid an excessive smoothness of the oor to prevent any sliding of the operator.
1. Place the machine in its pre-determined location and carefully remove crating.
2. Remove all the shipping brackets painted red, clean the rust preventative with a clean cloth, and
approved solvent.

Section 2 Installation VR10 Manual
www.rottlermfg.com
2-7
3. Remove the shipping bracket from the swivel plate (located on the front of the chuck swivel plate
clamp on the front of the machine).
If you are putting the machine on the bench, make sure to remove the drain tube and install the black
1.00” drain plug located on the back of the machine; be sure the coolant pump is free of all packing.
(Packing material will clog the coolant system)
Machine Bolting
Put it on a bench and duly bolt the machine to it through the holes located on the lower part of the
machine base. Bolt the bench to the oor if decided by using some studs drowned into the concrete by
means of a spirit level; check in both ways the planarity of the machine.

Section 2 Installation VR10 Manual
www.rottlermfg.com
2-8
Power Supply
This machine has the following power requirements:
• 110 to 120 or 208 to 240 VAC
• Single Phase Power
• 50 or 60 Hz
• 20 Amps for 115 VAC or 140 Amps for 220 VAC
See illustration below for correct connection of incoming power. Measured power at the machine’s
main breaker must be within the required range listed above. If incoming power is not within range, a
transformer must be used. Failure to do so will cause the machine to function abnormally and cause
permanent damage to the electronic control system.
Some electrical services contain a “Hot Leg, High Leg, or Wild Leg”, where single phase is derived from a
three phase connection and one leg measures 208VAC to Ground instead of 120VAC. It is not permitted
to use the “Hot Leg” for providing power to this machine. Voltage measured between the phases must be
between 208VAC and 240VAC, while each phase to ground must be ~120VAC.
Electrically connect in accordance with national and local electrical
codes.
Do not attempt to connect more 240VAC to this machine.
Do not attempt to connect to Three Phase Power.

Section 2 Installation VR10 Manual
www.rottlermfg.com
2-9
Grounding
The machine requires a good earth ground. The grounding conductor from the incoming power source
must be connected to the grounding block located inside of the electrical cabinet. A ground rod installed
in addition to the electrical service grounding conductor is permitted, but must be connected directly
to the grounding block inside of the electrical cabinet. Connecting the ground rod to the machine base
is not permitted. Consult a Licensed Electrician in your area to assess the installation, and install the
appropriate ground rod if necessary. Failure to do so may lead to an installation that is unsafe and does
not meet national and local electric codes.
Transformer Connections
This machine has the following minimum transformer size requirement:
• 10 kVA
If a transformer is necessary for machine installation, please refer to the diagram below for connection
information. Transformers must be sized to meet the minimum power requirements listed above. Consult
a Licensed Electrician in your area for transformer selection and installation.
Air Supply
It is very important the air source for the VR10 machine be moisture free.
Water and oil in the line will result in early cylinder and valve failure. The factory recommends installing a
water trap at the machine.
Attach a 100 PSI air source to the intake located on the left side of the machine as you are standing in the
operators position. Adjust pressure regulator so that air pressure going to the machine is between 70 and
90 PSI. ( 4.8 – 6.25 bar )
