Rouge GEN 3 Series User manual

GEN 3
SERIES
USER MANUAL
READY TO ROUGE?

RED LIGHT THERAPY
OVERVIEW
What is Red Light Therapy?
Red Light Therapy is the treatment of human tissue with
specic red and near infrared wavelengths of light at
certain concentrations to induce therapeutic benets.
The Benets of Red Light
Perceived by the human eye as a bright red light,
therapeutic red light falls in the range of 600-700nm.
These wavelengths are active on the surface of the body
and often used to treat wrinkles, sun damage, scars,
persistent wounds, acne - and to promote a healthy,
youthful appearance.
The Benets of Near-Infrared Light
Near-infrared light (NIR) can be found along the
700nm - 1100nm range of the spectrum. This light is
almost invisible to the naked eye and penetrates deeper
into the tissues to assist with wound healing, muscle
recovery, nerve injury and joint pain.
Red Light Boosts Cellular Energy Production
Red light therapy (including NIR light) is thought to have
numerous mechanisms of action in our cells, most
notably in the mitochondria where photoreceptors
called cytochrome c oxidase absorb the photons from
the red light. This is thought to initiate the decoupling of
inhibitory nitric oxide from this enzyme stimulating ATP
production as well as a host of other benecial
biological processes.
ATP is known as the “energy currency” of all living
cells, and thereby promoting its increase through red
and NIR light exposure is a signicant benet, as it
plays a central role in muscle contraction, nerve impulse
propagation, and biochemical synthesis. When our cells
are more energized, they perform better and in turn we
feel better as well!
The benets don’t stop there; after exposure to red
and near infrared wavelengths, Nitric Oxide (NO) - the
body’s natural vasodilator which widens blood vessels
and capillaries; is triggered and released. After up to
20 minutes of light therapy, blood ow is increased to
nerves and other tissues, and this boost lasts for several
hours circulating anti-inammatory and restorative
proteins throughout the body.
The majority of studies researching the benets of red
light therapy have used wavelengths in the ranges of
630-680nm and 800-880nm.

RED LIGHT PANELS

TABLETOP
GENERATION 3 DETAILS
LED Power 300W
Wavelengths RED 660nm & NIR 850nm / Customize
Amps @110v 0.95A
Amps @220v 0.49A
Dimensions 10.6” x 9.1” x 2.6”
Power Consumption 103W
LEDs 60 x 5W
Beam Angle RED60 Degree & NIR30 Degree
Cooling Fans 1pc
Weight 3.5KG/7.7LBS
LED Lifespan 100,000hrs
EMF Emission – Negligible
Warranty 3 Years
Best For Targeted Treatment
Max Area 28” x 24”
IRRADIANCE
10"x8"
Footprint
14"x12"
Footprint Footprint Footprint Footprint
6"
Light Meter
12" 18"
Light Meter
24"
Light Meter
Light Meter
36"
Light Meter
16"x16" 20"x20" 28"x24"
>200
mw/cm2 mw/cm2 mw/cm2 mw/cm2
51
mw/cm2
136 80
101

PRO
GENERATION 3 DETAILS
LED Power 1500W
Wavelengths RED 660nm & NIR 850nm / Customize
Amps @110v 4.86A
Amps @220v 2.25A
Dimensions 35.8” x 11.8” x 2.6”
PowerConsumption 496W
LEDs 300 x 5W
Beam Angle RED 60 Degree & NIR 30 Degree
Cooling Fans 4pcs
Weight 10.8KG/23.8LBS
LED Lifespan 100,000hrs
EMF Emission – Negligible
Warranty 3 Years
Best For Full Body Treatment
Max Area 47” x 24”
IRRADIANCE
>200
mw/cm2
180
mw/cm2
152
mw/cm2
130
mw/cm2
96
mw/cm2
Footprint Footprint Footprint Footprint Footprint
6"
Light Meter
12" 18"
Light Meter
24"
Light Meter
Light Meter
36"
Light Meter
47"x24"35"x10" 35"x12" 39"x16" 43"x20"

MAX
GENERATION 3 DETAILS
LED Power 3000W
Wavelengths RED 660nm & NIR 850nm / Customize
Amps @110v 9.3A
Amps @220v 4.5A
Dimensions 70.9” x 11.8” x 2.6”
PowerConsumption 992W
LEDs 600 x 5W
Beam Angle RED60 Degree & NIR30 Degree
Cooling Fans 8pcs
Weight 21.6KG/47.6LBS
LED Lifespan 100,000hrs
EMF Emission – Negligible
Warranty 3 Years
Best For Full Body Treatment
Max Area 87” x 24”
IRRADIANCE
87"x24"
mw/cm2 mw/cm2 mw/cm2 mw/cm2 mw/cm2
Footprint Footprint Footprint Footprint Footprint
71"x10" 73"x12" 75"x16" 79"x20"
>200 178 151 131 103
6"
Light Meter
12" 18"
Light Meter
24"
Light Meter
Light Meter
36"
Light Meter

ULTIMATE
GENERATION 3 DETAILS
LED Power 6000W
Wavelengths RED 660nm & NIR 850nm / Customize
Amps @110v 20A
Amps @220v 8.7A
Dimensions 70.9” x 23.6” x 2.6”
PowerConsumption 2000W
LEDs 1200 x 5W
Beam Angle RED60 Degree & NIR30 Degree
Cooling Fans 14pcs
Weight 41KG/90.4LBS
LED Lifespan 100,000hrs
EMF Emission – Negligible
Warranty 3 Years
Best For Full Body Treatment
Max Area 87” x 47”
IRRADIANCE
87"x47"
mw/cm2 mw/cm2 mw/cm2 mw/cm2 mw/cm2
Footprint Footprint Footprint Footprint Footprint
6"
Light Meter
12" 18"
Light Meter
24"
Light Meter
Light Meter
36"
Light Meter
71"x22" 73"x24" 75"x28" 79"x31"
>200 170 164 158 130

Full photo and Installation, work in circles like bro-
chure
SETUP AND USAGE
INSTRUCTIONS

SETTING UP YOUR
GEN 3 SERIES LIGHT
MENU
RED
OK
NIR
123
MENU OK
Choose
Menu
Choose
Red Light
Choose
NIR Light
R: 100% N: 100%
P: 20HZ G: 3
Increase Decrease
Play / Pause
RED
20:00
NIR
70%
70%
RED
NIR
30MINSTIME:
PULSE:
GROUP:
20HZ
3
O K
O K
11
22
33
Press , then press other buttons to set the brightness,
time, pulse, all lights in Group 1 will follow the settings
and work at the same time.
Remember that near infrared LEDs emit light
that is NOT visible to the naked eye.
Press , then press other buttons to set the
brightness, time, pulse, all lights in Group 2 will
follow the settings and work at the same time.
Press , then press other buttons to set the
brightness, time, pulse, all lights in Group 3 will follow
the settings and work at the same time.
Note: Please set the light in Group 1 or 2 or 3 rst.
OK
MENU
RED
NIR
Choose Red Light
Choose NIR Light
Cyclically, you can switch time, group, pulse
Increase time value, brightness percentage, group
number, pulse value
Decrease time value, brightness percentage, group
number, pulse value
Current pulse value and
group number
Red and NIR Light
intensity
Countdown: remaining
time (minutes)
Groups (Maximum: 3)
Pulse 0-20Hz
Time: 1-30 minutes
NIR light 0-100%
Red light 0-100%
Press the button once, start your treatment session.
You can pause/resume the treatment at any time by
pressing the button.

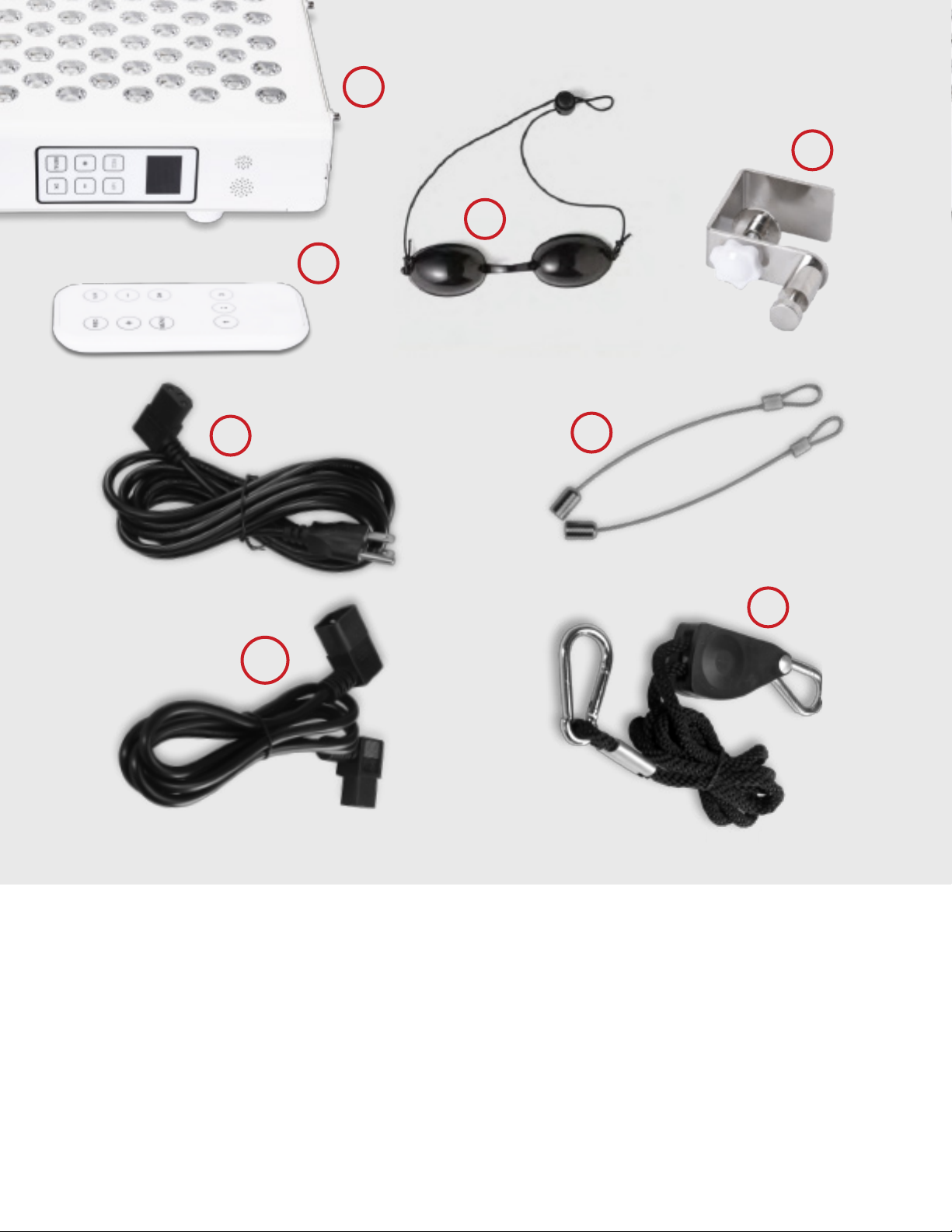

1. LED Therapy Light
3. Door Hook
5. Hanging Hardware
7. Patch Cable
2. Eye Protection
4. Renote Control
6. Power Cable
8. Cable Assembly & Snap Links
ACCESSORIES
2
3
4
5
6
7
8
1

STEP 1
Lay all of the included hardware, including your Panel,
on a padded surface. Next, screw in the threaded posts
to the top of the device and hand- tighten with the
included Allen wrench. Then, screw the cable supports
to the threaded posts, as shown in PIC 1.
STEP 2
Hang the included custom hook on any standard-sized
door, as shown in PIC 2.
TABLETOP AND PRO:
INSTALLATION INSTRUCTIONS
PIC 1
PIC 2

STEP 3
Connect the cable supports to the snap link attached to
the height-adjusting system. Then, connect the snap link
on the opposite end directly to the door hook, as shown
in PIC 3.
STEP 4

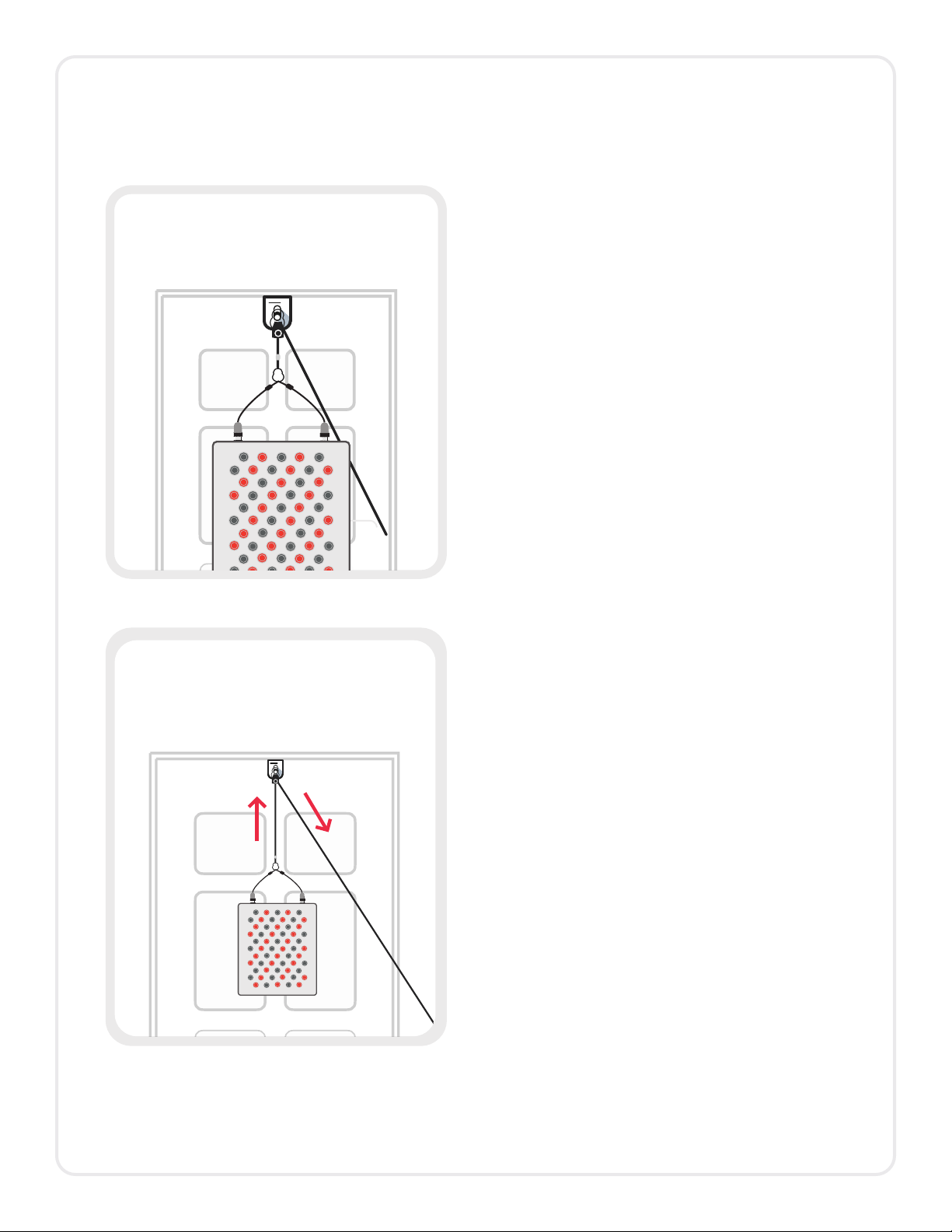

To raise your Panel to your desired height, pull down on
the loose cable while supporting the device with your
opposite hand, as shown in PIC 4.
PIC 3
PIC 4
TABLETOP AND PRO:
INSTALLATION INSTRUCTIONS

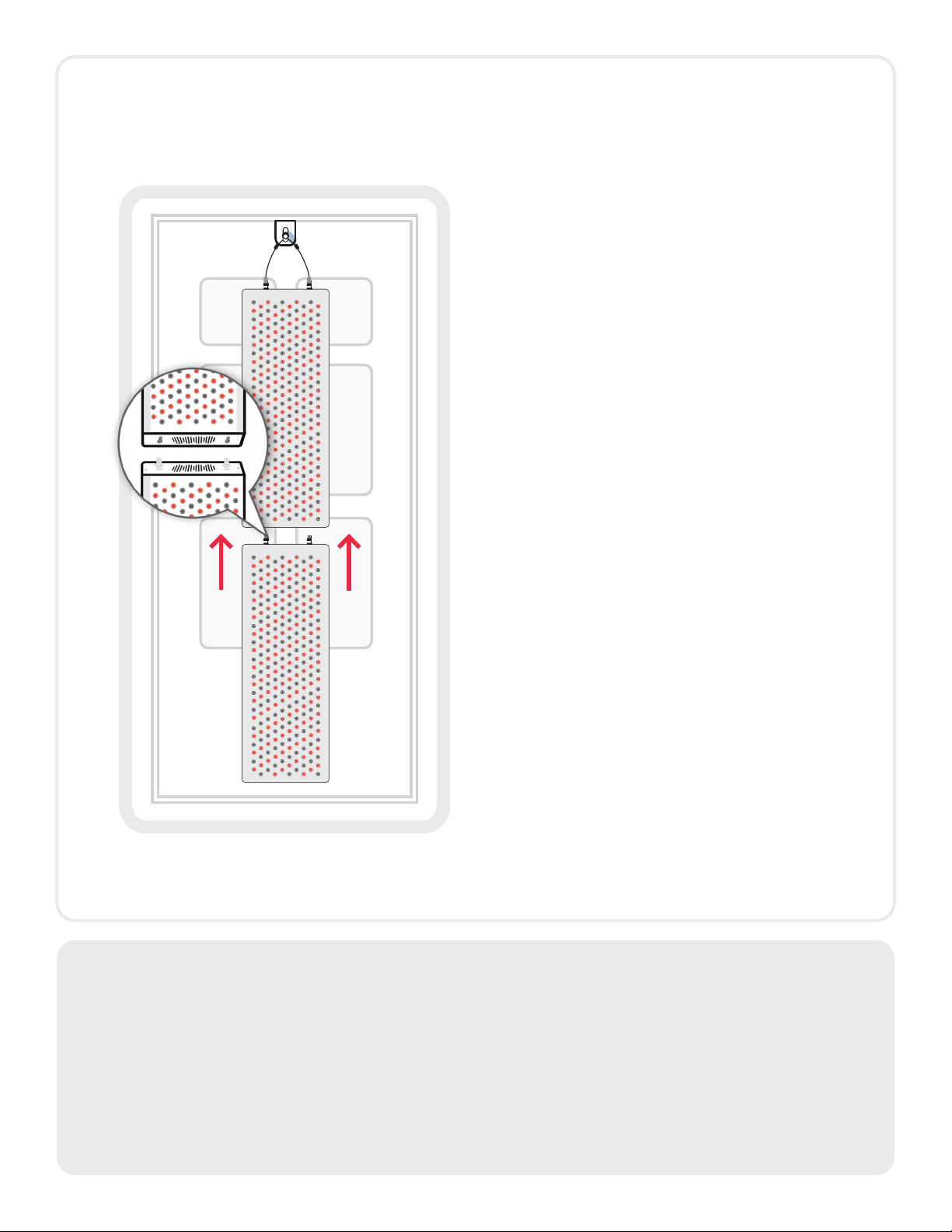

STEP 1
To connect the lower Rouge panel LED, lift it into position
below the lead device that is already in place. Line up
the threaded posts with the holes in the end caps of the
upper device. Then, slide the lower threaded posts into
the holes, and slide forward to lock in place.
Dimming: This feature oers the option to ne-tune the intensity of your red light or NIR light simultaneously or independently,
for individualized or specic dosing protocols.
Pulsing: This feature is popular among athletes and those looking to achieve synergy with certain frequencies. The NIR
wavelength can be pulsed from 1-20 Hertz.
Modular Grouping: This allows for the wireless pairing of two or more panels in individual groups so that remote control
operations can correspond to the correct set of panels in the same building or area.
CONNECTING MULTIPLE
GEN 3 SERIES LIGHT UNITS
NEW FEATURES

• We recommend starting slow with shorter sessions at a greater distance.
• Be conservative on initial dosage when working on more sensitive areas.
• Adding up all the areas you will treat, do not exceed 120 joules of exposure per
session, which is approximately 15-20 minutes of total exposure at close range.
• These guidelines are valid for all Rouge red light therapy products.
Frequency
Minimum of 3 times per week, ideally once daily. If more than once per day is required,
sessions should be at least 6 hours apart.
Distance From light:
The closer you are, the shorter your session will be and you will cover a smaller surface
area. If you stand further away, you will be able to cover a larger area but more time will
be required. Remember that we need to give the treatment area a certain amount of
energy, as we move away from the light the energy available to your body diminishes
rapidly.
For Skin Issues
Skin requires 3 to 15 joules of red light (660nm) per session which you can achieve by
following these guidelines:
• 6” (15 cm) from the light for 30 seconds to 2.5 minutes
• 12” (30 cm) from the light for 1 minute to 3.5 minutes
• 18” (45 cm) from the light for 1.5 minutes to 5 minutes
• 24” (60 cm) from the light for 2 minutes to 7 minutes
• 36” (90 cm) from the light for 3 minutes to 14 minutes
Note: If you are using red light for anti-aging or general skin health purposes, then you
should stand between 12 and 36 inches from the light. For more specic therapeutic or
ROUGE RED LIGHT THERAPY
DOSAGE GUIDELINES

Warranty Clauses
1. Rouge Red Light Therapy devices are warranted against defects in materials and
workmanship for a period of THREE (3) YEARS from the purchase date.
2. Free replacements are warranted for a period of SIX (6) MONTHS.
3. Warranty does not cover the following damage(s): Modied product, improper
installation or use, improper cleaning, electrical surges, or damage caused by direct
exposure to natural elements like water or re for example.
4. Warranty does not cover the loss of third party with direct or indirect damage(s)
Cleaning Instructions
1. Unplug light before cleaning.
2. Do not use cleaning sprays. Wipe with a dry or lightly damp cloth to clean.
WARRANTY
medical uses like treating wounds, scars, sores or other skin disorders or to stimulate
hair growth then you should stand closer, between 6 and 12 inches for maximum
eectiveness.
For Deeper Issues:
For treating deeper issues, like muscle, brain, bones, tendons, glands, fat, joints, fat,
etc., we need between 10 and 40 joules of near infrared light (850nm). In this case we
will always want to be close to the light. Here are guidelines to follow:
• 6” (15 cm) from the light for 2 minutes to 7 minutes
• 12” (30 cm) from the light for 5 minutes to 10 minutes

©2020-2022 Rouge Red Light Therapy. All rights reserved
Rouge Red Light Therapy
6000 Boul Rome, suite 410
Brossard, QC J4Y 0B6
E-Mail: [email protected]e
Tel: [phone]
rouge.care
