ROWAN ELECTRIC APPLIANCE HZB-15N User manual

USER MANUAL

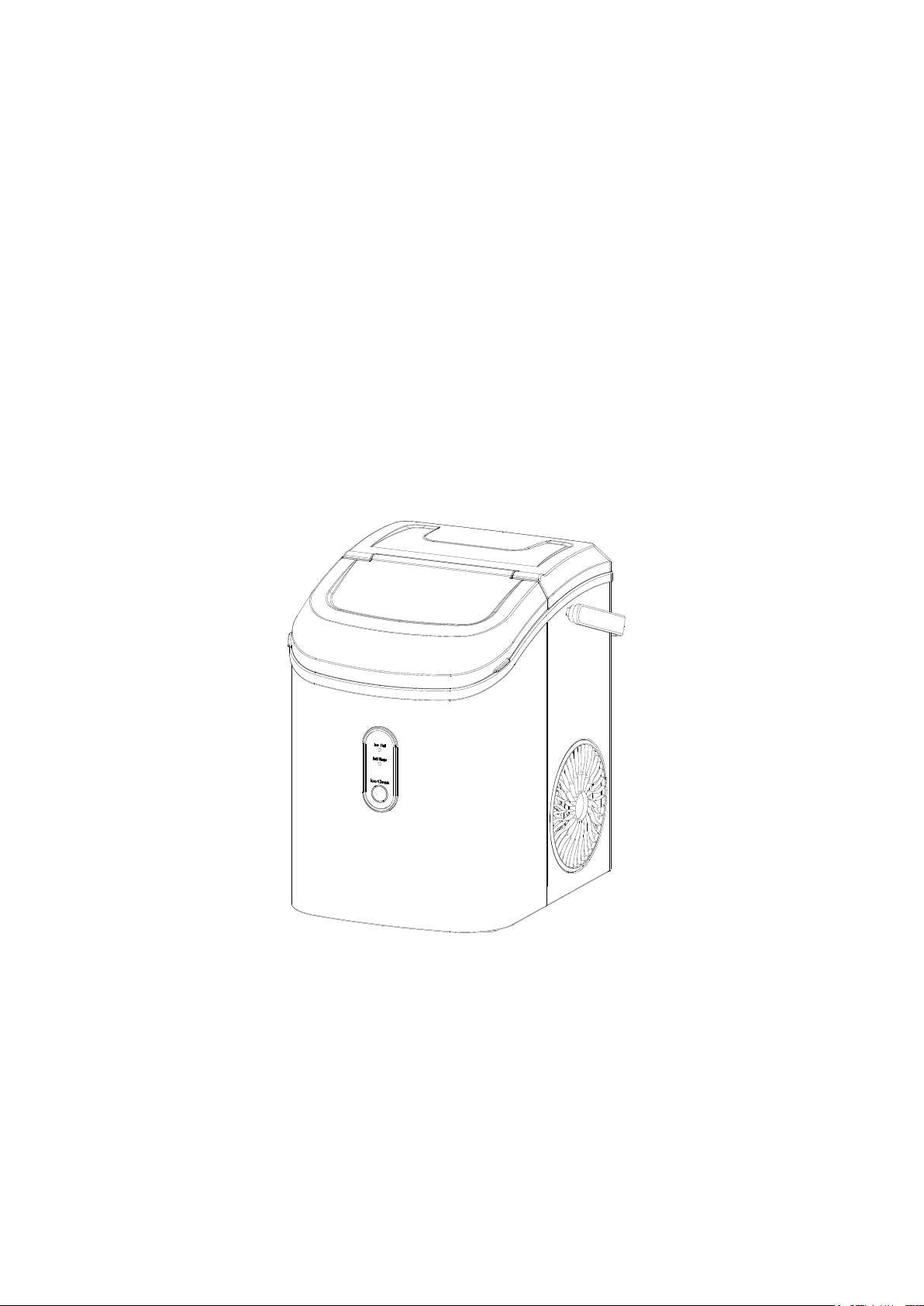

PORTABLE NUGGET ICE MAKER
HZB-15N HZB-15N/S
Thank you for purchasing this product! Please read the instructions carefully before using
your portable ice maker. If you have any questions about the product, please contact us via
Amazon Message or customer service number: 213-4467172 or 661-4358826.

IMPORTANT SAFETY INSTRUCTIONS…………………………………………………1
PREPARING YOUR ICE MAKER FOR USE
IMPORTANT SAFETY TIPS…………………………………………………………………….2-3
GETTING TO KNOW YOUR UNIT
…
…… …… …… …… …… …… …… …… …… …… …… …… …… …… …… …… …… …… …… …… …. .. .4 4
OPERATING PROCEDURES & MAINTENANCE …………………………………...4-5
ASSEMBLE HANDLE ……………………….…………………………………………..5
USING YOUR ICE MAKER
HOW TO START THE UNIT ………………………………………………………………….6
CLEAN ……………………………………………………………………………………….6
SYSTEM CLEANING/SANITIZING PROCEDURE ………………………………………….7-8
HOW TO OBTAIN THE ICE-CUBE ………………………………………………………….9
ICE SCOOP POSTION ……………………………………………………………………….9
TROUBLESHOOTING ……………………….…………………………………………..10
TECHNICAL PARAMETERS & CIRCUIT DIAGRAM
TECHNICAL PARAMETERS ………………………………………………………….11
CIRCUIT DIAGRAM ………………………………………………………………………..11
TABLE OF CONTENTS

1
Your safety and the safety of others are very important.
We have provided many important safety messages manual and your appliance.
Always read and obey all safety messages.
This is the safety alert symbol:
!
All safety messages will follow the safety alert symbol and the word “DANGER” or “WARNING”.
These words mean:
You can be seriously injured if you don’t immediately follow instructions.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury,
and tell you what can happen if the instructions are not followed.
IMPORTANT SAFETY INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS

2
When using electrical appliances, basic safety precautions should be followed to reduce the risk of fire,
electric shock, and injury to persons or property. Read all instructions before using any appliance.
Do not operate this，or any other appliance with a damaged cord.
If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a
similarly qualified person in order to avoid a hazard.
This ice-maker must be positioned so that the plug is accessible.
Connect to properly grounded outlets only. No other appliance should be plugged into the same
outlet. Be sure that the plug is fully inserted into the receptacle.
Do not run the power cord over carpeting or other heat insulators. Do not cover the cord. Keep cord
away from traffic areas, and do not submerge in water.
We do not recommend the use of an extension cord, as it may overheat and become a risk of fire. If
you must use an extension cord, use No.14AWG minimum size and rated no less than 1875 watts.
Unplug the ice maker before cleaning or making any repairs or servicing.
Exercise caution and use reasonable supervision when appliance is used near children.
Do not use your ice-maker outdoors. Place the ice-maker away from direct sunlight and make sure
that there is at least 6 inches of space between the back of your unit and wall. Keep a minimum
distance of 6 inches on each side of your unit free.
Do not use other liquid to make the ice-cube other than water.
Do not clean your ice maker with flammable fluids. The fumes can create a fire hazard or explosion.
Do not tip over.
If the ice maker is brought in from outside in wintertime, give it a few hours to warm up to room
temperature before plugging it in.
WARNING: This appliance must be earthed.
DANGER –Risk Of Fire or Explosion. Flammable Refrigerant Used. Do Not Use Mechanical
Devices To Defrost Ice Maker. Do Not Puncture Refrigerant Tubing.
PREPARING YOUR ICE MAKER FOR USE
IMPORTANT SAFETY TIPS

3
DANGER –Risk Of Fire Or Explosion. Flammable Refrigerant Used. To Be
Repaired Only By Trained Service Personnel. Do Not Puncture Refrigerant Tubing.
CAUTION –Risk Of Fire Or Explosion. Flammable Refrigerant Used. Consult Repair
Manual/Owner’s Guide Before Attempting To Install or Service This Product. All Safety Precautions
Must be Followed.
CAUTION –Risk Of Fire Or Explosion. Dispose Of Property In Accordance With Federal Or Local
Regulations. Flammable Refrigerant Used .
CAUTION-Risk Of Fire Or Explosion Due To Puncture Of Refrigerant Tubing;Follow Handling
Instructions Carefully. Flammable Refrigerant Used.
The ice maker should be installed in accordance with the safety standard for Refrigeration Systems,
ASHRAE15. The ice maker shall not be installed in corridors or hallways of public buildings.
If the unit is with problem need to be maintained, that replacing with like components and that
servicing shall be done by factory authorized service personnel, so as to minimize the risk of
possible ignition due to incorrect parts or improper service.
IMPORTANT:
The wires in this mains lead are colored in accordance with the following code:
Green or Green with a yellow strip: Grounding
White: Neutral
Black: Live
To avoid a hazard due to instability of the appliance, it must be placed at aneven or flat surface.

4
A
B
C
D
GETTING TO KNOW YOUR UNIT
1、Float switch；
2、Secondary water reservoir: It connects directly with the evaporator；
3、Water reservoir；
4、Maximum water level；
5、Filter；
6、Control Panel：
A. Ice making and cleaning buttons；
B. Ring indicator light；
C. Water lack indicator light；
D. Ice full indicator light；
7、Top cover, removable from the top；
8、Hot Air outlet；
9、Ice basket；
10、Water drain cap: at front btom side of the unit；
11、Ice scoop；
12、Handle
1. Remove the exterior and interior packaging, and then check all the accessories are included. If any
parts are missing, please contact our customer service.
2. Remove all the tapes on the unit; take out the accessory parts inside.
3. Clean the interior with lukewarm water and a soft cloth.
4. Locate your ice maker on a level counter table far from direct sunlight and other sources of heat
(i.e.: stove, furnace, and radiator). Make sure that there is at least 6 inches between the back and
sides of your ice maker and the wall.
5. Allow one hour for the refrigerant fluid to settle down before plugging your ice maker in.
OPERATING PROCEDURES & MAINTENANCE
①
③
②
④
⑤
⑥
⑦
⑧
⑨
⑩
11
12

5
DANGER
6. The power plug must be accessible directly.
WARNING: Fill it with potable water only. Only use drinking water.

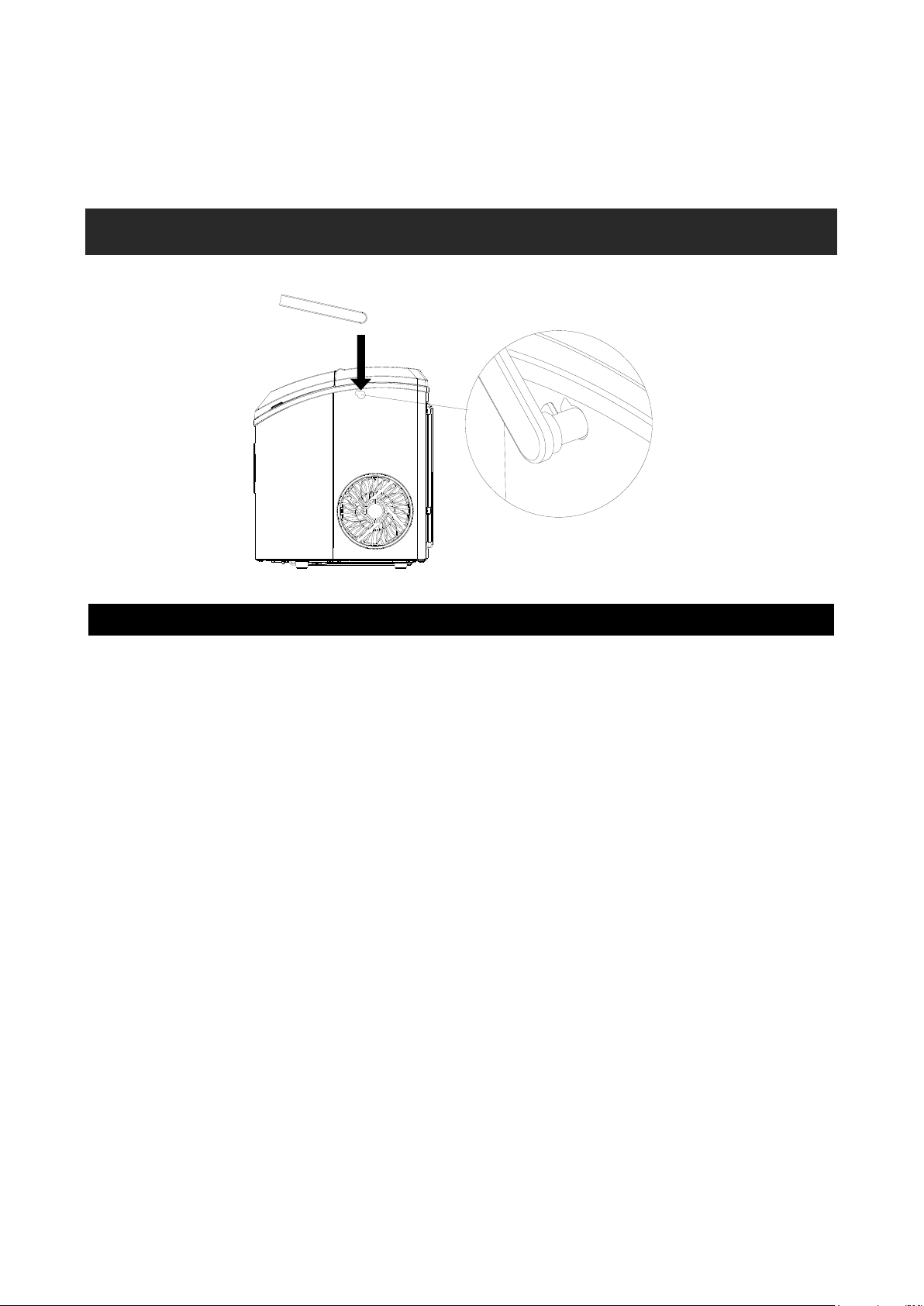

ASSEMBLE HANDLE
Rotate the handle to the same angle as the mounting hole on the machine, and put it on the machine.
*Improper use of the grounded plug can result in the risk of electrical shock. If the power cord
is damaged, please call our customer service.
1. This unit should be properly grounded for your safety. The power cord of this appliance is equipped
with a grounding plug which mates with standard grounding wall outlets to minimize the possibility of
electric shock.
2. Plug your appliance into an exclusive, properly installed, grounding wall outlet. Do not under any
circumstances; damage the grounding means of the plug. Any questions concerning power and/or
grounding should be directed toward a certified electrician.
3. This appliance requires a standard 110-120Volt, 60Hz electrical outlet with good grounding means.
Before using your ice maker, it is strongly recommended to clean it thoroughly.
Unplug the unit before cleaning or making any maintenance.
1. Take out the ice basket.
2. Clean the interior with diluted detergent, warm water and a soft cloth.
3. Then use the water to rinse the inside parts, and drain out the water by unplugging the drain cap on
front bottom side.
4. The outside of the ice maker should be cleaned regularly with a mild detergent solution and warm
water.
5. Dry the interior and exterior with a clean soft cloth.
6. When the machine is not to be used for a long time, drain water completely & dry the interior.

6
How to start the unit
1. Take out the ice basket, pour potable water into water reservoir, 0.3 gallon of water at most at one
time.
2. Put back the ice basket.
3. Plug in and the ring indicator will be on red.If you press the "ice /clean" button, the machine will
start making ice; If long press the "Ice/Clean" button, it will do automatic cleaning.
CLEAN
For the first time, or the clean procedure has not been running for a long time, it is highly
recommended to run this procedure at first.
1. Before clean procedure, please make sure the water drain cap has been inserted into the appliance;
otherwise it will not work properly.
2. Press “ICE/CLEAN” button for5 seconds, ring indicator light flashes white, and it will run cleaning
procedure for 15 minutes and then automatically exit, press this button again during the cleaning
procedure, it will exit immediately.
3. After cleaning procedure, remove the top cover and the ice basket, rinse the main water reservoir
and the secondary water reservoir, then move the appliance to the edge of the desktop, make sure
that the appliance is placed steady, place a water container under the appliance,remove drain cap
from the bottom, dirty water will drain into the water container, then reinsert the drain cap.
USING YOUR ICE MAKER
pour water
Water
reservoir
Secondary water
reservoir
Top cover
Ice basket
Water drain cap
Tips:Remove the top back cover by pulling up the front transparent cover gently.

7
Change water in the water reservoir every 24 hours to ensure a reasonable hygiene level. If
the unit isn’t to be used, drain all water & dry the water reservoir.

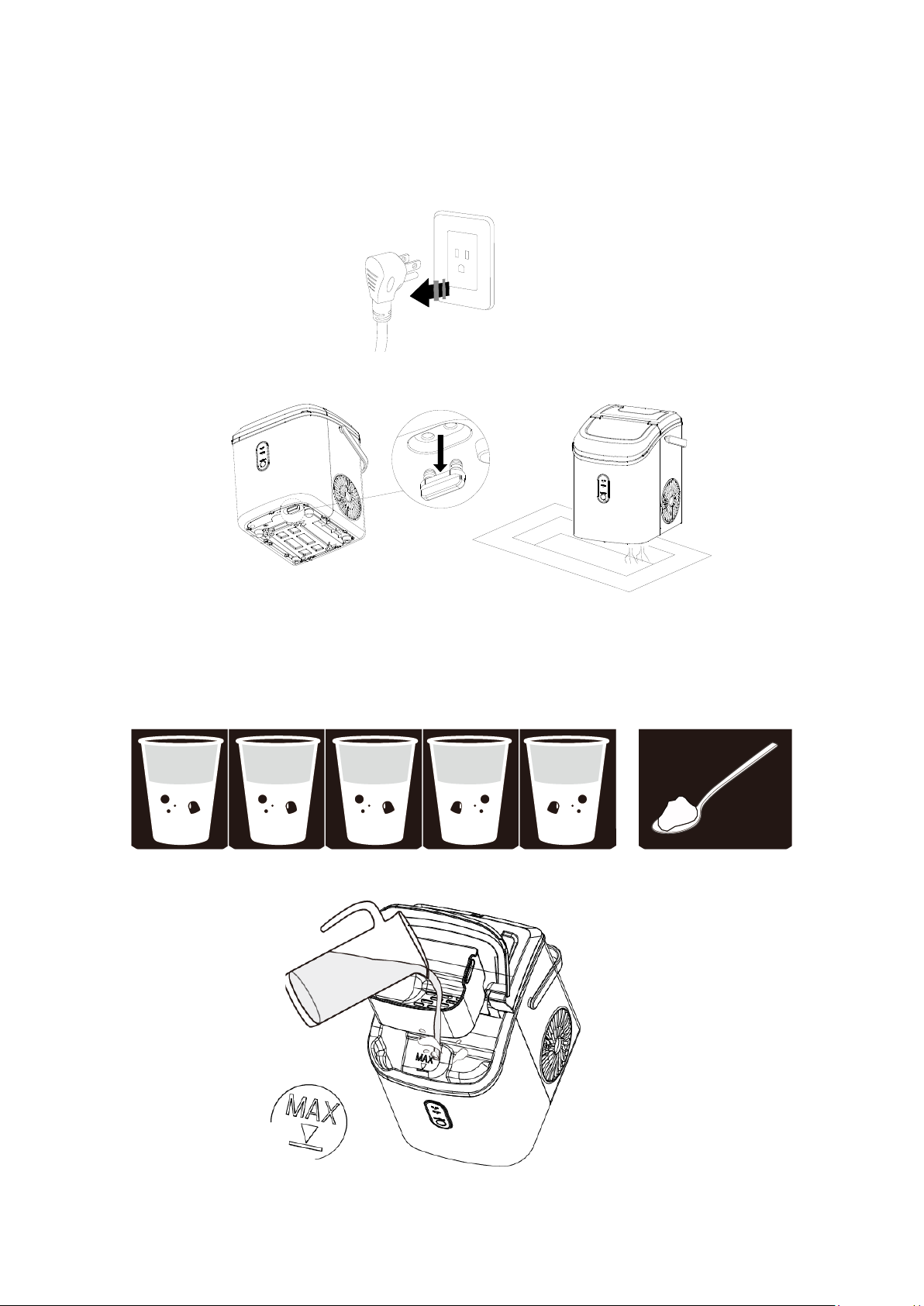

System Cleaning/Sanitizing Procedure
1.Unplug the nugget ice maker.
2.Take off the bottom drain cap and drain out the water to a sink.
See the figure below.
3.Produce a solution by diluting one teaspoon of household bleach with five cups of water
for daily cleaning.
For monthly cleaning of removing mineral deposits , please use the white vinegar instead of the
above water solution (and then plug in to turn on the “cleaning function” for about 5 minutes.After
that, unplug it again to leave the white vinegar in the unit more than 12hours).
4.Pour the solution into the water reservoir, up to the “MAX” water level.See the figure below.

8

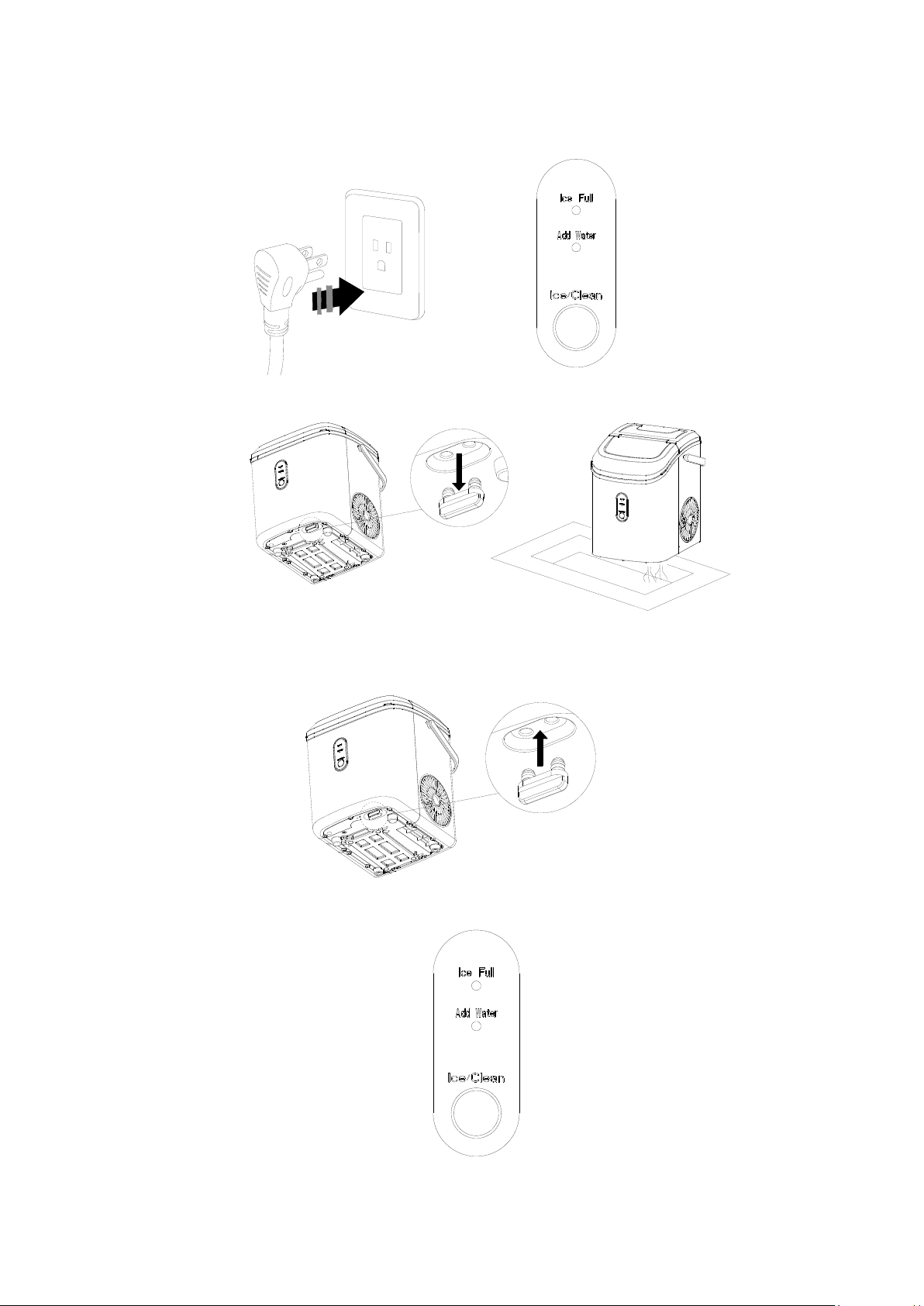

5. Plug in the Nugget ice maker,press and hold the "Clean" button for 5 seconds to
initiate the cleaning process(15mins).See the figure below.
6. When the "cleaning" indicator lights off, take off the drain cap and drain out the water to a sink.
7. Repeat the step 4 to 6 with fresh water for two more cycles to rinse the inside.
8. Replace the drain cap on the bottom. See the figure below.
9. When completed, fill the unit with fresh water and press the "Ice" button to start ice making process.
See the figure below.

9
How to obtain the ice-cube
1. Before we start making ice, please make sure the water drain cap has been inserted into the
appliance; otherwise it will not work properly.
2. Press “ICE/CLEAN” button , ring indicator light flashes white，and it begin to work. Press this
button again, it will stop making ice.
3. For the first time, if the appliance has not been used for a long time, it is recommended to clean
this appliance before you start to make ice.
4. In the process of making ice, if the "Add water" indicator light is on, and the machine stops working,
it needs adding water. After adding water, please restart the machine; Otherwise, it needs waiting for
a long time and then automatically start making ice again. When the ice making machine is
restarted, the compressor will have a waiting time of 3 minutes.
5. When the machine is full of ice, it will automatically stop working. The "ice full" indicator light will be
on, and the ring indicator light will be white. After the ice is removed, the machine starts working
automatically.
ice scoop position
Put the scoop on the top back cover
Ice scoop
Ice scoop holder

10
PROBLEM
POSSIBLE CAUSE
SOLUTION
“Add Water ”
indicator turns on
Lack of Water.
Stop the ice maker, fill water, and
press “ICE/CLEAN”button again
to restart the unit.
“ICE FULL”
indicator turns on
There is too much ice.
Suggest you to obtain the
ice-cube.
No ice cube inside.
Remove the probable obstacle
inside or clean the inside wall of
the ice storage
Ring indicator light
flashes red
Ambient temperature or water
temperature in inner tank is too high.
Please run the ice maker below
90 Fahrenheit degree ambient
and pour colder water into tank.
Refrigerant liquid leakage.
Press the ICE button twice, restart
ice making program, if this
problem show up again, verify
by a qualified technician.
Cover motor is broken
Pipe in the cooling system is
blocked.
Making Ice too
slowly
Hot Air outlet has been blocked by
something.
Hot Air outlet must be guaranteed
to have more than 15 CM of
ventilation distance.
Water temperature in inner tank is
too high.
Water temperature requirement
between 7℃-32℃.
Refrigeration system malfunctions.
Verify it by a qualified technician.
Water leakage
Drain plug is not in place
Put the drain plug in place.
Pipe Joint in the appliance may
be loose Verify it by a qualified technician.
The seal has reached its service life Verify it by a qualified technician.
TROUBLESHOOTING

11
M
Mo od de el l H HZ ZB B- -1 15 5N N H HZ ZB B- -1 15 5N N/ /S S
P
Pr ro ot te ec ct ti io on n T Ty yp pe e I I
P
Po ow we er r 1 11 15 5V V/ /6 60 0H Hz z
I
Ic ce e M Ma ak ki in ng g C Cu ur rr re en nt t 2 2. .7 7A A
R
Re ef fr ri ig ge er ra an nt t R R6 60 00 0a a / / 1 16 6g g
V
Ve es si ic ca an nt t C C5
5H
H1
10 0
D
Di im me en ns si io on n 2 28 87 7x x2 22 20 0x x3 32 22 2m mm m
TECHNICAL PARAMETERS
CIRCUIT DIAGRAM
TECHNICAL PARAMETERS & CIRCUIT DIAGRAM
-
-
+
+
GHG CN2
COMP
PUMP
T1
FAN
KEY
L-N
Cover Motor
+R-TPA+
J2
CN3
AW
MW
ELECTRICAL DIAGRAM
Overload
Protector
Start Relay
COMPRESSOR
POWER
Pump For
Water
DC Fan
Motor
WATER LEVEL
DETECTING SWITCH
Ice-Full Detector
SENSOR FOR AMBIENT TEMP

Thank you for purchasing this product! If you have any questions about
the product, such as missing parts, damaged products, product
assembling, and operation, please contact us via Amazon Message or
customer service number: 213-4467172 or 661-4358826
IMPORTANT
Please call our customer service department for any consulting:
213-4467172
661-4358826
(8:30am - 5:30pm P.S.T.)
DATED PROOF OF PURCHASE IS REQUIRED FOR WARRANTY
SERVICE.
AVIS
Veuillez appeler le service à la clientèle pour toutes questions au:
213-4467172
661-4358826
(8:30am - 5:30pm P.S.T.)
PREUVE D’ACHAT ORIGINALE REQUISE POUR SERVICE DE
GARANTIE.
IMPORTANTE
Sólo hay que llamar nuestro departamento de servicio
al cliente en caso de tener preguntas o inquietudes:
213-4467172
661-4358826
(8:30am - 5:30pm P.S.T.)
SE REQUIERE PRUEBA DE COMPRA CON FECHA PARA SERVICIO
BAJO GARANTÍA.
Address: ROWAN ELECTRIC APPLIANCE LLC
28407 Ascent Way, Santa Clarita, CA 91350
Phone: [phone] or 661-4358826
V1
