Rowenta DG8520 User manual

www.rowenta.com
1800129090 DG8520 F0_110 x 154 18/01/13 15:46 Page1

1
5
7
9
6*
14
2
10
11
8
3
4
12
13
16 a
16 e
16 d
16
15*
16 b
16 c
17
* Je nach Modell - * according to model - * Selon modèle - * Afhankelijk van het model - * Secondo i modelli - * Según modelo
- * Consoante o modelo - * Aνάλογα με το μοντέλο - * Modele bağlı olarakl - * В зависимости от модели - * zależności od
typu - * Според типа - * Podle modelu - * Ovisno o modelu - * Típustól függ - * În funcţie de model - * V závislosti od
modelu - * Odvisno od modela - * Zavisno od modela -
2
1800129090 DG8520 F0_110 x 154 18/01/13 15:46 Page2

fig.5 fig.8fig.7fig.6
fig.10 fig.11 fig.12
fig.13 fig.14
fig.1 fig.3fig.2
Click!
Click!
fig.4
fig.9
VORBEREITUNG - PREPARATION - PRÉPARATION - VOORBEREIDING - PREPARAZIONE - PREPARACIÓN - PREPARAÇÃO - ΠΡΟΕΤΟΙΜΑΣΙΑ
- HAZIRLIK - ПОДГОТОВКА - PRZYGOTOWANIE - ПОДГОТОВКА - PŘÍPRAVA - PRIPREMA - ELŐKÉSZÍTÉS - PREGĂTIREA - PRÍPRAVA -
PRIPRAVA - PRIPREMA -
GEBRAUCH - USEMAINT - UTILISATION - GEBRUIK - UTILIZZO - USO - UTILIZAÇÃO - ΧΡΗΣΗ - KULLANIM - ЭКСПЛУАТАЦИЯ -
UYTKOWANIE - ИЗПОЛЗВАН - POU ITÍ - UPORABA - HASZNÁLAT - UTILIZAREA - POU ITIE - UPORABA - KORIŠĆENJE -
3
1800129090 DG8520 F0_110 x 154 18/01/13 15:46 Page3

AZhZcH^ZY^Z<ZWgVjX]hVclZ^hjc\kdgYZgZghiZcKZglZcYjc\>]gZh<Zg~ihVj[bZg`hVb/:^cZKZglZcYjc\!Y^Zc^X]iYZg<ZWgVjX]hVclZ^hjc\Zciheg^X]i!WZ[gZ^iY^ZBVg`Zkdc_Z\a^X]Zg=V[ijc\jcYY^Z<VgVci^ZZci[~aai#9Vh<Zg~iYVg[c^X]iYjgX]O^Z]ZcVbHigdb`VWZaVjh\ZhiZX`ikdbHigdb`gZ^h\ZigZccilZgYZc#HiZX`ZcIgZccZcH^Z>]g<Zg~ihiZihVWkdbHigdb`gZ^hjcYaVhhZcH^ZZhVW`]aZc/"WZkdgH^ZYZcIVc`[aaZcdYZgYZc@ZhhZaVjhheaZc!"WZkdgH^ZZhgZ^c^\Zc!"cVX]_ZYZgKZglZcYjc\#9Vh<Zg~ibjhhVj[Z^cZhiVW^aZ!]^ioZWZhi~cY^\Z;a~X]Z\ZhiZaaijcYVj[Z^cZghdaX]ZcWZig^ZWZclZgYZc#LZccH^Z>]g7\ZaZ^hZcVj[hZ^cZHiVi^dchiZaaZc!hiZaaZcH^Zh^X]Zg!YVhhY^Z;a~X]Z!Vj[Y^ZH^ZZhhiZaaZc!hiVW^a^hi#HiZaaZcH^ZYVh<Z]~jhZ7\ZaZ^hZcc^X]iVj[YZc7Zoj\YZh7\ZaWgZiihdYZgVj[Z^cZ[ZjX]iZ;a~X]Z#9^ZhZh<Zg~i^hic^X]iYV[gkdg\ZhZ]Zc!kdcEZghdcZcdYZgVjX]@^cYZgcb^ikZgg^c\ZgiZc`geZga^X]Zc!hZchdg^hX]ZcdYZgbZciVaZc
fig.19 fig.20
fig.15 fig.18fig.16 fig.17
1/4
1/4
1/4
€
fig.21 fig.22
fig.25 fig.26
fig.23 fig.24
€
1/4
fig.27 fig.28
INSTANDHALTUNG - ENANCE - ENTRETIEN - ONDERHOUD - MANUTENZIONE - MANTENIMIENTO - MANUTENÇÃO - ΣΥΝΤΗΡΗΣΗ -
BAKIM - УХОД - KONSERWACJA - Е УПОТРЕБА - ÚDR BA - ODR AVANJE - KARBANTARTÁS - ÎNTREŞINEREA - ÚDR BA -
VZDR EVANJE - ODR AVANJE -
Modelle verfügen über einen Kalk-Kollektor - Models equipped with scale collector - Modèles équipés du collecteur de tartre - Modellen die
uitgerust zijn met het kalkopvangsysteem - Modelli forniti di raccogli calcare - Modelos equipados con colector de cal - Modelos com colector
de calcário - Μοντέλα με συλλέκτη αλάτων - Kireç biriktirici ile donatılmışmodeller - Модели, снабженные картриджем против накипи -
Modele wyposaone w zbiornik kamienia - Модели, оборудвани с колектор на котлен камък - Modely s kolektorem vodního kamene -
Modeli sa sakupljivačem kamenca - Vízkőgyűjtővel felszerelt modellek - Modele prevăzute cu colector de calcar - Modely so zberačom
vodného kameňa - Modeli, opremljeni z zbiralnikom vodnega kamna - Modeli sa kolektorom kamenca -
Modelle verfügen über keinen Kalk-Kollektor - Models not equipped with scale collector - Modèles non équipés du collecteur de tartre - Modellen
die niet uitgerust zijn met het kalkopvangsysteem - Modelli non forniti di raccogli calcare - Modelos no equipados con colector de cal - Modelos
sem colector de calcário - Μοντέλα χωρ ς συλλέκτη αλάτων - Kireç biriktirici ile donatılmamışmodelle - Модели, не снабженные картриджем
против накипи - Modele niewyposaone w zbiornik kamienia - Модели, необорудвани с колектор за котлен камък - Modely bez kolektoru
vodního kamene - Modeli bez sakupljivača kamenca - Vízkőgyűjtővel fel nem szerelt modellek - Modele care nu sunt prevăzute cu colector de
calcar - Modely bez zberača vodného kameňa - Modeli, ki niso opremljeni z zbiralnikom vodnega kamna - Modeli bez kolektora kamenca -
4
1800129090 DG8520 F0_110 x 154 18/01/13 15:46 Page4

EN
Important
recommendations
Safety instructions
EaZVhZgZVYi]ZhZ^chigjXi^dchXVgZ[jaanWZ[dgZÄghijhZ#I]^hegdYjXi]VhWZZcYZh^\cZY[dgYdbZhi^XjhZdcan#6cnXdbbZgX^VajhZ!^cVeegdeg^ViZjhZdg[V^ajgZidXdbeanl^i]i]Z^chigjXi^dch!i]ZbVcj[VXijgZgVXXZeihcdgZhedch^W^a^inVcYi]Z\jVgVciZZl^aacdiVeean#CZkZgjceaj\i]ZVeea^VcXZWnejaa^c\i]ZedlZgXdgY#6alVnhjceaj\ndjgVeea^VcXZ/"WZ[dgZÄaa^c\i]ZlViZgiVc`dgg^ch^c\i]ZWd^aZg!"WZ[dgZXaZVc^c\i]ZVeea^VcXZ!"V[iZgZVX]jhZ#I]ZVeea^VcXZbjhiWZjhZYVcYeaVXZYdcVÅVi!hiVWaZ!]ZVilViZg"gZh^hiVcihjg[VXZ#L]ZcndjeaVXZi]Z^gdcdci]Z^gdcgZhi!bV`ZhjgZi]Vii]Zhjg[VXZdcl]^X]ndjeaVXZ^i^hhiVWaZ#I]^hVeea^VcXZ^hcdi^ciZcYZYidWZjhZYWneZghdch^cXajY^c\X]^aYgZcl^i]gZYjXZYdg^beV^gZYe]nh^XVa!hZchdgndgbZciVaXVeVX^i^ZhdgeZghdchaVX`^c\Veegdeg^ViZ`cdlaZY\ZdgZmeZg^ZcXZ!jcaZhhVeZghdcgZhedch^WaZ[dgi]Z^ghV[Zinegdk^YZhZ^i]ZghjeZgk^h^dcdgVeegdeg^ViZ^chigjXi^dchXdcXZgc^c\jhZd[i]ZVeea^VcXZeg^dgid^ihjhZ#8]^aYgZch]djaYWZhjeZgk^hZYidZchjgZi]ZnYdcdieaVnl^i]i]ZVeea^VcXZ#
9
GdaaZcH^ZYVhHigdb`VWZakdaahi~cY^\VW!WZkdgH^ZZhVcZ^cZ\ZZgYZiZHiZX`YdhZVchiZX`ZcVchX]a^ZZc#LZccYVhHigdb`VWZadYZgYZg9Vbe[hX]aVjX]WZhX]~Y^\ih^cY!bhhZch^ZVjhH^X]Zg]Z^ih\gcYZcjcWZY^c\ikdcZ^cZbVcZg`VcciZcVjidg^h^ZgiZc@jcYZcY^ZchiZghZioilZgYZc#9^ZHd]aZ>]gZh7\ZaZ^hZchjcYY^Z7\ZaZ^hZchiVi^dcYZh<Z]~jhZh`ccZchZ]g]d]ZIZbeZgVijgZcZggZ^X]ZcjcYKZgWgZccjc\ZckZgjghVX]Zc/7Zg]gZcH^Zh^Zc^X]i#7Zg]gZcH^ZY^ZHigdb`VWZac^ZbVahb^iYZgHd]aZYZh7\ZaZ^hZch#>]g<Zg~iZgoZj\i9Vbe[!YZgKZgWgZccjc\ZckZgjghVX]Zc`Vcc#<Z]ZcH^Zkdgh^X]i^\b^iYZb7\ZaZ^hZcjb!kdgVaaZbWZ^bkZgi^`VaZc7\Zac9Vbe[Zc#G^X]iZcH^ZYZc9Vbe[c^ZbVah\Z\ZcEZghdcZcdYZgI^ZgZ#IVjX]ZcH^Z>]gZ9Vbe[hiVi^dcc^ZbVah^cLVhhZgdYZgZ^cZVcYZgZ;ahh^\`Z^i#=VaiZcH^Zh^Zc^ZbVahjciZgYZcLVhhZg]V]c#
BITTE BEWAHREN SIE DIESE GEBRAUCHSANWEISUNG AUF
>]g<Zg~iZci]~ailZgikdaaZGd]hid[[Z!Y^Zl^ZYZgkZglZgiZilZgYZc`ccZc#:cihdg\ZcH^Z>]g<Zg~iYZh]VaWjblZai\ZgZX]iWZ^Z^cZgHVbbZahiZaaZ>]gZgHiVYidYZg<ZbZ^cYZ#
1800129090 DG8520 F0_110 x 154 18/01/13 15:46 Page9

I]ZWd^aZgXVebjhicdiWZdeZcZYYjg^c\jhZ#I]ZVeea^VcXZbjhicdiWZjhZY^[^i]VhWZZcYgdeeZY!^[^i]VhVcnk^h^WaZYVbV\Z!^[^iaZV`h!dg^[^i[jcXi^dchVWcdgbVaan^cVcnlVn#9dcdiViiZbeiidY^hbVciaZndjgVeea^VcXZ/]VkZ^iZmVb^cZYViVc6eegdkZYHZgk^XZ8ZcigZidVkd^YVcnYVc\Zg#
;dgndjghV[Zin!i]^hVeea^VcXZXdc[dgbhidVaaVeea^XVWaZgZ\jaVi^dchAdlKdaiV\Z9^gZXi^kZ!:aZXigdbV\cZi^X8dbeVi^W^a^in!:ck^gdcbZci!ZiX#NdjghiZVb\ZcZgVidg^gdc^hVcZaZXig^XVaVeea^VcXZ/^ibjhiWZjhZYjcYZgcdgbVaXdcY^i^dchd[jhZ#>i^hYZh^\cZY[dgYdbZhi^XjhZdcan#>i^hZfj^eeZYl^i]'hV[ZinhnhiZbh/"VegZhhjgZgZaZVhZkVakZYZh^\cZYidVkd^YZmXZhh^kZegZhhjgZ#>ci]ZZkZcid[bVa[jcXi^dc!i]ZkVakZgZaZVhZhZmXZhhhiZVb#"Vi]ZgbVa[jhZidVkd^YdkZg]ZVi^c\#6alVnheaj\ndjghiZVb\ZcZgVidg^gdc/"^cidVbV^chX^gXj^il^i]kdaiV\ZWZilZZc''%KVcY')%KVaiZgcVi^c\XjggZcidcan!"^cidVcZVgi]ZYZaZXig^XVahdX`Zi#8dccZXi^c\idi]Zlgdc\kdaiV\ZbVnXVjhZ^ggZeVgVWaZYVbV\Zidi]ZVeea^VcXZVcYl^aa^ckVa^YViZndjg\jVgVciZZ#<^kZci]ZY^kZghZhiVcYVgYh^cZ[[ZXi!^[i]ZVeea^VcXZ^hjhZY^cVXdjcigndi]Zgi]Vci]Vi^cl]^X]^i^hejgX]VhZY!]VkZ^iX]ZX`ZYWnVc6eegdkZYHZgk^XZ6\Zci#9dcdijhZVcZmiZch^dcaZVY#>[ndjVXXZeia^VW^a^in[dgYd^c\hd!dcanjhZVcZmiZch^dcaZVYl]^X]^h^c\ddYXdcY^i^dc!]VhVeaj\l^i]VcZVgi]XdccZXi^dcVcY^hhj^iZYidi]ZedlZggVi^c\d[i]ZVeea^VcXZ&+6#8dbeaZiZanjcl^cYi]ZedlZgXdgYWZ[dgZeaj\\^c\^cidVcZVgi]ZYhdX`Zi#8]ZX`i]ZZaZXig^XVaedlZgVcYhiZVbXdgYh[dgh^\chd[lZVgdgYVbV\Zeg^dgidjhZ#>[i]ZZaZXig^XVaedlZgXdgYdgi]ZhiZVbXdgY^hYVbV\ZY!^ibjhiWZgZeaVXZYViVc6eegdkZYHZgk^XZ8ZcigZidVkd^YVcnYVc\Zg#9dcdiaZVkZi]ZedlZgXdgYXadhZiddg^cXdciVXil^i]hdjgXZhd[]ZVidgh]VgeZY\Zh#I]ZhdaZeaViZd[ndjg^gdcVcYi]Z^gdcgZhidci]ZWVhZjc^iXVcgZVX]ZmigZbZan]^\]iZbeZgVijgZh!VcYXVcXVjhZWjgch/YdcdiidjX]i]Zb#CZkZgidjX]i]ZZaZXig^XVaedlZgXdgYhl^i]i]ZhdaZeaViZd[i]Z^gdc#6alVnhjhZVkZciZY$bZh]^gdc^c\WdVgYVcYWZXVgZ[jad[]dihiZVbl]Zc^gdc^c\XadhZidi]ZZY\Zhd[i]ZWdVgY#NdjgVeea^VcXZZb^ihhiZVb!l]^X]XVcXVjhZWjgch#6alVnh]VcYaZi]Z^gdcl^i]XVgZ!ZheZX^Vaanl]Zc^gdc^c\kZgi^XVaan#CZkZgY^gZXii]ZhiZVbidlVgYheZdeaZdgVc^bVah#CZkZg^bbZghZndjghiZVb\ZcZgVidg^gdc^clViZgdgVcndi]Zga^fj^Y#CZkZgeaVXZ^ijcYZgVgjcc^c\iVe# Environment protection first !
NdjgVeea^VcXZXdciV^chkVajVWaZbViZg^Vahl]^X]XVcWZgZXdkZgZYdggZXnXaZY#AZVkZ^iViVX^k^XlVhiZY^hedhVaXZcigZ#
I]^hVeea^VcXZbVnWZjhZYWnX]^aYgZcV\ZY-dgdkZgVcYeZghdchaVX`^c\Veegdeg^ViZ`cdlaZY\ZdgZmeZg^ZcXZdgeZghdchl^i]gZYjXZYdg^beV^gZYe]nh^XVa!hZchdgndgbZciVaXVeVX^i^Zhegdk^YZYi]Vii]Zn]VkZWZZci]dgdj\]an^chigjXiZYgZ\VgY^c\jhZd[i]ZVeea^VcXZ!VgZhjeZgk^hZY!VcYjcYZghiVcYi]Zg^h`h^ckdakZY#8]^aYgZcbjhicdiWZVaadlZYideaVnl^i]i]ZVeea^VcXZ#8aZVc^c\VcYbV^ciZcVcXZbjhicdiWZXVgg^ZYdjiWnX]^aYgZcjcaZhhi]ZnVgZV\ZY-dgdkZgVcYVgZhjeZgk^hZY#@ZZei]ZVeea^VcXZVcYedlZgXdgYdjid[i]ZgZVX]d[X]^aYgZcjcYZg-nZVghd[V\Z#I]Zhjg[VXZhd[ndjgVeea^VcXZXVcgZVX]kZgn]^\]iZbeZgVijgZhl]Zc[jcXi^dc^c\!l]^X]bVnXVjhZWjgch#9dcdiidjX]i]Z]dihjg[VXZhd[i]ZVeea^VcXZVXXZhh^WaZbZiVaeVgihVcYeaVhi^XeVgihVY_VXZciidi]ZbZiVaa^XeVgih#CZkZgaZVkZi]ZVeea^VcXZjcViiZcYZY/"l]Zc^i^hXdccZXiZYidi]ZbV^ch!"jci^a^i]VhXddaZYYdlcVgdjcY&]djg#7Z[dgZg^ch^c\i]ZWd^aZg$g^ch^c\i]ZVci^"hXVaZkVakZYZeZcY^c\dci]ZbdYZa!lV^ijci^ai]ZVeea^VcXZ^hXdbeaZiZanXdaYVcY]VhWZZcjceaj\\ZY[dgViaZVhi']djghWZ[dgZjchXgZl^c\i]ZWd^aZgg^chZXVe$i]ZhXVaZXdaaZXidgXdkZg#LVgc^c\/^[i]ZWd^aZgXVedgi]ZWd^aZgg^chZXVeYZeZcY^c\dci]ZbdYZa!^hYgdeeZYdghZkZgZan`cdX`ZY!]VkZ^igZeaVXZYWnVc6eegdkZYHZgk^XZ8ZcigZ!Vh^ibVnWZYVbV\ZY#L]Zcg^ch^c\i]ZWd^aZg!cZkZgÄaa^iY^gZXian[gdbi]ZiVe#
10
1800129090 DG8520 F0_110 x 154 18/01/13 15:46 Page10

I]ZWd^aZgXVebjhicdiWZdeZcZYYjg^c\jhZ#I]ZVeea^VcXZbjhicdiWZjhZY^[^i]VhWZZcYgdeeZY!^[^i]VhVcnk^h^WaZYVbV\Z!^[^iaZV`h!dg^[^i[jcXi^dchVWcdgbVaan^cVcnlVn#9dcdiViiZbeiidY^hbVciaZndjgVeea^VcXZ/]VkZ^iZmVb^cZYViVc6eegdkZYHZgk^XZ8ZcigZidVkd^YVcnYVc\Zg#
;dgndjghV[Zin!i]^hVeea^VcXZXdc[dgbhidVaaVeea^XVWaZgZ\jaVi^dchAdlKdaiV\Z9^gZXi^kZ!:aZXigdbV\cZi^X8dbeVi^W^a^in!:ck^gdcbZci!ZiX#NdjghiZVb\ZcZgVidg^gdc^hVcZaZXig^XVaVeea^VcXZ/^ibjhiWZjhZYjcYZgcdgbVaXdcY^i^dchd[jhZ#>i^hYZh^\cZY[dgYdbZhi^XjhZdcan#>i^hZfj^eeZYl^i]'hV[ZinhnhiZbh/"VegZhhjgZgZaZVhZkVakZYZh^\cZYidVkd^YZmXZhh^kZegZhhjgZ#>ci]ZZkZcid[bVa[jcXi^dc!i]ZkVakZgZaZVhZhZmXZhhhiZVb#"Vi]ZgbVa[jhZidVkd^YdkZg]ZVi^c\#6alVnheaj\ndjghiZVb\ZcZgVidg^gdc/"^cidVbV^chX^gXj^il^i]kdaiV\ZWZilZZc''%KVcY')%KVaiZgcVi^c\XjggZcidcan!"^cidVcZVgi]ZYZaZXig^XVahdX`Zi#8dccZXi^c\idi]Zlgdc\kdaiV\ZbVnXVjhZ^ggZeVgVWaZYVbV\Zidi]ZVeea^VcXZVcYl^aa^ckVa^YViZndjg\jVgVciZZ#<^kZci]ZY^kZghZhiVcYVgYh^cZ[[ZXi!^[i]ZVeea^VcXZ^hjhZY^cVXdjcigndi]Zgi]Vci]Vi^cl]^X]^i^hejgX]VhZY!]VkZ^iX]ZX`ZYWnVc6eegdkZYHZgk^XZ6\Zci#9dcdijhZVcZmiZch^dcaZVY#>[ndjVXXZeia^VW^a^in[dgYd^c\hd!dcanjhZVcZmiZch^dcaZVYl]^X]^h^c\ddYXdcY^i^dc!]VhVeaj\l^i]VcZVgi]XdccZXi^dcVcY^hhj^iZYidi]ZedlZggVi^c\d[i]ZVeea^VcXZ&+6#8dbeaZiZanjcl^cYi]ZedlZgXdgYWZ[dgZeaj\\^c\^cidVcZVgi]ZYhdX`Zi#8]ZX`i]ZZaZXig^XVaedlZgVcYhiZVbXdgYh[dgh^\chd[lZVgdgYVbV\Zeg^dgidjhZ#>[i]ZZaZXig^XVaedlZgXdgYdgi]ZhiZVbXdgY^hYVbV\ZY!^ibjhiWZgZeaVXZYViVc6eegdkZYHZgk^XZ8ZcigZidVkd^YVcnYVc\Zg#9dcdiaZVkZi]ZedlZgXdgYXadhZiddg^cXdciVXil^i]hdjgXZhd[]ZVidgh]VgeZY\Zh#I]ZhdaZeaViZd[ndjg^gdcVcYi]Z^gdcgZhidci]ZWVhZjc^iXVcgZVX]ZmigZbZan]^\]iZbeZgVijgZh!VcYXVcXVjhZWjgch/YdcdiidjX]i]Zb#CZkZgidjX]i]ZZaZXig^XVaedlZgXdgYhl^i]i]ZhdaZeaViZd[i]Z^gdc#6alVnhjhZVkZciZY$bZh]^gdc^c\WdVgYVcYWZXVgZ[jad[]dihiZVbl]Zc^gdc^c\XadhZidi]ZZY\Zhd[i]ZWdVgY#NdjgVeea^VcXZZb^ihhiZVb!l]^X]XVcXVjhZWjgch#6alVnh]VcYaZi]Z^gdcl^i]XVgZ!ZheZX^Vaanl]Zc^gdc^c\kZgi^XVaan#CZkZgY^gZXii]ZhiZVbidlVgYheZdeaZdgVc^bVah#CZkZg^bbZghZndjghiZVb\ZcZgVidg^gdc^clViZgdgVcndi]Zga^fj^Y#CZkZgeaVXZ^ijcYZgVgjcc^c\iVe#PLEASE RETAIN THIS INSTRUCTION BOOKLET FOR
FUTURE REFERENCE
Environment protection first !
NdjgVeea^VcXZXdciV^chkVajVWaZbViZg^Vahl]^X]XVcWZgZXdkZgZYdggZXnXaZY#AZVkZ^iViVX^k^XlVhiZY^hedhVaXZcigZ#
11
I]^hVeea^VcXZbVnWZjhZYWnX]^aYgZcV\ZY-dgdkZgVcYeZghdchaVX`^c\Veegdeg^ViZ`cdlaZY\ZdgZmeZg^ZcXZdgeZghdchl^i]gZYjXZYdg^beV^gZYe]nh^XVa!hZchdgndgbZciVaXVeVX^i^Zhegdk^YZYi]Vii]Zn]VkZWZZci]dgdj\]an^chigjXiZYgZ\VgY^c\jhZd[i]ZVeea^VcXZ!VgZhjeZgk^hZY!VcYjcYZghiVcYi]Zg^h`h^ckdakZY#8]^aYgZcbjhicdiWZVaadlZYideaVnl^i]i]ZVeea^VcXZ#8aZVc^c\VcYbV^ciZcVcXZbjhicdiWZXVgg^ZYdjiWnX]^aYgZcjcaZhhi]ZnVgZV\ZY-dgdkZgVcYVgZhjeZgk^hZY#@ZZei]ZVeea^VcXZVcYedlZgXdgYdjid[i]ZgZVX]d[X]^aYgZcjcYZg-nZVghd[V\Z#I]Zhjg[VXZhd[ndjgVeea^VcXZXVcgZVX]kZgn]^\]iZbeZgVijgZhl]Zc[jcXi^dc^c\!l]^X]bVnXVjhZWjgch#9dcdiidjX]i]Z]dihjg[VXZhd[i]ZVeea^VcXZVXXZhh^WaZbZiVaeVgihVcYeaVhi^XeVgihVY_VXZciidi]ZbZiVaa^XeVgih#CZkZgaZVkZi]ZVeea^VcXZjcViiZcYZY/"l]Zc^i^hXdccZXiZYidi]ZbV^ch!"jci^a^i]VhXddaZYYdlcVgdjcY&]djg#7Z[dgZg^ch^c\i]ZWd^aZg$g^ch^c\i]ZVci^"hXVaZkVakZYZeZcY^c\dci]ZbdYZa!lV^ijci^ai]ZVeea^VcXZ^hXdbeaZiZanXdaYVcY]VhWZZcjceaj\\ZY[dgViaZVhi']djghWZ[dgZjchXgZl^c\i]ZWd^aZgg^chZXVe$i]ZhXVaZXdaaZXidgXdkZg#LVgc^c\/^[i]ZWd^aZgXVedgi]ZWd^aZgg^chZXVeYZeZcY^c\dci]ZbdYZa!^hYgdeeZYdghZkZgZan`cdX`ZY!]VkZ^igZeaVXZYWnVc6eegdkZYHZgk^XZ8ZcigZ!Vh^ibVnWZYVbV\ZY#L]Zcg^ch^c\i]ZWd^aZg!cZkZgÄaa^iY^gZXian[gdbi]ZiVe#
1800129090 DG8520 F0_110 x 154 18/01/13 15:46 Page11

73
1 • Safety lock (according to
model)
• Your steam generator is equipped with a
safety lock that holds the iron on to the
base unit in order to facilitate transport
and storage:
• Pull up – fig. 1.
• Push down – fig. 2.
The safety lock allows you to carry your
steam generator by the iron handle:
- place the iron on the iron rest of the
steam generator and lock it into place
(you will hear an audible “click” sound) –
fig. 1.
- Hold the iron by its handle in order to
transport your steam generator - fig. 3.
2 • Water recommendations
Tap water
• Rowenta steam generators are designed
to be used with UNTREATED TAP
WATER. If your water is very hard,
Rowenta recommends mixing half
untreated tap water with half distilled
water which reduces the hardness.
Softened water :
• There are many types of household
water softeners and the water from many
of them is perfectly acceptable for use in
the steam generator. However, some
types of softeners, particularly those that
use chemicals such as salt, can cause the
appliance to leak or spit during use, this
is notably the case with filtering jugs.
Therefore we would not recommend
using this type of water.
• If you experience this type of problem,
we recommend that you try using
untreated tap water or store-bought
distilled water which can be mixed 50%
distilled with 50% untreated tap water.
Once you have changed water it will take
several uses to correct the problem.
Rowenta recommends trying the steam
function for the first time on an old towel
or cloth that can be discarded to avoid
potentially damaging your clothes.
Always remember :
• Heat concentrates the elements in water
during evaporation. The types of water
listed below may contain organic waste,
mineral or chemical elements that can
cause spitting, brown staining or
premature wear of the appliance: water
from clothes dryers, scented or softened
water, water from refrigerators, batteries,
air conditioners, rain water, boiled,
filtered or bottled water. These types of
water should not be used in your
ROWENTA steam generator.

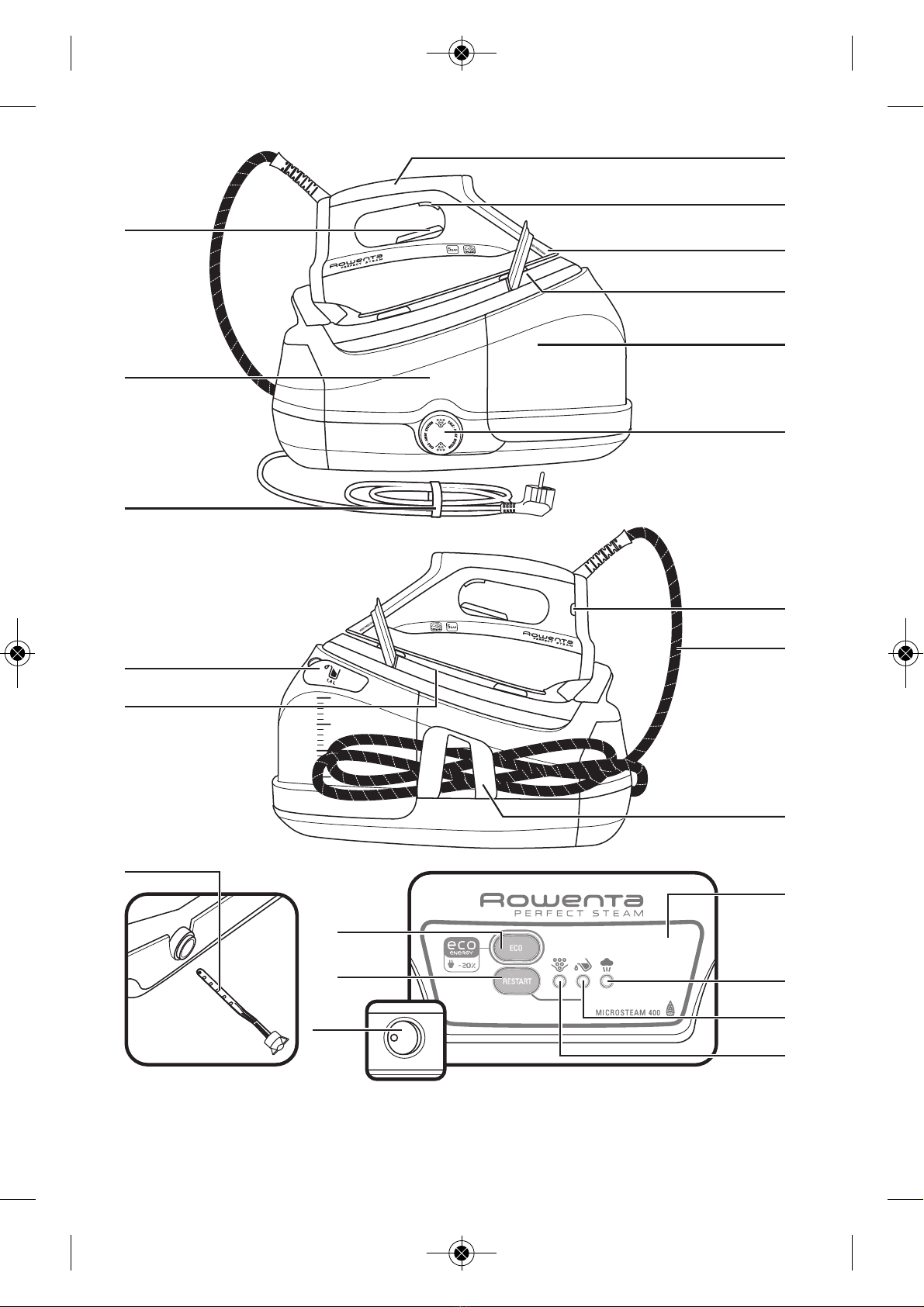

DESCRIPTION
1. Iron handle
2. Steam trigger
3. Iron temperature control dial
4. Base unit
5. Precision tip
6. Safety lock (to hold the iron onto
the base unit)*
7. Removable 1.4L water tank
8. Tank filling shutter
9. "Calc away system" scale collector
or "boiler rinse" cap cover *
10. Electric cord storage (Velcro)
11. Iron rest
12. Iron temperature control light
13. Steam cord
14. Steam cord storage clip
15 "Calc Away System" scale
collector*
16 Control panel
a. Steam ready light
b. ECO button
c. Restart button
d. “Calc Away System” indicator or
“boiler rinse” indicator *
e. “Water tank empty” light
17. On/Off switch
* according to model
EN
PREPARATION
PLEASE REFER TO SAFETY INSTRUCTIONS AT THE BEGINNING OF THIS
BOOKLET BEFORE USING YOUR APPLIANCE.
1800129090 DG8520 F0_110 x 154 18/01/13 15:47 Page73

74
3 • Preparing your steam
generator
• Place the steam generator on a flat,
stable, horizontal and heat-resistant
surface.
• Lift the removable water tank (located at
the front of the steam generator)
pressing on the lock screw located on the
tank handle – fig. 4.
• Fill the tank with untreated tap water,
taking care not to exceed the maximum
level - fig. 5.
• Slide the tank back into its housing until
it “clicks” into place.
• Unwind the electrical power cord it
completely and remove the steam cord
from its housing- fig.6.
• Plug your steam generator into a mains
socket with an earth pin- fig.7.
USE
4 • Switching on your steam
generator
• Press on the on / off switch - fig. 8, it
begins flashing. The green light located
on the control panel flashes
• When starting, and regularly while it is
being used, your steam generator's electric
pump injects water into the boiler. It makes
a noise but this is quite normal.
• The steam generator and the iron are ready
for use when the steam indicator light is on
and the iron light goes out.
5 • Operating the control
panel
• Flashing green light - fig. 8 : the water is
heating up in the boiler.
• Continuous green light - fig. 10 : steam is
ready for use.
• Flashing red light - fig. 13 : the tank is
empty.
• The “Calc Away System” or the “boiler
rinse" orange indicator flashes -
fig. 15
or fig. 21 (according to model) : the
collector / boiler needs to be rinsed.
6 • Using your steam
generator
• Place the iron’s temperature control - fig.
9to the type of fabric to be ironed (see
table below).
• The iron temperature control light turns
on. Important: whenever you start using
your iron and whenever you reduce the
temperature during use, the iron is ready
for use when its indicator light goes out
and when the green light located on the
control panel comes on and remains on.
• During use, when you increase the
temperature of the iron, you can start
ironing immediately.
• ECO Mode: Your steam
generator has an ECO mode function
which uses less power whilst still
guaranteeing a sufficient steam output for
you to iron your garments properly.
In order to use this function, once the
thermostat of your iron has been correctly
set (see table above), press on the ECO
button located on the control panel.
The ECO mode can be used on all types of
fabrics, nevertheless for very thick or very
creased fabrics we recommend that you
deactivate ECO mode (by pressing the
ECO button again) to guarantee the best
results.
• During ironing the iron indicator light
switches on and off according to heating
requirements but this has no effect on
use.
The first time the appliance is used,
there may be some fumes and a slight
smell this is not harmful and will quickly
disappear.
TYPE OF FABRIC SETTING
TEMPERATURE
SYNTHETICS
(Polyester, Acetate, Acrylic, Polyamide)
•
SILK / WOOL
• •
COTTON / LINEN
• • •
1800129090 DG8520 F0_110 x 154 18/01/13 15:47 Page74

75
• To obtain steam, press on the steam
control button beneath the iron handle
and keep it pressed - fig. 11. The steam
will stop when you release the button.
• Always spray starch on the reverse side
of the fabric to be ironed.
7 • Vertical steam ironing
• Set the temperature of the iron to the
max position.
• Hang the garment on a coat hanger and
hold the fabric slightly taut with one
hand.
• Press repeatedly on the steam - fig.11
control button (beneath the iron handle)
moving the iron from top to bottom - fig.
12.
Examples of how to use the vertical
steaming function:
• Removing creases directly on hangers
from delicate fabrics that you do not
want to bring into contact with the hot
iron.
• Refreshing a shirt or a suit just before
putting it on.
8 • Dry ironing
• Do not press the steam control button.
9 • Fill the water tank again
• When there is no more steam and the
“Water tank empty” light flashes - fig. 13:
the water tank is empty.
• Remove the water tank using the handle
(on the front of the steam generator) - fig.
14 and fill it - fig. 5 do not fill above the
Max. level.
• Push the water tank into position until it
“clicks” into place. Press the Restart
button located on the control panel. The
red light turns off.
• The steam generator and the iron are
ready for use when the steam indicator
light is on and the iron temperature
control light goes out.
10 • Storing the steam
generator
• Turn off the appliance and unplug it.
Place the iron on the iron rest on the
steam generator. Lock the iron onto the
base unit by pressing it until you hear an
audible “click”, so your iron is secure
(according to model) – fig 1. Fold the
steam cord in two and place it in its
housing. Wind up the power cord and
attach it with the velcro.
Recommendations: To prime the steam
circuit, either before using the iron for
the first time, or if you have not used the
steam function for a few minutes, press
the steam control button several times
in a row – fig.11, holding the iron away
from your clothes. This will enable any
cold water to be removed from the
steam circuit.
Iron temperature control setting: Your
iron is quick to heat up so start with
fabrics to be ironed at a low
temperature and finish with those
which need higher temperatures.
Mixed fibre fabrics: set the ironing
temperature to the setting for the
most delicate fabric. For delicate
fabrics (•), press the steam control
button (under the handle of the iron)
intermittently to avoid any water
droplets appearing with the steam.
If you set your thermostat to “min”,
the iron will not become hot.
When taking a break from ironing,
never place the iron on a metal rest
plate, which could damage the iron
rest plate of the unit. It is equipped
with non-slip pads and has been
designed to withstand high
temperatures.
As steam is very hot: never attempt
to remove creases from a garment
while it is being worn, always hang
garments on a coat hanger. For
fabrics other than linen or cotton,
hold the iron a few centimetres from
the garment to avoid burning the
fabric.
If this occurs, remove the excess
water.
EN
1800129090 DG8520 F0_110 x 154 18/01/13 15:47 Page75

76
• Leave the steam generator to cool for at
least one hour before putting it away if it
is to be stored in a cupboard or confined
space. You can then store your steam
generator safely.
MAINTENANCE AND
CLEANING
11 • Cleaning the generator
• The iron soleplate: Clean the soleplate of
your iron when it is cool with a damp
cloth or a non-abrasive sponge.
• The base unit: Clean the plastic parts of
the appliance occasionally with a soft
cloth.
12 • Easy descaling of your
steam generator
For models with scale collector.
• To extend the life of your steam
generator and avoid scale on your
ironing, your steam generator is
equipped with a built-in scale collector.
This collector, located in the boiler,
automatically removes the scale that
forms inside.
Operation:
• An orange “Calc-Away System” light
located - fig. 15 on the control panel
starts flashing to tell you that the scale
collector needs rinsing.
• Once the steam generator has cooled
completely, remove the scale collector
cover - fig. 16.
• Unscrew the scale collector and remove
it from the housing; it contains the scale
that has built up in the tank - fig. 17.
• To clean the collector properly, just rinse
it under running water to remove the
scale it contains - fig. 18.
• Put the collector back into its housing
and screw it in completely to keep it
watertight - fig. 19.
• Put the scale collector cover back on - fig.
20.
In addition to this regular maintenance
procedure, we recommend that you rinse
the boiler completely once every 6
months, or once every 25 times you use
your steam generator.
• Make sure that the steam generator has
been unplugged and allowed to cool for
at least 2 hours.
• Place the steam generator on the edge of
your sink and the iron to one side, on its
heel.
• Remove the collector cover and unscrew
the scale collector - fig. 16-17.
• Hold your steam generator at an angle
and use a jug to fill the boiler with 1/4 litre
of tap water.- fig. 24.
• Shake the base unit for a few seconds
then empty it completely into the sink.-
fig. 25-26.
• Fit the collector back in its housing and
screw it on tightly to ensure it is
watertight but do not overtighten it - fig.
19.
• Put the scale collector cover back in
place.- fig. 20.
Do not use any cleaning or descaling
products for cleaning the soleplate
or the base-unit. Never hold the iron
or the base unit under the tap.
Do not use any descaling substances
(vinegar, industrial descaling
products, etc.) when rinsing the scale
collector: they could damage it.
Before emptying your steam
generator, it must always be left to
cool for 2 hours to avoid any risks of
scalding.
IMPORTANT! This operation must
not be carried out unless the steam
generator has been unplugged for at
least two hours and has cooled down
completely.
To carry out this operation, the steam
generator must be close to a sink as
water may come out of the tank
when it is opened.
The next time you use your iron,
press the “Restart” button on the
control panel to turn off the orange
“Calc-Away System” light.
1800129090 DG8520 F0_110 x 154 18/01/13 15:47 Page76

77
Models without scale collector
• To prolong the life of your steam
generator and prevent the release of
scale on to your ironing, your steam
generator is fitted with an orange "Boiler
rinse” light that flashes on the control
panel when you need to drain the
appliance - fig. 21.
• If the orange “boiler rinse” warning light
flashes, you can continue ironing
normally but remember to rinse the
boiler before you use it again.
• Place the steam generator on the edge of
your sink, with the iron placed to one
side, standing on its heel.
• Unscrew the boiler rinse cap cover anti
clockwise for a quarter of a turn - fig. 22.
• Using a coin, gently unscrew the boiler
rinse cap - fig. 23.
• Holding the steam generator in a tilted
position, and using a jug, fill the boiler
with ¼ litre of untreated tap water - fig.
24.
• Shake the base unit for a few moments -
fig. 25 and then empty it completely into
your sink - fig. 26.
• To obtain the best results, we
recommend that this operation is done
twice.
• Screw back and tighten up the boiler
rinse cap with a coin - fig. 27.
• Put the boiler rinse cap cover back in
place - fig. 28.
IMPORTANT! This operation must
not be carried out unless the steam
generator has been unplugged for at
least two hours and has cooled down
completely.
The next time you use the generator
press the “restart” button to turn off
the orange light.
The steam generator does not work
without the scale collector / boiler
rinse cap (according to model).
Regular descaling of your steam
generator helps to maintain its
steam performance over time
IS THERE A PROBLEM?
Problems Possible Causes Solutions
The steam generator does
not switch on or the iron
indicator and ON/OFF
indicator do not switch
on.
The appliance is not
switched on. Check that your appliance is correctly plugged in and press the illuminated on/off
switch.
Water runs through the
holes in the soleplate. You use steam too frequently when your iron
is not hot enough.
Wait for the thermostat light to go out
before activating the steam button.
Adjust the frequency of use of the steam
trigger to match the position of the
thermostat (see § 6).
Water has condensed in the
pipes because you are using
steam for the first time or
you have not used it for
some time.
Press on the steam control button away
from your ironing board until the iron
produces steam.
EN
1800129090 DG8520 F0_110 x 154 18/01/13 15:47 Page77

78
Problems Possible Causes Solutions
Water streaks appear on
the linen. When taking a break from ironing, if your ironing
board cover is soaked with
water it is not suited to the
power of a steam generator.
Check that your ironing board is suitable. A
mesh type ironing board must be used
avoid condensation.
White streaks come
through the holes in the
soleplate.
Your boiler has a build-up
of scale because it has not
been rinsed out regularly.
Depending on model:
- Rinse the collector when the “Calc-Away
System” indicator flashes.
- Rinse the boiler when the ""Boiler rinse"
light flashes.
If your water is very hard, rinse it more
often.
Brown streaks come
through the holes in the
soleplate and stain the
linen.
You are using chemical
descaling agents or
additives in the water for
ironing.
Never add this type of product to the water
tank (see § 2).
Contact an Approved Service Centre.
The soleplate is dirty or
brown and may stain the
linen.
You are ironing at too high
a temperature. See our recommendations regarding temperature control setting.
Your linen is not rinsed
sufficiently or you have
ironed a new garment
before washing it.
Ensure linen is rinsed thoroughly to remove
any soap deposits or chemicals on new
garments which may be sucked up by the
iron.
You are using starch. Aways spray starch on the reverse side of
the fabric to be ironed.
There is no steam or there
is little steam. The water tank is empty (red light flashing). Fill the water tank and press the “Restart” button on the control panel.
The soleplate temperature
is set to the maximum. The generator is working but steam is very hot and dry. As a result, it is less visible.
The water tank is not
correctly fitted into its
housing.
Push it into position until it "clicks" into
place.
Steam comes out from
around the collector
cover/boiler rinse cap
(according to model).
The collector/cap (according
to model) is not tight
enough.
Tighten the collector/cap after having let the
appliance cool for 2 hours.
The seal of the
collector/cap (according to
model) is damaged.
Contact an Approved Service Centre.
The generator is faulty. Stop using the generator and contact an
Approved Service Centre.
The red “water tank
empty” light flashes. You did not press the "Restart" button. Press the “Restart” button on the control panel until the indicator goes out.
Steam or water escapes
under the appliance. The generator is faulty. Stop using the generator and contact an Approved Service Centre.
The orange "Calc-Away
System" or "Boiler rinse"
(according to the model)
light is flashing.
You did not press the
"Restart" button. Press the “Restart” button on the control panel until the indicator goes out.
If you have any product problems or queries with your product, please telephone our
Customer Relations team on:
0845 602 1454 (UK) - [phone] (ROI)
Consult our web site: www.rowenta.co.uk
1800129090 DG8520 F0_110 x 154 18/01/13 15:47 Page78

181
1800129090 DG8520 F0_110 x 154 18/01/13 15:49 Page181

182
1800129090 DG8520 F0_110 x 154 18/01/13 15:49 Page182

183
1800129090 DG8520 F0_110 x 154 18/01/13 15:49 Page183

184
1800129090 DG8520 F0_110 x 154 18/01/13 15:49 Page184

185
1800129090 DG8520 F0_110 x 154 18/01/13 15:49 Page185
