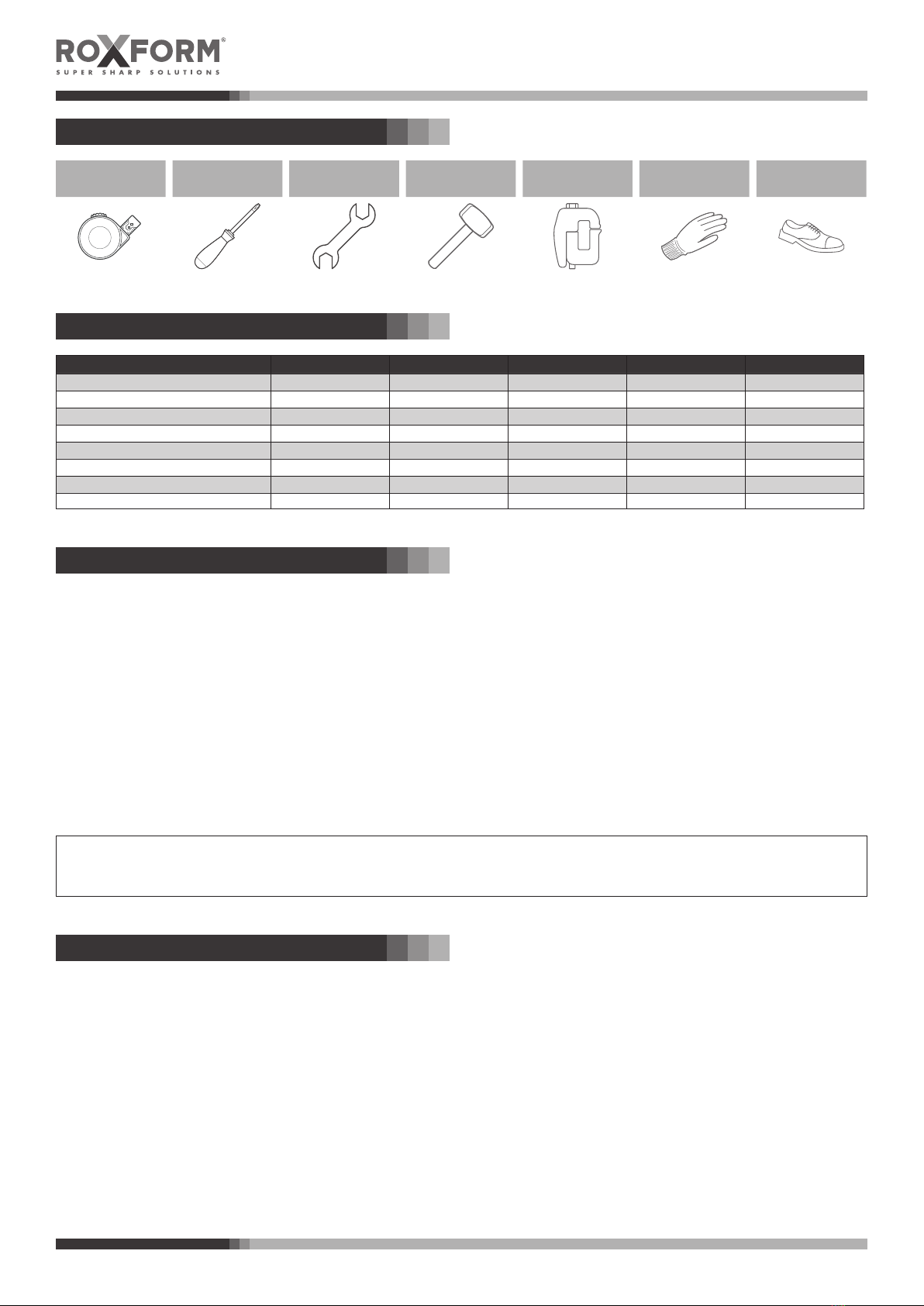

ROXFORM FULLBOX User manual

INSTALLATION MANUAL
GRAND BOX
MEASURING
TAPE SCREW DRIVER WRENCH SOFT HAMMER CLAMP NON-SLIP GLOVE PROTECTIVE FOOTWEAR
10 mm
13 mm
17 mm
TOOLS
COMPATIBILITY & WEIGHT
SECURITY INFORMATION
MAINTENANCE
BRAND/MODEL FULLBOX CABINET STARBOX FLYBOX SUPERBOX
NISSAN/NAVARA 45 KG 50 KG 45 KG N/A N/A
TOYOTA/HILUX 45 KG 50 KG N/A 75 KG 46 KG
VOLKSWAGEN/AMAROK 48 KG 55 KG 48 KG 80 KG 53 KG
FORD/RANGER 45 KG 52 KG N/A 75 KG N/A
MITSUBISHI/L200 45 KG 50 KG 45 KG N/A N/A
FIAT/FULLBACK 45 KG 50 KG 45 KG N/A N/A
MERCEDES-BENZ/X-CLASS N/A N/A N/A 80 KG 50 KG
ISUZU/D-MAX 45 KG 52 KG N/A N/A N/A
1. Park the vehicle on a at surface, activate the parking brake and turn off the engine.
2. Disconnect the negative battery pole.
3. Prepare all tools before starting the assembly.
4. Wear non-slip glove and protective footwear during the installation process.
5. Never drive vehicle with the cap door or windows open.
6. Never use the cap for human or live animal transportation.
7. Contact the vehicle’s insurance company to make them aware you have added a cap to the vehicle.
8. Electrical operations must be performed by a skilled operator or in a autorized service. Roxform DOES NOT take any
responsibilities for any damage which result from electrical operations.
9. Electrical connection process is an operation on the electrical system of the vehicle. So, vehicle may be out off warranty after
this process.
1. DO NOT wipe the cap with a dry cloth.
2. DO NOT wash the cap with a commercial high-pressure car washes or DO NOT wipe or polish for 3 months. It takes 3
months to cure the fresh paint completely.
3. DO NOT contact the cap with chemicals such as solvents.
4. Wash and polish the cap regularly with a product designed to preserve and protect painted berglass after 3 months.
5. Lubricate door hinges and door lock(s) mechanisms monthly with an oil-based lubricant. Do not use silicone or petroleum
distillate spray lubricant on gas props.
6. Tighten four bolts (xing clamps) after rst week. Then, check the tightness of bolts every 6 months.
NOTE: Paint technologies can change at each plant on the same vehicles. Waterborne, base-coat or high solids paint can be used
on the same color.

INSTALLATION MANUAL
GRAND BOX
INSTALLATION
CLEANINGPLACING
x 4
KG
TIGHTENINGLOCK MECHANISM
17 mm
13 mm
13 mm
1 2
1. If required, cut the plastic cover of
truck edge.
2. Clean upper surface of truck edge
with a dry and soft fabric.
NOTE: Never use any chemical
components for cleaning.
3. Place the cap on to the truck edge
with 4 persons.
4. Align each corner of the cap
individually.
5. Make sure protrusions at the sides
have the same length.
NOTE: Check your product weight from
the table before lifting.
6. Place xing clamps.
7. Tighten the bolts respectively.
Make sure the cap DOES NOT
move and the distances between A
- B and C - D are the same.
NOTE: Check the tightness of the
bolts according to maintenance
procedure.
1. Adjust the position of rear door
latches by 13mm. wrench tool.
2. Adjust and align with rotary lock
system.

INSTALLATION MANUAL
GRAND BOX
CABLE INSTALLATION
2. Connect the electrical cables as
shown in the gure.
NOTE: Electrical connection process is
an operation on the electrical
system of the vehicle. So,
vehicle may be out off warranty
after this process.
REMOTE CONTROLLER
1. Push the button on the module 8
times. The lamp next to the button
will ash.
2. Push the button once again. The
lamp will light up permanently.
3. Push any button on the remote
controller to nish the calibration
procedure.
CABLE INSTALLATION
1. Take the supply voltage directly
from the main battery.
NOTE: Electrical operations must be
performed by a skilled operator
or in a autorized service.
Roxform DOES NOT take any
responsibilities for any damage
which result from electrical
operations.
CONTROLS
1. Check all illumination functions after installation.
2. Check remote controller functions after installation.
3. Check the sealings to spill water on the cap slowly. DO NOT use high-pressure water to check leakage.
4. Check mounting hardware monthly for tightness. Cap clamps are suitable for securing caps when properly used.
INSTALLATION
