RPI NATURALIS 01 User manual

NATURALIS
01
4,55 x 4,55 m
DECAGONAL 1.40
ASSEMBLY INSTRUCTIONS GUIDE
A product of
RP INDUSTRIES
®

You have just bought your Naturalis swimming pool. Thank you for your choice and
the trust you deposit on our product. We recommend that you read carefully these
instructions, follow them step by step, understand the instructions very well and take
into account the advice and recommendations transmitted.
IMPORTANT !
Before beginning the construction of your pool, read several times this guide. Indeed,
the aesthetics and strength of your pool depend on the care with which you will
perform the installation. Any problem caused by a mounting and handling, not in
accordance with the instructions in this guide could void your warranty.
INTRODUCTION
PLEASE READ
CAREFULLY AND
KEEP FOR FUTURE
REFERENCE
All the information inside this guide is true at the moment of publication. However, the photos of the illustrations only serve
to show how the process of construction is, they are not contractual, such their color, their shape, their appearance are only
examples. To improve its products, RP INDUSTRIES reserves the right to modify at any time and without prior notice, the
characteristics, the technical details, the standard equipment and the options of the products.
The highest level of risk exists when children are under 5 years of age. The accident does not
just happen to other people. Watch carefully and act quickly:
• The kids’ surveillance has to be closed and constant;
• Designate just one responsible for the security;
• Get stronger the supervision when there is a lot of people inside the pool;
• Get wet nape, arms, and legs before getting inside the water;
• Learn lifesaving techniques especially those specics to children;
• Prohibit diving and jumping into the pool;
• Prohibit running or violent games near the pool;
• Do not permit access to the pool, to children that don’t know swimming without life belt or life jacket;
• Don’t leave any toys near or inside the pool without surveillance;
• Maintain the water constantly clean and healthy;
• Store water treatment’s products out of reach of children.
Provide:
• A lifebuoy and a pole near the pool;
• Accessible phone near the pool so as not to leave children alone when you call;
• If you have an above ground pool, always remove the outside ladder after each use of the pool;
• Furthermore, some equipment can contribute to more safety:
• Safety fence with a gate that must always be kept closed (for instance, a hedge cannot be considered as a safety fence);
• A manual or automatic safety cover, properly installed and xed;
• Automatic motion or fall detectors, running, and operative;
• However, it does not replace a constant vigilance.
If an accident happens:
• Take the child out of the water as quickly as possible;
• Call immediately the emergency number and follow the given instructions
• Change wet clothes by warm blankets;
• Memorize and xe the emergency numbers near the pool;
• European emergency number: 112
ATTENTION:
THE SAFETY OF YOUR CHILDREN DEPENDS ONLY ON YOU!
CONCRETE SWIMMING POOL,
WOOD APPEARANCE
®

1
Safety warnings
It’s required to predict a special di󰀨erential protective device for pools on the electric power of the
pump according to legal and technical norms.
The minimum distance between the pump and the pool must be at least 3,50mt, to prevent
electrical shock.
Do not leave any child without surveillance near the pool.
After each use remove the exterior ladder, to prevent children or pets from accidentally falling into
the pool.
The NATURALIS pool is to be used only for private use.
It’s totally prohibited to walk along the edge, dive or jump from the coping.
The installation of your pool requires 2 persons and takes about two days (excluding the excavation
and the construction of the concrete slab). The concrete slab must be made two weeks before the
start of the assembly.
Check if:
• The electrical connections of the equipment must be installed by a qualied technician;
• Make sure you have enough water to fully supply and ll the pool;
• The instructions were read with attention and you are able to reproduce the di󰀨erent steps of the
installation.
The ground for the implantation of the pool NATURALIS must be prepared according
to the instructions of this manual on chapter IMPLANTATION.
DO NOT INSTALL THE POOL:
• Under electrical cables
• Under trees
• On an un-stabilized ground.
A good location for your pool is essential to avoid future problems or disappointments.
The pool must be easily accessible, preferably in a sunny place.
The pool must be installed far from pipes or electrical net.
Duration of construction
Before the construction of your NATURALIS pool
Implantation Advice
NEVER LEAVE THE POOL EMPTY

2 1781,40 18,83 1,22 (2 palets) 5,354,55 5,354,55
DECAGONAL 4,55 x 4,55 m
1,28 m
0,10 m
62.50 cm 62.50 cm
1
2
2
2
2
2
3
1
2
3
Excavation
Concrete slab
Lenght .
(m)
Lenght .
(m)
Height
(m)
Water
Volume
(m3)
Liner Filtration
Widht
(m)
Widht
(m)
Weight
(Kg)
OutsideInside
Depth
water (m)
Solid Liner
Bleu Pâle
Cartridge
12 m3/h
2 m
Blue Thread
nº 14/15
Concrete drill nº10
nº10
Necessary tools for Installation:

48x
13x1x1x
18x
2x
10x
1x 1x
10x
40x 120x20x 60x 50x
10x 1x 10x10x
9x 1x 2x
1x 1x
9x 1 x 10x
1x10x10x 1x 1x 1x
Apresentação do kit NATURALIS 01
Kit composition for Naturalis 01
SUMMARY
Maximum authorized weight:150 kg
Ladder
IMPORTANT:
The ladder can not be used for other purposes.
1-Implantation
2-Excavation work
3-Concrete slab
4-Marking the layout of the pool
5-Fixing of pillars and steel base panel
6-Setting up the aluminum prole
7-Setting up Beam nº1
8-Setting up Beam nº2
9-Setting up Beam nº 4
10-Setting up Beam nº 3
11-Setting up Beam nº 5
12-Placing of coping support
13-Placing of the HUNG prole
14-Fixation of the protective steel panel
15-Installation of the embeded parts
16- Pump and Hydraulic system connection
17-Landll around the pool
18-Installation of the Geotextile carpet
19-Placement of the liner
20-Placement of sealing rings
21-Placing of coping
22-Placing of the stainless steel ladder

4
5,55 m
5,55 m
AB
2,775 m
Point 0
1
2
62.50 cm 62.50 cm
1Implantation
IMPORTANT:
Before beginning the installation, read carefully these instructions. Any installation,
which is not made according to these instructions, will cancel the warranty.
The choice of the pool localization is essential because it a󰀨ects not only the reliability of the pool but also the
comfort of utilization. Take all the time needed for a perfect construction. This way, you will improve the longevity of
your swimming pool and the comfort of utilization.
To enjoy your swimming pool, check if it is correctly exposed to the sun. Avoid the proximity of trees and vegetation.
Prefer an area without wind.
We recommend the alignment of the pool with an already existing construction (house, wall, terrace, etc) to t
perfectly in your environment.
Excavation
IMPORTANT:
The structure of your pool must
be built on a consolidated eld,
stable, without landll with less
than 10 years.
The recommendations for partially
or totally underground pools
are valid for an installation on a
dry eld, without humidity. The
decagonal elongated pool 4,55 x
4,55m must be necessarily,
half-buried to a depth of 52.50
cm.

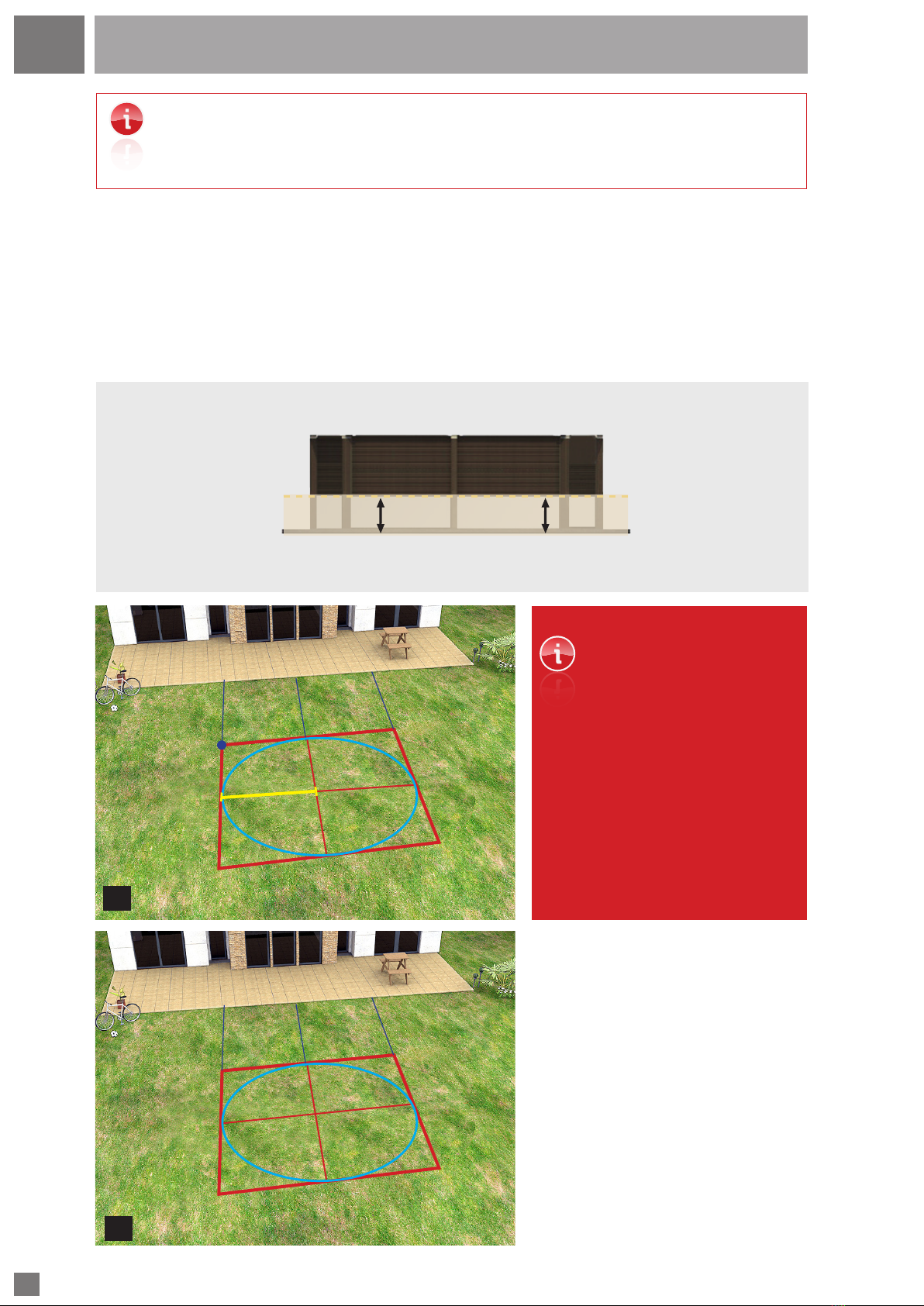

After determination of the location
of the swimming pool, xe the
highest point (point zero).
Then, draw on the ground a 5,55m
square.
Plant the stake A from picket B at a
distance of 2,775 mts. Draw a circle
with a radius of 2,775 mts.
One all the markings are done, you
should obtain an oval shape, such as
mentioned on illustration below.

2
5
3
3
5
62.50 cm
4
Escavation work
Concrete slab
Begin to evacuate the land inside the circle,
62.50 cm deep according to the highest point.
Once complete, check the level of the ground
and put inside the welded metal mesh E300.
ATTENTION:
The recommendations for partially or totally
underground pools are valid for an
installation on a dry eld, without humidity.
The adaptation of these instructions
has to be done according to the kind of
soil or to the high level of water inside
the eld (source, water ow, etc) It’s
highly recommended to place a drainage
system under or around the pool to avoid
every kind of water stagnation which can
damage the concrete work and cause the
appearance of spots on the liner.
Put de welded metal mesh on the soil and make
a concrete slab (350 kg) with 10 cm of thickness
on all the pool’s area. The slab must be smooth,
without irregularities and completely leveled.
The concrete dosage is easily obtained by
the 1-2-3 rule: To ll the concrete-mixer, put
1 bucket of cement, 2 buckets of sand and 3
buckets of gravel. The quantity of water to add
to the moisture depends on the humidity of the
aggregates. Anyway, the concrete texture has
to be unctuous.
To obtain 1 m3 of concrete, you have to mix 350
kg of cement, 680 kg of sand and 1175 kg of
gravel.
IMPERATIVE
The pool has to be built on a concrete leveled slab (only 1 cm is tolerated between the highest and
the lowest point of the area of implantation).

(0) (0)
(0)
4
6
4,554 m
2,277 m
A
A A
A A C
D
2,277 m
B
B B
BB
E
F
2,166 m
1
1
2,166 m
2
24
3
4
3
1,574 m
1,574 m
4,554 m
1
2
Before assembling, proceed to clean the slab to eliminate all kinds of impurities (sand, twigs, leaves, etc).
The slab should be smooth without irregularities and properly leveled to allow the correct assembly of the pool.
Marking the layout of the pool
IMPORTANT:
The assembly of the pool should be performed after complete drying of the concrete slab (2/3 weeks).
Dimensions shown are interior dimensions.
On the concrete slab perform marking the route of the
pool. With the rst marking, you will nd the center
point of the concrete slab (0).
Perform marking of points Aand Bseparated 2,277m
from the center of the pool (0). Repeat to get points 1
and 2 with a distance of 2,166m from the center of the
pool (0).
From points 1 and 2draw two parallel lines the A/B over
the entire length of the concrete slab.
Perform marking of points 3and 4distanced 1,574m
from points Aand Brespectively.
From the points 3 and 4draw two parallel lines about
1/2 the entire width of the concrete slab.
Then conrm with the corresponding diagonal
measurement 4,554 m.
With these points, you will obtain the location of the rst
pillars.

5
7
AC
D
B
E
F
A
C
To obtain the position of the remaining pillars, install the base structure panels.
Fastening the pillars and the base structure
Install the two panels between the Aand Cpillars for the location of the intermediate pillar.
Do the same for the location of intermediate pillars between D/B, B/E and F/A.
Fasten two screws in the pre-dened drilling and proceed
to the union of the pillars to the base structure.
Repeat to get the shape of the pool.
The plant on the next page denes the location
of the respective pillars.

5
8

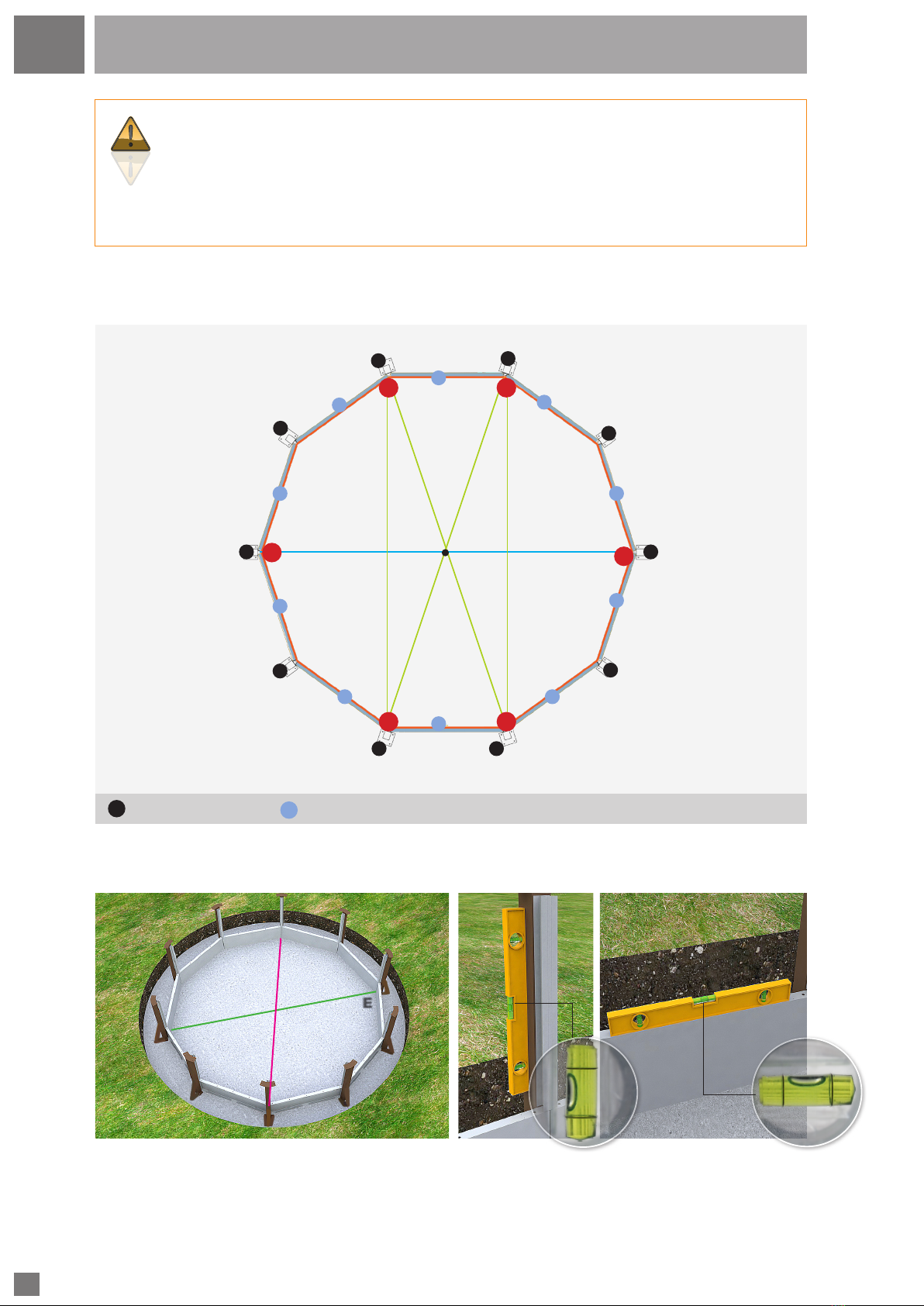

After performing the positioning of the pillars
and the base structure, as indicated in the plant
conrm the dimensions of the diagonals.
The distance between C / E and D / F
should be 4,554 m.
1Angle Pillar
C
D
E
F
4,554 m
4,554 m
(0)
B
D
E
A
1
1 1
1
1
11
1
2
2
2
2
2
2
2 2
2
2
1
1
C
F
2Base structure panel
Fastening the pillars and the base structure
ATTENTION:
Before proceeding to the nal establishment of the pillars to the concrete slab
must verify the dimensions and the leveling of the structure as indicated.
Points A, B, C, D, E, and F dene the location of the rst angle pillars.
Before proceeding to the xing of the pillars and the base
structure to the concrete slab ensure that the pillars are
properly upright and the structural panels are leveled.

ATTENTION:
You should screw all pillars making sure they are leveled and upright.
5
9
Fastening the pillars and the base structure
Fixation of the pillars
Drill concrete with a drill, using the existing hole in the base of the pillar. Repeat for the structure.
Then secure the pillar to the slab using the steel anchors provided in the kit.
Fixing the base structure
Using the same method of xing pillars, x the panels of the base structure.

6
10

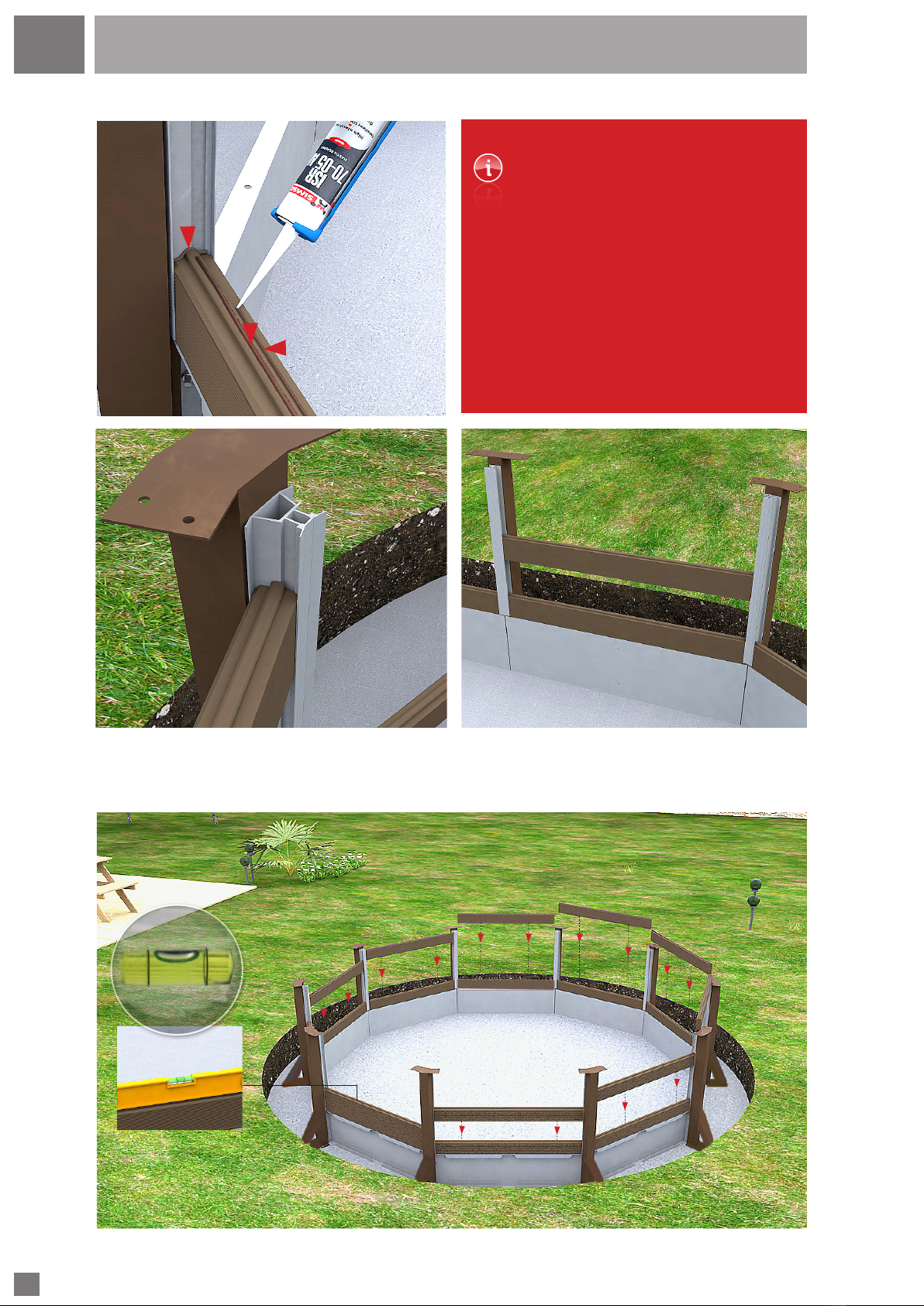

Placement and fixing of aluminum profile
After positioning the aluminum prole in the base structure panel will be noticeable that the drilling from the prole
is aligned with the existing hole in the top of the panel.
Use these holes to attach the prole to the base frame using the screws provided in the kit.
Proceed to the set of proles using all the holes for the purpose.
Repeat around the perimeter of the pool.
Developed to allow the tting of the rst row of wall platters, the aluminum prole
rests on top of the base structure panels. Slide the aluminum prole in the recess
of the post to the top of the panel.
IMPORTANT:
Before the placement
of the aluminum prole,
you should apply a
bead of silicone to the
top of the base frame
panel. You should
previously clean both
pieces.

7
11
Placement of beam n.º 1
Beam n.º 1
Nº 1
Base
Structure
Panel
Nº 2
Nº 2
Nº 2
Nº 2
Nº 3
Nº 2
BEAM N.º 1 (1st row)
The beam, which will form the rst row is n.º 1 and ts directly on the aluminum prole, previously covered
by a silicone bead.
ATTENTION:
For the placing of the beams, it is mandatory to respect the numbering of the parts.
The platters are numbered as shown in the photo.
IMPORTANT:
Prior to the laying of the rst row
of beams, you must clean up the
aluminum prole and apply a bead
of silicone on top and inside of the
prole.
The silicone supplied in the kit will
help you x the beams, putting
them evenly and to confer greater
resistance to the wall.
Swimming
pool inner side

7
12
Placement of beam n.º 1
Once placed the rst
row of beams check
that they are correctly
tted so that it can
ensure a perfect
assembly of the rest
of the structure.

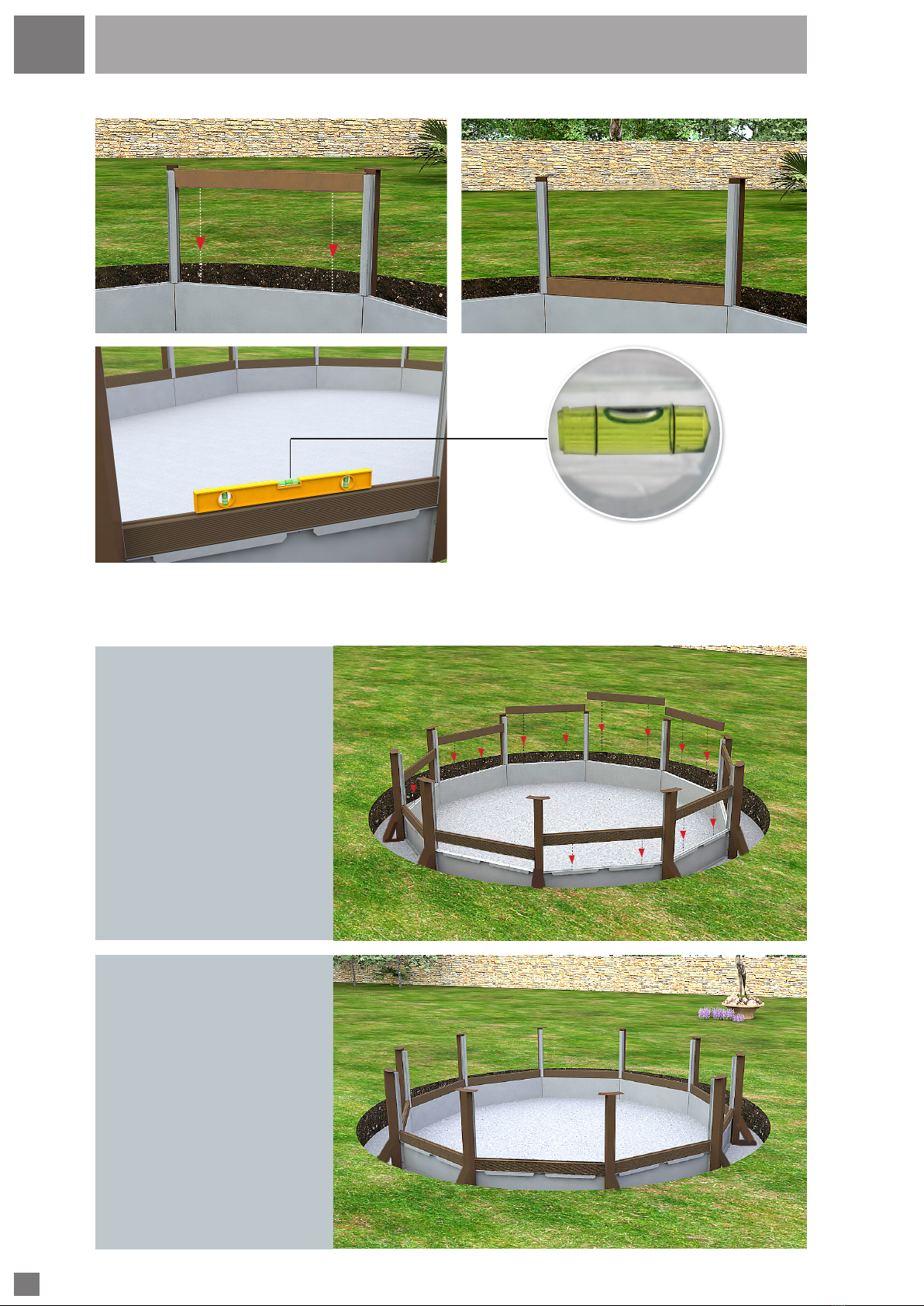

During the placement of the beam, ensure that this
is perfectly leveled.
Place the rst row of
beams, formed by
beam n.º 1, around the
perimeter of the pool.

13
8
Placement of beam n.º 2
Numbered in the part itself (n.º 2), the 2nd row of beams t on top of the beams n.º 1
Beam n.º 2
Nº 1
Base
Structure
Panel
Nº 2
Nº 2
Nº 2
Nº 2
Nº 3
Nº 2
BEAM N.º 2 (2nd row)
ATTENTION:
Before placing the sleepers, apply a
silicone cord, as indicated for the rst
row (on the top of the sleepers).
The crossbeams must be tted without
any particular e󰀨ort and always at
level. Swimming
pool inner side

14
IMPORTANT:
You must apply among each slat a bead
of silicon in the whole length in order to x
and secure a perfect stability of the whole
structure.
At each end, you must also apply a dot of
silicon between the beam and the aluminum
prole.
CAUTION:
A defective xation may cause cracks in the
beams, thus is not covered by the warranty.
The 2nd row of beams is installed all around the perimeter of the pool.
Such as the previous row you must verify that all the beams are correctly tted and leveled.
8Placement of beam n.º 2
Once the 2nd row is installed, proceed to the placement of the following rows.
Swimming
pool inner side

15
8
Placement of beam n.º 2
Beam n.º 2
Nº 1
Base
Structure
Panel
Nº 2
Nº 2
Nº 2
Nº 2
Nº 3
Nº 2

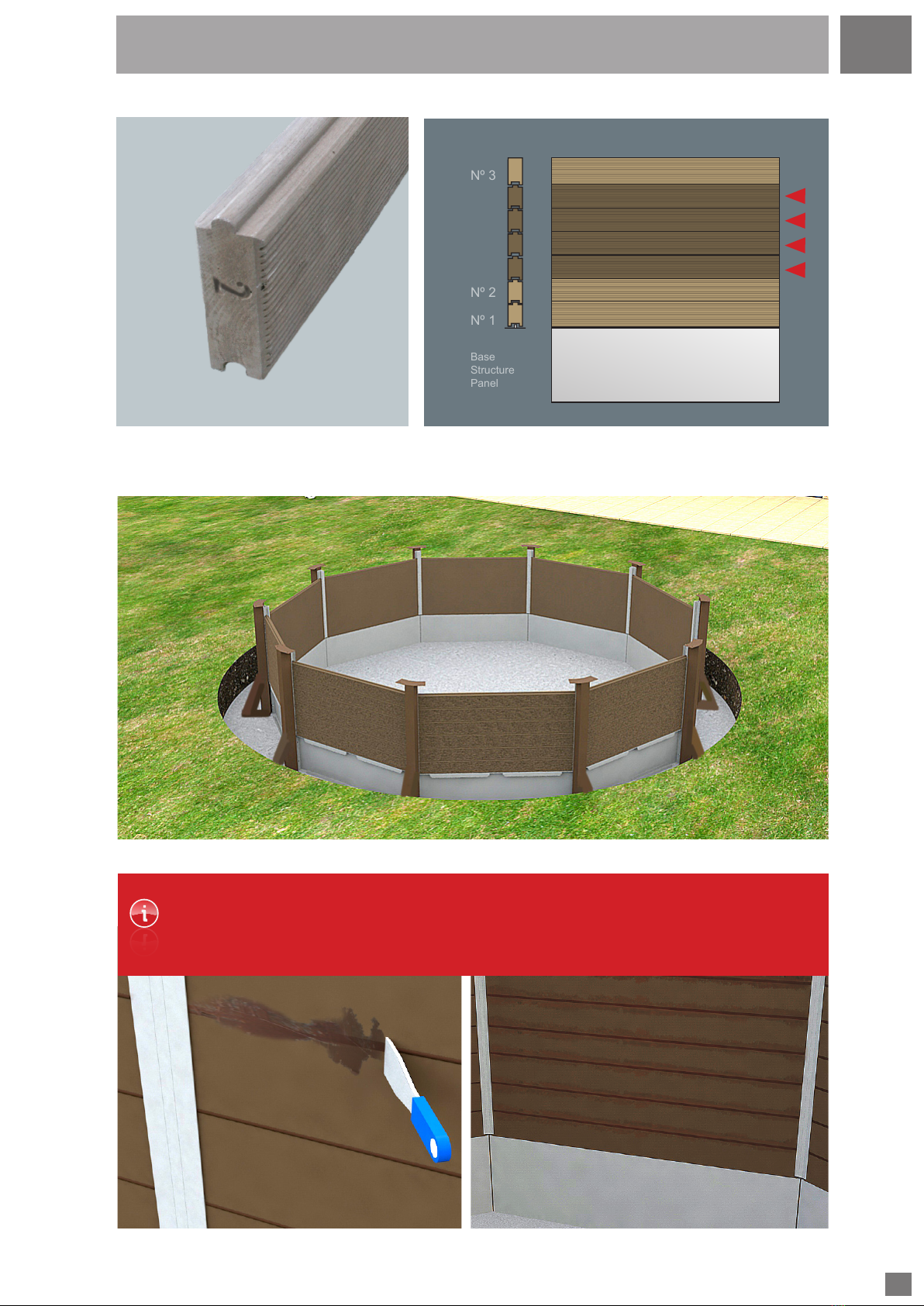

BEAM N.º 2 (from 3rd to 6ªth row)
The beam n.º 2 is intended to build the wall of the pool from the 2nd to the 6th row.
The next chapter will deal with the placement of the panel where the outlet nozzle and the skimlter will be
installed.
Placement of platter n.º 2 to row n.º 6.
IMPORTANT:
In each row, you should be equipped with a spatula, remove excess of silicon in between the
beams, as shown in the photograph.

1616
9Placement of the beam n.º 4
Panneau A
pour mur d’ équipements

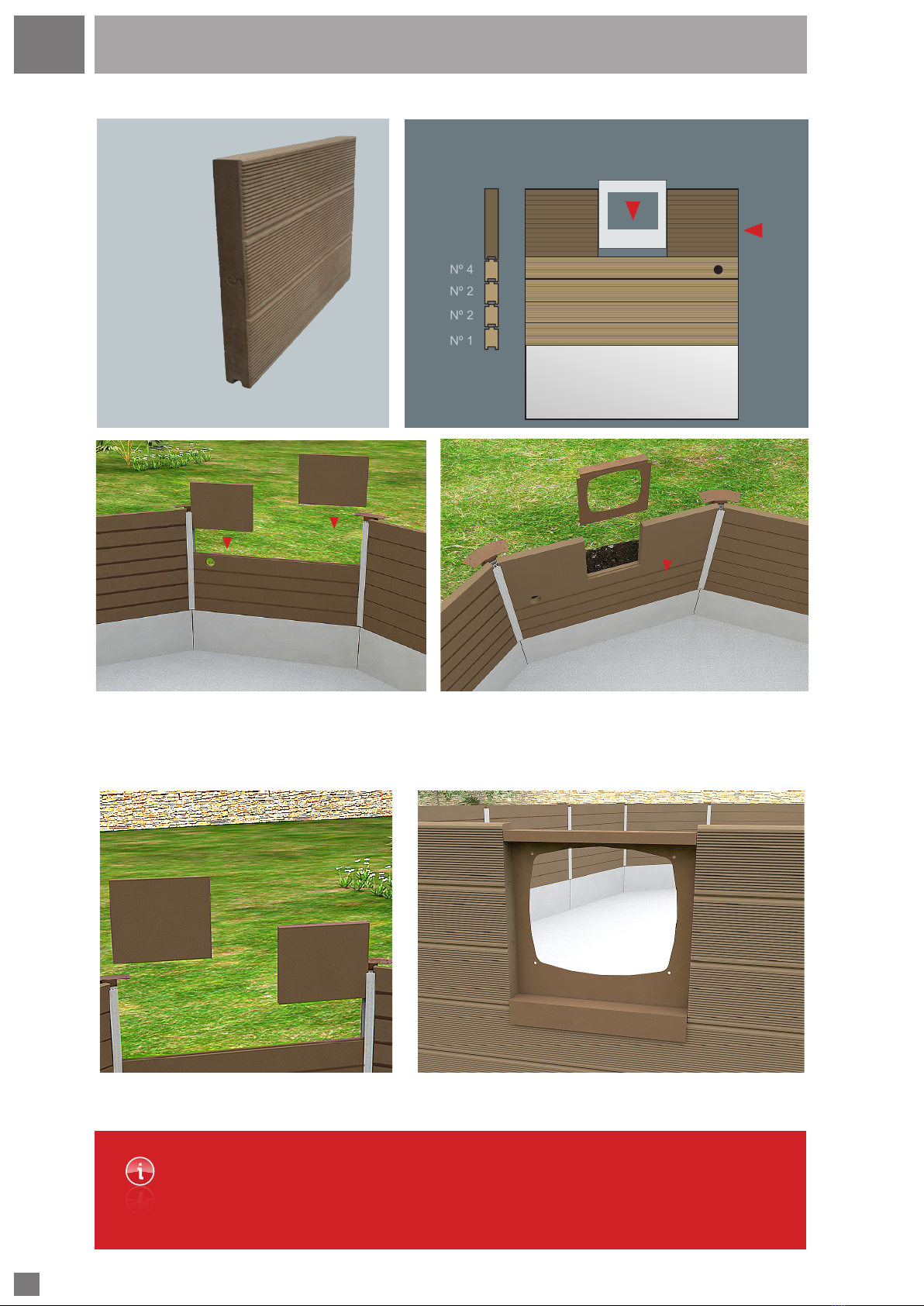

The beam n.º 4 is for xing
the outlet nozzle (and,
optionally, the projector)
it should be in the 4th row.
The beam n.º 4 beam
should be placed just below
the future location of the
Skimltre.
BEAM N.º 4 (OUTLET NOZZLE)
Nº 1
Nº 2
Nº 2
Nº 4
Nº 5
ATTENTION:
In case of installing a projector, you must place the beam
in the desired location on the 3rd row.
Base
Structure
Panel
Beam n.º 4

17
10
Placement of beam n.º 3
Beam n.º 3
Nº 1
Nº 2
Nº 2
Nº 2
Nº 2
Nº 3
Nº 2

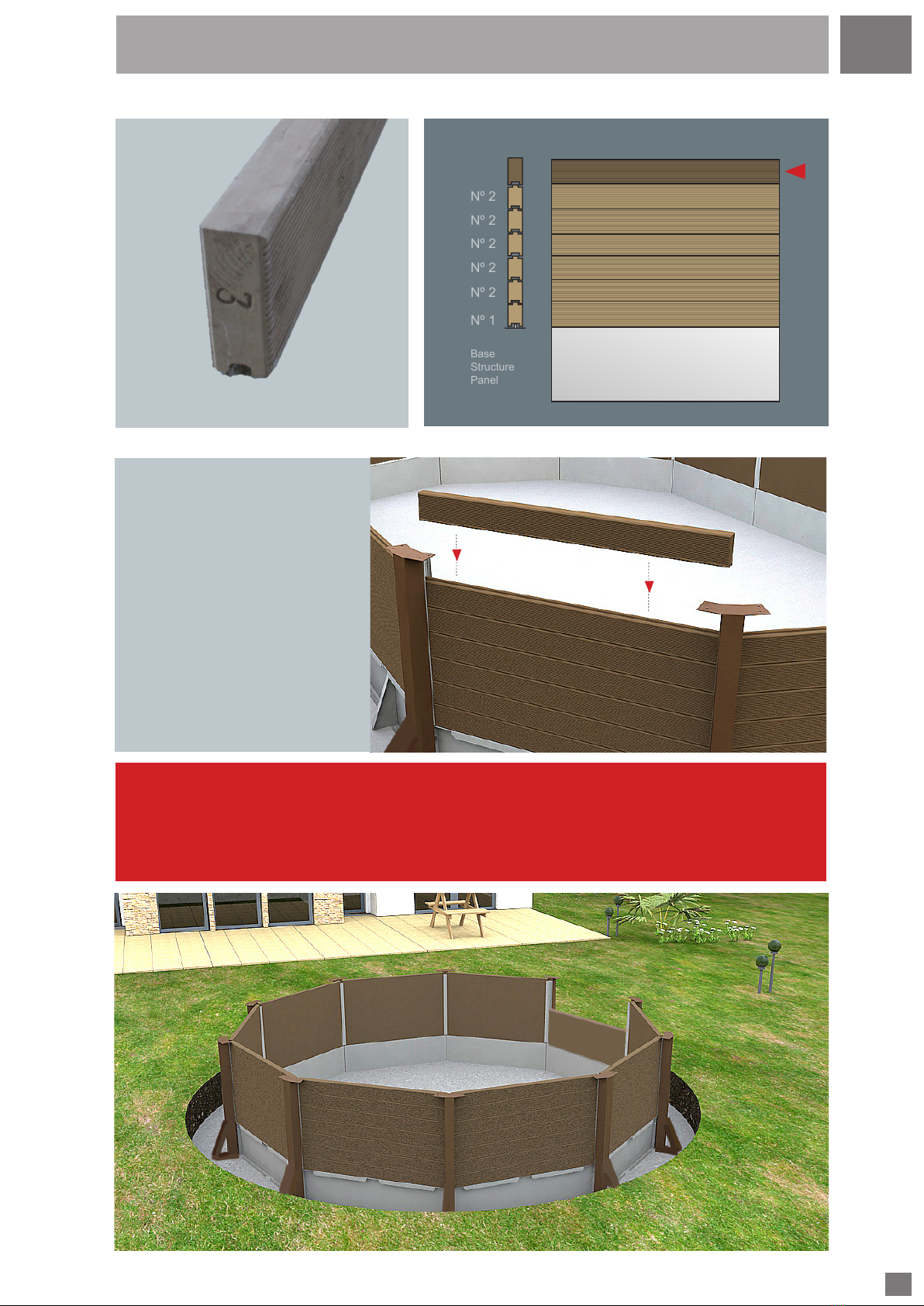

BEAM N.º 3 (7th row)
The beams n.º 3 are
intended to be placed
in the last row of the pool
wall (except for the skimmer
wall).
The beams are tted
and xed in the same way
as the previous rows
IMPORTANT:
As in previous rows, it must be applied before placing beam n.º 3, a bead of silicon through
the whole length in order to x and secure a perfect stability of the whole structure.
At each end, you must also apply a dot of silicone between the plate and the aluminum prole.
Base
Structure
Panel

18
11
Beam n.º 5
IMPORTANT:
After placing the Skimltre steel panel, approximate beams n.º 5,
as shown in the photograph
Placement of beam n.º 5
The two beams are placed on each side of skimltre, occupying the space of the 5th to the 7th row
and are identied with n.º 5. Between the two beams, it is placed a steel panel for xing the skimltre.
Beam n.º 5 Panel skimltre
Placement of Panel skimltrePlacement of beam n.º 5
Nº 1
Nº 2
Nº 2
Nº 4
Nº 5
BEAM N.º 5 AND PANEL SKIMFILTRE
and panel skimfiltre
