RS Fiber Amino Willow User manual

Video Service Remotes and Codes
Handbook is subject to change.
Effective 10/01/2016
101116

RS Fiber Video Service Remote and Codes
2
Amino Willow Remote...................................................................................................................................................................3
PHAZR-5 Remote .........................................................................................................................................................................9
Titan Remote...............................................................................................................................................................................17

RS Fiber Video Service Remote and Codes 3
Amino Willow Remote

RS Fiber Video Service Remote and Codes
4
There Are Two Ways You Can Program Your Remote:
• Program your remote using the TV Control Setup: Brand Search Method.
• Program your remote using the TV Control Setup: Auto Search Method.
- When a button on the remote is pressed, either the set-top box standby button will ash (or TV standby button if a TV brand has been entered) depending on which
product is being controlled by the remote control. If a button is pressed for more than 30 seconds the remote control will stop transmitting commands in order to
preserve battery life.
TV Control Setup: Brand Search Method
1. The remote control can be programmed to operate certain functions of your TV set. To program this functionality, perform the following
instructions in sequence. In case of a mistake, the process can be exited at any point by pressing and holding the TEXT/SHIFT button and
then at the same time pressing the STOP button. The remote control will revert to normal operation and no TV brand code will be stored.
1. Determine the manufacturer of your TV set.
2. Look up the 4-digit manufacturer code supplied following these instructions and make a note of this code.
TV Set-Up Code Number
3. Make sure your TV set is turned on. (The set-top box does not need to be turned on to perform this programing feature).
4. Press and hold both the 1and the 3buttons at the same time on the remote control for approximately 3 seconds until the TV Standby
button remains lit, then release both buttons.
5. Now enter the 4-digit manufacturer code for your TV set. On each digit entry the TV Standby button will ash. On entry of the 4th digit the
TV standby button will ash then remain lit.
6. Point the remote control at the TV set and press and hold down the TV Standby button or the MUTE button on the remote control.
7. When the TV either turns off or brings up the MUTE symbol on screen, then release that button. This may take a few minutes to happen.
8. Press and hold the TEXT/SHIFT button and then at the same time press the STOP n button to nish setting up the TV control mode. The
TV Standby button will go out. The TV control function is now programmed into the remote control.
The Following Buttons Should Now Operate The TV Set:
• - TV Standby
• AV - AV Source Select
• - Vol +, Vol - and MUTE
- If not all the above mentioned buttons operate the TV set then a Key Fix operation can be performed.
- Should the TV model be changed and the remote control requires re-programming then repeat the above setup procedure with the new TV. Should the TV brand be
not successfully found by the remote control then the TV standby button will ash rapidly and the remote control will revert to normal operation. No TV brand code will
be stored.
TV Control Setup: Auto Search Method
Should the TV brand not be successfully found by the previous Brand Search Method then the Auto Search Method can be used.
- Please note this process may take up to 5 minutes to nd your TV code.
1. Make sure your TV set is turned on. (The set-top box does not need to be turned on to perform this programing feature).
2. Press and hold both the 1and the 3buttons at the same time on the remote control for approximately 3 seconds until the TV Standby
button remains lit, then release both buttons.
3. Point the remote control at the TV set and press and hold down the TV Standby button or the MUTE button on the remote control.
4. When the TV either turns off or brings up the MUTE symbol on screen, then release that button. This may take up to 5 minutes to happen.
5. Press and hold the TEXT/SHIFT button and then at the same time press the STOP n button to nish setting up the TV control mode. The
TV Standby button will go out. The TV control function is now programmed into the remote control.
- Should the TV brand be not successfully found by the remote control then the TV standby button will ash rapidly and the remote control will revert to normal
operation. No TV brand code will be stored. If even Auto Search Method fails to successfully setup operation of the TV set, then the remote is unable to control that
particular TV set.

RS Fiber Video Service Remote and Codes 5
TV Shift Functionality
When a TV brand has successfully been programmed into the remote control with the above steps, the following additional buttons may also control
the TV set. These can be accessed by pressing and holding the TEXT/SHIFT button on the remote control and at the same time pressing: digit
buttons 0..9, LEFT/RIGHT , UP/DOWN , OK, CH+/-and the four color navigation buttons.
- Operation of these buttons is not guaranteed to control the normally expected functionality of the TV set.
Key Fix
If not all the previously mentioned buttons operate the TV set then a Key Fix operation can be performed as follows:
1. Press and hold the 1and 9buttons simultaneously for approximately 3 seconds until the TV Standby button is lit.
2. Try all the above mentioned TV buttons.
3. If the TV does not respond to a button, then hold that button down permanently. The remote control will now step through alternative settings.
When the TV responds correctly then release that button.
4. Repeat that procedure for other buttons if necessary
5. Once nished, press TEXT/SHIFT and STOP nat the same time
Removing TV Functionality
To reset the remote control and erase the TV functionality:
1. Press and hold the 1and 6buttons simultaneously for approximately 3 seconds until the TV Standby button is lit.
2. Enter the following key sequence in the correct order 9, 9, 6.
3. The TV settings will be deleted from the remote control.
AMINO WILLOW CODES
A.R. SYSTEMS 0012
ABEX 0014
ABS 0016
ACCENT 0019
ACER 0028
ACOUSTIC SOLUTIONS 0032
ACTION 0033
ACURA 0036
ADA 0038
ADC 0040
ADDISON 0043
ADMIRAL 0046
ADVENT 0054
ADVENTURA 0055
ADYSON 0058
AEG 0059
AGASHI 0063
AGB 0064
AIKO 0069
AIM 0070
AIWA 0072
AKAI 0074
AKASHI 0075
AKIBA 0078
AKIRA 0079
AKITO 0082
AKURA 0083
ALARON 0085
ALBA 0086
ALBATRON 0087
ALCYON 0093
ALIENWARE 0099
ALLORGAN 0105
ALLSTAR 0108
AMERICA ACTION 0123
AMOI 0132
AMPLIVISION 0138
AMPRO 0139
AMSTRAD 0140
ANAM 0146
ANAM NATIONAL 0147
ANDERSSON 0148
ANGLO 0151
ANITECH 0154
ANSONIC 0156
AOC 0165
APEX DIGITAL 0170
APOLLO 0171
APPLE 0172
ARC EN CIEL 0178
ARCAM 0179
ARDEM 0184
ARISTONA 0192
ART 0199
ARTHUR MARTIN 0200
ASA 0202
ASBERG 0205
ASTAR 0218
ASTRA 0221
ASUKA 0227
ATD 0229
ATLANTIC 0233
ATORI 0237
AUCHAN 0240
AUDIOSONIC 0264
AUDIOTON 0266
AUDIOVOX 0268
AUDIOWORLD 0269
AUSIND 0276
AUTOVOX 0280
AVENTURA 0287
AWA 0296
AXXON 0303
BAIRD 0311
BANG AND OLUFSEN 0314
BARCO 0319
BASIC LINE 0325
BASTIDE 0327
BAUR 0331
BAYSONIC 0333
BAZIN 0335
BEAUMARK 0340
BEIJING 0345
BEKO 0346
BELCOR 0348
BELL AND HOWELL 0350
BELSON 0355
BELSTAR 0357
BENQ 0359
BEON 0361
BERTHEN 0363
BEST 0364
BESTAR 0368
BESTAR-DAEWOO 0369
BINATONE 0378
BLACK DIAMOND 0384
BLACK STAR 0386
BLACKWAY 0388
BLAUPUNKT 0390
BLUE SKY 0395
BLUE STAR 0396
BOCA 0399
BONDSTEC 0403
BOOTS 0405
BPL 0413
BRADFORD 0414
BRANDT 0416
BRILLIAN 0422
BRINKMANN 0423
BRIONVEGA 0424
BRITANNIA 0425
BROCKWOOD 0430
BROKSONIC 0432
BRUNS 0435
BSKYB 0436
BSR 0437
BTC 0439
BUSH 0445
BYD:SIGN 0448
C-TECH 0449
CAIHONG 0462
CAISHI 0465
CANDLE 0480
CAPSONIC 0486
CARAD 0488
CARENA 0489
CARNIVALE 0491
CARREFOUR 0492
CARVER 0494
CASCADE 0496
CASIO 0499
CATHAY 0501
CCE 0504
CELEBRITY 0509
CELERA 0510
CELESTIAL 0511
CENTREX 0516
CENTRUM 0519
CENTURION 0520
CENTURY 0521
CGE 0523
CHANGCHENG 0526

RS Fiber Video Service Remote and Codes
6
CHANGFEI 0527
CHANGFENG 0528
CHANGHAI 0529
CHANGHONG 0530
CHUN YUN 0545
CHUNFENG 0546
CHUNG HSIN 0547
CHUNSUN 0549
CIMLINE 0552
CINEX 0563
CITIZEN 0567
CITY 0569
CLARION 0575
CLARIVOX 0576
CLATRONIC 0581
CLAYTON 0582
CMS 0590
CMS HIGHTEC 0591
COBY 0597
COMMERCIAL SOLUTIONS 0615
CONCERTO 0625
CONCORDE 0626
CONDOR 0627
CONIA 0628
CONROWA 0634
CONTEC 0635
CONTINENTAL EDISON 0637
COSMEL 0647
CRAIG 0650
CROSLEY 0655
CROWN 0658
CS ELECTRONICS 0663
CTC 0664
CTX 0665
CURTIS 0666
CURTIS MATHES 0667
CXC 0670
CYBERPOWER 0674
CYBERTRON 0675
CYTRON 0680
D-VISION 0684
DAEWOO 0692
DAINICHI 0694
DANSAI 0699
DANTAX 0702
DATSURA 0703
DAWA 0707
DAYTRON 0710
DE GRAAF 0716
DEC 0717
DECCA 0718
DEITRON 0722
DELL 0725
DENON 0731
DENVER 0733
DESMET 0738
DIAMANT 0746
DIAMOND 0747
DIAMOND VISION 0748
DICK SMITH ELECTRONICS 0750
DIGATRON 0751
DIGIHOME 0758
DIGILINE 0759
DIGITAL LIFE 0772
DIGITEX 0780
DIGITOR 0781
DIRECTV 0794
DIXI 0807
DL 0810
DOMEOS 0817
DONGDA 0820
DONGHAI 0821
DREAN 0832
DSE 0833
DTS 0837
DUAL 0838
DUMONT 0840
DURABRAND 0842
DUX 0843
DVX 0847
DWIN 0848
DX ANTENNA 0849
DYNATRON 0855
EASY LIVING 0860
ECCO 0864
ECE 0865
ELBE 0880
ELCIT 0883
ELECTROBAND 0888
ELECTROGRAPH 0889
ELECTROHOME 0890
ELEKTRA 0896
ELFUNK 0899
ELG 0900
ELIN 0902
ELITE 0903
ELMAN 0907
ELTA 0910
EMERSON 0917
EMPEROR 0921
EMPREX 0922
ENVISION 0933
ENZER 0934
EPSON 0937
ERRES 0942
ESA 0943
ESC 0945
ETRON 0949
EUROFEEL 0954
EUROLINE 0955
EUROMAN 0956
EUROPA 0957
EUROPHON 0959
EVESHAM 0972
EVOLUTION 0973
EXCELLO 0975
EXPERT 0976
EXQUISIT 0978
FEILANG 0990
FEILU 0991
FEIYUE 0993
FENNER 0994
FERGUSON 0996
FIDELITY 0998
FILSAI 1000
FINLANDIA 1003
FINLUX 1004
FIRSTLINE 1008
FISHER 1009
FLINT 1014
FNR 1016
FORMENTI 1023
FORMENTI-PHOENIX 1024
FORTRESS 1027
FRABA 1030
FRIAC 1040
FRONTECH 1042
FUJITSU 1052
FUJITSU GENERAL 1053
FUJITSU SIEMENS 1054
FUNAI 1056
FURICHI 1058
FUTRONIC 1061
FUTURETECH 1064
GALAXI 1068
GALAXIS 1069
GATEWAY 1076
GBC 1078
GE 1081
GEANT CASINO 1082
GEC 1083
GELOSO 1087
GENERAL TECHNIC 1095
GENESIS 1096
GENEXXA 1097
GIANT 1113
GIBRALTER 1114
GO VIDEO 1126
GOLDFUNK 1135
GOLDHAND 1136
GOLDLINE 1138
GOLDSTAR 1140
GOODMANS 1142
GORENJE 1144
GP 1147
GPM 1149
GPX 1150
GRADIENTE 1151
GRAETZ 1152
GRANADA 1154
GRANDIN 1156
GRONIC 1160
GRUNDIG 1162
GRUNKEL 1164
GRUNPY 1165
HAAZ 1172
HAIER 1175
HAIHONG 1176
HALIFAX 1179
HALLMARK 1180
HAMPTON 1183
HANKOOK 1188
HANNSPREE 1189
HANSEATIC 1190
HANTAREX 1192
HANTOR 1193
HARLEY DAVIDSON 1197
HARMAN/KARDON 1198
HARVARD 1202
HARWA 1203
HARWOOD 1204
HAUPPAUGE 1206
HAVERMY 1208
HCM 1210
HELIOS 1219
HELLO KITTY 1221
HEMA 1222
HEMMERMANN 1223
HEWLETT PACKARD 1229
HIFIVOX 1233
HIGASHI 1234
HIGHLINE 1236
HIKONA 1237
HINARI 1243
HISAWA 1247
HISENSE 1249
HITACHI 1251
HITACHI FUJIAN 1252
HITEC 1253
HITSU 1257
HOEHER 1262
HONGMEI 1272
HORNYPHON 1277
HOSHAI 1278
HOWARD COMPUTERS 1281
HP 1283
HUAFA 1287
HUANGHAIMEI 1288
HUANGHE 1289
HUANGLONG 1290
HUANGSHAN 1291
HUANYU 1292
HUARI 1294
HUMAX 1298
HUSH 1304
HYGASHI 1308
HYPER 1309
HYPSON 1312
HYUNDAI 1315
IBERIA 1320
IBUYPOWER 1322
ICE 1324
ICES 1325
ILO 1341
IMPERIAL 1346
INDESIT 1349
INDIANA 1350
INFINITY 1352
INFOCUS 1353
INGELEN 1354
INGERSOL 1355
INITIAL 1356
INNO HIT 1358
INNOVA 1359

RS Fiber Video Service Remote and Codes 7
INNOVATION 1360
INOTECH 1364
INSIGNIA 1368
INTEQ 1373
INTERBUY 1376
INTERFUNK 1377
INTERNAL 1379
INTERNATIONAL 1380
INTERVISION 1386
IRRADIO 1396
IRT 1397
ISUKAI 1402
ITC 1404
ITS 1405
ITT 1406
ITT NOKIA 1407
ITV 1408
JANEIL 1414
JBL 1420
JCB 1421
JEAN 1424
JEC 1426
JENSEN 1429
JIAHUA 1435
JINFENG 1438
JINHAI 1439
JINXING 1442
JMB 1445
JNC 1446
JOCEL 1448
JUBILEE 1460
JVC 1464
KAISUI 1471
KAMP 1475
KANGCHONG 1476
KANGHUA 1477
KAPSCH 1483
KARCHER 1484
KATHREIN 1486
KAWA 1487
KAWASHO 1489
KDS 1494
KEC 1496
KEN BROWN 1499
KENDO 1500
KENNEDY 1504
KENNEX 1505
KENWOOD 1507
KHIND 1511
KIC 1512
KINGSLEY 1520
KIOTA 1522
KIOTO 1523
KITON 1525
KLH 1529
KLL 1531
KLOSS 1532
KNEISSEL 1535
KOLIN 1541
KOLSTER 1543
KONIG 1547
KONKA 1548
KORPEL 1552
KORTING 1554
KOSMOS 1557
KOYODA 1561
KTV 1572
KUNLUN 1578
KURO 1579
KYOSHU 1583
KYOTO 1585
LANDS ELECTRONIC 1588
LASAT 1597
LAVIS 1602
LECSON 1606
LENCO 1615
LENOIR 1617
LESA 1622
LEXSOR 1626
LEYCO 1627
LG 1628
LIESENK AND TTER 1630
LIESENKOTTER 1631
LIFETEC 1633
LINKSYS 1640
LLOYD’S 1648
LOCAL INDIA TV 1653
LOCAL MALAYSIA TV 1656
LODOS 1659
LOEWE 1660
LOGIK 1661
LOGIX 1663
LUMA 1674
LUMATRON 1676
LUX MAY 1680
LUXMAN 1682
LUXOR 1683
LXI 1686
M ELECTRONIC 1688
MADISON 1698
MAG 1701
MAGNADYNE 1702
MAGNAFON 1703
MAGNASONIC 1704
MAGNAVOX 1706
MAGNIN 1708
MAGNUM 1709
MAJESTIC 1713
MANDOR 1717
MANESTH 1718
MANHATTAN 1719
MARANTZ 1724
MARELLI 1729
MARK 1731
MASCOM 1738
MASTRO 1743
MASUDA 1744
MATSUI 1750
MATSUSHITA 1751
MAXDORF 1756
MAXENT 1757
MAXIM 1759
MCMICHAEL 1768
MECK 1775
MEDIA CENTER PC 1777
MEDIATOR 1784
MEDION 1787
MEDISON 1788
MEGAPOWER 1791
MEGATRON 1795
MEI 1796
MELVOX 1799
MEMOREX 1800
MEMPHIS 1802
MERCURY 1804
MERMAID 1806
METRONIC 1809
METZ 1810
MGA 1811
MICROMAXX 1822
MICROSOFT 1826
MICROSTAR 1827
MICROTEK 1829
MIDLAND 1831
MIKOMI 1833
MINATO 1835
MIND 1837
MINERVA 1838
MINOKA 1840
MINTEK 1845
MINUTZ 1847
MITSUBISHI 1855
MIVAR 1857
MONIVISION 1872
MORGAN’S 1875
MOTION 1877
MOTOROLA 1878
MTC 1889
MTEC 1890
MTLOGIC 1892
MUDAN 1896
MULTISTANDARD 1904
MULTITEC 1906
MULTITECH 1907
MURPHY 1911
MUSIKLAND 1915
MYRYAD 1922
NAD 1926
NAIKO 1930
NAKIMURA 1933
NAONIS 1936
NAT 1941
NATIONAL 1942
NEC 1950
NECKERMANN 1951
NEI 1952
NESCO 1960
NETSAT 1966
NETTV 1967
NETWORK 1968
NEUFUNK 1970
NEW TECH 1979
NEW WORLD 1980
NEWAVE 1981
NICAMAGIC 1994
NIKKAI 1998
NIKKEI 1999
NIKKO 2000
NINTAUS 2006
NIVEUS MEDIA 2012
NOBLEX 2013
NOBLIKO 2014
NOGAMATIC 2016
NOKIA 2017
NORCENT 2020
NORDIC 2021
NORDMENDE 2022
NORMEREL 2024
NORTHGATE 2027
NORWOOD MICRO 2029
NOVATRONIC 2035
NTC 2045
NU-TEC 2048
NUVISION 2053
OCEANIC 2061
OKANO 2065
OLEVIA 2067
OMNI 2074
ONIDA 2081
ONIMAX 2082
ONWA 2087
OPERA 2090
OPPO 2092
OPTIMUS 2095
OPTOMA 2097
OPTONICA 2099
ORBIT 2103
ORION 2111
ORLINE 2113
ORMOND 2114
ORSOWE 2116
OSAKI 2118
OSIO 2121
OSO 2122
OSUME 2123
OTIC 2125
OTTO VERSAND 2126
PACIFIC 2135
PACKARD BELL 2138
PAEL 2140
PALLADIUM 2145
PALSONIC 2147
PANAMA 2149
PANASONIC 2153
PANAVISION 2154
PANDA 2155
PATHE CINEMA 2168
PATHE MARCONI 2169
PAUSA 2171
PENG SHENG 2181
PENNEY 2182
PERDIO 2185
PERFEKT 2186
PETTERS 2189

RS Fiber Video Service Remote and Codes
8
PHILCO 2192
PHILHARMONIC 2194
PHILIPS 2195
PHOCUS 2198
PHOENIX 2199
PHONOLA 2201
PHONOTREND 2202
PILOT 2207
PIONEER 2212
PIONIER 2213
PLANTRON 2219
PLAYSONIC 2224
POLAROID 2230
POPPY 2236
PORTLAND 2238
POWERPOINT 2241
PRECISION 2244
PREMIER 2248
PRESIDENT 2250
PRIMA 2253
PRINCETON 2258
PRINSTON 2259
PRINZ 2260
PRISM 2261
PROFEX 2269
PROFILO 2272
PROFITRONIC 2273
PROLINE 2274
PROMAX 2275
PROSCAN 2279
PROSCO 2280
PROSONIC 2282
PROTECH 2284
PROTON 2288
PROTRON 2289
PROVIEW 2290
PROVISION 2291
PULSAR 2296
PYE 2302
PYMI 2304
QINGDAO 2308
QUASAR 2320
QUELLE 2322
QUESTA 2324
R-LINE 2327
RADIALVA 2329
RADIOLA 2330
RADIOMARELLI 2331
RADIONETTE 2332
RADIOSHACK 2333
RADIOTONE 2334
RANK 2345
RANK ARENA 2346
RBM 2350
RCA 2351
REALISTIC 2354
RECCO 2358
RECOR 2359
RECTILIGNE 2362
REDIFFUSION 2364
REDSTAR 2366
REFLEX 2368
RELISYS 2374
REMOTEC 2377
REOC 2379
REVOX 2383
REX 2385
RFT 2386
RHAPSODY 2387
RICAVISION 2388
RINEX 2392
ROADSTAR 2398
ROBOTRON 2401
ROLSON 2410
ROWA 2416
ROYAL LUX 2420
RUNCO 2423
SABA 2429
SAGEM 2434
SAISHO 2437
SAIVOD 2439
SALORA 2443
SAMBERS 2445
SAMPO 2446
SAMSUNG 2448
SAMSUX 2449
SANDRA 2454
SANSUI 2458
SANYO 2462
SANYUAN 2464
SBR 2492
SCEPTRE 2498
SCHAUB LORENZ 2500
SCHNEIDER 2501
SCIMITSU 2505
SCOTCH 2506
SCOTT 2508
SEARS 2514
SEAWAY 2515
SEELVER 2520
SEG 2522
SEI 2524
SEI-SINUDYNE 2525
SELECO 2528
SEMIVOX 2529
SEMP 2530
SENCORA 2531
SENTRA 2534
SERIE DORADA 2538
SERINO 2539
SHANGHAI 2547
SHAOFENG 2549
SHARP 2550
SHENCAI 2553
SHENG CHIA 2554
SHENYANG 2555
SHERWOOD 2557
SHINTOSHI 2564
SHIVAKI 2567
SHOGUN 2568
SHORAI 2569
SIAM 2572
SIAREM 2573
SIEMENS 2574
SIERA 2576
SIESTA 2577
SIGNATURE 2582
SILVA 2591
SILVA SCHNEIDER 2592
SILVER 2594
SILVERCREST 2595
SIMPSON 2598
SINGER 2599
SINOTEC 2600
SINUDYNE 2601
SKANTIC 2605
SKY 2610
SKYSONIC 2627
SKYWORTH 2631
SLX 2638
SOGERA 2649
SOLAVOX 2654
SOLE 2655
SONAWA 2663
SONIKO 2669
SONITRON 2671
SONNECLAIR 2673
SONOKO 2675
SONOLOR 2676
SONTEC 2677
SONY 2679
SOUND AND VISION 2680
SOUNDESIGN 2684
SOUNDWAVE 2689
SOVA 2690
SOWA 2691
SOYEA 2692
SOYO 2693
SPECTRONIQ 2701
SQUAREVIEW 2703
SSS 2708
STACK 9 2710
STANDARD 2713
STARLITE 2728
STENWAY 2739
STERN 2741
STRATO 2745
STRONG 2748
STUDIO EXPERIENCE 2750
STYLANDIA 2752
SUNBRITE 2759
SUNKAI 2762
SUNNY 2764
SUNSTAR 2768
SUNWOOD 2772
SUPERLA 2782
SUPERSCAN 2786
SUPERSONIC 2787
SUPERTECH 2789
SUPERVISION 2791
SUPRA 2792
SUPRE-MACY 2794
SUPREME 2795
SUSUMU 2797
SUTRON 2798
SVA 2800
SVASA 2801
SWISSTEC 2806
SYDNEY 2808
SYLVANIA 2809
SYMPHONIC 2810
SYNCO 2811
SYNTAX 2814
SYSLINE 2815
SYSTEMAX 2817
SYTONG 2820
TACICO 2823
TACTUS 2825
TAGAR SYSTEMS 2831
TAISHAN 2835
TALENT 2838
TANDBERG 2842
TANDY 2843
TASHIKO 2850
TATUNG 2852
TCL 2856
TCM 2857
TEAC 2860
TEC 2861
TECH LINE 2863
TECHICA 2865
TECHNEMA 2866
TECHNICA 2868
TECHNICS 2869
TECHNIKA 2870
TECHNISAT 2873
TECHNISSON 2874
TECHNOL ACE 2875
TECHNOSONIC 2878
TECHVIEW 2883
TECHWOOD 2884
TECNIMAGEN 2885
TECO 2886
TEDELEX 2889
TEK 2892
TEKNIKA 2895
TELEAVIA 2901
TELECOR 2910
TELEFUNKEN 2914
TELEFUSION 2915
TELEGAZI 2917
TELEMEISTER 2924
TELESONIC 2930
TELESTAR 2931
TELETECH 2934
TELETON 2935
TELEVIDEON 2938
TELEVIEW 2939
TELEVISO 2941
TEMCO 2946
TENNESSEE 2952
TENSAI 2954
TENSON 2955
TEVION 2962

RS Fiber Video Service Remote and Codes 9

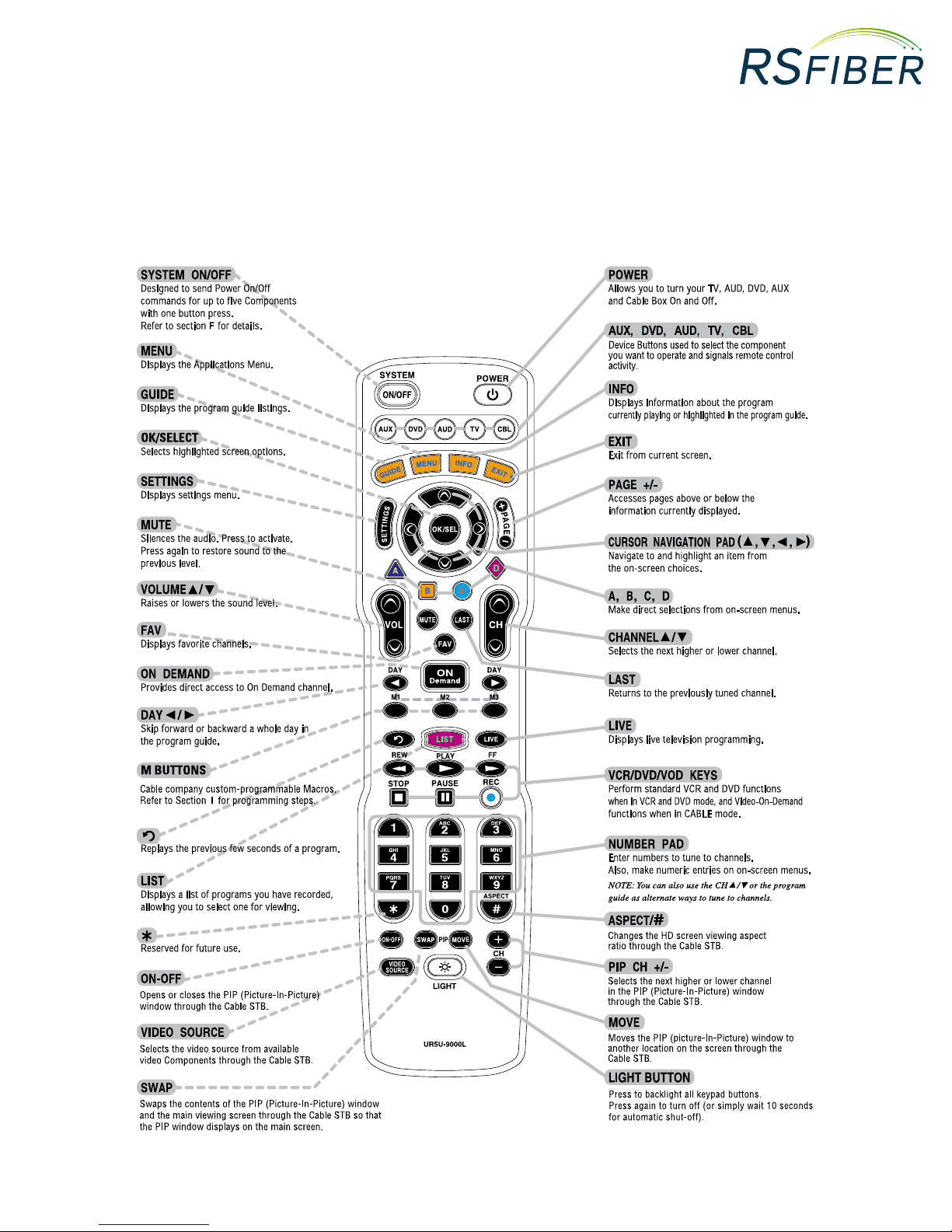

PHAZR-5 Remote
UR5U-9000L & UR5U-9020L

RS Fiber Video Service Remote and Codes
10
There Are Two Ways You Can Program Your Remote:
• Program your remote using the Pre-Programmed 3-Digit Code Method.
• Program your remote using the Auto-Search Method.
The Pre-Programmed Code Method allows you to setup all the buttons at once by entering 3-digit code numbers that correspond to a particular
Component’s manufacturer/brand, so it’s the fastest and easiest of the two methods. (Code Tables follow these instructions.)
The Auto-Search Method scans through all the codes in the remote control, one at a time.
- This pertains to all programming steps. When you are in setup mode, a component LED will light for 30 seconds. If you do not press a button within 30 seconds, the
LED light will turn off and exit setup mode and you will need to start over.
Pre-Programmed 3-Digit Code Method Instructions:
1. Turn on the component you want to program (TV, VCR, DVD or AUX).
2. Press the COMPONENT (TV, VCR, DVD or AUX) button to be programmed and press the OK/SEL button simultaneously for 3 seconds.
The component LED light will turn on for 30 seconds indicating the unit is ready to be programmed.
3. Point the remote control toward the component and enter the 3-digit code number as signed to your brand
4. After you’ve entered the correct code number and the component has turned off, press the POWER button to turn the component back on.
Now it is time to test the VOL+, VOL- and MUTE buttons for the TV (or PLAY >and STOP nbuttons for VCR and DVD) to make sure they
all work. If any of the functions do not work as they should, repeat from Step 3 using the next 3-digit code number listed for that brand until you
nd the best component code.
- If the 3-digit code number you just entered is correct, the component will turn off. If it did not turn off, continue entering code numbers listed for that brand until the
component turns off.
Once you have found the correct 3-digit code, save it by pressing the same COMPONENT (TV, VCR, DVD or AUX) button one more time. The
component LED light will blink twice to conrm that the code was successfully stored. Now, program the rest of your components by repeating Steps
1-5.
Record Your Component Set-up Codes:
TV Set-Up Code Number
VCR Set-Up Code Number
DVD Set-Up Code Number
AUX Set-Up Code Number
- If the Pre-Programmed Method did not work, or if the “Code Tables” do not list your component brand, use the Auto-Search Method following these instructions.

RS Fiber Video Service Remote and Codes 11
Auto-Search Method Programming Instructions:
1. Turn on the component you want to program (TV, VCR, DVD or AUX)
2. Press the COMPONENT (TV, VCR, DVD or AUX) button to be programmed and OK/SEL button simultaneously for 3 seconds. The
component LED light will turn on for 30 seconds indicating the unit is ready to be programmed.
3. Point the remote toward the component and press the CH buttons one step at a time or keep it pressed. The remote will emit a series of
ON/OFF commands. Release the CH buttons as soon as the component turns off.
4. Test functions. (Same as for 3-digit code Programming Method). If any of the functions do not work as they should, repeat from Step 3 using CH
buttons to nd the correct code.
5. Save the code. (Same as for 3-digit code Programming Method). Now, repeat the Auto-Search Method for those components you could not
program earlier with the Pre-Programmed Method.
Visit www.universalremote.com for additional information about your remote control.
PHAZR-5 CODES
UR5U-9000L & UR5U-9020L
STB-IPTV
ADB 254 255 315 259
AMINO 249 256 257 260 261
ATANDT 251
CISCO 313 251 316
COMCAST 313
ENTONE 155 258
MYRIO 254 255
MOTOROLA 253
NOW TV 314
PACE 313
SCIENTIFIC ATLANTA 251
WEGENER 250
STB-CABLE CONVERTERS
SCIENTIFIC ATLANTA 001 003 041
042 045 046
PIONEER 001 103 034 051 063 076
105
PACE 001 005 002
SAMSUNG 001 030
MOTOROLA 002 111 148
DIGEO 153
GENERAL INSTRUMENT 005 103
104
HAMLIN 049 050 055
HITACHI 103 055
JERROLD 005 004 103 005 003 008
009 010 069
MAGNAVOX 010 012
MEMOREX 052
MOXI 111 252 153
NFUSION 192
PANASONIC 044 047
PHILIPS 006 012 013 020 085
PULSAR 052
RCA 047
REGAL 049 050
REGENCY 057
SKY 230 204
SONY 108
SPRUCER 047
TELNET 354
TOCOM 039 040 056
TOSHIBA 052
VIEWSTAR 012 015
ZENITH 052 060 093 100
TV
A MARK 112 143
ABEX 025
ACCURIAN 036
ADMIRAL 072 251 333
ADVENT 247 388
ADVENTURA 002
AIKO 103
AKAI 116 146 248 404 405 473 475
323 387 391 615
ALBATRON 017
ALERON 028
AMERICA ACTION 043
AMPRO 073
AMSTRAD 052
ANAM 043 054 056 080 112
AOC 116 363 112 058
APEX 572
APEX DIGITAL 006
AQUAVISION 573 574
ASTAR 477
AUDIOVOX 076 454 388
AVENTURA 052
AVION 441
AXION 039
BELCOR 116
BELLANDHOWELL 333 072
BENQ 423 600
BOXLIGHT 266
BRADFORD 043
BROCKWOOD 116
BROKSONIC 238
BYDESIGN 031 032
CANDLE 116 002 003 363
CAPEHART 058
CARY AUDIO DESIGN 266
CELEBRITY 001
CENTURION 116
CETRONIC 043
CHANGHONG 247
CITIZEN 116 002 003 363 043 258
103 143
CLARION 043
CLASSIC 043
CLP CLASSIC 333
COLORTYME 116
CONCERTO 363
CONCIERGE 073
CONTEC 043 050 051
CORNEA 116
CORONADO 143
CRAIG 043 054
CROSLEY 164
CROWN 043 143
CURTIS MATHES 116 258 363 143
CXC 043
CYBERHOME 015
DAEWOO 363 016 043 044 076 103
114 125 127 143
DAYTRON 363 143
DELL 320 164 363
DIGITAL PROJECTION 570
DIMENSIA 333
DREAMVISION 235
DUKANE 011 025
DUMONT 116 073
DURABRAND 096 052
DWIN 257
DYNASTY 043
DYNEX 400
EIKI 187
ELECTROBAND 001
ELECTROGRAPH 466
ELECTROHOME 143 024 076 196
ELEKTRA 072
ELEMENT 363 494 526
EMERSON 028 048 043 155 005 116
363 047 050 051 076 096 143 153
154 052 514
ENVISION 116
EPSON 324 590
ESA 323
FISHER 007 057
FUJITSU 246 198 410
FUNAI 028 043 052
FUTURETECH 043
GATEWAY 242 268
GE 073 116 008 009 034 056 074 155
333 363
GEM 391
GIBRALTER 116 073
GO VIDEO 026
GOLDSTAR 113 116 102 363 106 112
127 143
GRUNPY 028 043
HAIER 363 501
HALL MARK 363
HANNSPREE 349 381
HARLEY DAVIDSON 028
HARVARD 043
HAVERMY 081
HELLO KITTY 076
HIMITSU 043
HISENSE 419 442
HITACHI 011 166 009 010 012 023
075 143 158 072 613 363 250 587
HP 378 316 327 421
HUMAX 518
HYPERIOR 609
HYUNDAI 337 338
ILO 472 399
INFINITY 164
INFOCUS 333 230 547 548 470 532
564 595
INITIAL 035 282
INSIGNIA 350 400 052 164 403 454
457 604
INTEQ 073
JANEIL 002
JBL 164
JCB 001
JCPENNEY 024 116 008 009 030 065
258 143 333 363
JENSEN 013
JVC 038 034 001 083 199 210 533

RS Fiber Video Service Remote and Codes
12
JVC 581
KAWASHO 116 001
KEC 043
KENWOOD 116 001
KLEGG 466
KLOSS 002 059
KMC 143
KNOLL SYSTEMS 230
KONKA 457
KREISEN 530
KTV 043 116 143 154
KURAZAI 072
LG 363 113 116 102 106 112 127 143
569 284
LITEON 268
LODGENET 072
LOEWE 164
LOGIK 072
LUXMAN 363
LXI 166 007 138 052 251 333 164
MAGNAVOX 164 059 116 003 060
061 363 127 022 333 094 226 390
467 431
MAJESTIC 333 072
MARANTZ 116 164 281 562 584
MATSUI 164
MATSUSHITA 080
MAXENT 242
MEGATRON 116 011
MEMOREX 007 072 363
MGA 116 363 024 028 042
MIDLAND 333 073
MINTEK 362
MINUTZ 008
MISAKAI 052
MITSUBISHI 124 109 024 028 040
042 146 363 348 450
MONIVISION 017
MONTGOMERY WARD 333 072
MOTOROLA 081
MTC 116 363 258
MULTITECH 043
NAD 138 025
NEC 272 197134 116 040 016 024
056 019 262 236 281 575
NET TV 242
NIKEI 043
NIKKO 116
NIKO 527
NORCENT 390
NORWOOD MICRO 027
NTC 103
NUVISION 351 567
OLEVIA 432 363 333
ONKING 043
ONWA 043
OPTIMUS 025
OPTOMA 265 249
OPTONICA 019 251
ORION 096
PANASONIC 080 034 056 164 208
PANASONIC, CONTINUED 359 552
524 607
PHILCO 116 003 059 060 164 363
024 056
PHILIPS 164 005 093 038 116 003
363 059 127 206 431 333 161 594
PILOT 116
PIONEER 234 135 025 018 023 116
393 272 520 582
POLAROID 388 323 328 353 354 355
356 494 387 391 505 506 508
PORTLAND 363 143
PRINCETON 004
PRISM 034
PROSCAN 333
PROTON 363 112 058 143 171 172
033 528
PROTRON 392 398 498 499 500
PROVIEW 494
PROX 572
PULSAR 116 073
QUASAR 034 056
RADIO SHACK 019 363 143 043 127
RCA 333 065 116 363 024 056 152
023 074 161 588
REALISTIC 007 019 043 047
REVOLUTION HD 466
RUNCO 182 073 395 416 072 342
SAMPO 116 058 363 242
SAMSUNG 258 050 089 105 363 127
143 333 228 229
SAMSUX 116
SANSEI 076
SANSUI 096 400 615
SANYO 166 007 020 053 057 082 187
511 266
SCEPTRE 276
SCOTCH 116
SCOTT 028 043 048 143 363 497
SEARS 030 363 007 028 057 143 094
333 082 166 138
SELECO 205 011
SHARP 251 019 014 028 029 363 022
143 175 308
SHENG CHIA 081
SHERWOOD 349
SHOGUN 116
SIGNATURE 072
SIMPSON 003
SONY 001 608
SOUNDESIGN 028 363 003 043
SOVA 041
SOYO 528 033
SPECTRICON 112
SPECTRONIQ 499 500
SQUAREVIEW 052
SSS 363 043
STARLITE 043
SUNBRITE 605
SUPERSCAN 052 081
SUPRA 116
SUPRE MACY 002
SUPREME 001
SVA 328
SYLVANIA 116 003 052 059 060 164
044 333 127 514 593
SYMPHONIC 052
SYNTAX OLEVIA 432 363 333
TANDY 251
TATUNG 056
TECHNICS 034 080
TECHNOL ACE 028
TECHVIEW 045 557
TECHWOOD 363
TEKNIKA 002 003 363 024 028 043
072 258 143
TELEFUNKEN 037 046 615
TELERENT 072
TERA 172
THOMSON 049 055
TMK 363
TNCI 073
TOSHIBA 138 030 007 040 258 325
230
TOTEVISION 143
TRUTECH 529
TVS 096
UNIVERSAL 008 009
VICTOR 038
VIDEO CONCEPTS 146
VIDIKRON 174 164 188 192 342
VIDTECH 363
VIEWSONIC 242 389
VIKING 002
VIORE 472 592
VISCO 526
VITO 363
VIZIO 386 387
WARDS 363 008 009 019 028 060
061 072 074 143 164 034
WAYCON 015
WESTINGHOUSE 076 276 435 001
WINBOOK 339
YAMAHA 116 363 370
YORK 363
YUPITERU 043
ZENITH 363 073 072 095 103
ZONDA 112
TV-LCD AND PLASMA TVS
ACCURIAN 036
ADVENT 247 388
AKAI 404 405 473 475 323 387 391
615
AOC 116 363
APEX 572
APEX DIGITAL 006
AQUAVISION 573 574
ASTAR 477
AUDIOVOX 454 388 076
AVION 441
AXION 039
BENQ 600
CHANGHONG 247
CYBERHOME 015
DAEWOO 076 363
DELL 320 164 363
DURABRAND 052
DWIN 257
DYNEX 400
ELECTROGRAPH 466
ELEMENT 363 494 526
EMERSON 514 363 076 052
ESA 323
FUJITSU 246 198
FUNAI 052
GATEWAY 242 268
GO VIDEO 026
HAIER 363 501
HANNSPREE 349 381
HISENSE 419 442
HITACHI 011 363 613
HP 378 316 327 421
HUMAX 518
HYPERIOR 609
HYUNDAI 337 338
ILO 472
INFOCUS 547 470
INITIAL 035 282
INSIGNIA 350 400 052 164 403 454
457 604
JVC 038 210 581
KLEGG 466
KONKA 457
KREISEN 530
LG 363 569 113 116 284
LITEON 268
LOEWE 164
MAGNAVOX 164 363 226 390 467
431
MARANTZ 116 164 281
MAXENT 242
MINTEK 362
MITSUBISHI 124 363
NEC 272 262 575
NIKO 527
NORCENT 390
NORWOOD MICRO 027
NUVISION 351 567
OLEVIA 432 363 333
PANASONIC 080 164 208 552 524
PHILIPS 164 363 431 161 594
PIONEER 234 135 393 272 520 582
POLAROID 388 323 328 353 356 494
387 391 505 506
PRINCETON 004
PROTON 033 528
PROTRON 392 398 498 499 500
PROVIEW 494
PROX 572
RCA 333 363 161 588
REVOLUTION HD 466
RUNCO 395 416

RS Fiber Video Service Remote and Codes 13
SAMPO 363 242
SAMSUNG 258 228 229
SANSUI 096 400 615
SANYO 166 007
SCEPTRE 276
SHARP 251 363
SHERWOOD 349
SONY 001
SOVA 041
SOYO 528 033
SPECTRONIQ 499 500
SUNBRITE 605
SVA 328
SYLVANIA 052 164 333 514
SYMPHONIC 052
SYNTAX OLEVIA 432 363 333
TATUNG 056
TECHVIEW 045 557
TELEFUNKEN 615
TOSHIBA 138 258 325
TRUTECH 529
VIEWSONIC 242 389
VIORE 472 592
VISCO 526
VITO 363
VIZIO 386 387
WESTINGHOUSE 076 276 435 001
WINBOOK 339
YAMAHA 116 363
ZENITH 363 073 072
TV-PROJECTION TVS
AKAI 404 405 473 475
DAEWOO 076
EPSON 324
HITACHI 011
HP 378
INFOCUS 333 548
JVC 038
LG 363
LOEWE 164
MAGNAVOX 164 333
MITSUBISHI 109
OPTOMA 265
PANASONIC 080 524
PHILIPS 164 431
RCA 333
SAMSUNG 258
SANYO 166 007 187
SHARP 251
SONY 001
TOSHIBA 138
ZENITH 363 073 072
TV-PROJECTORS
BENQ 423
BOXLIGHT 266
DIGITAL PROJECTION 570
DREAMVISION 235
EPSON 590
FUJITSU 410
HITACHI 250
INFOCUS 230 532 564 595
JVC 199 533
KNOLL SYSTEMS 230
MARANTZ 281 562 584
MITSUBISHI 348
NEC 236 281
OPTOMA 249
PANASONIC 359 607
RUNCO 342 182
SANYO 511 266
SELECO 205
SHARP 308
SIM2 205
TOSHIBA 230
VIDIKRON 342 174 188 192
YAMAHA 370
VCR
ADMIRAL 025 053
ADVENTURA 034
AIKO 117
AIWA 034 161
AKAI 016 146 043 124 125
AMERICA ACTION 117
AMERICAN HIGH 145
AMPRO 072
ANAM 145
ASHA 102
AUDIO DYNAMICS 012 039 043
AUDIOVOX 101
BEAUMARK 102
BROKSONIC 035 037 129
CALIX 101
CAPEHART 108
CCE 024 117
CITIZEN 101 117
COLT 024
CRAIG 003 022 102
CURTIS MATHES 145
CYBERNEX 102
DAEWOO 111 116 117 005 010 108
110 120
DAYTRON 108
DBX 012 039 043
DYNATECH 034 053
ELECTROHOME 059
ELECTROPHONIC 101
EMERSON 006 029 035 017 025
034 036 037 101 129 131 153 162
116 145
FISHER 003 010 008 009
FUJI 145
FUNAI 034
GARRARD 034
GE 072 144 147 145
GO VIDEO 132 136 155 115 102
GOLDSTAR 101 114 013 012 123
GRADIENTE 034
HARLEY DAVIDSON 034
HARMAN KARDON 012
HARWOOD 024
HITACHI 026 150 034 043 160 013
HQ 034
INSTANTREPLAY 145
JCL 145
JCPENNEY 012 013 015 101 102
JENSEN 043
JVC 048 043 130 150 012 145
KEC 101
KENWOOD 048 034
KLH 024
KODAK 101 145
LG 101 114 013 012 123
LLOYD 034
LOGIK 024
LXI 034 003 009 017
MAGIN 102
MAGNAVOX 067 034 164 145
MARANTZ 067 012 145
MARTA 101
MATSUSHITA 145
MEI 145
MEMOREX 101 003 010 034 053 072
102 139 145
MGA 059
MGN TECHNOLOGY 102
MINOLTA 013
MITSUBISHI 059 061 151 013 051
MOTOROLA 053 145
MTC 034 102
MULTITECH 024 034
NEC 012 039 043 048
NIKKO 101
NOBLEX 102
NORDMENDE 043
OLYMPUS 145
OPTIMUS 101
OPTONICA 053
ORION 025
PANASONIC 070 145 163 167
PENTAX 013 145
PHILCO 034 067 145
PHILIPS 067 034 101 071 145
PILOT 101
PIONEER 021 013 048
PORTLAND 108
PROFITRONIC 102
PROTEC 024
PULSAR 072
QUARTZ 002
QUASAR 145
RADIO SHACK 123
RADIX 101
RANDEX 101
RCA 144 147 145 013 034 102
REALISTIC 003 008 010 034 053 101
145 102
RICO 058
RUNCO 148
SAMSUNG 102 113 115 120 144
147 125
SANKY 053
SANSUI 022 043 048
SANYO 003 010 102
SCOTT 017 037 120 129 131
SEARS 003 008 010 013 101 009 017
073 112
SHARP 053 165 145
SHINTOM 024
SHOGUN 102
SIGNATURE 034
SINGER 024
SONY 001 057 058 003 053 154 145
SOUNDESIGN 034
STS 013
SYLVANIA 034 059 067 145
SYMPHONIC 034
TANDY 010 034
TATUNG 039 043
TEAC 034 039 043
TECHNICS 070 145
TEKNIKA 019 034 101 145
THOMAS 034
TMK 006
TOSHIBA 131 008 059 013 120
TOTEVISION 101 102
UNITECH 102
VECTOR RESEARCH 012
VICTOR 048
VIDEO CONCEPTS 012 034
VIDEOSONIC 102
VILLAIN 034
WARDS 003 013 017 024 034 053
131 145 102
WESTINGHOUSE 024 025
XR-1000 024 034 145
YAMAHA 012 034 039 043
ZENITH 072 080 056 048 101 034
058
VCR-TV/VCR COMBOS
AMERICA ACTION 117
DAEWOO 005 117
EMERSON 153
FUNAI 034
GOLDSTAR 101 123
HARLEY DAVIDSON 034
HITACHI 034
JCPENNEY 101
LG 101 123
LLOYD 034
MAGNAVOX 034 067
MEMOREX 101
PANASONIC 070 167
PHILIPS 034 067
RADIO SHACK 123
RCA 034 144
SEARS 101
SONY 057 154
SYLVANIA 067
SYMPHONIC 034
THOMAS 034

RS Fiber Video Service Remote and Codes
14
ZENITH 034
DVD
ACCURIAN 003 268
ADCOM 157
ADVENT 005
AIWA 146
AKAI 281
ALLEGRO 091
ALPINE 098
AMW 006 007
APEX DIGITAL 087 111 115
ARCAM 122
ASPIRE DIGITAL 008 009
AUDIOVOX 003 010 014 015 149
BEL CANTO DESIGN 016
BLAUPUNKT 111
BROKSONIC 130
BUFFALO 264
CALIFORNIA AUDIO LABS 021 124
CAMBRIDGE AUDIO 323 333
CARY AUDIO DESIGN 174 266
CENTRIOS 019
CINEVISION 091
CITIZEN 020
COBY 260
CYBERHOME 271
DAEWOO 132
DENON 080 173 138 329
DIAMOND VISION 037 038 039
DISNEY 040 096
DURABRAND 091
DVD 2000 017
EMERSON 091 143
ENTERPRISE 074
ESA 022 143
FISHER 147
FUNAI 143
GATEWAY 222
GE 027
GO VIDEO 137 091 220 221 222
GOLDSTAR 091
GPX 044 045
GRADIENTE 021
GREENHILL 111
GRUNDIG 083
HARMAN KARDON 084 140
HITACHI 101
HITEKER 087
ILO 268
INITIAL 111
INSIGNIA 143 292 297 091 096 349
INTEGRA 142 180 280 273 338
JATON 046
JBL 084
JSI 047
JVC 012
JWIN 048 050
KAWASAKI 149
KENWOOD 151
KISS 279
KLH 135
KONKA 051 052 054 055
KOSS 047 058 059
KREISEN 060
KRELL 104
LASONIC 061 062
LEXICON 148
LG 091 057 074 350
LITEON 264 265 268
LOEWE 063
MAGNAVOX 066 096 282
MALATA 267
MARANTZ 066 332
MCINTOSH 125
MEMOREX 040 096 163
MERIDIAN 153
MICROSOFT 027 206
MINTEK 111 282
MITSUBISHI 017
MYRYAD 102 134
NAD 088
NAKAMICHI 103
NESA 111
NEUNEO 067
NEXXTECH 068
NORCENT 005 006 007 069 071 072
073
ONKYO 076 141 180 273 338
OPPO 266 341
OPTIMUS 023
ORION 130
ORITRON 058
PANASONIC 144 150 285 138 021
346 347
PARASOUND 245
PHILIPS 066 276 317 344
PHILIPS MAGNAVOX 141 066
PIONEER 023 099 131 304 337
POLAROID 233 284 295 297
POLK AUDIO 141 066
PRESIDIAN 003 096
PRIMA 005
PRIMARE 193 194
PRINCETON 078
PROSCAN 027
RCA 027 307
RIO 091
RJTECH 269
ROTEL 204
SAMPO 081 082 085
SAMSUNG 070 165 137 159 275
SANSUI 154
SANYO 147
SEARS 130
SENSORY SCIENCE 222
SHARP 094
SHERWOOD 245 345
SHINSONIC 033
SONIC BLUE 091
SONY 001 033 145 191 286 241 242
243 340 343 351
SPECTRONIQ 310
SUNGALE 090 223
SUPERSCAN 143
SVA 092 093
SYLVANIA 143
SYMPHONIC 143
TAG MCLAREN 156
TATUNG 102
TEAC 023 270
TECHNICS 138
TECHWOOD 088
THETA DIGITAL 023
THOMPSON 027
TOSHIBA 130 141 164 188 273
TRUTECH 293
URBAN CONCEPTS 035
US LOGIC 111 282
VENTURER 149
VINC 161 308
X-BOX 027 206
YAMAHA 089 066 197 138 334
ZENITH 057 074 091
DVD-BLU-RAY AND HD DVD
DENON 329
INSIGNIA 096 349
INTEGRA 273 338
LG 091 350
MAGNAVOX 096
MARANTZ 332
ONKYO 273 338
OPPO 341
PANASONIC 285 346
PHILIPS 344
PIONEER 304
SAMSUNG 275
SHERWOOD 345
SONY 286 340 351
TOSHIBA 273
YAMAHA 334
DVD-DVD RECORDERS
GO VIDEO 220 221 222
CYBERHOME 271
ILO 268
KISS 279
LITEON 265 268
MAGNAVOX 096
PANASONIC 138
PHILIPS 317
RCA 027
SAMSUNG 301
SENSORY SCIENCE 222
SONY 191
TOSHIBA 188 273
DVD-TV/DVD COMBOS
AIWA 146
AKAI 281
AUDIOVOX 284
DURABRAND 143
ESA 143
FUNAI 143
INSIGNIA 292 297 143
MAGNAVOX 282
MINTEK 282
POLAROID 284 295 297
SAMSUNG 165
SV2000 143
SYLVANIA 143
SYMPHONIC 143
TOSHIBA 130
TRUTECH 293
DVD-TV/DVD/VCR COMBOS
DURABRAND 143
EMERSON 143
ESA 143
INSIGNIA 143
MAGNAVOX 143
PANASONIC 144
SUPERSCAN 143
SV2000 143
SYLVANIA 143
SYMPHONIC 143
TOSHIBA 164
DVD-DVD/VCR COMBOS
GO VIDEO 137
PANASONIC 150
PHILIPS 066
RCA 027
SAMSUNG 137 159
SANSUI 154
SONY 145
TOSHIBA 141
ZENITH 091
AUX-AUDIO
ADCOM 082 092 225 161 269 356
AIWA 018 104 202 203 213
AKAI 189
ANTHEM 335 337
ARAGON 687
ARCAM 141 077
ATLANTIC TECHNOLOGY 342
AUDIO FILE 071
B AND K 096 097
BOSE 070 170
BOSTON ACOUSTICS 447
CAMBRIGE AUDIO 684
CARVER 006 028 061 071 201 214
226 185 013 077 284
CARY AUDIO DESIGN 378
CITATION 148
CLARION 026
DENON 109 215 230 234 330 340
679 569
DIGITAL PROJECTION 660
DVICO 570
ELAN 057 290
ENLIGHTENED AUDIO 099 098
ESCIENT 451
FISHER 214 182

RS Fiber Video Service Remote and Codes 15
FLEXTRONICS 378
FOSGATE AUDIONICS 148 342
GOLDSTAR 008
HARMAN KARDON 148 233 077 028
118 318
HITACHI 020
INSIGNIA 589
INTEGRA 275 017 046 108 080 209
381
JAMO 399
JCPENNEY 216
JVC 163 191 114 279 291
KENWOOD 026 066 145 192 182 005
280 374
KLEGG 686
KLH 331
KLIPSCH 687
KOSS 216
KRELL 072 384 672
LEXICON 120 235 236 237 357 360
LINN 124 377
LUXMAN 009 139 052 165 115 004
MAGNAVOX 086 164 152 077
MARANTZ 006 028 031 040 063 185
186 265 289 492
MCINTOSH 238 286 311
MERIDIAN 100 012 013 628
MITSUBISHI 242 204
MONDIAL 157 158 042 043 081 112
MYRYAD 077
NAD 186 113
NAKAMICHI 040 244 245 172 183
287
NEC 176
NILES 403
ONKYO 275 017 046 108 080 209
381
OPTIMUS 026 041
OUTLAW 342
PANASONIC 032 195 219 177 292
626
PARASOUND 129 130 132 261 294
295 333 334
PHILIPS 249 250 063
PIONEER 014 039 044 069 168 116
035 063 198 480
PROCEED 144 268
RCA 010 048 117 156 067 288
REALISTIC 019 073 075 095
ROTEL 074 083 085
SAMSUNG 016
SANSUI 040 048 110 063 065 228
SANYO 214
SCOTT 019
SHARP 026 094 175
SHERWOOD 024 102 106 447 370
SONY 001 018 247 248 166 101 184
218 271 560 612 560 612
SOUNDESIGN 036
SUNFIRE 344 345 182
TEAC 005 019 049 040 212 217
TECHNICS 122 176 193 219 178 177
TECHNICS 200 257 262
THETA DIGITAL 136
TOSHIBA 060 087 198 278
YAMAHA 026 253 169 067 173 205
264 232 089 264 274 715 717
ZENITH 143 210
AUX-DVR (TIVO)
DIRECTV 819
DSTV 786 787 788 789 800
HUGHES 817
HUMAX 817
ICREALTIME 784
MOXI 782
PHILIPS 785 790 817
RCA 809
REPLAY NETWORKS 775
SONY 804 805
TIVO 790 817
TOSHIBA 817
AUX-HOME THEATER SYSTEMS
AIWA 699
BOSE 347 409 460
DENON 564
INSIGNIA 589
JAMO 398
KEF 530
KOSS 573
NAD 598
NIRO 343
ONKYO 552
PANASONIC 516
PHILIPS 690 705
PIONEER 513
POLKAUDIO 685
ROTEL 654
SAMSUNG 571 653
SHARP 652
SONY 317 319 321 322 324
TOSHIBA 510
VERIS 772
AUX-TUNERS AND SATELLITE
RADIOS
ANTEX ELECTRONICS 588
BOSE 532 170
DELPHI 515
NEXUS AUDIO 751
PIONEER 556
RUSSOUND 445
SIRIUS 555 585 767
SONY 380
XM SATELLITE RADIO 515 556
ZEEVEE 611
AUX-IPOD CONTROLS
APPLE / IPOD 824 828
BOSE 827
DENON 830 559
DLO 418
GRIFFIN 835
KENSINGTON 825
MARANTZ 834
ONKYO 833
SONANCE 831
AUX-MEDIA PCS
ACER 820
APPLE TV 836
DELL 820
DENON 830
DLINK 832 838
GATEWAY 820
HAUPPAUGE 821 822
HP 820
KEYSPAN 823
LINKSYS 566
NETGEAR 837
ROKU 565
SILVERSTONE 666
SONY 820
TOSHIBA 820
WINBOOK 820
AUX-GAMING SYSTEMS
AUDIO AUTHORITY 622
LOGITECH 658
MICROSOFT / XBOX 851
MICROSOFT / XBOX 360 826
SONY / PS2 / PS3 829 498
AUX-LIGHTING CONTROLS
COLORADIO VNET 849
LEVITON 850
LIGHTOLIER CONTROLS 848
LITE TOUCH 843 844
LUTRON 839 841 341
RAKO 846 847
X-10 840 842 845
AUX-DIGITAL TO ANALOG
CONVERTER BOX
DIGITAL STREAM 609
SCHMARTZ 648
SKARDIN 610
SONY 646 647
ZENTECH 610
ZENITH 567

RS Fiber Video Service Remote and Codes
16
TEXET 2963
THOMAS 2971
THOMSON 2972
THORN 2974
TMK 2994
TML 2995
TNCI 2996
TOBO 2999
TOKAI 3001
TOKAIDO 3002
TOKYO 3004
TOMASHI 3006
TOPLINE 3016
TOSHIBA 3021
TOTEVISION 3024
TOUCH 3025
TOWADA 3028
TOYODA 3030
TRAKTON 3036
TRANS CONTINENS 3037
TRANS-CONTINENTS 3039
TRANSONIC 3041
TRANSTEC 3042
TRIAD 3049
TRIDENT 3054
TRISTAR 3057
TRIUMPH 3058
TVS 3081
TVTEXT 95 3082
UHER 3089
ULTRA 3093
ULTRAVOX 3095
UNIC LINE 3100
UNITED 3106
UNIVERSAL 3113
UNIVERSUM 3115
UNIVOX 3116
US LOGIC 3124
VECTOR RESEARCH 3137
VENTURER 3143
VEOS 3144
VESTEL 3148
VEXA 3149
VIBRANT 3154
VICTOR 3155
VIDEOCON 3163
VIDEOLOGIC 3165
VIDEOLOGIQUE 3166
VIDEOSAT 3170
VIDEOSYSTEM 3172
VIDEOTECHNIC 3173
VIDEOTON 3174
VIDIKRON 3178
VIDTECH 3179
VIEWSONIC 3186
VIKING 3188
VIORE 3192
VISIOLA 3197
VISION 3198
VISTAR 3207
VIZIO 3211
VOODOO 3215
VORTEC 3217
VOXSON 3220
VUE 3225
WALTHAM 3230
WARDS 3231
WATSON 3233
WATT RADIO 3234
WAYCON 3237
WEGA 3238
WEGAVOX 3239
WELLTECH 3244
WELTBLICK 3245
WELTSTAR 3247
WESTINGHOUSE 3249
WESTON 3251
WHARFEDALE 3255
WHITE WESTINGHOUSE 3258
WILSON 3260
WINDSOR 3265
WINDSTAR 3266
WINDY SAM 3267
WINTEL 3271
WYSE 3288
XENIUS 3297
XIAHUA 3299
XIANGYU 3302
XINGFU 3305
XINGHAI 3306
XINRISONG 3308
XLOGIC 3310
XORO 3315
XRYPTON 3317
XUELIAN 3320
YAMAHA 3326
YAMISHI 3328
YOKAN 3335
YOKO 3336
YORX 3340
YUHANG 3345
ZANUSSI 3349
ZENITH 3356
ZHUHAI 3364
ZONDA 3369
ZT GROUP 3370
ARENA 3375
G-HANZ 3397
I-INC 3462
TRUTECH 3467
AFTRON 3470
DYNEX 3476
ELEMENT 3477
HANNS.G 3478
REVOLUTIONHD 3503
BGH 3507
GVA 3510
PRINCESS 3514
ACME 3521
AGAZI 3522
ALKOS 3523
ARCAM DELTA 3524
AYOMI 3525
BLACKTRON 3526
DUAL-TEC 3528
ELBE-SHARP 3529
ELECTA 3530
ELECTRO TECH 3531
HILINE 3533
INTERACTIVE 3534
KAMOSONIC 3535
LG/GOLDSTAR 3536
LIESENK 3537
LIFE 3538
LOEWE OPTA 3540
NORDVISION 3543
ONCEAS 3544
QUANDRA VISION 3546
RADIO SHACK 3547
RTF 3548
TESMET 3550
AOMNI 3555
CHIMEI 3563
DIGITAL LIFESTYLES 3567
YU-MA-TU 3603
BORK 3615
IDEAL 3641
JTV 3645
MELECTRONIC 3654
ONN 3663
TESLA 3680
KENSTAR 3756
VISTRON 3773
PENSONIC 3778
UNION 3781
DIGIMAX 3808
GFM 3820
MITSAI 3851
NORTEK 3862
CAMPER 3911
NEXUS ELECTRONICS 3948
PARK 3951
BARON 3959
MORGANS 3970
ZIGGO 4007
CAMERON 4032
GABA 4059
NIMBRO 4065
QUADRO 4071
SHINELCO 4074
VU 4078
CATHA 4094
CHUANGJIA 4096
DUONGJIE 4101
FAGOR LIFE 4102
FENMENTI 4103
GREAT WALL 4105
HUIJIABAN 4108
IR 4110
KANGWEI 4115
LAYCO 4117
MULTISYSTEM 4121
OKANA 4122
OULIN 4123
PRANDONI PRINCE 4125
PROFEKT 4126
RADIO 4128
SHANSHUI 4133
SONGDIAN 4136
SRYPTON 4138
TEACHIMAGEN 4140
TIANKEBAN 4142
TRANSFEC 4143
DATRON 4201
SHENGCAI 4217
MINISTRY OF SOUND 4247
INSPIRA 4296
O.K.LINE 4301
ONEI 4302
POLYVISION 4304
WALKER 4311
MOREE 4565
NIKAI 4566
NOVEX 4567

RS Fiber Video Service Remote and Codes 17
Titan Remote
1. SETUP - Use SETUP for all programming sequences.
2. MASTER POWER - Press POWER once to turn on or off a home theater
device.
3. AUX, DVD, AUD, TV, STB - Press AUX, DVD, AUD, TV, or STB once to
select a home entertainment device to control. Each key has a red LED
that blinks each time a key is pressed to indicate the current operating
mode.
4. SKIP BACK - Press SKIP BACK to instantly replay the last 7 seconds of
the program you are watching.
5. LIST - Press LIST once to display a list of recorded programming on your
DVR.
6. LIVE - Press LIVE to return to watching live TV.
7. CONTROL PLAYBACK - Use these keys to control playback of video or
audio les relating to DVR, DVD, VCR, or CD devices.
8. GUIDE - Use GUIDE to display the program guide available from your
service provider.
9. MENU - Use MENU to display the options menu of the home theater
device you are controlling.
10. INFO - Use INFO to display the current channel and program information.
11. EXIT - Use EXIT to directly exit menus, guides, and applications.
12. DAY - Use DAY + (or DAY - ) to move a day forward (or back) on your
program guide.
13. OK - Use the Cursor keys to move the cursor in the program guide and
menu screens and to navigate within the interactive service. Use OK to
choose options, PPV events, and to tune to programs from the program
guide.
14. PAG E - Use PAGE+ (or PAGE-) to page up (or page down) through menu
screens and the program guide.
15. A, B, C, D - Use A, B, C, or Das shortcuts to access additional features
available on set-top box menu screens, program guide, and interactive
applications.
16. VOLUME - Use VOL+ (or VOL-) to raise (or lower) the audio volume.
17. ON DEMAND - Press ON DEMAND for direct access to On-Demand
programming and other interactive services.
18. CH - Use CH+ (or CH-) to select the next higher (or lower) channel. For
DVD players, use these keys to skip forward (or reverse) through chapters
For ampliers/receivers, use these keys to select the next higher (or
lower) preset station.
19. MUTE - Press MUTE once to turn sound off; press again to turn sound
back on.
20. FAV - Use FAV to cycle through your favorite channels stored on your
service provider’s set-top box.
21. LAST - Use LAST to return to previous channel.
22. NUMBER KEYPAD - Use the keypad numbers (1-9, and 0) to directly
tune channels (e.g., 09). For ampliers/receivers, use the keypad
numbers to select inputs 1 through 10.
23. INPUT - In CBL mode, press INPUT to view other video sources (A or B)
instead of cable. In all other modes, use INPUT to select an input source
for that device.
24. ASPECT - Press ASPECT once to change the aspect ratio (4:3 or 16:9)
on your STB or TV.
25. F1, F2 - These are macro keys that can be customized by you or your
service provider.
26. ON/OFF - Use PIP ON/OFF to open or close PIP window.
27. SWAP - Use SWAP to swap the primary viewing channel with the PIP
channel. For a DVR/PVR, SWAP can be used to switch the active channel
tuner.
28. MOVE - Use MOVE to move the PIP window location.
29. CH - Press PIP+/PIP- to change the PIP channel.
1
2
3
46
7
8
5
9
10
11
12
13
14
15
16
17
18
19 21
20
23 24
25
26
27 28
29

RS Fiber Video Service Remote and Codes
18
The Titan universal remote control comes pre-programmed to operate the set-top box that is supplied by your service provider. In addition, Titan can
be programmed to control four (4) additional home theater equipment devices.
There are two ways you can Program your Remote:
• Program your remote using the Brand Search Method.
• Program your remote using the Auto Search Method.
Brand Search Method
1. Turn on all of the devices that you wish to control.
2. On the remote control, press the mode key that you wish to program once (AUX, DVD, AUD, or TV, ); it blinks once.
3. Press and hold SETUP until the mode LED blinks twice.
4. Use the 5-digit manufacturer codes supplied following these instructions to locate device type and brand name for the device you wish to control.
Enter the rst 5-digit code for your device. If performed correctly, the mode LED blinks twice.
- If the selected mode LED emits a long blink, the entry is invalid. Repeat steps 2 through 4 and try entering the same code again.
5. Aim the remote control at the device and press POWER once. The device should turn off. If it does not, repeat steps 2 through 3, trying each
code for your brand until you nd one that works. If it still does not respond, try the “Auto Search Method.”
- If the device does not have a POWER key, press the Play key. Repeat steps 2 through 5 for another mode and/or key or press and hold SETUP to exit
programming.
TV set-up code Number Device type: _____________________
AUD set-up code Number Device type: _____________________
DVD set-up code Number Device type: _____________________
AUX set-up code Number Device type: _____________________
Auto Search Method
If your home entertainment device does not respond to the Titan Remote Control after trying all of the codes listed for your brand, or if your brand is
not listed at all, try searching for your code.
For example, to search for a code for your TV:
1. Turn on your TV.
2. On the remote control, press TV once; it blinks once. Then press and hold SETUP until the TV key blinks twice.
3. Enter 9 9 1. The TV key blinks twice.
4. Enter one of the following four digits:
a. Set-top boxes (cable, satellite, etc.) - 0
b. TV - 1
c. DVD/VCR/DVR - 2
d. Audio Devices - 3
5. Aim the remote control at the TV and press POWER once.
6. Press and release the CH+ key continuously, then stop when the TV turns off.
- In the search mode, the remote control sends IR codes from its library to the selected device, starting with the most popular code rst.
7. Press POWER. The TV should turn on, then press SETUP to lock in the code.
- If the TV does not turn on during step 6, then slowly press and release CH- to go back through the codes. Press SETUP when the TV turns on.
8. To search for the codes of your other devices, repeat steps 1 through 6, but substitute the appropriate key (e.g., AUX, DVD, AUD, or STB) for
the device you are searching for.

RS Fiber Video Service Remote and Codes 19
Programming Volume lock
Volume Lock allows you to set your remote to direct all volume commands to whichever home theater device you designate as your audio source. By
default, Global (All) Volume Lock is set to TV, so you can control TV volume while in any mode on your remote. You can also perform Volume Lock on
a selected device or set of devices to set Volume Lock to function on some modes, but not on others.
Locking all Volume Control to a Single Device
To change the Global Volume Lock setting from TV (default) to another device, follow these steps:
1. Press and hold SETUP until the mode LED blinks twice.
2. Enter 9 9 3. The mode LED blinks twice.
3. Press VOL+ once. The mode LED blinks once.
4. Press the mode key for the device that you wish volume functions to control. The mode LED blinks twice.
Now pressing VOL+, VOL-, or MUTE controls only that device’s volume, regardless of operating mode.
Locking Volume Controls for Specic Device Modes
To set Volume Lock to occur for some device modes, but not others, you must rst follow the steps under “Unlocking All Volume Locks.” Then follow
the steps below:
1. Press the mode key for the device that you wish volume functions to control.
2. On the remote control, press and hold SETUP until the last-selected device key blinks twice.
3. Enter 9 9 3. The mode LED blinks twice.
4. Press each mode key that relates to the devices that you do not use for volume control. These will be the modes in which the volume functions
control the device related to the mode key you pressed in step 1. Any mode omitted from this step will have all volume controls assigned to that
mode’s device.
5. Press SETUP to save. The mode LED blinks twice.
Unlocking all Volume Locks
Performing these instructions sets independent volume control for all programmed devices (e.g., when in DVD mode, the VOL and MUTE keys send
commands to the DVD player).
1. On the remote control, press and hold SETUP until the mode key LED blinks twice.
2. Enter 9 9 3. The last-selected device key blinks twice.
3. Press VOL- once. The mode LED blinks four times.
Now, volume functions are controlled through whichever device mode is active on the remote control.
Programming Channel lock
By default, the remote control’s channel-control capabilities are locked to the set-top box supplied by your service provider. The affected keys* are 1
through 0, CH+, CH-, and LAST. This will guarantee that you do not inadvertently change a channel on your TV or VCR while watching broadcast
programming on your set-top box. However, you can de-activate this feature to allow full access to these keys to control the device associated with
the active mode.
Locking all Channel Control to one Device
To lock all channel-control functions to a specic device, follow these steps:
1. Press and hold SETUP until the mode LED blinks (e.g., TV) twice.
2. Enter 9 7 3. The mode LED (e.g., TV) blinks twice.
3. Press CH+ once. The mode LED (e.g., TV) blinks once.
4. Press the mode key for the device that you want to use for channel-changing. The mode LED blinks twice.
Now, regardless of what mode you select, the channel keys will only change channels on the assigned device.

RS Fiber Video Service Remote and Codes
20
Locking Channel Control for Specic Device Modes
To set Channel Lock for some device modes, but not others, you must rst follow the steps under “Unlocking Channel Control.” Then follow the steps
below:
1. Press the mode key that corresponds to the device you wish with to command for channel-changing functions. The mode LED (e.g., TV) blinks
once.
2. Press and hold SETUP until the mode LED (e.g., TV) blinks twice.
3. Enter 9 7 3. The mode LED (e.g., TV) blinks twice.
4. Press each mode key that you do not use for channel-changing functions. These are the modes in which the channel-changing functions will
control the device related to the mode key you pressed in step 1. Any mode omitted from this step has all channel controls assigned to that
mode’s device.
5. Press SETUP to save. The mode LED blinks twice.
Unlocking Channel Control
To unlock Channel Lock and thus allow the channel control functions to work with the device associated to the active operating mode, follow these
steps:
1. Press and hold SETUP until the mode LED blinks twice.
2. Enter 9 7 3.The mode LED blinks four times.
3. Press CH- once. The mode LED blinks four times.
Now the channel functions correspond to the active mode (e.g., press CH+ in TV mode and the TV changes channel accordingly).
Programming Macro keys
The Titan Remote Control includes two macro keys (F1 and F2, located directly below the INPUT key at the bottom of the remote). Macros allow
you to record a series of key-presses and have the whole series of functions execute each time the related Macro key is pressed. For example, you
can set up a key macro to power on your TV and DVD player, change inputs on the TV, and go to the main menu on the DVD player all with the touch
of one macro key. If you want to change the macros stored in a previously programmed macro key, you’ll need to clear the key rst (see “Clearing a
Macro Key”).
Programming a Macro key
1. On the remote control, press and hold SETUP until the mode LED blinks twice.
2. Enter 9 9 5.The mode LED blinks twice.
3. Select a macro key (for example, F1) and press it once. The mode LED blinks once.
4. Press the key sequence you want to program into the macro. For example, to turn on your TV and raise its volume, press TV, POWER, VOL+,
VOL+, VOL+....
- You can program up to 15 key presses into one macro.
5. Press and hold SETUP until it blinks twice. Now the macro is saved to the assigned macro key.
6. To add another macro, repeat steps 1 through 5 for the other macro key and the new key sequence that you wish to assign to that macro key.
- Programming more than ve macros on the same macro key overwrites previous settings.
Clearing a Macro key
1. On the remote control, press and hold SETUP until the mode LED blinks twice.
2. Enter 9 9 5.The mode LED blinks twice.
3. Press the macro key you want to clear once.
4. Press and hold SETUP until the mode LED blinks twice.
This macro key is now clear and ready for reprogramming.
