RS DPA20E User manual

Professionally Approved Products
Instruction Manual
Dehumidifier

Dehumidifer 20L/D
4/2/2016 Version No. 001 2
P
P
l
l
e
e
a
a
s
s
e
e
t
t
a
a
k
k
e
e
t
t
i
i
m
m
e
e
t
t
o
o
r
r
e
e
a
a
d
d
t
t
h
h
i
i
s
s
m
m
a
a
n
n
u
u
a
a
l
l
c
c
a
a
r
r
e
e
f
f
u
u
l
l
l
l
y
y
b
b
e
e
f
f
o
o
r
r
e
e
u
u
s
s
e
e
a
a
n
n
d
d
s
s
a
a
v
v
e
e
i
i
t
t
f
f
o
o
r
r
f
f
u
u
t
t
u
u
r
r
e
e
r
r
e
e
f
f
e
e
r
r
e
e
n
n
c
c
e
e
.
.
Model no. DPA20E
Power supply 220-240V~, 50Hz
Dehumidification capacity at 30oC, 80% 20L/day
Power
/Ampere
consumption
*
30oC, 80% 480W / 2.3A
32oC, 80% 500W / 2.4A
Air volume (max.) 150M3/h
Compressor Reciprocating
Refrigerant R134a
Working range 5 ~ 32oC
Water tank 3 L
Size (WxDxH) 310 x 236 x 523 mm
N.W. 13.5 kg
xThe data marked with * may vary for technical reasons. For greater precision, please refer
to the rating label placed on the product.
xTest condition for data in our rating label is as per safety regulation: EN 60335-2-40

Dehumidifer 20L/D
4/2/2016 Version No. 001 3
H
H
o
o
w
w
t
t
o
o
w
w
o
o
r
r
k
k
:
:
This product is a dehumidifier. It controls relative humidity by passing the air through the unit,
forcing the excess moisture to condensate over the cooling elements. Contact with this cold
surface causes the moisture in the air to condense. This condensed water then drains safely into
the water tank. The dried air then passes through the condenser where it is slightly warmed and
re-enters the room at a slightly elevated temperature.
Where to position
Excess moisture will travel
throughout your home, in
the same way that cooking
smells waft to every room
in the house. For this
reason, the dehumidifier
should be positioned, so
that it can draw this moist
air towards it from all over
the home.
Alternatively, if you have a
serious problem in one
area you can begin by
positioning the dehumidifier
close to this area and later
moving it to a more central
point.
When positioning the
dehumidifier, ensure that
it is placed on a level
surface and that there is a
minimum of 10 cm (4") of
space on either side of
the unit to allow for
efficient airflow.
This dehumidifier is fitted
with castors for extra
mobility, if you move the
unit, it should first be
switched off and the
water tank emptied.
We do not recommend the
use of an extension lead,
so please try to ensure
that the unit is sufficiently
close to a fixed mains
socket. If it is necessary to
use am extension lead,
please ensure the
diameter of the wires of
the cable is at least 1
mm2.
When the dehumidifier is
in operation, outside doors
and windows should be
closed when necessary for
most efficient use .

Dehumidifer 20L/D
4/2/2016 Version No. 001 4
Before use :
Caution!
yOperate this unit on a firm, flat surface to avoid water leak. Ensure that it is kept upright at all times
(including transport and store).
yDo not place on soft surfaces.
y(QVXUHWKDWWKHUHLVDWOHDVWPP´EHWZHHQWKHVLGHVRIWKHDSSOLDQFHDQGDQ\IODPPDEOHKHDWLQJ
materials.
yOnly connect the unit to a properly installed and easily accessible socket so that you can quickly pull the
plug in an emergency.
yDO NOT OBSTRUCT THE AIR INTAKES AND EXHAUSTS.
yFOR INDOOR USE ONLY.
yDO NOT EXPOSE THE UNIT TO DIRECT SUNLIGHT.
yDO NOT USE IN CABINET, CLOSET, BOATS, CARAVANS OR SIMILAR LOCATIONS.
yDO NOT USE THE UNIT IN BATHROOMS, SWIMMING POOLS, WASHROOMS OR SIMILAR WET
AREAS.
yDO NOT USE THE UNIT CLOSE TO A BATHTUB, SHOWER, SINK AND THE LIKE.
yDo not use the appliance in locations where paint, petrol or other flammable liquids are used or stored.
yDo not allow the appliance to fall over when there is water in the bucket.
yAVOID THE UNIT FROM SPLASH. DO NOT LET ANY LIQUID ENTER THE UNIT.
yDO NOT PLACE A CONTAINER WITH LIQUID ON TOP OF THE UNIT.
yTHE CONDENSED WATER IS NOT FOR DRINKING EITHER FOR HUMAN OR ANIMALS.
yDO NOT USE BUG SPRAYS OR OTHER FLAMMABLE CLEANSERS ON THE UNIT.
yDo not lay the cord under carpets/rugs so that you can regularly check its condition.
yDO NOT TOUCH THE PLUG OF THE UNIT WITH WET HANDS.
yNever use the cord of the unit as a carrying strap.
yAlways unplug the unit from the mains and wait for at least one hour before carrying out any
maintenance, transport or cleaning of the unit.
yAlways switch the unit off and pull the plug out of the socket:
If you are not using the unit.
Before you clean the unit.
Before you assemble the accessories.
If a fault occurs.
In the event of a storm.
yAVOID OVER-TWISTING, -COILING, -PULLING THE POWER CORD, NEVER USE NYLON OR IRON
WIRE TO TIDE THE POWER CORD.
yDO NOT USE EXTENSION CORDS.
yIF THE SUPPLY CORD IS DAMAGED, IT MUST BE REPLACED BY AN ELECTRICIAN OR SIMILARLY
QUALIFIED PERSON, TO AVOID HAZARD.
yTHE MAINS SUPPLY MUST CONFORM TO THE SPECIFICATION SHOWN ON THE RATING PLATE
AT THE BACK OF THE UNIT.

Dehumidifer 20L/D
4/2/2016 Version No. 001 5
yTHE APPLIANCE SHALL BE INSTALLED IN ACCORDANCE WITH NATIONAL WIRING REGULATIONS.
yNEVER REACH TO RETRIEVE THE UNIT IF IT HAS FALLEN IN WATER. IN SUCH CASE,
IMMEDIATELY PULL THE PLUG. HAVE THE UNIT CHECKED BEFORE USING IT AGAIN.
yTHIS APPLIANCE IS NOT INTENDED FOR USE BY PERSONS (INCLUDING CHILDREN) WITH
REDUCED PHYSICAL , SENSORY OR MENTAL CAPABILITIES, OR LACK OF EXPERIENCE AND
KNOWLEDGE , UNLESS THEY HAVE BEEN GIVEN SUPERVISION OR INSTRUCTION CONCERNING
USE OF THE APPLIANCE BY A PERSON RESPONSIBLE FOR THEIR SAFETY. CHILDREN SHOULD
BE SUPERVISED TO ENSURE THAT THEY DO NOT PLAY WITH APPLIANCE.
ySUGGEST TO SEND THE UNIT FOR PROFESSIONAL MAINTENANCE PERIODICALLY.
yONLY A LICENSED PROFESSIONAL IS ALLOWED TO DISMANTLE OR MODIFY THE APPLIANCE.
Important :
Do not use this unit with temperatures lower than 5oC, to prevent the possibility of a heavily ice up evaporating
coil

Dehumidifer 20L/D
4/2/2016 Version No. 001 6

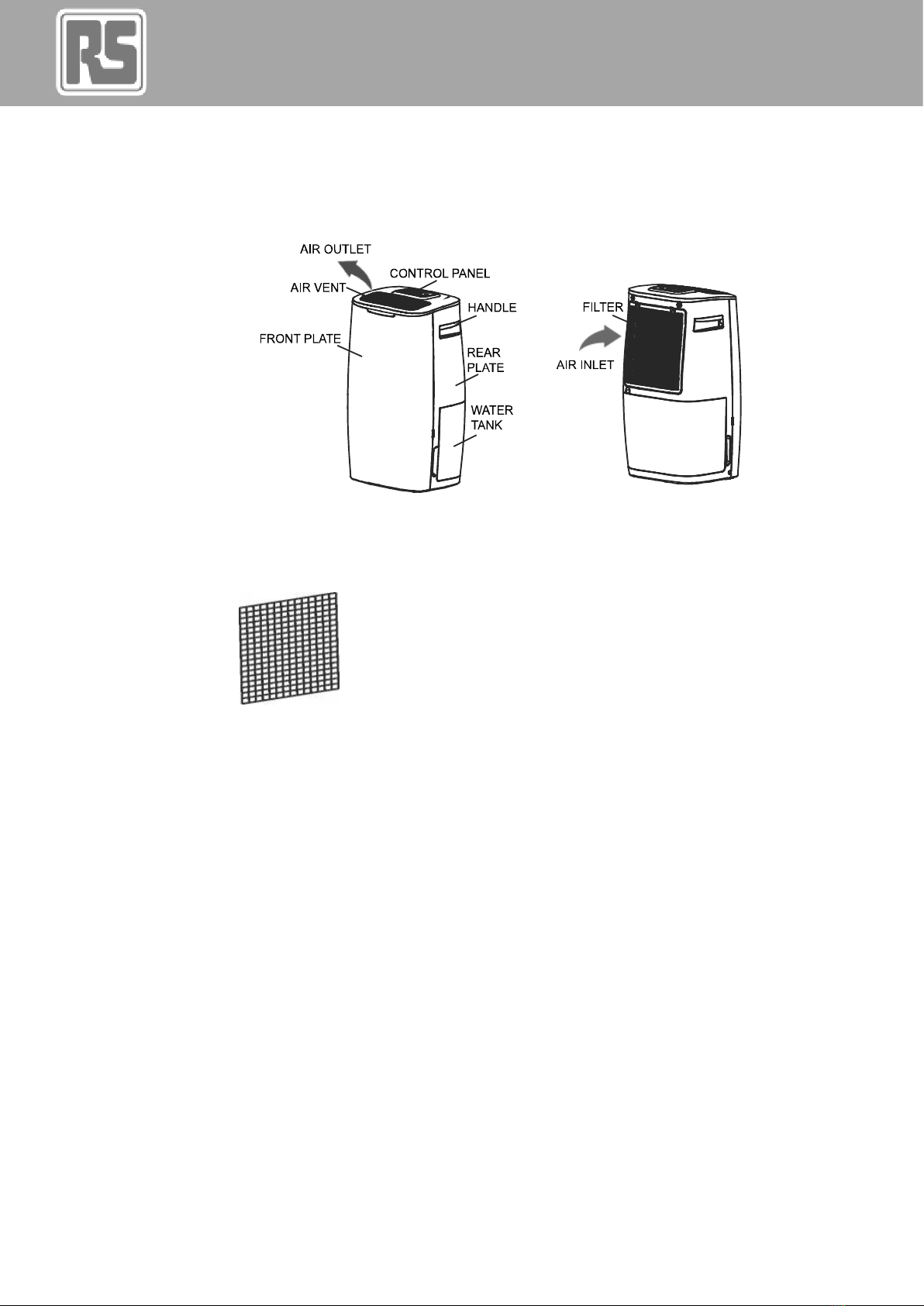

Parts:
A
A
c
c
c
c
e
e
s
s
s
s
o
o
r
r
i
i
e
e
s
s
:
:
a
a
c
c
t
t
i
i
v
v
e
e
c
c
a
a
r
r
b
b
o
o
n
n
f
f
i
i
l
l
t
t
e
e
r
r

Dehumidifer 20L/D
4/2/2016 Version No. 001 7

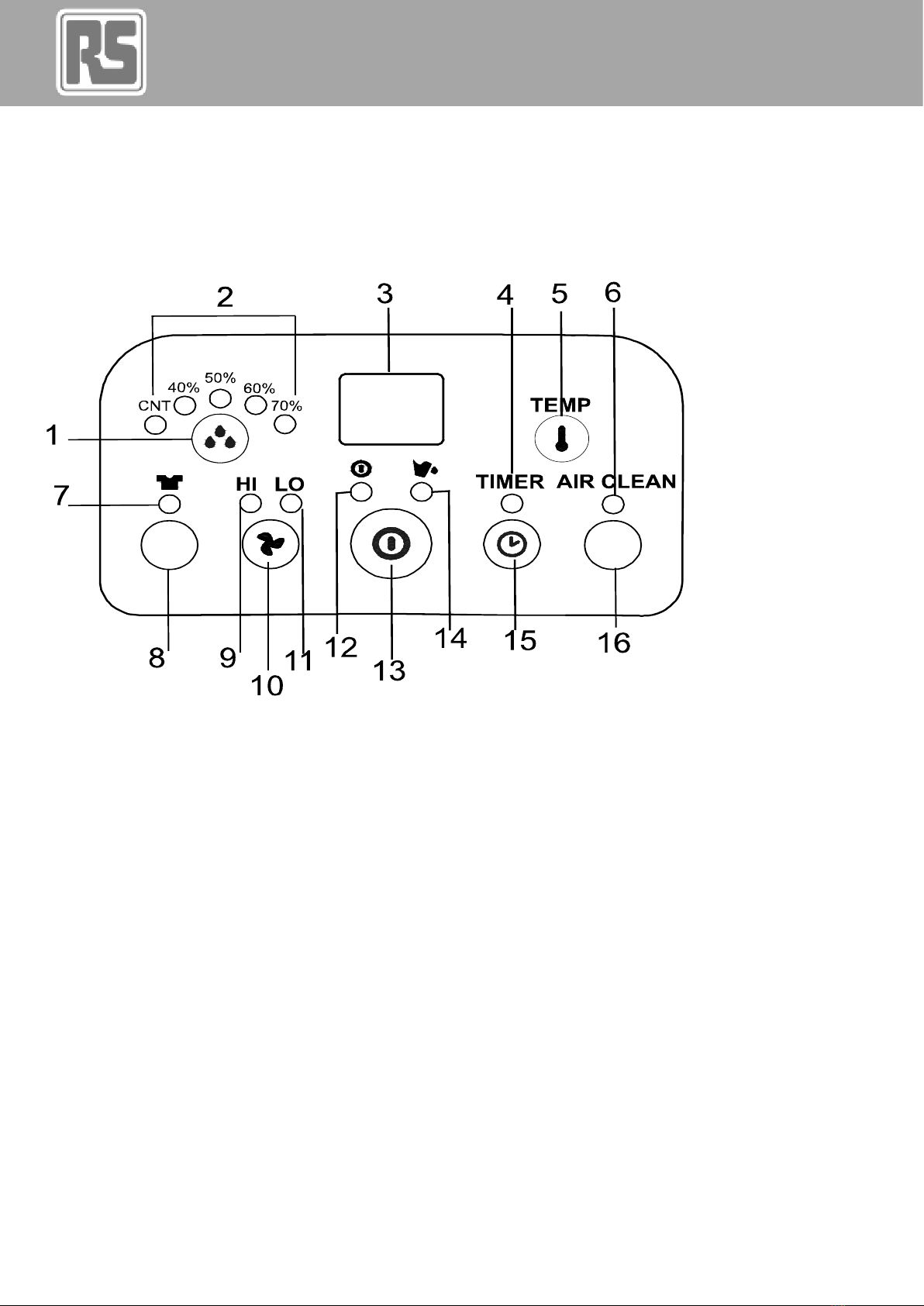

Control panel :
1. Humidity setting button
2. Working mode indicator (continuous
working, humidity 40%, 50%, 60%,
70%)
3. Humidity/Temperature display
4. Timer operation indicator
5. Temperature display button
6. DRYER indicator
7. DRYER button
8. High ventilation indicator
9. Speed/Ventilation button
10. Low ventilation indicator
11. Power indicator
12. ON/OFF (power) button
13. ³)XOO:DWHU´LQGLFDWRU
14. TIMER button

Dehumidifer 20L/D
4/2/2016 Version No. 001 8
Operation :
1. Plug the unit into a correct mains socket. (Please refer to the rating label at the rear of the unit for correct
voltage/frequency.)
2. Press ON/OFF button to turn on the unit. The compressor will start to work.
3. Press humidity setting button to set the working model you need: continuous working, humidity 40%,
50%, 60% or 70%. The relative indicator will light on.
4. Press speed/ventilation button to set the ventilation speed, high or low. The relative indicator will
light on.
5. Press the TIMER button to set the operating hour you need (1~24 hours). The display window will show
the hour(s) you set as you press the TIMER button, after releasing it for 8 seconds around, the display
window will return to the room humidity. As the set time has been reached, the compressor will stop
working automatically.
6. By pressing the ´7(03´ button, the display window will show the room temperature, after releasing the
button for 8 seconds around, the display window will return to the room humidity.
7. DRYER function is turbo ventilation to dry the moisture in the air continuously, so it could help to dry
the laundry.
8. If you don¶t want to dry the air, just want to circulate the air or remove the odor inside the room, please
press AIR CLEAN button.
9. To turn off the unit, press ON/OFF button again.
10. Pre-setting function By pressing TIMER button but without turning on the other functions (including
ON/OFF button), you can PRE-SET the time for the machine to work. For example, if you press the timer
to '2', the unit will work automatically after 2 hours.

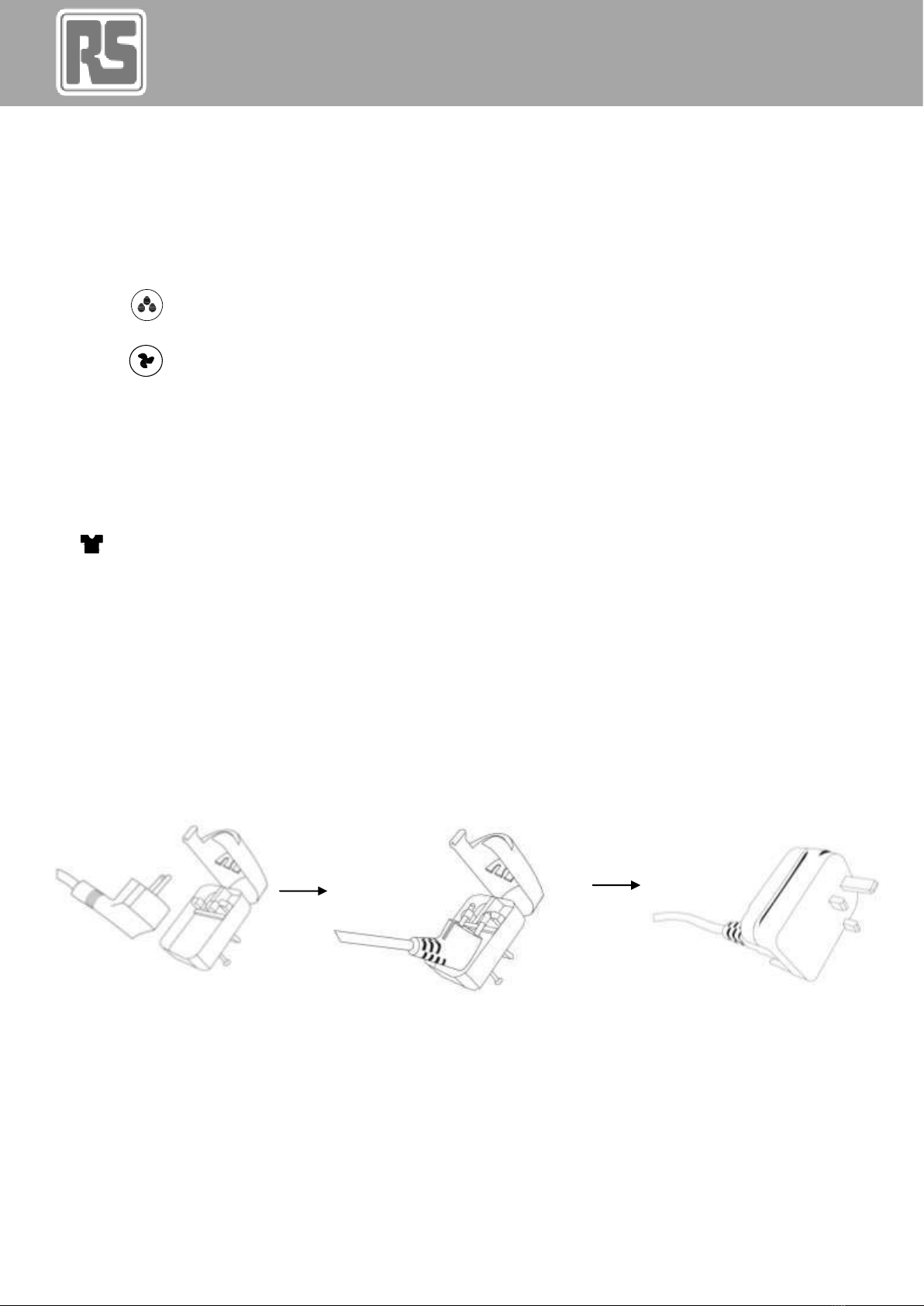

Transferring Schuko VDE version plug to BS plug:

Dehumidifer 20L/D
4/2/2016 Version No. 001 9
Lufteutfeuchter

Dehumidifer 20L/D
4/2/2016 Version No. 001 10
I Einführung
Lesen Sie dieses Handbuch vor Gebrauch bitte sorgfältig durch und bewahren Sie es zum späteren Nachschlagen auf.
Bei diesem Gerät handelt es sich um einen Luftentfeuchter. Er steuert die relative Feuchtigkeit, indem die Luft durch das Gerät strömt,
kondensiert die überschüssige Feuchtigkeit, über dem Kühlelement. Kontakt mit dieser kalten Oberfläche bewirkt, dass die
Feuchtigkeit in der Luft kondensiert. Das kondensierte Wasser fliesst sicher in den Wassertank. Die getrocknete Luft strömt sodann
durch den Kondensator, wo sie leicht angewärmt wird und anschliessend wieder zurück in den Raum, mit leicht erhöhter Temperatur.
2. I Technische Daten
Modelnummer DPA20E
Elektrischer Anschluss 220-240V~, 50Hz
Entfeuchtungsleistung bei 30oC, 80% 20L/Tag
Leistungsaufnahme 30oC, 80% 480W / 2.3A
32oC, 80% 500W / 2.4A
Luftvolumen (max.) 150M3/h
Kompressor Kolben
Kühlmittel R134a
Betriebstemperatur 5 ~ 32oC
Wassertank 3 L
Masse (H x B x T) 310 x 236 x 523 mm
Gewicht 13.5 kg
xDie mit * markierten Daten können aus technischen Gründen abweichen. Für grössere Genauigkeit, beachten Sie das Typenschild
auf dem Produkt
xTestbedingungen für Daten auf dem Typenschild sind gemäss Sicherheitsvorschriften: EN 60335-2-40
