RSF Woodburning Fireplaces TOPAZ User manual

RSF-IIT_2010-04
Owner's Manual
Residential Factory Built Fireplace
Operation • Maintenance • Installation
TOPAZ
Keep these instructions for future use.

TOPAZ Owner's Manual 2 RSF Woodburning Fireplaces
Dear Customer,
The TOPAZ incorporates technology with elegance to give you a beautiful view of the fire
without compromising on heating efficiency or environmental quality.
We have designed your new TOPAZ to be easy to install, operate and maintain. It is in your
best interest to become familiar with it. Study your manual to be sure that the installation is
correct, then follow the guidelines for operation and maintenance.
We at RSF Woodburning Fireplaces congratulate you on your choice of the TOPAZ, and are
confident that you have purchased a fireplace that is simply, the best.
Sincerely,
RSF Woodburning Fireplaces Team
June 2004
TABLE OF CONTENTS
SAFETY FIRST 3
DO'S AND DONT'S3
CREOSOTE:FORMATION AND REMOVAL 3
GENERAL SPECIFICATIONS 4
THE COMBUSTION CONTROL SYSTEM 4
OPTIONS 4
UNIT DIMENSIONS AND CLEARANCES 5
OPERATION 6
AIR CONTROLS 6
BURN TIME VS.HEAT OUTPUT 7
FUEL 7
FIRST FIRES 7
LIGHTING 7
REFUELING 8
TROUBLESHOOTING PROBLEMS 8
DOOR HIDEAWAY MECHANISM 8
MAINTENANCE 9
GENERAL CLEANING 9
PAINT 9
GLASS CLEANING 9
CHIMNEY CLEANING 10
DISPOSAL OF ASHES 10
DOOR ADJUSTMENT 10
GOLD PLATING 11
INSTALLATION 11
LOCATION 11
CEILING CLEARANCE 13
OUTSIDE AIR DUCT 13
CHIMNEY 13
CHIMNEY INSTALLATION 14
OFFSET CHIMNEY 15
CHASE ENCLOSURE 16
MASONRY CHIMNEY 16
FRAMING 17
HEARTH EXTENSION 18
BENEATH HEARTH EXTENSION 18
MANTEL 18
DOOR INSTALLATION 18
LOUVER INSTALLATION 19
EXTRUSION INSTALLATION 19
REFRACTORY BRICK INSTALLATION 20
LISTING LABEL 22
COMPLETE OPTIONS LIST 23
REPLACEMENT PARTS 24
LIMITED WARRANTY 26

TOPAZ Owner's Manual 3 RSF Woodburning Fireplaces
SAFETY FIRST
DO'S AND DONT'S
If this fireplace is not properly installed, a house fire could result. For your safety, follow the installation
directions. Contact your local authority having jurisdiction (such as municipal building department, fire
department, fire prevention bureau, etc.) regarding restrictions and installation requirements, and the
need to obtain a permit.
To ANYONE using this fireplace: these DO's and DONT's are for your safety.
1. DO read this instruction manual before lighting your first fire.
2. DO burn seasoned wood fuel or densified fuel logs.
3. To avoid glass breakage, DO NOT slam the fireplace door.
4. DO NOT ever use gasoline, gasoline-type lantern fuel, kerosene, charcoal lighter fluid or similar liquids to
start or freshen up a fire in this fireplace. Keep all such liquids well away from the fireplace while it is in use.
5. DO NOT overfire the fireplace. If you are unable to slow down the burning rate of the fire or if the
chimney connector behind the top louver glows red, you are overfiring the fireplace.
6. DO operate the fireplace with the door either fully closed or fully open with the firescreen. If the door is
left partly open, gas and flame can be drawn out of the fireplace opening, creating both fire and smoke
hazards.
7. If you use the fireplace with the door wide open, install a firescreen (FO-FDFST) to prevent logs and sparks
from burning your floor. Under no circumstances should the fireplace be used without either the firescreen
installed or the door closed.
8. DO keep all combustible materials (furniture, firewood, etc.) at least 4' away from the front of the fireplace.
9. DO NOT use a fireplace grate or other products not specified for use with this fireplace.
10. If you have the ash pan installed as an option (FO-CAP): always verify that your ash pan and ash pan plug
are in place before igniting a fire.
NOTE: We strongly recommend that our products be installed and
serviced by professionals who are certified by the National Fireplace
Institute in the U.S. or by Wood Energy Technology Transfer Inc. in
Canada.
CREOSOTE: FORMATION AND REMOVAL
When wood is burned slowly, it produces tar and other organic vapors which combine with the expelled moisture
from the wood to form creosote. The creosote vapors can condense in the relatively cool chimney of a slow
burning fire. When ignited, this creosote makes an extremely hot fire. The chimney should be inspected
periodically during the heating season to see if a creosote build-up has occurred. If a significant layer of creosote
has accumulated (1/4" or more), it should be removed to reduce the risk of chimney fire.
WARNING: BURN DRY WOOD ONLY. DO NOT BURN: DRIFTWOOD,
TREATED WOOD,
COAL,
GARBAGE, OR
PLASTIC.
Do not use construction scraps (e.g. 2x4 or plywood scraps) as your only supply of fuel as you can overheat and
seriously damage the fireplace. Do not use more than one wax fuel log (e.g. Duraflame) at a time and only with a
firescreen on the fireplace. Use only firelogs that have been evaluated for fireplace use. In Canada, they should
meet the requirements of ULC/ORD-C127-M1990. Refer to the firelog warnings and caution markings prior to
use.

TOPAZ Owner's Manual 4 RSF Woodburning Fireplaces
GENERAL SPECIFICATIONS
The TOPAZ fireplace is environmentally friendly as well as efficient. It is approved by the United States
Environmental Agency (EPA) at an emission rate of 4.0 grams per hour.
THE COMBUSTION CONTROL SYSTEM
Since the door is sealed, all combustion air must come through the TOPAZ's primary air control.
For the first few days, it is best to operate the fireplace with the primary air control fully open (handle pushed to
the far right). Just control the fire as you would any normal fireplace, using one or two logs at a time for a smaller
fire, or more logs for more heat. Once you become familiar with operating the fireplace with the control open, you
can start experimenting with lower settings.
OPTIONS
There are many different ways you can choose to dress up your TOPAZ fireplace: first with the selection of the
basic unit either with the black or pewter extrusions, second with the mandatory options (door and louvers) and
third with a variety of regular options.
To help you harmonize your fireplace into your decor, we offer a selection of door styles and colors: Cathedral
(FO-TZDC) (in black only), black (FO-TZDB), gold (FO-TZDG) and pewter (FO-TZDP). We also offer a selection
of colors for the louvers: black (FO-TZLB), gold (FO-TZLG) and pewter (FO-TZLP).
Since it is possible to raise the unit above the floor, you may decide to install your TOPAZ fireplace without
building an elevated (at the level of the base of the unit) hearth extension. We then recommend that you consider
adding a decorative hearth extension (FO-FDDHE) that will serve as a small hearth extension and also close the
bottom of the unit. It will provide the finishing touch to a raised installation. Using the decorative hearth extension
does not eliminate the need for a regular hearth extension on the floor in front of the fireplace.
For increased air circulation and marginally more heat output, you can add the Circulating Internal Blower (FO-
FDHB8) to your TOPAZ.
If you have any rooms directly above or adjacent to the room with the fireplace that you would like to heat, you
may want to consider the Gravity Vent Kit (FO-V2). The gravity vent distributes hot air to these rooms and
requires no blower to assist its operation.
For a simple way to circulate a moderate amount of warm air from the fireplace to another room, we offer the Heat
Dump Kit (FO-HD) which uses a smaller fan than the Central Heat Blower. It is most often used to provide
supplemental heating to a basement room when the fireplace is on the main floor but it can also be used to send
the warm air upstairs.
To remove accumulated ashes from the firebox, simply shovel them in to a metal container but you may find the
optional Ash Pan Kit (FO-CAP) very convenient. You remove the plug from the firebox and sweep the ashes into
a hole to the ash pan. When the ash pan is full, simply remove the ash pan by the bottom louver and dispose of
the ashes properly.
This fireplace has been specially designed to combine high efficiency with the elegance of a wood burning fire.
Most often you will take advantage of the high efficiency and the control possible with your new TOPAZ wood
burning fireplace. If you would like to enjoy the sight and sound of an open fireplace, or simply have less heat
output in a warmer weather you may want to install the optional TOPAZ firescreen (FO-FDFST).
NOTE: Many options require wiring and/or electricity for their installation. If there is any chance that any of these
options will be installed in the future then suitable wiring should be run during framing. Otherwise, it will be difficult
to install these options later. You can refer to page 23 for a list of options that require electricity.
Detailed installation instructions are included in the box with each option. These can also be obtained from our
Internet Web Site: www.icc-rsf.com.
WARNING: THIS FIREPLACE HAS NOT BEEN TESTED WITH AN UNVENTED GAS LOG SET. TO
REDUCE RISK OF FIRE OR INJURY, DO NOT INSTALL AN UNVENTED GAS LOG SET INTO THIS
FIREPLACE. DO NOT INSTALL A GAZ LIGHTER BECAUSE THE HEAT PRODUCED BY THE FIREPLACE
WILL PERMENENTLY DAMAGE THE GAZ LIGHTER

TOPAZ Owner's Manual 5 RSF Woodburning Fireplaces
UNIT DIMENSIONS AND CLEARANCES
10 1/2"
7 1/2"
12 1/2"
24"
37"
16 1/2"
34 1/2"
36 1/4"
22 1/2"
Refer to
Table 1 (J)
for
maximum
mantel
depth
Refer to Table 1
(K) for minimum
mantel height
above the door
opening
Refer to Table 1 (H)
for minimum width of
hearth extension
Refer to Table 1 (G)
for minimum depth of
hearth extension
Non-combustible hearth extension
and spark guard (refer to Table1
(I) and text for particulars)
Refer to
Table 1 (B)
for minimum
distance of
side wall to
the fireplace
Figure 1 Unit Dimensions and Clearances
Table 1 Unit Dimensions and Clearances
A Distance of combustible material from side, back and top standoffs 0" (0,0 mm)
B Minimum distance of side wall to the side of the fireplace 6" (153 mm)
C Ceiling clearance: from the base of the fireplace to the ceiling 6' (1,83 m)
D Minimum chimney height: minimum total chimney height from fireplace top to
below the chimney rain cap 12' (3,66 m)
E Maximum chimney height: maximum total chimney height from fireplace top to
below the chimney rain cap 45' (13,72 m)
F Maximum chimney height supported by the fireplace 18' (5,47 m)
G Minimum depth of non-combustible hearth extension: from the front of the
fireplace 16" (406 mm)
H Minimum width of non-combustible hearth extension: total width, must be
centered on the firebox opening 38 ½" (978 mm)
I Minimum width of the spark guard 36" (914 mm)
J Maximum mantel depth (see Table 2 for other mantel sizes) 12" (305 mm)
K
Minimum height of a combustible mantel above the top of the door opening: from
the highest point of the top of the door opening to below the combustible mantel
(see Table 2 for other installation heights) (refer to the "Installation: Mantel"
section for particulars)
30 ½" (775 mm)

TOPAZ Owner's Manual 6 RSF Woodburning Fireplaces
OPERATION
AIR CONTROLS
All the TOPAZ air controls are located behind the right extrusion
(see Figure 2 and Figure 3).
Combustion Air Control
Unlike most open fireplaces, RSF fireplaces don’t have flue
dampers. Instead, the system is sealed by closing the door, and the
amount of air entering the firebox is controlled by the combustion
air control lever (see Figure 2 and Figure 3) which can be moved
left or right. Setting the air control lever all the way open (towards
the right) will allow the maximum amount of air into the firebox.
Closing the air control (towards the left) will reduce the amount of
air entering the firebox.
Outside Air Control
The TOPAZ is designed to use outside air for combustion (see
Figure 2 and Figure 3).
Pulling chain as much as possible and locking it in place by
wedging it through the slot will completely open the outside air
damper and allow fresh air into the base of the fireplace. Because
outside air is generally colder and denser it will help to start the fire.
In some cases this fresh air will also help compensate for negative
pressure problems within the house; however it will not prevent the
fireplace from smoking in a severely depressurized house.
We recommend always using outside air for combustion but you

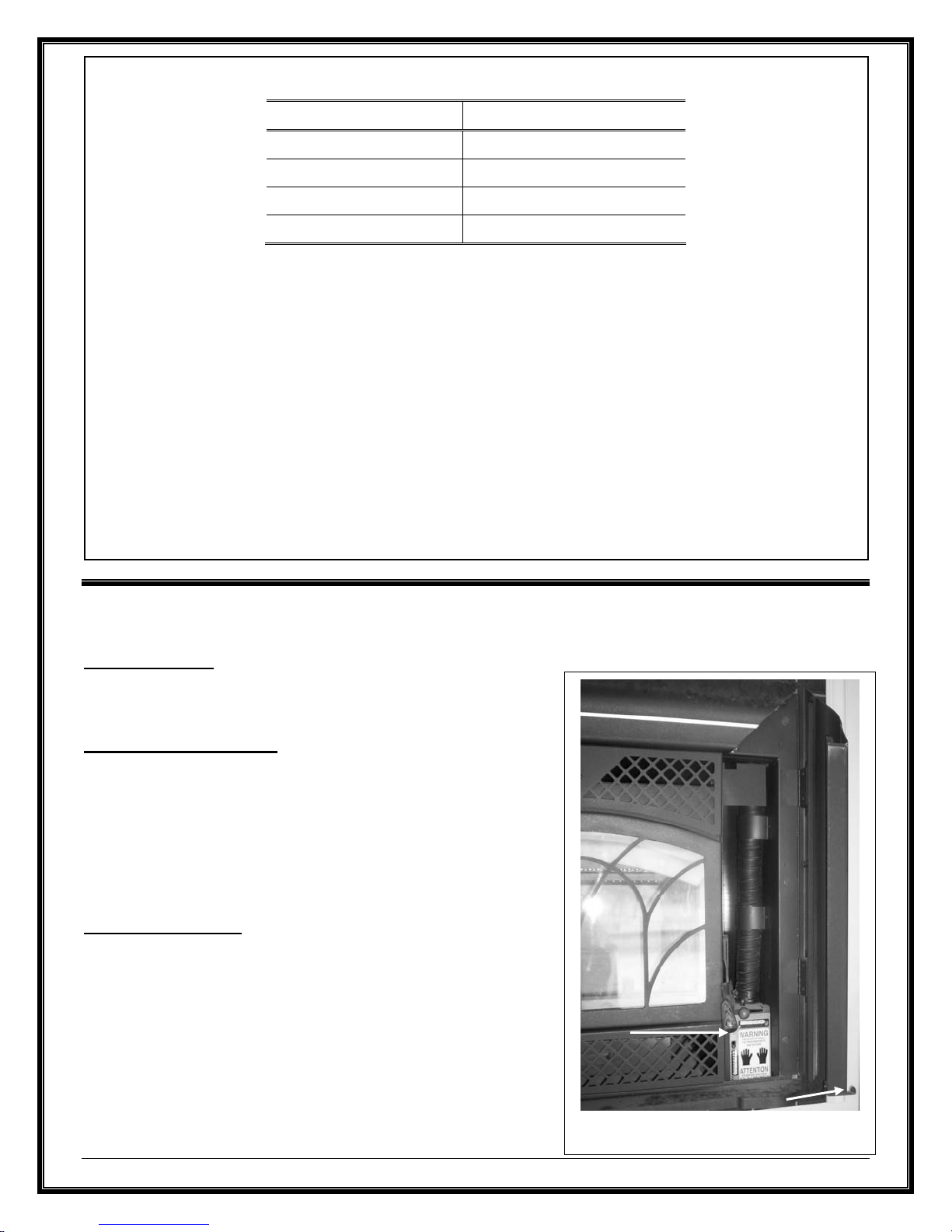

Figure 2 Air Controls Location
Table 2 Various Mantel Depths and Corresponding Installation Heights
Maximum Mantel Depth Minimum Installation Height
0" to 6" 15 ½"
8" 20"
10" 25 ½"
12" 30 ½"
No combustible mantel can be installed lower than 15 ½" above the top of the firebox opening. A combustible
mantel cannot be wider than 12".
For combustible mantel depths not mentioned in the list above, you can interpolate the minimum installation
height between the two closest mantel depths. For example:
•Mantel depth to be installed: 9 ¼"
•It is between 8" and 10" with corresponding installation heights of 20" and 25 ½"
•So: ((9.25 – 8) / (10-8) x (25.5-20))+20 = 23.4375 = 23 7/16"
•Minimum installation height of a 9 ¼" mantel: 23 7/16" above the firebox opening.
If the combustible mantel has a cross-section with variable depth, it has to be installed so that its widest part is
not installed lower than the corresponding minimum installation height while making sure that the lowest point
of the mantel is not installed lower the minimum installation height corresponding to it depth.
Refer to the "Installation: Mantel" section for particulars.
Open right extrusion
Control Panel

TOPAZ Owner's Manual 7 RSF Woodburning Fireplaces
may choose to use room air for combustion instead. To do so, lift the
chain out of its slot and let the return spring close the door. Do not
totally let go of the chain. If you want to change the setting for the
outside air while the fireplace is hot, make sure to use the extrusion
handle (at the bottom of the extrusion) to open the extrusion. This
control should be closed when the fireplace isn’t burning to prevent
cold air infiltration.
BURN TIME VS. HEAT OUTPUT
The faster your fireplace burns the more heat it will create; however,
faster fires result in much more hot air flow up the chimney which
means you are sacrificing efficiency. Fast burning fires (lots of air) go
through much more wood than slow burning fires. To get the most
out of your TOPAZ fireplace, adequately adjust the combustion air
control lever at the appropriate time. If the fire seems to be burning
too quickly, turn the air down. If the fire is smoldering and there are
no visible flames, turn the air up. This way you’ll always be getting
the most out of your fuel.
FUEL
All modern high efficiency fireplaces and woodstoves are designed to burn best with seasoned cordwood.
Seasoned wood can be defined as wood that has been cut, split and let dry under cover for a minimum of 6
months, preferably a year or more. Dry seasoned wood generally contains less than 20% moisture content.
Attempting to burn fuel with a high moisture content will be difficult and result in lower efficiency, increased
creosote buildup and dark deposits on the glass. It’s possible to burn a very large amount of wood, and get very
little heat if the wood is wet.
The type of wood you select is also important. All types of wood give off more or less the same number of BTU’s
per pound. Since softer woods are less dense than hardwoods it is possible to put more weight of hardwood in
the firebox; in other words all woodburning appliances will burn longer and more evenly with hardwoods. Never
burn scrap, garbage, treated wood or driftwood as they produce much more pollution and can corrode the firebox
and chimney as well. Burning large amounts of paper, cardboard, mill ends or construction waste can easily over
fire and damage the fireplace or even ignite a chimney fire if the flue is dirty.
FIRST FIRES
You will experience a slow start-up during the first few fires. The refractory bricks lining the firebox contain
moisture from manufacturing and require a few hot fires to evaporate the moisture. While there is still moisture in
the bricks, they will be black with smoke deposits. When the moisture has dissipated, the bricks will turn white.
Unlike cast iron stoves, there is no need to cure the fireplace itself by starting with small fires and progressively
larger ones. Feel free to light a large fire from the very start.
You will experience a slight odor during the first few fires. This odor comes from curing paint and oil burning off
the metal. The odor may be strong enough to set off your smoke detector. Open the doors and windows to allow
the room to properly ventilate.
Before the first fire, be absolutely sure to use regular dish soap and water to wipe off all fingerprints and
debris from the gold plating if you have chosen this option. The plating cures during this first fire, the
acid from your finger prints will permanently etch the gold plating.
LIGHTING
Ensure that the combustion air control lever is all the way in the open position. You will want as much air as
possible for the lighting process.
Start by laying your fire starter and kindling. Traditional fire starter is crumpled newspaper; make sure to use
enough to light the kindling (5-6 pieces should do). Next lay the kindling crisscrossed over the newspaper. Using
plenty of kindling ensures that the chimney will heat up quickly and establish a strong draft, never use any
flammable liquids. Light the paper and close the door most of the way, but don’t shut it completely. If the door is
positioned correctly you will see air rushing into the fireplace, this will help the lighting process.
Figure 3 Control Panel
Outside Air Control
Combustion Ai
r
Control

TOPAZ Owner's Manual 8 RSF Woodburning Fireplaces
Once the kindling is lit and sustaining fire, you can add some small pieces of seasoned cordwood. Use the
andirons in front to help position the cordwood so as not to flatten and smother the fire you’ve just created.
Always add at least 3 pieces of cordwood. Position your cordwood in a manner that the fire will hit several pieces
as it rises and has air gaps to flow through. Continue to leave the door slightly open until the cordwood is lit. Close
the door completely when the fire is established, if the fire goes out you’ve shut the door too early.
To get maximum efficiency out of your fireplace you will want to adjust the amount of air entering the firebox at the
appropriate times. Gauge how much to close the combustion air by how the fire reacts once the combustion air
control lever has been moved. If the fire goes out and begins to smolder, there’s too little combustion air entering
the firebox. If there’s no change to the burn pattern, you can continue to close the combustion air further.
Eventually you should be able to close the combustion air all or most of the way. There should always be visible
fire inside the firebox at every step of the process.
WARNING: DO NOT USE A GRATE OR ELEVATE THE FIRE.
REFUELING
The door should be opened slowly to keep smoke from spilling into your room. If you have a problem with smoke
spillage, check to see that all kitchen and bathroom fans have been shut off. They can cause negative pressure in
the house which pulls smoke out of the fireplace.
NOTE: The internal blower or inline fan, if installed, should be shut off during refuelling to prevent smoke from
spilling out of the fireplace.
TROUBLESHOOTING PROBLEMS
If smoke comes into the house when the door is opened:
•You may have opened the door too quickly and created a suction of air into the room, this can be avoided by
opening the door more slowly.
•Ensure your chimney is clean and your chimney cap is not plugged. Chimney caps with screens are more
likely to become clogged with creosote buildup.
•Make sure you have adequate chimney height for your system. Refer to the Chimney section of this booklet
and make sure to take altitude, and number of elbows into consideration.
•If you have purchased the central heat kit option or the circulating internal blower, make sure the blower is off
before opening the door.
•Check to see if other fans in the home are running, particularly a kitchen range hood, or bathroom exhaust
fan. This can affect the pressure in the home.
•Try opening a window near the fireplace a little, this will equalize the pressure in the home and should correct
a draft problem. Once proper draft is established the window can be closed.
•Make sure you’ve used enough kindling to establish a hot fire quickly. The most likely time that smoke will
enter the home is during the lighting process.
DOOR HIDEAWAY MECHANISM
The TOPAZ fireplace is equipped with a door hideaway mechanism which enables you to hide the door behind
the left extrusion when you need to service the firebox or when you wish to put the firescreen on. The mechanism
is quite sophisticated but fairly easy to operate once the basics are understood. Please refer to Figure 4 while
reading the following instructions.
Start by opening the left extrusion, using the handle at the bottom of the extrusion. As shown in Figure 4, there is
a latch at the top that locks the door hinge against the left side of the firebox so as to provide an adequate
position of the door for regular door operation. Unlocking this latch, enables the door to rotate around a special
hinge to move the door away from the left side of the firebox. To lock the latch, make sure the door hinge is flat
against the left side of the firebox. We recommend that the door be closed and then the latch locked on the hinge.
The latch operation requires some force but if excessive force seems necessary, then something is not working
properly.

TOPAZ Owner's Manual 9 RSF Woodburning Fireplaces
At half height, there is a locking ring. This locking ring prevents the
door support from rolling inside during normal door operation. To
unlock it, simply turn it counter-clockwise until horizontal. To lock it,
simply pull the door mechanism completely out and turn the lock ring
clockwise until vertical. If the locking ring is too tight or too loose to
lock, please refer to the Door Adjustment paragraph in the
Maintenance section of the current instructions.
In summary:
To hide the door: open the left extrusion using the handle
at the bottom of the extrusion and unlock the locking ring.
Then open the door and unlock the latch. The mechanism is
now free to roll inside, simply push the door toward the back
of the fireplace. Move the door handle all the way up, push
the door as far left as it will go and close the extrusion.
To unhide the door: open the left extrusion using the
handle at the bottom of the extrusion and pull the door out
using the wood handle. Lock the locking ring and then close
the door. Lock the latch on the door hinge and close the
extrusion.
We recommend that you hide or unhide the door when the
fireplace is cold. If you do operate the hideaway mechanism
while the fireplace is hot, make sure to wear gloves and to be
very careful, while sliding the door, to minimize the risk of
injuries or burns.
MAINTENANCE
GENERAL CLEANING
The high heat paint and plating can be cleaned with a soft damp cloth. Use a mild detergent and water. Do not
use abrasive cleaners.
PAINT
You can touch up the face of the TOPAZ with Stove Bright Metallic Black high temperature paint which is
available at most fireplaces dealers. Follow the directions outlined on the spray can. DO NOT attempt to paint the
fireplace while it is still warm. Keep the spray can away from any source of heat or open flame. Ensure that there
is adequate ventilation in the room from the time you start painting until the paint is dry. Stove Bright is available
in a wide range of colors if you want to change the color of your TOPAZ.
We recommend that you take the time to protect or remove any item that you do not want to paint such as: the
door glass, the plated door, the fireplace surroundings, etc. The glass can be removed from the door but you will
have to replace the window gasket.
GLASS CLEANING
In a controlled combustion firebox, temperatures are not always high enough to keep the glass perfectly clean. A
good hot fire once a day usually cleans off most of the deposits that have accumulated. Remember: the drier the
wood and the hotter the fire, the cleaner the glass. A word of caution: although heat will not break the glass,
impact can. Be careful not to hit the glass.
WARNING: NEVER CLEAN THE GLASS WITH AN ABRASIVE CLEANER. USE ONLY A CLEANER
RECOMMENDED BY YOUR DEALER. NEVER CLEAN THE GLASS WHILE IT IS HOT, A SERIOUS BURN
CAN RESULT. THERE ARE A NUMBER OF EXCELLENT WOOD STOVE GLASS CLEANERS AVAILABLE
WHICH ARE FAR SUPERIOR TO REGULAR GLASS AND OVEN CLEANERS FOR WOOD STOVE
APPLICATIONS.
Figure 4 Door Hideaway Mechanism
Hinge Latch
Locking Ring
Support Roller
Depth Screw
Depth Screw

TOPAZ Owner's Manual 10 RSF Woodburning Fireplaces
CHIMNEY CLEANING
Check the chimney for creosote buildup every week or so until experience shows how often you need to clean it.
A buildup of ¼" or more should be cleaned before more creosote accumulates. Use an 7" round brush. The baffle
in the firebox can be removed to gain access to the flue from below.
Follow the directions in the Refractory Brick Installation section to remove and replace the baffle. If you prefer,
you can simply lift the baffle and move it forward and let the debris fall in the firebox. Do not forget to push the
baffle back in its place after cleaning the chimney. This second option is much easier than removing the baffle.
DISPOSAL OF ASHES
Remove the ashes before they become too deep, i.e., before you have a spillage problem when you open the
door.
The ashes should be placed in a metal container with a tight-fitting lid. The closed container of ashes should be
placed on a non-combustible floor or on the ground, well away from all combustible materials pending final
disposal. If the ashes are disposed of by burial, or otherwise locally dispersed, they should be retained in the
closed container until all cinders have thoroughly cooled.
DOOR ADJUSTMENT
The door hideaway mechanism can be adjusted for proper sealing of the door. The latch pin can also be adjusted
to provide a positive seal without too much effort at closing.
To check for a proper door seal, insert a thin sheet of paper between the door and the front of the fireplace and
latch the door. Pull gently but firmly on the sheet of paper. If the paper either tears or is hard to retrieve, the
adjustment is correct. Repeat this procedure along all sides of the door.
The most important factor for controlling the burning rate of the TOPAZ is a good seal on the door gasket. If the
door gasket is worn or damaged to the point where the seal is not adequate as described above, then remove
and replace the gasket. Replacement kits are available from your RSF dealer.
To insure a proper seal, you need to adjust the tightness of the door against the front of the fireplace as follows:
1. With the door properly closed, unlock the locking ring by turning it counter-clockwise until it is horizontal (see
Figure 4).
2. Loosen the locking nut of the 2 depth screws.
3. Tighten each of the depth screws until the door is tight against the firebox.
4. Tighten the locking nut of each of the depth screw.
5. Verify the seal with the sheet of paper as described above.
6. If required, the right side of the door can be tightened/loosened by adjusting the eccentric screw that latches
the door: just loosen the nut on the inside of the firebox, turn the eccentric screw on the outside of the firebox
so as to tighten/loosen the door latch and retighten the nut.
7. Once the door is adjusted for a proper seal, turn the locking ring clockwise until you can feel a moderate
amount of tension when it is in the vertical position. There is no need to over-tighten it.
8. Now hide and unhide the door while looking carefully at the door. If you find that the door binds up
excessively when you are sliding the door in and out, you need to adjust the height of the door support roller.
It is located beside the bottom depth screw as shown in Figure 4.
NOTE: At least once a year, lubricate the upper sliding rod with a small quantity of the high temperature grease
provided with the fireplace (regular grease will not withstand the heat in the fireplace). Slide the door in and out a
few times to distribute the grease along the rod.
NOTE: An improperly adjusted door seal can have a significant effect on the performance and durability of the
fireplace. A poorly adjusted door can result in reduced efficiency, over firing, excessive wood consumption and
premature fireplace failure.

TOPAZ Owner's Manual 11 RSF Woodburning Fireplaces
GOLD PLATING
If you have any of the gold plated options, you will be happy to know that they will not tarnish. However, it is not
scratch resistant. Use only mild soap and warm water to clean the gold when the surface is cool. The use of any
household cleaner, such as Windex, abrasive cleaners, or any form of acid, may permanently etch or remove
some of the gold plating. Before the first fire, make sure to clean all fingerprints and other deposits on the gold
plating. Since the plating cures during the first fire, fingerprints and other deposits will permanently etch the gold
plating.
INSTALLATION
Check with your local authority having jurisdiction (such as municipal building department, fire department, fire
prevention bureau, etc.) regarding restrictions and installation requirements, and the need to obtain a permit.
Remove the extrusion assembly (refer to the extrusion installation paragraph in the installation section of the
current instructions). Place the extrusion assembly in the plastic bag provided and store it in a safe area to reduce
the possibility of scratches, vandalism, or damage to the finish caused by drywall dust, muriatic acid, plaster,
cement, paint or any other harmful spray or liquid.
Be aware that heavy duty cleaning products or acid solutions will permanently damage the plating.
NOTE: We recommend that you delay the installation of the door and the louvers until after all finishing work is
completed around the fireplace. This will reduce the possibility of scratches, vandalism, or damage to the finish
caused by drywall dust, muriatic acid, plaster, cement, paint or any other harmful spray or liquid.

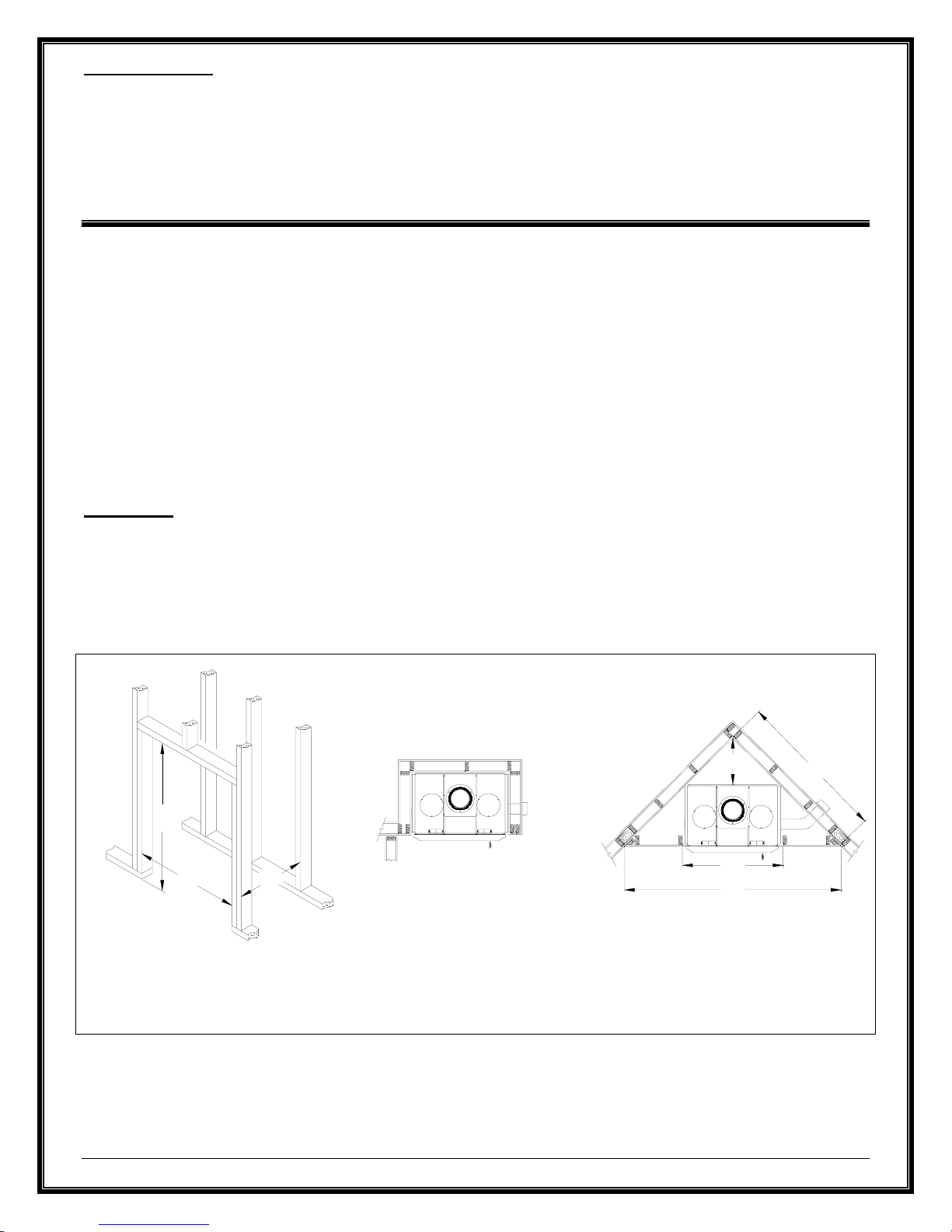

LOCATION
Your TOPAZ fireplace may be installed in many different ways (see Figure 5) without any special floor
reinforcement. We recommend that you take the time to plan your entire installation (fireplace, chimney, and
options) before beginning the actual installation (refer to Figure 6).
Dimensions of the fireplace along with clearances are shown in Figure 1 and Table 1.
38"
39" 24"
39"
82"
58"
18"
The framing dimensions are larger than required for ease of installation. The Heat Dump Option will require an
extra 12" on the selected side.
Figure 5 TOPAZ Framing Examples

TOPAZ Owner's Manual 12 RSF Woodburning Fireplaces
Rain Cap
Storm Collar
Flashing
Radiation Shield with a
Storm Collar in the Attic
Ceiling
Radiation Shield
Hearth Extension and
Beneath Hearth Extension
(refer to text for particulars)
Electrical Knock-out
Outside Air Inlet (refer to text for particulars)
Figure 6 TOPAZ General Installation

TOPAZ Owner's Manual 13 RSF Woodburning Fireplaces
WARNING: IF THIS FIREPLACE IS NOT PROPERLY INSTALLED, A HOUSE FIRE CAN RESULT. FOR
YOUR SAFETY, FOLLOW THE INSTALLATION INSTRUCTIONS AND CLEARANCES. DO NOT PACK
REQUIRED AIR SPACES WITH INSULATION OR OTHER MATERIALS.
1. Note the location of roof and floor joists. Try to choose a location that does not require cutting them.
2. Do not build shelves or cupboards in the area above the fireplace. This space must be kept empty.
3. If at all possible, run the chimney up through the inside of the house. If it must be run outside, it should be
enclosed in an insulated enclosure (see Installation: Chase Enclosure). Remember, a cold chimney causes
poor draft.
CEILING CLEARANCE
Ceiling clearance is the distance from the base of the fireplace to the ceiling.
Under no circumstances should the distance between the ceiling firestop and the base fireplace be less than the
dimension specified in Table 1 (C).
OUTSIDE AIR DUCT
After the fireplace is correctly positioned, connect the outside air inlet to the outside (see Figure 7).
Use an insulated aluminium flexible duct rated at over
200° F. The duct should not exceed 12' vertical rise
above the base of the unit.
The air inlet should never be less than 5' below the
top of the chimney flue and must never terminate
in attic spaces.
A 4" diameter duct can be used if the total duct run is
less than 25'. For longer runs, use 5" diameter duct.
Both 4" and 5" connecting sleeves are provided with
the fireplace.
1. Find a convenient location for the combustion air
duct and outside air inlet. The outside air inlet can
be above or below floor level.
2. Make a 4 ¼" (5 ¼" if using a 5" diameter duct)
hole in the outside wall of the house. Push the
outside air inlet in from the outside. Seal the joint
between the air inlet and the outside wall with an
appropriate sealant.
3. Place the insulated flexible duct over the round
sleeve on the outside air inlet. At both ends,
carefully pull back the insulation and plastic cover, exposing the flexible duct. Then at each end, attach the
duct with metal screws to the air inlet and to the fireplace connecting sleeve. Carefully push the insulation and
cover back over the duct. Tape the plastic cover in place with 2" aluminium duct tape.
CAUTION: WHEN RUNNING THE DUCT AROUND CORNERS, BE SURE TO PREVENT CRIMPING THE
DUCT THAT WOULD RESTRICT THE COMBUSTION AIRFLOW.
CHIMNEY
This fireplace is certified for use with 7" ICC Model EXCEL chimney only. Please refer to Table 1 (D-E) for the
minimum and maximum chimney heights permitted with the TOPAZ fireplace.
We recommend that the minimum height be increased by approximately 1' for every 2000' elevation above sea
level. Every 15°, 30° or 45° elbow also increases the minimum height by 1'. For example, if you are living 6000'
above sea level, your chimney should terminate at least 15' from the top of the fireplace (12' + 3' for the 6000').
See Table 3 for more precise recommended flue heights.
Above Floor
Example Below Floor
Example
RSF
Fireplace
RSF
Fireplace
RSF
Fireplace
2" Aluminium
Duct Tape
Insulated Flexible Air Duct
Outside Wall
Outside Air
Inlet
Figure 7 Outside Air Connection and Installation
Example

TOPAZ Owner's Manual 14 RSF Woodburning Fireplaces
CHIMNEY INSTALLATION
Make sure to read the EXCEL Chimney installation
manual concerning requirements for supports, bracing,
anchors, etc. Refer to Table 1 (F) for the maximum
chimney height that can be supported by the top of the
fireplace.
WARNING: THE CLEARANCE BETWEEN THE
CHIMNEY AND COMBUSTIBLE MATERIAL MUST
BE 2" OR MORE. DO NOT FILL THIS AREA WITH
INSULATION.
1. Cut and frame the required holes in the floor(s),
ceiling(s) and roof where the chimney will pass
through. The rough opening in the framing is 13"
square (the opening can be slightly bigger, up to
13 ½", but NEVER smaller).
2. From below, install a radiation shield in each floor
through which the chimney passes. At the attic
level, install a radiation shield and a storm collar
as shown in Figure 8.
WARNING: A RADIATION SHIELD MUST BE
INSTALLED AT EACH FLOOR WHERE THE
CHIMNEY PASSES THROUGH.
3. Remove the flue adapter from the fireplace, put the screws aside. Install the flue adapter on the first chimney
length and secure it with the screws provided. Reinstall the flue adapter on the fireplace and secure it with the
screws you have put aside earlier. Assemble the rest of the chimney.
The chimney must extend at least 3' above its point of contact with the roof and at least 2' higher than any
wall, roof, or building within 10' of it. If the chimney is higher than 5' above the roof, it must be secured using a
roof brace.
4. Put the roof flashing into place. Seal the joint between the roof and the flashing with roofing tar. For sloping
roofs, place the flashing under the upper shingles and on top of the lower shingles. Nail the flashing to the
roof using roofing nails.
If the chimney is enclosed to the roof:
•In USA: use a vented flashing;
•In Canada: use a vented flashing, or a roof radiation shield with a regular flashing.
RSF
Fireplace
Radiation
Shield
Rain Cap
Flashing with
Storm Collar 3' min.
10'
2' min.
Storm Collar
in the Attic
Ceiling
Clearance (see
Table 1 (C))
The chimney
must be enclosed
when it passes through
living spaces: min.
clearance of 2" with
chimney
2" min.
 NOTE: Openings
must be framed to
adequately support
any chimney
supports and roof
assemblies
 WARNING:
DO NOT PACK
REQUIRED AIR
SPACES WITH
INSULATION OR
OTHER
MATERIALS
 WARNING:
MAJOR RISK
OF FIRE,
LOOSE FILL
INSULATION
MUST NOT GO
ABOVE THE
RADIATION
SHIELD AND
MUST NEVER
COME IN
CONTACT
WITH THE
CHIMNEY
Figure 8 General Chimney Installation
Table 3 Minimum Recommended Flue Heights In Feet From The Top Of The Fireplace
Number Of Elbows
Elevation (ft) 0 2 x 15° 4 x 15° 2 x 30° 4 x 30° 2 x 45° 4 x 45°
0 - 1000 12’ 13’ 14’ 15’ 18’ 16’ 20’
1000 - 2000 12’6” 13’6” 14’6” 15’6” 19’ 16’6” 20’
2000 - 3000 13’ 14’ 15’ 16’ 19’6” 17’ 21’6”
3000 - 4000 13’6” 14’6” 15’6” 17’ 20’ 18’ 22’6”
4000 - 5000 14’ 15’ 16’ 17’6” 21’ 18’6” 23’
5000 - 6000 14’6” 15’6” 17’ 18’ 21’6” 19’ 24’
6000 - 7000 15’ 16’ 17’6” 18’6” 22’ 20’ 24’6”
7000 - 8000 15’6” 16’6” 18’ 19’ 23’ 20’6” 25’6”
8000 - 9000 16’ 17’ 18’6” 20’ 24’ 21’ 26’6”
9000 - 10000 16’6” 17’6” 19’ 20’6” 24’6” 22’ 27’

TOPAZ Owner's Manual 15 RSF Woodburning Fireplaces
5. Place the storm collar over the chimney and flashing. Seal it around the chimney with silicone sealer (DO
NOT use roofing tar).
6. Fit the rain cap on the chimney. Secure it tightly in place.
OFFSET CHIMNEY
An elbow may be installed directly on top of the fireplace if required. See the detailed offset charts in the EXCEL
chimney installation manual. Use the offset option if you need to clear a joist or pass around a cupboard. See
Figure 9 and Figure 10 for examples.
•Maximum offset angle:
•In USA: 30°;
•In Canada: 45°.
•Maximum number of elbows: four, resulting in two offsets and returns.
Install the fireplace and chimney as described earlier. When you require an elbow, proceed as follows:
1. Install the required elbow. Turn it in the desired direction, and fasten it to the other section with 3 metal
screws at the joints.
2. Install enough lengths to obtain the desired offset. Secure each joint with 3 metal screws.
3. Use another elbow to return the chimney to the vertical direction.
4. Install a roof support, a wall support, or an offset support above each offset to support the weight of the
chimney (elbows are not designed to support the chimney above an offset).
Radiation
Shield
Use Offset
Support or
Roof Support
RSF
Fireplace
Radiation
Shield
3 Metal Screws
in Each Joint
Rise
Offset
10'
2' min.
Flashing*
with Storm
Collar
1' min.
Radiation
Shield and
Offset, Roof or
Wall Support
Insulated Wall
Radiation
Shield
(30° or 45°)
*In USA: use a
vented flashing
*In Canada: use
either a vented
flashing only or a
regular flashing
with a roof radiation
shield
RSF
Fireplace
Figure 9 Offset Chimney Installation Example Figure 10 Offset Chimney Through a Wall Example

TOPAZ Owner's Manual 16 RSF Woodburning Fireplaces
CHASE ENCLOSURE
If the chimney runs up the outside of the house, we
recommend that it be enclosed in a chase structure.
The chase should be constructed in such a way that it
is an extension of the home (see Figure 11). It should
be well insulated between the footings and the floor of
the home to prevent heat loss. If the climate in your
area is mild, insulate the chase at least to the first
firestop. If the climate in your area is very cold,
insulate the chase to the top to keep the chimney
warmer, increase the draft, and reduce creosote
buildup. We also recommend to insulate the ceiling of
the chase just as if it were in the attic space. This will
prevent cold air from dropping down through the chase
and into the room where the fireplace is installed (see
Figure 11).
Some local codes require that the walls be insulated,
vapor sealed and sheathed with a fire rated gypsum
board (see Figure 11). We strongly recommend this
procedure for all installations to prevent cold drafts
from originating in the fireplace enclosure. If you follow
this procedure, we recommend that you do not
insulate the wall above the front of the fireplace.
REMEMBER: Check local codes concerning
installation requirements and restrictions in your area.

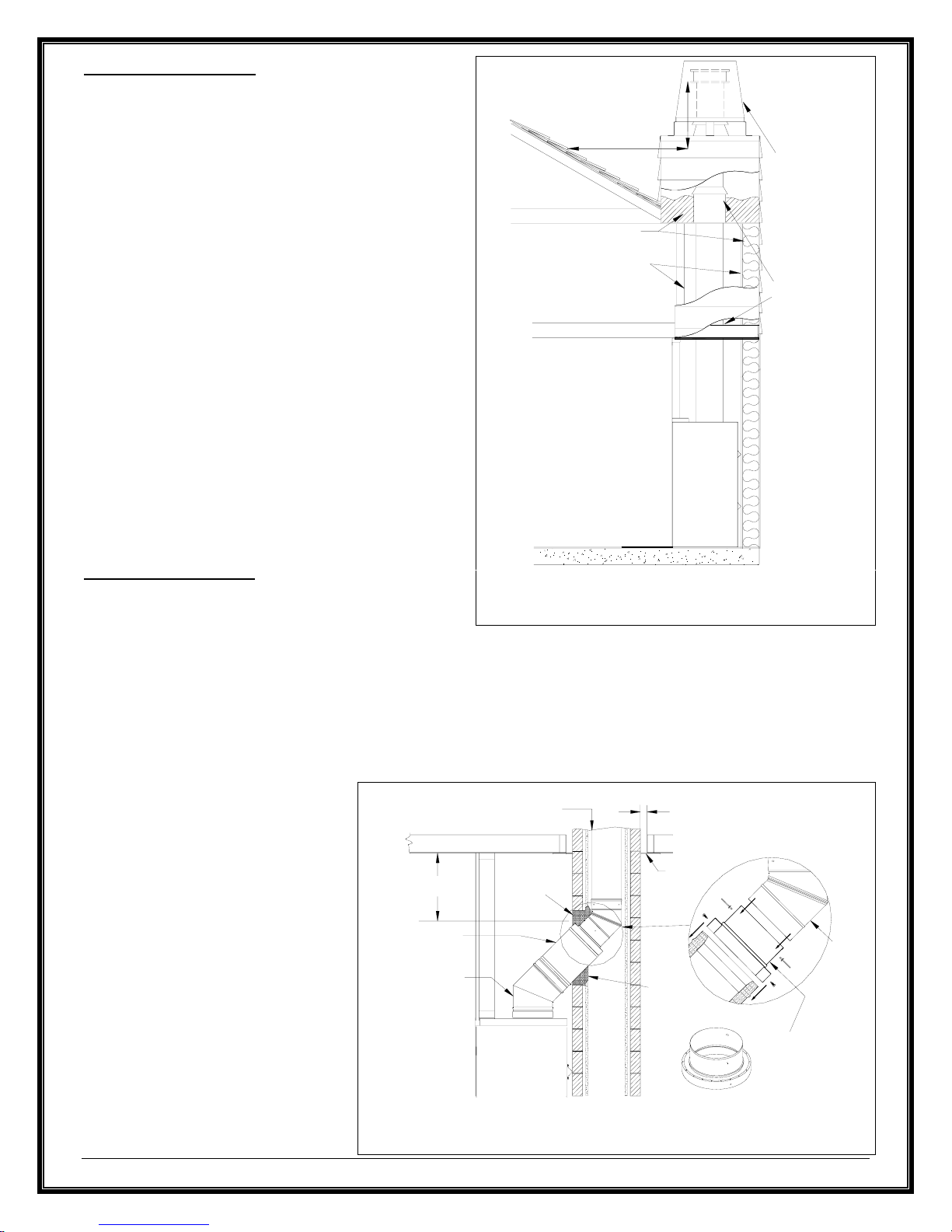

MASONRY CHIMNEY
Installing your TOPAZ fireplace with a masonry
chimney still requires using EXCEL chimney from the
top of the fireplace to the wall where it will connect to a listed liner that will run up inside the masonry chimney
(see Figure 12).
The stainless steel liner should be fitted inside the clay liner all the way to the top of the masonry chimney. It is
not meant to replace the clay liner. You can use either the EXCEL liner or any other listed liner to ULC-S635,
ULC-S640 or UL-1777.
Special care is to be taken to make sure that you have a good solid connection between the EXCEL chimney and
the liner. A masonry adaptor (FO-FDM7) was designed specifically for that purpose and is available from your
RSF dealer. It will attach to the liner
with 3 stainless steel rivets (provided)
and to the EXCEL chimney with 3
screws (provided).
After mortaring in place, the
connection between the EXCEL
chimney and the liner should not be
visible in order to isolate the heat
released through the liner from the
fireplace enclosure.
As depicted in Figure 12, you must
install at least one 18" length of
EXCEL chimney after the EXCEL
chimney elbow. The uppermost part
of the EXCEL chimney - where it
enters the masonry chimney - must
be a minimum of 12" from the ceiling.
10'
2' min.
Optional
Decorative
Shroud
Insulation
Chase liner of fire rated
gypsum board is
recommended (may be
required by local authorities)
Radiation
Shield,
with Storm
Collar in
the Attic
RSF
Fireplace
Figure 11 Chimney Installed with a Chase
Enclosure Example
Mortar
Mortar
Clearances as per
NBC or NFPA 211
EXCEL liner or other listed liner to
ULC-S635, ULC-S640 or UL-1777
12" min. to
combustible ceiling
EXCEL chimney
lenght: 18" min.
EXCEL chimney
elbow
Masonry Adaptor
FO-FDM7
Metal
Firestop
Liner
Elbow
RSF
Fireplace
Figure 12 Connection to a Masonry Chimney

TOPAZ Owner's Manual 17 RSF Woodburning Fireplaces
NOTE: If the ceiling is high enough, you can install one or more EXCEL chimney lengths directly on the
fireplace before the elbow.
If you use a flexible liner, make sure to be careful when cleaning to ensure that the stainless steel flexible liner is
not dislodged in any way.
Using an Existing Masonry Chimney
WARNING: IF YOU ARE CONSIDERING USING AN EXISTING CHIMNEY, IT MUST FIRST BE
THOROUGHLY INSPECTED BY AN AUTHORITY HAVING JURISDICTION TO DETERMINE THE
FOLLOWING:
1. The masonry chimney is well constructed and fully lined, in accordance with Local Building Codes and the
National Building Code of Canada (NBC) or National Fire Protection Association chimney standard (NFPA
211).
2. It has been thoroughly cleaned of any soot or creosote residue and inspected to determine that it is in good
working condition.
3. There is no insulation of any type in contact with the masonry chimney and there is no insulation stuffed
anywhere in the chimney.
4. All the necessary clearances around the masonry chimney, along the complete run of the chimney, are
respected as per NBC or NFPA 211. If the masonry chimney is enclosed in drywall, openings will probably be
required in order to verify clearances at all points.
5. The masonry chimney will only be used for the fireplace and no other appliance.
If major repairs are required to meet the above conditions, a new chimney should be constructed.
To make the hole through the masonry chimney and make the connection to the fireplace, we recommend that
you follow these steps:
1. Sight-in and mark the outline of where the EXCEL chimney will penetrate the masonry chimney.
2. Using a large (¾" - 2") masonry drill bit, drill a hole exactly in the center of the oval outline. With a masonry
hammer and drill, slowly enlarge the hole to the size required. Remember to work from the center out. Be
especially careful with the clay liner behind the brick because three sides of it must stay in place.
3. Bring the stainless steel liner down from the top of the chimney.
If you are using a rigid liner you will need enough room to secure an elbow to it with at least two screws.
If it is difficult to install rigid stainless steel liner in the existing masonry chimney or for a masonry chimney
with less than 10"x10" inside, a listed stainless steel flexible liner can be used along with a flexible/rigid
adaptor (LM-7LAF) available from your RSF dealer.
4. Install the liner elbow and masonry adaptor on the lower end of the liner.
5. Move the fireplace forward enough to install the EXCEL chimney on the fireplace (elbow and length) then
move the fireplace back into position as you connect the masonry adaptor to the EXCEL chimney.
Using a New Masonry chimney
Since the masonry chimney is not build yet, we recommend that you position your fireplace, install the EXCEL
chimney on it and connect to the first length of liner before building the chimney as explained above and shown in
Figure 12 . The liner sections can easily be installed as the layers of brick are being placed. Since this is a new
chimney, we recommend that you build it to the right size so you do not have to ovalize the liner but if you choose
to use a 6"x10" clay liner you will need to ovalize the stainless steel liner to fit into the clay liner.
Remember: The stainless steel liner should be fitted inside the clay liner all the way to the top of the masonry
chimney. It is not meant to replace the clay liner.
FRAMING
The enclosure walls can be framed with any suitable materials (2x4 or 2x6 studs, plywood, gypsum board, etc.).
Because of the high heat output potential of the TOPAZ, combustible materials must NOT go closer to the
fireplace than the standoffs, top, back and sides.

TOPAZ Owner's Manual 18 RSF Woodburning Fireplaces
HEARTH EXTENSION
The area immediately in front of the fireplace must be protected by a non-combustible material such as brick, tile,
stone, or slate. Refer to Table 1 (G-H) for the depth and width that the hearth protection should extend beyond the
front and both sides of the door opening (see Figure 1). There is no minimum thickness required for the hearth
extension.
BENEATH HEARTH EXTENSION
If the TOPAZ is installed on a non-combustible floor, NONE of the cement board and the spark guard specified
below is required.
Install the spark guard provided (5" x 36" piece of
sheet metal) halfway under the fireplace and halfway
under the hearth extension and centered on the door
opening. The spark guard will extend 2½" beneath the
fireplace. This will make certain that sparks cannot
lodge in this area and start a fire. If necessary, the
provided spark guard can be cut to the minimum width
specified in Table 1 (I).
If you are preparing a raised installation, you will need
a custom made spark guard, either a "Z" shaped spark
guard or a right angle spark guard (see Figure 13).
The Z-shaped spark guard must be used if the height
between the bottom of the fireplace and the top of the non-combustible flooring of the hearth extension is less
than or equal to 2 ½". The height of the Z-shaped spark guard must equal the distance between the floor and the
base of the unit and go under the hearth extension and the fireplace by at least 2½". If the unit is installed higher
than 2 ½" from the top of the flooring, a right angle spark guard is necessary. The sides of the right angle spark
guard should be at least 2½" x 2½" and must be covered with non-combustible material. Any custom made spark
guard must have the minimum width specified in Table 1 (I), and be installed centered on the door opening.
NOTE: Custom-made spark guards are not supplied.
In the USA only:
A ½" cement board, such as Durock© or an equivalent cement board, MUST be installed beneath the
hearth extension. The cement board must have the same minimum dimensions as the hearth extension
(see Table 1 (G-H)). If the fireplace is raised by at least 4", the cement board is NOT required.
The spark guard must be installed under any of the layers of the hearth extension.
MANTEL
Refer to Table 1 (J) for the maximum depth of the mantel and its installation height. Wood or other combustible
mantels must be placed as specified in Table 1 (K) and illustrated in Figure 1.
Masonry and other non-combustible mantels can be placed directly
above the top of the fireplace facing or higher. If the non-combustible
mantel is located between the top of the fireplace facing and the
specified height for a combustible mantel, then the wall portion
between the top of the fireplace facing and the mantel must be
covered in non-combustible material. If the non-combustible mantel
is located at the same height allowed for a combustible mantel, or
higher, then no special wall covering is required below the mantel.
DOOR INSTALLATION
NOTE: We recommend that you delay the installation of the door
until after all finishing work is completed around the fireplace. This
will reduce the possibility of scratches, vandalism, or damage to the
finish caused by drywall dust, muriatic acid, plaster, cement, paint or
any other harmful spray or liquid.
RSF
Fireplace
Non-
Combustible
Flooring
Right Angle
Spark Guard
(not provided)
More than 2 1/2"
Non-
Combustible
Flooring
Z-Shaped Spark
Guard (not
provided)
2 1/2" or less
Figure 13 Special Custom-made Spark Guard
Figure 14 Door Installation

TOPAZ Owner's Manual 19 RSF Woodburning Fireplaces
The TOPAZ is offered with many door options.
Use only genuine RSF parts. The use of any substitutes will decertify the system and may put your safety at risk.
To install the door on the fireplace, start by removing all 5 screws on the left side of the door. You can store 2 of
them as replacement screws. If the extrusions are installed, open the left extrusion. Open the hinge on the left of
the fireplace and attach the door to the hinge with 3 screws as shown in Figure 14.
Refer to the maintenance section to properly adjust the seal of the door.
LOUVER INSTALLATION
NOTE: We recommend that you delay the
installation of the louvers until after all finishing work
is completed around the fireplace. This will reduce the
possibility of scratches, vandalism, or damage to the
finish caused by drywall dust, muriatic acid, plaster,
cement, paint or any other harmful spray or liquid.
The TOPAZ is offered with various louvers options
Use only genuine RSF parts. The use of any
substitutes will decertify the system and may put your
safety at risk.
If the extrusions are installed, open both the left and
the right extrusion. Using the 2 bolts provided, attach
the upper louver to the top of the fireplace as shown
in Figure 15. Make sure to install the upper louver
level and centered. Using the 2 very small screws
along with the 2 small lock nuts provided, attach the
bottom louver to the bottom of the fireplace as shown
in Figure 15. Again be careful to install the bottom
louver level and centered. The bottom louver is held
in the upright position by 2 magnets located on the
back side of the bottom louver.
EXTRUSION INSTALLATION
NOTE: We recommend that you delay the
installation of the extrusions until after all finishing
work is completed around the fireplace. This will
reduce the possibility of scratches, vandalism, or
damage to the finish caused by drywall dust, muriatic
acid, plaster, cement, paint or any other harmful
spray or liquid.
Since the wall covering can be installed directly
around the fireplace without any clearance to the front
of the fireplace, the extrusions are designed to
compensate for the thickness of the wall covering that
you have installed (up to ¾“). Never encase the
extrusions with the wall covering; you need to be able
to open both the left and the right extrusions.
Once the wall covering is completely finished, take
the extrusions out of the storage bag. Using the 6
screws and the 6 washers, attach the extrusions on
the fireplace as shown in Figure 16. Tighten all
screws so that the extrusions are tight against the
wall covering and the fireplace. Make sure that both
extrusions can be opened and closed without any
difficulty using the handle at the bottom of each extrusion.
Figure 15 Louvers Installation
Figure 16 Extrusion Installation
6 screws
with washers
2 bolts
2 screws with
lock nuts

TOPAZ Owner's Manual 20 RSF Woodburning Fireplaces
REFRACTORY BRICK INSTALLATION
Before lighting your first fire, you must make sure the refractory bricks are properly installed inside the firebox.
This is easily accomplished with the following instructions. To remove any of the refractory bricks, just follow the
installation procedure in the reverse sequence. Refer to Figure 17 to adequately identify which refractory brick is
the left and which is the right at each step of the installation.
1. First, remove the secondary air tube at the top front of the firebox. To do so, unscrew the bracket located on
the left side of the tube.
2. Then place the baffle (11.9.T) above the other two tubes and ensure its proper orientation: narrow part
towards the rear and grooves towards the bottom.
3. Reinstall the first tube and screw it in place.
4. Continue by inserting the rear refractory brick in the firebox (11.3.T), then the left side refractory brick
(11.1.T).
5. Then insert the refractory brick on the right side (11.2.T) of the firebox but do not position it yet. Ensure that it
is resting firmly on the rear refractory brick.
6. Next insert the arch refractory brick (11.8.T) in the firebox.
7. Then pivot the arch refractory brick until it is in a horizontal position and then slide the right refractory brick
until it is in place. The arch refractory brick is supported by the two side refractory bricks.
8. Continue by installing the 2 bottom refractory bricks in the firebox (11.4.T on the left and 11.5.T on the right).
First, slide the left bottom refractory brick below the square tube located at the front floor of the firebox. Then
install the right refractory brick in the same fashion.
9. Finally, install the 2 front refractory bricks (11.6.T on the left and 11.7.T on the right) and the refractory plug
(11.10.T).
These refractory have been designed specifically for the TOPAZ and no modifications are required to ensure a
proper fit.
11.9.T
Front of
fireplace
Side View
Step 2
11.1.T
11.3.T
Step 4
11.2.T
Step 5
11.8.T
Step 6
