Ruby RC-1001 User manual

Publication date: March, 2011
Revision A2
i
User's Manual
Web Smart 10/100Base-TX to 100Base-FX
Media Converter
Release 1.04

Publication date: March, 2011
Revision A2
ii
Table of Contents
CAUTION...........................................................................................................................................IV
ELECTRONIC EMISSION NOTICES.....................................................................................................IV
1. INTRODUCTION............................................................................................................ 1
1-1.OVERVIEW..................................................................................................................................1
1-2.FEATURES...................................................................................................................................1
1-3.CHECKLIST.................................................................................................................................2
1-4.VIEW OF THE CONVERTER..........................................................................................................3
2. INSTALLATION.............................................................................................................. 4
2-1.CABLE AND HARDWARE INSTALLATION .....................................................................................4
3. OPERATION OFWEB-BASED MANAGEMENT...................................................... 5
3-1.WEB MANAGEMENT HOME OVERVIEW.....................................................................................6
3-2.THE FUNCTION TREE IN WEB MANAGEMENT............................................................................8
3-3.LOCAL SETTING .........................................................................................................................9
3-3-1. IP Configuration..............................................................................................................9
3-3-2. Password Setting............................................................................................................11
3-3-3. Converter Configuration...............................................................................................12
3-3-4. Port Configuration.........................................................................................................14
3-3-5. MIB Counter..................................................................................................................16
3-3-6. VLAN..............................................................................................................................17
3-3-6-1. VLAN Group...........................................................................................................................17
3-3-6-2. VLAN Per Port Setting...........................................................................................................19
3-3-7. Q-in-Q.............................................................................................................................21
3-4.REMOTE SETTING ....................................................................................................................23
3-4-1. TS-1000 Functions .........................................................................................................23
3-4-1-1. TS-1000 Setting.......................................................................................................................23
3-4-1-2. Loopback Test .........................................................................................................................25
3-4-1-3. Remote Device Reset...............................................................................................................26
3-4-1-4. Remote Port Information.......................................................................................................27
3-4-1-5. Remote Port Setting................................................................................................................27
3-4-2. 802.3ah Function............................................................................................................28
3-4-2-1. 802.3ah Configuration............................................................................................................28
3-4-2-2. Loopback Test .........................................................................................................................29
3-4-2-3. 802.3ah Status..........................................................................................................................30
3-5.TOOLS.......................................................................................................................................31
3-5-1. System Reboot................................................................................................................31
3-5-2. Save and Restore............................................................................................................32
3-5-3. Firmware Upgrade ........................................................................................................33
3-5-4. Logout.............................................................................................................................33
4. MAINTENANCE.............................................................................................................34
4-1.RESOLVING NO LINK CONDITIONS...........................................................................................34
4-2.Q&A ........................................................................................................................................34
APPENDIX A TECHNICAL SPECIFICATIONS...........................................................35

Publication date: March, 2011
Revision A2
iii
Revision History
Release Date Revision
0.96 12/04/2009
A
1
1.01 10/7/2010
A
1
1.02 10/29/2010
A
1
1.04 03/03/2011
A
2

Publication date: March, 2011
Revision A2
iv
Caution
Circuit devices are sensitive to static electricity, which can damage their delicate
electronics. Dry weather conditions or walking across a carpeted floor may cause
you to acquire a static electrical charge.
To protect your device, always:
Touch the metal chassis of your computer to ground the static electrical
charge before you pick up the circuit device.
Pick up the device by holding it on the left and right edges only.
Electronic Emission Notices
Federal Communications Commission (FCC) Statement
This equipment has been tested and found to comply with the FCC Part 15, Subpart
B, Class A.
CISPR 22:A1:2000+A2:2002;ICES-003:2004, Class A
European Community (CE) Electromagnetic Compatibility Directive
This equipment has been tested and found to comply with the protection
requirements of European Emission Standard EN55022 and EN55024.
EMI EN55022:2006 Class A EN61000-3-2:2006
EN61000-3-3:1995+A1:2001+A2/2005+A1/2001+A2/2005
EMS
EN55024/1998+A1:2001+A2:2003
IEC61000-4-2:2001
IEC61000-4-3:2002+A1:2002
IEC61000-4-4:1995+A1:2000+A2:2001
IEC61000-4-5:2001
IEC61000-4-6:2003
IEC61000-4-8:2001
IEC61000-4-11:2001

Publication date: March, 2011
Revision A2
v
About this user’s manual
In this user’s manual, it will not only tell you how to install and connect your network
system but configure and monitor the Web Smart MEDIA CONVERTER through the
built-in web by Ethernet ports step-by-step. Many explanations in detail of hardware
and software functions are shown as well as the examples of the operation for web-
based interface.
Overview of this user’s manual
Chapter 1 “Introduction” describes the features of Web Smart MEDIA
CONVERTER
Chapter 2 “Installation”
Chapter 3 “Operation of Web-based Management”
Chapter 4 “Maintenance”
Appendix A

Publication date: March, 2011
Revision A2
1
1. Introduction
1-1. Overview
The Converter is designed to make conversion between 10/100Base-TX and
100Base-FX Fast Ethernet. With Web-based management, the network
administrator can logon the converter to monitor, configure and control the activity of
each port. In addition, the converter implements bandwidth rating management
capability via the intelligent software. The overall network management is enhanced,
and the network efficiency is also improved to accommodate and deliver high
bandwidth applications.
1-2. Features
The Web Smart MEDIA CONVERTER provides the following features for
users to perform system network administration.
Management
• Supports Web UI for management
• Supports OAM for remote management via TS-1000
• Supports OAM for remote management via IEEE802.3ah
• Supports Ingress/Egress Rate Limitation
• Supports Link Loss Carry Forward Function
• Supports per Port MIB Counters
• Supports IEEE802.1Q VLAN
• Supports Q-in-Q (Double-Tag) VLAN
• Supports one 10/100Base-TX Fast Ethernet UTP port and one 100Base-FX FE
Fiber port
• Supports 802.3x flow control for full-duplex ports and backpressure for half-duplex
ports
• Supports comprehensive types of fiber with different distances and connections,
including SC/Bidi/LC and so on
• Supports auto mode on the TP port
• Supports jumbo frame 9KB
• RoHS Compliance
• On-board firmware can be updated via HTTP web function.
• The converter allows administrator to reboot system from management station.
• Dying Gasp function can send out a signal when DC power down is detected.

Publication date: March, 2011
Revision A2
2
1-3. Checklist
Before you start installing the converter, please verify that the package contains the
following:
Web Smart Media Converter
AC-DC Power adapter
This User's Manual(CD)
Please notify your sales representative immediately if any of the aforementioned
items is missing or damaged.
Model
Model Description
RC-1001 Web Smart 10/100Base-T to 100Base-FX Media Converter
RC-1001A Web Smart 10/100Base-T to SFP Media Converter

Publication date: March, 2011
Revision A2
3
1-4. View of the Converter
RC-1001 RC-1001A
Fig. 1-1 WEB SMART MEDIA CONVERTER
RC-1001 RC-1001A
Fig. 1-2 Front View of the WEB SMART MEDIACONVERTER
LED Indicators Description
LED Color Function
POWER Green Lit when +5V power is coming up
FX LINK/ACT Green Lit when fiber connection is good
Blinks when any traffic is present
TP LINK/ACT Green Lit when TP connection is good
Blinks when any traffic is present
TP 10/100 Amber Lit when 100Base-TX is active
Off when 10Base-T is active
Table 1-1
Fig. 1-3 Rear View of the WEB SMART MEDIA CONVERTER
Reset button:
Press this button over 5 seconds then
(1) Restore to default
(2) Reboot

Publication date: March, 2011
Revision A2
4
2. Installation
2-1. Cable and Hardware Installation
Wear a grounding device for electrostatic discharge
Verify that the AC-DC adapter conforms to your country AC power requirement
and then insert the power plug
• TP Cable
Use Cat. 5 TP cable to connect server/host or workstation to TP port of the
converter
TP port supports MDI/MDI-X auto-crossover, use:
straight-through cable (Cable pin-outs for RJ-45 jack 1, 2, 3, 6 to 1, 2, 3, 6)
to cascade or up-link the converter to an upper layer L2/L3 switch or
server/host/workstation
TP Cable Limitations: Cat. 5 and up to 100m
• Fiber Cable
Use fiber cable to connect FX port of an upper layer converter
Fiber Cable Limitations:
SC/LC Converter Models
Multi-mode Half-duplex 412m
Multi-mode Full-duplex 2Km
Single-mode Half-duplex 412m
Single-mode Full-duplex 10/30/50Km
Table 2-1
Note: The other side of the fiber cable plugged into the converter’s RX connector at
the near end should plug into the FX device’s TX connector at the far end,
and vice versa.

Publication date: March, 2011
Revision A2
5
3. Operation of Web-based
Management

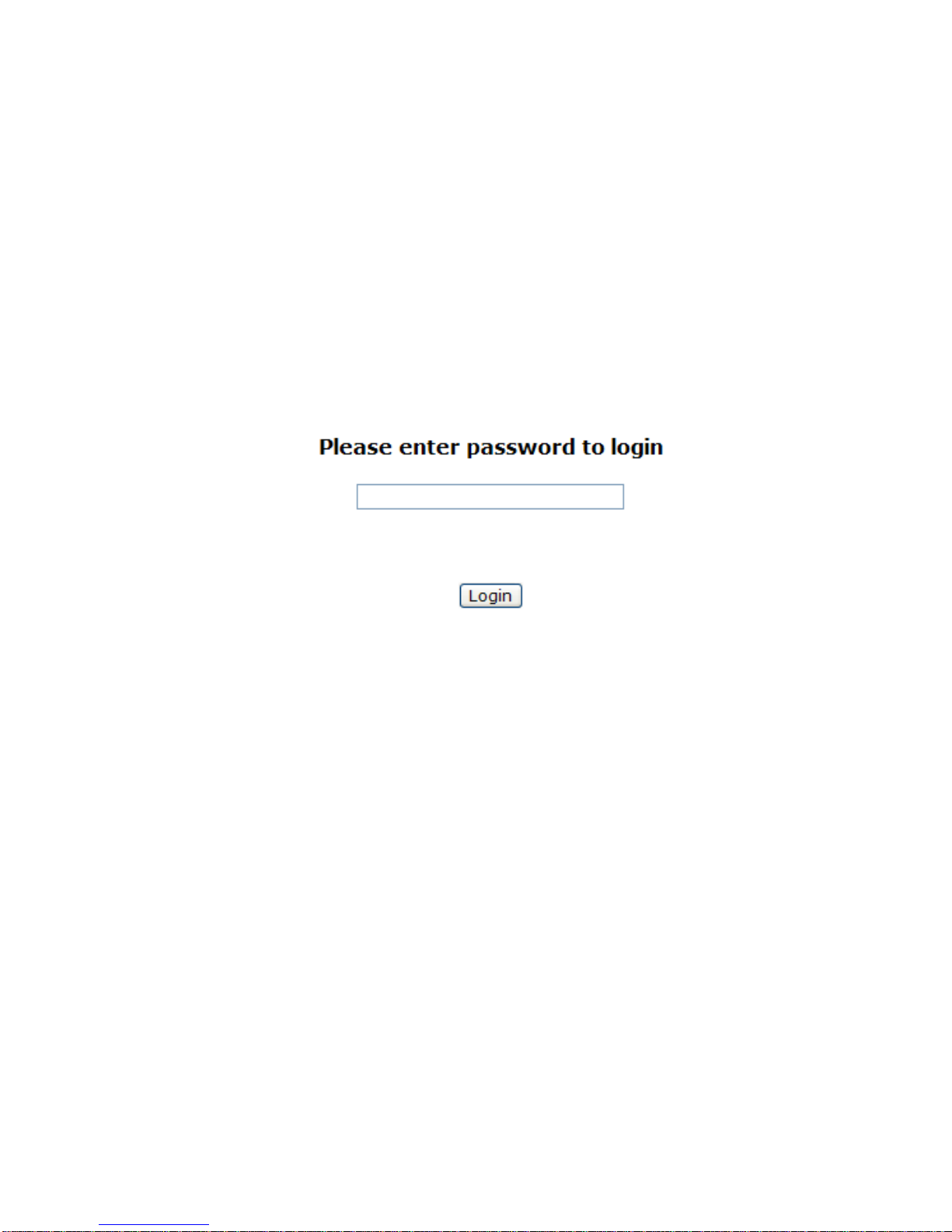

The converter provides a web function by Ethernet Port (Browser) to manage
and monitor the port activity. For instance, http://192.168.1.1, then enter password
and click “Login” button.
The default values of Web Smart Media Converter are as follows:
IPAddress :192.168.1.1
Subnet Mask :255.255.255.0
Default Gateway :192.168.1.254
Password :admin
Fig. 3-1

Publication date: March, 2011
Revision A2
6
3-1. Web Management Home Overview
Home Page and Main MENU will be shown up after you fill in “admin” to
serve as password and click the <Login> button. The main functions will be listed
on the left side of a browser. On the top is the front panel view of the converter. In
the middle is the basic System Information. The main functions will be introduced in
the following sections.
On the front panel, the LEDs will display the status color which is the same
as physical hardware. The fiber and TP plug will display the status color as well.
Green stands for “Link up” status.
The main functions are “Information”, “Local Setting”, “Remote Setting”, and
“Tools”.
Function name:
System Information
Function description:
Show the local and remote device network information.
Fig. 3-2
Parameter description:
Remote Device Control:
Disable (Default):
When Remote Device Control is disabled, the remote device information
will not be shown on the screen.

Publication date: March, 2011
Revision A2
7
Enable:
When Remote Device Control is enabled, the remote device information
will be shown on the screen.
MAC address:
It is the Ethernet MAC address of the management agent in this device.
Software Version:
It’s a firmware version of this device.
IP address/Gateway/Subnet Mask:
It’s an IP address of the device.
Default Setting:
IPAddress: 192.168.1.1
Default Gateway: 192.168.1.254
Subnet Mask: 255.255.255.0
Description:
It is a field for model description.
Serial number:
It is a product serial number.
Hardware Version:
It is a hardware version of product.

Publication date: March, 2011
Revision A2
8

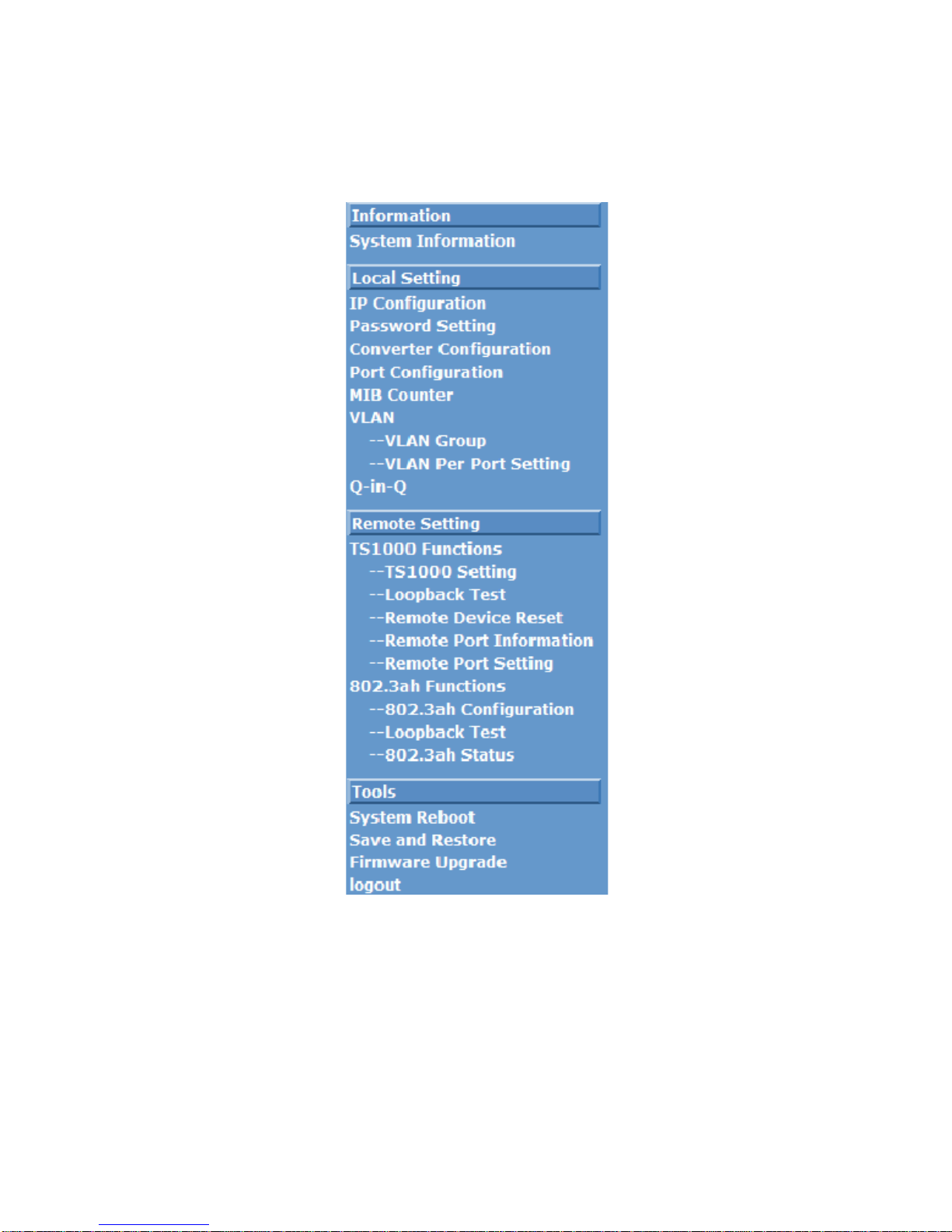

3-2. The Function Tree in Web Management
For offering you a clear guide to use this Web Smart Media Converter, the
following is the whole function tree of Web Smart Media Converter in web
management. User can refer to the following sections based on the order of this
function tree below for more details.
Fig. 3-3

Publication date: March, 2011
Revision A2
9

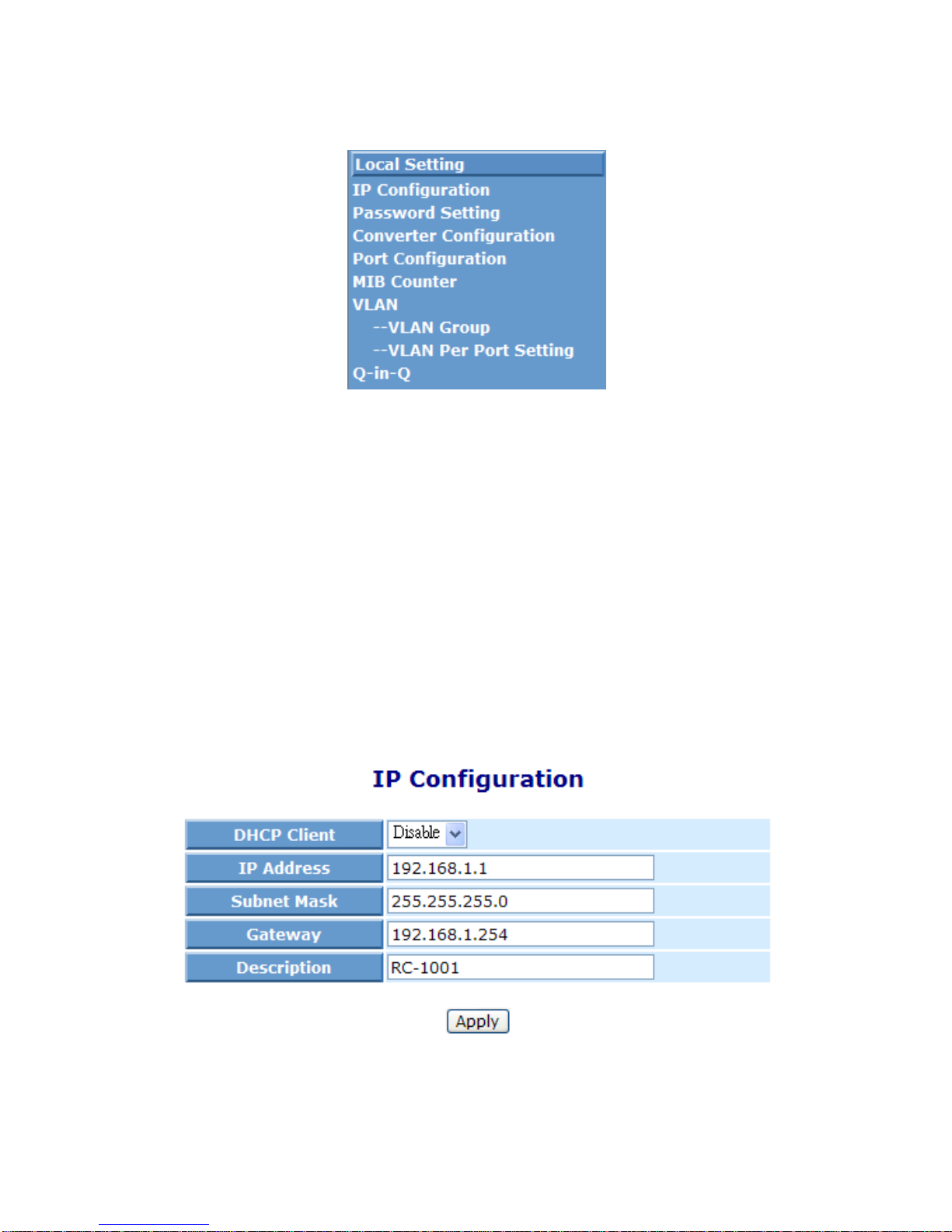

3-3. Local Setting
3-3-1. IP Configuration
IP configuration is one of the most important configurations in WEB SMART
MEDIA CONVERTER. Without the proper setting, network manager will not be able
to view the device. WEB SMART MEDIA CONVERTER supports both manual IP
address setting and automatic IP address setting via DHCP server. When IP
address is changed, you must reboot the converter to have the setting taken effect
and use the new IP to browse for web management.
Function name:
IP Configuration
Function description:
Set IP address, subnet mask and default gateway for WEB SMART MEDIA
CONVERTER.
Fig. 3-4
Fig. 3-5 IP Configuration

Publication date: March, 2011
Revision A2
10
Parameter description:
DHCP Client:
WEB SMART MEDIA CONVERTER supports DHCP client used to get an
IP address automatically if you set this function “Enable”. WEB SMART
MEDIA CONVERTER will find the DHCP server existed in the network to
get an IP address. If this function is set “Disable”, you have to input IP
address manually.
Default: Disable
IP address:
Users can configure the IP settings and fill in new values if users set the
DHCP function “Disable”. Then, click <Apply> button to update it.
Default: 192.168.1.1
Subnet mask:
Set the subnet mask value which is the same as that of network it
attaches. For more information, please also see the section “IP Address
Assignment” in this manual.
Default: 255.255.255.0
Default gateway:
Set an IP address for a gateway to handle those packets that do not
meet the rules predefined in a device. If a packet does not meet the
criteria for other routers, then it must be sent to a default router. This
means any packet with undefined TCP/IP information will be sent to this
device unconditionally.
Default: 192.168.1.254
Description:
Input data or model name about this device then click <Apply> button.

Publication date: March, 2011
Revision A2
11

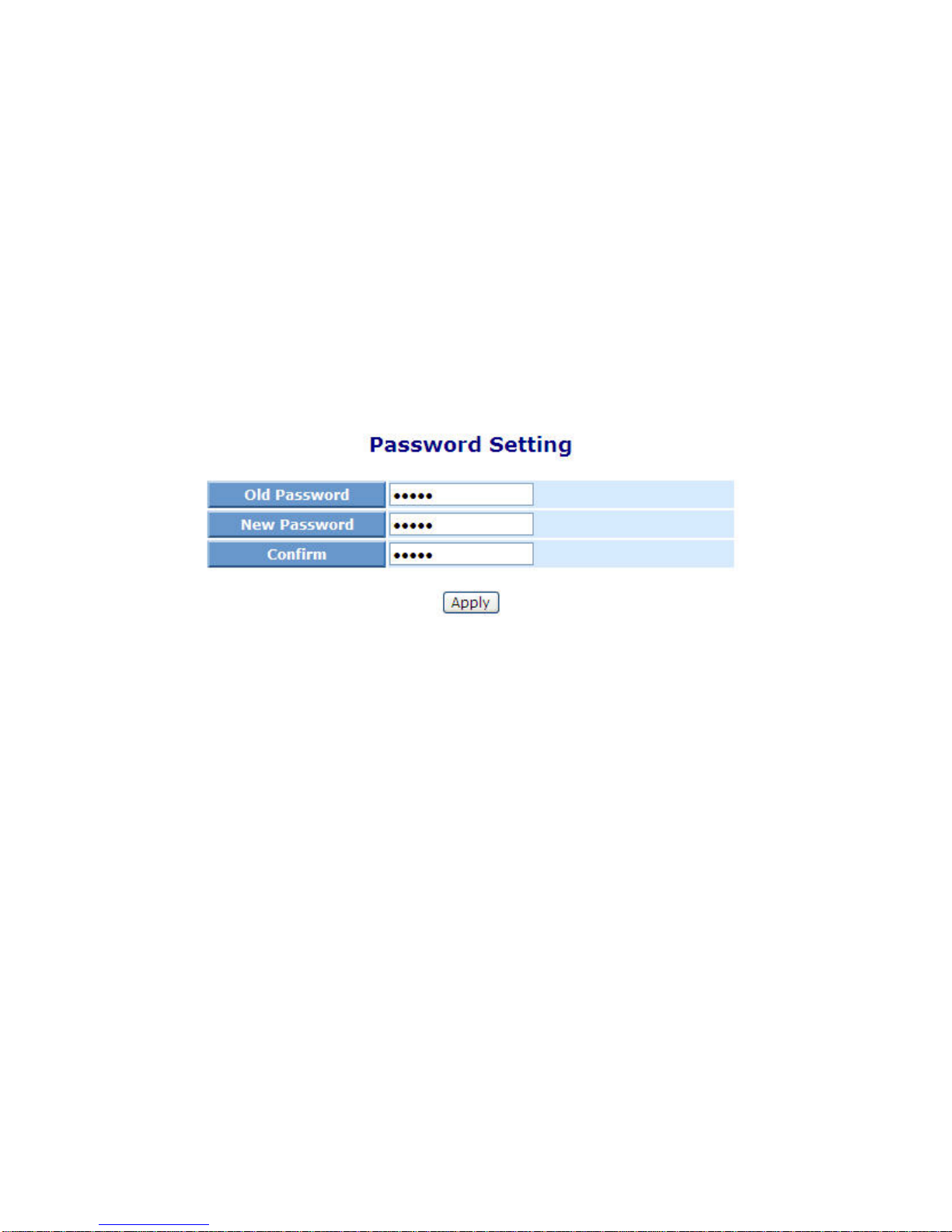

3-3-2. Password Setting
Function name:
Password Setting
Function description:
The default user account is “admin” that can not be modified or deleted and is
the only one user account. The password must be ‘a’-‘z’, ‘A’-‘Z’, ‘0’-‘9’ and ‘_’.
The max. length is 16 characters. After input the data as Fig. 3-6 click
<Apply> button.
The default setting of user account is:
Username: admin
Password: admin
Parameter description:
Old Password:
Input the old password
New Password:
Input new password
Confirm:
Input the new password again
Fig. 3-6

Publication date: March, 2011
Revision A2
12
3-3-3. Converter Configuration
Function name:
Converter Configuration
Function description:
This converter provides the following configurable parameters.
Parameter description:
Jumbo Frame(9K):
If enable this function, the media converter could pass the max. 9KB
packets.
Link Transparent:
Only if link transparent is enabled, the Remote Fault Detect and Link
Loss Carry Forward will take effect.
Remote Fault Detect:
If enable this function, when fiber port enable TS-1000 and receive OAM
packet. This converter will set local UTP port link up or link down
Fig. 3-7 Converter Configuration

Publication date: March, 2011
Revision A2
13
according to remote device’s UTP port link status. This function need
enable link transparent first.
Link Loss Carry Forward:
If enable this function, when the UTP port link down, the fiber port will be
forced link down. And the fiber will be resume when UTP port link up.
This function need enable link transparent first.
Notice
：
If local MC (Media Converter) enables TS1000 and is configured as
Center Mode, when configuring Jumbo Frame and Link Transparent
functions for local MC, the remote MC will be configured at the
same time even if it is a dump MC. And the configuration of remote
side is the same as local side.
Forward CRC Error Frame:
If enable this function, the CRC error packet will be pass, otherwise, the
CRC error packets will be dropped.
Forward Pause Frame:
If this function was enabled, this MC will forward pause frame and regard
it as a normal packet.
Management Packet High Priority:
If enable this function, this MC will enable QOS. We enable four queues,
and set queue 3 as strict priority. All management packets, such as
802.3ah OAM packets will be in queue 3 to guarantee bandwidth.
Broadcast Storm Filter, Multicast Storm Filter, Unknown DA Unicast Storm
Filter:
If enable this function, when too many broadcast/multicast/unknown DA
unicast packets arrive in a period time, the packets will be dropped.

Publication date: March, 2011
Revision A2
14

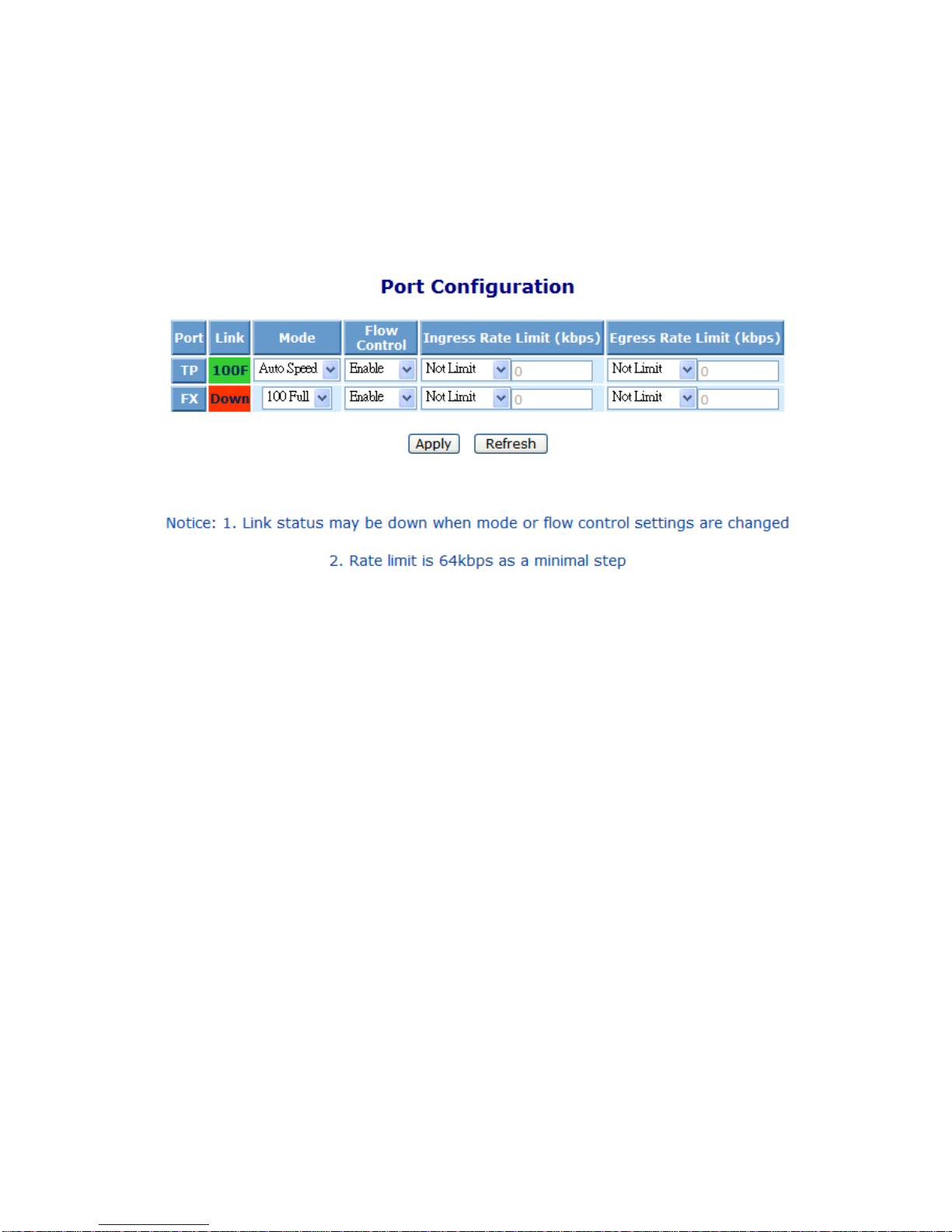

3-3-4. Port Configuration
Function name:
Port Configuration
Function description:
Change the state and configuration of each port. This page could set local
device’s port status, include work mode, flow control ability, ingress and
egress rate limit.
Parameter description:
Port:
The TP Port is MEDIA CONVERTER’s Ethernet UTP interface.
The FX Port is MEDIA CONVERTER’s Ethernet Fiber interface.
Link:
Show port current link status:
100F = Speed 100M, Full Duplex Mode
100H = Speed 100M, Half Duplex Mode
10F = Speed 10M, Full Duplex Mode
10H = Speed 10M, Half Duplex Mode
Down = Link Down
Mode:
The Auto Speed algorithm to exchange the capability with the linked
partner. When enabled, the speed, duplex mode and flow control mode
may change. You must have both port configuration of local port and
linked partner be the same. If their configuration is different, the link will
not be set up successfully. In WEB SMART MEDIA CONVERTER, fiber
port supports forced mode only.
Set the mode of speed and duplex. In speed, 10/100Mbps baud rate is
Fig. 3-8 Port Configuration
