Ruggear Rg935 Supplement

935

Model : PTM01G

CONTENTS

ENGLISH --------------------------------------------------------------------

DEUTSCH -------------------------------------------------------------------

DANSK ----------------------------------------------------------------------

SUOMI ----------------------------------------------------------------------

FRANÇAIS ------------------------------------------------------------------

ITALIANO ------------------------------------------------------------------

NEDERLANDS ------------------------------------------------------------

PORTUGUESA ------------------------------------------------------------

-------------------------------------------------------------------------

Version: 2022-01-19

Power Idea Technology (Shenzhen) Co., Ltd.

4th Floor, A Section, Languang Science&technology

Building, No.7 Xinxi RD, Hi-Tech Industrial Park North,

Nanshan District, ShenZhen, P.R.C

ةيِبَرَعلا

5 8

674 9

1615 17

SIM

micro

SIM/Micro SD

1.2.3.

ENGLISH

1. KEYS AND SPECIAL FEATURES (SEE ILLUSTRATION ON PAGE 3)

1_SOS KEY: Press and hold to select an emergency number stored by you. This function can only be used with an optionally available LWP app.

2_POWER INDICATOR, PLEASE SEE THE DETAILED DEFINITION IN 8.5.

3_FRONT CAMERA

4_MIC/BAROMETRIC SENSOR

5_FUNCTION/CUSTOMIZED KEYS : F1/F2/F3, programmable keys used by different apps.

6_BACK KEY/HOME KEY/RECENT APPLICATION.

7_VOLUME KEY: Volume up/Volume down.

8_POWER KEY: Press and hold to power the device ON/OFF. Press briefly to power. ON/OFF the standby mode.

9_LOUDSPEAKER

10_4 POGOS PINS CONNECT THE DOCKING STATION FOR TABLET CHARGING.

11_SIM CARD/MICRO SD SLOT: Supports Nano SIM card or microSD card.

12_3.5MM AUDIO JACK

13_TYPE A: Connects the Type-A OTG device; charging is not supported.

14_TYPE C: To charge and connect the device with the included USB cable, and also connect the Type C OTG device.

15_BATTERY STATUS INDICATOR LED1: Indicates the level of battery #1; please see the details in 8.5.

16_REAR CAMERA

17_BATTERY STATUS INDICATOR LED2: Indicates the level of battery #2; please see the details in 8.5.

18_FLASH: Optional when taking pictures/videos or works as a flashlight.

19_BATTERY 1: removable battery.

20_BATTERY 2: removable battery.

21_BATTERY COVER LOCK: Use to unlock/lock the battery cover.

22_6 SCREW HOLES: Use to fasten the VESA standard mounting bracket or band strap.

2. INTRODUCTION

This document contains information and safety regulations that must be observed for the safe operation of device RG935 under the described onditions. Non-

observance of information and instructions can have serious consequences and may violate regulations. Please read the manual and these safety instructions before

using the device. In the case of any doubt, the English version takes precedent.

The current EU declaration of conformity, certificates, safety instructions and manuals can be found at www.RugGear.com or can be requested from Power Idea

Technology (Shenzhen) Co., Ltd.

3. RESERVED

The content of this document is presented as it currently exists. Power Idea Technology (Shenzhen) Co., Ltd. does not provide any explicit or tacit guarantee for the

accuracy or completeness of the content of this document, including, but not restricted to, the tacit guarantee of market suitability or fitness for a specific purpose

unless applicable laws or court decisions make liability mandatory.

Power Idea Technology (Shenzhen) Co., Ltd. reserves the right to make changes to this document or to withdraw it any time without prior notice. Changes, errors

Power Idea Technology (Shenzhen) Co., Ltd. cannot be held responsible for any data or other loss and direct or indirect damages caused by any improper use of

this device.

4. EU DECLARATION OF CONFORMITY

The EU declaration of conformity can be found at the end of this manual.

5. SAFETY ADVICE

• Do not touch the screen of the device with sharp objects. Dust particles and fingernails can scratch the screen. Keep the screen clean. Gently remove dust from the

screen with a soft cloth and do not scratch the screen.

• Do not leave the device in environments with excessive temperatures, as this could lead to the battery overheating, resulting in fire or explosion.

• Do not charge the device near any flammable or explosive substances.

• Only charge the device in dry indoor conditions.

• Do not charge the device in dusty or humid environments.

• Do not use the device in any areas where use is prohibited by regulations or legislation.

• Do not expose the device or charger to strong magnetic fields, such as those emitted from induction ovens or microwaves.

• Do not attempt to open or repair the device.

• Incorrect repair or opening can lead to the destruction of the device, fire or explosion.

• Only authorized personnel are permitted to repair the device.

• Only use accessories approved by Power Idea Technology (Shenzhen) Co., Ltd.

• Power off the device in hospitals or other places where the use of mobile phones is prohibited.

• This device may adversely affect medical equipment, such as pacemakers.

• Always keep a distance of at least 15 cm between the device and such equipment.

• Make sure the volume level is not set at an excessive level when connecting earphones and headphones to protect your hearing.

• Observe all corresponding laws that are in force in the respective countries regarding the use of devices while operating a vehicle.

• Power off the device and disconnect the charging cable before cleaning the device.

• Do not use any chemical cleaning agents to clean the device or the charger.

• Use a damp and anti-static soft cloth for cleaning.

• The adapter must be installed near the equipment and be easily accessible.

• The device must only be connected to a USB interface, version USB 2.0.

• Do not discard old and abandoned lithium batteries into household waste, take them to a designated waste disposal point.

• The user is solely liable for any and all damages and liabilities caused by malware downloaded when using the network or other data-exchange functions of the

device. Power Idea Technology (Shenzhen) Co., Ltd. cannot be held responsible for any such claims.

WARNING

Power Idea Technology (Shenzhen) Co., Ltd. will not assume any liability for damage caused by disregarding any of this advice or by any inappropriate use of the

device.

6. BATTERY

There is a risk of explosion if the battery is replaced by an incorrect type. Dispose of used batteries according to the instructions.

7. PREPARATION

7.1. INSTALL THE BATTERY (SEE ILLUSTRATION ON PAGE 3)

7.1.1 With the back of the tablet facing up, as shown in Figure 1, open the upper and lower locks of the battery cover up or down respectively.

7.1.2 Then slide the battery cover slider lock outwards, and when it reaches the final position, use the other hand to buckle the battery cover from the side of the

battery cover.

7.1.3 Remove the battery cover and put the battery in the battery compartment.

SIM

micro

SIM/Micro SD

SIM

micro

SIM/Micro SD

SIM

micro

SIM/Micro SD

7.1.4 After the battery cover is installed, press the edge of the battery cover with your hand to fasten the upper and lower buckle locks.

Tips:

1. When the battery cover is not fully pressed into place, the upper and lower buckle locks cannot be locked.

2. When the upper and lower buckle locks of the battery cover are not fully opened, install the battery cover. The battery cover will not be pressed tightly.

Note:

Please ensure that the rubber cover of the device's earphone and USB connector are perfectly sealed to make the waterproof and dustproof function work well.

No special declaration will be made later on.

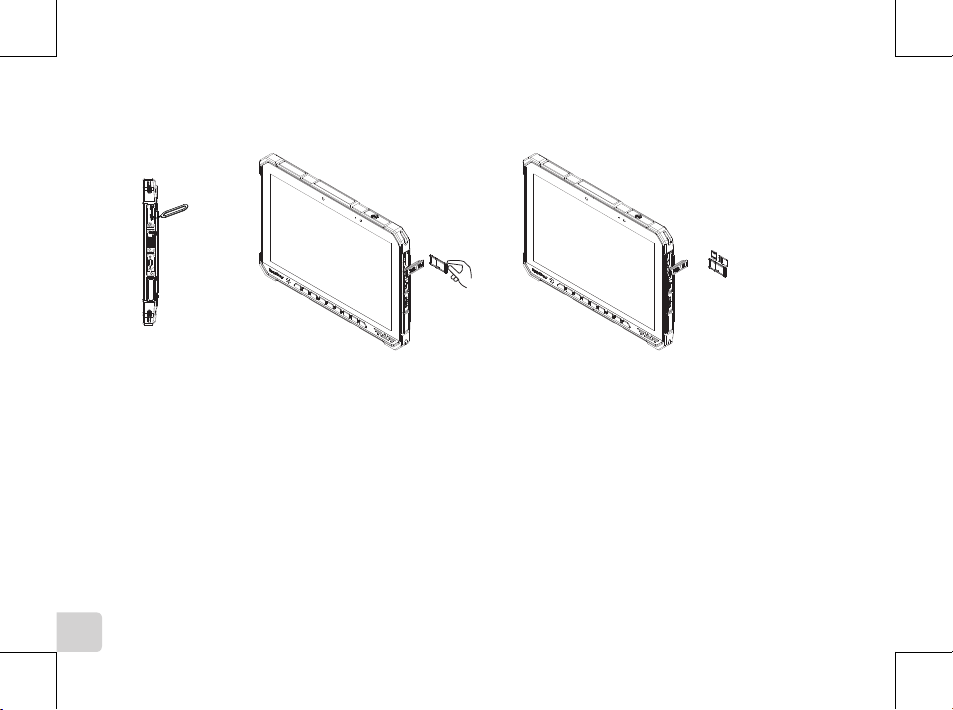

7.2. INSTALLATION OF THE NANO SIM CARD (see illustration on page 3)

The device has two slots for nano SIM cards.

Use the ejector pin to access the SIM card slot until the SIM card tray is ejected.

7.3 INSTALLATION OF THE MICROSD CARD (see illustration on page 3)

The device supports amicroSD card (up to 256 GB). It is located in the SIM card tray. SIM slot 2 can support either amicroSD card or an additional SIM card. Example:

one SIM card and microSD, or two SIM cards and no microSD.

WARNING

Please insert or remove the microSD card when the device is switched off.

Note:

Make sure that the rubber cover on the earphone and USB connector of the device are fully sealed to ensure complete waterproofing and dustproofing.

No special declaration will be made in the future.

7.4. CHARGING

The RG935 supports 9V/2A charging, Only use valid RugGear licensed chargers and cables because

unlicensed products may cause the battery to explode or damage the device.

The device must only be charged in an ambient temperature range of +0°C to +45°C. The normal

operating temperature of this mobile phone is -10°C to 50°C.

8. INTRODUCTION TO FUNCTIONS

8.1. Function/customized keys (F1/F2/F3)

2. When the upper and lower buckle locks of the battery cover are not fully opened, install the battery cover. The battery cover will not be pressed tightly.

Note:

Please ensure that the rubber cover of the device's earphone and USB connector are perfectly sealed to make the waterproof and dustproof function work well.

No special declaration will be made later on.

SIM

micro

SIM/Micro SD

The device supports amicroSD card (up to 256 GB). It is located in the SIM card tray. SIM slot 2 can support either amicroSD card or an additional SIM card. Example:

one SIM card and microSD, or two SIM cards and no microSD.

WARNING

Please insert or remove the microSD card when the device is switched off.

SIM

micro

SIM/Micro SD

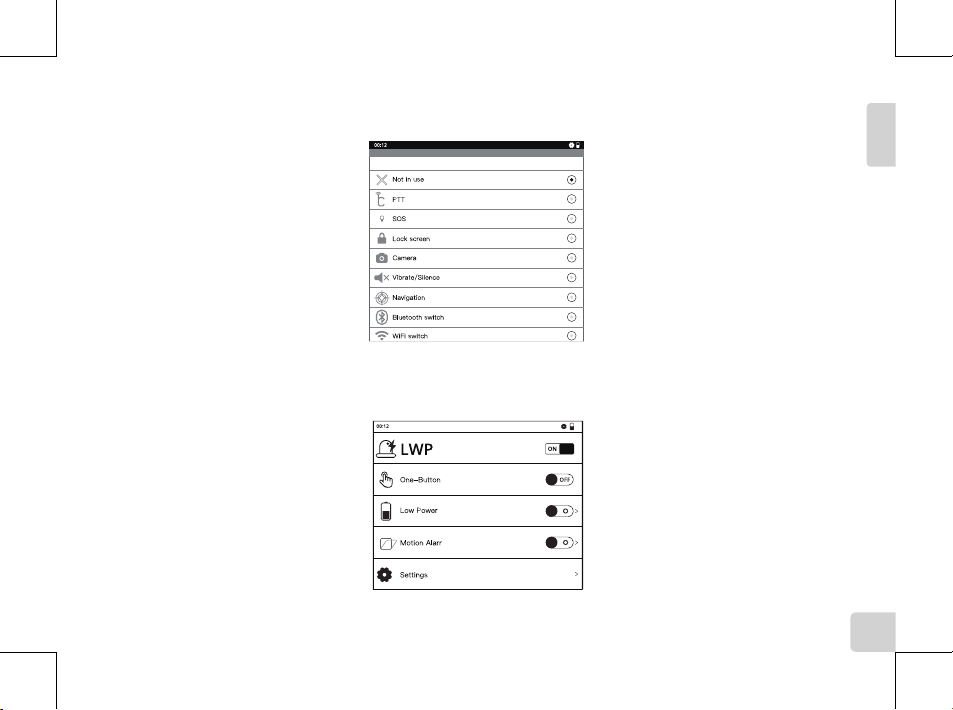

Function keys (F1/F2/F3) are customized keys, you can choose and modify the features that you want to. When using one for the first time, it must be set it in your

app (CustomKey). The F1 key can be used as a PTT key. Select PTT in the menu list, then press and hold the F1 key to enable software talkback.

8.2. Multifunctional Alarm (LWP)

The multifunctional alarm is the feature that detects the status of the mobile phone status during motion and rest and automatically notifies the emergency contact

via phone call/SMS.

1. Default password: 1122.

2. After opening the application for the first time, a default phone number is requireed to be set for the alarm.

3. If the mobile phone uses two SIM cards, a default phone number is required to be set for calling/SMS.

Please select the features you want

SetF1

PTT

S S

8.3. Take a screenshot

Press the “power key ”and ”volume -“ at the same time to take a screenshot.

8.4. Battery icon on the screen

When two batteries are used at the same time, the battery icon on the screen represents the total capacity percentage of battery 1 + battery 2.

When a single battery is used, the battery icon indicates the percentage of this single battery's capacity.

8.5. Indicator light description

LED indicator light (Front )

LED Status Indication

The red light is always on. Charging

The green light is always on. Fully charged 100%

Red light flashes continuously. Low battery ＜15%, tablet needs to be recharged, or just replace the battery.

Battery status indicator (Rear) The orange light is always on. Low battery ＜30%, tablet needs to be recharged or just replace the battery.

The red light is always on. Low battery ＜15%, battery hot switch is about to disable.

8.6. I/O Interface notice (Type C &Type A)

1. Type A (USB 2.0): Connect the Type A OTG device. Charging is not supported.

2. Type C (USB 3.1 Gen): To charge and to connect the device with the included USB cable; to connect the Type C OTG device and support DP video output and Type C

one-line extra display.

3. When Type C is used alone, it supports the USB 3.1 Gen speed rate.

4. If an I/O interface (Type C or Type A) is already connected to an OTG device, and the other interface is connected to an OTG device, the device connected first has a

risk of reconnection.

5. When a Type C or Type A interface is connected to OTG device, the tablet can only be the master device (connected to OTG device), and the slave device mode

(such as U drive mode ) is not supported.

6. When a Type C and Type A interface are used at the same time, Type C does not support the USB3.1Gen speed rate and automatically changes to the USB2.0 speed

rate.

7. Operation of all USB-compatible peripherals not guaranteed.

9. RECYCLING

The crossed-out wheelie-bin symbol on the product, battery, literature, or packaging is a reminder that all electrical and electronic products, batteries, and

accumulators must be taken to separate collection points at the end of their working life. This requirement applies in the European Union. Do not dispose of

these products as unsorted municipal waste. Always return used electronic products, batteries, and packaging materials to dedicated collection points. This

helps prevent uncontrolled waste disposal and promotes the recycling of materials. More detailed information is available from the product retailer, local

waste authorities, national producer responsibility organisations, or your local Power Idea Technology (Shenzhen) Co., Ltd. representative.

10. INFORMATION CONCERNING CE SAR CERTIFICATION (SPECIFIC ABSORBATION RATE)

The SAR limit of Europe is 2.0W/kg for the head and Body, 4.0W/kg for the limbs. The device has been tested against this SAR limit. The highest SAR value reported
