RuggVMC RuggON VX-601 User manual

VX-601
User’s Manual
V1.6

2

3
Contents
CONTENTS..................................................................................................................................................................... 3
SAFETY PRECAUTIONS........................................................................................................................................... 6
REGULATORY AND CERTIFICATION.................................................................................................................. 8
FCC...................................................................................................................................................................................................8
CE MARKING..................................................................................................................................................................................9
RED..................................................................................................................................................................................................9
LITHIUM BATTERY SAFETY STATEMENT...............................................................................................................................9
CHAPTER 1. PRODUCT INTRODUCTION........................................................................................................10
HARDWARE SPECIFICATIONS................................................................................................................................................ 10
ENVIRONMENT............................................................................................................................................................................ 11
I/O PORTS.................................................................................................................................................................................... 12

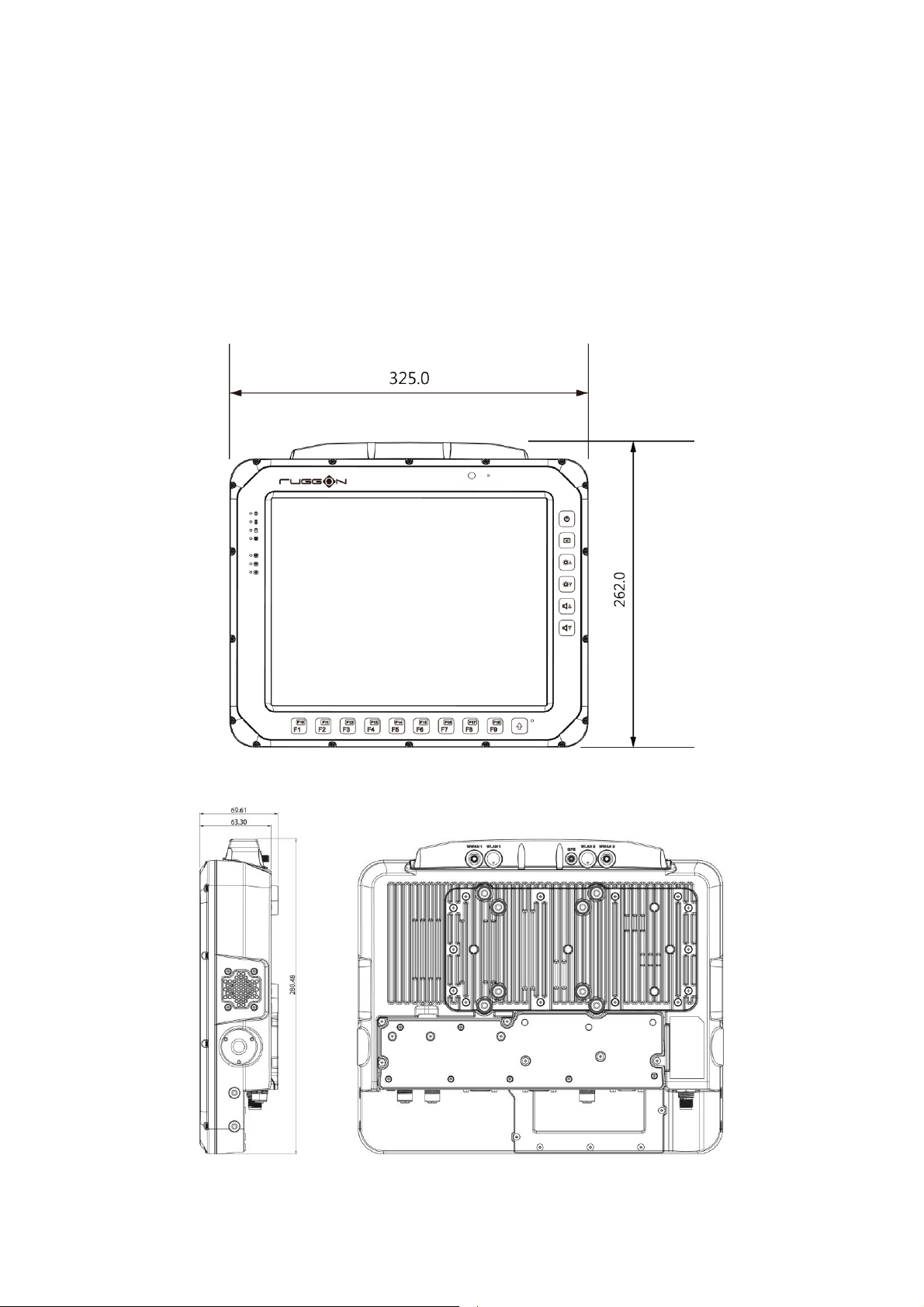

DIMENSION AND WEIGHT........................................................................................................................................................ 13
VX-601 STANDARD............................................................................................................................................................. 13
VX-601WITH I/O WATER-PROOF BOX.......................................................................................................................... 14
PACKAGE LIST ............................................................................................................................................................................ 15
CHAPTER 2. HARDWARE INSTALLATION......................................................................................................17
M.2 MODULE............................................................................................................................................................................... 17
INSTALLING/REMOVING A M.2 MODULE....................................................................................................................... 17
ACCESSING THE SD CARD.......................................................................................................................................19
INSTALLING/REMOVING THE SIM CARD ............................................................................................................................ 21
INTERNAL SIM SLOT............................................................................................................................................................ 21
INSTALLING/REMOVING THE WWAN MODULE ............................................................................................................... 22
INSTALLING WWANANTENNAS........................................................................................................................................... 23
EXTERNALANTENNAS........................................................................................................................................................ 23
INSTALLING WLAN ANTENNAS ................................................................................................................................................. 24
EXTERNALANTENNAS........................................................................................................................................................ 24
INSTALLING/REMOVING ANTENNA BOX................................................................................................................................... 25
CHAPTER 3. HARDWARE MOUNTING.............................................................................................................26
INSTALLING U-SHAPE MOUNT.................................................................................................................................................... 26

4
CHAPTER 4. START UP ..........................................................................................................................................29
POWERING THE SYSTEM........................................................................................................................................................ 29
CONNECTOR POWER.......................................................................................................................................................... 29
POWER SOURCE FROM CAR POWER CABLE............................................................................................................... 30
POWER SOURCE FROM EXTERNAL POWER ADAPTER............................................................................................. 30
POWER ON THE SYSTEM................................................................................................................................................... 31
LED STATUS................................................................................................................................................................................ 31
ADJUST THE SPEAKER VOLUME.......................................................................................................................................... 33
AUTO-BRIGHTNESS ADJUSTMENT...................................................................................................................................... 33
MANUAL BRIGHTNESS ADJUSTMENT................................................................................................................................. 34
INTERNAL MICROPHONE......................................................................................................................................................... 34
DISPLAY ON/OFF ........................................................................................................................................................................ 34
DEFROST ON/OFF (ONLY AVAILABLE UPON REQUEST)................................................................................................. 34
PROGRAMMABLE BUTTONS................................................................................................................................................... 35
POWER MANAGEMENT............................................................................................................................................................ 35
CHAPTER 5. JUMPERS AND CONNECTORS................................................................................................36
BOTTOM VIEW............................................................................................................................................................................... 36
EXTERNAL CONNECTORS PIN ASSIGNMENTS................................................................................................................ 37
POWER CONNECTOR .................................................................................................................................................................. 37
RS-232 PORT (COM1)..................................................................................................................................................... 38
RS-232/422/485 PORT (COM2).................................................................................................................................. 39
DIGITAL I/O, CANBUS AND DR PORT........................................................................................................................... 40
VIDEO PORT........................................................................................................................................................................... 41
CHAPTER 6. KEY MAPPING .................................................................................................................................42
CHAPTER 7. DASHON SETTING.........................................................................................................................43
DEVICE INFORMATION.............................................................................................................................................................. 44
VEHICLE STATUS ....................................................................................................................................................................... 45
COMMUNICATION SETTING.................................................................................................................................................... 46
ENABLE/DISABLE MODULE.............................................................................................................................................. 46
WWAN COMMUNICATION SETTING.............................................................................................................................. 47
SYSTEM STATUS &SETTING................................................................................................................................................. 48
POWER MANAGEMENT SETUP........................................................................................................................................ 48
WAKE UP SETTING............................................................................................................................................................... 53
I/O CONFIGURATION ........................................................................................................................................................... 55

5
BRIGHTNESS SETTING………………………………………………………………………………….56
WATCHDOG TIMER....................................................................................................................57
PROGRAMMABLE BUTTON................................................................................................................................................ 59
LOCATION AND SENSOR.......................................................................................................................................................... 62
ENABLE/DISABLE GPS RECEIVER.............................................................................................64
SERIAL PORT SETTING..............................................................................................................65
BAUD RATE SETTING.......................................................................................................................................................... 65
CHAPTER 8. MAIN BIOS SETTING.....................................................................................................................66
SET BOOT SEQUENCE............................................................................................................................................................. 66
SET THE SYSTEM CONFIGURATION..................................................................................................................................... 67
SETTING THE SYSTEM DATE ......................................................................................................67
SETTING THE SYSTEM TIME.......................................................................................................67
SYSTEM INFORMATION............................................................................................................................................................ 68
BOOT FEATURES ....................................................................................................................................................................... 68
MISCELLANEOUS CONFIGURATION..................................................................................................................................... 69
ACCOUNT’S PASSWORD SETTING....................................................................................................................................... 69
HDD SECURITY SETTING....................................................................................................................................................... 70
CHAPTER 9. WI-FI HOTSPOT SETUP...............................................................................................................71

6
Safety Precautions
1. Read these safety instructions carefully. 
2. Keep this user’s manual for later reference. 
3. Disconnect this equipment from anyAC outlet before cleaning. Use a damp cloth. Do
not use liquid or spray detergents for cleaning. 
4. For plug-in equipment, the power outlet socket must be located near the equipment and
must be easily accessible. 
5. Keep this equipment away from humidity. 
6. Put this equipment on a stable surface during installation. Dropping it or letting it fall
may cause damage. 
7. Do not leave this equipment in either an unconditioned environment or in an above
40oC storage temperature as this may damage the equipment. 
8. The openings on the enclosure are for air convection to protect the equipment from
overheating. DO NOT COVER THE OPENINGS. 
9. Make sure the voltage of the power source is correct before connecting the equipment
to the power outlet. 
10. Place the power cord in a way so that people will not step on it. Do not place anything
on top of the power cord. Use a power cord that has been approved for use with the
product and that it matches the voltage and current marked on the product’s electrical
range label. The voltage and current rating of the cord must be greater than the volt-
age and current rating marked on the product. 
11. All cautions and warnings on the equipment should be noted.
12. If the equipment is not used for a long time, disconnect it from the power source to avoid
damage by transient overvoltage.
13. Never pour any liquid into an opening. This may cause fire or electrical shock.
14. Never open the equipment. For safety reasons, the equipment should be opened only
by qualified service personnel.
15. If one of the following situations arise, get the equipment checked by service personnel:
a. The power cord or plug is damaged.
b. Liquid has penetrated into the equipment.
c. The equipment has been exposed to moisture.
d. The equipment does not work well, or you cannot get it to work according to the

7
user’s manual.
e. The equipment has been dropped and damaged.
f. The equipment has obvious signs of breakage.
16. Do not place heavy objects on the equipment.
17. The unit uses a three-wire ground cable which is equipped with a third pin to ground the
unit and prevent electric shock. Do not defeat the purpose of this pin. If your outlet does
not support this kind of plug, contact your electrician to replace your obsolete outlet.
18. CAUTION: DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED.
REPLACE ONLY WITH THE SAME OR EQUIVALENT TYPE RECOMMENDED BY
THE MANUFACTURER. DISCARD USED BATTERIES ACCORDING TO THE
MANUFACTURER’S INSTRUCTIONS.
19. Continuously displaying a fixed pattern may induce image sticking. It’s recommended to
use screen saver or shuffle content periodically when a fixed pattern is displayed on the
screen.

8
Regulatory and Certification
FCC
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may
cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and the receiver.
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Shielded interconnect cables and shielded AC power cable must be employed with this
equipment to insure compliance with the pertinent RF emission limits governing this device.
Changes or modifications not expressly approved by the system’s manufacturer could void
the user’s authority to operate the equipment.

9
Any changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
This device is operable in 5.15 –5.25GHz frequency range, then restricted in
indoor use only, Outdoor operations in the 5.15 –5.25GHz is prohibitive.
.
CE Marking
This product has passed the CE test for environmental specifications when shielded cables
are used for external wiring. We recommend the use of shielded cables. Please contact your
local representative for ordering information.
This product has passed the CE test for environmental specifications. Test conditions for
passing included the equipment being operated within an industrial enclosure. In order to
protect the product from being damaged by ESD (Electrostatic Discharge) and EMI leakage,
we strongly recommend the use of CE-compliant industrial enclosure products.
RED
This device complies with the essential requirements of the RED.
Lithium Battery Safety Statement
Lithium battery inside. Danger of explosion if battery is incorrectly replaced. Replace only
with the same or equivalent type recommended by battery manufacturer.
THIS PRODUCT CONTAINS LITHIUM-ION BATTERY PACKS. IT MUST BE
DISPOSED OF PROPERLY. CONTACT LOCAL ENVIRONMENTALAGENCIES
FOR INFORMATION ON RECYCLING AND DISPOSAL PLANS IN YOUR AREA.

10
Chapter 1. Product Introduction
VX-601 is a 12.4”in-vehicle terminal with 700/1200nits brightness display and is flexible to
support a wide range of wireless connection capability. The device is well-suited for
warehouse management, harbor management, asset management applications. VX-601’s
optimized power system is designed for cold cranking, load dump, transient voltage and
ESD. The device is engineered with IP66 protection rating, a wide temperature design, wide
input range, and rich expanding interfaces that support in-vehicle connectivity.
Hardware Specifications
Item
Description
Processor
Intel® Core™ i5-6300U 2.4GHz Processor
Intel® Celeron® Processor 3955U 2.0GHz Processor
Memory
DDR3L 4GB SODIMM up to 32GB (32GB by request)
Storage
M.2 2280 x 1, SD slot x 1
Display
12.1-inch XGA (1024 x 768)
700/ 1200 nits
Viewing angel: 160(H)/ 160(V) (CR>10)
Touch Panel
Resistive touch screen support optional defrost
Projected Capacitive Touch Screen (by request)
Wireless
Connectivity
802.11 a/b/g/n/ac 2x2
Bluetooth 4.0 + HS
GPS / QZSS or GLONASS (COM3, optional)
1 mini PCIe slot (full size) for cellular module
External SMB Jack connectors for wireless expansion (GPS)
*support external antenna only
External RP-SMA Jack connectors for wireless expansion
(Wi-Fi/BT/WWAN)
*Wi-Fi supports external or internal, the default setting is internal
antenna. Support external antenna SMA Jack change. WWAN
support external antenna only.

11
Item
Description
Power Input
9~60VDC,12A
Battery
4500mAh, 10.8V
Housing
(Mechanical)
Die-casting aluminum, fanless design
Certification
CE, FCC, CB
Environment
Operating temperature:
-30°C (-22°F) to 55°C (131°F)
In accordance with MIL-STD-810G CHANGE1 Method 501.6 High Temperature
Procedure II - Operation
In accordance with MIL-STD-810G CHANGE1 Method 502.6 Low Temperature
Procedure II –Operation
Storage temperature:
-40°C (-40°F) to 70 °C (158°F)
In accordance with MIL-STD-810G CHANGE1 Method 501.6 High Temperature
Procedure I –Storage
In accordance with MIL-STD-810G CHANGE1 Method 502.6 Low Temperature
Procedure I - Storage
Relative humidity:5% to 95% @ 30°C (86°F) to 60°C (140°F) non-condensing in
accordance with MIL-STD-810G CHANGE1 Method 507.6 Humidity Procedure II
Aggravated Cycles (Fig 507.6-7)
Vibration Test:
Operating: MIL-STD-810G CHANGE1 Method 514.7 Category 4,
Fig 514.7C-2 Common carrier (US highway truck vibration exposure);
Fig 514.7C-3 Composite two-wheeled trailer;
Fig 514.7C-4 Composite wheeled vehicle
Non-Operating: MIL-STD-810G CHANGE1 Method 514.7 Category 24, Fig
514.7E-1 (General minimum integrity exposure)
Shock Test:
Operation: MIL-STD-810G CHANGE1 Method 516.7 Procedure 1 Functional

12
Shock
Non-Operation: MIL-STD-810G CHANGE1 Method 516.7 Procedure V Crash
Hazard Shock
I/O Ports
Item
Description
Serial
RS-232 x 1 with 0/5/12V support 0.6A (COM1)
RS-232/422/485 x 1 (COM2)
USB
USB 3.0 x 1
USB 2.0 x 1
Ethernet
Gigabit RJ45 x 1
Digital I/O
2 DI and 2 DO
CAN
CANbus (SAE J1939 / OBDI II supported)
Audio
Headset jack x 1
Internal MIC-in x 1
Speaker
Waterproof speakers 3W

13
Dimension and Weight
VX-601 Standard
Dimension（w/ antenna cover）:325 x 280 x 67.3mm / 12.80 x 11.02 x 26.50in. (W x H x D)
Dimension（w/o antenna cover）325 x 262 x 67.3mm/ 12.80 x 10.31 x 26.50in. (W x H x D)
Weight: 4.83 kg/ 10.65 lbs. (with storage)
Front View Dimension
Side View Dimension

14
VX-601 with I/O water-proof box
Dimension（w/ antenna cover）:325 x 280 x 69.6 mm / 12.8 x 11.02 x 2.7in.(W x H x D)
Dimension（w/o antenna cover）: 325 x 262 x 67.3mm/ 12.80 x 10.31 x 26.50in.(W x H x D)
Weight: 4.90 kg / 10.80 Ibs. (with storage)
Front View Dimension
Side View Dimension

15
Package List
Before you begin the installation or configuration process, make sure to inspect all the
components and accessories. Contact your representative if there are any missing or
damaged items.
Please verify the delivery of the contents upon receipt
VX-601 vehicle mount computer
Protection film (You can choose to paste it on the screen. See the image below)
Accessory Box:
Bare wire power cable with circular power connector
Thermal pad
Cable tie
NOTE: The packaging material has been selected to optimally protect your device. After
unpacking, store the original packaging material in the event that you need to return for
shipment.

16

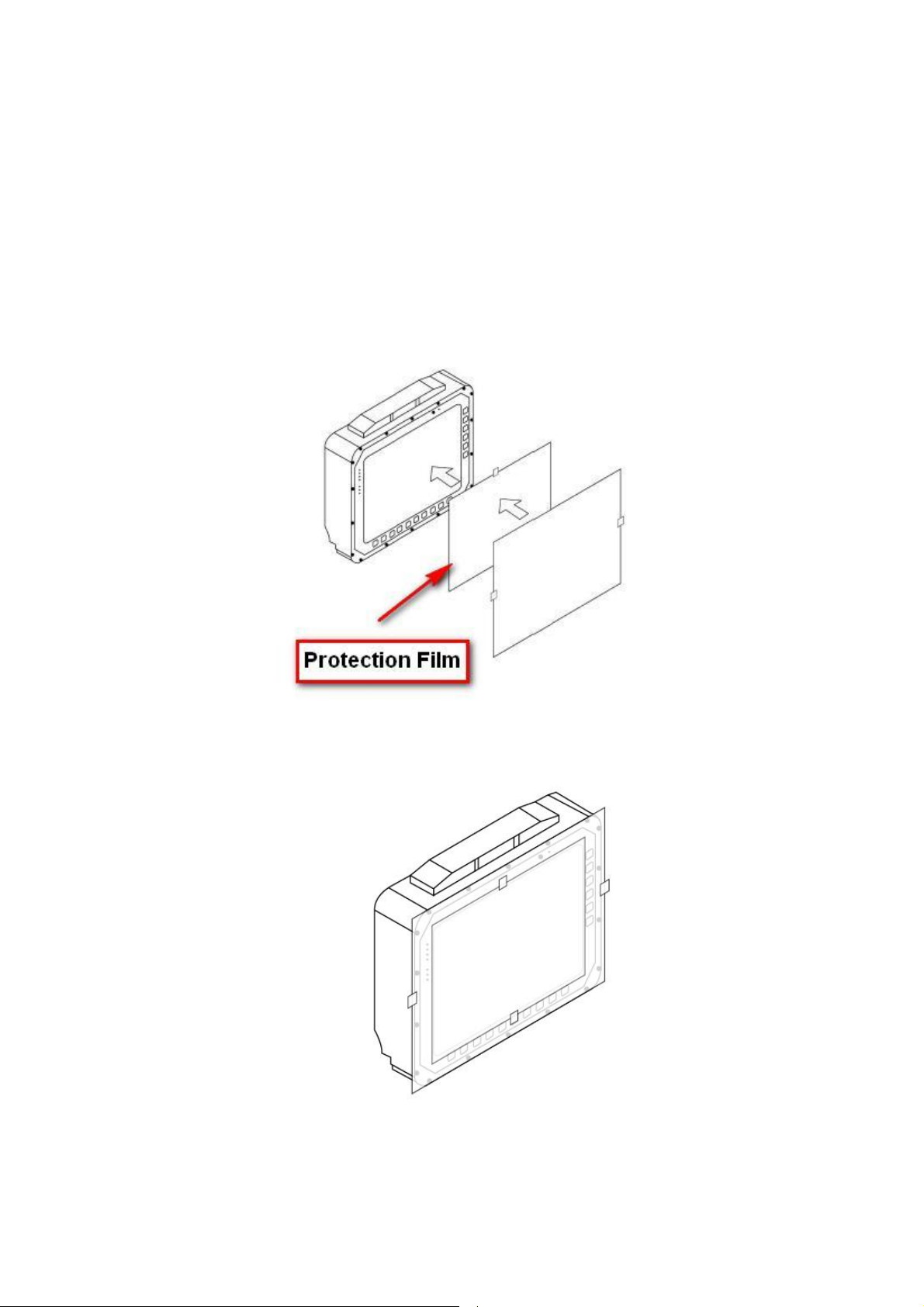

The protection film is placed on the product screen in the package. You can use it to
increase touch screen durability and protection from scratching, etching, and damage.
Designed with a low-tack adhesive, the protection film is easy to apply and remove. It is also
engineered to be touch-sensitive and won't affect touch or swipe functions. You can choose
whether you want to paste it onto the touch screen or not.

17
Chapter 2. Hardware Installation
This chapter provides information for the installation and removal of M.2 storage and mini
PCIe card.
M.2 Module
Prevention of EMI interference in this device is not guaranteed if the original components are
replaced.
A single M.2 2280 module slot is available for memory expansion. The device supports up to
256GB.
Installing/Removing a M.2 Module
1. Shut down the system properly and disconnect the device from all power sources.
2. Un-mount the device from the mounting apparatus; make sure that the display surface
is protected.
3. Remove the screws and the service cover.

18
4. Locate the M.2 module slot; see the following image.
5. Insert the M.2 module into the slot and then fasten the screws or loosen the screws to
remove the card
6. Replace the service cover.

19
Accessing the SD card
1. Remove the screws to open IO Module.
2. Then open the battery door and take out the battery

20
3. Insert the SD card (Please refer to the image below for the placement
position)
