Ruhle SR 2 BiTurbo User manual

Lebensmitteltechnik
Translation of the original instructions
- Cutting Centre
Type: SR 2 BiTurbo
Rühle GmbH, Beim Signauer Schachen 10, 79865 Grafenhausen
Germany
Tel.: [phone], Fax: [phone]
www.original-ruehle.de

Cutting Centre SR 2 BiTurbo
2
Table of contents
1 Safety instructions............................................................................. 3
1.1 Safety instructions ................................................................... 4
1.2 Remaining risk of accidents .................................................. 6
1.3 Intended use ............................................................................... 8
2 Installation instructions.................................................................... 9
2.1 Machine transport and setup ............................................... 9
2.2 Workplace description............................................................. 9
2.3 Connecting the machine .......................................................11
3 Operating instructions ....................................................................11
4 Cleaning instructions.......................................................................13
4.1 Safety instructions .................................................................13
4.2 Cleaning agents and disinfectants....................................14
4.3 Cleaning procedure.................................................................14
5 Service: care, maintenance, repair .............................................16
5.1 Regular care..............................................................................17
5.2 Regular maintenance.............................................................18
5.3 Repairs and spare parts........................................................19
6 Disposal................................................................................................19
7 Technical documentation ..............................................................20
7.1 Technical data..........................................................................20
7.2 Electrical circuit diagram ......................................................21
8 EC Declaration of Conformity according to Directive
2006/42/EC........................................................................................22
Status: 16.03.2022(Version 2.1)
Subject to change

Cutting Centre SR 2 BiTurbo
3

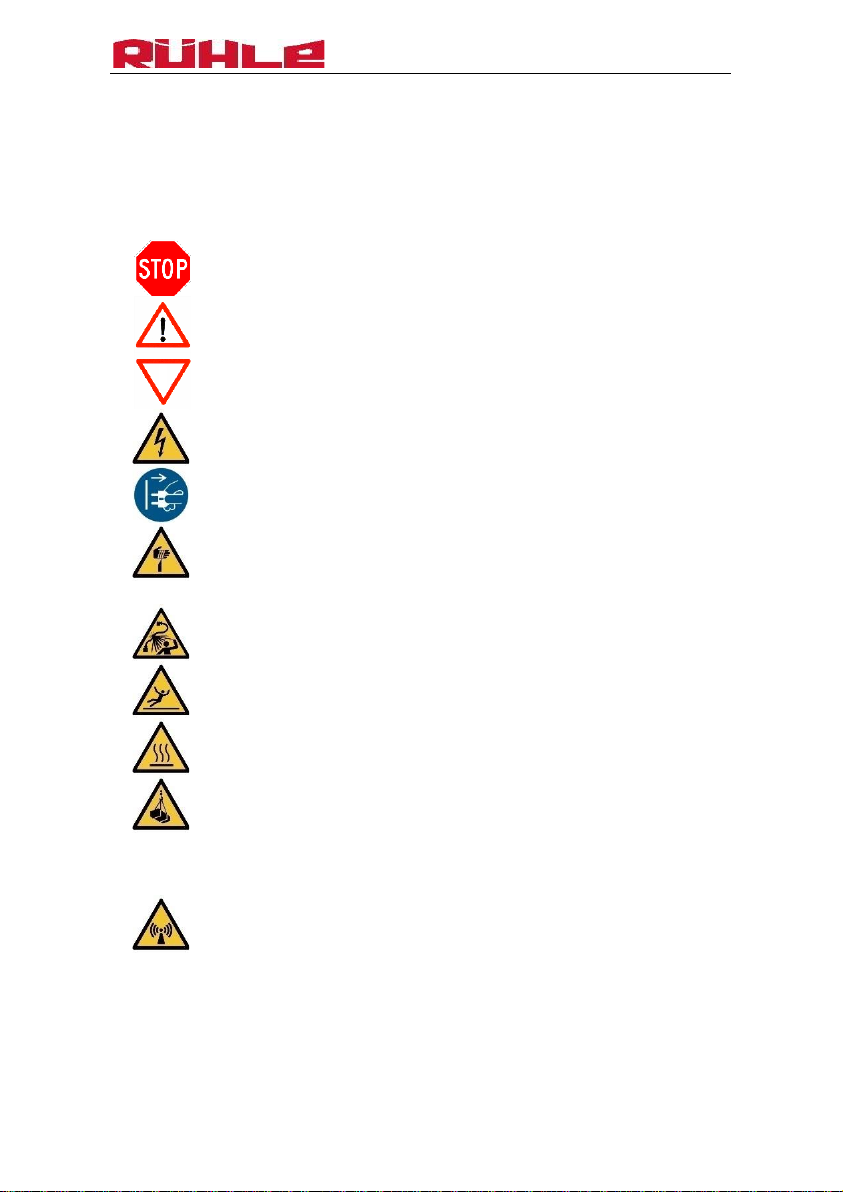

1Safety instructions
!!! Observe the safety instructions during the installation, operation,
cleaning and maintenance of the Rühle Cutting Centre!
Hazard potentially causing irreversible injuries if disre-
garded.
Warning potentially causing serious injuries if disre-
garded.
Note
Warning of electrical power.
Pull the mains plug!
Warning of sharp object. (Risk of cutting)
Hazard from bursting hoses.
Warning of slipping hazard.
Warning of hot surface.
Warning of suspended load.
Warning of non-ionising radiation.
Non-ionising radiation is not specifically generated, but is only
emitted by the electrical equipment (e.g. electric motors, power
lines or solenoid coils) for technical reasons. In addition, the
machine has no strong permanent magnets. If a safety dis-
tance (distance field source to implant) of 30 cm is maintained,
the influence on active implants (e.g. cardiac pacemakers, de-
fibrillators) can be excluded with a high degree of probability.

Cutting Centre SR 2 BiTurbo
4
1.1 Safety instructions
!!! A supervisor (responsible person) must be appointed for the ma-
chine!
This person must:
a) Completely read and understand these operating instructions
before transport, commissioning, setup, operation, cleaning,
decommissioning, care/maintenance as well as disman-
tling/disposal!
b) Prepare work instructions for intended and safe transport,
commissioning, setup, operation, cleaning, decommissioning,
care/maintenance as well as dismantling/disposal!
c) Ensure that the qualified workers have completely read and
understood the respective work instructions according to sec-
tion 1.1b!
d) Proper functioning of the protective devices must be checked
at least once a year by a Rühle service engineer!
e) Provide personal protective equipment!
All life cycle phases:
Use foot protection according to EN ISO 20345!
(e.g. recommended for butcher stores, dairies, meat and fish
processing: safety boots S4 with steel cap)
Use hand protection according to EN ISO 388!
(e.g. gloves with high cutting/puncture resistance)
Wear protective clothing according to EN ISO
13688! (e.g. appropriate aprons / coats / overalls)
Cleaning; care/maintenance; dismantling:
Use eye protection according to EN 166!
(e.g. tightly closing safety goggles)
Use light breathing masks according to EN ISO
149!
(e.g. simple breathing mask protection class FFP1)
Use hand protection according to EN ISO 374!
(acid-resistant, butyl rubber, Viton)

Cutting Centre SR 2 BiTurbo
5
Wear protective clothing according to EN ISO
13688, EN ISO 17491!
(e.g. appropriate coats / overalls)
[The information on the proposed personal protective equip-
ment has only an advisory function. A full risk assessment
should be carried out before using the product to assess
whether the indicated personal protective equipment is
suitable for local conditions. Personal protective equipment
should conform to the relevant EU standards.]
!!! The operator must operate the machine according to the intended
use and strictly observe all points listed in the “Operation” work in-
structions prepared by the supervisor.
!!! Before putting the machine into operation for the first time and on
each working day, the operator must check the functionality of the
following safety devices:
a) Visual check for changes or damages on all machine sides
and accessible machine parts, e.g. the cut-off knife. The ma-
chine must be shut down in the event of any damage or
changes!
b) Check the safety switches as follows:
Install upper belt section and transport belt, insert protective
guard, close the knife protection box, insert the slider and
close the funnel with it.
•Start the machine. –Open knife protection box 20 mm
wide. –If the machine does not switched off, it must be
shut down immediately!
•Start the machine. –Open the slider of the funnel 20 mm
wide. –If the machine does not switched off, it must be
shut down immediately!
•Open the knife protection box. –Dismantle the transport
belt and upper belt section. –Close the knife protection
box. –Start the machine. –If it should start, it must be shut
down immediately!
•Remove the grate frame. –Insert the slider. –Start the ma-
chine. –If it should start, it must be shut down immedi-
ately!

Cutting Centre SR 2 BiTurbo
6
!!! To shut down the machine the main switch must be turned to “0” -
OFF" and the power plug pulled from the outlet! Secure the machine
against further use!
!!! The supervisor must arrange for the repair of the non-functional
safety device by a Rühle service engineer. Until the corresponding
parts have been repaired, the supervisor must ensure that the ma-
chine or parts of the machine are not put into operation under any cir-
cumstances!
This applies also to leaking hydraulic systems!
!!! The cleaning personnel must observe the work procedures from the
“Cleaning” work instructions prepared by the supervisor.
!!! The maintenance personnel may only carry out work specified as
“regular care”, unless any other authorisation has been issued in writ-
ing by the manufacturer of the machine. The maintenance personnel
must observe the work procedures from the “Maintenance” work in-
structions prepared by the supervisor.
Disconnect the power plug for maintenance work!
!!! Do not modify the machine.
!!! Only use Rühle spare parts and accessories.
!!! The operating instructions as well as all other technical documents
included must be supplied completely when reselling the machine.
1.2 Remaining risk of accidents
!!! All life cycles phases
Damaged knife elements must be replaced!
Cut protection gloves must be worn when working:
•on the open knife protection box,
•on the cut-off knife,
•on the grate knives of the knife levels,

Cutting Centre SR 2 BiTurbo
7
•in the funnel, e.g. to remove product.
Reaching into the machine or the funnel during operation is
strictly prohibited!
Any manipulation and bypassing of the safety devices is
strictly prohibited!
Staying under the lifting aid is strictly prohibited!
When moving the lifting aid for unloading it must be re-
membered that the upper box may not be lifted above the
worktable height!
Risk of slipping and falling due to spilled hydraulic oil!
Make sure the floor under and around the machine is free
from oil!
If the machine is unattended, the knife protection box must
be closed before leaving the workplace, the lifting aid
moved to its top position and the fork folded onto the work-
table!
When processing very watery products, spraying form the
funnel may occur in spite of installed slider! With such prod-
uct it is recommended to stand to the side of the funnel
when the machine starts.
!!! Maintenance
Touching electrical components may cause serious inju-
ries or death.
Work on electrical equipment of the machine may only be
carried out by qualified technicians! Always disconnect
machine from the mains during this process!
The protective covers (lids on front and rear, etc.) may be
removed only while performing maintenance!
Beware of hot surfaces, e.g. drives, hydraulic unit, etc.
during maintenance work!
Danger from pressurised and/or escaping hydraulic oil!

Cutting Centre SR 2 BiTurbo
8
Work on the hydraulic system of the machine may only be
carried out by qualified technicians!
Always disconnect machine from the mains during this
process!
Depressurise the complete hydraulic system! !
Excessive contact with the hydraulic oil may cause skin ir-
ritation and eye injuries!
1.3 Intended use
The cutting centre may only be used to cut frozen foodstuff into cu-
bes, strips and slices. Special accessories are required for chop slices!
The room temperature must not exceed 12 °C for reasons of food hy-
giene!
This machine is intended:
•for use during work
•for use by persons over 18
•for use by instructed persons
•For a single tablet PC with the RÜHLE application
software (via Browser, IP address)!
Claims of any type for damage caused by use other than
the intended use are excluded!
Misuse:
•Any use other than the use listed above is strictly prohibited
and is considered misuse!
•Operating the machine in explosive atmospheres is prohib-
ited!
•Handling/processing products and materials which are not
foodstuffs is prohibited!
•Handling / processing of products containing bones, with the
exception of chop slices, is prohibited!
•The lifting aid may only be used for the Euro standard boxes
provided and which are stacked on a suitable undercarriage;

Cutting Centre SR 2 BiTurbo
9
it must not be overloaded (max. 120 kg)! Lifting of persons is
strictly prohibited!
•Connecting several tablet PCs with a machine is prohibited!
2Installation instructions
Installation and commissioning of the machine may only be carried
out in the presence of a Rühle service technician or by persons au-
thorised by Rühle.
Rühle GmbH Lebensmitteltechnik accepts no liability for any damage
resulting from failure to comply with these operating instructions.
2.1 Machine transport and setup
Please refer to the short instructions supplied with the machine re-
garding transport and setup of the cutting centre.
The machine and machine parts must be transported by 2
persons (1 person to operate the floor truck/1 person to
supervise transport).
The power supply line must not be damaged by driving
over or crushing it!
The machine must be shut down until a damaged power
supply line has been repaired!
Ensure that the machine is stable!
Foundation load: 7,1 kN/m²!
Set up the machine on a solid level floor with sufficient
load bearing capacity!
2.2 Workplace description
The work area around the machine is at least 0.5 m on all sides; for
maintenance work it is at least 1 m; if used as passage way, it is at
least 1.2 m.

Cutting Centre SR 2 BiTurbo
10
Swivel range
knife protection box
Swivel range
knife protection box

Cutting Centre SR 2 BiTurbo
11
2.3 Connecting the machine
The machine is connected to a three-phase outlet (clockwise rotating
field), the specifications (voltage, amperage) must correspond to the
specifications on the type plate of the machine.
The machine must be shut down until a damaged power
supply line has been repaired!
Check the power supply line regularly!
Check the correct direction of the rotary field by starting
the machine. A message appears on the tablet PC if the
rotating field is wrong!
•In this case, an electrician has to change the rotating
field inside the mains plug.
•The power supply to the machine must be fuse-pro-
tected with 16 A and protected with an AC/DC sensi-
tive RCD (type B).
3Operating instructions
Please refer to the short instructions supplied with your machine for
the operation of your cutting centre.
Also follow the safety instructions in chapter 1.1!
Make sure that you are connected to the right machine
with your tablet PC!
In its respective life cycle phases (transport, commission-
ing, setup, operation, cleaning, decommissioning,
care/maintenance, dismantling/disposal) this machine is
designed for single person operation!
When using this machine, no other person may be present
near the machine. The exception (2-man operation):
•Transport of machine and machine parts

Cutting Centre SR 2 BiTurbo
12
•Commissioning
•Maintenance activities
The machine may not be commissioned without transport
belt!
The following is strictly prohibited and failure to comply
represents gross negligence:
•Lifting the lamellae of the protective guard on the
knife protection box during operation and reaching
into the cutting chamber!
•Operating the machine without lids on the front and
rear!
•Manipulating or deactivating the safety devices on
the machine!
Working on the machine without lids installed on the front
and rear is permitted only for a Rühle service technician
during maintenance phase!
The supervisor must be notified if hydraulic oil escaped
from the hydraulic cylinder is noticed in the funnel!
The operator must ensure that
•No persons who do not know the hazards of the ma-
chine or cannot anticipate them are present in the
area of the machine!
•When loading the lifting aid, the Euro boxes must be
stacked on an undercarriage suitable for this pur-
pose and moved with it onto the lifting aid to ensure
the Euro boxes are held securely!
•The upper box on the lifting aid is not lifted higher
than the worktable!
•The feather key is placed in the guide groove when
installing the transport belt!
The tablet PC may only be operated by touching it with
the fingers. Using any objects (e.g. blade) is prohibited!

Cutting Centre SR 2 BiTurbo
13
4Cleaning instructions
The cutting centre has been designed to allow for complete cleaning
of all parts that come into contact with the food product.
4.1 Safety instructions
•Also follow the safety instructions in chapter 1.1!
•The cleaning staff must notify the supervisor immediately of any
defects on the machine!
•The cleaning staff must notify the supervisor immediately of any
hydraulic oil leaks!
•The cleaning staff must use the specified cleaning agents and
disinfectants!
•Germ reduction is achieved only by correct cleaning and subse-
quent disinfection!
•Appropriate material (e.g. brushes, rags, ...) is required and must
be provided for the proper procedures of the above!
•Cleaning products and disinfectants approved for the food prod-
uct area and suitable against contamination (e.g. protein, lime-
scale, ...) must be used!
•The cleaning agents and disinfectants must be prepared to a so-
lution as described in the product data sheet of the manufac-
turer!
Personal protective equipment must be worn as described
in Chapter 1.1!
Cleaning with high-pressure cleaners
is permitted only for:
•all outside surfaces,
•inside of the knife protection box,
•(working) funnel,
•cutting chamber and
•conveyor belt.

Cutting Centre SR 2 BiTurbo
14
The tablet PC and its holder must be cleaned manually
and not exposed to any water jet!
All other parts and surfaces may be cleaned only with
normal water pressure!
4.2 Cleaning agents and disinfectants
Recommended cleaning agents and disinfectants:
Art.
No.
Product name
Description
pH
value
Working
concen-
tration
[%]
Exposure
times
[min]
Temper-
atures
[°C]
15207
FINK –Spül ASS
Alkaline foam
cleaner, mild
alkaline
1.0 –5.0
5 –15
20 –50
daily
19402
FINK –Superfett-
löser
Alkaline foam
cleaner
0.5 –5.0
5 –20
20 –50
10030
FINK –FC 30
Cleaning and disin-
fection, combined
1.0 –3.0
5 –15
20 –50
18556
FINK –FC Power-
foam A2
Alkaline foam
cleaner
1.5 –3.0
5 –20
20 - 50
13308
*)
FINK –Antisept G
Disinfectant for
spray application,
QAC
0.5 –3.0
5 –15
20 –40
13302
FINK –Antisept A
Alcohol-based disin-
fectant
neutral
100
5
RT
daily
13304
FINK –Antisept E
Alcohol-based disin-
fectant
100
5
RT
17107
FT 107 DES
Disinfection
2.0 –5.0
15 –30
20 –40
18803
FINK –Alu-Rei-
niger
Acid foam cleaner
acid
2.0 –5.0
5 –15
20 –50
Once in 2 weeks
17043
FT 43 SR
Acid foam cleaner
1.0 –5.0
5 –15
20 –50
18550
FINK –FC Power-
foam S1
Acid foam cleaner
1.0 –2.0
5 –20
20 –50
17310
Ökoron® 10
Disinfectant, acid
0.3 –1.0
20 –30
5 –70
17307
Ökoron® 7S
Disinfectant, acid
0.5 –2.0
1 –20
5 –60
17312
Ökoron® 12
Acid disinfection
0.5 –3.0
5
Cold
17313
Ökoron® 13
Acid disinfection,
foamable
0.1 –1.0
5
45

Cutting Centre SR 2 BiTurbo
15
17900
Ökoron® SR
Ecological cleaner
acid
1.0 –5.0
15 –20
20 –55
daily
*)
13308, FINK –
Antisept G
Because of customer-specific application prohibitions, QAC-containing prod-
ucts are sometimes not used since the IFS standard must be met. Possible
alternative products would be, for example, FT 107 DES.
Supplier:
FINK TEC GmbH, Oberster Kamp 23, 59069 Hamm, Germany
Tel. [phone] / [email protected] / www.finktec.com
4.3 Cleaning procedure
Please refer to the short instructions supplied with your machine for
carrying out the cleaning procedure.
The transport belt may only be dismantled after the cut-off
knife was removed from the machine!
Cleaning preparations:
•To ensure optimum cleaning, some components of the machine
must be removed.
•On the tablet PC first start the “Cleaning mode” program to move
the die plate to the cleaning position.
•Remove any objects lying on the machine.
•Remove the undercarriage with the Euro boxes from the lifting
aid and from beneath the cut meat discharge.
•Remove the slider (funnel closure).
•Remove the die plate.
•Open the knife protection box.
•Unscrew the handle nut.
•Remove the cut-off knife and the grate frame with the knife lev-
els.
•Remove the transport belt. Proceed as follows:
oOpen the quick-action tape clamp by jerking it upward and
then fold it onto the belt frame.
oReach with one hand under the belt to the feather key. Lift
it from the guide groove and remove the transport belt.
oRemove the upper belt section.

Cutting Centre SR 2 BiTurbo
16
5Service: care, maintenance, repair
Any work related to any kind of service may be carried out only by
Rühle service technicians and by persons authorised by Rühle in writ-
ing. In this regard, a distinction is made between regular care and
maintenance and repair. The respective qualification certificate must
be issued explicitly for the corresponding task.
Also follow the safety instructions in chapter 1.1!
Notify and obtain permission from Rühle customer service
if welding or cutting work is required on the machine!
Wear cut protection gloves when working on the blades!
Reaching into the inside of the machine by opening the
side covers is strictly prohibited when performing work
activities of “Regular Care”!
When working on the electrical equipment of the machine,
ensure that
•this is only done by qualified personnel!
•the machine is always disconnected from the power
supply!
•a waiting time of at least 10 minutes is observed af-
ter switching off the machine to allow the capacitors
of the frequency and servo converters to discharge
to a harmless voltage level!
When working on the hydraulic system of the machine,
ensure that
•this is only done by qualified personnel!
•it is always disconnected from the mains!
•it is depressurised!
•the system must be vented after changing the oil or
individual components!

Cutting Centre SR 2 BiTurbo
17
Use of lubricants –Others
•Synthetic high-performance lubricant TEROSON VR 500 / PLASTI-
LUBE, based on super-refined mineral oils, free from metallic
soaps or fatty acids
Protective equipment:
Protective gloves (EN 374), eye protection (EN 166),
breathing mask (EN 14387), protective clothing (EN 14605)
➢Lifting aid chain (inside)
[The information on the proposed personal protective equipment has
only an advisory function. A full risk assessment should be carried out
before using the product to assess whether the indicated personal pro-
tective equipment is suitable for local conditions. Personal protective
equipment should conform to the relevant EU standards.]
5.1 Regular care
Regular care of the machine must be carried out at least once per
week. This prevents malfunctions and signs of wear.
Any abnormalities detected during regular care must be reported to
the supervisor! The supervisor must immediately initiate correction or
maintenance or notify Rühle Service!
Care schedule:
a) Disassemble the machine according to the cleaning instruc-
tions. Check for any parts moving with difficulty, material
abrasion or other signs of wear and tear.
b) Remove the cut-off knives with the knife sharpener and
check them for any damage or broken blades.
c) Sharpen the grate knives in the knife levels with the knife
sharpener and check them for any damage or broken blades.
Grate knives must be resharpened at least every 50 work-
ing hours on a slip-resistant underlay using only little
pressure and a Rühle knife sharpener!

Cutting Centre SR 2 BiTurbo
18
d) Check the slider (funnel closure) and its guide pins for dam-
ages and abrasion; remove sharp edges!
e) Check the guide rails of the slider (funnel closure) in the ma-
chine and the grate frame; remove sharp edges!
f) Check the rollers of the eccentric shafts (drive shaft for the
knife level) and of all grate frames:
a. For easy running and axial play!
b. For abrasion (plane surfaces)!
Replace defective rollers!
In case of abrasion, check the corresponding sliding sur-
face on all knife levels for damages!
Replace defective knife levels!
g) Visually check for changes or damages on all machine sides
and accessible machine parts, e.g. the knife levels. The ma-
chine must be shut down in the event of any damage or
changes!
h) Visual inspection for hydraulic oil loss under the machine.
5.2 Regular maintenance
Regular maintenance of the machine must be carried out every 2000
hours of operation but at least once per year.
Maintenance schedule:
a) Inspect the safety devices as described in chapter 1.1 “Safety
instructions”!
b) Carry out a test run with open machine (caution: moving
parts)!
c) All inspection activities and resharpening tasks specified un-
der “Regular Care”!
d) Change the oil of the hydraulic system! For filling, see 7.1
Technical data.
e) Leak test of the hydraulic system!
f) Check hydraulic hoses for damages or cracks! Defective hy-
draulic hoses must be replaced!

Cutting Centre SR 2 BiTurbo
19
Hydraulic hoses must always be replaced at an interval of
2 years (for increased loads and usage*) or 6 years (for
normal loads and usage)! See embossed date.
This represents a measure for the Preservation of safe
condition according to para. 10 (1) Operational Safety
(German BetrSichV).
No hazardous situation may arise from extending the
changing intervals which may cause injuries to employees
or other persons!
*Increased load and usage, e.g. through multiple shift operation or short
cycle times of the machine or pressure pulses.
g) Check the distance between cut-off knife and grate frame;
adjust if necessary!
h) Grease all moving parts in the machine compartment! (Chain
and sprockets on the lifting aid drive)
i) Read operating hours and error log on the tablet PC and ex-
amine any faults that have occurred!
j) Read the error memory (frequency and servo converter)!
5.3 Repairs and spare parts
As a damaged part on a machine is usually damaged due to causes
unrelated to the part, always carry out a fault diagnosis.
Contact our Service Hotline at [phone] for spare parts or
malfunctions. Please keep the machine type and number to hand.
6Disposal
All materials and operating fuels must be separated and
disposed of in accordance with nationally applicable regu-
lations!
1. The following components contain oil:
•Hydraulic system (unit, cylinder, hoses)
•Grate drives 1 and 2
•Cutter drive

Cutting Centre SR 2 BiTurbo
20
•Lifting aid drive
•Conveyor belt drive
All gear units/motors are equipped with oil drain plugs.
Exception: The gearbox must be opened for the conveyor belt
drive!
2. The following components have lubricating grease:
•Lifting aid drive (chain, sprockets)
7Technical documentation
7.1 Technical data
Supply voltage: 400 V 50 Hz 3-phase AC / N / PE
Power consumption: 5.3 kW
Full-load current: 13.2 A
Back-up fuse max.: 16 A
Protection class: IP54
Protection class: 1
Ambient temperature: +2 °C to + 40 °C
Cut product temperature: -5 °C to + 80 °C
Dimensions, W x H x D: 1544 x 1507 x 1021 mm
Work space, W x H x D: 1544 x 1756 x 2176 mm
Funnel size: 120 x 120 x 500 mm
Cut-off length: 1 –30 mm
Cutting speed: 180 sections/min. (pulsating)
320 sections/min. (continuous)
Cutting output max.: 3000 kg/h
Size of knife level to
grate frame 5x: 5, 10, 15, 20, 30, 40, 60 mm
grate frame 6x: 6, 12, 24, 30, 60 mm
grate frame 8x: 8, 24, 40 mm
Approved Euro boxes: E1, E2, E3
Machine weight: 695 kg
Transport weight: 740 kg
Lifting aid, load capacity: 120 kg
